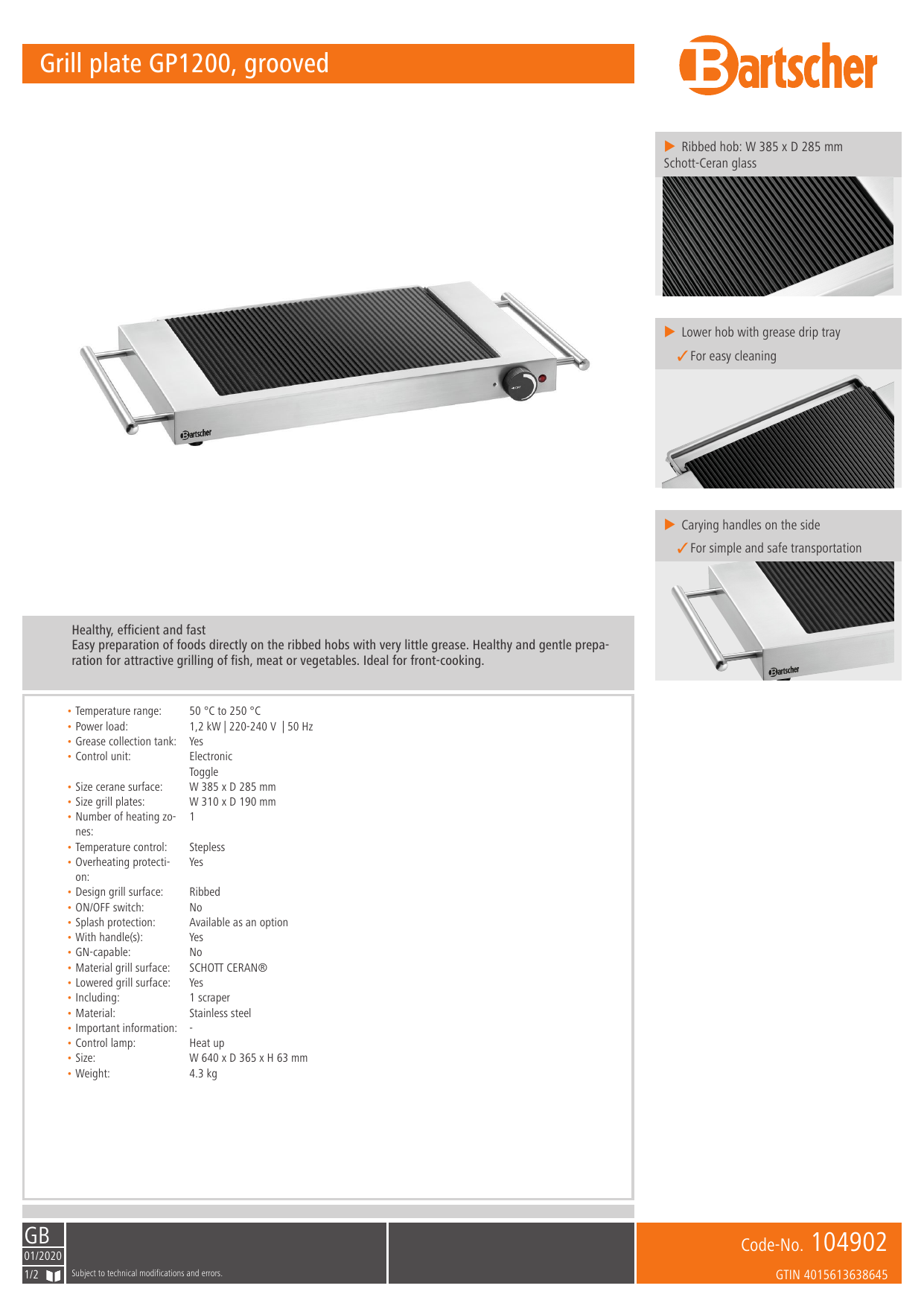

Grill plate GP1200, grooved

� Ribbed hob: W 385 x D 285 mm Schott-Ceran glass � Lower hob with grease drip tray ✓ For easy cleaning Healthy, efficient and fast Easy preparation of foods directly on the ribbed hobs with very little grease. Healthy and gentle prepa­ ration for attractive grilling of fish, meat or vegetables. Ideal for front-cooking.

• Temperature range: • Power load: • Grease collection tank: • Control unit: • Size cerane surface: • Size grill plates: • Number of heating zo­ nes: • Temperature control: 50 °C to 250 °C 1,2 kW | 220-240 V | 50 Hz Yes Electronic Toggle W 385 x D 285 mm W 310 x D 190 mm 1 • Overheating protecti­ on: • • ON/OFF switch: • Splash protection: • Design grill surface: With handle(s): • GN-capable: • Material grill surface: • Lowered grill surface: • Including: • Material: Stepless Yes Ribbed No Available as an option Yes No SCHOTT CERAN® Yes 1 scraper Stainless steel • Important information: • Control lamp: Heat up • Size: • Weight: W 640 x D 365 x H 63 mm 4.3 kg � Carying handles on the side ✓ For simple and safe transportation GB 01/2020 1/2 Subject to technical modifications and errors.

Code-No.

104902 GTIN 4015613638645

Grill plate GP1200, grooved

Power cleaner F1L, set of 2 Add on Products Intensive power cleaner F1L, set of 2

• Designed for: • Content: • Model: • Ph level: • HACCP compliant: • Chlorine-free: • Phosphate-free: Stubborn dirt, especially in kitchens Grill and combi steamer cleaning (without cleaning system) 2 x 1 litre Liquid High concentrate 13,5 Yes Yes Yes Code-No.

173078 GTIN 4015613731926 • Order quantity unit: • Content: • Ph level: • HACCP compliant: • Chlorine-free: • Phosphate-free: • Application: 1 box (2 bottles) 2 x 1 litre 14 Yes Yes Yes Spray product undiluted and leave for about 10 to 30 minutes depending in the level of soi­ ling In the case of heavy soiling, heat the appliance to approx. 50°C (without steam) Code-No.

173080 GTIN 4015613731933 GB 01/2020 2/2 Subject to technical modifications and errors.
