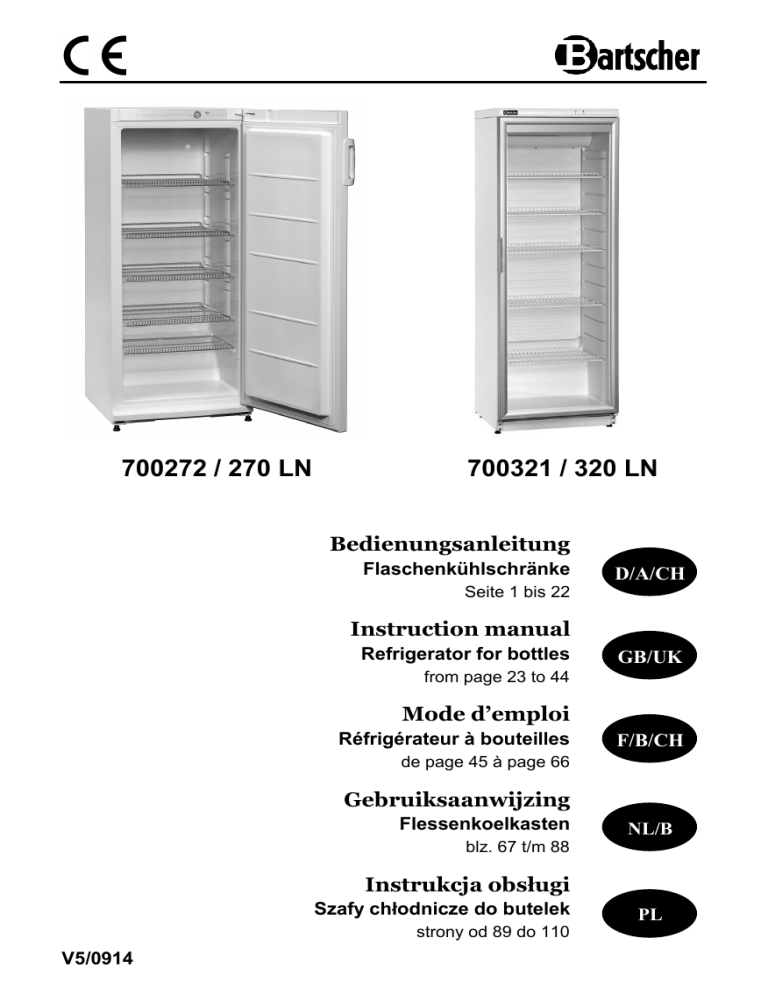

Bartscher 700272 Bottle Cooler, 267L Operating instructions

700272 / 270 LN
700321 / 320 LN
Bedienungsanleitung
Flaschenkühlschränke
D/A/CH
Seite 1 bis 22
Instruction manual
Refrigerator for bottles
GB/UK
from page 23 to 44
Mode d’emploi
Réfrigérateur à bouteilles
F/B/CH
de page 45 à page 66
Gebruiksaanwijzing
Flessenkoelkasten
NL/B
blz. 67 t/m 88
Instrukcja obsługi
Szafy chłodnicze do butelek
strony od 89 do 110
V5/0914
PL
GB/UK
ENGLISH
Translation
of the original instruction manual
Read these instructions before using and keep
them available at all times!
1. General information ................................................................................................ 24
1.1 Information about the instruction manual ............................................................ 24
1.2 Key to symbols .................................................................................................... 24
1.3 Liability and Warrantees ...................................................................................... 25
1.4 Copyright protection ............................................................................................ 25
1.5 Declaration of conformity..................................................................................... 25
2.Safety ........................................................................................................................ 26
2.1 General information ............................................................................................. 26
2.2 Safety instructions for use of the device .............................................................. 26
2.3 Intended use ....................................................................................................... 27
3. Transport, packaging and storage......................................................................... 28
3.1 Delivery check ..................................................................................................... 28
3.2 Packaging ........................................................................................................... 28
3.3 Storage................................................................................................................ 28
4. Technical data ......................................................................................................... 29
4.1 Overview of parts ................................................................................................ 29
4.2 Technical specification ........................................................................................ 31
5. Installation and operation....................................................................................... 32
5.1 Safety instructions ............................................................................................... 32
5.2 Installation and connection .................................................................................. 33
5.3 Operation ............................................................................................................ 38
6. Cleaning and maintenance ..................................................................................... 40
6.1 Safety advice ....................................................................................................... 40
6.2 Cleaning .............................................................................................................. 40
6.3 Safety instructions for maintenance .................................................................... 41
7. Possible Malfunctions ............................................................................................ 42
8. Waste disposal ........................................................................................................ 44
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
phone: +49 (0) 5258 971-0
fax:
+49 (0) 5258 971-120
- 23 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
DANGER! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.
- 24 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
NOTE!
Read this manual carefully and thoroughly before any operation of the device,
and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-
violation of advice concerning operation and cleaning;
use other than designed;
alterations made by user;
use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and
improving the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.
- 25 -
2.Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the time
in question for the entire period of use of the device and to comply with the new
specifications.
Outside the European Union, the industrial safety laws applicable at the place of
installation of the device and the regional territorial provisions must be complied with.
Besides the industrial safety instructions in the instruction manual, the general safety and
accident prevention regulations as well as environment protection regulations applicable
for area of application of the device must be followed and complied with.
CAUTION!
o The device can be used by children 8 years and up, as well as by people with
disabilities and those with limited experience/knowledge as long as they are under
supervision or have been instructed on proper use of the device and its possible
dangers.
- 26 -
o Children should not play with the device.
o Cleaning and maintenance cannot be performed by children younger than 8 years
old and must be done under supervision.
o Children under the age of 8 years old must be kept away from the device and its
power cord.
o Please keep these instructions and give them to future owners of the device.
o All people using the device should follow the instructions and tips contained in these
instructions.
o Only use the device indoors.
2.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made
by a qualified customer service only.
The device is intended for home use or in similar places such as:
- in kitchens for store or office employees or in other service locations;
- in suburban properties;
- by guests of hotels, motels and other places of accommodation;
- in Bed & Breakfasts.
The refrigerator for bottles is designed for cooling and storage of the food products
and beverages only.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use are
impossible.
The operator is liable for all damages resulting from inappropriate use.
- 27 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in your
country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-
- 28 -
Do not store outdoors.
Keep it dry and dust-free.
Do not expose it to aggressive media.
Do not expose it to direct sunlight.
Avoid mechanical shocks and vibration.
In case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly.
If required refresh or renew.
4. Technical data
4.1 Overview of parts
Refrigerator for bottles 700272 / 270 LN
10
9
8
fig. 1
1 - Temperature control
2 - Light switch
3 - Adjustable-height shelves
4 - Permanent shelves
5 - Condenser
6 - Condensate tray
7 - Compressor
8 - Door
9 - Drainage system cleaning element
10 - Drainage system
- 29 -
Refrigerator for bottles 700321 / 320 LN
1-6
11
7
10
12
13
9
8
fig. 2
1 – 6 - Upper portion of unit with
instrument panel
7 - Adjustable-height shelves (5)
8 - Drainage system
9 - Drainage system cleaning element
10 - Glass door with aluminium frame
11 - Condenser
12 - Condensate tray
13 - Compressor
Instrument panel
1 – light switch
2 – temperature control
3 – temperature indicator
4 – green light
5 – LED light
6 - fan
fig. 3
- 30 -
1 - Switch
The internal light in the device is switched on (position „I“) and off (position „O“)
with use of switch 1.
2 – Temperature control
In position „0“ (OFF) of the temperature control only the compressor is switched off.
Rotating the temperature control clockwise decreases temperature in the
refrigeration chamber.
3 – Temperature control indicator
4 – Mains supply light (green)
The illuminating green light indicates that the refrigerator is connected to the electric
network. The fan is switched on and operates continuously.
4.2 Technical specification
Name
Art. no./model:
Realization:
Refrigerator for bottles
700272 / 270 LN
700321 / 320 LN
white interior and housing,
possibility of closing direction change
solid door
Cooling medium
glass door
with aluminium frame
R600a
Energy class:
A+
-
Operating
temperature:
0 °C to 8 °C
0 °C to 10 °C
Net volume:
267 litres
320 litres
0.12 kW / 230 V
0.23 kW / 230 V
W 600 x D 620 x H 1,450 mm
W 600 x D 600 x H 1,730 mm
52.0 kg
67.0 kg
Power supply:
Dimensions:
Weight:
5 shelves,
incl. 4 adjustable-height
shelves
We reserve the right to make technical changes!
Equipment:
5 adjustable-height shelves
- 31 -
5. Installation and operation
5.1 Safety instructions
•
Never allow the power cable to come into contact with heat sources or sharp edges.
The power cable should not hang over the side of the working surface. Ensure that no
one can step on or trip over the cable.
•
The power cable must not be folded, bent or tangled, and must always remain fully
unrolled.
•
Never place the device or other objects on the power cable.
•
Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep
away the cable from operating range and do not dunk it into water.
•
Do not use the device in case it does not function properly, has been damaged or
dropped.
•
Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the
device or personal injury, and further, the warranty expires.
•
Do not store heavy, poisonous or corrosive materials or objects inside the device.
•
Do not place any electric devices on the refrigerator, like microwave ovens, hair dryers,
irons, kettles, etc. There is a risk of combustion of plastic elements.
•
Do not drill holes in the device and do not mount any objects on it.
•
Attention! During transport, protect the device from atmospheric conditions (rain,
snow, humidity).
•
Do not allow any element of the cooling system (e.g. compressor) to be damaged, as
this may lead to leakage of the coolant.
WARNING!
In the event of coolant leakage, disconnect the device from its power source by
removing the plug from its socket and contact a service centre.
- 32 -
5.2 Installation and connection
Preparation of the device
NOTE!
Two people are needed to set up the device!
•
Remove the package material from the device.
•
Remove the device from the styrofoam base. Remove the adhesive tapes.
Caution! The refrigerator is equipped with the screwed door handle.
In order to avoid breaking of the handle do not use it for lifting and moving the
device.
•
During installation lift the front side of the device slightly which facilitates its moving
to the destination place due to castors.
•
Open the refrigerator door. Remove the sealing elements above the refrigerator door.
NOTE: When the refrigerator door is opened, the small red element falls
out, which is used only for the transport purposes.
•
Remove red adhesive tapes used
only for the transport purposes.
•
Place the bumpers (1) in the guides (2)
of the upper part of the back wall (fig. 4).
fig. 4
•
Remove red elements from the shelves
(fig. 5) used only for the transport
purposes.
•
Remove all package material.
The package material should be removed
in the environment-friendly way.
fig. 5
- 33 -
Setup
•
Place the device in a dry area with good ventilation.
•
Never place the device on a flammable surface.
•
Do not place the device near an open flame, electric oven or other source of heat,
as well as in direct sunlight. Heat may damage the device’s surface and lead to
reduced efficiency.
•
To avoid damage to the compressor, during transport and setup do not tilt the
refrigerator further than 45°. Be careful in handli ng the condenser and door of the
device as damage to either element will result in problems using the device.
CAUTION!
Do not place nor use the refrigerator in unheated spaces nor on a balcony!
•
Do not place the refrigerator in areas with high humidity, as this may damage the
device and reduce its cooling output.
•
Do not cover or clog the ventilation openings at the top of the device.
Ensure free air circulation.
fig. 6
•
Maintain a minimum of 10 cm
between the top of the device and
objects located above it (e.g. cupboards). Failure to do so may result
in increased energy use or overheating of the compressor (fig. 6).
•
When the device is placed in the
corner, leave at least 60 mm of the
side space (fig. 7).
•
Place the device on the even surface
so it does not touch the wall.
600(620)
1450 (1730)
•
fig. 7
When required,adjust height by rotating the device feet. Rotating them clockwise lifts
the front side of the device, and rotating counterclockwise lowers it. When the
refrigerator is installed with a slight tilt backwards, the door close automatically.
- 34 -
Connecting the device
DANGER! Electrical hazard!
Improper connection of the device to a power source may lead to injury from
electric shock!
Before installing, compare the local network’s parameters with the rating
plate on the device. Only connect the device to a power source when it is
compliant with all parameters.
The device must only be connected to a properly installed single socket with
protective contact.
Never remove the power cable by pulling the cable itself; always grab the plug
housing.
•
Attention! If the device is tilted further than 30°, wait a mi nimum of 4 hours before
connecting it to a power source. Failure to wait may lead to damage to the compressor.
•
After switching the device off (for cleaning, repair, relocation, etc.) it must be switched
on only after at least 15 minutes.
•
The socket and circuit must be secured to a minimum of 16A. Only connect the
device to a wall socket, do not use power strips or splitters.
•
Locate the device so that the plug is easily accessible in case it is necessary to
quickly disconnect the device from its power source.
Changing the door closing direction
•
When required, the refrigerator door may be switched from right to left side.
Note: In case of key-locked door it is not possible to change the closing direction.
•
It is recommended to use help of another person during changing the door closing
direction. Required tools: wrench for bolts 8 and 10, Phillips screwdriver.
CAUTION!
Before changing the door closing direction switch the device off by removing
the plug from the socket.
CAUTION!
During changing the door closing direction do not place the refrigerator in the
horizontal position.
- 35 -
Refrigerator for bottles 700272 (fig. 8)
fig. 8
1. Remove the plugs (c) from the housing and door side, remove the upper bracket (6)
with the washers and plastic seal under the handle.
2. Remove the refrigerator door.
3. Remove the lower masking strip (1).
4. Unscrew the supporting pin (2) from the lower bracket (7). Screw it with all washers
to the opposite bracket (7), symmetrically to the previous position (fig. 8).
5. Fix the door on the supporting pin (2) of the bracket (7).
6. Rotate the bracket (6) with the supporting pin, placed washers and plastic seal by
180°. Unscrew the supporting pin with the washers a nd screw it on the opposite side
of the bracket. Place the bracket (6) in the refrigerator door and screw them to the
holes on the opposite side of the refrigerator.
7. Mask the bracket and free hole with use of plugs (c).
- 36 -
8. Remove the plugs for the screws (a) and the door handle (b). Unscrew the door
handle screws. Fix the door handle on the opposite side. Use the plugs to mask the
other holes in the door and screws.
9. Remove the plug (10) of the lower cover (1) and place it in the guides on the other
side of the lower cover (1) (symmetrically to the previous position). Fix the left and
right foot of the lower cover (1) in the holes (fig. 8) and slide the cover until it catches.
Refrigerator for bottles 700321 / 320 LN (fig. 9)
1. Unscrew two bolts (7) and remove the
lower hinge bracket (8) with the washers
(6) on the axis and spacer (5).
2. Unscrew bolts (7) and remove the hinge
bracket (11). Remove the door (4).
3. Unscrew the fixing pin (2) with the nut (1)
and washers (3) from the upper hinge
bracket and install the whole assembly
on the opposite side of the door.
4. First rotate the door (4) by 180°, then
insert the upper fixing pin (2) into the
door (4) and hang the door (4).
5. Unscrew the fixing screws (12) from the
door and remove the handle (13).
Fix the handle (13) on the opposite side.
Use the plugs to mask the screw holes.
6. The plate (10) remains in its place.
fig. 9
7. First insert the fixing pin (2) into the door, then install the lower hinge bracket (8)
with washers and sealing set on the opposite side of refrigerator.
8. Fix the hinge bracket (11) on the opposite side.
- 37 -
5.3 Operation
Before use
•
Before the device operation clean it according to the instructions in section
6.2 „Cleaning“.
•
Before placing the food or beverages in the device it should first obtain the required
temperature. It takes place approximately after 2 – 3 hours.
•
Connect the device to the single grounded socket. Set the required temperature.
Adjustment of temperature in the refrigerator for bottles 700272 (fig. 1)
Temperature in the refrigerator is adjusted with use of temperature control (1) (fig. 1).
Temperature may be adjusted in range 0 – 7.
0 = compressor switched off.
Caution! The device is not connected to mains yet!
1 – the highest temperature (the weakest cooling)
7 – the lowest temperature (the strongest cooling)
NOTE!
When the products placed in the refrigerator are too cold, set the temperature
control to position 1, 2, or 3. When they are too warm, set the temperature
control to position 4, 5, 6, or 7.
Adjustment of temperature in the refrigerator for bottles 700321 (fig. 3)
After switching the device on the green lamp illuminates.
Temperature in the refrigerator is adjusted with use of temperature control 2 inside
the device (fig. 3). When the door is closed, the preset temperature may be read on
the display 3.
Temperature may be adjusted in range 0 – 5.
0 = compressor switched off.
Caution! The device is not connected to mains yet!
1 – the highest temperature (the weakest cooling)
5 – the lowest temperature (the strongest cooling)
- 38 -
NOTE!
When the products placed in the refrigerator are too cold, set the temperature
control to position 1 – 3. When they are too warm, set the temperature control
to position 3 – 5.
CAUTION!
Temperature in the refrigerator may vary depending on the environment
temperature, amount and temperature of food products, and frequency of the door
opening.
When the environment temperature is low, the device cools weaker, therefore temperature
inside may rise. It is then required to decrease temperature with use of control.
Tips for the user
•
When placing items inside, ensure that air can circulate freely inside the device.
•
The more items in the refrigerator and the longer the door is kept open, the greater
the energy use.
•
To reduce loss of cold, keep the door open for just a short time. Moreover do not
open the door too often.
•
Products stored inside should be cooled in advance to the required temperature.
•
Placing warm products into the refrigerator can negatively impact the device’s
functioning and products already cooled. In order to avoid the losses of cooled air
in the refrigerator avoid storing of food products in non-cooled rooms.
•
Do not store bananas in the refrigerators as they are sensitive to cold.
•
The food products of specific aroma, like fresh fish, foie gras, or cheese, should
be stored in tight containers.
•
In the event of a power failure, avoid opening door if possible in order to avoid
cold loss.
•
The refrigerator should not be left without power for longer than 10 minutes.
•
After a power outage or disconnecting the refrigerator, do not connect the device
to a power supply for at least 5 minutes.
•
When the device is to be switched off for a longer time, leave the door opened.
- 39 -
Noise information
•
Sound emitted by the device during work are normal and do not indicate the
malfunction.
•
Gurgling and humming are the sounds of the cooling medium circulating in the
cooling circuit of the device.
•
Shorter and louder noise may be heard when the compressor is switched on.
6. Cleaning and maintenance
6.1 Safety advice
o Before beginning with repair or cleaning works make sure the device has been
disconnected from power supply.
o Do not use any acid agents and make sure no water ingresses the device.
o To protect yourself from electric shock, never immerse the device, its cables and
the plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets.
Therefore, you must not use any kind of pressure water jet for cleaning the device!
6.2 Cleaning
o Clean the device regularly.
o Protect the interior surface of the device and all plastic elements from grease, acids
and sauces. If they get dirtied, immediately wash the affected areas with warm water
and a mild cleaning agent.
o Use warm water with a mild cleaning agent to wash the interior and exterior
surface of the device. After washing, rinse with clean water. Never use hot water
to wash the device!
o Thoroughly wipe dry all washed surfaces.
o Regularly wash and wipe dry the door seal.
o Use the special cleaning element (fig. 10) for
periodical cleaning of the condensate drain hole.
fig. 10
- 40 -
o At least once a year the dust gathered at the rear
of the refrigerator and on the compressor.
o A dirty compressor will negatively impact the device’s
functioning and increase energy use! Attention!
Never wash the compressor with water!
o Use a soft, dry brush, electrostatic cloth or hoover
for cleaning (fig. 11).
fig. 11
o Never use aggressive cleaning materials such as scouring powder, alkaline
substances or substances containing alcohol, solvents or petrol, which may
damage plastic elements and paint.
o Do not use scouring brushes or sponges with a scratchy surface.
Defrosting the refrigerator
The unit is automatically protected from icing. During breaks in the compressor
operation the ice on the internal back wall melt and the condensate flows through
the system to the compressor, where it is steamed off.
6.3 Safety instructions for maintenance
o Inspect the power cable regularly for damage. Never use the device if the cable
is damaged. If the power cable is damaged, have an authorised service center
or qualified electrician replace it.
o In case of damage or malfunction, please contact your stockist or our customer
service centre. Pay attention to the troubleshooting tips in pt. 7.
o Only a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
- 41 -
7. Possible Malfunctions
Problem
The device is
connected to the
power supply but
is not working
Insufficient
cooling efficiency
Noise emitted by
the device
increases
- 42 -
Cause
Solution
• The plug is incorrectly
connected to the socket.
• Damaged fuse
• Power supply failure
• Connect the plug correctly
• Check the power supply
• Check the power supply
• Direct sunlight or heat
sources in the vicinity of the
device
• Poor air circulation around
the device
• Move the device from
the heat sources
• The door is not closed completely or opened too long
• Damaged or deformed
door seal
• Too little distances
between the stored
bottles or too many
bottles in the refrigerator
• Incorrect temperature
control setting
• The refrigerator is not
placed on the even surface
• The refrigerator touches
walls or other objects
• Assure sufficient distances
to the walls / other objects
• Close the door, minimize
the opening time
• Contact a sales agent
• Maintain sufficient
distances between the
bottles, remove excess
of bottles
• Set the temperature
control correctly
• Place the refrigerator
on the even surface
• Assure sufficient distances
to the walls / other objects
• Assure sufficient distances
between the bottles
• The bottles in the refrigerator
contact each other
Problem
Cause
Solution
Water is collected
in the drain channel
and is not removed
correctly
• Clogged hole in the
condensate drain channel
• Clean the drain hole
The door seal
sticks during
opening
• The door seal is contaminated with the sticki food
product (grease, syrup, etc.)
• Wash the seal with water
and gentle cleaning agent
and thoroughly dry
Water under the
refrigerator
• The condensate tray fell
from the compressor
• Place the condensate
tray on the compressor
• The environment air
humidity exceeds 70%
• Ventilate the room where
the refrigerator is installed
and remove the reason of
excessive humidity
The surface of the
refrigerator is
steamed
The malfunctions listed in the table above are only for reference purposes and
should be considered examples. If the aforementioned or other problems occur,
immediately turn the device off and stop using it. If the malfunction cannot be fixed,
contact a service centre or sales agent.
- 43 -
8. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for
use before disposal. For that purpose disconnect device from mains supply and
remove mains connection cable from the device.
NOTE!
For the disposal of the device please consider
and act according to the national and local
rules and regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
- 44 -
phone: +49 (0) 5258 971-0
fax:
+49 (0) 5258 971-120

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
