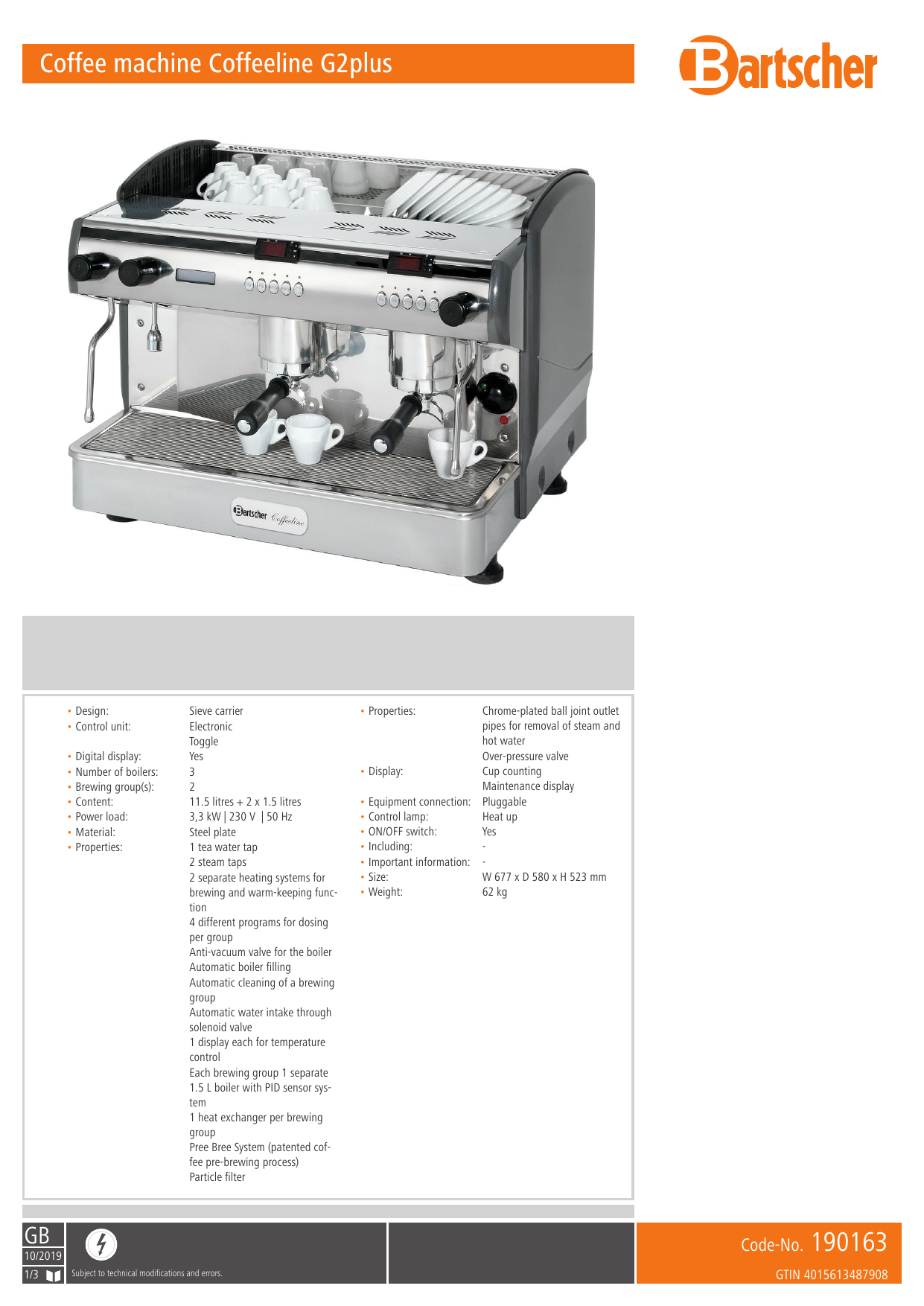

Coffee machine Coffeeline G2plus • Design: • Control unit: • Digital display: • Number of boilers: • Brewing group(s): • Content: • Power load: • Material: • Properties: Sieve carrier Electronic Toggle Yes 3 2 11.5 litres + 2 x 1.5 litres 3,3 kW | 230 V | 50 Hz Steel plate 1 tea water tap 2 steam taps 2 separate heating systems for brewing and warm-keeping func­ tion 4 different programs for dosing per group Anti-vacuum valve for the boiler Automatic boiler filling Automatic cleaning of a brewing group Automatic water intake through solenoid valve 1 display each for temperature control Each brewing group 1 separate 1.5 L boiler with PID sensor sys­ tem 1 heat exchanger per brewing group Pree Bree System (patented cof­ fee pre-brewing process) Particle filter • • Properties: Display: Chrome-plated ball joint outlet pipes for removal of steam and hot water Over-pressure valve Cup counting Maintenance display • Equipment connection: Pluggable • Control lamp: • ON/OFF switch: • Including: Heat up Yes • Important information: • Size: W 677 x D 580 x H 523 mm • Weight: 62 kg GB 10/2019 1/3 Subject to technical modifications and errors.

Code-No.

190163 GTIN 4015613487908

Coffee machine Coffeeline G2plus

Tamper aluminium Add on Products Water filter system K1600 EW

• Diameter: • Material: • Important information: • Size: • Weight: 57 mm Aluminium W 57 x D 57 x H 92 mm 0.22 kg

Water filter f. filter holder set

Code-No.

190179 GTIN 4015613656380 • Water connection: • Water pressure: • Output capacity: • Designed for: • Water intake temperature from: • Water intake temperature to: • Including: • Material: • Important information: • Design: 1/2" 1.5 - 6 bar 1,600 litres / at 10° KH (carbonate hardness) Coffee machines 5 °C 30 °C Plastic Disposable system For horizontal and vertical installation Code-No.

109881 GTIN 4015613630731

Water meter for water filter 109856

• Water connection: • Water pressure: • Colour: • Output capacity: • Designed for: • Water intake temperature from: • Water intake temperature to: • Including: • Material: • Important information: • Design: 3/8" 2 - 8 bar White 1,500 litres / at 10° KH (carbonate hardness) Coffee machines 4 °C 30 °C 1 filter candle Polypropylene Returnable system Code-No.

109856 GTIN 4015613501130 • Important information: • Size: • Weight: W 45 x D 90 x H 50 mm 0.16 kg Code-No.

109861 GTIN 4015613501154 GB 10/2019 2/3 Subject to technical modifications and errors.

Coffee machine Coffeeline G2plus

Milk frother, Capuccinatore Add on Products Coffee grounds drawer, small

• Properties: • Material: • Important information: • Size: • Weight: Air supply is set with a rotating valve Plastic W 36 x D 36 x H 131 mm 0.13 kg Code-No.

190173 GTIN 4015613541143 • Content coffee grounds: • Material: • Properties: • Important information: • Size: • Weight: Approx. 80 portions Stainless steel Can be expanded flexibly Very easy to mount W 290 x D 515 x H 105 mm 6 kg Code-No.

190171 GTIN 4015613494203

Coffee grounds drawer, large

• Content coffee grounds: • Material: • Properties: • Important information: • Size: • Weight: Approx. 140 portions Stainless steel Can be expanded flexibly Very easy to mount W 410 x D 515 x H 105 mm 6.95 kg Code-No.

190170 GTIN 4015613494197 • Water connection: • Water pressure: • Colour: • Output capacity: • Designed for: • Water intake temperature from: • Water intake temperature to: • Design: • Including: • Material: 3/8" 2 - 8 bar White 1,500 litres / at 10° KH (carbonate hardness) Coffee machines 4 °C 30 °C Disposable system For horizontal and vertical installation 1 filter candle Polypropylene Code-No.

109879 GTIN 4015613710891 GB 10/2019 3/3 Subject to technical modifications and errors.
