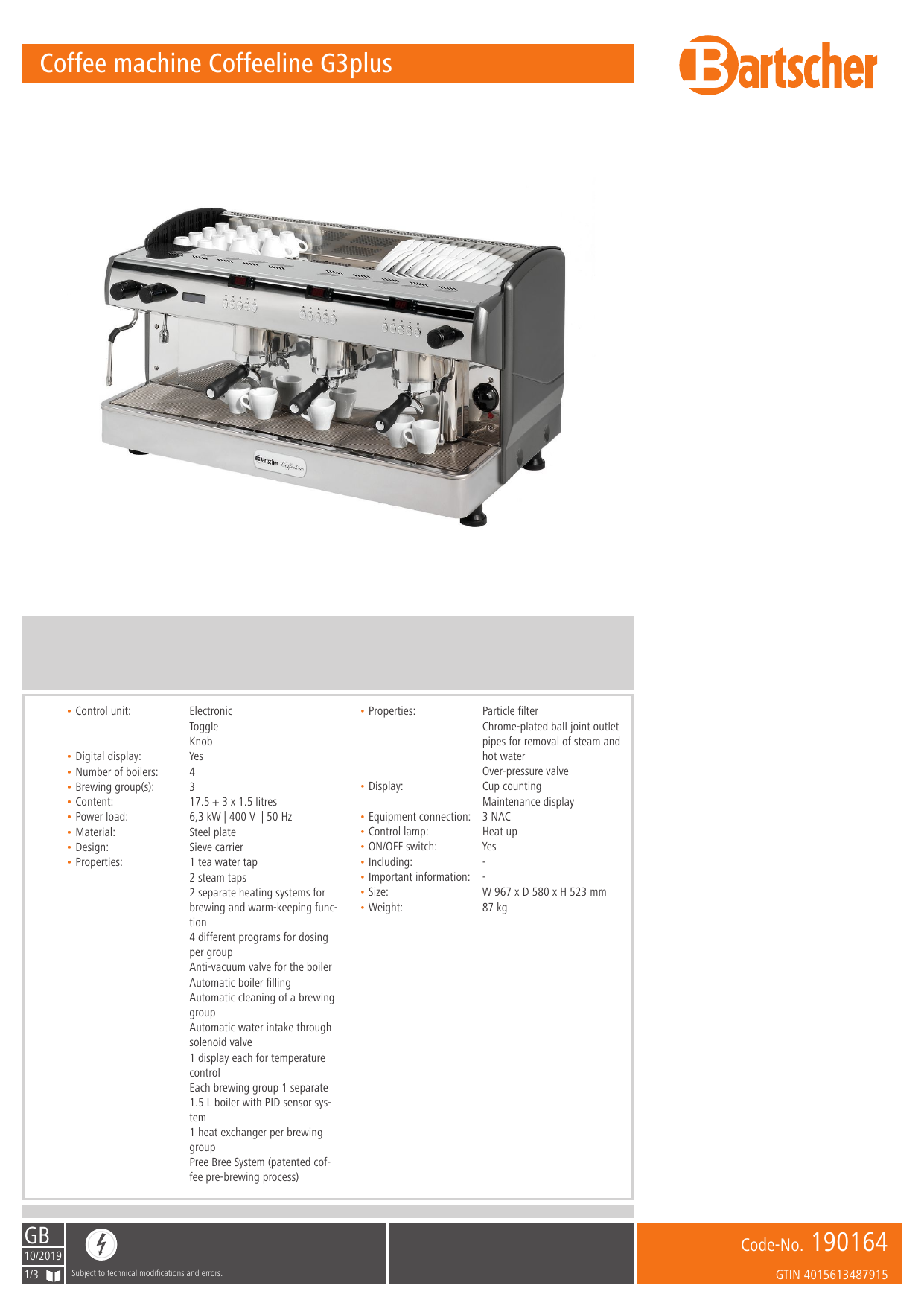

Bartscher 190164 Coffee machine Coffeeline G3plus Data sheet

Coffee machine Coffeeline G3plus
• Control unit:
• Digital display:
• Number of boilers:
• Brewing group(s):
• Content:
• Power load:
• Material:
• Design:
• Properties:
Electronic
Toggle
Knob
Yes
4
3
17.5 + 3 x 1.5 litres
6,3 kW | 400 V | 50 Hz
Steel plate
Sieve carrier
1 tea water tap
2 steam taps
2 separate heating systems for
brewing and warm-keeping func­
tion
4 different programs for dosing
per group
Anti-vacuum valve for the boiler
Automatic boiler filling
Automatic cleaning of a brewing
group
Automatic water intake through
solenoid valve
1 display each for temperature
control
Each brewing group 1 separate
1.5 L boiler with PID sensor sys­
tem
1 heat exchanger per brewing
group
Pree Bree System (patented cof­
fee pre-brewing process)
GB
10/2019
1/3
• Properties:
Particle filter
Chrome-plated ball joint outlet
pipes for removal of steam and
hot water
Over-pressure valve
• Display:
Cup counting
Maintenance display
• Equipment connection: 3 NAC
• Control lamp:
Heat up
• ON/OFF switch:
Yes
• Including:
• Important information: • Size:
W 967 x D 580 x H 523 mm
• Weight:
87 kg
.
Code-No.
Subject to technical modifications and errors.
190164
GTIN 4015613487915
Coffee machine Coffeeline G3plus
Tamper aluminium
• Diameter:
• Material:
• Important information:
• Size:
• Weight:
Add on Products
Water filter system K1600 EW
57 mm
Aluminium
W 57 x D 57 x H 92 mm
0.22 kg
• Water connection:
• Water pressure:
• Output capacity:
• Designed for:
• Water intake temperature from:
• Water intake temperature to:
• Including:
• Material:
• Important information:
• Design:
.
GB
1/2"
1.5 - 6 bar
1,600 litres / at 10° KH (carbonate hardness)
Coffee machines
5 °C
30 °C
Plastic
Disposable system
For horizontal and vertical installation
Code-No. 190179
Code-No. 109881
GTIN 4015613656380
GTIN 4015613630731
Water filter f. filter holder set
Water meter for water filter 109856
• Water connection:
• Water pressure:
• Colour:
• Output capacity:
• Designed for:
• Water intake temperature from:
• Water intake temperature to:
• Including:
• Material:
• Important information:
• Design:
• Important information:
• Size:
• Weight:
10/2019
2/3
3/8"
2 - 8 bar
White
1,500 litres / at 10° KH (carbonate hardness)
Coffee machines
4 °C
30 °C
1 filter candle
Polypropylene
Returnable system
W 45 x D 90 x H 50 mm
0.16 kg
.
Code-No. 109856
Code-No. 109861
GTIN 4015613501130
GTIN 4015613501154
Subject to technical modifications and errors.
Coffee machine Coffeeline G3plus
Add on Products
Milk frother, Capuccinatore
Coffee grounds drawer, small
• Properties:
• Material:
• Important information:
• Size:
• Weight:
• Content coffee grounds:
• Material:
• Properties:
Air supply is set with a rotating valve
Plastic
W 36 x D 36 x H 131 mm
0.13 kg
• Important information:
• Size:
• Weight:
.
Approx. 80 portions
Stainless steel
Can be expanded flexibly
Very easy to mount
W 290 x D 515 x H 105 mm
6 kg
.
Code-No. 190173
Code-No. 190171
GTIN 4015613541143
GTIN 4015613494203
Coffee grounds drawer, large
• Content coffee grounds:
• Material:
• Properties:
• Important information:
• Size:
• Weight:
Approx. 140 portions
Stainless steel
Can be expanded flexibly
Very easy to mount
W 410 x D 515 x H 105 mm
6.95 kg
.
• Water connection:
• Water pressure:
• Colour:
• Output capacity:
• Designed for:
• Water intake temperature from:
• Water intake temperature to:
• Design:
• Including:
• Material:
GB
10/2019
3/3
3/8"
2 - 8 bar
White
1,500 litres / at 10° KH (carbonate hardness)
Coffee machines
4 °C
30 °C
Disposable system
For horizontal and vertical installation
1 filter candle
Polypropylene
Code-No. 190170
Code-No. 109879
GTIN 4015613494197
GTIN 4015613710891
Subject to technical modifications and errors.
