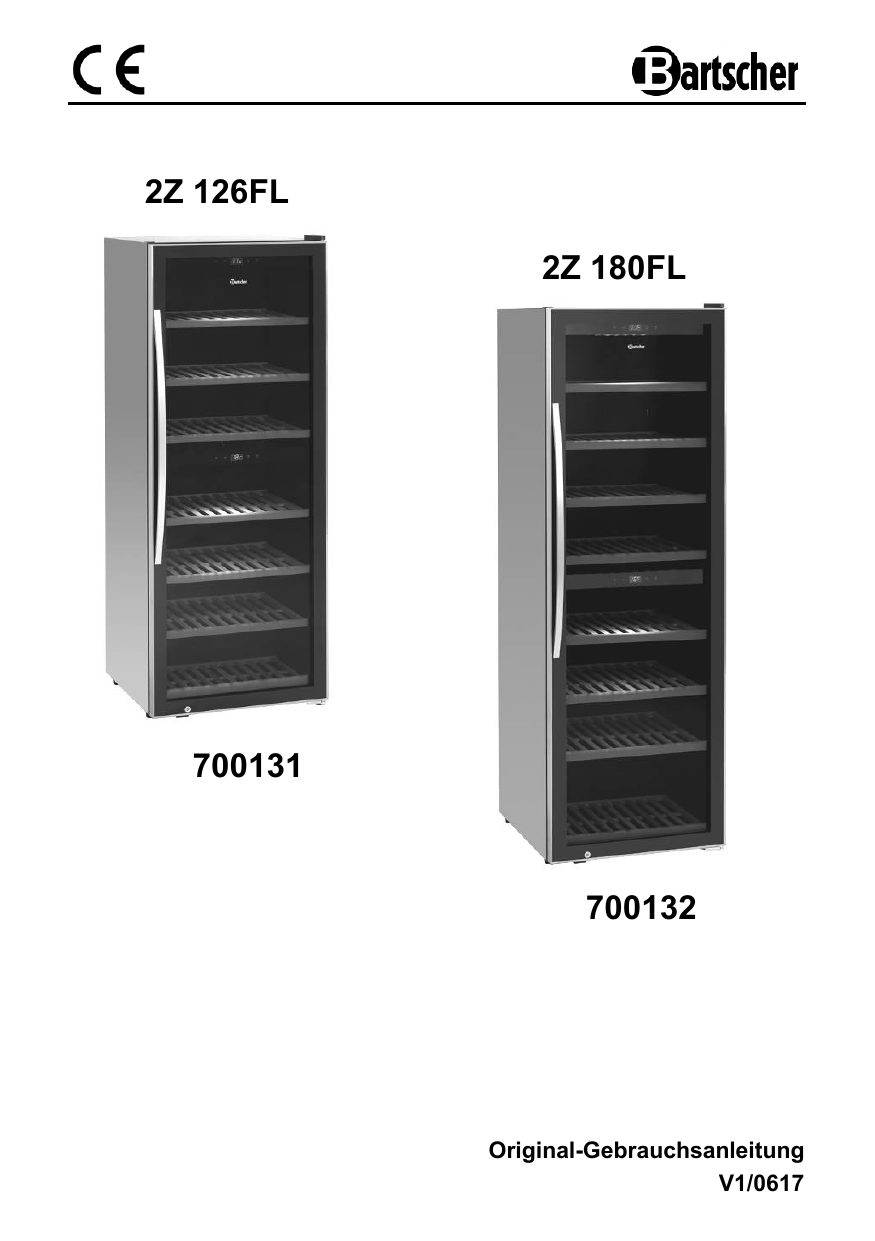

Bartscher 700131 Wine cooler 2Z 126FL Operating instructions

2Z 126FL
2Z 180FL
700131
700132
Original-Gebrauchsanleitung
V1/0617
GB/UK
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 22
1.1 Key to symbols ..................................................................................................... 22
1.2 Safety instructions ................................................................................................ 23
1.3 Proper use ............................................................................................................ 27
2. General information ................................................................................................ 28
2.1 Liability and Warrantees ....................................................................................... 28
2.2 Copyright protection ............................................................................................. 28
2.3 Declaration of conformity ...................................................................................... 28
3. Delivery range, transport, package, storage ......................................................... 29
3.1 Delivery range and transport inspection ............................................................... 29
3.2 Packaging............................................................................................................. 29
3.3 Storage ................................................................................................................. 30
4. Technical data ......................................................................................................... 30
4.1 Technical specification ......................................................................................... 30
4.2 Overview of parts ................................................................................................. 32
5. Installation and operation ....................................................................................... 33
5.1 Installation ............................................................................................................ 33
5.1.1
Unpacking ............................................................................................... 33
5.1.2
Preset ..................................................................................................... 33
5.1.3
Feet ........................................................................................................ 34
5.1.4
Fixing of handle ...................................................................................... 34
5.1.5
Wooden shelves: .................................................................................... 34
5.2 Electric connection ............................................................................................... 35
5.3 Operation.............................................................................................................. 35
6. Cleaning ................................................................................................................... 37
7. Possible Malfunctions ............................................................................................ 38
8. Discarding old devices ........................................................................................... 40
Bartscher GmbH
Franz-Kleine-Str. 28
33154 Salzkotten
Germany
phone: +49 (0) 5258 971-0
fax:
+49 (0) 5258 971-120
- 21 -
Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.
- 22 -
FIRE HAZARD / FLAMMABLE MATERIALS HAZARD / EXPLOSION
HAZARD!
This symbol highlights potentially dangerous situations which could lead to
injury or death.
CAUTION!
This symbol highlights dangerous situations which could lead to light injuries,
or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.2 Safety instructions



The device can be used by children 8 years and up, as well as
by people with disabilities and those with limited experience/
knowledge as long as they are under supervision or have been
instructed on proper use of the device and its possible dangers.
Children should not play with the device. Cleaning and
maintenance cannot be performed by children younger than
8 years old and must be done under supervision. Children
under the age of 8 years old must be kept away from the
device and its power cord.
Only use the device indoors.
The device must be operated in correct and safe technical
condition only. In case of operational problems disconnect the
device from the power supply (pull the plug from the socket)
and contact the service company.
- 23 -




Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the
device. Do not attempt to repair the device yourself.
Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous
for the user or lead to damages of the device or personal injury,
and further, the warranty expires.
To prevent hazards and to ensure optimum efficiency, no
modifications or alterations to the device that are not explicitly
approved by the manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions
below.



Never allow the power cable to come into contact with heat
sources or sharp edges. The power cable should not hang over
the side of the working surface. Ensure that no one can step on
or trip over the cable.
The power cable must not be folded, bent or tangled, and must
always remain fully unrolled. Never place the device or other
objects on the power cable.
Do not cover the cable. Keep away the cable from operating
range and do not immerse it into water.
- 24 -







Check the power cord regularly for damage. Do not use the
device if the power cord is damaged. If this cable is damaged, it
must be replaced by customer service or a qualified electrician in
order to avoid dangers.
The supply cable must be disconnected from the socket
only by pulling the plug.
Never carry or lift the device by the supply cable.
In any case do not open the device housing. In case of
electrical or mechanical modifications the electric shock
hazard will occur.
Do not use any acid agents and make sure no water ingresses
the device.
Never operate the device with moist hands or standing on wet
floor.
Remove the plug from its socket:
-
when the device is not used,
in case of anomalies during operation,
before cleaning.
- 25 -
FIRE HAZARD / FLAMMABLE MATERIALS HAZARD /
EXPLOSION HAZARD!
Incorrect operation of the device may cause fire or explosion hazard
due to ignition of its content.
To avoid the hazard please follow the safety instructions below:





Do not use any electric devices in the device.
Never use any flammable liquids for cleaning the device or its
parts. Gases releasing during above activities may cause fire
or explosion hazard.
Do not store or use petrol or other flammable liquids and
gases in the vicinity of this or any other device. Those gases
may cause fire or explosion hazard.
Do not put any explosive materials, like sprays filled with
flammable propellants, into the device.
The cooling system in the device may be damaged.
- 26 -
1.3 Proper use
CAUTION!
The device has been designed and manufactured for the industrial use and
should be operated only by the qualified personnel of the restaurants,
canteens and similar places.
The operational safety of the device is assured only in case of proper use, according
to the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The wine cooler is intended only for wine cooling.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.
- 27 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-
violation of advice concerning operation and cleaning;
use other than designed;
alterations made by user;
use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.
- 28 -
3. Delivery range, transport, package, storage
CAUTION!
 The wine cooler should be transported in the vertical position only.
 Due to high weight of the device it should be transported, unpacked, and
installed by two persons.
 Prevent access of children to the package materials like plastic bags and
foamed polystyrene elements. There is the suffocation hazard!
3.1 Delivery range and transport inspection
The wine cooler is in standard delivered with the following elements:




Device
7 wooden shelves (700131) / 8 wooden shelves (700132)
Operation manual
Handle with screws for fixing
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
If you liked to dispose the packing, consider the regulations applicable
in your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
- 29 -
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-
do not store outdoors,
keep it dry and dust-free,
do not expose it to aggressive media,
do not expose it to direct sunlight,
avoid mechanical shocks and vibration,
in case of longer storage (> 3 months) make sure you check the state
of the packaging and the parts regularly, if required refresh or renew.
4. Technical data
4.1 Technical specification
Construction:














Double glazing, insulating glass with UV flter
Thermostat
Digital display
Control: touch, electronic
Cooling: Compressor
Insulation: thermal
Automatic thawing function
Drip water evaporation
Fan
Number of doors: 1, lockable
right side, door hinge side cannot be changed
Lighting: LED, can be switched separately per temperature zone
Vibration-dampened feet for quiet operation
Ergonomic handle
- 30 -
Name
Wine cooler
Model:
126FL
2Z 180FL
Code-No.:
700131
700132
Material:
lacquered steel, glass
interior: steel
Colour:
black
Climate class:
ST
ST
Energy class:
B
C
Ambient temperature:
16 °C to 38 °C
Cooling medium:
R600a
R600a
Capacity:
313 litres
upper part: 138 litres
lower part: 175 litres
453 litres
upper part: 219 litres
lower part: 234 litres
126 bottles:
upper part: 54,
lower part: 72
upper part: 3
lower part: 4
180 bottles:
upper part: 80,
lower part: 100
upper part: 4
lower part: 4
Capacity:
Number of shelves:
Type of shelves:
wooden shelves, ball bearings, drawer: 275 mm
Dimensions of shelves:
1 x W 505 x D 340 mm
6 x W 505 x D 440 mm
1 x W 505 x D 425 mm
7 x W 505 x D 440 mm
Number of temperature
zones:
2
2
Temperature range:
upper part: 5 °C - 20 °C
lower part: 5 °C - 20 °C
upper part: 5 °C - 20 °C
lower part: 5 °C - 20 °C
Dimensions:
W 595 x D 625 x H 1590 mm W 600 x D 750 x H 1860 mm
Power supply:
0.15 kW/220-240 V 50/60 Hz 0.15 kW/220-240 V 50/60 Hz
Weight:
76.05 kg
86.35 kg
We reserve the right to implement the technical modifications!
- 31 -
4.2 Overview of parts
1
14
13
7
2
7
12
3
7
11
7
10
4
9
8
7
6
5
1 Upper hinge cover
8 Hot air outlet
2 Door seal
9 Air inlet
3 Door frame (lockable)
10 Lower control panel
4 Door handle
11 Cold air outlet
5 Lock
12 Wooden shelves: 7 pcs. (700131) /
6 Lower handle with foot adjustment
13 Lower control panel
7 Foot (3)
14 Housing
- 32 -
8 pcs. (700132)
5. Installation and operation
5.1 Installation
5.1.1 Unpacking
The device should be unpacked in the following way:

Remove the device from the carton box, then remove the external and internal
package.

Clean the interior with warm water and soft cloth. Follow instructions in section 6
“Cleaning”.

In order to avoid scratches and stains remove the protective foil just before installing
the device in its place.
CAUTION!
Never remove the rating plate or any warning signs from the device.
5.1.2 Preset

Place the device on an even and safe surface which supports the weight of the
device and assures stability at full load.

Do not place the device in direct sunlight or in the vicinity of heat sources (cooker,
radiator, heating devices, etc.). Direct sunlight may cause changes in the acrylic
surface and the heat sources have negative impact on energy consumption.

The ambient temperatures below 16 °C and above 38 °C may lead to limited
functionality of the device.

The device is designed for indoor operation only. Never place the device in humid or
wet environment.

Do not place the device in hot environment or in the vicinity of flammable materials.

The device requires sufficient air circulation for correct operation. Assure the
minimum side distance of 10 cm of the device.

Do not remove or block the holes of the device.

The electric socket should be easily accessible so it it possible to quickly disconnect
the supply cable when necessary.

Installation and assembly of this device in the non-stationary location (e.g. ship)
should be realized by the specialized companies/persons only, after assuring the
fulfilment of conditions necessary for safe operation of the device.
- 33 -

Due to energy savings make sure that the door of the device is closed during its
operation.

In case of moving the device to another location disconnect the power supply and
remove the plug from the socket. Remove all content from the device. Due to safety
reasons fix all loose elements inside. Fix the door with use of adhesive tape. The
wine cooler should be transported in the vertical position only.
5.1.3 Feet
The device is equipped with 3 large feet and 1 small adjustable foot. Adjust the foot in
such way that the device stands straight and does not sway.
5.1.4 Fixing of handle
Before the first use fix the supplied stainless steel
handle to the device door with use of screws.
Move the rubber seal on the door internal side left or
right to uncover the fixing holes. Fix the handle to the
door using supplied set of screws.
Then replace the seal in correct position.
5.1.5 Wooden shelves:
Each wooden shelf may be removed to allow for storage of bigger bottles.
Intermediate shelf
Lower shelf
Before removing the shelf the bottles must be removed first. Then lift the shelf slightly
and pull it out (loose the screws when required).
NOTE!
Make sure that the wooden shelves are properly snapped before placing
bottles on them. Pay attention to uniform distribution of load inside the device.
- 34 -
5.2 Electric connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid
specification should be compared with that of the device
(see rating plate). Connect the device only in case of
compliance!

Wait 12 hours before connecting the device to the socket, connect it, and place the
wine bottles inside.

The power supply circuit with the socket must be protected by the fuse of at least
16A. The device should be connected directly to the wall socket. Due to fire hazard
do not use any adapters or extension cords.
The electric safety of the device may be assured only when it is connected to
correctly realized electric system with the protective wire. It is forbidden to connect
the device to the socket without the protective wire. When in doubts, the house
electric system should be checked by the qualified technician. The manufacturer is
not responsible for damages caused by connecting the device to the missing or
interrupted protective wire.
5.3 Operation
Control elements and display
A
Temperature increase
button
5
Temperature decrease button
A Digital display
Internal light ON/OFF switch
ON/OFF button
- 35 -

The temperature zones of the wine cooler are controlled independently with use of
control elements.

Pressing ON/OFF
button allows for turning on

on the upper control panel: device and upper temperature zone;

on the lower panel: lower temperature zone.

The digital display shows current average temperature for a
given temperature zone.

The buttons
and
are used for adjustment of the following temperature
settings: from 5 °C to 20 °C in the upper and lower temperature zone.

Recommended storage temperature for white wine: 6 °C - 10 °C,
for red wine: 12 °C - 18 °C.

If both temperature zones are used, the temperature in the upper zone should be
lower than in the lower zone.

The lower temperature zone may be deactivated so only the upper zone remains
active.

Wait until the device reaches the preset temperature and put the wine bottles inside.
Hint: Keep in mind that in case of maximum load of the device chambers it must
work longer to reach the preset temperature.
When preset temperature (e.g. 20°C) is reached, in the bottom and
on the right side of temperature value “c” character appears.
When preset temperature (e.g. 5°C) is not reached yet, the
character “c” is displayed in the top and on the right side of
temperature value.

By pressing two buttons
switch between °C and °F.

With use of buttons

Button
is used for turning on and off the internal
light; LED lamp is installed under the ceiling of a
given chamber.

Temperature in the device depends on environment, number of stored bottles, and
preset temperature.
- 36 -
and
and
simultaneously for 5 seconds it is possible to
it is possible to adjust temperature every 1°C.

Moreover the device is equipped with heating, so in case of lower ambient
temperatures it may maintain wine temperature at desired level.

When the device is no longer used, turn it off using ON/OFF and disconnect from the
power supply (pull the plug!).
6. Cleaning
WARNING!
Before cleaning disconnect the device from the power
supply (pull the plug!).
Do not use pressurized water jest for cleaning!
Protect the device from the water penetration.
CAUTION!
Do not use any aggressive and abrasive cleaning agents or solvents.
o Clean the device before restarting it.
o Clean the device regularly during operation. Pay attention to the following instructions
for cleaning the individual elements.
Device interior
o Clean the device interior with warm water, using gentle washing agent and soft
cloth. Then dry the cleaned surfaces thoroughly using a soft cloth.
Door seal
o In order to assure correct operation of the device make sure that the door seal is clean.
Housing
o Clean the device exterior with soft cloth, soaked in warm water and gentle cleaning
agent. Then dry the device thoroughly with soft cloth.
- 37 -
Exhaust hole/fan
o The cooling efficiency may be reduced due to accumulation of dust or other
contaminants blocking the exhaust holes. If necessary, clean the exhaust holes with
the vacuum cleaner.
Condensate tank/drip tray (K)
o Condensate should be periodically
removed with use of sponge. That tank
is located in the back of the device, on
the right side.
Manual thawing
o The device should be thawed at least every 6 months. When the device door is
often opened thawing should be performed more frequently. Turn the device off
and remove the plug from the socket. Then start the manual thawing. Pay attention
to the drip tray (K) filling and remove water.
7. Possible Malfunctions
In case of malfunction, disconnect the device from its power source. Before contacting
the service or sales agent, verify - based on the table below - whether it is possible to
eliminate disruption in operation.
Failure
Possible cause/solutions
The wine cooler is not
working.
- The plug is not connected to the socket or incorrect
network voltage.
- Damaged or blown fuse.
The cooling efficiency is
insufficient or the device is
not reaching the preset
temperature.
- 38 -
-
Check temperature settings.
The ambient conditions may require other settings.
The door is opened too often.
The door is not completely closed.
The door seal does not assure sufficient sealing.
The wine cooler does not have sufficient distance
to other objects.
- Thaw the device.
Failure
Possible cause/solutions
The light is not working.
- Contact the service company.
Vibrations.
- Check if the device is levelled.
The device operation is too
loud.
-
The door is not closing
properly.
- The device is not levelled.
- The door is installed in the opposite way
or incorrectly.
- Worn out seal.
- Lowered shelves.
LED display is not showing
anything.
LED display: “Lo“.
-
The buttons are not
working.
- The temperature controller is damaged.
The compressor does
not start.
- The compressor does not start when the ambient
temperature is lower than the preset temperature.
The compressor starts
again.
- The compressor stops working after reaching the
preset temperature but starts again until the preset
temperature is reached.
Dew on the cooler surface.
- Dew appears on the front glass, especially when
the device operates in humid environment. It is
connected with humidity of air contacting the wine
cooler. Remove dew using a soft cloth.
Bubbling sound of a liquid.
- Sound of compressor operation when it starts or
stops.
- Sound of refrigerant in the circuit.
Condensate in the cooler.
- The door has been left opened for a long time in
humid environment or has been opened frequently.
Leave the door closed for as long as possible.
Error E2.
- Contact the service company.
The device is not levelled.
Check fan.
Loose parts.
The device is touching the wall.
The main switchboard is not working.
Damaged power supply plug.
Problem in the printed circuit.
Contact the service company.
- 39 -
If you cannot remove the malfunctions:
-
do not open the body,
notify the customer service point or contact the sales
agent, while providing the following information:


type of malfunction;
article and serial number (rating plate at the
rear of the device).
8. Discarding old devices
The electric and electronic devices often contain valuable materials. They
also contain harmful plastics, necessary for their operation and safety. In
case of disposing as a common waste material or incorrect utilization they
may pose threat for human health and environment. Therefore in any case
the device should be disposed as a common waste.
After the operational period old device should be utilized according to valid regulations.
Use the list of collection points for your location to return the electric and electronic
devices. We recommend contacting the professional company of proper unit of the local
authorities.
CAUTION!
To exclude any abuse and the dangers involved make the waste device unfit
for use before disposal. For that purpose disconnect device from mains
supply and remove mains connection cable from the device.
NOTE!
Make sure that old device is stored beyond the reach of children until its
removal: remove the door and leave shelves inside so children are not
able to enter the device.
The propellant used in the device is flammable. Its utilization should be
realized according to the valid regulations.
