Bartscher 200085 Hot water dispenser 6L Operating instructions

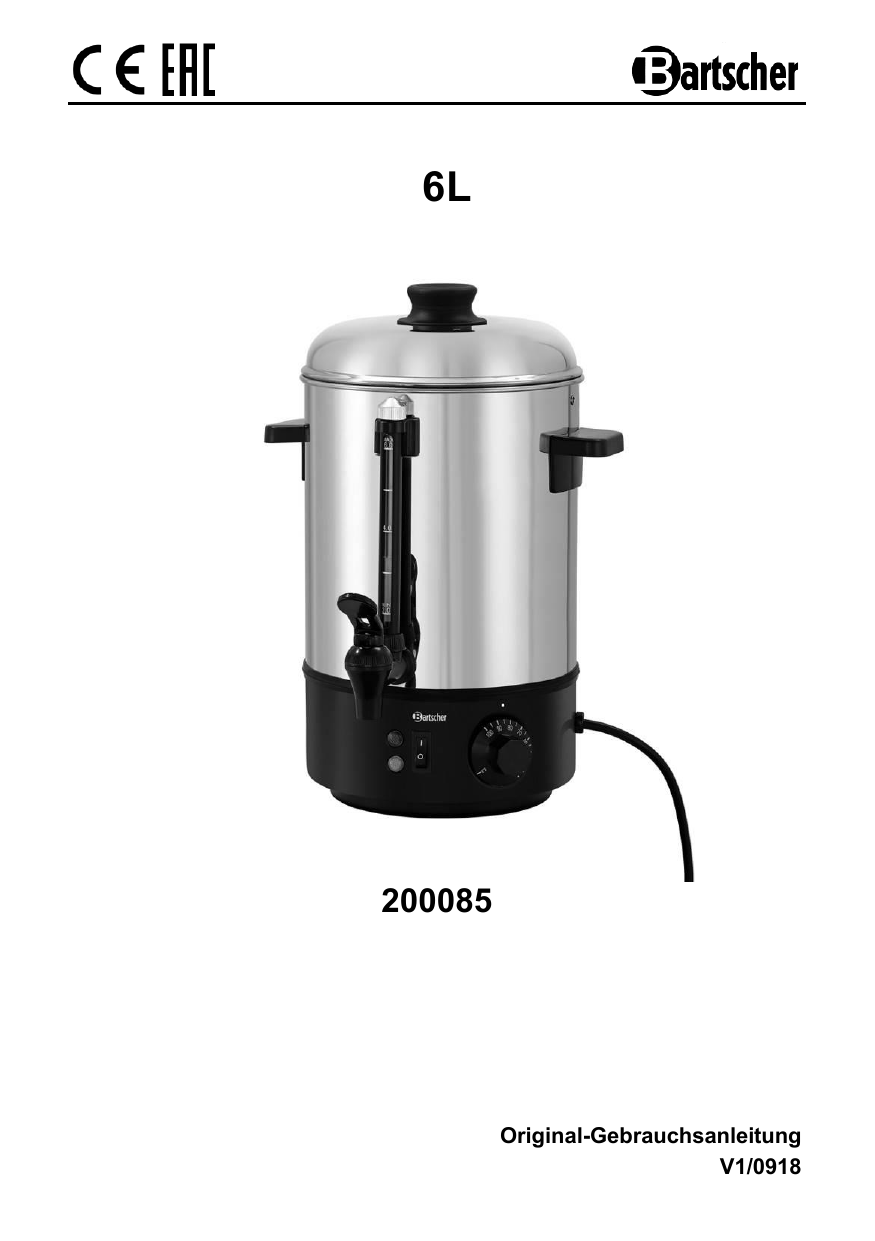

6L 200085 Original-Gebrauchsanleitung V1/0918

GB/UK ENGLISH Table of contents 1.Safety ........................................................................................................................ 20

1.1 Key to symbols ..................................................................................................... 20 1.2 Safety instructions ................................................................................................ 21 1.3 Use as intended ................................................................................................... 25 1.4 Use against the intended purpose ........................................................................ 25

2. General information ................................................................................................ 26

2.1 Liability and Warrantees ....................................................................................... 26 2.2 Copyright protection ............................................................................................. 26 2.3 Declaration of conformity ...................................................................................... 26

3. Transport, packaging and storage......................................................................... 27

3.1 Delivery check ...................................................................................................... 27 3.2 Packaging ............................................................................................................. 27 3.3 Storage ................................................................................................................. 27

4. Technical data ......................................................................................................... 28

4.1 Overview of parts ................................................................................................. 28 4.2 Technical specification ......................................................................................... 30

5. Installation and operation ....................................................................................... 31

5.1 Installation ............................................................................................................ 31 5.2 Operation .............................................................................................................. 32

6. Cleaning and descaling .......................................................................................... 34 7. Waste disposal ........................................................................................................ 36

Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten Germany phone: +49 5258 971-0 fax: +49 5258 971-120

Service-Hotline:

+49 5258 971-197 www.bartscher.com - 19 -

Read this instruction manual before using and keep them available at all times!

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations. The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning. Please keep these instructions and give them to future owners of the device.

1.Safety

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately. All persons using the device must follow the recommendations and instructions in this instruction manual.

1.1 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

DANGER! This symbol highlights hazards which could lead to injury. WARNING! This symbol highlights dangerous situations which could lead to injury or death.

- 20 -

HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! HOT STEAM!

This symbol indicates that during the operation the hot steam escapes from the device. Risk of scalding if safety instructions are not observed!

CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions

 The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.   Children should be observed to ensure that they are not playing with or starting the device. Prevent access of children to the package materials like plastic bags and foamed polystyrene elements.

Suffocation hazard!

 

Never

leave the device unattended when in use.

Only use the device indoors. - 21 -

    The device must be operated in correct and safe technical condition only. In case of operational problems disconnect the device from the power supply (pull the plug from the socket) and contact the service company. Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.

Do not attempt to repair the device yourself.

Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires. To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

DANGER! Electric shock hazard!

Follow the safety instructions below to avoid the hazard:  Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step   on or trip over the cable. The power cable must not be folded, bent or tangled, and must always remain fully unrolled. Never place the device or other objects on the power cable. Do not cover the cable. Keep away the cable from operating range. - 22 -

        Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. The supply cable must be disconnected from the socket only by pulling the plug. Never carry or lift the device by the supply cable. In any case do not open the device housing. In case of electrical or mechanical modifications the

electric shock hazard will occur.

Never immerse the appliance, the power cord and the power plug in water or other liquids. Do not use any acid agents and make sure no water ingresses the device.

Never

operate the device with moist hands or standing on wet floor. Remove the plug from its socket: when the device is not used, in case of anomalies during operation, before cleaning.

HOT SURFACE! Burn hazard!

Follow the safety instructions below to avoid the hazard:  The tank surface gets very hot when the device is in use! In order to avoid burns of fingers and hands do not touch hot surfaces of the device! During operation touch only handles and switches designed for such purpose. - 23 -

 The surface and water in the tank are hot for some time also after turning the device off, leave it for cooling down before cleaning or moving. 

HOT STEAM!

Risk of burns!

Follow the safety instructions below to avoid the hazard:  Follow the maximum filling capacity! Overfilling may lead to hot water leaks and burns! Never remove the lid during boiling! The released hot steam may cause burns of hands, arms, and face.

WARNING! Health hazard due to germs!

Follow the safety instructions below to avoid the hazard:  The water tank must be regularly emptied out and disinfected to eliminate the possibility of accumulation of harmful and dangerous germs.

CAUTION! In order to avoid any damage to the device follow the instructions below:



Never

wash the device or its elements in the dishwasher. - 24 -

 Do not use any sharp objects or abrasive cleaning agents for surface cleaning.  Do not turn the device on if there is no water in the tank.

1.3 Use as intended

Every use of the device for a different purpose and/or in a way that diverges from the intended use is not allowed and is assumed as the use against the intended purpose. Any claims against the manufacturer or their authorized representatives as a consequence of experiencing damage resulting from the use against the intended purpose are inadmissible. The liability for damage occurred during the use of the device against its intended purpose is borne solely and exclusively by the user. Safety operation of the device is guaranted only when it is used for its intended purpose and according to the instructions included in this manual. The device is intended for home use or in similar places such as:  in kitchens for store or office employees or in similar business areas;  in agricultural farms;  by guests of hotels, motels and other typical places of accomodation;  in Bed and Breakfast facilities.

The hot water dispenser is intended only for boiling and heating water. 1.4 Use against the intended purpose

Any use other than those mentioned in point

“1.3 Use as intended“

is assumed as the use against the intended purpose and is not allowed. The use against the intended purpose may lead to severe injury or damage caused by hazardous voltage, fire or high temperature. It is allowed to use the device to perform only the work described in the instruction manual. Improper use may cause the device damage. Any manipulation with the device, assembly or maintenance work may be performed exclusively by the authorized service staff. - 25 -

2. General information

2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive. If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

CAUTION! Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer

is not liable for

any damages or faults caused by: violation of advice concerning operation and cleaning; use other than designed; alterations made by user; use of inadequate spare parts. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE! The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution. 2.3 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity. - 26 -

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of dam age on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings. Packages should be stored under consideration of the following: do not store outdoors, keep it dry and dust-free, do not expose it to aggressive media, do not expose it to direct sunlight, avoid mechanical shocks and vibration, in case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly, if required refresh or renew. - 27 -

4. Technical data

4.1 Overview of parts 1 2 3 9 8 4

- 28 -

7 1

Lid handle

2

Lid

3 4

Water tank handle Water tank

5

Power cable

6

Operation elements

7 8

Base unit Outlet tap

9

Fill level indicator

6 5

Operating elements A F E B C D A

Heating indicator light (red)

B

Power indicator (green)

C

ON/OFF switch

D

Temperature control knob

“OFF“

position

E

Temperature control knob

F

Settings mark (device) - 29 -

4.2 Technical specification Description Hot water dispenser 6L

Code- No.: Material: Model: Capacity: Temperature range: Power supply: Dimensions: Weight:

200085

Stainless steel, plastic  Temperature control: Thermostatic (mechanical), stepless  Filling level display  Safety thermostat:  Control unit: Toggle  ON/OFF switch  Control lamps: Stand-by, heating-up 6 litres 30 °C to 100 °C 1.8 kW / 230 V 50 Hz W 280 x D 290 x H 385 mm 2.1 kg We reserve the right to implement the technical modifications!

Safety thermostat

 The device is equipped with the

safety thermostat (overheating protection

). If the device is accidentally switched on with too little or no water and boils empty or there is a lime and scale build-up inside, the device will switch off automatically. Disconnect the device from the power supply (pull the plug!) and wait for cooling down. If necessary, descale the device according to the instructions described in the section “Descaling”. Refill the tank with drinking water and switch the device on. If overheating occurs again and the device does not function properly, please contact the technical service or sales agent. - 30 -

5. Installation and operation

5.1 Installation Positioning

 Unpack the device, remove and dispose of all package material according to the environment protection regulations.

CAUTION! Never remove the nameplate and warning signs from the device.

 Put the device on an even, stable, dry and waterproof surface which is resistant to high temperature. 

Never

place the device on an inflammable surface.  Do not place the device near open flame, electric heaters or other heat source. 

Never

place the device at the edge of a table to avoid tilting or falling. 

Never

put the device in a moist or wet area.  When locating the device, make sure the power plug is easily accessible to immediately unplug the device, if necessary.

Connection

DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance!

 The power supply circuit with the socket must be protected by the fuse of at least 16A. Connect the device directly to a single grounded socket. Do not use any power bar or multiple socket. - 31 -

5.2 Operation

 Before the first use wash the device according to instructions in section

6 “Cleaning and descaling”

.  Pour the desired amount of drinking water into the tank (up to the

“MAX“

indicator).  It is important that

the potable water

is always present in the tank during the device operation. Do not fill the device with any non-potable liquids, like acids, lyes, oils, nitrates, etc.!

NOTE!

To reduce heating time and save energy, the tank may be filled with hot water. Time and energy are saved in such way!

 Put the lid on the tank and rotate it clockwise to close the tank (bayonet lock).

 Make sure that the lid is equipped with a steam release hole. With properly closed lid, this hole should be aligned over the water level indicator.

HOT STEAM! Risk of burns! During the operation avoid contact with this area of surface, use protective gloves.

 Connect the device to a single grounded socket. The green power control light will come on.  Set required temperature in range from 30 °C to 100 °C with use of temperature control knob.  Turn the device on using the ON/OFF switch.  The red heating indicator light will come on and will be lit during heating. As soon as the water is heated to the set temperature, the red heating indicator light will go off.  If the temperature of water in the tank decreases by approx. 10 °C, the heating will start again and the red heating indicator light will come on, and the water will be heated again to the set temperature. - 32 -

 Use hot water to prepare various beverages, such as tea, instant coffee, chai latte or other instant beverages.  Keep in mind than various types of tea required different water temperature. Follow the instructions on the packages.

 To use hot water put appropriate container (glass, cup, mug) under the drain tap. Press the tap lever down and hold it to receive required amount of water. Then release the lever, the tap will close automatically.  Control the tank fill level with use of indicator.

CAUTION! Monitor the water level regularly and add water if necessary. Never use the device without water!

 Before filling the tank with water again, turn the device off and disconnect from the power supply.

HOT SURFACE! Risk of burns! Do not touch the hot device! Use only designated knob controllers and switches to operate the device.

 Carefully remove the lid with lid handl and add the desired amount of water.  After the use, turn the temperature control knob to the

“OFF”

position by turning it counterclockwise, then switch the device off using ON/OFF switch and remove its plug from the socket.

 Leave the remaining water to cool off, and then pour it into another container using the drain tap. - 33 -

6. Cleaning and descaling

WARNING! Before cleaning, disconnect the device from the power supply (unplug!) and leave to cool off. The device is not suited for direct washing via water jets! Protect the device from water penetration.

CAUTION! Do not use any sharp or abrasive cleaning materials as they may damage the device surface. Regular cleaning

o Clean the device after each use. o Wash the water tank interior with gentle washing agent and thoroughly rinse in running water. To clean the drain tap flush it with clean water. o Wash the lid with running, warm water and rinse with clean water. o Wipe the external surfaces of the device with moist, soft cloth, use gentle cleaning agent when required. o Dry the device with soft, clean cloth. - 34 -

Descaling CAUTION! Failure to conduct regular descaling - in accordance with the instructions - may be the basis for rejecting complaints. The warranty does not cover this type of complaint! Descale the device regularly!

o Hard water may cause scaling in the water tank, thus extending the time needed to heat water and possibly causing damage of the device.

If possible, use filtered water to avoid scaling!

o We recommend using citric acid or vinegar for ecological descaling. Prepare a solution of

water with vinegar

(

3:1 ratio

) or

water with citric acid

(

2 table spoons

per

1 liter

of water) and fill the tank. Wait some time (ca. 1 hour), and then boil the solution. o Wait for the device to cool off. o After cooling, pour out the descaling solution and rinse the tank

several times

with clean water. Drain the clean water through the drain tap to thoroughly remove all scaling solution leftovers.

o Follow manufacturer’s instructions if you choose to use other commercially available descaling products.

Storing of the device

o If the device is not used for a longer time, clean it thoroughly according to the instructions above and store it in a dry, clean place, protected from cold, sunlight, and children. Do not place any heavy objects on the device. - 35 -

7. Waste disposal

Old devices

The electric devices are marked with this symbol. You must not dispose of electric devices with household waste. When the device may not be longer used each consumer is obliged to dispose of the device at the dedicated local collection point, separately from household waste.

NOTE!

Electric devices should be used and disposed of properly to prevent the impact on the environment.  Disconnect the device from the power supply and remove the power cord from the device.
