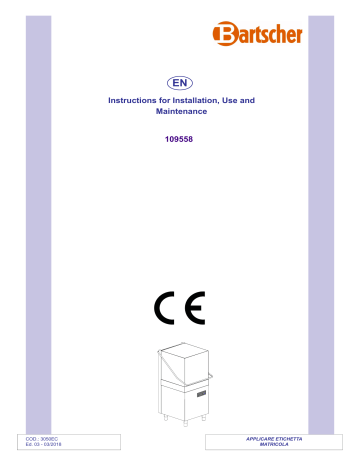

Bartscher 109558 Dishwasher DS "Delta Clean LP" Operating instructions

EN

Instructions for Installation, Use and Maintenance

109558

COD.: 3050EC Ed. 03 - 03/2018

APPLICARE ETICHETTA MATRICOLA

Thank you for choosing our machine.

The instructions for installation, maintenance and use found on the following pages have been prepared to ensure a long life and perfect operation of your unit.

Please, do follow the instructions carefully.

We have designed and built this machine using the latest innovative technologies. Now you shall take good care of it.

Your full satisfaction is our greatest reward.

READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING THE MACHINE. WARNING: FAILURE TO COMPLY, EVEN PARTIALLY, WITH THE PRESCRIPTIONS IN THIS MANUAL WILL RENDER THE PRODUCT WARRANTY NULL, AND THE MANUFACTURER SHALL NOT BE LIABLE.

TRANSLATION OF THE ORIGINAL INSTRUCTION SUMMARY WARNINGS

INSTALLER SECTION

1. MACHINE INSTALLATION 1.1 Dataplate 1.2 Receiving the product 1.3 Water connection 1.3.1 Water supply characteristics 1.4 Electrical connection 1.5 Rinse-aid dosing pump functioning 1.6 Machine features 2. DETERGENT DISPENSER RETROFIT 2.1 Detergent dispenser installation 3. TECHNICAL DATA AND USEFUL INFORMATION ON PUMPS 3.1 Washing pump 3.2 Emptying pump (optional) 3.3 Standard version keys

USER SECTION

4. CONTROL PANEL AND RELATIVE SYMBOLS 4.1 Standard version keys 4.2 Dataplate 5. OPERATION 5.1 Cutlery and crockery loading 5.2 Detergent use 5.3 Rinse aid use 5.4 Compliance with H.A.C.C.P. and hygiene standards 5.5 Drain pump (optional) 5.6 Machine features 6. MAINTENANCE 6.1 Routine maintenance 6.2 Extraordinary maintenance 7. ALARMS 8. THE ENVIRONMENT 8.1 Packing 8.2 Disposal 9. ECOLOGICAL ASPECTS 9.1 Recommendations for optimal use of energy, water and additives 10. TROUBLESHOOTING 11. EU DECLARATION Page 20 EN 22 22 23 23 23 24 24 24 25 25 25 25 25 25 30 30 30 31 31 31 33 27 27 27 28 28 29 29 29 29 29 29 29 30 30

page 19

EN

WARNINGS This instructions manual shall be kept with the machine for future consultation. Should this machine be sold or transferred to other users, make sure the booklet always goes with it, so that the new owner can have all necessary information on operations and all relevant instructions. The instructions manual must be read carefully before installation and before starting the machine.

• The connection to the electrical and water networks, for installing this unit, must be carried out by qualifi ed operators only.

• This machine must only be used by adults. This is a professional machine to be used by qualifi ed personnel, installed and repaired exclusively by qualifi ed Technical Personnel. The Manufacturer declines any responsibility for improper installation, use, maintenance or repair.

• This appliance can be used by trained youth aged from 15 years and above. It cannot be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

• Children shall not play with the appliance. • Cleaning and user maintenance shall not be made by children without supervision.

• Do not slam the door when opening and closing. • Make sure the dishwasher is not resting on the power cord or the fi lling and drain hoses. Level the machine by adjusting the support feet.

• Do not use the appliance or any part of it as a stepladder or means of support as it has been designed exclusively to bear the weight of the dishrack containing dishes to be washed.

• This machine is designed exclusively for washing dishes, glasses and various pots and pans with human food type of residue. DO NOT wash articles polluted with petrol, paint, chips of steel or iron, fragile objects or material not resistant to the washing process. Do not use acidic corrosive chemical products or alkaline and solvents or chlorine based detergents.

• Do not open the machine door when operating. In any case, the machine has a special safety device which immediately stops it if the door is accidentally opened, thus preventing water spillage. Remember to always switch the machine off and empty the tank before accessing the inside for cleaning or any other purpose.

• This machine must be disconnected from the main electrical supply after use at the end of the day and for any service/maintenance operation following this procedure: Switch the machine off from the control panel.

Drain the tank by removing the overfl ow pipe.

Disconnect the electrical supply by the omni-polar switch (main switch located on the wall).

page 20

EN

Shut the water supply valve(s).

Disregarding the aforesaid prescriptions is a serious misuse and can cause damages and injures to property and people, and will relieve the manufacturer from whatever liability.

• The user shall not carry out any repair and/or maintenance operations. In any case contact qualifi ed personnel.

• Servicing of this machine must be performed by authorized personnel only.

N.B.: Use genuine spare parts only. Non-genuine parts will void the warranty and the manufacturer will take no responsibility for any damage.

• Do not use old load pipe, but only new ones.

• Some important rules must be followed for using this appliance: 1) Never touch the appliance with wet hands or feet 2) Never use the appliance when barefooted 3) Do not install the appliance in places exposed to water splashes.

• Do not dip bare hands into water containing detergent. If this should occur, wash them immediately with plenty of water.

• Follow the instructions given in the manufacturer’s booklet for cleaning operations (chap.

6

).

• This appliance is designed to work at room temperatures up to a max. 35°C, in a suitable place with temperature not below 5°C.

• Do not use water to extinguish fi res on electrical parts.

• Do not cover the intake or dissipation grids.

• Only qualifi ed personnel can access the control panel, when the main power switch is OFF.

• The machine has an IPX3 protection rating against accidental water splashes and is not protected against pressurized water jets. Pressure-cleaning systems shall, therefore, not be used on this machine.

CAUTION: WAIT 10 MINUTES AFTER THE APPLIANCE HAS BEEN TURNED OFF BEFORE CLEANING THE INSIDE.

CAUTION: DO NOT PUT HANDS IN THE APPLIANCE AND/OR TOUCH THE PARTS ON THE BOTTOM OF THE TUB DURING AND/OR AT THE END OF A WASHING CYCLE.

NOTE: The manufacturer declines any responsibility for accidents to people or any damage deriving from failure to observe the above listed instructions.

page 21

EN ATTENTION:

At the end of installation make sure to remove the parts of this booklet relevant to the installer, for future consultation.

1. MACHINE INSTALLATION 1.1 Dataplate

RoHS

A B C /QFGN &9::::;;;; &'5%4+26+10 %QFG 50 &9.::::: 80*< ZZZZ9 /#: ZZ# ÄM2C 6[RG * 1 /#: ZZ ° % ZZZ kcal

Model

Model DW XXXX Model DW XXXX.YYYY

FAMIGLIA PRODOTTO FAMILY PRODUCT FAMILLE DU PRODUIT FAMILIA PRODUCTO FAMILIE DES PRODUKTES FAMIGLIA PRODOTTO FAMILY PRODUCT FAMILLE DU PRODUIT FAMILIA PRODUCTO FAMILIE DES PRODUKTES CODICE MODELLO CODE MODEL CODE ARTICLE CODIGO MODELO KODE VON MODELL

A Power source B Total power installed C Dynamic pressure D Envelope protection degree E Total electricity absorption

IPXX S/N /#&'+0+6#.; ;;;;

S/N DW X xxxxxxx D E /QFGN &9::::;;;; &'5%4+26+10 %QFG 50 ZZZZ9 &9.::::: 80*< ZZ# /#: ÄM2C 6[RG * 1 /#: ZZ ° % ZZZ kcal

Model ANNO YEAR ANNÉE AÑO JAHR E=2010 - 2011 F=2011 - 2012 G=2013 - 2014 H=xxxx - xxxx NUMERO DI SERIE SERIAL NUMBER NUMÉRO DI SÉRIE NUMERO DI SERIE SERIENNUMMER RoHS IPXX S/N /#&'+0+6#.; ;;;; page 22

INSTALLER SECTION EN 1.2 Receiving the product

After unpacking, make sure the appliance has not been damaged due to transport. Otherwise, report the anomaly to the dealer. If it aff ects safety, do not install the appliance.

Double check the fi rm tightness of all hose-clamps on piping, nuts and bolts, and fasteners, that might come loose with the transport, to prevent water dripping or leakages, or other damages, during the machine's operation.

For disposal of the packing, see chap.

8

.

1.3 Water connection

Connect the machine's water supply with an interrupt valve capable of quickly and completely shutting off water intake.

Make sure the water supply pressure is within the values given in table 1.

table 1 pict. 1 Water characteristics table

Static Pressure Dynamic Pressure Water Hardness Hot water-supply temperature Capacity

Min

200Kpa 150Kpa 2°f 50°C

Max

400Kpa 350Kpa 8°f 60°C 10lt/min If is below 2 bar dynamic pressure (200 kPa), for optimal machine operation it is advisable to install an external pressure increase pump. If the supply pressure is higher than 4 bar (400 KPa), installation of a pressure reducer is recommended.

A water softener hot water.

must be

installed for waters with average hardness above 8°f.

This will ensure cleaner dishes and longer machine life. Every machine is supplied with a rubber hose for water fi lling with 3/4"F threaded connection.

It is advisable to connect the hose to a water supply not above 60°C, if connected to the Connect the drain hose, supplied with the machine, to the elbow union located under the tank in such a way that water fl ows freely (therefore ensuring a minimum slope).

If the water cannot be discharged to a level below the machine drain (see pict. 1), it is advisable to purchase a machine with built-in drain pump.

The drain hose must always be connected to a trap to prevent the return of odours from the system.

1.3.1 Water supply characteristics

The machine water supply must be potable, in compliance with Directive 98/83/EC.

The inlet water must also meet the parameters given in the table 2.

table 2 Water parameters table

Chlorine 1 pH Water hardness Iron 3 Manganese 4

Min

6,5 1

Max

2mg/l 8,5 3 8°f 2-3 0,2 mg/l 0,05 mg/l 1 Out of range values might lead to corrosion and jeopardize the life of the machine.

2 Should the water hardness is higher life of the machine.

it is compulsory

to install a water softner and check periodically its operation.

3 Out of range values might lead scaling and sediments with a consequent lower performance, functionality, and expected 4 Desired value: Out of range values might lead stainless steel blackening/tarnishing.

It is recommended a water test once a year.

page 23

EN INSTALLER SECTION 1.4 Electrical connection

Electrical connection must be carried out in compliance with current standards.

Make sure the line voltage matches that given on the special machine dataplate.

A suitable omni-polar one-way switch shall be installed and sized according to the absorption provided, in order to completely guarantee the disconnection from the supply mains, under “category III” overvoltage conditions.

This switch shall be included in the power network solely and exclusively used for this purpose and installed in the immediate vicinity of the machine. Always turn the machine off via this switch. This is the only model of switch that guarantees a total electrical power disconnection.

The machine has a connection at the back, indicated by the symbol that is meant to link the steel structure and masses among diff erent apparatuses (see electrical safety standards). WARNING:

check very carefully if the “ground connection” of the machine, is properly sized and fully effi cient, and that not too many units are connected on it. An undersized or poor “ground connection” might lead to corrosion and/or pitting eff ect on the stainless steel plates, even to perforation.

Note:

for machines with 400Vac3N type cables must be used, or replace them with others if diff erent from the standards in the country where the dishwasher is installed. The dealer/importer/installer must adapt the power cable insulation class according to the work environment, in conformity with current Technical Standards.

The special dataplate gives the nominal power and electrical input values in watts (W) and amperes (A), for dimensioning of the line, cable and switches.

Warning

: some versions of this machine can dissipate more than 10mA to earth.

1.5 Rinse-aid dosing pump functioning A B C Functioning:

to the boiler. The dosing pump is powered by the pressure generated by the rinse pump, used to load a spring. The release of the spring generates the suction of the rinse-aid chemical from its container To prime the rinse-aid pump, run some wash/rinse cycles.

code 10799 pict. 2 D Water connection:

1) Connect the dispenser by its hose holder fi tting

A

to the pump, by means of the rubber hose installed in the machine (pump pressure). 2) Connect the black rubber tube by its delivery connection

B

to the union located near the boiler (injector).

3) Ensure insertion of the green product suction tube in the special connection

C

and the fi lter and ballast in the rinse aid tank.

Adjustment:

The dosing pump takes a determined quantity of rinse-aid chemical at each rinse.

This quantity is adjustable from 0 to 4 cc, equivalent to circa 0 to 30 cm length of the suction hose.

Turn the adjustment screw clockwise to reduce capacity.

Turn the adjustment screw anticlockwise, to achieve the maximum capacity (up to 20 turns). For the right amount of product see the paragraph

Rinse aid use

.

Note:

for every turn of the screw the amount of rinse aid drawn in the tube varies by 1.6 cm, equal to 0.2 cm³/turn (approx. 0.21g/turn with rinse aid density of 1.05 g/cm³).

The rinse aid dispenser cannot work correctly if the diff erence in level between the bottom of the machine and the tank is more than 80 cm.

THE DISPENSERS ARE PRESET FOR DRAWING 5 cm, FOLLOWING A FUNCTIONAL CHECK DURING THE TESTING PHASE. THIS VALUE MUST ALWAYS BE MODIFIED ACCORDING TO THE TYPE OF RINSE AID AND THE HARDNESS OF THE WATER.

1.6 Machine features

The machine’s sound level is Lpa = 70dBA ± 2.5dB(A)**

**test made according to EN 60335-2-58/A11

page 24

INSTALLER SECTION EN 2. DETERGENT DISPENSER RETROFIT 2.1 Detergent dispenser installation Electrical connection:

See the wiring diagram attached to the machine.

Water connection:

a) In the dishwasher, the hole for inserting the injector is already available and closed with a plastic plug. Just remove the plug from the hole and fi t the delivery connection (located at the front, below the control panel).

b) Correctly install the injector union (see pict. 4 point B).

C

, using the appropriate seals.

c) Connect the suction tube to the dispenser suction connection (see pict. 4 point A).

d) Connect the delivery tube to the other connection of the dispenser and the delivery e) Insert the tube with fi lter in the detergent tank.

f) Prime the detergent and proceed with the dosage phase.

Dosage:

The detergent dispenser delivery can be adjusted by directly operating with a screwdriver as shown in pict. 3.

pict. 3 15185 Ø 10

Every 2 cm of product drawn corresponds to 0.25 cm³, equal to 0.3 g (with density 1.2 g/cm³). Also see par.

5.2

.

IMPORTANT:

OPERATION.

DO NOT INVERT THE TUBES IN THE PRODUCTS; IF THIS OCCURS IT WOULD RUIN THE METERING PUMPS AND COMPROMISE DISHWASHER A B

CONNECTION DIAGRAM pict. 4

C

3. TECHNICAL DATA AND USEFUL INFORMATION ON PUMPS 3.1 Washing pump

When the dishwasher has not been used for some time, check that the washing pump turns freely. To do this, operate using a screwdriver in the special slot on the ventilating side of the motor shaft.

In case of blocking, turn the main switch off and move the motor shaft, inserting the screwdriver in the notch, turning it clockwise and anticlockwise.

3.2 Emptying pump (optional)

How installing, pay particular attention to the position of the emptying tube (see pict. 5).

See paragraph

5.5

for operations description.

pict. 5 3.3 Standard version keys

Main switch 0-1 Washing cycle indicator Temperature indicator Drain button (optional) page 25

EN

page 26

USER SECTION 4. CONTROL PANEL AND RELATIVE SYMBOLS 4.1 Standard version keys EN

Main switch 0-1 Washing cycle indicator Temperature indicator Temperature indicator

4.2 Dataplate

RoHS

A B C /QFGN %QFG &9::::;;;; &'5%4+26+10 50 ZZZZ9 &9.::::: 80*< /#: ZZ# ÄM2C 6[RG * 1 /#: ZZ ° % ZZZ kcal

Model

Model DW XXXX Model DW XXXX.YYYY

FAMIGLIA PRODOTTO FAMILY PRODUCT FAMILLE DU PRODUIT FAMILIA PRODUCTO FAMILIE DES PRODUKTES FAMIGLIA PRODOTTO FAMILY PRODUCT FAMILLE DU PRODUIT FAMILIA PRODUCTO FAMILIE DES PRODUKTES CODICE MODELLO CODE MODEL CODE ARTICLE CODIGO MODELO KODE VON MODELL

A Power source B Total power installed C Dynamic pressure D Envelope protection degree E Total electricity absorption

IPXX S/N /#&'+0+6#.; ;;;;

S/N DW X xxxxxxx D E /QFGN &9::::;;;; &'5%4+26+10 %QFG 50 ZZZZ9 &9.::::: 80*< ZZ# /#: * 1 /#: ÄM2C ZZ ° % ZZZ kcal 6[RG

Model ANNO YEAR ANNÉE AÑO JAHR E=2010 - 2011 F=2011 - 2012 G=2013 - 2014 H=xxxx - xxxx NUMERO DI SERIE SERIAL NUMBER NUMÉRO DI SÉRIE NUMERO DI SERIE SERIENNUMMER RoHS IPXX S/N /#&'+0+6#.; ;;;; page 27

EN USER SECTION 5. OPERATION

• Insert the overfl ow pipe in the special seat inside the tank.

Make sure all the fi lters are properly fi tted in their seats. The fi lters must be cleaned every 40-50 wash cycles and whenever necessary.

Do not operate the machine without fi lters, and in particular the pump suction fi lters.

• Open the water valve.

• Turn on the main wall switch and start the machine by pressing switch

1

(it is not a total disconnecting switch - see par.

4.1

).

• Insert the special green rinse aid dispenser tube in the liquid rinse aid container and check that the quantity is suffi cient for the daily requirement.

• Close the hood: the tank fi lling phase starts automatically.

• After the tank fi lling, the machine automatically starts the heating phase.

• The machine will be ready for washing only when the indicator dispenser).

3

will light on.

• Before beginning the wash cycle, insert the proper detergent into the tank (if the machine is not equipped with an automatic

N.B.:

in order to guarantee the exact rinse temperature, the washing time can increase to allow the boiler water temperature to reach the set temperature (80°-85°C).

• Insert the basket with dishes or various articles to be washed and close the hood. The wash cycle starts automatically, immediately followed by the rinse cycle. The cycle is signalled by the indicator

2

.

• The cycle is fi nished when the indicator goes off .

• The appliance is ready for another cycle.

Note:

It is advisable to change the tank water, by means of another fi lling, at least every 40-50 washes or twice a day.

Clean the machine at the end of the day (see chap.

6 Maintenance

).

Switch the machine off and close the water valve.

5.1 Cutlery and crockery loading

Before cutlery and crockery loading in the machine, coarsely clean them from the leftover food. It isn't necessary to rinse the cutlery an crockery under water.

pict. 6 ATTENTION: Do not wash articles polluted with petrol, paint, chips of steel or iron, ash, sand, wax, lubricant grease. These substances damage the machine. Do not wash fragile objects or material not resistant to the washing process.

Note the following recommendations : • Crockery and cutlery should not be inserted inside one another, covering each other.

• Place the crockery in order to all surfaces can be reached by water; otherwise the dishes are not washed. • Make sure all the crockery are in a stable position and that the hollow containers don't overturn (cups, glasses, bowls, etc.) .

• Place in the rack all the hollow containers such as cups, glass, etc. • Make sure the smaller crockery do not fall from the rack. Eventually, run a manual rotation of the arms to check it.

upside-down

.

• Place the crockery with deep hollow with upper face downwards, so that water can fl ow out.

• Check all the wash arms runs freely and they are not blocked by too tall or too prominent crockery. Some foods, such as carrots, tomatoes, and others, may contain some natural dyes substances, that in large amounts, can alter the crockery and plastic parts colors.

Any discoloration does not mean that the plastic is not heat resistant.

Crockery and cutlery not suitable for dishwasher

Not suitable for dishwasher: • Wooden crockery and cutlery or with wooden parts; water at high temperature causes deformation to wood. Also the adhesives used are not suitable for treatment in the dishwasher; a consequence could be the handles detachment.

• Crafts, precious vases or decorated glasses.

• Not heat-resistant plastic crockery. • Copper, brass, pewter or aluminum objects: they may become discolored or opaque.

pict. 7

page 28

USER SECTION EN

• The decorations on glass, after a certain number of washes, can lose gloss.

• Fragile glasses or crystal items, if often washed, can become opaque.

We recommend to buy exclusively crockery and cutlery suitable for dishwashing.

After several washes, the glass can become opaque.

It is mandatory to repeat the washing cycle if at the end of the cycle the crockery are not well clean or if there are washing residues (glasses, cups, bowls, etc. with liquid inside). 5.2 Detergent use DETERGENT

Il The detergent shall be the NO FOAM type, suitable for industrial dishwashers. The use of good quality liquid detergents is recommended. Put the detergent directly in the tub. Follow the manufacturer’s recommendations for chemical dosage, related to the local water hardness. 1cm. of the product drawn into the tube is equal to about 0.15 g. A correct amount of detergent is very important for a successful wash.

RINSE AID 5.3 Rinse aid use

The machine has a standard rinse aid dispenser. The machine automatically sucks the rinse-aid chemical. The rinse-aid chemical, shall be suitable for professional glass and dishwashers. It is advisable to rely on specialized retailers in the sector.

5.4 Compliance with H.A.C.C.P. and hygiene standards

• The machines are equipped with a temperature gauge that indicates the set temperature is reached.

• Remove carefully all solids from the objects to be washed, to avoid obstruction of fi lters, nozzles and piping.

• Drain the wash tank and clean the fi lters at least twice a day.

• Check if the detergent and rinse-aid dosage are correct (as recommended by the manufacturer). In the morning, before starting the machine, check that the quantity of chemicals in the canisters is enough for daily supply. • Keep your working tables clean.

• Extract the rack with clean hands or gloves to avoid fi nger marks.

• Do not dry or polish the washed objects with cloths, brushes or rags that are not sterile.

5.5 Drain pump (optional)

To empty the tank: remove the overfl ow and leave the hood open, then press the key

4

to start the automatic total emptying time.

After emptying, the machine goes on standby.

At the end of emptying, turn off the switch

1

and the main wall switch. If emptying does not occur in the set time, the cycle indicator

2

fl ashes, indicating that emptying did not

pict. 8

occur (check the pump fi lters and insertion of the overfl ow).

For another load, switch the machine off , insert the overfl ow and switch the machine on again.

During the wash-rinse cycle the excess water is automatically discharged.

5.6 Machine features

The machine’s sound level is

Lpa

= 70dBA ± 2.5dB(A)**

**test made according to EN 60335-2-58/A11

6. MAINTENANCE ATTENTION: The machine is not protected against pressure water jets, therefore do not use such cleaning systems on the cabinet.

It is also advisable to contact cleaning product dealers for detailed information on methods and products for periodical sanitizing of the machine.

Do not use bleach or chlorine-based detergents to clean the dishwasher.

6.1 Routine maintenance

Perfect machine operation depends on careful cleaning, which must be carried out at least once a day, in the following way: • Turn off the switch (0-1) and the main wall switch.

• Drain the water, removing the overfl ow pipe.

Note:

for machines arranged with drain pump, after removing the overfl ow pipe and turning off the switch (0-1), press the button (4) until draining is completed.

• Remove the fi lters and clean them with a brush and a water shower.

page 29

EN USER SECTION

• Remove the wash and rinse arms by loosening the fi xing screws, and thoroughly clean them, and the nozzles under running water.

• Reassemble the parts and reposition the wash pipes fi rmly in place.Take extreme care to re-assemble the nozzles in the right position (open and / or closed nozzles) and that the arms are installed with the right axial angle.

• Carefully clean the tank; do not use chlorine-based detergents.

• It is recommended to leave the machine hood open at the end of the day.

Do not use a metal scouring pad and/or corrosive detergents for cleaning the machine.

6.2 Extraordinary maintenance

Once or twice a year have the machine inspected by a qualifi ed technician, in order to: • Clean the solenoid valve fi lter • Remove scale from the heating elements • • Check the tightness of seals Check the integrity and/or wear of components • • Check the functionality of the dispensers Tighten fi rmly all electrical connections at least once per year by qualifi ed Service Personnel.

7. ALARMS TYPE OF ALARMS

Cycle indicator fl ashing

CAUSES

The wash tank does not fill with water In machines with thermostop: the boiler does not heat

CURES

Check that the water supply valve is open or correct positioning of the overfl ow. Switch the machine off and on again to cancel the alarm.

Faulty thermostat boiler or heating element: check and if necessary have them replaced by Technical Assistance

8. THE ENVIRONMENT 8.1 Packing

The packing consists of the following: • a wooden pallet • a nylon (LDPE) bag • • • a multilayer cardboard box polystyrene foam (PS) polypropylene (PP) straps.

Please dispose of the materials listed above, according to the current regulations.

8.2 Disposal

Directive.

The use of the WEEE Symbol indicates that this product may not be treated as householdwaste. By ensuring this product is disposed of correctly, you will help protect the environment. For more detailed information about the recycling of this product, please contact your local authority, your household waste disposal service provider or the shop where you purchased the product.

For the disposal of the machine or one part of its, please follow the directives 2011/65/UE, 2012/19/UE and following changes and/or the legislative decrees of application.

This product or parts of it cannot be disposed of as domestic waste but must be treated by means of separate collection (see barred waste container symbol on product).

At the time of product disposal, the user must refer to the specifi c waste collection systems for electric and electronic appliances (WEEE).

The manufacturer guarantees the absence of dangerous substances in the EEE’s used in compliance with the 2011/65/UE In the case of failure to comply with that prescribed, the user will be subject to the sanctions envisioned by the individual European Community member.

Disconnect the machine from the electrical and water supply before disposal.

Cut off the electrical cable in order to make any other use impossible.

All the metal parts are recyclable as they are in stainless steel.

Recyclable plastic parts are marked with the symbol of the plastic material.

page 30

USER SECTION EN 9. ECOLOGICAL ASPECTS 9.1 Recommendations for optimal use of energy, water and additives

Use the machine fully loaded when possible: This shall prevent detergent, rinse aid, water and energy consumption waste.

Detergent and rinse-aids: Use detergents and rinse-aid chemicals with high biodegradability, to best respect the environment. Verify proper dosage in relation to water hardness at least once a year. Excess product pollutes rivers and seas while an insuffi cient dose results in unsatisfactory dish washing and/or hygiene.

Boiler and Wash-Tank temperatures: The boiler and tank temperatures are set by the manufacturer in order to obtain the best washing results with detergents on the market. The temperatures can be reset by the installer in relation to your detergent.

Pre-washing: Carefully pre-wash with a moderate amount of water at room temperature to facilitate the removal of animal fats. To remove encrusted materials warm water soaking is recommended.

Note: Wash objects as soon as possible to avoid deposits from drying and compromise eff ective washing.

For eff ective washing routine dishwasher cleaning and maintenance is advised (see chap.

6

).

Disregarding the points listed above and of any the information contained in this manual can cause energy, water and detergent waste with a subsequent increase in running costs and/or performance reduction.

10. TROUBLESHOOTING Type of problem

The machine does not start Main switch turned off The machine does not load water I n a d e q u a t e w a s h i n g results

Possible causes

Water supply valveclosed Spraying arm nozzles clogged Solenoid valve fi lter clogged with sand The washing nozzles are clogged or the washing arms do not rotate Detergent concentration too low Filters too dirty

Cure

Turn switch on Open the water valve Clean the spraying arm nozzles and the pipes Clean the fi lter Unscrew and clean the nozzles and the rotation shaft and correctly refi t everything in the special seats Change the amounts of detergent Remove and clean the fi lters with a brush under a jet of water then refi t them in their seats Presence of foam Check the tank temperature (it must be between 50°C and 60°C) During wash, insuffi cient for the type of dirt Rinse water temperature below 80°C Use a non-foaming detergent or reduce the amounts of that used. Check the amounts of rinse aid Adjust the thermostat or check correct operation of the heating element Select the longest cycle when possible, otherwise repeat the wash cycle Washing water too dirty Dishes may have been inside the machine for too long Drain the tank water, clean the fi lters; refi ll the tank and correctly refi t the fi lters Pots and dishes are not properly dried Insuffi cient rinse aid dosage Increase the amount by adjusting the dispenser screw (see par. Rinse aid dispenser) Basket unsuitable for the pots and dishes Use a suitable basket that allows the pots to be tilted so that the water runs off As soon as the wash cycle is over immediately remove the basket with pots and dishes so that they can dry quicker with air Check the boiler thermostat temperature. If necessary have it adjusted by Technical Assistance page 31

EN USER SECTION Type of problem

Streaks or smears on pots and dishes During operation the machine suddenly stops During the wash phase the machine stops and replenishes water The washing pump doesn't work

Possible causes

Rinse aid concentration too high Water too hard The machine is connected to an overload system The pump is blocked

Cure

Reduce the rinse aid concentration by means of the dispenser micrometrical screw (see par. Rinse aid dispenser) Check the quality of the water. The water hardness must not be more than 8°f Connect the machine separately (call the authorized personnel).

A machine safety device has triggered Check the safety devices (call the authorized personnel) The previous day's water was not changed Empty the tank and carry out a new fi lling Temperature of water in tank too high Faulty pressure switch Overfl ow incorrectly positioned Have the thermostat and pressure switch checked by the Assistance Centre Remove and correctly position the overfl ow Call the Technical Assistance service page 32

Note: For any other problems, contact Technical Service.

The Manufacturer reserves the right to modify the technical characteristics without prior notice

USER SECTION EN 11. EU DECLARATION

The machine purchased is in compliance with the norms stated in the EU declaration attached to the machine in original.

Please fi nd attached below the facsimile of this declaration, with the general data of the machine purchased. For the absorption data refer to the data-plate on the machine.

DICHIARAZIONE DI CONFORMITA' UE EU DECLARATION OF CONFORMITY DÉCLARATION EU DE CONFORMITÉ EU-KONFORMITÄTSERKLÄRUNG DECLARACIÓN EU DE CONFORMIDAD DECLARAÇÃO EU DE CONFORMIDADE Il sottoscritto (1), autorizzato dall’azienda (2), dichiara che la lavastoviglie elettrica per uso collettivo (3) è stata progettata e costruita in conformità alle norme armonizzate (4) secondo quanto prescritto dalle seguenti direttive e successivi emendamenti (5) e in applicazione a quanto previsto dalle direttive citate, è stata dotata di Marcatura CE e sono stati predisposti i fascicoli tecnici presso la nostra sede (2). Tale dichiarazione riguarda esclusivamente la macchina nello stato in cui è stata immessa sul mercato, escludendo i componenti aggiunti e/o le operazioni eff ettuate successivamente dall’utente fi nale. Declina ogni responsabilità per sinistri a persone, a cose o ad animali derivanti da manomissione della macchina da parte di terzi, ovvero da carenze di manutenzione, di riparazione o di installazione della stessa da parte di personale non qualifi cato.(*) The undersigned (1), autorized by the company(2), hereby declares that the commercial electric dishwashing machine (3) is in compliance with the harmonised standards (4) according to the following directives and further amendments (5) and pursuant of the above mentioned directives, the CE Marking have been applied. Furthermore, adeguate technical fi les have been prepared and are available at our offi ces (2). This declaration relates exclusively to the machinery in the state in which it was placed on the market, and excludes components which are added and/or operations carried out subsequently by the fi nal user. Declines all responsibility for damages to people, properties and animals resulting from bad servicing of the machine by third parties as from inadequate maintenance or repairs or installation by unskilled technicians.

Le soussigné (1), désigné par la societé (2), déclare que le lave-vaisselle électrique à usage collectif (3) est conforme aux normes harmonisées (4) selon les prescriptions et directives suivantes et les amendements successifs (5) et en application des directives citées, il porte le Marquage CE. Les dossiers techniques sont déposés dans notre siège (2). Cette déclaration concerne exclusivement la machine dans l’état dans lequel elle a été mise sur le marché et exclut les composants ajoutés et/ou les opérations eff ectuées par la suite par l’utilisateur fi nal. Décline toute responsabilité pour tout sinistre à personnes, choses ou animaux résultant de l'endommagement de la machine par un tiers, c'est-à-dire dû à une maintenance, des réparations ou une installation inadéquates eff ectuées par du personnel non-qualifi é.

Der Unterzeichenete (1) berechtigt von der Firma (2), erklärt, daß die elektrischen Spülmaschinen für den gewerblichen Gebrauch (3). In Übereinstimmung mit den harmonisierten Normen ist (4) gemäß folgender Richtlinien und deren nachfolgenden Änderungen (5) und daß in Übereinstimmung mit den erwähnten Richtlinien die CE-Kennzeichnung angebracht wurde und daß die relevanten technischen Unterlagen zusammengestellt wurden (2). Diese Erklärung bezieht sich nur auf die Maschine in dem Zustand, in dem sie in Verkehr gebracht wurde; vom Endnutzer nachträglich angebrachte Teile und/ oder nachträglich vorgenommene Eingriff e bleiben unberücksichtigt. Jede Verantwortung für an Personen, Sachen und Tieren verursachten Schäden, die durch die Manipulation seitens Dritten, beziehungsweise auf mangelhafte Wartung und Reparaturarbeiten oder Installation von unqualifi ziertem Personal zurückzuführen sind, werden abgelehnt.

Quien subscribe (1), elegido de la empresa (2), declara que el lavavajilla eléctrico de uso colectivo (3) es conforme a las normas armonizadas (4) como la prescripción de la siguientes directivas y sucesivas enmiendas (5) y, conforme con lo previsto en las citadas directivas, han recibido el Marcado CE. Existe asimismo los especifi co expediente técnico relativo disponible en nuestro domicilio (2). Esta declaración se refi ere únicamente a las máquinas en el estado en que se comercialicen, con exclusión de los elementos añadidos y/o de las operaciones que realice posteriormente el usuario fi nal. Declina toda responsabilidad por daños a personas, cosas o animales producidos del mal servicio de la máquina por terceras partes asi como por reparaciones o mantenimiento indadecuados o de instalaciones por parte del personal no cualifi cado.

O abaixo-assinado (1), autorizado pela empresa (2), vem por este meio declarar que a máquina de lavar louça para uso comercial (3) esta de acordo com as normasharmonizadas (4) de acordo com o previsto pelas seguintes diretivas e posteriores alterações (5) a Marcação CE foi aplicada no seguimento das diretivas mencionadas. Os processos técnicos estão preparados e adequados e encontram-se disponíveis na nossa sede (2). Esta declaração diz respeito apenas à máquina tal como se encontra no momento da colocação no mercado, excluindo-se os componentes adicionados e/ou as operações efectuadas posteriormente pelo utilizador fi nal. Declina toda e qualquer responsabilidade por danos causados a pessoas, bens e animais, resultantes do mau manuseamento da máquina por parte de terceiros assim como manutenção incorrecta ou reparações inadequadas ou instalação por pessoal não qualifi cado.

(*) Lingua originale / Original language / Originalsprache / Langue originale / Idioma original / Idioma original

2) 3) 4) EN 60335-1:2012; EN 60335-2-58:2005; EN 55011:2009; EN55014:2006; EN 61000 3-2:2006; EN 61000 3-3:2008; EN61000 3-11:2000; EN 61000 3-12:2005; EN 61000 4-2:2009; EN61000 4-4:2010; EN 61000 4-5:2006; EN 61000 4-6:2009; EN61000 4-11:2004 1) Preposto/Person in Charge 5) 2014/30/EU; 2006/42/EC; 2011/65/EU; 2012/19/EU Firmato in originale e conservato presso la nostra sede (2).

Original document signed and available at our offi ce (2).

Dieses Dokument ist im Original unterzeichnet und bei uns aufbewahrt (2).

Signé en original et gardé à notre siège (2).

Firmado en original y conservado en nuestro domicilio (2).

Original assinado e armazenado na nossa sede (2).

page 33
