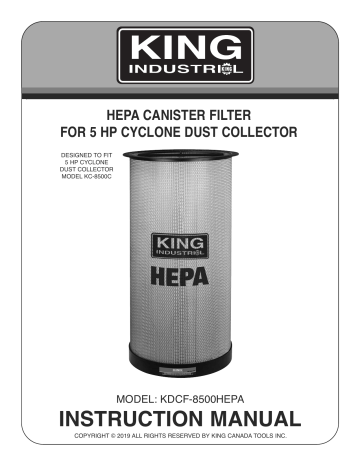

HEPA CANISTER FILTER
FoR 5 HP CYCLoNE duST CoLLECToR
DESIGNED TO FIT
5 HP CYCLONE
DUST COLLECTOR
MODEL KC-8500C
INSTRuCTIoN MANuAL
MODEL: KDCF-8500HEPA
COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
WARRANTY INFoRMATIoN
2-YEAR
LIMITEd WARRANTY
CANISTER FILTER
PRooF oF PuRCHASE
kINg CANAdA TooLS
oFFERS A 2-YEAR LIMITEd WARRANTY
INTENdEd FoR CoMMERCIAL uSE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this product are available at our authorized King Canada service centres across Canada. Please use the 10 digit
part numbers listed in this manual for all part orders where applicable.
LIMITEd TooL WARRANTY
King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the
original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from
defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence
or accidents, repairs done by an unauthorized service centre, alterations and lack of maintenance. King Canada shall in no event be
liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.
To take advantage of this limited warranty, return the product at your expense together with your dated proof of purchase to an
authorized King Canada service centre. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our
authorized service centres. In cooperation with our authorized serviced centre, King Canada will either repair or replace the product if
any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the
warranty period.
NoTE To uSER
This instruction manual is meant to serve as a guide only. Specifications and references are subject to change without prior notice.
kINg CANAdA INC. doRVAL, quÉbEC, CANAdA H9P 2Y4
www.kingcanada.com
ASSEMbLY
dISASSEMbLINg & INSTALLINg NEW CANISTER FILTER
unbolting used canister filter
1. From inside the isolation panel, remove the 10 flange head hex. bolts (B) Fig.1
to detach canister filter (A) from the Cyclone Dust Collector housing.
Installing canister filter to Cyclone dust Collector housing
1. Remove the canister filter shaft (A & C) Fig.2 assembly from the old canister
filter and reinstall it on the new canister filter. Tighten cap screws (B). Make
sure one cap screw is tightened against the flat of the canister filter shaft.
Tighten cap screw (D). Make sure cap screw is tightened against the flat of the
auto-clean shaft.
2. The KC-8500C Cyclone Dust Collector comes with an auto-clean motor
(shown uninstalled in Fig.3) which automatically turns the canister filter
paddles to dislodge dust. Before attempting to install the canister filter, it is
extremely important that the auto-clean shaft (C) Fig.2 gets positioned in
between the fork assembly (A) Fig.3. With the help of another person, position
the canister filter (A) Fig.1 under the main impeller housing and the isolation
panel, line up the auto-clean shaft and the fork assembly and raise the
canister filter up against the main impellor housing. Secure canister filter using
10 flange head hex. bolts (B) Fig.1.
FIguRE 1
3. Secure the canister filter dust bag to the bottom of the canister filter using the
retaining strap supplied with the Cyclone Dust Collector.
PARTS dIAgRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts
diagram and parts list.
FIguRE 2
FIguRE 3
