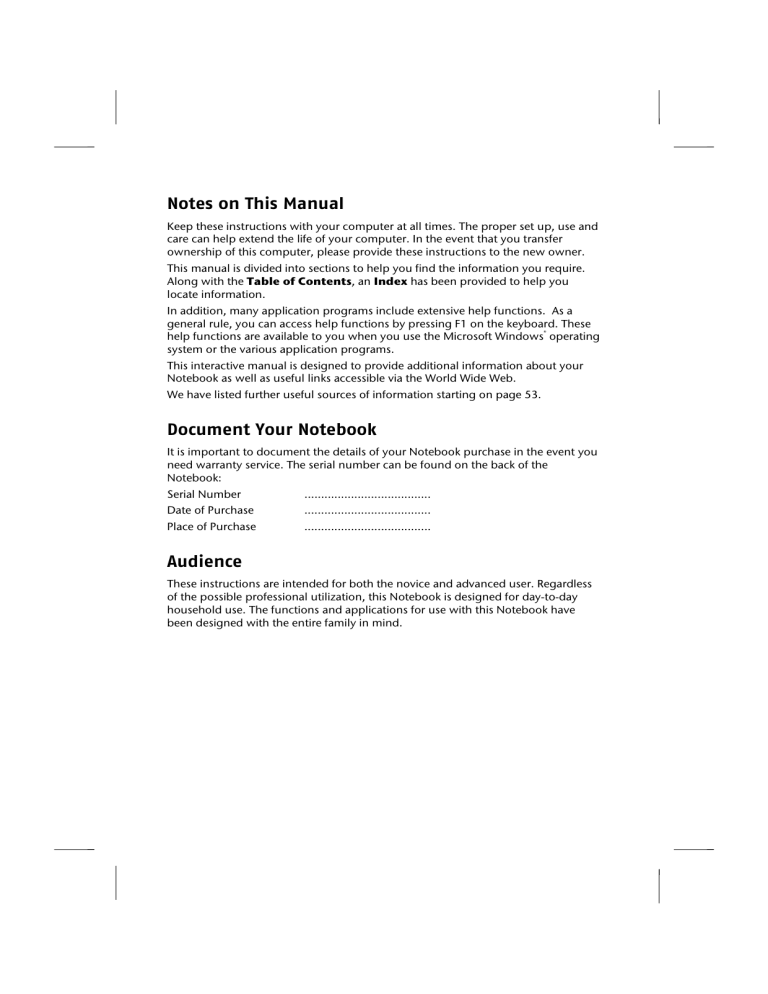

Notes on This Manual

Keep these instructions with your computer at all times. The proper set up, use and care can help extend the life of your computer. In the event that you transfer ownership of this computer, please provide these instructions to the new owner. This manual is divided into sections to help you find the information you require. Along with the

Table of Contents

, an

Index

has been provided to help you locate information. In addition, many application programs include extensive help functions. As a general rule, you can access help functions by pressing F1 on the keyboard. These help functions are available to you when you use the Microsoft Windows ® operating system or the various application programs. This interactive manual is designed to provide additional information about your Notebook as well as useful links accessible via the World Wide Web. We have listed further useful sources of information starting on page 53.

Document Your Notebook

It is important to document the details of your Notebook purchase in the event you need warranty service. The serial number can be found on the back of the Notebook: Serial Number ...................................... Date of Purchase Place of Purchase ...................................... ......................................

Audience

These instructions are intended for both the novice and advanced user. Regardless of the possible professional utilization, this Notebook is designed for day-to-day household use. The functions and applications for use with this Notebook have been designed with the entire family in mind.

Quality

We have selected the components in this computer for their high level of functionality, ease of use, safety and reliability. Through balanced hardware and software design we are able to provide you with an innovative personal computer useful for applications relating to both work and leisure. We are pleased to welcome you as our newest customer.

Copying this manual

This document contains legally protected information. All rights reserved. Copying in mechanical, electronic and any other form without the written approval of the manufacturer is prohibited. Copyright © 2009MEDION ® . / 09/06/2009 All rights reserved. Microsoft ® , MS-DOS ® , and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries. Pentium ® is a registered trademark of Intel Corporation. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Information in this document is subject to change without notice. ii Safety Instructions

Table of Contents: Safety and Maintenance ......................................................................... 1

  Safety Instructions ........................................................................................... 3   Data Security ............................................................................................... 4   Set-Up Location ........................................................................................... 4   Ambient Temperature ................................................................................. 5   Working in Comfort .................................................................................... 6   Connecting ................................................................................................. 7   Power supply ......................................................................................... 7   Cabling .................................................................................................. 8   Information about the regulatory compliance according to R&TTE ............. 9   Touch Pad ................................................................................................... 9   Battery Operation ...................................................................................... 10

Views & Handling ................................................................................ 11

  Included with Your Notebook ....................................................................... 13   Views ............................................................................................................ 14   Open Notebook ........................................................................................ 14   Left Side .................................................................................................... 15   Right Side .................................................................................................. 15   Device Indicators ....................................................................................... 16   Quick Launch Buttons ............................................................................... 17   Getting Started .............................................................................................. 18   How to start: ............................................................................................. 18   Step 1 .................................................................................................. 18   Step 2 .................................................................................................. 19   Step 3 .................................................................................................. 19   Short description of the Windows ® desktop .......................................... 20

Main Components ................................................................................ 23

  Power Supply ................................................................................................ 25   On/Off Button ........................................................................................... 25   Power Adapter .......................................................................................... 26   Battery Operation ...................................................................................... 27   Inserting the Battery ............................................................................ 27   Removing the Battery .......................................................................... 28   Charging the Battery ............................................................................ 28   Discharging the battery ....................................................................... 29   Battery Performance ............................................................................ 29   Power Management .................................................................................. 30   Sleep Mode ......................................................................................... 30   Hibernate Mode ................................................................................... 30   ECO Function ............................................................................................ 31   Switching the ECO function on /off ..................................................... 31   Making settings ................................................................................... 31   Safety Instructions iii

Display .......................................................................................................... 33   Opening and Closing the Display .............................................................. 33   Screen Resolution ...................................................................................... 33   Connecting an External Monitor ............................................................... 34   Data Entry ..................................................................................................... 36   The Keyboard ............................................................................................ 36   Notebook-Specific Key Combinations .................................................. 36   Programming the user-defined P1 key ....................................................... 38   Changing the use of the key ................................................................ 39   Touch Pad ................................................................................................. 40   The Hard drive ............................................................................................... 41   Important Directories ................................................................................ 42   The Sound Card ............................................................................................ 43   External Audio Ports .................................................................................. 43   The Network ................................................................................................. 44   What is a network? .................................................................................... 44   Ethernet-Network ................................................................................ 44   Wireless LAN ............................................................................................. 45   Bluetooth (optional) .................................................................................. 46   Troubleshooting within the Network ................................................... 47   The Multimedia Card Reader ......................................................................... 48   Inserting Memory Cards ............................................................................ 48   Removing Memory Cards .......................................................................... 48   USB Card/34 ................................................................................................. 49   Installing USB Card/34 .............................................................................. 49   Removing USB Card/34 ............................................................................. 49   Webcam (optional) ....................................................................................... 50   Actual example using Windows Messenger ............................................... 50   Universal Serial Bus (USB) Port....................................................................... 51   Securing the Notebook ................................................................................. 52   Startup Password ...................................................................................... 52   Using a safety lock ..................................................................................... 52   Software ........................................................................................................ 53   Getting to Know Windows XP ................................................................... 53   Windows ® XP Manual ........................................................................... 53   Windows ® XP Tour ............................................................................... 53   Windows ® XP Help and Support ........................................................... 53   Microsoft ® Interactive Training.............................................................. 54   Software Installation ................................................................................. 55   Uninstall Software................................................................................ 56   Windows Activation .................................................................................. 56   Product activation on your Notebook .................................................. 57   The BIOS Set-up-Program.......................................................................... 57   Running the BIOS Set-up ..................................................................... 57   iv Safety Instructions

First Aid ............................................................................................... 59

  FAQ – Frequently Asked Questions ................................................................ 61   Data and System Security .............................................................................. 62   Data Security ............................................................................................. 62   Maintenance Programs ............................................................................. 62   Windows ® Update ...................................................................................... 63   Windows Update Information for Data Security ................................... 64   System Restore .............................................................................................. 65   Correction ................................................................................................. 65   System Restore powered by Symantec ...................................................... 66   Limits of the Recovery .......................................................................... 66   Performing the State of Delivery .......................................................... 66   Troubleshooting ............................................................................................ 67   Localize the Cause ..................................................................................... 67   Check Cables and Connections ............................................................ 67   Errors And Possible Causes................................................................... 68   Additional Support .................................................................................... 69   Driver Support .......................................................................................... 69   Maintenance ................................................................................................. 70   Care of the TFT Display ............................................................................. 70   Transporting the Notebook ....................................................................... 71   Recycling and Disposal .............................................................................. 72   Batteries and Proper Treatment ............................................................ 72   Upgrades and Repairs ............................................................................... 74   Notes for Service Engineers .................................................................. 74

Appendix ............................................................................................. 75

  Standards ...................................................................................................... 77   Electromagnetic Compatibility .................................................................. 77   ISO 13406-2 Class II .................................................................................. 77   FCC Compliance Statement ...................................................................... 79   Conditions of Warranty for the United Kingdom ............................................... 80   Liability limitations .................................................................................... 85   Index ............................................................................................................. 86   Safety Instructions v

vi Safety Instructions

Chapter 1 Safety and Maintenance

Subject Page

Safety Instructions ............................................................. 3 Data Security ...................................................................... 4 Set-up Location .................................................................. 4 Ambient Temperature ...................................................... 5 Working in Comfort .......................................................... 6 Connecting ........................................................................ 7 Information about the regulatory compliance according to R&TTE ........................................................... 9 Touch Pad .......................................................................... 9 Battery Operation ............................................................. 10

2 Safety Instructions

Safety Instructions

Please follow the instructions in this section for the safe operation of your notebook: • Do not allow small children to play unattended with electrical equipment. Children are incapable of judging potential risks properly. • Keep the packing materials, such as foil away from children. The danger of suffocation could arise in the case of misuse. • Do not open the case of the notebook, the battery or the power adaptor. When the case is open there is a danger of severe electric shock. • Do not insert objects through the slots and openings of the notebook. This may lead to electric shock, electrical short-circuit or fire that will damage your notebook. • Slots and openings in the notebook serve to ventilate it. Do not cover up these openings, because the notebook could overheat. • The notebook is not intended to be operated in a heavy industry company. Operation under extreme environmental conditions can result in damage to your notebook. • Do not operate the notebook during a thunderstorm, in order to avoid damage through lightning strike. • Never place objects on top of the notebook that would exert any pressure on the display. There is a danger that even slight pressure may break the TFT display. • There is a risk of injury if the TFT display breaks. Use protective gloves to pack up the broken pieces and contact customer service to arrange for proper disposal. It is important to thoroughly wash your hands after handling a broken TFT display. There is a chance that chemicals may have been released. • To avoid damage to the TFT Display, never open it more than 120º. Do not forcibly open it. • In order to avoid damage to the display, do not touch it with your fingers or sharp objects. • Never lift the notebook by the TFT Display; doing so could break the hinges. Safety Instructions 3

Switch off your Notebook immediately

or do not switch it on at all and contact customer service … • … if the power cord or the connectors attached to it are burnt or damaged. Replace the defective power cord with an original power cord. Under no circumstances may a defective power cord be repaired. • ... if the housing of the Notebook is damaged or fluids have leaked into it. Have the Notebook checked by customer service first, because the Notebook may not be safely operated otherwise and there may be a life-threatening risk of electrocution!

Data Security

Attention!

Every time you update your data make back-up copies on an external storage medium. The supplier does not assume liability for data loss or damage to data storage units, and no claims can be accepted for damages resulting from the loss of data or consequential losses.

Set-Up Location

• • • • • Keep your notebook and all connected peripherals away from moisture, dust, heat and direct sunlight. Failure to do so can lead to Notebook malfunction or damage. It is highly recommended you do not use the notebook outdoors. Operate the notebook and all peripherals on a stable, balanced and vibration-free surface. Do not leave the base of your notebook on your lap or any part of your body for a long period of time. The notebook can become very warm while it is turned on or charging and can cause discomfort or injury from heat exposure. In the first hours of operation, new devices may emit a typical, unavoidable but completely harmless smell, which will decline increasingly in the course of time. We recommend that you ventilate the room regularly, in order to counteract the formation of the smell. During the development of this product, we have made sure that the applicable limits are clearly lowered. 4 Safety Instructions

Ambient Temperature

• • • • • The notebook is most reliably operated at an ambient temperature between +41° (5° C) and +95° F (35° C) and at a relative humidity between 20% and 70% (without condensation). When powered off, the notebook can be stored at temperatures between 32° and 140° F (0° and 60° C). Unplug the cable during thunderstorms and make especially sure to remove the antenna cables, if present. We recommend the use of a surge protector for additional safety, in order to protect your notebook from being damaged by power peaks or lightning strikes through the power network. Wait until the notebook has reached ambient (room) temperature before turning it on or connecting it to the power adapter. Drastic variations in temperature and humidity can create condensation within the Notebook and may cause it to short-circuit. For transporting the notebook keep the original packing. Safety Instructions 5

Working in Comfort

Sitting in one position for long periods can be uncomfortable. To minimize the potential for physical discomfort or injury, it’s important that you maintain proper posture. • Back – While sitting at your work surface, make sure your back is supported by the chair’s backrest in an erect position or angled slightly backwards. • Arms – Your arms should be relaxed and loose, elbows close to your sides, with forearms and hands approximately parallel to the floor. • Wrists – Your wrists should be as straight as possible while using the keyboard, mouse or trackball. They should not be bent sideways, or more than 10 degrees up or down. • Legs – Your thighs should be horizontal or angled slightly downward. Your lower legs should be near a right angle to your thighs. Your feet should rest flat on the floor. If necessary, use a footrest, but double check that you have your seat height adjusted correctly before getting a footrest. • Head – Your head should be upright or tilted slightly forward. Avoid working with your head or trunk twisted. • Overall – Change your position frequently and take regular breaks to avoid fatigue. 6 Safety Instructions

Connecting

Pay attention to the following information, in order to connect your notebook correctly:

Power supply

• Do not open the power adapter housing. When the housing is open there is a danger of severe electric shock. It contains no user-serviceable parts. • The electric outlet must be in the vicinity of the notebook and within reach of the power adapter cables. • To disconnect your notebook from the power source, or set the notebook to battery operation, remove the power cord from the notebook’s power socket. • Only use the notebook with a power adaptor operating at AC 110-240V~/50-60 Hz. For details on power consumption, please refer to the rating plate on the rear of your notebook. If you are unsure of the type of power supply available at the point of use, ask your local power company. • • Use only the supplied power cord and power adapter. If using an extension cord, make certain that it meets your local safety requirements. If in doubt, consult an electrician. • To provide additional protection against electric shock, power surges, lightning strikes, or other electrical damage to your notebook, we recommend the use of a surge protector. • Firstly remove the plug, and then the connector of the notebook, from the power source, if you want to detach the network adapter from the mains power supply. A reverse sequence could damage the network adapter or the notebook. Always hold the connector firmly when removing it. Never pull on the power cord. Safety Instructions 7

Cabling

• Arrange cables so no one can walk on or trip over them. • • Do not place objects on any of the cables. To avoid damage to your Notebook, connect your peripherals (e.g., keyboard, mouse and monitor) whilst your notebook is powered off. Some devices can be connected whilst your notebook is in use. These devices usually have a USB connector. Please follow the appropriate instructions for each device. • Keep the notebook at least one meter (approximately three feet) away from high frequency and magnetic interference sources (e.g., televisions, loudspeaker cabinets, mobile telephones, etc.) in order to avoid malfunctions and/or loss of data. • Please note that only shielded cables shorter than 3 metres (9.84 ft) should be used for the LPT, COM, USB, IEEE 1394, audio, video and network interfaces with this notebook. Please use only doubly screened cables in the case of printer cables. • Do not replace the cables supplied. Only use the cable supplied with the notebook, since that cable will have been tested extensively in our laboratory. • Also only use the connection cables supplied with the devices to connect your peripherals. • Make sure that all connecting cables are connected with the respective peripheral devices, in order to avoid perturbing radiation. Remove any cables not needed. • The connection of devices is limited to equipment that complies with EN60950 “Safety of information technology equipment” or EN60065 “Audio, video and similar electronic apparatus. Safety requirements”. 8 Safety Instructions

Information about the regulatory compliance according to R&TTE

The following remote equipment has been supplied with this notebook: • Wireless LAN (optional) • Bluetooth (optional) Due to the capacity of the built-in wireless LAN solution (> 100 mW) the device may only be used within buildings in France. Currently none of the other EU-countries have any restrictions. For use in other countries please obtain information about the applicable regulations locally. The company declares herewith that these devices are in agreement with the fundamental requirements and the other relevant terms of the 1999/5/EG Guideline. Complete declarations of conformity are available under www.medion.com/conformity .

Touch Pad

• Light pressure with the tip of your finger is all that is required to operate the touch pad. Because the touch pad is electrostatic sensitive, objects cannot be used in place of your fingers. Using a pen or other object can damage the touch pad or cause the notebook to malfunction. Safety Instructions 9

Battery Operation

To extend the life and power of your battery and guarantee secure operation, the instructions below should be followed: • • • Never expose the battery to direct sunlight or heat for long periods. Do not dispose of the battery by fire. Disregarding these instructions will lead to damage and under some circumstances may even cause the battery to explode. • • Do not open the battery housing; it contains no user-serviceable parts. Keep the battery away from electrically conductive materials, chemical substances and cleaning agents. • • Only use the originally supplied power adapter to charge the battery. Ensure (through the display or the signalling sound of the notebook) that the battery is completely discharged before recharging it. • Replace the battery only with the same type or an equivalent type recommended by the manufacturer. • Charge the battery only until the battery charging light goes out. Also, refer to the instructions under “Charging the Battery” on page 28 for instructions on checking the battery level. • • Only change the battery when the unit is switched off. Batteries are classified as special waste and should always be disposed of properly. Contact Customer Service for more details. 10 Safety Instructions

Chapter 2 Views & Handling

Subject Page

Included with your notebook ............................................ 13 Open notebook ................................................................... 14 Left side ............................................................................... 15 Right side ............................................................................ 15 Power and status indicators ................................................. 16 Quick launch buttons .......................................................... 17 Getting started .................................................................... 18

12 Included with Your Notebook

Included with Your Notebook

Please check that the contents are complete and notify us

within 14 days of purchase

if any of the following components are missing: • • • • • • Notebook Battery Power adapter with connection cable (Model: FSP065-ASC) Application-/Support-Disc OEM version of operating system Documentation Included with Your Notebook 13

Views Open Notebook

3 2 1 8 7 4 5 6 (Diagram the same) 1

-

2

- Display .................................................................................. ( Ö p. 33)

3 4

- Quick launch buttons ............................................................ ( Ö p. 17) Device indicators ................................................................... ( Ö p. 16)

5

- .............................................................................. p. 40)

6 7 8

Keyboard ............................................................................... ( Ö p. 36) Power ON/OFF ...................................................................... ( Ö p. 25) - Webcam (optional) ................................................................ ( Ö p. 50) 14 Views

Left Side

9 10 11 12 13 9

Kensington ®

(Diagram the same)

lock .................................................................... ( Ö p. 52)

10

- Power socket ....................................................................... ( Ö p. 26)

11

External monitor port VGA .................................................... ( Ö p. 34)

12

- .................................................................... p. 34)

13

USB port ............................................................................... ( Ö p. 51)

Right Side

14 15 16 13 17 18 9 9

Kensington ®

(Diagram the same)

lock .................................................................... ( Ö p. 52)

13

USB port ............................................................................... ( Ö p. 51)

14

Multimedia card reader ........................................................ ( Ö p. 48)

15

- Line in / microphone ............................................................. ( Ö p. 43)

14

- .................................................................................. p. 43)

17

- .......................................................................... p. 49)

18

LAN port (RJ-45) ................................................................... ( Ö p. 44) Views 15

Device Indicators

LED's indicate the power and operating system states of the Notebook. The meaning of each LED is:

WLAN and Bluetooth indicator (optional)

Below you will see the different meanings of the LED in various situations:

Lights green Lights blue Lights light blue

The wireless LAN function is activated The Bluetooth function is activated. Wireless LAN and Bluetooth functions are both activated.

Webcam indicator (optional)

This LED lights

blue

when the webcam is activated.

Power indicator

This LED lights

blue

when the computer is turned on. This LED lights green when the ECO function is activated.

Sleep Indicator

This LED is blinking when the Notebook is in stand-by mode.

Battery LED

Below you will see the different meanings of the LED in various situations:

Lights green

The battery is charging.

Lights orange

Battery is low.

LED Flight mode

This LED lights

blue

, when the flight mode is activated. 16 Views

Access indicator

This LED lights or flashes when the notebook is accessing the hard disk.

Capital Lock

This LED lights when CAPS-Lock has been activated [

Caps Lock

]. This sets the keyboard to capital letters.

Num Lock

This LED lights when NUM-Lock has been activated [

NumLk

].

Quick Launch Buttons

Flight mode

This button activates the flight mode. The LAN and Bluetooth functions will be de-activated with the activation of the Flight Mode.

ECO function

This button will activate the ECO function. This function is only available in battery operation. You will read which possible settings are available on P. 31. Views 17

Getting Started

Before you get started using your notebook, first take a few moments to read the important section on

Safety

. This notebook comes with software

fully pre installed

. You do not have to install any of the discs supplied.

How to start:

Step 1

• Insert the battery before bringing the notebook into operation by sliding the battery pack into the compartment. Lock the battery under all circumstances, in order to avoid it falling out unintentionally. • Connect the supplied power adapter to the notebook at the notebook power socket (

10

). Connect the power adapter via a power cable to a free AC power outlet. Set the switch on the power adapter to the

I

setting, in order to supply the notebook with electricity and to charge the battery. (Set the switch to

0

to interrupt the electricity supply.) 18 Getting Started

• • Open the display to the required position with your thumb and index fingers. To avoid damage to the TFT Display, never open it more than 120º. Do not forcibly open it. Please ensure that the battery is inserted and the power adapter connected when operating the Notebook for the first time. If you fail to do this, Windows ® will not be able to calculate the performance index correctly. • Switch the notebook on by operating the On/Off Switch (

7

). The notebook starts and now goes through a number of phases. The

operating system

is loaded from the hard disk. During the initial set-up, the loading process takes slightly longer than normal to register the operating system and the individual components completely. Your operating system is finished loading when a welcome screen is shown on your display.

Step 2

Follow the instructions on the screen. Dialogue boxes will explain any steps that need to be taken. The greeting procedure will guide you through a series of dialogue boxes. The information in each dialogue box will explain the steps that need to be taken. Should you have any questions just click on •

License Agreement

. The greeting procedure also displays the license agreement. Please read this carefully. It contains important legal information on the use of your software. In order to see the full text, use the mouse and the scroll bar on the right side of the screen to move downwards until you have reached the end of the document. You accept the agreement by clicking on the “

I accept the agreement

” option field. Only by doing so will you be entitled to use the product under lawful terms and conditions.

Step 3

After the login procedure the Windows ® desktop appears on your screen. You will find a brief overview on the following pages. After the login procedure the Windows ® desktop appears on your screen. This can be adjusted so that the screen of your computer looks different. However, basic operation is guaranteed. Getting Started 19

Short description of the Windows

®

desktop

(The respective illustration is shown on the next page.) n

The Start button

Click once on this button with your left mouse key to call the illustrated start menu. o

Program

The most commonly used programs are listed here. The operating system recognizes them automatically. If you press the right mouse key on an entry you can determine which entry is kept and which is deleted from the list. The program associated with the entry will

not

be deleted. p

All

Here you find the entries to every program installed on your PC. Here, too, you can edit entries with the right mouse key. q

Switching

Click on this button with the left mouse key to switch off the PC. r

Task

Here you receive information and status reports about the operating system and the running programs. s

“Icons” on the “Desktop” Icons

are program links used to start the respective programs. A

double click

(press the left mouse key quickly twice) on the symbol starts the application. The

Desktop

includes almost the complete screen and is the filing area for those entries or other links you would like to access quickly. t

Logged in user

This shows the logged in user. The image is changed by clicking on it. u

Control

This is the central control of your computer. Here you are able to configure your computer at will. However, you should read about the implications of possible changes in “Help and Support”. 20 Getting Started

n o p q s t u r Getting Started 21

22 Getting Started

Chapter 3 Main Components

Subject Page

Power Supply ..................................................................... 25 Display ............................................................................... 31 Data entry .......................................................................... 36 Hard Drive ........................................................................... 41 Sound Card ......................................................................... 43 Network .............................................................................. 44 WLAN (optional) ............................................................ 45 Bluetooth (optional) ...................................................... 46 The Multimedia Card Reader ............................................... 48 USB Card/34 ....................................................................... 49 Webcam (optional) ............................................................. 50 Universal Serial Bus (USB) Port ............................................ 51 Securing the Notebook ...................................................... 52 Software .............................................................................. 53

24 Power Supply

Power Supply On/Off Button

Power on or off your notebook by pressing the on/off button (

7

) briefly. The operational indicator will inform you about the operational status of the notebook. The notebook will always be switched off, if the main switch is pressed for more than 4 seconds.

Warning!

Do not switch off your notebook while the

hard disk

is running and the corresponding

media activity LEDs

are lit. Otherwise data may be lost. To protect the hard disk you should always wait for 20 seconds after powering down the notebook before powering it up again. Power Supply 25

Power Adapter

Your notebook is supplied with a universal AC power adapter, which automatically adjusts to the available power source. The following levels are supported:

AC 100-240V~/ 50-60 Hz.

Please follow the power supply

safety instructions

found on page 5. The power adapter is connected via a power cord to an AC outlet. The DC power lead from the power adapter is connected to the

left side

of the notebook (

10

). The adapter has an on and off switch. No electricity will be used and the notebook will not be supplied with electricity if the switch is set to OFF (

0

). The adapter provides the notebook with power in the ON setting (

1

) and also charges the battery. The power supply indicators of the notebook provide details on the operating state. The battery is also being charged when you are working on your notebook with the power adapter. The power adapter is still live if the notebook is not connected with it. You should therefore unplug the power adapter from the outlet if it is not connected to the notebook or set the adapter to OFF (

0

).

Warning!

Use only the power adapter and power cord supplied with your notebook. 26 Power Supply

Battery Operation

Note

Please charge and discharge the new battery completely two to three times in succession, so that it will achieve its full performance! Batteries store electrical energy in their cells and then deliver it when needed. The useful life and performance of your battery depend on careful handling. The battery should be completely discharged before a charging process and completely charged again, in order to optimize its useful life and its performance. You must also pay attention to the Safety Notes from page 8.

Inserting the Battery

Slide the battery into the battery compartment. Lock the battery under all circumstances, in order to avoid it falling out unintentionally. Power Supply 27

Removing the Battery

Push the Safety Locks ( n ) to the ‘Unlock’ position, in order to remove the battery pack.

Warning!

Do not remove the battery while the notebook is running on battery power. You increase the possibility of losing data.

Warning!

Pay attention that the contacts to the battery and the notebook are not dirty or damaged when storing the battery and using the notebook. This could lead to malfunctions.

Charging the Battery

The battery is charged via the power adapter. If the power adapter is connected, it charges the battery automatically, whether the notebook is turned on or not. When the notebook is switched off, full charging takes a few hours. If the notebook is switched on, the charging process takes a significantly longer time.

Note

The charging process will be interrupted if the temperature or the voltage of the battery is too high. 28 Power Supply

Discharging the battery

Operate the notebook by means of the battery until it switches off independently because of the low battery charge.

Note

Think about saving your open files in good time, to avoid a possible loss of data.

Battery Performance

The particular operating duration will vary according to the setting of the energy saving functions. You can adjust these to your requirements under

Energy Options

in

System Control

. Apart from this, your notebook will require a higher power demand when carrying out certain tasks.

Checking the Battery Level

In order to check the current level of the battery, move the cursor over the power symbol in the taskbar. The symbol of a battery is displayed during battery operation. You will receive additional information about settings if you double click on this symbol.

Note

If you ignore the warning signal when the battery level is low, your notebook goes into hibernate mode.

Warning!

Never remove the battery while the notebook is switched on or if the notebook has not yet gone into hibernate mode, as this may lead to loss of data. Power Supply 29

Power Management

Your notebook offers automatic and modifiable power saving functions that you can use to maximize battery life and reduce overall operating costs. The power saving modes are known as sleep mode and hibernate mode.

Sleep Mode

When in sleep mode, the contents of the RAM of your notebook are preserved while practically all other components of your notebook are shut down, reducing your power consumption to a minimum. By pressing any key on the keypad, you can bring your notebook back to the fully operational state. You will restart at precisely the line in which you were working prior to the interruption. The computer takes less time to go into and come out of sleep mode, but uses more power than hibernate mode.

Hibernate Mode

The hibernate mode is an alternative to a complete shutdown of the notebook. In this mode all data from RAM (system and graphic data) are copied to the hard disk as a file. As soon as the data has been safely saved, the notebook powers down. When the notebook is switched on again, this file is written back to RAM by the BIOS. In a few moments the notebook is in the exact state as when it was last used. If while working on a document the notebook is closed (assuming the correct ACPI setting), the notebook saves the data in RAM for you automatically. You will restart at precisely the line in which you were working prior to the interruption. The computer uses no power while it is in hibernate mode, but it takes a little longer for the computer to go into and come out of hibernation compared to sleep. 30 Power Supply

ECO Function

With the aid of this function you will be able to save energy and extend the life of your battery if you are working with your laptop in battery operation.

Switching the ECO function on /off

The ECO function is switched on or off by means of the or the

Fn+F5

key combination. quick start button The following will appear and the operating display (see P. 16) will shine

green

if the ECO function is switched on.

Making settings

The ECO function must have been

deactivated

, in order to make settings. 1.

Press the quick start button.

The following will appear: . 2.

Now click on the icon in the Taskbar with the right mouse button. You will open the System Control Manager (SCM), with which you will be able to make settings, by this. 3.

Click on on the screen: (ECO Settings). The following window will appear Power Supply 31

You will be able to select which functions in this Menu should be deactivated to save energy in battery operation, if the ECO mode has been switched on.

Attention!

The ECO function can only be used in

battery operation

.

Note

You laptop is set in its delivery status so that the Bluetooth function and the webcam will be deactivated if the ECO function has been switched off. 32 Power Supply

Display

Unlike a normal monitor, the TFT display does not produce either radiation or flicker.

Opening and Closing the Display

The display is locked by means of a special construction of the display hinge, so that an additional lock is not necessary. 1.

To open, lift the display with your thumbs and index finger and position it as desired.

Warning!

To avoid damage to the TFT Display, never open it more than 120º. Do not forcibly open it. The opening and closing of the display can be assigned various functions via the Power management feature.

Screen Resolution

The integral screen has a native resolution of

1366 x 768

pixels. Using a higher resolution can lead to distortion of the display, especially with text. Using a lower resolution may cause the display to use only a portion of the screen area. Display 33

Connecting an External Monitor

The notebook has a VGA port (

11

) for connecting an external monitor. 1.

2.

Shut down your notebook. Connect the video signal cable of the external monitor to the VGA port of the notebook (

11

). Alternatively, you can use the digital HDMI interface (High Definition Multimedia Interface) (

12

) to transfer image and sound signals. 3.

4.

Connect the external monitor to the electrical socket and power it up. Start your notebook. 34 Display

There are two options for setting up an external monitor: 1.

Clone your Desktop

This option allows you to display the same picture on both internal and external monitor. Press

+

to activate the external monitor. The notebook display will be switched off. Adjust the display settings following the external monitor specification. Press

+

once more and both displays are switched on. Press

+

again to deactivate the external monitor. The notebook display will be switched on. 2.

Extend your Desktop

This option extends the picture from your internal monitor to your external monitor. Windows can be switched from one monitor to the other. This option does not support the key combination

+

. Right click anywhere on your desktop and select “

Properties

” to start the "

Display Properties

" program.

• • Select the "

Settings

Check the option “

"

tab and left click on the second display n

extend my Windows desktop onto this monitor

” o and press “ok”. . • To deactivate the extension uncheck the option “extend my Windows desktop onto this monitor”. n o You can change the resolution and colour depth for either display in this screen. However, you may have to decrease the depth of colour if you increase the resolution since the video memory has a limited capacity. Display 35

Data Entry The Keyboard

By dual assignment of certain keys you have the same range of functions available to you as with a normal Windows keyboard. Some functions are input using the

Fn

key, which is normal on notebook computers.

Notebook-Specific Key Combinations

Combination Description

Fn + F2 Fn + F3 Fn + F4 Fn + F5 Fn + F6 Fn + F7 Toggles the display screen between internal monitor, external monitor and simultaneous display. Touchpad Enables or disables the touchpad. Programmable P1 key You will activate or deactivate the user-defined P1 key with this key combination. Read the following “

Programming the user-defined P1 key

” section (on P. 38), in order to program the key. ECO function Enables or disables the ECO function (see p. 31). Webcam Enables or disables the webcam. Mute Switches the loudspeakers on / off. 36 Data Entry

Combination Description

Fn + F8 WLAN / Bluetooth Switches through the WLAN or Bluetooth functions in the following sequence: Fn + 12 Bluetooth off and WLAN on Bluetooth on and WLAN off Bluetooth on and WLAN on Bluetooth off and WLAN off Power saving functions. This key combination is set to

power down

by default. To adjust this key to your own needs go to display

properties

in

power saving

. Fn + Å volume. Fn + Æ Fn + Ç Fn + È Increases the volume.

Enhances screen brightness. Reduces screen brightness. Data Entry 37

Programming the user-defined P1 key

Proceed as follows to program the user-defined P1 key: 1.

Press the

Fn+F4

key combination. The following Window will open: 2.

Click on

Browse

to give the key a function. 3.

Select a program and click on

Open

. 4.

Confirm your selection with

OK

in the following Window: 38 Data Entry

Changing the use of the key

1.

Click on lower right section of the taskbar on the screen with the right mouse button, if you wish to change or remove the use of the key. 2.

Then click on (

User-Defined Key

) and you will be able to change or remove the current programming of the key Data Entry 39

Touch Pad

The touchpad is positioned in front of the keyboard. The mouse pointer (cursor) follows the direction pre-determined on the touchpad by the movement of your finger in the normal mode.

Caution! Do not

use a ball-point pen or other object on the touch pad, as this could damage or cause a malfunction of your touch pad. Below the touch pad are the left and right mouse buttons which can be used as on a normal mouse. You can also perform a direct click or double click using the touch pad by tapping the surface briefly once or twice. In the Windows ® Control Panel you will find a number of useful settings that will make using the touch pad easier.

Note

You will activate or deactivate the Touchpad with the

Fn+F3

key combination. 40 Data Entry

The Hard drive

The hard drive is the main storage medium combining large storage capacity and rapid data access. The Windows operating system cannot use the full capacity of the hard drive, which means that there will be a difference between the capacity that the BIOS displays and what the operating system displays. The hard drive contains the operating system of the computer, other application programs and backup files. These programs and files are pre-installed on your notebook, so you may note that some of the space on your hard drive is already taken. Whenever the computer is accessing the hard disk, the corresponding LED illuminates.

Warning!

Never switch off the computer while the busy indicator is lit since this may result in loss of data. If you are looking for a file on the hard drive and you know the name, go to Search on the Start menu to find the file. Following is some general information on where you might find some common files. Usually your hard drive is divided into several partitions, as shown below. The partitions of your hard drive may vary from what is shown here. RECOVER D: Software programs Your documents Drivers for internal Notebook components Installation files for software that came with your Notebook Restore software The Hard drive 41

Important Directories

The most important directories preinstalled on your notebook are shown below. These directories may vary from what is shown here.

Warning!

Do not delete or modify these directories or their contents since data could be lost or the functionality of the system could be at risk.

Also pay attention to this:

You will no longer be able to carry out the recreation of the supply status by means of the Support Disc ( Ö p. 66), if you have converted the Recovery Partition into a NTFS file system.

C:\

This is the main hard disk drive partition for your notebook. It is where your program files, settings, and documents are stored, as well as files necessary for running Windows.

C:\Program Files

Includes files belonging to software programs.

C:\Windows

The main directory for Windows.

D:\Driver

Drivers for internal notebook components.

D:\Tools

Includes installation files for software that came with your notebook.

D:\Recover

Includes the files needed to perform a system restore.

42 The Hard drive

The Sound Card

Your notebook has an integrated stereo sound card (on-board) with 16-bit and 3D spatial sound effects (3D). The sound card is compatible with the industry standard Sound Blaster and Microsoft Sound System Version 2.0. This guarantees optimal support for all popular programs and games. If you wish to alter the base volume, click on the loudspeaker symbol in the task bar. By using the keys

Fn +

Å and

Fn+

Æ you have the possibility to regulate the volume.

External Audio Ports

Your notebook has a loudspeaker, so you can always playback sounds without additional equipment. The use of the external connections gives you a good opportunity to connect your notebook to external devices.

Caution!

The use of earphones with a high volume can lead to lasting damage to your hearing. Set the volume to the lowest level before reproducing any sound. Start the sound reproduction and increase the volume to the level that is comfortable for you. It can cause damage to the hearing ability of the listener if a device is operated through earphones with an increased volume for a long period.

Line in / Microphone In

(

15

) For recording via an external microphone.

Audio out / headphones

(

16

) For sound reproduction via external stereo equipment such as loudspeakers (active) or headphones. The Sound Card 43

The Network What is a network?

A network means connecting your notebook to one or several other computers. Users can transfer data between computers and share resources such as printers, modems and hard disk drives. Here are some practical examples: • You can exchange E-mail and manage appointments in an office. • Users can share a printer in a network and save their data on a central server. • • Users can share one modem among computers for Internet access. Two or more computers can be connected to play network games or share data.

Ethernet-Network

If your notebook has an Ethernet connection, you can use this to connect to a network. The following explanation refers to notebooks with a network connector. Connect one end to the RJ45 connection (Western plug) at the network interface of your notebook (

18

) and the other to another PC or a hub/switch. The Windows Help and Support Centre offer extensive information about networking your Notebook. You can access this information by clicking on

Start

, then

Help and Support

.

44 The Network

Wireless LAN

Wireless LAN is an optional feature. This function allows you to create a wireless network link with an access point or directly with another wireless-enabled PC. Using the key combination

Fn + F8

you can enable or disable the wireless LAN function. The Wireless LAN function will have been activated, if one of the two following displays appears below at the right edge of the display:

Warning!

Make sure the Wireless LAN option is switched OFF in any environment where it might interfere with critical and sensitive devices, e.g., on aircraft, in hospitals and other medical centres, etc.

Conditions

An access point is a wireless transmitter that communicates with your notebook and controls access to the network connection (e.g., a home network or a broadband connection such as DSL). Wireless access points are often found in offices, airports, universities or Internet cafés. They offer access to networks or to the Internet.

Access authorizations

are normally needed. A fee may be required to use a public access point. To set up a wireless network to share Internet access, files, and printers at home, you will need an access point, a router, and a broadband (DSL or cable) modem. Some access points can also serve as a router and/or a broadband modem. Check with your retailer or Internet Service Provider to find the best solution for your needs. A link to another computer with wireless LAN functionality can also be created

without an access point

. This will allow you to share files, but you will need an access point and a router to share an Internet connection. The wireless network connection works in accordance with the

IEEE 802.11n

Standard (compatible with the 802.11b/g Standard). The 802.11a Standard is not supported. If encrypted transmission is used, this must operate according to the

same principle on all devices

. Encryption is a method of protecting the network from unauthorized access. The transmission speed (max. 300 Mbp/s * ) can vary according to the

distance

and

loading

of the partner. * 300 Mbit/s is a gross value. A maximum of 75 Mbit/s will be achieved on the application level. A WLAN router in accordance with the 801.11 standard will be necessary, in order to be able to exploit the complete performance. The Network 45

Bluetooth (optional)

Bluetooth wireless technology is designed to replace cables between devices, such as your printer, keyboard, and mouse. Bluetooth wireless technology operates over a short distance. Bluetooth devices use radio transmission, which enables your computer, mobile phone, printer, keyboard, mouse, and other devices to communicate with each other without cables. There are several uses for Bluetooth wireless technology, including, but not limited to: • Creating a wireless connection to the Internet with a mobile phone. • Transferring files between computers or between a computer and another device. • • • • Printing to a Bluetooth wireless printer. Using a Bluetooth wireless keyboard and mouse. Joining a personal area network (PAN). Synchronizing a personal digital assistant (PDA) to a computer or another device using Bluetooth wireless technology. The data transfer speed for Bluetooth wireless technology can be up to 700 kilobits (Kbp/s) per second. The data transfer speed can vary depending on the device or environmental factors. A Bluetooth device can transmit through walls, pockets, and briefcases. Since Bluetooth is using the same frequency range as WLAN, simultaneous use might cause interference. If this should happen you can disable one service temporary. Using the key combination

Fn + F8

you can enable or disable the Bluetooth function. The Bluetooth function will have been activated, if one of the two following displays appears below at the right edge of the display:

Warning!

Make sure the Bluetooth option is switched OFF in any environment where it might interfere with critical and sensitive devices, e.g., on aircraft, in hospitals and other medical centres, etc. 46 The Network

Troubleshooting within the Network

Why does an error message appear when I click on the network environment? The

computer name

must be unique on the network and may not be the same as the

task group

. It appears that the network boards are unable to communicate. What might be the problem? Maybe one of the used network boards works with a

different speed

(e. g. 10 instead 100 Mbit/s) and your network computer is unable to recognize this. If necessary, set the network driver to the compatible speed. If two PCs should be linked you require a

cross-link

cable, otherwise use a

patch

cable. In addition, check the

protocols

and the

configuration

. The data transmission is incorrect or very slow. What might be the problem? Maybe you have the wrong cable (UTP / CAT3 or lower) or the problem is the proximity of a power cord or another source of interference. The Network 47

The Multimedia Card Reader

Memory cards are media that are being used for a variety of purposes, especially in digital photography. They are increasingly replacing the floppy disk. The form and capacity of a memory card can vary according to the manufacturer. Your notebook supports the following formats: • MMC (MultiMediaCard) • • SD (Secure Digital) Memory Stick / Memory Stick Pro When inserting memory cards, ensure that the contacts are facing the right way. See table below. Incorrect insertion of a card can cause damage to the card reader and/or the card.

Card type

SD (Secure Digital) MMC (MultiMediaCard) Memory Stick Memory Stick Pro

Contacts

pointing downwards pointing downwards pointing downwards pointing downwards

Inserting Memory Cards

Note

Memory cards can only be installed in

one direction

. Refer to the instructions on the previous page. Push the memory card into the slot.

Removing Memory Cards

To remove the SD/MMC-cards or memory sticks pull it out and remove it. 48 The Multimedia Card Reader

USB Card/34

Your laptop supports

Express/34 cards

with a

USB connection

.

Installing USB Card/34

Note

Please always read the instructions that come with your Express card before installation. Remove the dummy card from the slot before installation. Replace the card to protect contacts against dirt if the Slot is not used.

Removing USB Card/34

Please take note of the following before removing the USB card: • Terminate the program which you used with the USB card. • Left-click on the icon Safely Remove Hardware card and click on

Stop

. in the taskbar, select the In order to remove the card, first push it into the contact to unlock it. Pull the USB card from the bay and store it securely. USB Card/34 49

Webcam (optional)

Various services like calling online can be used with the built in webcam.

Actual example using Windows Messenger

1.

Start Windows Messenger and create a user account if you do not already have one. This service is free of charge. You only pay the cost of your Internet connection. 2.

Select your contact from the list and click on the camera icon below your display image. A wizard helps you optimize the settings of your speakers, microphone and webcam. Follow the instructions on your screen. 3.

Click on

Finish

to transmit your image via the webcam. 4.

If your contact also has a webcam, click on the camera icon below the display image of your contact to receive the live image. 50 Webcam (optional)

Universal Serial Bus (USB) Port

USB ports provide an easy way to connect many peripheral devices to your Notebook (

13

). You can use any USB device with any USB port. Your notebook will have

3 USB 2.0 connection sockets

(USB 1.1 compatible). Should the devices need more power than this, it will be necessary to provide a powered hub. The data transfer speed is 1.5 Mbit/s or 12 Mbit/s, depending on the device connected.

Note

Some USB devices require that you reinstall software drivers when you connect the device to a different USB port than the one originally used. This can be avoided by always using the device with the same USB port. Universal Serial Bus (USB) Port 51

Securing the Notebook

Unauthorized access to software and hardware solutions will be made available to you with your new Notebook.

Startup Password

You can protect your notebook against unauthorized use with a switching on password. Then, an invitation to enter the password will appear on the screen when the notebook is switched on. The password will be set up in

BIOS

.

Warning!

Keep your password in a safe place. You will not be able to delete your password if you forget it. Contact your customer Service if you loose your password. You can also use the security options of Windows ® , in order to protect your data against unauthorized access. You will find further information in the chapter “

Data and System Security

” starting on page 62.

Using a safety lock

You can prevent theft by using a so called

Kensington lock

, which can be bought at your local retailer. The cable wraps around an object and the “T” shaped end inserts into the Kensington lock port and a key or combination dial is used to secure the lock in place. Please keep your key in a safe place. 52 Securing the Notebook

Software

There are many kinds of help and information for using your Notebook. This section tells you where to get help with the Microsoft ® Windows ® operating system, software programs, and your notebook.

Getting to Know Windows XP

Windows

®

XP Manual

This printed manual provides general information about the operating system. We recommend that all beginning users or users of previous versions of Windows ® read this information.

Windows

®

XP Tour

Windows ® XP includes a tour that you can take to familiarize yourself with the operating system. This tour can usually be found by clicking on the

Start

menu. You can also find the tour by selecting

All Programs

, then

Accessories

.

Windows

®

XP Help and Support

An answer to almost every question can be found in this program. This help function fully covers the Windows operating system. It is helpful for both beginners and professionals. You can print or bookmark the information, which is categorized into topics. You start like this: 1.

Click on 2.

Now select Software 53

Microsoft

®

Interactive Training

To obtain an overview over the functions and the operations of Windows XP we

recommend

the program “Windows XP Step by Step Interactive“. The objective of the program is to ease both the initial contact with and the transition to Windows XP for beginners and experienced users. The program is categorized into many small topics, so that the user can gain access to the information according to his requirements. Multimedia effects including video clips and speech output convey the contents of the various topics clearly and efficiently. Interactive tasks allow you to apply the conveyed topics in a simulation environment of the program to facilitate a successful learning experience. Windows XP Step by Step Interactive covers … • • • operating Windows XP new functions in Windows XP the process of log-on log-off and user administration for creating a security structure • • • configuration of the Internet access operating the email program ... and much more! Use this program to better understand your PC and to operate it optimally. It also is an additional source of information for recognizing and eradicating potential problems. You start the program like this: 1.

Click on 2.

Select now 3.

You will find the program in “

Accessories

“, “

Microsoft Interactive Training

“. 54 Software

Software Installation

Note

If your operating system is configured so that the installation procedure accepts only signed drivers (default) and software an information screen will appear. The software included in delivery is

already pre-installed

in the factory. It happens that during installation procedure important files can be changed or even cancelled. To avoid eventual problems in using older files after installation, make sure to safeguard your hard disk.

Note

If the automatic start does not work, it is likely that the so-called

Autorun

function has been deactivated. Read the respective chapter in Windows Help on how to activate this function. An example for the manual installation without the autorun function: 1.

Click on and select the item . 2.

Now enter the letter of the drive followed by a colon and the program name setup: 3.

Click on

OK

. 4.

Follow the instruction given by the program. Software 55

Uninstall Software

In order to remove installed software from your Notebook, follow the next steps: 1.

Click on . 2.

Click on . 3.

Then select the following program: 4.

Select the respective program, start the de-installation and follow the instructions on the screen.

Windows Activation

Microsoft is committed to the protection of intellectual property rights and the reduction of software piracy. Therefore Windows ® contains software-based product activation technology. Your copy of Windows ® has already been

activated for your Notebook

. Product activation is needed if some components of your Notebook have been replaced or you use a non-authorized BIOS. If necessary you can activate Windows ® as often as requested. You will probably need to activate Windows ® by telephone even if Internet Activation is available. This is due to the pre-activated SLP version which runs with a special Product-ID. However, activation needs your unique Product ID which can be found on the

Certificate of Authenticity

sticker on your Notebook housing. When you call, please inform your agent that you are running an OEM-(SLP) version of the software. 56 Software

Product activation on your Notebook

In few cases it may still be required to activate Windows ® . If activation via the

internet

is acknowledged with an error message you should perform the following steps. 1.

Please select the

telephone activation

and click until the related screen appears. 2.

Now click on

Change Product Key

. A new window appears. Enter the product key. This is located on the

Certificate of Authenticity (COA)

, on the computer’s casing. 3.

Acknowledge your entry and follow the instructions on the screen. Notify your Microsoft consultant, if necessary, that you have purchased an OEM license with your computer.

The BIOS Set-up-Program

In BIOS setup (Basic Configuration) there are a number of configurable parameter settings available for your notebook. For example, you can change the operating mode of the interfaces, security features or power management.

Warning!

The notebook is factory pre-set to guarantee optimum operation. Only modify the parameters if necessary and if you are familiar with the configuration options.

Running the BIOS Set-up

You can only run the BIOS configuration program at system start-up. If the notebook has already started, power it down and then up again. Press the

F2

key in order to start the BIOS-SET-UP. Software 57

58 Software

Chapter 4 First Aid

Subject Page

FAQ ..................................................................................... 61 Data and System Security .................................................... 62 System Recovery ................................................................. 65 Troubleshooting ................................................................. 67 Maintenance ....................................................................... 70

60 Software

FAQ – Frequently Asked Questions

Do I still have to install the enclosed discs? No. Basically all programs are already preinstalled. The discs are only intended as backup copies. What is the Windows activation? Your operating instructions include a chapter about this subject. When do I have to activate Windows? Your software has been preactivated in the factory. An activation will only be required, if ... ... several components are replaced by others. ... you installed a new motherboard. ... a different BIOS version has been installed. ... you install the software on to another computer. When is the recovery of the factory setting recommended? This method should be chosen as the last resort. Read chapter “

System Restore

” concerning the possible alternatives. Why is the boot partition missing when booting from the support/ application disc? The first partition is formatted with the file system NTFS. Compared to FAT32 this file system offers more security and a more efficient access. However, NTFS partitions can only be read from operating systems supporting this. This is not the case in the aforementioned disc. FAQ – Frequently Asked Questions 61

Data and System Security

The programs described below are part of your Windows operating system. You will find additional information on these programs in the Windows Help file.

Data Security

Back up data regularly on external media. Windows offers both a

Backup

program and a

Files and Settings Transfer Wizard

. Both programs are found in

Accessories/System Tools

within the Start menu. You should make a backup disk with all your passwords and the operating system’s original configuration.

Maintenance Programs

You can avoid some hardware and software errors with disk maintenance programs such as

Disk Defragmenter

and

Disk Cleanup

. The program

System Information

can also be helpful since it gives you detailed information about your system configuration. You will find these programs in

Accessories/System Tools

. 62 Data and System Security

Windows

®

Update

Windows Update

is the online updating of Windows. Use Windows Update to download elements such as security updates, important updates, the newest help files, drivers and Internet products from the Internet. The website is regularly augmented by new content, so that you can download the newest updates and error corrections at any time, to protect the notebook and guarantee its functioning. Windows Update will search through the notebook and provide a list of individual updates specially for the configuration of your notebook. Each update that Microsoft regards as important for the operation of the operating system, programs or hardware components will be classified as an “important update” and automatically selected for installation for you. Important updates will be provided to remove known problems and to protect the notebook against known security risks. Carry out four simple steps, to download the updates needed and to keep your computer on the current status of technology:

Note

Updates can be done only via the Internet. When downloading updates, make sure that your notebook is online. 1.

Open

Windows Update

in the Help and Support Center. 2.

Click on

Search for update

. 3.

Click on

Add

to select the desired update and to add it to the updates to be installed, while you are searching through the available updates in each category. You can also read a complete description of each individual element by clicking on the

Read further

Link. 4.

Click on

Check and install updates

, when you have selected all the desired updates, and then click on

Install now

. Data and System Security 63

Windows Update Information for Data Security

Windows Update needs certain information about the respective notebook, so that a suitable list with updates can be provided for you. This information will include the following: • • • • Version number of the operating system Version number of Internet Explorer Version numbers of additional software programs Plug & Play identification key of the hardware devices Windows Update will stand up for the protection of your private data and will not record your name, address, email address or other forms of personal data. The information collected will only be used during the time that you are visiting the website. It will also not be stored. 64 Data and System Security

System Restore

Windows XP ® provides a useful function (

System Restore

) enabling the storage of the so-called

Recovery points

. The system remembers the current configuration as a snapshot and returns to this, if necessary. The advantage is that an unsuccessful installation can be cancelled.

Recovery points

are created automatically by the system, but they can also be set manually. You can determine and configure yourself the maximum memory taken up by this. You find this program in the program file under

accessories

,

system programs

. We recommend setting a

recovery point

before installing a new software or driver. If the system does not run stable any longer this enables you usually to return to a workable configuration without deleting newly created documents. In the next paragraph read your options for a repair of an incorrect installation.

Correction

Windows XP ® includes various functions ensuring that the Notebook as well as the installed applications and devices work correctly. These functions assist you in solving the problems which might occur by adding, deleting or replacing files required for the functionality of the operating system, the applications and devices. The recovery function or functions you use depend on the type of occurring problem or error. For detailed information refer to the Windows help. Enter the search word “

Overview over the repair

” in order to evaluate which of the following functions is the safest way to correct your problem: • • • • • • • • Backup Recreation of device drivers Deactivation of the device System recreation Last configuration known to function Protected Mode and system recreation Recreation console Windows installation disk System Restore 65

System Restore powered by Symantec

If your system is not functioning properly and Windows ®

System Restore

did not solve the problem, then you should use the Application Support Disc to restore your system.

Limits of the Recovery

• Changes made to the original configuration (RAS, Desktop or Internet settings) and installed Software will be ignored by this Recovery and will not be reloaded. • Driver Updates or hardware installed by you will be ignored by this Recovery.

Warning!

All data on drive

C

will be erased. If necessary, backup all required data on external media. (You

must

pay attention to the information of pages 4 and 62). This recovery will reset your system to its

condition at delivery

. Printer installations or other additional software must be reinstalled.

Performing the State of Delivery

1.

First, please read the entire

System Restore

section of the Windows Help file. 2.

Power up the Notebook and immediately press the key

F3

to display the recovery menu. 3.

Follow the instructions on the screen. The Notebook will restart and will return to the state at delivery. 66 System Restore

Troubleshooting Localize the Cause

Errors can have simple causes, but sometimes they are caused by faulty equipment. We would like to give you some tips to help solve common problems. Should these instructions not lead to success, please feel free to contact us.

Check Cables and Connections

Visibly check all cables and connections. Should all lights be off, check whether all equipment is supplied with power. • In battery mode, connect the notebook to the power adapter and ensure that the battery is charged up. • If you are operating the notebook with the power adapter, check the electrical socket, power cord and all switches in the circuit of the electrical socket. • Switch off the notebook and check all cable connections. Check the connections to peripherals. Do not exchange cables, even though they may look similar. The polarity in the cables may be different. When it is confirmed that the notebook has power and all connections are correct, turn the notebook on again. Troubleshooting 67

Errors And Possible Causes

The screen is black:

• This error can have different causes: 1.

The operational display (On /Off switch) does not shine and the Notebook is in the swap file status.

Solution

: Operate the On /Off switch. 2.

The sleep display is flashing. The Notebook is in the sleep mode.

Solution

: Operate the On /Off switch.

The notebook switches itself off during operation.

• The accumulator could be empty. Connect the notebook by means of the network adapter and charge the accumulator.

The notebook cannot be switched on.

• Operate the notebook by means of the accumulator and check whether it is correctly inserted and charged.

Incorrect time and date display.

• Click the time display in the task bar and set the correct values afterwards.

The touchpad is not functioning.

• Press the

Fn + F3

key combination, in order to activate the touchpad.

The webcam is not functioning.

• Press the

Fn + F6

key combination, in order to activate the webcam.

The WLAN / Bluetooth connection is not functioning.

• Using the key combination LAN or Bluetooth function.

Fn + F8

you can enable or disable the wireless 68 Troubleshooting

Additional Support

If the suggestions in the above section have not solved your problem, please contact customer care and we will attempt to help you solve the problem. Before you call, however, please have the following information available: • • How is your computer configured? What additional peripherals do you use? • • • • • • What messages, if any, appear on your screen? What software were you using when the error occurred? What steps have you already undertaken to solve the problem? Have you upgraded or removed drivers or hardware? Can you manually repeat the problem? If you have been given a customer number previously, please have this available.

Driver Support

This notebook has been extensively tested in our laboratories with a large number of compatible devices. It fulfils all required standards and complies with the standard “Designed for Windows”, which certifies utmost compatibility. However, the software drivers for individual components are updated from time to time. This is a regular process provided by the manufacturer to mend possible compatibility problems that may occur with components (e.g., programs or hardware) that were not tested at the time of your notebook’s manufacture. Troubleshooting 69

Maintenance

Warning!

There are no user-serviceable or user-cleanable parts inside the notebook housing. Never open the notebook housing. Following these measures can extend the lifetime of your notebook: • Before cleaning, always remove the power adapter plug and all connecting cables. • Only use a damp, lint-free cloth to clean the notebook. • • Do not use any solvents, corrosive or gaseous cleaning agents. Dust or grease on the touchpad will impair its sensitivity. Remove dust or grease on the surface of the Touchpad with a strip of sticky tape.

Care of the TFT Display

• • • • • Always close the notebook when not in use. Avoid touching or scratching the surface of the screen as it is easily damaged. Make sure that no water drops are allowed to remain on the screen. Water can cause permanent discoloration. Clean the screen with a dry, soft, lint-free cloth. Do not expose the screen to bright sunlight or ultraviolet radiation. The notebook and its packaging are recyclable. 70 Maintenance

Transporting the Notebook

Please use the following guidelines when transporting the notebook: • Switch off the notebook. This will prevent damage to the hard disk. When the notebook is turned off, the hard disk heads are moved into a safe area. • Wait until the Notebook has reached ambient (room) temperature before connecting it to the power supply. Drastic variations in temperature and humidity can create condensation within the Notebook and may cause it to short-circuit. • • Close the notebook and ensure that the cover locks shut. Always use the notebook carrying case. This helps to protect the notebook from dirt, moisture, jolts and scratches. • Should you need to ship your notebook, always use the original packaging and make certain the shipper knows the contents contain fragile electronic equipment. • Fully charge your battery and any spare batteries immediately before a long journey. • Enquire about the electricity and communication provision at the location before a journey. • Acquire the necessary adapter for electricity or communication (modem, LAN, etc.), if necessary, before starting your journey. • Put the battery into the packaging separately when despatching the notebook. • It is recommended to send the notebook and all magnetic storage media (floppy disks, external drives) through the x-ray device (the device into which you put your bags), when you are passing through the baggage check at airports. Avoid the magnetic detector (the construction, through which you walk) or the magnetic rod (the manual device of the security personnel), because they could destroy your data, among other consequences. Maintenance 71

Recycling and Disposal

Device At the end of its life, the appliance must not be disposed of in household rubbish. Enquire about the options for environmentally-friendly disposal Batteries Do not dispose of used batteries in the household rubbish! They must be deposited at a collection point for used batteries. Packaging To avoid damage during transport, the Notebook is stored in a packaging. Packaging is produced mostly from materials which can be disposed of in an environmentally friendly manner and be professionally recycled. Should you have any questions concerning the disposal please contact your dealer or our service.

Batteries and Proper Treatment

Batteries may contain combustible materials. By misuse, this may cause battery

leakage

,

heat

,

explosion

or

ignition

, bringing about

injury

or

damage

to the device. Please observe strictly the following matters:

Warning!

There is a lithium battery on the motherboard. Lithium batteries are

hazardous waste

and need to be disposed of properly. If necessary, we will take back your used CMOS lithium battery. • • • • • • KEEP CHILDREN AWAY from batteries. If by any chance, the batteries are swallowed, consult a doctor immediately. DO NOT CHARGE batteries (except rechargeable batteries). DO NOT FORCIBLY DISCHARGE batteries. DO NOT SHORT-CIRCUIT batteries. DO NOT HEAT or DISPOSE OFF IN FIRE. DO NOT DISASSEMBLE or DEFORM batteries. Your hands and fingers may be injured, or the liquid of the battery may get into your eyes or adhere to your 72 Maintenance

• • • • • • • skin. If this happens, rinse with a large quantity of water immediately and consult a doctor. DO NOT expose batteries to strong impact by dropping or throwing the batteries. DO NOT reverse the positive (+) and negative (-) terminals to avoid short circuit. Do NOT MIX used and new or different types of batteries together. Your equipment may not operate properly. In addition, the battery exhausted first may be excessively drained (over-discharged). REMOVE PROMPTLY the used batteries from the device. REPLACE ALL BATTERIES with new batteries of the same type at the same time. INSULATE THE TERMINAL parts with tape or the like at the storage or disposal of the batteries. DO NOT throw rundown batteries in the domestic refuses! Respect the environment and throw them in the specific containers for separate collection. If necessary, turn to your reseller or to our service assistance. Thank you! Maintenance 73

Upgrades and Repairs

• • • Only a qualified Service Engineer should perform upgrades and repairs to your notebook. If you do not have the necessary qualifications, go to an appropriate Service Engineer. Please contact the Service Centre if you are experiencing technical problems with your notebook. Please contact our authorized Service Partners exclusively in the case of a necessary repair.

Notes for Service Engineers

• Before opening the housing, disconnect the notebook from all power sources and remove any connecting cables. If the notebook has not been disconnected from the power outlet before being opened, there is a danger of severe electric shock. There is also a risk of damage to the components. • Internal components of the notebook may be damaged by electrostatic discharge (ESD). Perform system upgrades and changes in an ESD-protected work area. If no such work area is available, wear an antistatic wrist strap or touch a highly conductive metal object. Your service centre can repair damage sustained by inappropriate handling for a fee. • Use only original spare parts. 74 Maintenance

Appendix

Subject Page

Standards ............................................................................ 77 Conditions of warranty ....................................................... 80 Index ................................................................................... 86

76 Maintenance

Standards Electromagnetic Compatibility

• • When connecting additional components, please observe the Guidelines on Electromagnetic Compatibility (EMC). Please note that only shielded cables shorter than 3 meters (9.84 ft) should be used for the LPT, COM, USB, IEEE 1394, audio, video and network interfaces with this notebook. Keep the notebook at least one meter (approximately three feet) away from high frequency and magnetic interference sources (e.g., televisions, loudspeaker cabinets, mobile telephones, etc.) in order to avoid malfunctions and/or loss of data.

ISO 13406-2 Class II

Active matrix LCDs (TFT) with a resolution of

1366 x 768

pixel (

WXGA

), which are in turn composed of three sub-pixels each (red, green, blue), contain about

3.1

million addressable transistors. Because of this very high number of transistors and their extremely complex production process occasionally defective or incorrectly addressed pixels or sub-pixels may occur. There have been several attempts in the past to define the acceptable number of defective pixels. But this can be difficult and varies widely between different manufacturers. We, therefore, adhere to the clear and strict requirements of

ISO 13406-2, class II

, for the warranty handling of all TFT display products. These requirements are summarized below. Within ISO-standard 13406-2 the general requirements regarding pixel defects are defined. Pixel defects are classified into three failure types and four failure classes. Each individual pixel is made up of three sub-pixels in the primary colours (red, green, blue). Standards 77

Pixel structure

Blue Green Red

Types of Pixel Failures:

• Type 1: A constantly lit pixel (a bright, white spot), even though it is A white pixel is caused when all three sub-pixel are lit.

not

addressed. • Type 2: A pixel that does not light up (dark, black spot), although it is addressed • Type 3: Abnormal or defective red, green or blue sub-pixels. (E.g. constantly lit with half the brightness, one colour is not shining, blinking or flickering, but not belonging to Type 1 or 2 Pixel Failures) In addition: A cluster of type 3 (= 2 or more defective sub-pixels in an array of 5 x 5 pixel). A cluster is an array of 5 x 5 pixel (15 x 5 sub-pixel).

ISO 13406-2, Class II Resolution Type 1 Type 2

Rows

Type 3 Cluster Type 1, Type 2 Cluster Type 3

1024 x 768 1280 x 854 1280 x 1024 1366 x 768 1400 x 1050 2 3 3 3 3 2 3 3 3 3 4 6 7 7 8 0 0 0 0 0 2 3 3 3 3

Example:

A 17” - SXGA-display consists of 1280 horizontal and 1024 vertical picture dots (pixel), which amounts to a total of 1,31 million pixels. Based on one million pixels this translates into a factor of about 1.31. Class II type failure consequently allows for three defects each of type 1 and type 2 and 7 defects of type 3 and 3 cluster of type 3. These cases are normally not covered by warranty. If the number of failures exceeds the figures of any category mentioned above then this may be covered by the warranty. 78 Standards

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Shielded interface cables, if any, must be used in order to comply with the emission limits. Standards 79

Conditions of Warranty for the United Kingdom Restricted Warranty I. General Conditions of Warranty

1. General

This warranty covers defects relating to workmanship and manufacture in MEDION products. The period during which this warranty is valid and during which claims against the warranty can be made to MEDION must be in accordance with the following terms in order to be considered eligible: • Is effective from the date of purchase or receipt of the MEDION product from an authorised seller of MEDION products; and • expires at the end of the warranty period specified on the warranty card provided with the product. For the warranty to be valid, you must: • provide suitable evidence of purchase, a copy of the original purchase receipt from an authorised seller of MEDION products is preferred; or • register your product within 28 days of purchase either online at www.MEDION.co.uk

or by completing and returning the pre-paid registration card included with the product. Please keep the original purchase receipt and the warranty card in a safe place. MEDION and its authorised sellers reserve the right to refuse a repair under warranty or a warranty confirmation if a proof of purchase [or registration of purchase] cannot be established, or has not been, submitted. When it is necessary to return your product for repair please ensure that your product is suitably packed for transportation. Provided that your product is still within warranty (please check the duration of the warranty period as described above) and is eligible for repair or replacement under the terms of the warranty, to return your product, please telephone MEDION on the service hotline number. You will be sent a pre-paid transportation box suitable for returning your product to MEDION. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. MEDION shall bear the costs of postage and packaging for returning the product and the transportation risk. However, if following examination of the defective product in question, MEDION, in its reasonable opinion, considers that the defect has been caused by: 80 Conditions of Warranty for the United Kingdom

• your operating and/or using the product other than as instructed in the accompanying documentation; • damage caused in transit as a result of your negligence in packaging of the product; and/or • otherwise than in accordance with the terms of this warranty; This warranty shall be void and you may be required by MEDION to reimburse MEDION for the reasonable costs of postage and packaging before MEDION will return the product to you. If so and you would still like MEDION to repair or replace the product, MEDION may do so but you will be charged MEDION’s standard rates for repair and replacement for this service. Before returning the product, please contact MEDION via the service hotline or via the internet (www.MEDION.co.uk). You will receive a reference number (RMA No.) on the warranty card. Please mark the outside of your package to ensure that this reference number is clearly visible. Please submit a letter containing as much detailed information as possible and, a full description of the defect or fault. This should include: • • a description of the fault; when it occurred, how long it has been evident and how frequently it occurs; • • any errors message(s) displayed when using the product; a description of the circumstance(s) and conditions in which the fault occurs; and • whether it is an intermittent or persistent fault; This will greatly assist MEDION in identifying the defect, when submitted together with the defective product. Unless otherwise instructed by a MEDION representative in all cases, the product must be returned complete with all parts which were included with the original product. Incomplete contents of the returned package may lead to a delay in the repair or replacement. MEDION does not accept any liability for any additionally submitted material(s) which were not supplied with the original MEDION product. This warranty does not affect your statutory rights in any way and is subject to the applicable legal statutes of the country where the product was sold to you by an authorised MEDION seller. Conditions of Warranty for the United Kingdom 81

2. Scope

Subject to any exclusions set out within this warranty, where there is a defect in your MEDION product covered by this warranty, MEDION will repair or replace the MEDION product. The decision whether to repair or replace the product will be made solely at the discretion of MEDION. MEDION may, in its own discretion, replace the product returned for repair under warranty with a replacement product that is either identical or, in the event that such product(s) are no longer available, a product of equal or superior specification and quality. No warranty is given for batteries or rechargeable batteries or for consumable materials subject to wear and tear, i.e. for parts which have to be replaced periodically during the normal use of the product, such as video-projector lamp. Non critical failures that fall within industry specified tolerances e.g. noise, LCD pixels are not covered by this warranty. Please consult the appropriate section in your user or instruction manual for this product for exact specifications and tolerances. To the extent which is permitted under law, MEDION will accept no liability for burnt-in images on plasma or LCD products as a result of normal wear and tear during the operation of the product. Please refer to your user or instruction manual for this product for detailed operating instructions for your plasma or LCD product. The warranty does not cover errors relating to the playback of data media in an incompatible format or created with unsuitable software. If it is found during repair or assessment that the defect concerned is not covered under warranty, MEDION reserves the right to invoice you for all reasonable costs incurred by MEDION. These costs will be in relation to the return of the product, including reasonable administration costs, plus reasonable costs for materials used and labour provided when repairing or replacing the product. This is subject to MEDION providing you with an estimate for carrying out such work prior to costs being incurred and that you have accepted the estimate. You are entitled to seek independent advice or consultation relating to your product or any of MEDION’s findings. MEDION will not be liable for any costs incurred to you when doing so. 82 Conditions of Warranty for the United Kingdom

3. Exclusion from warranty

To the extent permitted by law, this warranty shall be void in the event that defects or loss caused by: a.

b.

accidental damage; c.

failure and damage resulting from the operation of the product in an environment other than that recommended in the accompanying user or instruction manual (e.g. in direct sunlight or in a damp room); use other than in accordance with the accompanying user or instruction manual; d.

modifications, conversions, expansions, maintenance and/or repairs made to the MEDION product by unauthorised repairers or use of unauthorised third party parts; e.

f.

negligence; virus attack or software errors; or g.

improper transportation or packaging during return of the product. This warranty will also be considered void if labels or serial numbers of the product or of a component of the product are modified or made illegible. To the extent permitted by law, MEDION shall; only be responsible for losses which are a reasonably foreseeable consequence of the relevant defect in the product; MEDION will not be responsible for any costs incurred in relation to software configuration; economic loss; loss of opportunity; loss of income; or loss of data or software arising out of its repair or replacement of a MEDION product under this warranty.

4. Service Hotline

Before returning the product to MEDION you must contact us using the service hotline or via the internet (www.MEDION.co.uk). You will receive further instructions for making your claim under warranty when you call. The service hotline is available on 362 days in the year, including Sundays and bank holidays but excluding Christmas day, New Years Day and Easter day. The service hotline is subject to [national rate] telephone call charges. These charges are subject to change. The price of your call will be stated at the beginning of the call. Conditions of Warranty for the United Kingdom 83

II. Special warranty conditions for MEDION PC, note book, pocket PC (PDA) and navigation devices (PNA)

The following terms apply to MEDION PC, notebook, desktop, pocket PC and laptop products and optional items included with such products. If one of these items has a fault, you also have a warranty claim for its repair or replacement, from MEDION. The warranty covers the costs of materials and labour for repairing or replacing the defective MEDION product or the optional item in question. Hardware connected to your product that was not produced or marketed by MEDION can invalidate the warranty if MEDION can reasonably demonstrate that damage to the MEDION product or of the optional item included with the delivery was caused by such hardware. You are entitled to seek independent advice or consultation relating to your product or any of MEDION’s findings. MEDION will not be liable for any costs incurred to you when doing so. This warranty is restricted in relation to any pre-installed operating system as well as to application programme software that is included with the MEDION product in question. This warranty is restricted as follows: For pre-installed operating system as well as to application programme software included in the MEDION product, MEDION only guarantees the data media (e.g. the diskettes and CD-ROMs) upon which this software is delivered and warrants that such data media shall be free from material and processing defects for a period of 90 days from the date of purchase of the MEDION product from an authorised seller of MEDION. MEDION will replace defective data media free of charge. Any claims in respect of defective pre-installed operating system as well as to application programme software are hereby expressly excluded and you should contact the relevant licensor or copyright owner of the defective software in question. MEDION does not guarantee that any software supplied with MEDION products will function without interruption, will be free from errors or that it will fulfil your requirements. MEDION does not guarantee the 100% accuracy of the maps provided with the Navigation device. It may be necessary to delete all data in the product in order to repair the MEDION product. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. To the extent permitted by law, MEDION excludes all liability for loss of data and MEDION recommends in all cases that you back up all data on your MEDION product before returning the product to MEDION. 84 Conditions of Warranty for the United Kingdom

III. Special warranty conditions for repair on site or replacement on site

If a claim for repair or replacement on site is included within the terms of the warranty card provided with the product, the special warranty conditions for repair or replacement of your MEDION product on site apply. The following provisions must be made by you for carrying out repairs or replacements on site: • MEDION or its authorised personnel must have unrestricted, safe and immediate access to the products. • Telecommunication facilities required by MEDION or its authorised personnel for proper execution of your order, for testing and diagnostic purposes and for remedying faults are provided by you at your own expense. • You are responsible yourself for restoring the application software after the repair services have been carried out by MEDION or its authorised personnel. • You must take all other necessary steps to enable MEDION or its authorised personnel to carry out your order properly. • You are responsible yourself for connecting and configuring any existing external peripheral products after MEDION or its authorised personnel have carried out their repairs. • The free cancellation period for repairs or replacements on site is 24 hours, thereafter our reasonable costs resulting from late or missing cancellation shall be invoiced at your expense.

Liability limitations

The contents of this manual are subject to unannounced changes caused by technical progress. Manufacturer and sales shall not be responsible for any damages which have been caused as a result of omissions or errors in the information provided in this manual. Under no circumstances shall we be liable for any of the following: 1.

Claims made against you by third parties based on loss or damage. 2.

Loss or damage to your blanks, recordings or data. 3.

Economic follow-on damage (including lost profit or savings) or associated damage even in the case that we have been informed of the possibilities of this type of damage. In some countries the exclusion or limitation of accompanying or follow-on damage is not legally accepted so that the above limitations do not come into force. Conditions of Warranty for the United Kingdom 85

Index

A

Ambient Temperature ..................... 5 Audience .......................................... i Audio out ...................................... 43 Autorun ........................................ 55

B

Batteries and Proper Treatment ..... 72 Battery operation .......................... 27 Battery power ........................... 29 Charging ................................... 28 Checking the battery level ......... 29 Discharging the battery ............. 29 Removing .................................. 28 Battery Operation .......................... 10 Battery Power ................................ 29 BIOS Setup-Program ..................... 57 BIOS Utility Running .................................... 57 Bluetooth ...................................... 46

C

Cabling ........................................... 8 Care of Displays ............................ 70 Charging the battery ..................... 28 Checking the battery level ............. 29 Connectors External monitor........................ 34 Power socket ............................. 15 Sound card ................................ 43 USB ........................................... 51 Copyright © ...................................... ii Correction ..................................... 65

D

Data and System Security .............. 62 Data entry ..................................... 36 Data Security ............................. 4, 62 Directories ..................................... 42 Discharging the battery ................. 29 Display .......................................... 33 Opening and closing the display .................................. 33 Screen resolution ...................... 33 Driver Support .............................. 69 Drivers .......................................... 42

E

ECO function Switch off .................................. 31 Switch on .................................. 31 Making settings ......................... 31 Electromagnetic Compatibility ...... 77 EMC .............................................. 77 Extended Desktop ......................... 35 External monitor ........................... 34

F

FAQ ............................................... 61 Fast Ethernet-Network ................... 44 FCC Compliance Statement .......... 79 Files Finding ...................................... 41 Finding Files .................................. 41 Frequently asked questions ........... 61

G

Getting started Inserting the battery .................. 18

H

Hard drive ..................................... 41 Partitions ................................... 41 Help .............................................. 53

I

Indicators Access indicator ........................ 17 Battery ...................................... 16 Capital Lock .............................. 17 Flight mode ............................... 16 Num Lock ................................. 17 Power on/off ............................. 16 86 Index

Sleep ......................................... 16 Webcam .................................... 16 WLAN and Bluetooth ................. 16 Introduction .................................... 3 ISO 13406-2 Class II ...................... 77

K

Kensington-lock ............................ 52 Keyboard ...................................... 36

L

Liability limitations ........................ 85 License agreement ........................ 19 Line in ........................................... 43

M

Main operation ............................. 26 Maintenance ................................. 70 Care of the TFT Display .............. 70 Transporting the notebook ........ 71 Maintenance programs ................. 62 Memory cards Inserting .................................... 48 Removing .................................. 48 Memory Stick ................................ 48 MMC ............................................. 48 Mouse ........................................... 40 Multimedia card reader ................. 48 MultiMediaCard ............................ 48

N

Network ........................................ 44 Fast Ethernet-Network ............... 44 Troubleshooting ........................ 47 What is a network? .................... 44 Wireless LAN.............................. 45

O

On/Off button ............................... 25

P

P1 key ........................................... 38 Partitions ....................................... 41 Performing the Restore .................. 66 Power Management ...................... 30 Power supply ............................ 7, 25 Battery operation ...................... 27 Main operation ......................... 26 Power Supply Hibernate Mode ........................ 30 Sleep Mode ............................... 30 Product activation on your Notebook .................................. 57 Programs Location .................................... 42

Q

Quality ............................................ ii Quick launch buttons ECO function ............................ 17 Flight mode ............................... 17

R

R&TTE ............................................. 9 Recover ......................................... 42 Recycling and Disposal ................. 72 Removing the battery .................... 28 Repairs .......................................... 74 Restoring Limits ........................................ 66 Running the Bios Setup ................. 57

S

Safety and maintenance .................. 1 Safety instructions Care of the display .................... 70 Maintenance ............................. 70 Ambient Temperature ................. 5 Battery Operation ...................... 10 Cabling ....................................... 8 Data Security ............................... 4 Power supply .............................. 7 Set-Up location ........................... 4 Touch Pad ................................... 9 Upgrades and Repairs ............... 74 Screen resolution .......................... 33 SD ................................................. 48 Search ........................................... 41 Secure Digital ................................ 48 Securing the Notebook Startup Password ...................... 52 Index 87

Serial Number .................................. i Service Engineers .......................... 74 Set-Up Location ............................... 4 Sleep Mode ................................... 30 Software ........................................ 53 Deinstallation ............................ 56 Installation ................................ 55 Windows Activation .................. 56 Sound card ................................... 43 External audio ports .................. 43 Standards ...................................... 77 Electromagnetic Compatibility .. 77 FCC Compliance Statement ...... 79 Support ......................................... 69 Suspend to Disk ............................ 30 System recovery Correction ................................. 65 System restore............................... 65

T

Table of Contents ............................ v Touch Pad ....................................... 9 Touchpad ...................................... 40 Trademarks ..................................... ii Transport ...................................... 71 Troubleshooting ........................... 67 Errors and Possible Causes ........ 68

U

Universal Serial Bus ....................... 51 Upgrades and Repairs ................... 74 USB Card/34 Installing ................................... 49 Removing .................................. 49 Using a safety lock ......................... 52

V

Views Card reader ............................... 15 Device indicators ....................... 14 Kensington lock ........................ 15 Keyboard .................................. 14 LAN port ................................... 15 Power ON/OFF .......................... 14 Power socket ............................. 15 Touchpad.................................. 14 USB-Port .................................... 15 Webcam .................................... 14

W

Warranty ....................................... 80 Webcam........................................ 50 Windows XP Help and Support ..................... 53 Interactive Training ................... 54 Manual ..................................... 53 Tour .......................................... 53 Windows ® Desktop ........................ 20 Windows ® Update .......................... 63 Wireless LAN ................................. 45 Working in Comfort ........................ 6 88 Index

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
