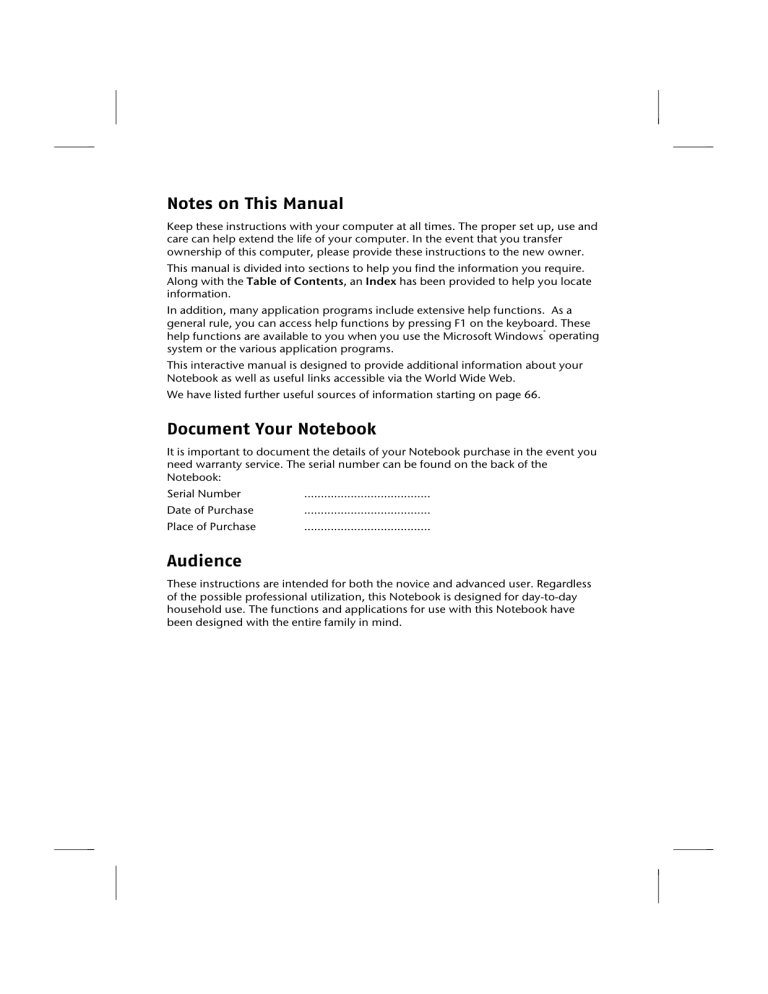

Notes on This Manual
Keep these instructions with your computer at all times. The proper set up, use and
care can help extend the life of your computer. In the event that you transfer
ownership of this computer, please provide these instructions to the new owner.
This manual is divided into sections to help you find the information you require.
Along with the Table of Contents, an Index has been provided to help you locate
information.
In addition, many application programs include extensive help functions. As a
general rule, you can access help functions by pressing F1 on the keyboard. These
®
help functions are available to you when you use the Microsoft Windows operating
system or the various application programs.
This interactive manual is designed to provide additional information about your
Notebook as well as useful links accessible via the World Wide Web.
We have listed further useful sources of information starting on page 66.
Document Your Notebook
It is important to document the details of your Notebook purchase in the event you
need warranty service. The serial number can be found on the back of the
Notebook:
Serial Number
......................................
Date of Purchase
......................................
Place of Purchase
......................................
Audience
These instructions are intended for both the novice and advanced user. Regardless
of the possible professional utilization, this Notebook is designed for day-to-day
household use. The functions and applications for use with this Notebook have
been designed with the entire family in mind.
Quality
We have selected the components in this computer for their high level of
functionality, ease of use, safety and reliability.
Through balanced hardware and software design we are able to provide you with
an innovative personal computer useful for applications relating to both work and
leisure.
We are pleased to welcome you as our newest customer.
Copying this manual
This document contains legally protected information. All rights reserved. Copying
in mechanical, electronic and any other form without the written approval of the
manufacturer is prohibited.
©
®
Copyright 2008 MEDION . / 23/11/2009
®
®
All rights reserved. Microsoft , MS-DOS , and Windows are registered trademarks of Microsoft
Corporation in the U.S. and other countries.
®
Pentium is a registered trademark of Intel Corporation.
The names of actual companies and products mentioned herein may be the trademarks of
their respective owners.
Information in this document is subject to change without notice.
ii
Table of Contents:
Safety and Maintenance......................................................................... 1
Safety Instructions ........................................................................................... 3
Data Security ............................................................................................... 4
Set-Up Location ........................................................................................... 4
Ambient Temperature ................................................................................. 5
Working in Comfort .................................................................................... 6
Connecting ................................................................................................. 7
Power supply......................................................................................... 7
Cabling .................................................................................................. 8
Information about the regulatory compliance according to R&TTE ............. 9
Touch Pad ................................................................................................... 9
Battery Operation...................................................................................... 10
Views & Handling ................................................................................ 11
Included with Your Notebook ....................................................................... 13
Views ............................................................................................................ 14
Open Notebook ........................................................................................ 14
Left Side .................................................................................................... 15
Right Side .................................................................................................. 15
Device Indicators ....................................................................................... 16
Multimedia buttons (optional) .................................................................. 17
Getting Started .............................................................................................. 18
How to start: ............................................................................................. 18
Step 1 .................................................................................................. 18
Step 2 .................................................................................................. 20
Step 3 .................................................................................................. 20
Short Description of the Windows® Desktop ......................................... 21
Main Components ................................................................................ 25
Power Supply ................................................................................................ 27
On/Off Button ........................................................................................... 27
Power Adapter .......................................................................................... 28
Battery Operation...................................................................................... 29
Inserting the Battery ............................................................................ 29
Removing the Battery .......................................................................... 29
Charging the Battery............................................................................ 30
Discharging the battery ....................................................................... 30
Battery Performance ............................................................................ 30
Power Management .................................................................................. 32
Sleep Mode ......................................................................................... 32
Hibernate Mode ................................................................................... 32
Display .......................................................................................................... 33
Opening and Closing the Display .............................................................. 33
Screen Resolution...................................................................................... 33
Appearance and Personalization ............................................................... 34
Connecting an External Monitor ............................................................... 35
iii
Duplicate the Desktop ......................................................................... 37
Extend the Desktop.............................................................................. 37
Only display the Desktop on 1 ............................................................. 37
Only display the Desktop on 2 ............................................................. 37
Data Entry ..................................................................................................... 38
The Keyboard ............................................................................................ 38
Notebook-Specific Key Combinations .................................................. 38
Touch Pad ..................................................................................................... 39
The Hard Drive .............................................................................................. 40
Important Directories ................................................................................ 41
The Optical Drive .......................................................................................... 42
Loading a Disc ........................................................................................... 42
Emergency Ejection of a Blocked Disc .................................................. 44
Playing Back and Retrieving Data from Discs ............................................. 44
Regional Playback Information for DVD ..................................................... 45
Subjects Concerning the CD/DVD-Rewriter ............................................... 45
Recordable/Rewriteable Discs .............................................................. 45
Important Information about High Resolution Video Formats .............. 46
The Sound Card ............................................................................................ 47
External Audio Ports .................................................................................. 48
Dolby® Home Theater®................................................................................ 50
The Network ................................................................................................. 51
What is a network? .................................................................................... 51
Ethernet-Network ................................................................................ 51
Wireless LAN ............................................................................................. 52
Troubleshooting within the Network ................................................... 53
Bluetooth (optional) .................................................................................. 54
The Multimedia Card Reader ......................................................................... 55
Inserting Memory Cards ............................................................................ 55
Removing Memory Cards .......................................................................... 55
Express Card ................................................................................................. 56
Installing Express Card .............................................................................. 56
Removing Express Card ............................................................................. 56
Webcam (optional) ....................................................................................... 57
Actual example using Windows Messenger ............................................... 57
TV Tuner Card & Remote Control (optional) ................................................. 58
TV Tuner Card ........................................................................................... 58
The Remote Control ...................................................................................... 58
Inserting Batteries ................................................................................ 59
Button layout....................................................................................... 59
Changing the transmission/reception channels ......................................... 61
Operation ................................................................................................. 62
Inserting the TV card ............................................................................ 62
Removing the TV card .......................................................................... 62
Connecting the aerial .......................................................................... 63
Watch TV ............................................................................................. 63
iv
Universal Serial Bus (USB) Port....................................................................... 64
eSATA Port .................................................................................................... 65
Remove S-ATA devices ......................................................................... 65
Securing the Notebook ................................................................................. 66
Startup Password ...................................................................................... 66
Using a safety lock ..................................................................................... 66
Software........................................................................................................ 67
Getting to Know Windows® 7.................................................................... 67
Windows® 7 - News .............................................................................. 67
Windows® 7 - Quickstartguide .............................................................. 69
Windows® 7 - Help and Support ........................................................... 69
Windows® 7 – Getting Started .............................................................. 70
Windows® 7 - User Account Control ..................................................... 71
Windows® 7 – Control Panel................................................................. 72
Windows Media Center ............................................................................. 73
Installation of Software.............................................................................. 76
How to Install your Software ............................................................... 76
Software Uninstallation........................................................................ 77
Windows Activation .................................................................................. 78
Product activation on your Notebook .................................................. 78
The BIOS Set-up-Program.......................................................................... 79
Running the BIOS Set-up ..................................................................... 79
First Aid ............................................................................................... 81
Data and System Security .............................................................................. 83
Data Security ............................................................................................. 83
Maintenance Programs ............................................................................. 83
System Restore .............................................................................................. 84
Correction ................................................................................................. 84
Windows® Update ..................................................................................... 85
Windows Update Information for Data Security ................................... 86
System Restore .............................................................................................. 87
Limits of the Recovery ............................................................................... 87
Carrying out a Restore ............................................................................... 88
FAQ – Frequently Asked Questions ................................................................ 89
Customer Service .......................................................................................... 90
Localize the Cause ..................................................................................... 90
Check Cables and Connections ................................................................. 90
Errors And Possible Causes ............................................................................ 91
Additional Support .................................................................................... 92
Driver Support .......................................................................................... 92
Transporting the Notebook ....................................................................... 93
Maintenance ............................................................................................. 94
Care of the TFT Display ............................................................................. 94
Upgrades and Repairs.................................................................................... 95
Notes for Service Engineers .................................................................. 95
v
Recycling and Disposal .................................................................................. 96
Batteries and Proper Treatment............................................................ 97
Appendix ............................................................................................. 99
Standards .................................................................................................... 101
Electromagnetic Compatibility ................................................................ 101
ISO 13406-2 Class II ................................................................................ 101
FCC Compliance Statement .................................................................... 103
Conditions of Warranty for the United Kingdom ......................................... 104
Index ........................................................................................................... 111
vi
Safety
Chapter 1
Subject
Page
Handling
Safety and Maintenance
Safety Instructions ............................................................. 3
Data Security ...................................................................... 4
Set-up Location .................................................................. 4
Working in Comfort .......................................................... 6
Connecting ........................................................................ 7
Information about the regulatory compliance
according to R&TTE ........................................................... 9
Components
Ambient Temperature ...................................................... 5
Touch Pad .......................................................................... 9
Appendix
Aid
Battery Operation............................................................. 10
2
Safety Instructions
Safety
Safety Instructions
Please follow the instructions in this section for the safe operation of your
notebook:
Do not allow small children to play unattended with electrical equipment.
Children are incapable of judging potential risks properly.

Keep the packing materials, such as plastic sheet away from children. The
danger of suffocation could arise in the case of misuse.

Do not open the case of the notebook, the battery or the power adaptor.
When the case is open there is a danger of severe electric shock.

Do not insert objects through the slots and openings of the notebook. This
may lead to electric shock, electrical short-circuit or fire that will damage
your notebook.

Slots and openings in the notebook serve to ventilate it. Do not cover up
these openings, because the notebook could overheat.

The notebook is not intended to be operated in a heavy industry company.
Operation under extreme environmental conditions can result in damage to
your notebook.

Do not operate the notebook during a thunderstorm, in order to avoid
damage through lightning strike.

Never place objects on top of the notebook that would exert any pressure
on the display. There is a danger that even slight pressure may break the TFT
display.

There is a risk of injury if the TFT display breaks. Use protective gloves to
pack up the broken pieces and contact customer service to arrange for
proper disposal. It is important to thoroughly wash your hands after
handling a broken TFT display. There is a chance that chemicals may have
been released.

To avoid damage to the TFT Display, never open it more than 120º. Do not
forcibly open it.

In order to avoid damage to the display, do not touch it with your fingers or
sharp objects.

Never lift the notebook by the TFT Display; doing so could break the hinges.
Appendix
Aid
Components
Handling

Safety Instructions
3
Switch off your Notebook immediately or do not switch it on at all and contact
customer service …

… if the power cord or the connectors attached to it are burnt or damaged.
Replace the defective power cord with an original power cord. Under no
circumstances may a defective power cord be repaired.

... if the housing of the Notebook is damaged or fluids have leaked into it.
Have the Notebook checked by customer service first, because the Notebook
may not be safely operated otherwise and there may be a life-threatening
risk of electrocution!
Data Security
Attention!
Every time you update your data make back-up copies on an external
storage medium. The supplier does not assume liability for data loss
or damage to data storage units, and no claims can be accepted for
damages resulting from the loss of data or consequential losses.
Set-Up Location
4

Keep your notebook and all connected peripherals away from moisture,
dust, heat and direct sunlight. Failure to do so can lead to Notebook
malfunction or damage.

It is highly recommended you do not use the notebook outdoors.

Operate the notebook and all peripherals on a stable, balanced and
vibration-free surface.

Do not leave the base of your notebook on your lap or any part of your body
for a long period of time. The notebook can become very warm while it is
turned on or charging and can cause discomfort or injury from heat
exposure.

In the first hours of operation, new devices may emit a typical, unavoidable
but completely harmless smell, which will decline increasingly in the course
of time. We recommend that you ventilate the room regularly, in order to
counteract the formation of the smell. During the development of this
product, we have made sure that the applicable limits are clearly lowered.
Safety Instructions

When powered off, the notebook can be stored at temperatures between
32° and 140° F (0° and 60° C).

Unplug the cable during thunderstorms and make especially sure to remove
the antenna cables, if present. We recommend the use of a surge protector
for additional safety, in order to protect your notebook from being damaged
by power peaks or lightning strikes through the power network.

Wait until the notebook has reached ambient (room) temperature before
turning it on or connecting it to the power adapter. Drastic variations in
temperature and humidity can create condensation within the Notebook
and may cause it to short-circuit.

For transporting the notebook keep the original packing.
Safety
The notebook is most reliably operated at an ambient temperature between
+41° (5° C) and +95° F (35° C) and at a relative humidity between 20% and
70% (without condensation).
Appendix
Aid
Components

Handling
Ambient Temperature
Safety Instructions
5
Working in Comfort
Sitting in one position for long periods can be uncomfortable. To minimize the
potential for physical discomfort or injury, it’s important that you maintain proper
posture.
6

Back – While sitting at your work surface, make sure your back is supported
by the chair’s backrest in an erect position or angled slightly backwards.

Arms – Your arms should be relaxed and loose, elbows close to your sides,
with forearms and hands approximately parallel to the floor.

Wrists – Your wrists should be as straight as possible while using the
keyboard, mouse or trackball. They should not be bent sideways, or more
than 10 degrees up or down.

Legs – Your thighs should be horizontal or angled slightly downward. Your
lower legs should be near a right angle to your thighs. Your feet should rest
flat on the floor. If necessary, use a footrest, but double check that you have
your seat height adjusted correctly before getting a footrest.

Head – Your head should be upright or tilted slightly forward. Avoid
working with your head or trunk twisted.

Overall – Change your position frequently and take regular breaks to avoid
fatigue.
Safety Instructions
Safety
Connecting
Pay attention to the following information, in order to connect your notebook
correctly:

The electric outlet must be in the vicinity of the notebook and within reach
of the power adapter cables.

To disconnect your notebook from the power source, or set the notebook to
battery operation, remove the power cord from the notebook’s power
socket.

Only use the notebook with a power adaptor operating at
AC 110-240V~/50-60 Hz. For details on power consumption, please refer to
the rating plate on the rear of your notebook. If you are unsure of the type
of power supply available at the point of use, ask your local power
company.

Use only the supplied power cord and power adapter.

To provide additional protection against electric shock, power surges,
lightning strikes, or other electrical damage to your notebook, we
recommend the use of a surge protector.

Firstly remove the plug, and then the connector of the notebook, from the
power source, if you want to detach the network adapter from the mains
power supply. A reverse sequence could damage the network adapter or the
notebook. Always hold the connector firmly when removing it. Never pull
on the power cord.
Components
Do not open the power adapter housing. When the housing is open there is
a danger of severe electric shock. It contains no user-serviceable parts.
Appendix
Aid

Handling
Power supply
Safety Instructions
7
Cabling
8

Arrange cables so no one can walk on or trip over them.

Do not place objects on any of the cables.

To avoid damage to your Notebook, connect your peripherals (e.g.,
keyboard, mouse and monitor) whilst your notebook is powered off. Some
devices can be connected whilst your notebook is in use. These devices
usually have a USB connector. Please follow the appropriate instructions for
each device.

Keep the notebook at least one meter (approximately three feet) away from
high frequency and magnetic interference sources (e.g., televisions,
loudspeaker cabinets, mobile telephones, etc.) in order to avoid
malfunctions and/or loss of data.

Please note that only shielded cables shorter than 3 metres (9.84 ft) should
be used for the LPT, COM, USB, IEEE 1394, audio, video and network
interfaces with this notebook. Please use only doubly screened cables in the
case of printer cables.

Do not replace the cables supplied. Only use the cable supplied with the
notebook, since that cable will have been tested extensively in our
laboratory.

Also only use the connection cables supplied with the devices to connect
your peripherals.

Make sure that all connecting cables are connected with the respective
peripheral devices, in order to avoid perturbing radiation. Remove any
cables not needed.

The connection of devices is limited to equipment that complies with
EN60950 “Safety of information technology equipment” or EN60065
“Audio, video and similar electronic apparatus. Safety requirements”.
Safety Instructions
Safety
Information about the regulatory compliance
according to R&TTE

Wireless LAN (optional)

Bluetooth (optional)

Remote control receiver (optional)

Remote control (optional)
Due to the capacity of the built-in wireless LAN solution (> 100 mW) the device may
only be used within buildings in France.
Currently none of the other EU-countries have any restrictions. For use in other
countries please obtain information about the applicable regulations locally.
Handling
The following remote equipment has been supplied with this notebook:
Components
The company declares herewith that these devices are in agreement with the
fundamental requirements and the other relevant terms of the 1999/5/EG
Guideline. Complete declarations of conformity are available under
www.medion.com/conformity.
Touch Pad
Aid
Light pressure with the tip of your finger is all that is required to operate the
touch pad. Because the touch pad is electrostatic sensitive, objects cannot
be used in place of your fingers. Using a pen or other object can damage the
touch pad or cause the notebook to malfunction.
Appendix

Safety Instructions
9
Battery Operation
To extend the life and power of your battery and guarantee secure operation, the
instructions below should be followed:
10

Never expose the battery to direct sunlight or heat for long periods.

Do not dispose of the battery by fire.

Disregarding these instructions will lead to damage and under some
circumstances may even cause the battery to explode.

Do not open the battery housing; it contains no user-serviceable parts.

Keep the battery away from electrically conductive materials, chemical
substances and cleaning agents.

Only use the originally supplied power adapter to charge the battery.

Ensure (through the display or the signalling sound of the notebook) that
the battery is completely discharged before recharging it.

Replace the battery only with the same type or an equivalent type
recommended by the manufacturer.

Charge the battery only until the battery charging light goes out. Also, refer
to the instructions under “Charging the Battery” on page 29 for instructions
on checking the battery level.

Only change the battery when the unit is switched off.

Batteries are classified as special waste and should always be disposed of
properly. Contact Customer Service for more details.
Safety Instructions
Safety
Chapter 2
Subject
Page
Handling
Views & Handling
Included with your notebook ............................................ 13
Views .................................................................................. 14
Open notebook ............................................................. 14
Right side ...................................................................... 15
Power and status indicators........................................... 16
Multimedia buttons ...................................................... 17
Getting started ................................................................... 18
Components
Left side......................................................................... 15
How to start .................................................................. 18
Appendix
Aid
Short description of the Windows® Desktop .................. 21
12
Included with Your Notebook
Safety
Included with Your Notebook
Notebook

Battery

Power adapter with connection cable (Model: : FSP120-AAC)

Application-/Support-Disc

OEM version of operating system

Documentation
Appendix
Aid
Components

Handling
Please check that the contents are complete and notify us within 14 days of purchase if
any of the following components are missing:
Included with Your Notebook
13
Views
Open Notebook
1
2
3
3
4
5
9
6
8
7
(Diagram the same)
1
- Webcam (optional) .................................................................( p. 56)
2
- Display ..................................................................................( p. 33)
3
- Stereo speaker
4
- Power ON/OFF ......................................................................( p. 27)
5
- Multimedia buttons ..............................................................( p. 17)
6
- Microphone ............................................................................( p. 48)
7
- Touchpad ..............................................................................( p. 39)
8
- Device indicators ...................................................................( p. 16)
9
- Keyboard ...............................................................................( p. 38)
14
Views
Safety
Left Side
10
11
12
13
14
15
16
17
(Diagram the same)
- Kensington lock ....................................................................( p. 66)
- External monitor port VGA .....................................................( p. 35)
12
- LAN port (RJ-45) ....................................................................( p. 51)
13
- HDMI connector .....................................................................( p. 35)
14
- e-SATA / USB port ...................................................................( p. 65)
15
- USB port ...............................................................................( p. 64)
16
- Multimedia card reader .........................................................( p. 55)
17
- Express Card .........................................................................( p. 56)
Components
10
11
Handling
®
Right Side
18 19 20
21
15
22
Aid
(Diagram the same)
- USB port ...............................................................................( p. 64)
16
- Line Out * ...............................................................................( p. 48)
19
- Microphone* ........................................................................( p. 48)
20
- Audio Out* /
Digital Audio Out (S/P-DIF, optical) ....................................... ( p. 48)
21
- Optical Drive ........................................................................( p. 42)
22
- Power socket ........................................................................( p. 28)
Appendix
15
* Ports with dual function. Configuration is set with the included software ( p. 48).
Views
15
Device Indicators
LED's indicate the power and operating system states of the Notebook. The meaning of
each LED is:
Battery LED
Below you will see the different meanings of the LED in various
situations:
On
Battery is charging.
Blinking
Battery is low.
Access indicator
This LED lights or flashes when the notebook is
accessing the hard disk or the optical drive.
Num Lock
This LED lights when NUM-Lock has been activated (NumLk).
Capital Lock
This LED lights when CAPS-Lock has been activated. This sets the
keyboard to capital letters.
Bluetooth LED (optional)
This LED lights when the Bluetooth function is activated.
WLAN LED (optional)
This LED lights when the WLAN function is activated.
16
Views
Safety
Multimedia buttons (optional)
Handling
Hybrid Boost
Media
Play/Pause
Stop
Next track
Previous track
Components
Hybrid Boost
Switching between full power and energy saving graphics
performance.
Media Button
Starts the Windows Media Center.
Pause/Play Button
Starts the playback of multimedia files or pauses the playback at the
selected point.
Aid
Stop Button
Stops the playback of multimedia files.
Next Track
Jumps to the next title during the reproduction of multimedia files.
Previous Track
Views
Appendix
Jumps to the previous title during the reproduction of multimedia
files.
17
Getting Started
Before you get started using your notebook, first take a few moments to read the
important section on Safety. This notebook comes with software fully pre-installed. You
do not have to install any of the discs supplied.
How to start:
Step 1
18

Insert the battery before bringing the notebook into operation by sliding the battery
pack into the compartment.

Connect the supplied power adapter to the notebook at the notebook power
socket (22).

Open the display to the required position with your thumb and index fingers. To
avoid damage to the TFT Display, never open it more than 120º. Do not forcibly
open it.

Please ensure that the battery is inserted and the power adapter connected when
operating the Notebook for the first time. If you fail to do this, Windows® 7 will not
be able to calculate the performance index correctly.
Getting Started
Safety
Switch the notebook on by operating the On/Off Switch (4). The notebook starts
and now goes through a number of phases.
Components
Handling

Note
Make sure there is no bootable disc (e.g., the Recovery disc) in the optical
drive. Such discs will prevent the operating system from loading off the hard
drive.
Appendix
Aid
The operating system is loaded from the hard disk. During the initial set-up, the loading
process takes slightly longer than normal to register the operating system and the
individual components completely. Your operating system is finished loading when a
welcome screen is shown on your display.
Getting Started
19
Step 2
Follow the instructions on the screen. Dialogue boxes will explain any steps that need to
be taken.
The greeting procedure will guide you through a series of dialogue boxes. The information
in each dialogue box will explain the steps that need to be taken.
Should you have any questions just click on

.
License Agreement
The greeting procedure also displays the license agreement. Please read this
carefully. It contains important legal information on the use of your software. In
order to see the full text, use the mouse and the scroll bar on the right side of the
screen to move downwards until you have reached the end of the document. You
accept the agreement by clicking on the “I accept the agreement” option field.
Only by doing so will you be entitled to use the product under lawful terms and
conditions.
Step 3
After the login procedure the Windows® desktop appears on your screen.
You will find a brief overview on the following pages.
After the login procedure the Windows® desktop appears on your screen. This can be
adjusted so that the screen of your computer looks different.
However, basic operation is guaranteed.
20
Getting Started

Safety
Short Description of the Windows® Desktop*
Start Button
Clicking the Start button brings up a menu where you can access help, software
programs, files, and settings

All Programs
Taskbar
You can start programs and switch between already active programs using the taskbar
beneath the screen. You can place every program in the taskbar under Windows® 7, so
that you can always open it with a single click. Furthermore, you can rearrange the
symbols on the taskbar by clicking on them and dragging them to the desired position.
Move the cursor over the symbols, and the system will display a miniature of every file or
window open in the program. When you move your cursor over the miniature, the system
will display a full-screen preview of the particular window. If you move the cursor away
from the miniature, the full-screen preview will close.

Windows Search
Windows Search helps you find almost all data located on the notebook, quickly and
easily. With Windows® 7, you get search results with greater relevance, and they are easier
to understand.

Program Bar
Components

Handling
All of the software programs installed on your notebook are ordinarily listed here. Click All
Programs to reveal an extensive menu.
The most commonly used software programs are listed here. The operating system
recognises all this automatically. Clicking on an entry with the right mouse key enables
you to decide which entry on the list to keep or to remove. The program linked to the
input is not erased.

Turn Off

Aid
To turn off the notebook, click on the Shut down button with the left mouse key.
Display Desktop
Click on this Button if you would like to minimise all the windows open onto the taskbar,
in order to obtain a clear view of the Desktop.

Desktop Icons
Desktop icons link to their respective programs. To start a program, double-click its
desktop icon.

Appendix
The desktop encompasses nearly the entire screen and acts as the shelf space for such
entries or for other links, to which you would like rapid access.
Logged in User
This tells you which user is logged in to your notebook.
*
* Function is limited way in the case of the Windows® 7 Starter version
Getting Started
21

Control Panel
You can use the icons in Control Panel to change the appearance and functionality of
Windows®7. These icons represent options for configuring your notebook. You should,
however, consult “Help and Support“ on the potential effects of certain changes.

System tray
System tray on the current time. When certain events occur, for example, upon receipt of
an e-mail message or upon opening the task manager, it may happen that too many
notification symbols are displayed in this field. Windows® displays a notification symbol
when an event occurs. After a short time, Windows® places the symbol in the background,
in order to maintain the straightforwardness of the field. You can access the symbols
placed in the background by clicking on a button in the system tray.
22
Getting Started
Getting Started
23
  
Appendix

Aid



Components
Handling
Safety
 
24
Getting Started
Safety
Chapter 3
Subject
Page
Handling
Main Components
Power Supply ..................................................................... 27
Display ............................................................................... 33
Hard Drive ........................................................................... 40
Optical Drive ....................................................................... 42
Sound Card ......................................................................... 47
Network .............................................................................. 51
WLAN (optional) ............................................................ 52
Components
Data entry .......................................................................... 38
Bluetooth (optional) ...................................................... 54
The Multimedia Card Reader ............................................... 55
Express Card ....................................................................... 56
Webcam (optional) ............................................................. 57
Universal Serial Bus (USB) Port ............................................ 64
Aid
TV Tuner Card & Remote Control (optional) ....................... 58
eSATA Port ..................................................................... 65
Securing the Notebook ...................................................... 66
Appendix
Software.............................................................................. 67
26
Power Supply
Safety
Power Supply
On/Off Button
The operational indicator will inform you about the operational status of the
notebook. The notebook will always be switched off, if the main switch is pressed
for more than
4 seconds.
Components
Handling
Power on or off your notebook by pressing the on/off button (4) briefly.
Aid
Warning!
Appendix
Do not switch off your Notebook while the hard disk or the optical
drive is running and the corresponding media activity LEDs are lit.
Otherwise data may be lost. To protect the hard disk you should
always wait for 5 seconds after powering down the Notebook before
powering it up again.
Power Supply
27
Power Adapter
Your notebook is supplied with a universal AC power adapter, which automatically
adjusts to the available power source. The following levels are supported:
AC 100-240V~/ 50-60 Hz. Please follow the power supply safety instructions
found on page 5.
The power adapter is connected via a power cord to an AC outlet. The DC power
lead from the power adapter is connected to the right side of the notebook (22).
The adapter provides the notebook with power in the ON setting (1) and also
charges the battery. The power supply indicators of the notebook provide details
on the operating state. The battery is also being charged when you are working on
your notebook with the power adapter. The power adapter is still live if the
notebook is not connected with it. You should therefore unplug the power adapter
from the outlet if it is not connected to the notebook.
Warning!
Use only the power adapter and power cord supplied with your
notebook.
28
Power Supply
Safety
Battery Operation
Note
Please charge and discharge the new battery completely two to three
times in succession, so that it will achieve its full performance!
Batteries store electrical energy in their cells and then deliver it when needed.
Handling
The useful life and performance of your battery depend on careful handling.
The battery should be completely discharged before a charging process and
completely charged again, in order to optimize its useful life and its performance.
You must also pay attention to the Safety Notes from page 8.
You must also pay attention to the Safety Notes from page 8.
Slide the battery into the battery compartment.
Removing the Battery
1. Please ensure that the notebook is switched off and that it is not connected
to a power outlet.
Components
Inserting the Battery
2. Turn the notebook upside down.
3. Unlock the battery by pushing the lock outwards into the Unlock (
position - () and ().
)
Appendix
Aid
4. Hold the lock in the open position and remove the battery ().
Power Supply
29
Warning!
Do not remove the battery while the notebook is running on battery
power. You increase the possibility of losing data.
Warning!
Pay attention that the contacts to the battery and the notebook are
not dirty or damaged when storing the battery and using the
notebook. This could lead to malfunctions.
Charging the Battery
The battery is charged via the power adapter. If the power adapter is connected, it
charges the battery automatically, whether the notebook is turned on or not. When
the notebook is switched off, full charging takes a few hours. If the notebook is
switched on, the charging process takes a significantly longer time.
Note
The charging process will be interrupted if the temperature or the
voltage of the battery is too high.
Discharging the battery
Operate the notebook by means of the battery until it switches off independently
because of the low battery charge.
Note
Think about saving your open files in good time, to avoid a possible
loss of data.
Battery Performance
The particular operating duration will vary according to the setting of the energy
saving functions. You can adjust these to your requirements under Energy Options
in System Control. Apart from this, your notebook will require a higher power
demand when carrying out certain tasks.
30
Power Supply
Safety
Checking the Battery Level
In order to check the current level of the battery, move the cursor over the power
symbol in the taskbar.
The symbol of a battery is displayed during battery operation.
Components
Handling
You will receive additional information about settings if you double click on this
symbol.
Note
Aid
If you ignore the warning signal when the battery level is low, your
notebook goes into hibernate mode.
Warning!
Appendix
Never remove the battery while the notebook is switched on or if the
notebook has not yet gone into hibernate mode, as this may lead to
loss of data.
Power Supply
31
Power Management
Your notebook offers automatic and modifiable power saving functions that you
can use to maximize battery life and reduce overall operating costs. The power
saving modes are known as sleep mode and hibernate mode.
Sleep Mode
When in sleep mode, the contents of the RAM of your notebook are preserved
while practically all other components of your notebook are shut down, reducing
your power consumption to a minimum. By pressing any key on the keypad, you
can bring your notebook back to the fully operational state. You will restart at
precisely the line in which you were working prior to the interruption. The
computer takes less time to go into and come out of sleep mode, but uses more
power than hibernate mode.
Hibernate Mode
The hibernate mode is an alternative to a complete shutdown of the notebook. In
this mode all data from RAM (system and graphic data) are copied to the hard disk
as a file. As soon as the data has been safely saved, the notebook powers down.
When the notebook is switched on again, this file is written back to RAM by the
BIOS. In a few moments the notebook is in the exact state as when it was last used.
If while working on a document the notebook is closed (assuming the correct ACPI
setting), the notebook saves the data in RAM for you automatically. You will restart
at precisely the line in which you were working prior to the interruption. The
computer uses no power while it is in hibernate mode, but it takes a little longer for
the computer to go into and come out of hibernation compared to sleep.
32
Power Supply
Safety
Display
Unlike a normal monitor, the TFT display does not produce either radiation or
flicker.
The display is locked by means of a special construction of the display hinge, so
that an additional lock is not necessary.
Components
1. To open, lift the display with your thumbs and index finger and position it as
desired.
Handling
Opening and Closing the Display
Aid
Warning!
To avoid damage to the TFT Display, never open it more than 120º.
Do not forcibly open it.
The opening and closing of the display can be assigned various functions via the
Power management feature.
Appendix
Screen Resolution
The integral screen has a native resolution of 1680 x 945 pixels. Using a higher
resolution can lead to distortion of the display, especially with text. Using a lower
resolution may cause the display to use only a portion of the screen area.
You can adjust the presentation to the mode supported with the Windows
“Control Panel  Appearance and Personalization  Display Settings  Adjust
screen resolution  Advanced Settings“ Help Program.
Display
33
Appearance and Personalization
This program offers you the possibility of adjusting the presentation on your
display. This includes the background image, the screensaver, Active Desktop (web)
and additional settings of your display and your graphics card, for example. The
program can be started in the following way:

Right mouse click on the Windows interface (Desktop) and left mouse click
on
Personalization

Via Start  Control Panel  Appearance and Personalization with a
double-click with the left mouse button.
or
*
The following adjustment possibilities are available :
*

Personalization

Display

Desktop Gadgets

Taskbar and Start Menu

Ease of Access Center

Folder Options

Fonts
* Function is limited way in the case of the Windows® 7 Starter version
34
Display
Safety
Connecting an External Monitor
The notebook has a VGA port (11) for connecting an external monitor.
1. Shut down your notebook.
Components
Handling
2. Connect the video signal cable of the external monitor to the VGA port of
the notebook (11).
Aid
Alternatively, you can use the digital HDMI interface (High Definition
Multimedia Interface) (13) to transfer image and sound signals.
3. Connect the external monitor to the electrical socket and power it up.
Appendix
4. Start your notebook.
Display
35
The external screen will be determined after the operating system has been loaded.
Several possibilities will be available to you. You will call them up as follows:
1. A right click on the display.
2. Select the Screen Resolution option in the selection window.
3. Select from the following options under Multiple displays:
36

Duplicate these displays

Extend these displays

Show desktop only on 1

Show desktop only on 2
Display
Safety
Duplicate the Desktop
This Mode duplicates the display of the notebook on an external monitor.
Information
Extend the Desktop
An empty Desktop will be shown on the second (external) monitor in this mode.
Windows from the first screen can be pushed to the second screen and vice versa.
Handling
The same screen resolution must have been set on both devices in
the case of this mode.
The screen resolution and the colour quality of the individual display devices can be
set individually under Start  System control   Appearance and
Personalization.
Components
Only display the Desktop on 1
The Desktop will only be displayed on the main monitor 1.
Only display the Desktop on 2
Appendix
Aid
The Desktop will only be displayed on the second (external) monitor.
Display
37
Data Entry
The Keyboard
By dual assignment of certain keys you have the same range of functions available
to you as with a normal Windows keyboard. Some functions are input using the Fn
key, which is normal on notebook computers.
Notebook-Specific Key Combinations
Combination
Description
Fn + F1
WLAN
Enables or disables the wireless LAN function.
Fn + F2
Bluetooth
Enables or disables the wireless Bluetooth function.
Fn + F3
Decreases the volume.
Fn + F4
Increases the volume.
Fn + F5
Display
Toggles the display screen between internal monitor, external
monitor and simultaneous display.
Fn + F6
Reduces screen brightness.
Fn + F7
Enhances screen brightness.
Fn + F8
Switches the Multimedia buttons and device indicators on /
off.
Fn + F10
Mute
Switches the loudspeakers on / off.
Fn + F11
Background lighting
Switches the backlight off to save power. Pressing any key
switches the backlight on again.
Fn + F12
Standby
Save energy. This key combination is set to shut down as
standard. Please go through Personalization , Energy
Options, in order to adjust this key combination to your
needs.
38
Data Entry
Safety
Touch Pad
The touchpad is positioned in front of the keyboard.
The mouse pointer (cursor) follows the direction pre-determined on the touchpad
by the movement of your finger in the normal mode.
Do not use a ball-point pen or other object on the touch pad, as this
could damage or cause a malfunction of your touch pad.
Below the touch pad are the left and right mouse buttons which can be used as on
a normal mouse.
Handling
Caution!
You can also perform a direct click or double click using the touch pad by tapping
the surface briefly once or twice.
Appendix
Aid
Components
®
In the Windows Control Panel you will find a number of useful settings that will
make using the touch pad easier.
Touch Pad
39
The Hard Drive
The hard drive is the main storage medium combining large storage capacity and
rapid data access.
The hard drive contains the operating system of the computer, other application
programs and backup files. These programs and files are pre-installed on your
notebook, so you may note that some of the space on your hard drive is already
taken.
The Windows operating system cannot use the full capacity of the hard drive,
which means that there will be a difference between the capacity that the BIOS
displays and what the operating system displays. The operating system of the
notebook, further application programs and backup files are located on the hard
drive and reduce its total capacity.
The hard drive is addressed as drive C and D.
Note
Never switch off the computer while the busy indicator is lit since this
may result in loss of data. A flickering hard drive display is your
indication that the notebook is accessing the hard drive.
Usually your hard disk is divided into more partitions. The configuration of your
hard drive can be displayed and configured under "Disk Management". To
familiarise yourself with the hard drive configuration, search Windows Help for the
key word "Disk Management".
In your first partition (C:\) you will find the operating system, application programs
and the users’ documents.
The second partition (D:\) serves for data security and contains additional drivers
(D:\Driver) and tools (D:\Tools) for your notebook.
Note
You will also find in two otherwise non-overwriteable partitions the
system restoration start files ( p. 87), as well as installation files for
Windows® 7. These partitions are not visible and should not be
erased.
40
The Hard Drive
In the following we have listed the most important directories and described their
content.
Safety
Important Directories
Attention!
C:\
The master directory of drive C: includes important files
required to start Windows®. In the factory setting these files are
hidden for safety reasons.
Handling
Do not delete or modify these directories or their contents since data
could be lost or the functionality of the system could be at risk.
The main directory of Windows®. This is where the files of the
operating system are saved.
D:\Driver
This folder includes the drivers required by your computer (preinstalled).
D:\Tools
Here you find additional programs and other documentation for
your notebook.
Appendix
Aid
C:\Windows
Components
C:\Program Files As the name suggests, in this directory programs install the files
belonging to the application.
The Hard Drive
41
The Optical Drive
Loading a Disc
Unlike optical drives of desktop PCs optical drives of notebooks retain discs with the
help of a locking mechanism.
When inserting the disc you should take care to push the disc right onto the
locking mechanism so that it can lock in
position.
Note
Do not place protective foils or other stickers on your discs. To avoid
damage to your drive, do not use deformed of damaged discs.
Warning!
Do not use scratched or dirty discs, discs with pieces broken off or
discs of poor quality. Because of the high speeds in the drive the discs
might break and damage your data as well as your drive. Examine the
discs before you enter them. If damage or dirt is visible, you should
not use them. Damage caused by faulty media is excluded from
warranty and their repair must be charged.
Warning!
The disc can be damaged when the drive drawer is pushed in, if it has
not been positioned on the support correctly.
42
The Optical Drive
Safety
1. Press the eject button at the optical drive to open the tray.
2. Pull the tray out completely with care.
3. Remove the disc from its case, without touching the unprinted side if
possible.
Components
Handling
4. Place the disc on the tray so that it lays flat with the label facing upward and
gently push the tray in to close it. The disc will now lie flat on the tray and
will engage onto the disc holder audibly.
eject button
Program by means of the Desktop link
or by pressing the Windows key
and the ‘E’ key at the same time. Open Windows Explorer by means of
Start  All Programs  Accessories. The pre-installed media reproduction
will be used automatically during access to DVD videos (or audio and video
files on normal data CDs).
Aid
5. Test that the disc is able to turn freely and then push the tray back into the
optical drive carefully. The ‘E’ drive letter will have been allocated to your
optical drive in the delivery status. You will have easy access to your files on
your disks with Windows Explorer (Computer). Start the Computer Help
6. Press the eject button if you want to remove a disc.
Warning!
The Optical Drive
Appendix
While the notebook is accessing the optical drive the media activity
indicator is lit. Do not try to remove the disc from the drive while this
LED is lit.
43
Emergency Ejection of a Blocked Disc
If the tray fails to open automatically, then the tray can be opened manually
provided there is an opening for emergency ejection.
Restart your notebook and if the tray is still locked proceed as follows:
1. Shut down Windows and switch off your notebook.
2. Insert a long thin object (like a straightened paper clip) into the emergency
ejection opening until you feel resistance.
3. Press lightly and the tray will open.
4. Remove the disc and restart the notebook.
Playing Back and Retrieving Data from Discs
Your notebook is able to playback and to retrieve Audio CDs, DVD Movies and Data
discs.
After loading the disc your operating system will open a selection window with
different options for playback. Normally there are various programs at your
disposal.
If your operating system doesn’t open the selection window you still have the
possibility of the access via the “Explorer” or “Computer”.
44
The Optical Drive
Safety
Regional Playback Information for DVD
The playback of DVD movies includes the decoding of MPEG2 videos, digital AC3
audio data and the deciphering of CSS protected contents.
CSS (sometimes called copy guard) is the name of a data protection program
incorporated by the movie industry as an action against illegal copies.
Among the numerous regulations for CSS licensees the most important ones are
the country specific playback restrictions.
Handling
In order to facilitate the geographically restricted release of movies, DVD titles are
released for certain regions. Copyright laws require the restriction of each DVD
movie to a certain region (usually the region, in which it is sold).
DVD movie versions can be published in several regions but the CSS regulations
require that each CSS decipherable system may only be used in one region.
Note
Components
The decoding software included with your Notebook may be
changed for regional DVD decoding up to five times, after which the
drive will only play DVD movies for the region setting last entered.
Changing the region code after that will require factory resetting
which is not covered by warranty. If resetting is desired, shipping and
resetting costs will be billed to the user.
Subjects Concerning the CD/DVD-Rewriter
This Section only relates to devices that have been supplied with a CD-RW, a
combination drive or a DVD-RW drive.
Aid
First of all, you receive information on the so-called blank discs.
Recordable/Rewriteable Discs
Normal Discs are pressed from a digital, glass master and then sealed. In the case of
blank disc, the information is burnt onto the disc with the laser of the Rewriter.
Therefore these discs are more sensitive than normal discs.

radiation by direct sunlight (UVA/UVB)

scratches and damage to the disc surface

extreme temperatures
The Optical Drive
Appendix
Please avoid the following when using recordable/rewriteable discs - especially
blanks - that have never before been used:
45
Important Information about High Resolution Video Formats
Optionally your system is supplied with a HD /Blu-ray drive.
This concerns technologies that support two different high resolution video
formats.
You will still be able to play the following media with your drive:

Audio CDs

CD-R

CD-RW

DVD+R / DVD-R

DVD+RW / DVD-R
Among other factors, the following requirements must be fulfilled, in order to be
able to play the new video formats or new media (HD-DVD and Blu-ray disks):

The contents of a HD-DVD or a Blu-ray disk can only be played with the
Power DVD software supplied with the device and Media Center.
Note
Windows Media Player does not support any high resolution video
formats.
46

The playback software must be updated regularly by means of the internet,
so that the reproduction of the newest title will be guaranteed at any time.
The intervals between the updates will be pre-determined by the software if
no internet connection is present.

The connections (DVI or HDMI) must support the HDCP standard, if the
device is connected to a digital source of output (e. g. a TFT monitor or an
LCD TV). Take this information from the operating information of your
output device.
The Optical Drive
Safety
The Sound Card
Components
Handling
Your notebook has an integrated stereo sound card (on-board) with 16-bit and 3D
spatial sound effects (3D). The sound card is compatible with the industry standard
Sound Blaster and Microsoft Sound System Version 2.0. This guarantees optimal
support for all popular programs and games. If you wish to alter the base volume,
click on the loudspeaker symbol in the task bar.
Appendix
Aid
Click on Mixer, in order to open the volume mixer.
By using the keys Fn +F3 and Fn+F4 you have the possibility to regulate the
volume.
The Sound Card
47
External Audio Ports
Your notebook has a loudspeaker, so you can always playback sounds without
additional equipment. The use of the external connections gives you a good
opportunity to connect your notebook to external devices.
Caution!
The use of earphones with a high volume can lead to lasting damage
to your hearing. Set the volume to the lowest level before
reproducing any sound. Start the sound reproduction and increase
the volume to the level that is comfortable for you.
It can cause damage to the hearing ability of the
listener if a device is operated through earphones with
an increased volume for a long period.
48
The Sound Card
Line in /
Microphone In
(19)
Audio out /
Digital
Audio Out
(S/P-DIF optical)
(20)
Safety
For sound reproduction via external
stereo equipment such as loudspeakers
(active) or headphones.
For recording via an external
microphone.
For sound reproduction via an external
surround system for external center /
subwoofer.
For sound reproduction with an external
surround decoder via an optical cable
(available separately at a specialist
shop).
Handling
Line Out /
headphones
(18)
For sound reproduction via external
stereo equipment such as loudspeakers
(active) or headphones.
Components
By using the external connections you have the possibility to connect your
notebook with a 5.1 surround system.
The bundled software allows you to make the necessary settings:
1. Click the following symbol in the taskbar:
Aid
The help program for the
audio configuration is now
invoked. A large number of
settings can be carried out
with this.
Appendix
It is also used to set the
loudspeaker configuration
you are going to use for the
surround sound.
You have the possibility to select between the following configuration modes:
*

stereo

5.1 loudspeaker
*
Your notebook is factory set to stereo mode.
The Sound Card
49
®
Dolby Home Theater
®
Enjoy a Rich Home Theater Surround Sound Experience.
Dolby® Home Theater® places listeners in the middle of the action, giving their PCs a
powerful set of tools to deliver a cinema-style experience in vivid surround sound.
50

Creates a stunning personal surround sound listening experience.

A suite of technologies desighned to provide an eveloping entertainment
experience from any pair of speakers or any set of headphones.

Enables easy connectivity to home theaters through a single digital cable..
The Sound Card
Safety
The Network
What is a network?
Here are some practical examples:

You can exchange E-mail and manage appointments in an
office.

Users can share a printer in a network and save their data on a central server.

Two or more computers can be connected to play network games or share
data.
Ethernet-Network
If your notebook has an Ethernet connection, you can use this to connect to a
network.
The following explanation refers to notebooks with a network connector.
Aid
Connect one end to the RJ45 connection (Western plug) at the network interface of
your notebook (12) and the other to another notebook or a hub/switch.
Components
Handling
A network means connecting your notebook to one or several other computers.
Users can transfer data between computers and share resources such as printers,
modems and hard disk drives.
Appendix
The Windows Help and Support Centre offer extensive information about
networking your Notebook. You can access this information by clicking on Start,
then Help and Support.
The Network
51
Wireless LAN
Wireless LAN is an optional feature. This function allows you to create a wireless
network link with an access point or directly with another wireless-enabled PC.
Using the key combination Fn+F1 you can enable or disable the wireless LAN
function. A corresponding LED will light.
Warning!
Make sure the Wireless LAN option is switched OFF in any
environment where it might interfere with critical and sensitive
devices, e.g., on aircraft, in hospitals and other medical centres, etc.
Conditions
An access point is a wireless transmitter that communicates with your notebook
and controls access to the network connection (e.g., a home network or a
broadband connection such as DSL). Wireless access points are often found in
offices, airports, universities or Internet cafés. They offer access to networks or to
the Internet. Access authorizations are normally needed. A fee may be required to
use a public access point. To set up a wireless network to share Internet access,
files, and printers at home, you will need an access point, a router, and a
broadband (DSL or cable) modem. Some access points can also serve as a router
and/or a broadband modem. Check with your retailer or Internet Service Provider
to find the best solution for your needs. A link to another computer with wireless
LAN functionality can also be created without an access point. This will allow you
to share files, but you will need an access point and a router to share an Internet
connection. The wireless network connection works in accordance with the
IEEE 802.11n Standard (compatible with the 802.11b/g Standard). The 802.11a
Standard is also supported. If encrypted transmission is used, this must operate
according to the same principle on all devices. Encryption is a method of
protecting the network from unauthorized access. The transmission speed (max.
*
300 Mbp/s ) can vary according to the distance and loading of the partner.
*
300 Mbit/s is a gross value. A maximum of 75 Mbit/s will be achieved on the
application level. A WLAN router in accordance with the 801.11 standard will be
necessary, in order to be able to exploit the complete performance.
52
The Network
Safety
Troubleshooting within the Network
Why does an error message appear when I click on the network
environment?
The computer name must be unique on the network and may
not be the same as the task group.
It appears that the network boards are unable to communicate. What
might be the problem?
Handling
Maybe one of the used network boards works with a different
speed (e. g. 10 instead 100 Mbit/s) and your network computer
is unable to recognize this. If necessary, set the network driver to
the compatible speed.
If two PCs should be linked you require a cross-link cable,
otherwise use a patch cable.
In addition, check the protocols and the configuration.
Components
The data transmission is incorrect or very slow. What might be the
problem?
Maybe you have the wrong cable (UTP / CAT3 or lower) or the
problem is the proximity of a power cord or another source of
interference.
Appendix
Aid
For further hints on troubleshooting refer to the Windows help under “Network
errors”.
The Network
53
Bluetooth (optional)
Bluetooth wireless technology is designed to replace cables between devices, such
as your printer, keyboard, and mouse.
Bluetooth wireless technology operates over a short distance. Bluetooth devices use
radio transmission, which enables your computer, mobile phone, printer,
keyboard, mouse, and other devices to communicate with each other without
cables.
There are several uses for Bluetooth wireless technology, including, but not limited
to:

Creating a wireless connection to the Internet with a mobile phone.

Transferring files between computers or between a computer and another
device.

Printing to a Bluetooth wireless printer.

Using a Bluetooth wireless keyboard and mouse.

Joining a personal area network (PAN).

Synchronizing a personal digital assistant (PDA) to a computer or another
device using Bluetooth wireless technology.
The data transfer speed for Bluetooth wireless technology can be up to 700 kilobits
(Kbp/s) per second. The data transfer speed can vary depending on the device or
environmental factors. A Bluetooth device can transmit through walls, pockets, and
briefcases.
Since Bluetooth is using the same frequency range as WLAN, simultaneous use
might cause interference. If this should happen you can disable one service
temporary.
Using the key combination Fn+F2 you can enable or disable Bluetooth function.
Warning!
Make sure the Bluetooth option is switched OFF in any environment
where it might interfere with critical and sensitive devices, e.g., on
aircraft, in hospitals and other medical centres, etc.
54
The Network
Safety
The Multimedia Card Reader
Memory cards are media that are being used for a variety of purposes, especially in
digital photography. They are increasingly replacing the floppy disk. The form and
capacity of a memory card can vary according to the manufacturer.

MMC (MultiMediaCard)

SD (Secure Digital)

Memory Stick / Memory Stick Pro
Card type
Contacts
SD (Secure Digital)
MMC (MultiMediaCard)
Memory Stick
Memory Stick Pro
pointing downwards
pointing downwards
pointing downwards
pointing downwards
Components
When inserting memory cards, ensure that the contacts are facing the right way.
See table below. Incorrect insertion of a card can cause damage to the card reader
and/or the card.
Handling
Your notebook supports the following formats:
Inserting Memory Cards
Note
Aid
Memory cards can only be installed in one direction. Refer to the
instructions on the previous page.
Push the memory card into the slot.
Removing Memory Cards
Appendix
In order to remove the card, first push it into the contact to unlock it. Pull the USB
card from the bay and store it securely.
The Multimedia Card Reader
55
Express Card
Your notebook supports the Express standard.
Both Express/34 and Express/54 cards (the naming refers to the sizes of the cards)
are available on the market. Your notebook supports both card formats.
Installing Express Card
Note
Please always read the instructions that come with your Express card
before installation. Remove the dummy card from the slot before
installation. Replace the card to protect contacts against dirt if the
Slot is not used.
Removing Express Card
Please take note of the following before removing the Express card:

Terminate the program which you used with the card.

Left-click on the icon Safely Remove Hardware
card and click on Stop.
in the taskbar, select the
In order to remove the card, first push it into the contact to unlock it. Pull the card
from the bay and store it securely.
56
Express Card
Safety
Webcam (optional)
Various services like calling online can be used with the built in webcam.
Actual example using Windows Messenger
Handling
1. Start Windows Messenger and create a user account if you do not already
have one. This service is free of charge. You only pay the cost of your
Internet connection.
2. Select your contact from the list and click on the camera icon below your
display image.
A wizard helps you optimize the settings of your speakers, microphone and
webcam. Follow the instructions on your screen.
3. Click on Finish to transmit your image via the webcam.
Appendix
Aid
Components
4. If your contact also has a webcam, click on the camera icon below the
display image of your contact to receive the live image.
Webcam (optional)
57
TV Tuner Card & Remote Control
(optional)
TV Tuner Card
Your TV card has a DVB-T aerial connection and an On/OFF button.
When turned on, the LED on the TV-tuner card lights up in blue. When not in use
and to conserve electricity, move the switch on the TV-tuner card to the left the LED
goes out. The TV-tuner card can remain in the device and does not have to be
removed. Turn on the TV-tuner card again when you want to use the TV function.
The Remote Control
This wireless remote control set can only be used to control the Media Center
program on your PC. In order for it to work, the following conditions must be met:

The PC must be booted up.

Windows® must be fully loaded.

The driver software must be installed*.
(fig. remote control)
*
All these conditions are met in the delivered state.
58
TV Tuner Card & Remote Control (optional)
Safety
Inserting Batteries
Turn the remote unit round.
2.
Open the battery compartment by pulling off the flap on the cover
carefully.
3.
Place one-button cell batteries (Type: CR2025, 3V) into the battery
compartment. Ensure that the polarity corresponds to the illustration
etched on the inside of the battery compartment (+ must correspond with
+ and – with –).
4.
Replace the cover on the battery compartment.
Handling
1.
Attention!
There will be a danger of explosion if the battery is replaced
incorrectly. Only replace it with the same type or an equivalent type
of battery.
Components
Button layout
Note
The functions described here are standard functions. These Buttons
can differ according to the operating mode (TV, video, photo, etc.).
Start video text application
On / Off
TV records
Aid
EPG function (Electronic Program Guide)
Watch TV programs
DVD menu.
Special function buttton red
(e.g.: Selection of the audio track)
Special function buttton green
(e.g.: subtitle selection)
Appendix
Special function buttton yellow
(e.g.: Camera selection)
Special function buttton blue
(e.g.: Chapter selection)
Mute Switch (Switches the sound output off).
Application-related information function.
Reverts to the point selected previously.
The Remote Control
59
Press + to increase the volume.
Press - to decrease the volume.
Press + to select the next channel (TV). You select
the previous channel with -.
You select the required function with
these navigation Buttons. The selection
indicator will move in the appropriate
direction. Press the OK button to
confirm your selection .
Reverts to the point selected previously.
Application-related information function.
Starts Media Center.
Previous title/images/chapter
Next title/images/chapter
Rewind
Play
Fast forward
Start recording
Stop
Pauses the playback at the selected point.
Direct selection of the TV channels by means of
numbers. Number entry in the case of some functions
(video text, etc.).
60
The Remote Control
Safety
Changing the transmission/reception channels
If several computers with remote controls are set up in close proximity of each
other (approx. 10 metres), this can lead to disturbance. This can be remedied by
choosing different channels. Only reset the remote control in case of
disturbances. Proceed as follows:
1. Start the Control Panel.
3. Check the option “Use Wireless Remote Settings with the remote set to
this channel”.
4. Select the new channel (a number between 1 and 16) and confirm your
setting with the Apply button.
Handling
2. Choose the menu item Wireless Remote Settings.
5. Press and hold the Clear button on the remote.
6. Now enter the channel already set in the software by means of the numeric
key pad on your remote, without releasing the Clear button.
Components
7. Press the OK button. Do not release the Clear button until then.
8. Press any button on your remote to see the current code.
Appendix
Aid
9. Confirm your settings by using the OK button on the Wireless Remote
Settings window.
The Remote Control
61
Operation
The TV card fits into the Express Card slot of your notebook.
Note
The TV tuner card only fits into an Express Card/54 slot. Do not put
the card into any similar slots. That could lead to damage to the
notebook or the card.
Inserting the TV card
Note
Remove the dummy card from the Express Card/54 Slot before
installation. Replace the card to protect contacts against dirt if the
Slot is not used.
1. After starting Windows®, slide the card carefully into the proper slot as far as
it goes. The card then rebounds by a few millimetres and locks into place.
Two short signals, confirming successful installation, will sound if the card
has been pushed in completely.
2. Start the application for TV reception, in order to set up the TV card. A set-up
assistant will guide you through the program.
Removing the TV card
Remove the TV card in the following manner:
1. Disconnect all cables.
2. Press on the card slightly in the direction of the slot and then let go of it. The
card sticks out from the slot and can be removed. Store it in a safe place.
Note
If the card remains in the device and is not in use, move the on/offswitch to the left (the LED goes out). If you want to use the card
again, move the switch to the right. The LED lights up.
62
The Remote Control
In order to receive a digital signal with the TV card, connect the aerial supplied with
the notebook..
Safety
Connecting the aerial
To connect to your house antenna, use the adapter cable supplied.
Attention!
Handling
It is important that you pull out the antenna cable, when the device is
not in use, especially during thunderstorms. In this way you protect
your device from a potential power surge caused by lightning.
Watch TV
We supply you with the optimum software for digital television, digital
®
photography and digital music with the Windows Media Center Edition.
Components
Attention!
Appendix
Aid
Audio or video recordings need a great deal of memory (between
1 and 2 GB/hour). Safeguard files that you do not need on external
media, such as DVD/CD-Rs or hard drives.
The Remote Control
63
Universal Serial Bus (USB) Port
USB ports provide an easy way to connect many peripheral devices to your
Notebook (15). You can use any USB device with any USB port. Your notebook will
have 3 USB 2.0 connection sockets (USB 1.1 compatible).
Should the devices need more power than this, it will be necessary to provide a
powered hub. The data transfer speed is 1.5 Mbit/s or 12 Mbit/s, depending on the
device connected.
Note
Some USB devices require that you reinstall software drivers when
you connect the device to a different USB port than the one originally
used. This can be avoided by always using the device with the same
USB port.
64
Universal Serial Bus (USB) Port
Safety
eSATA Port
Handling
eSATA stands for "external Serial ATA" and is used for connecting external hard
disks. Unlike common USB standards, the transmission speed of an eSATA
connection is higher than that of external USB hard disks.
Appendix
Aid
Before removing an S-ATA hard disk from your notebook, click on the icon "Safely
remove hardware" in the task bar and then on the hard disk to be removed.
Components
Remove S-ATA devices
eSATA Port
65
Securing the Notebook
Unauthorized access to software and hardware solutions will be made available to
you with your new Notebook.
Startup Password
You can protect your notebook against unauthorized use with a switching on
password. Then, an invitation to enter the password will appear on the screen
when the notebook is switched on.
The password will be set up in BIOS.
Warning!
Keep your password in a safe place. You will not be able to delete
your password if you forget it. Contact your customer Service if you
loose your password.
You can also use the security options of Windows®, in order to protect your data
against unauthorized access. You will find further information in the chapter “Data
and System Security” starting on page 83.
Using a safety lock
You can prevent theft by using a so called Kensington lock, which can be bought
at your local retailer.
The cable wraps around an object and the “T” shaped end inserts into the
Kensington lock port and a key or combination dial is used to secure the lock in
place. Please keep your key at a safety place.
66
Securing the Notebook
Safety
Software
This section concerns itself with software. We make a distinction between the
operating system, the software (application program), Windows activation, BIOS
and the security package BullGuard, which is delivered with the device.
With Windows® 7, is launching the new operating system and successor to Vista®.
Windows® 7 contains a number of innovative functions and technologies, enabling
your notebook to work quickly and reliably, while being easy to use.
Handling
Getting to Know Windows® 7
Windows® 7 - News
The Taskbar at the bottom of the screen enables you to start programs and change
between programs which are already running. Using Windows® 7, you can place
any program in the Taskbar, so that it will always open with one single click. You
can also arrange the symbols on the Taskbar simply by clicking on them and
dragging them to the desired position. The symbols are also considerably bigger, so
that they are easier to use. Moving the cursor over the symbols will display
miniatures of each file or each window open in the program. Moving the cursor
over the miniature displays a full-screen preview of the particular window. Moving
the cursor away from the miniature closes the full-screen preview.
Components
Improved Taskbar*
The jump lists from a few programs, such as Windows® Media Player, can be filled
in advance with frequently used commands. Thus, for example, the Windows®
Media Player jump list might contain options to play all music or to re-open the
latest play list.
The Internet Explorer jump list displays frequently and most recently visited
websites. For certain programs, this enables rapid access commands which, in the
*
* Function is limited way in the case of the Windows® 7 Starter version
Software
67
Appendix
Jump lists offer a practical possibility when opening files which you have recently
worked on. To display recently used files, just right-click the application symbol on
the Taskbar. Right-clicking on the Word symbol will display recently used Word
documents. You can also easily place other files in the jump list if you would like to
have them readily at hand, in which case they will always be displayed. This allows
you to access documents which you use more frequently, with just a few mouse
clicks.
Aid
Jump lists*
past, could only be retrieved from the program itself, such as the command to
create a new e-mail message.
Improved Desktop*
Windows® 7 simplifies working with the windows on the Desktop. This provides
you with more intuitive possibilities for opening and closing, as well as for
changing the size and for rearranging.
Windows® 7 makes the performance of everyday tasks even simpler. For example,
the Snaps function makes it easier than ever to compare two open windows. You
do not need to adjust the size of the open window for comparison. Simply pull the
window, using the mouse, to one of the edges at the side of the screen, and it will
fill half the screen. Snap the window on both sides, and it is already easier than ever
to compare two windows.
If you would like to display all Desktop mini-applications, simply move the mouse
into the lower right hand corner of the Desktop. This makes all open windows
transparent, so that the Desktop and all the mini-applications located on it will be
instantly visible.
Click on the Titlebar of the window, "shake" it, and all open windows will be
displayed as symbols on the Taskbar. "Shake" the window again, and the other
windows will be displayed again.
Better device management*
Windows® 7 enables you to close, manage and use all devices through the "Devices
and Printers" central function.
All devices are displayed in a central position.
With the new Device Stage Technology, Windows® 7 even goes one step further in
device management. Device Stage helps you use all compatible devices connected
to your computer. Thanks to Device Stage, now you display the device status in
one single window and carry out often-used commands. You will even find pictures
of the devices here, easily enabling you to see which devices are connected. The
manufacturer of the devices can even adapt Device Stage. If the manufacturer of
your camera, for example, prepares an adapted version of Device Stage, you can
see the number of photos on the camera and receive links to useful information
when you link the camera to the notebook.
*
* Function is limited way in the case of the Windows® 7 Starter version
68
Software
Beginners and persons changing from other Windows versions systems are advised
to read this material carefully.
Safety
With homegroups, a new function of Windows® 7, the linking of home computers
is really simple. A home network group is created automatically, for example, when
you link the first notebook under Windows® 7 with the home network. The addition
of additional PCs with Windows® 7 to the home network group is quickly
accomplished. You can indicate exactly what should be released on each PC for all
other PCs in the home network group. Finally, the shared use of files on the various
home PCs, and on many other devices, is so simple that it is as if all files were
located on one single hard drive. This allows you to store digital photos on the
computer in your home office and then enjoy easy access to them from a laptop in
any other room in the house. Similarly, the printer in home office is automatically
released for all PCs in the house, as long as they are all in the home network group.
Handling
Homegroup*
Windows® 7 - Quickstartguide
Components
This Handbook will give you a brief overview of the operation of your operating
system.
Windows® 7 - Help and Support
An answer to almost every question can be found in
this program.
This help function fully covers the Windows operating
system.
Aid
It is helpful for both beginners and professionals. You
can print or bookmark the information, which is
categorized into topics. You start like this:
1. Click on Start
Appendix
2. Now select Help and Support
*
* Function is limited way in the case of the Windows® 7 Starter version
Software
69
Windows® 7 – Getting Started
Learn everything you need to know about the features of the notebook.
It is the aim of this feature to enable both beginners and experienced users to make
additional setting for the optimal use of Windows®7 after first bringing the
Notebook into
operation.
70
Software
Go online to find out what’s new in Windows®7

Personalize Windows

Transfer files and settings from another computer

Use a homegroup to share with other computers in your home

Choose when tob e notified about changes to your computer

Back up your files

Add new users to your computer

Change the size of the text on your screen
Use Getting Started to understand your notebook better and in order to be able
to use it optimally. It will also serve you as an additional source of information for
recognizing and removing potential problems.
Handling

Safety
Getting Started has been subdivided into many small groups of subjects, so that
the user will have the possibility of adjusting the content optimally to his or her
knowledge. There are some of the links in the following:
You will call up Getting Started as follows:
2. Select
Components
1. Click on Start
Getting Started in the Program List.
Windows® 7 - User Account Control
The User Account Control contributes to the prevention of unauthorized changes to
the notebook.
Click on Continue, in order to continue the procedure.

Click on Cancel, in order to end the procedure.
Appendix

Aid
A window with the message “Do you want to allow the following program to
make changes to this computer?” will appear as soon as you carry out an
unauthorized change.
Software
71
Windows® 7 – Control Panel
You can change Windows settings using the control panel. The settings control
almost everything relating to Windows displays and functionalities, and they enable
you to organise Windows according to your requirements.
When you first open the Control Panel, a few of the most frequently used elements
of the Control Panel are displayed by category.
For further information on any element in the Control Panel category view, hold the
cursor over the symbol or category name and read the pop-up display text.
To open one of these elements, click on the associated symbol or category name.
For a few of these elements, a list, with executable tasks will open, with a selection
of individual Control Panel elements.
Searching for the desired control elements may be effected in the following ways:
72

Enter a word or expression in the search field.

Click on Large Icons or Small Icons under Display Settings to display a list
of all Control Panel elements.
Software
The Windows Media Center is the platform for your individual home entertainment
in Windows®7. You will be able to record television, TV broadcasts, DVDs and
music, look at photos and much more by a remote (not included in the scope of
the delivery) or by a click of the mouse, with the Windows Media Center.
Safety
*
Windows Media Center
Information
Handling
The support of the functions depends on the hardware equipment of
the notebooks. For example, the TV function requires a TV tuner (not
included in the scope of supply).
You will start your individual entertainment as follows:
1. Turn on your notebook.
2. Click on Start
Windows Media Center.
Components
3. Click on
.
An overview of the Windows Media Center functions is below:
Main menu
Sub-menu
TV + Films
Recordings
You will have the possibility of recording broadcasts if you
connect a TV tuner. You can play back the broadcasts
recorded, delete them or burn them on external media
through this Menu point.
Aid
Play back DVD
You will play DVDs through this Menu point.
Set up TV
You will have the possibility of configuring the TV signal
here, if you have an external TV tuner available.
Online Media
Programmes
*
Appendix
This library of programmes offers a listing of various online
media. You will call up content through the Internet, from
the online video library, through news portals to the music
shop, by means of the online media. An existing Internet
connection is the requirement for the use of this function.
* Function is limited way in the case of the Windows® 7 Starter version
Software
73
Main menu
Sub-menu
Tasks
Settings
Adapt the Windows Media Center to your requirements and
needs here. For example, make the settings for the
protection of children here.
Stand by
You will not only close the Windows Media Center but you
will be able to put the whole operating system in stand-by
through this sub-menu. Pay attention that all applications
have been already closed before putting the system into
stand-by.
Burn CD/DVD
Call up your burning software to start a burning process
through this sub-menu
Synchronising
If you connect an external device, such as an MP3 player or a
digital camera; you will be able to synchronise the respective
data to an external device with the notebook through this
sub-menu.
Extension set-up
You will be able to set up a Windows Media Center
extension by means of this sub-menu. You will be able to
access the data on your notebook by means of a cable or
wireless network.
‘Only media’
You will switch to the full image of the Media Center by
means of this sub-menu.
Images + Videos
Library of images
All the images stored in your notebook will be located in the
library of images. Start the playback in a slide show here.
Play back everything
Select ‘Play back everything’, to start the playback of a slide
show directly.
Video library
All the videos stored in your notebook will be located in its
video library.
74
Software
Safety
Music library
All the music titles stored in your notebook will be located
in the music library. You will be able to start the selected
playback of an album, an artist or a selected title here.
Play back everything
Handling
You will start the playback of all the files stored in your
music library by means of this sub-menu.
Radio
You will have the possibility of listening to a radio
broadcaster and to administrate it, if you have external
radio tuner hardware available.
You will be able to search for music titles, composers,
artists, albums, etc. in a targeted way by means of this submenu. The search will start as soon as you have entered the
first letters.
Components
Search
Aid
Music
Sub-menu
Appendix
Main menu
Software
75
Installation of Software
Note
If your operating system is configured so that the installation
procedure accepts only signed drivers (default) and software an
information screen will appear.
The software included in delivery is already pre-installed in the factory.
Attention!
You may find that during the installation procedure important files
may be changed or even cancelled. To avoid further problems in
using older files after an installation, make sure you safeguard your
hard disk. See page 83 for further information regarding data backup.
How to Install your Software
Please follow the instruction of the software vendor. We will describe a typical
installation. Once you insert a CD, the installation menu is started automatically.
Note
If the automatic start does not work, it is likely that the so-called
Autorun function has been deactivated. Read the respective chapter
in Windows Help on how to activate this function.
76
Software
1. Click on Start
Safety
An example for the manual installation without the autorun function:
.
2. Click on  All Programs.
3. Open the
Accessories program point.
4. Select the item
Run.
Components
Handling
5. Now enter the letter of the CD-ROM drive followed by a colon and the
program name setup:
6. Click on “OK”.
7. Follow the instruction given by the program.
Software Uninstallation
1. Click on Start
2. Click on
Aid
In order to remove installed software from your notebook, follow the next steps:
.
Control Panel.
3. Then select the
Programs option.
Appendix
4. Select the respective program, start the uninstallation and follow the
instructions on the screen.
Software
77
Windows Activation
Microsoft is committed to the protection of intellectual property rights and the
reduction of software piracy. Therefore Windows® 7 contains software-based
product activation technology. Your copy of Windows® 7 has already been
activated for your notebook.
Product activation is needed if some components of your notebook have been
replaced or you use a non-authorized BIOS. If necessary you can activate Windows®
7 as often as requested.
You will probably need to activate Windows® 7 by telephone even if Internet
Activation is available. This is due to the pre-activated SLP version which runs with a
special Product-ID. However, activation needs your unique Product ID which can
be found on the Certificate of Authenticity sticker on your notebook housing.
When you call, please inform your agent that you are running an OEM-(SLP)
version of the software.
Product activation on your Notebook
In few cases it may still be required to activate Windows® 7. If activation via the
internet is acknowledged with an error message you should perform the following
steps.
1. Please select the telephone activation and click until the related screen
appears.
2. Now click on Change Product Key. A new window appears. Enter the
product key. This is located on the Certificate of Authenticity (COA), on
the computer’s casing.
3. Acknowledge your entry and follow the instructions on the screen. Notify
your Microsoft consultant, if necessary, that you have purchased an OEM
license with your computer.
78
Software
In BIOS setup (Basic Configuration) there are a number of configurable parameter
settings available for your notebook. For example, you can change the operating
mode of the interfaces, security features or power management.
Safety
The BIOS Set-up-Program
Warning!
Handling
The notebook is factory pre-set to guarantee optimum operation.
Only modify the parameters if necessary and if you are familiar with
the configuration options.
Running the BIOS Set-up
Appendix
Aid
Components
You can only run the BIOS configuration program at system start-up. If the
notebook has already started, power it down and then up again. Press the F2 key in
order to start the BIOS-SET-UP.
Software
79
80
Software
Safety
Chapter 4
Subject
Page
Handling
First Aid
Data and System Security .................................................... 83
System Restore .................................................................... 84
FAQ ..................................................................................... 89
Aid
Recycling and Disposal ...................................................... 96
Appendix
Upgrades and Repairs ......................................................... 95
Components
Customer Service ............................................................... 90
82
Software
Safety
Data and System Security
The programs described below are part of your Windows operating system. You
can find additional information on these programs in the Windows Help file.
Please also read the notes on page 4.
Back up data regularly on external media such as a CD-R or CD-RW. Windows offers
Backup Status and Configuration.
This program is found in Accessories  System Tools within the Start menu. You
should make a backup disk with all your passwords and the operating system’s
original configuration.
Handling
Data Security
Appendix
Aid
You can avoid some hardware and software errors with the help programs such as
Disk Defragmenter and Disk Cleanup. The help program System Information
can also be helpful as it gives you detailed information about your system
configuration. You can also find these programs in Accessories  System Tools
too.
Components
Maintenance Programs
Data and System Security
83
System Restore
Windows® 7 provides a useful function (System Restore) enabling the storage of
the so-called Recovery points.
The system remembers the current configuration as a snapshot and returns to this,
if necessary. The advantage is that an unsuccessful installation can be cancelled.
Recovery points are created automatically by the system, but they can also be set
manually.
You can determine and configure yourself the maximum memory taken up by this.
You find this program in the program file under Accessories  System Tools.
We recommend setting a recovery point before installing new software or drivers.
At this point if the system does not run properly this recovery point should enable
you to return to a workable configuration without deleting newly created
documents. In the next paragraph you will find your options for the repair of an
incorrect installation.
Correction
Windows® 7 includes various functions ensuring that the PC as well as the installed
applications and devices work correctly.
These functions assist you in solving the problems which might occur by adding,
deleting or replacing files required for the functionality of the operating system, the
applications and devices. The recovery function or functions you use depend on the
type of occurring problem or error. For detailed information refer to the Windows
help.
84
System Restore
Windows Update is the online updating of Windows. Use Windows Update to
download elements such as security updates, important updates, the newest help
files, drivers and Internet products from the Internet.
Safety
Windows® Update
Windows Update will search through the notebook and provide a list of individual
updates especially for the configuration of your notebook.
Each update that Microsoft regards as important for the operation of the operating
system, programs or hardware components will be classified as an “important
update” and automatically selected for installation for you.
Handling
The website is regularly augmented by new content, so that you can download the
newest updates and error corrections at any time, to protect the notebook and
guarantee its functioning.
Important updates will be provided to remove known problems and to protect the
notebook against known security risks.
1. Click on Start
Components
Carry out four simple steps, to download the updates needed and to keep your
computer on the current status of technology:
.
2. Click on  All Programs.
3. Open
Windows Update.
4. Click on Check for update.
Appendix
6. Click on Check and install updates, when you have selected all the desired
updates, and then click on Install now.
Aid
5. Click on Add to select the desired update and to add it to the updates to be
installed, while you are searching through the available updates in each
category. You can also read a complete description of each individual
element by clicking on the Read further Link.
System Restore
85
Windows Update Information for Data Security
Windows Update needs certain information about the respective notebook, so that
a suitable list with updates can be provided for you. This information will include
the following:

Version number of the operating system

Version number of Internet Explorer

Version numbers of additional software programs

Plug & Play identification key of the hardware devices
Windows Update will stand up for the protection of your private data and will not
record your name, address, email address or other forms of personal data. The
information collected will only be used during the time that you are visiting the
website. It will also not be stored.
The update can only be executed via the Internet. Ensure that you are on-line with
your notebook when downloading the updates.
86
System Restore
Safety
System Restore
If your system is not functioning properly, you should use the Application Support
Disc to restore your system.

Changes made to the original configuration (RAS, Desktop or Internet
settings) and installed Software will be ignored by this Recovery and will not
be reloaded.

Driver Updates or hardware installed by you will be ignored by this
Recovery.
Handling
Limits of the Recovery
All data on drive C will be erased. If necessary, backup all required
data on drive D. (You must pay attention to the information of pages
4 and 83).
Appendix
Aid
This recovery will reset your system to its condition at delivery. Printer installations
or other additional software must be reinstalled.
Components
Warning!
System Restore
87
Carrying out a Restore
1. Remove any mass storage devices you may be using (memory cards, USB
sticks, etc.).
2. Switch on the notebook.
3. Press the corresponding key when you see the message "Press F11 to run
recovery" or "Press F12 to run recovery".
After a few seconds, the message "Windows is loading files" will appear.
Wait until the files are loaded. The "Power Recover" menu will then appear.
4. Select the language of the restoration menu.
5. Click on "Next".
6. You may now choose between two forms of restoration:

Restore to HDD – no backup of user data
All data on the notebook are irretrievably erased, restoring delivery
condition.

Restore to HDD – with backed up user data
Delivery condition is restored and all user data under C:\User are
preserved.
Warning!
When using the option with backed up user data, the
restoration procedure takes a long time. Data are only preserved
if they are located in the C:\user folder. All other data will be
erased. For this reason, you must perform regular backups on
external data carriers. We will not be liable for data loss and/or
consequential damages.
7. Click on Next and follow the further instructions, which will appear on the
screen, to restore the delivery condition.
88
System Restore
Safety
FAQ – Frequently Asked Questions
Do I still have to install the enclosed discs?
No. Basically all programs are already preinstalled. The discs are
only intended as backup copies.
Handling
What is the Windows activation?
Your operating instructions include a chapter about this subject.
When do I have to activate Windows?
Your software has been preactivated in the factory. An activation
will only be required, if ...
... several components are replaced by others.
... you installed a new motherboard.
Components
... a different BIOS version has been installed.
... you install the software on to another computer.
When is the recovery of the factory setting recommended?
Appendix
Aid
This method should be chosen as the last resort. Read chapter
“System Restore” concerning the possible alternatives.
FAQ – Frequently Asked Questions
89
Customer Service
Localize the Cause
Errors can have simple causes, but sometimes they are caused by faulty equipment.
We would like to give you some tips to help solve common problems. Should
these instructions not lead to success, please feel free to contact us.
Check Cables and Connections
Visibly check all cables and connections. Should all lights be off, check whether all
equipment is supplied with power.

In battery mode, connect the notebook to the power adapter and ensure
that the battery is charged up.

If you are operating the notebook with the power adapter, check the
electrical socket, power cord and all switches in the circuit of the electrical
socket.

Switch off the notebook and check all cable connections. Check the
connections to peripherals. Do not exchange cables, even though they may
look similar. The polarity in the cables may be different. When it is confirmed
that the notebook has power and all connections are correct, turn the
notebook on again.
Frequent use of the programs Disk Defragmenter and Disk Cleanup will help you
to avoid problems with your operating
system.
The tool "System Information", available in the program folder "System Tools" is
also very useful.
90
Customer Service
Safety
Errors And Possible Causes
The screen is black:

This error can have different causes:
Handling
1. The operational display (On /Off switch) does not shine and the
Notebook is in the swap file status.
Solution:
Operate the On /Off switch.
2. The sleep display is flashing. The Notebook is in the sleep mode.
Solution:
Operate the On /Off switch.
3. The background lighting has been deactivated with the Fn+F11 shortcut.
Solution:
Operate any key to switch on the background lighting again

The accumulator could be empty. Connect the notebook by means of the
network adapter and charge the accumulator.
The notebook cannot be switched on.

Operate the notebook by means of the accumulator and check whether it is
correctly inserted and charged.
Components
The notebook switches itself off during operation.
Incorrect time and date display.

Click the time display in the task bar and set the correct values afterwards.
The WLAN connection is not functioning.
Using the key combination Fn + F1 you can enable or disable the wireless
LAN function.
Aid

The Bluetooth connection is not functioning.
Using the key combination Fn+F2 you can enable or disable the Bluetooth
function.
Appendix

Errors And Possible Causes
91
Additional Support
If the suggestions in the above section have not solved your problem, please
contact customer care and we will attempt to help you solve the problem. Before
you call, however, please have the following information available:

How is your computer configured?

What additional peripherals do you use?

What messages, if any, appear on your screen?

What software were you using when the error occurred?

What steps have you already undertaken to solve the problem?

Have you upgraded or removed drivers or hardware?

Can you manually repeat the problem?

If you have been given a customer number previously, please have this
available.
Driver Support
This notebook has been extensively tested in our laboratories with a large number
of compatible devices. It fulfils all required standards and complies with the
standard “Designed for Windows”, which certifies utmost compatibility. However,
the software drivers for individual components are updated from time to time. This
is a regular process provided by the manufacturer to mend possible compatibility
problems that may occur with components (e.g., programs or hardware) that were
not tested at the time of your notebook’s manufacture.
92
Errors And Possible Causes
Switch off the notebook. This will prevent damage to the hard disk. When
the notebook is turned off, the hard disk heads are moved into a safe area.

Wait until the Notebook has reached ambient (room) temperature before
connecting it to the power supply. Drastic variations in temperature and
humidity can create condensation within the Notebook and may cause it to
short-circuit.

Close the notebook and ensure that the cover locks shut.

Always use the notebook carrying case. This helps to protect the notebook
from dirt, moisture, jolts and scratches.

Should you need to ship your notebook, always use the original packaging
and make certain the shipper knows the contents contain fragile electronic
equipment.

Fully charge your battery and any spare batteries immediately before a long
journey.

Enquire about the electricity and communication provision at the location
before a journey.

Acquire the necessary adapter for electricity or communication (modem,
LAN, etc.), if necessary, before starting your journey.

Put the battery into the packaging separately when despatching the
notebook.

It is recommended to send the notebook and all magnetic storage media
(floppy disks, external drives) through the x-ray device (the device into
which you put your bags), when you are passing through the baggage
check at airports. Avoid the magnetic detector (the construction, through
which you walk) or the magnetic rod (the manual device of the security
personnel), because they could destroy your data, among other
consequences.
Appendix
Aid

Components
Please use the following guidelines when transporting the notebook:
Handling
Safety
Transporting the Notebook
Errors And Possible Causes
93
Maintenance
Warning!
There are no user-serviceable or user-cleanable parts inside the
notebook housing. Never open the notebook housing.
Following these measures can extend the lifetime of your notebook:

Before cleaning, always remove the power adapter plug and all connecting
cables.

Only use a damp, lint-free cloth to clean the notebook.

Do not use any solvents, corrosive or gaseous cleaning agents.

Do not use CD-ROM cleaning discs or similar products that clean the lens of
the laser to clean your optical drive.

Dust or grease on the touchpad will impair its sensitivity. Remove dust or
grease on the surface of the Touchpad with a strip of sticky tape.
Care of the TFT Display
94

Always close the notebook when not in use. Avoid touching or scratching
the surface of the screen as it is easily damaged.

Make sure that no water drops are allowed to remain on the screen. Water
can cause permanent discoloration.

Clean the screen with a dry, soft, lint-free cloth.

Do not expose the screen to bright sunlight or ultraviolet radiation.

The notebook and its packaging are recyclable.
Errors And Possible Causes
Safety
Upgrades and Repairs
Only a qualified Service Engineer should perform upgrades and repairs to
your notebook.

If you do not have the necessary qualifications, go to an appropriate Service
Engineer. Please contact the Service Centre if you are experiencing technical
problems with your notebook.

Please contact our authorized Service Partners exclusively in the case of a
necessary repair.
Notes for Service Engineers

Before opening the housing, disconnect the notebook from all power
sources and remove any connecting cables. If the notebook has not been
disconnected from the power outlet before being opened, there is a danger
of severe electric shock. There is also a risk of damage to the components.

Internal components of the notebook may be damaged by electrostatic
discharge (ESD). Perform system upgrades and changes in an ESD-protected
work area. If no such work area is available, wear an antistatic wrist strap or
touch a highly conductive metal object. Your service centre can repair
damage sustained by inappropriate handling for a fee.

Use only original spare parts.
Components
Handling


Laser devices of Laser Class 1 to Laser Class 3b may be used in the notebook.
Where the notebook housing remains closed, the device meets the
requirements of Laser Class 1. By opening the notebook housing you will
gain access to laser devices of up to Laser Class 3b.

The CD-ROM/CD-RW/DVD/DVD-RW drive contains no user-serviceable
parts. Only the manufacturer should perform repairs to the CD-ROM/CDRW/DVD/DVD-RW drives.
Aid
Notes on Laser Radiation

DO NOT look into the laser beam, even while wearing optical protection.

DO NOT allow yourself to be exposed to the laser beam. Avoid exposure of
the eyes or skin to direct or stray
radiation.
Upgrades and Repairs
95
Appendix
When removing and/or opening laser devices, the following guidelines must be
observed:
Recycling and Disposal
Device
At the end of its life, the appliance must not be disposed of in household rubbish.
Enquire about the options for environmentally-friendly disposal
Batteries
Do not dispose of used batteries in the household rubbish! They must be deposited
at a collection point for used batteries.
Packaging
To avoid damage during transport, the Notebook is stored in a packaging.
Packaging is produced mostly from materials which can be disposed of in an
environmentally friendly manner and be professionally recycled.
Should you have any questions concerning the disposal please contact your dealer
or our service.
96
Recycling and Disposal
Safety
Batteries and Proper Treatment
Batteries may contain combustible materials. By misuse, this may cause battery
leakage, heat, explosion or ignition, bringing about injury or damage to the
device. Please observe strictly the following matters:
Warning!
KEEP CHILDREN AWAY from batteries. If by any chance, the batteries are
swallowed, consult a doctor immediately.

DO NOT CHARGE batteries (except rechargeable batteries).

DO NOT FORCIBLY DISCHARGE batteries.

DO NOT SHORT-CIRCUIT batteries.

DO NOT HEAT or DISPOSE OFF IN FIRE.

DO NOT DISASSEMBLE or DEFORM batteries. Your hands and fingers may be
injured, or the liquid of the battery may get into your eyes or adhere to your
skin. If this happens, rinse with a large quantity of water immediately and
consult a doctor.

DO NOT expose batteries to strong impact by dropping or throwing the
batteries.

DO NOT reverse the positive (+) and negative (-) terminals to avoid shortcircuit.

Do NOT MIX used and new or different types of batteries together.
Your equipment may not operate properly. In addition, the battery
exhausted first may be excessively drained (over-discharged).

REMOVE PROMPTLY the used batteries from the device.

REPLACE ALL BATTERIES with new batteries of the same type at the same
time.

INSULATE THE TERMINAL parts with tape or the like at the storage or
disposal of the batteries.

DO NOT throw rundown batteries in the domestic refuses! Respect the
environment and throw them in the specific containers for separate
collection. If necessary, turn to your reseller or to our service assistance.
Thank you!
Recycling and Disposal
Appendix
Aid

Components
Handling
There is a lithium battery on the motherboard. Lithium batteries are
hazardous waste and need to be disposed of properly. If necessary,
we will take back your used CMOS lithium battery.
97
98
Recycling and Disposal
Safety
Chapter 5
Subject
Page
Handling
Appendix
Standards .......................................................................... 101
Conditions of warranty ..................................................... 104
Appendix
Aid
Components
Index ................................................................................. 111
100
Recycling and Disposal
Safety
Standards

When connecting additional components, please observe the Guidelines on
Electromagnetic Compatibility (EMC).
Please note that only shielded cables shorter than
3 meters (9.84 ft) should be used for the LPT, COM, USB, IEEE 1394, audio,
video and network interfaces with this notebook.

Keep the notebook at least one meter (approximately three feet) away from
high frequency and magnetic interference sources (e.g., televisions,
loudspeaker cabinets, mobile telephones, etc.) in order to avoid
malfunctions and/or loss of data.
Handling
Electromagnetic Compatibility
Active matrix LCDs (TFT) with a resolution of 1680 x 945 pixel, which are in turn
composed of three sub-pixels each (red, green, blue), contain about
4.7 million addressable transistors. Because of this very high number of transistors
and their extremely complex production process occasionally defective or
incorrectly addressed pixels or sub-pixels may occur.
Components
ISO 13406-2 Class II
We, therefore, adhere to the clear and strict requirements of ISO 13406-2,
class II, for the warranty handling of all TFT display products. These requirements
are summarized below.
Appendix
Within ISO-standard 13406-2 the general requirements regarding pixel defects are
defined. Pixel defects are classified into three failure types and four failure classes.
Each individual pixel is made up of three sub-pixels in the primary colours (red,
green, blue).
Aid
There have been several attempts in the past to define the acceptable number of
defective pixels. But this can be difficult and varies widely between different
manufacturers.
Standards
101
Pixel structure
Rows
Blue
Green
Red
Types of Pixel Failures:

Type 1:
A constantly lit pixel (a bright, white spot), even though it is not addressed.
A white pixel is caused when all three sub-pixel are lit.

Type 2:
A pixel that does not light up (dark, black spot), although it is addressed

Type 3:
Abnormal or defective red, green or blue sub-pixels.
(E.g. constantly lit with half the brightness, one colour is not shining,
blinking or flickering, but not belonging to Type 1 or 2 Pixel Failures)
In addition:
A cluster of type 3 (= 2 or more defective sub-pixels in an array of
5 x 5 pixel). A cluster is an array of 5 x 5 pixel (15 x 5 sub-pixel).
ISO 13406-2, Class II
Resolution
Type 1
Type 2
Type 3
Cluster
Type 1,
Type 2
Cluster
Type 3
1024 x 768
2
2
4
0
2
1280 x 854
3
3
6
0
3
1280 x 1024
3
3
7
0
3
1366 x 768
3
3
7
0
3
1400 x 1050
1680 x 945
3
3
8
0
3
3
3
8
0
3
Example:
A 17” - SXGA-display consists of 1280 horizontal and 1024 vertical picture dots
(pixel), which amounts to a total of 1,31 million pixels. Based on one million pixels
this translates into a factor of about 1.31.
Class II type failure consequently allows for three defects each of type 1 and type 2
and 7 defects of type 3 and 3 cluster of type 3.
These cases are normally not covered by warranty.
If the number of failures exceeds the figures of any category mentioned above then
this may be covered by the warranty.
102
Standards

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

Consult the dealer or an experienced technician for help.
Safety
Appendix
Aid
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Shielded
interface cables, if any, must be used in order to comply with the emission limits.
Handling
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Components
FCC Compliance Statement
Standards
103
Conditions of Warranty for the
United Kingdom
Restricted Warranty
I. General Conditions of Warranty
1. General
This warranty covers defects relating to workmanship and manufacture in MEDION
products. The period during which this warranty is valid and during which claims
against the warranty can be made to MEDION must be in accordance with the
following terms in order to be considered eligible:

Is effective from the date of purchase or receipt of the MEDION product from
an authorised seller of MEDION products; and

expires at the end of the warranty period specified on the warranty card
provided with the product.
For the warranty to be valid, you must:

provide suitable evidence of purchase, a copy of the original purchase
receipt from an authorised seller of MEDION products is preferred; or

register your product within 28 days of purchase either online at
www.MEDION.co.uk or by completing and returning the pre-paid
registration card included with the product.
Please keep the original purchase receipt and the warranty card in a safe place.
MEDION and its authorised sellers reserve the right to refuse a repair under
warranty or a warranty confirmation if a proof of purchase [or registration of
purchase] cannot be established, or has not been, submitted.
When it is necessary to return your product for repair please ensure that your
product is suitably packed for transportation.
Provided that your product is still within warranty (please check the duration of the
warranty period as described above) and is eligible for repair or replacement under
the terms of the warranty, to return your product, please telephone MEDION on
the service hotline number. You will be sent a pre-paid transportation box suitable
for returning your product to MEDION. PLEASE MAKE SURE THAT YOU HAVE A
BACKUP COPY OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE PRODUCT
TO MEDION. MEDION shall bear the costs of postage and packaging for returning
the product and the transportation risk. However, if following examination of the
defective product in question, MEDION, in its reasonable opinion, considers that
the defect has been caused by:
104
Conditions of Warranty for the United Kingdom

damage caused in transit as a result of your negligence in packaging of the
product; and/or

otherwise than in accordance with the terms of this warranty;
This warranty shall be void and you may be required by MEDION to reimburse
MEDION for the reasonable costs of postage and packaging before MEDION will
return the product to you. If so and you would still like MEDION to repair or replace
the product, MEDION may do so but you will be charged MEDION’s standard rates
for repair and replacement for this service.
Before returning the product, please contact MEDION via the service hotline or via
the internet (www.MEDION.co.uk). You will receive a reference number (RMA No.)
on the warranty card. Please mark the outside of your package to ensure that this
reference number is clearly visible. Please submit a letter containing as much
detailed information as possible and, a full description of the defect or fault.
Safety
your operating and/or using the product other than as instructed in the
accompanying documentation;
Handling


a description of the fault;

when it occurred, how long it has been evident and how frequently it
occurs;

any errors message(s) displayed when using the product;

a description of the circumstance(s) and conditions in which the fault
occurs; and

whether it is an intermittent or persistent fault;
Components
This should include:
Unless otherwise instructed by a MEDION representative in all cases, the product
must be returned complete with all parts which were included with the original
product. Incomplete contents of the returned package may lead to a delay in the
repair or replacement. MEDION does not accept any liability for any additionally
submitted material(s) which were not supplied with the original MEDION product.
Aid
This will greatly assist MEDION in identifying the defect, when submitted together
with the defective product.
Appendix
This warranty does not affect your statutory rights in any way and is subject to the
applicable legal statutes of the country where the product was sold to you by an
authorised MEDION seller.
Conditions of Warranty for the United Kingdom
105
2. Scope
Subject to any exclusions set out within this warranty, where there is a defect in
your MEDION product covered by this warranty, MEDION will repair or replace the
MEDION product. The decision whether to repair or replace the product will be
made solely at the discretion of MEDION. MEDION may, in its own discretion,
replace the product returned for repair under warranty with a replacement product
that is either identical or, in the event that such product(s) are no longer available, a
product of equal or superior specification and quality.
No warranty is given for batteries or rechargeable batteries or for consumable
materials subject to wear and tear, i.e. for parts which have to be replaced
periodically during the normal use of the product, such as video-projector lamp.
Non critical failures that fall within industry specified tolerances e.g. noise, LCD
pixels are not covered by this warranty. Please consult the appropriate section in
your user or instruction manual for this product for exact specifications and
tolerances.
To the extent which is permitted under law, MEDION will accept no liability for
burnt-in images on plasma or LCD products as a result of normal wear and tear
during the operation of the product. Please refer to your user or instruction manual
for this product for detailed operating instructions for your plasma or LCD product.
The warranty does not cover errors relating to the playback of data media in an
incompatible format or created with unsuitable software.
If it is found during repair or assessment that the defect concerned is not covered
under warranty, MEDION reserves the right to invoice you for all reasonable costs
incurred by MEDION. These costs will be in relation to the return of the product,
including reasonable administration costs, plus reasonable costs for materials used
and labour provided when repairing or replacing the product. This is subject to
MEDION providing you with an estimate for carrying out such work prior to costs
being incurred and that you have accepted the estimate.
You are entitled to seek independent advice or consultation relating to your
product or any of MEDION’s findings. MEDION will not be liable for any costs
incurred to you when doing so.
106
Conditions of Warranty for the United Kingdom
To the extent permitted by law, this warranty shall be void in the event that defects
or loss caused by:
Safety
3. Exclusion from warranty
a. failure and damage resulting from the operation of the product in an
environment other than that recommended in the accompanying user or
instruction manual (e.g. in direct sunlight or in a damp room);
c. use other than in accordance with the accompanying user or instruction
manual;
d. modifications, conversions, expansions, maintenance and/or repairs made
to the MEDION product by unauthorised repairers or use of unauthorised
third party parts;
Handling
b. accidental damage;
e. negligence;
f. virus attack or software errors; or
This warranty will also be considered void if labels or serial numbers of the product
or of a component of the product are modified or made illegible.
To the extent permitted by law, MEDION shall; only be responsible for losses which
are a reasonably foreseeable consequence of the relevant defect in the product;
MEDION will not be responsible for any costs incurred in relation to software
configuration; economic loss; loss of opportunity; loss of income; or loss of data or
software arising out of its repair or replacement of a MEDION product under this
warranty.
Components
g. improper transportation or packaging during return of the product.
4. Service Hotline
Aid
Before returning the product to MEDION you must contact us using the service
hotline or via the internet (www.MEDION.co.uk). You will receive further
instructions for making your claim under warranty when you call.
Appendix
The service hotline is available on 362 days in the year, including Sundays and bank
holidays but excluding Christmas day, New Years Day and Easter day. The service
hotline is subject to [national rate] telephone call charges. These charges are
subject to change. The price of your call will be stated at the beginning of the call.
Conditions of Warranty for the United Kingdom
107
II. Special warranty conditions for MEDION PC, notebook, pocket PC (PDA) and navigation devices (PNA)
The following terms apply to MEDION PC, notebook, desktop, pocket PC and
laptop products and optional items included with such products. If one of these
items has a fault, you also have a warranty claim for its repair or replacement, from
MEDION. The warranty covers the costs of materials and labour for repairing or
replacing the defective MEDION product or the optional item in question.
Hardware connected to your product that was not produced or marketed by
MEDION can invalidate the warranty if MEDION can reasonably demonstrate that
damage to the MEDION product or of the optional item included with the delivery
was caused by such hardware. You are entitled to seek independent advice or
consultation relating to your product or any of MEDION’s findings. MEDION will
not be liable for any costs incurred to you when doing so.
This warranty is restricted in relation to any pre-installed operating system as well
as to application programme software that is included with the MEDION product in
question. This warranty is restricted as follows:
For pre-installed operating system as well as to application programme software
included in the MEDION product, MEDION only guarantees the data media (e.g.
the diskettes and CD-ROMs) upon which this software is delivered and warrants
that such data media shall be free from material and processing defects for a period
of 90 days from the date of purchase of the MEDION product from an authorised
seller of MEDION. MEDION will replace defective data media free of charge.
Any claims in respect of defective pre-installed operating system as well as to
application programme software are hereby expressly excluded and you should
contact the relevant licensor or copyright owner of the defective software in
question. MEDION does not guarantee that any software supplied with MEDION
products will function without interruption, will be free from errors or that it will
fulfil your requirements. MEDION does not guarantee the 100% accuracy of the
maps provided with the Navigation device.
It may be necessary to delete all data in the product in order to repair the MEDION
product. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON
THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. To the extent
permitted by law, MEDION excludes all liability for loss of data and MEDION
recommends in all cases that you back up all data on your MEDION product before
returning the product to MEDION.
108
Conditions of Warranty for the United Kingdom
Safety
III. Special warranty conditions for repair on site or
replacement on site
If a claim for repair or replacement on site is included within the terms of the
warranty card provided with the product, the special warranty conditions for repair
or replacement of your MEDION product on site apply.
The following provisions must be made by you for carrying out repairs or
replacements on site:
MEDION or its authorised personnel must have unrestricted, safe and
immediate access to the products.

Telecommunication facilities required by MEDION or its authorised
personnel for proper execution of your order, for testing and diagnostic
purposes and for remedying faults are provided by you at your own
expense.

You are responsible yourself for restoring the application software after the
repair services have been carried out by MEDION or its authorised
personnel.

You must take all other necessary steps to enable MEDION or its authorised
personnel to carry out your order properly.

You are responsible yourself for connecting and configuring any existing
external peripheral products after MEDION or its authorised personnel have
carried out their repairs.

The free cancellation period for repairs or replacements on site is 24 hours,
thereafter our reasonable costs resulting from late or missing cancellation
shall be invoiced at your expense.
Aid
Liability limitations
Components
Handling

The contents of this manual are subject to unannounced changes caused by
technical progress. Manufacturer and sales shall not be responsible for any
damages which have been caused as a result of omissions or errors in the
information provided in this manual.
Under no circumstances shall we be liable for any of the following:
2. Loss or damage to your blanks, recordings or data.
3. Economic follow-on damage (including lost profit or savings) or associated
damage even in the case that we have been informed of the possibilities of
this type of damage.
In some countries the exclusion or limitation of accompanying or follow-on
damage is not legally accepted so that the above limitations do not come into
force.
Conditions of Warranty for the United Kingdom
109
Appendix
1. Claims made against you by third parties based on loss or damage.
110
Conditions of Warranty for the United Kingdom
Safety
Index
B
Batteries and Proper Treatment ..... 97
Battery operation .......................... 29
Battery power ........................... 30
Charging ................................... 30
Checking the battery level ......... 31
Discharging the battery ............. 30
Removing .................................. 29
Battery Operation.......................... 10
Battery Power ................................ 30
BIOS Setup-Program ..................... 79
BIOS Utility
Running .................................... 79
E
Electromagnetic Compatibility .... 101
EMC ............................................ 101
Emergency ejection of a blocked
disc ........................................... 44
eSATA port .................................... 65
Express card
Installing ................................... 56
Removing.................................. 56
Express Card ................................. 56
Extended Desktop ......................... 37
External monitor ........................... 35
C
Cabling ........................................... 8
Care of Displays ............................ 94
Carrying out a Restore ................... 88
CD/DVD-Rewriter .......................... 45
CD-blanks ..................................... 45
CD-ROM ....................................... 42
Changing the transmission/
reception channels .................... 61
Charging the battery ..................... 30
Checking the battery level ............. 31
Connectors
External monitor........................ 35
Power socket ............................. 15
Sound card................................ 47
USB ........................................... 64
Control Panel
Disk Management ..................... 40
Customer service........................... 90
Components
All programs ................................. 21
Ambient Temperature ..................... 5
Appearance and Personalization ... 34
Audio out ...................................... 49
Autorun ........................................ 76
Aid
Data and system security .............. 83
Data entry ..................................... 38
Data security ................................. 83
Data Security................................... 4
Directories..................................... 41
Disc-Drive ..................................... 42
Discharging the battery ................. 30
Discs
Loading ..................................... 42
Removing blocked discs ............ 44
Display .......................................... 33
Opening and closing the
display .................................. 33
Screen resolution ...................... 33
Driver Support .............................. 92
DVD-Drive ..................................... 42
Handling
D
A
FAQ............................................... 89
Fast Ethernet-Network ................... 51
FCC Compliance Statement ........ 103
Frequently asked questions ........... 89
H
Hard drive ..................................... 40
HD .............................. See Hard drive
Index
111
Appendix
F
Main operation ......................... 28
Power Supply
Hibernate Mode ........................ 32
Sleep Mode ............................... 32
Product activation on your
notebook .................................. 78
Program bar .................................. 21
I
Icons ............................................. 21
Installation of Software.................. 76
Introduction .................................... 3
ISO 13406-2 Class II .................... 101
K
R
Kensington-lock ............................ 66
Keyboard ...................................... 38
R&TTE ............................................. 9
Recycling and Disposal ................. 96
Remote control ............................. 58
Removing the battery .................... 29
Repairs .......................................... 95
Running the Bios Setup ................. 79
L
Laser radiation ............................... 95
Liability limitations ...................... 109
License agreement ........................ 20
Line in ........................................... 49
S
M
Safety and maintenance .................. 1
Safety instructions ........................... 3
Care of the display .................... 94
Data Security ............................... 4
Maintenance ............................. 94
Ambient Temperature ................. 5
Battery Operation...................... 10
Cabling ....................................... 8
Power supply .............................. 7
Set-Up location ........................... 4
Touch Pad ................................... 9
Upgrades and Repairs ............... 95
Screen resolution .......................... 33
SD ................................................. 55
Secure Digital ................................ 55
Securing the Notebook
Startup Password ...................... 66
Service Engineers .......................... 95
Set-Up Location .............................. 4
Sleep Mode ................................... 32
Software ....................................... 67
Software uninstallation ................. 77
Sound card ................................... 47
External audio ports .................. 48
Standards .................................... 101
Electromagnetic Compatibility 101
FCC Compliance Statement .... 103
Start button .................................. 21
Support ........................................ 92
Suspend to Disk ............................ 32
Main operation ............................. 28
Maintenance ................................. 94
Care of the TFT Display.............. 94
Transporting the notebook........ 93
Maintenance programs ................. 83
Memory cards
Inserting .................................... 55
Removing .................................. 55
Memory Stick ................................ 55
MMC............................................. 55
Mouse ........................................... 39
Multimedia buttons ...................... 17
Multimedia card reader ................. 55
MultiMediaCard ............................ 55
N
Network ........................................ 51
Fast Ethernet-Network ............... 51
Troubleshooting........................ 53
What is a network? .................... 51
Wireless LAN.............................. 52
O
On/Off button ............................... 27
P
Power Management ...................... 32
Power supply .................................. 7
Battery operation ...................... 29
112
Index
Microphone .............................. 15
Multimedia buttons .................. 14
Optical drive ............................. 15
Power ON/OFF .......................... 14
Power socket ............................. 15
Touchpad.................................. 14
USB-Port.................................... 15
Webcam .................................... 14
T
Touch Pad ....................................... 9
Touchpad...................................... 39
Transport ...................................... 93
Troubleshooting ........................... 84
Errors and Possible Causes ........ 91
TV card
Connection ............................... 63
Operation.................................. 62
Watching TV .............................. 63
Safety
System Restore .............................. 84
U
Universal Serial Bus ....................... 64
Upgrades and Repairs ................... 95
Using a safety lock ......................... 66
V
Appendix
Aid
Views
Audio Out ................................. 15
Device indicator ........................ 16
Device indicators ....................... 14
DVI ............................................ 15
eSATA/USB port ........................ 15
Express Card/54 ........................ 15
Kensington lock ........................ 15
Keyboard................................... 14
LAN port.................................... 15
Line In ....................................... 15
Components
Warranty ..................................... 104
Webcam........................................ 57
Windows activation....................... 78
Windows Media Center ................. 73
®
Windows 7
User account control ................. 71
Battery device management ...... 68
Control panel ............................ 72
Getting started .......................... 70
Help and Support ..................... 69
Homegroup .............................. 69
Improved Desktop .................... 68
Improved taskbar ...................... 67
Jump lists .................................. 67
News ......................................... 67
Quickstartguide......................... 69
®
Windows Desktop ........................ 21
®
Windows Update.......................... 85
Wireless LAN ................................. 52
Working in Comfort ........................ 6
Handling
W
Index
113
114
Index
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
