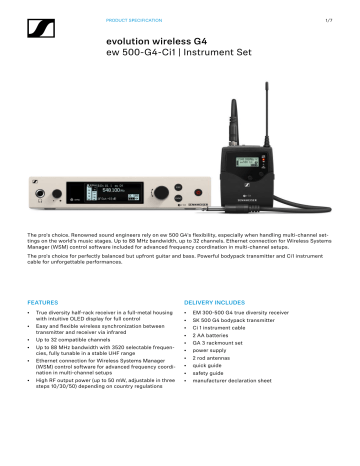

PRODUCT SPECIFICATION
1/7
evolution wireless G4
ew 500-G4-Ci1 | Instrument Set
The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi-channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems
Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
The pro‘s choice for perfectly balanced but upfront guitar and bass. Powerful bodypack transmitter and Ci1 instrument
cable for unforgettable performances.
FEATURES
DELIVERY INCLUDES
•
True diversity half-rack receiver in a full-metal housing
with intuitive OLED display for full control
•
EM 300-500 G4 true diversity receiver
•
Easy and flexible wireless synchronization between
transmitter and receiver via infrared
•
SK 500 G4 bodypack transmitter
•
Ci 1 instrument cable
•
Up to 32 compatible channels
•
2 AA batteries
•
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
•
GA 3 rackmount set
•
power supply
•
2 rod antennas
•
quick guide
•
safety guide
•
manufacturer declaration sheet
•
Ethernet connection for Wireless Systems Manager
(WSM) control software for advanced frequency coordination in multi-channel setups
•
High RF output power (up to 50 mW, adjustable in three
steps 10/30/50) depending on country regulations
PRODUCT SPECIFICATION
2/7
evolution wireless G4
ew 500-G4-Ci1 | Instrument Set
SPECIFICATIONS
EM 300-500 G4
RF characteristics
Modulation
Wideband FM
Frequency ranges
Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Receiving frequencies
Pilot tone squelch
Can be switched off
Antenna inputs
2 BNC sockets
AF characteristics
Sennheiser HDX
EQ presets (switchable,
act on line and monitor
outputs)
Preset 1: Flat
Preset 2:
Low Cut (-3 dB at 180 Hz)
Preset 3:
Low Cut/High Boost
(-3 dB at 180 Hz,
+6 dB at 10 kHz)
Preset 4:
High Boost
(+6 dB at 10 kHz)
20 frequency banks, each
with up to 32 factory-preset channels, no intermodulation
Signal-to-noise ratio (1 mV,
peak deviation)
≥ 115 dBA
Total harmonic distortion
(THD)
≤ 0.9 %
6 frequency banks with
up to 32 programmable
channels
AF output voltage (at peak
deviation, 1 kHz AF)
6.3 mm jack socket
(unbalanced): +12 dBu
XLR socket
(balanced): +18 dBu
Setting range “AF Out”
48 dB (3 dB steps)
Max. 3520 receiving
frequencies, adjustable in
25 kHz steps
up to 88 MHz
Nominal/peak deviation
±24 kHz / ±48 kHz
Receiver principle
True diversity
Sensitivity (with HDX, peak
deviation)
< 2.5 μV for 52 dBA eff S/N
Adjacent channel selection
Typically ≥ 75 dB
Intermodulation attenuation
Typically ≥ 70 dB
CONNECTIONS
5 to 25 dBμV
in steps of 2 dB
Compander system
Switching bandwidth
Blocking
Squelch
≥ 75 dB
Overall device
Temperature range
-10 °C to +55 °C
Power supply
12 V DC
Current consumption
350 mA
Dimensions
Approx. 202 x 212 x 43 mm
Weight
Approx. 980 g
PRODUCT SPECIFICATION
3/7
evolution wireless G4
ew 500-G4-Ci1 | Instrument Set
SPECIFICATIONS
SK 500 G4
AF characteristics
RF characteristics
Compander system
Sennheiser HDX
Modulation
Wideband FM
AF frequency response
Frequency ranges
Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Mic: 80 – 18,000 Hz
Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV,
peak deviation)
≥ 115 dBA
Total harmonic distortion
(THD)
≤ 0.9 %
Max. microphone/line
input voltage
3 Veff
Microphone/line input
impedance
40 kΩ, unbalanced / 1 MΩ
Input capacitance
Switchable
Setting range for input
sensitivity
60 dB,
adjustable in 3 dB steps
Transmission frequencies
Max. 3520 frequencies,
adjustable in 25 kHz steps
20 frequency banks, each
with up to 32 factory-preset channels, no intermodulation
6 frequency banks with
up to 32 programmable
channels
Switching bandwidth
up to 88 MHz
Nominal/peak deviation
±24 kHz / ±48 kHz
Frequency stability
≤ ±15 ppm
RF output power at 50 Ω
switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Pilot tone squelch
Can be switched off
Overall device
Temperature range
-10 °C to +55 °C
Power supply
2 AA batteries, 1.5 V or
BA 2015 accupack
Nominal voltage
3 V battery /
2.4 V rechargeable battery
Current consumption
at nominal voltage:
typ. 180 mA
with transmitter switched
off: ≤ 25 µA
Operating time
Typically 8 h
Dimensions
Approx. 82 x 64 x 24 mm
Weight (incl. batteries)
approx. 160 g
PRODUCT SPECIFICATION
4/7
evolution wireless G4
ew 500-G4-Ci1 | Instrument Set
DIMENSIONS
41
1.61
212.1
8.35
6,35mm Klinke, stereo
6,35mm plug, stereo
90.6
3.57
6,35mm Klinke, stereo
6,35mm plug, stereo
XLR 3
RJ 45
Zugentlastung
Cable Grip
12
0.47
17.2
0.68
13.4
0.53
81
3.19
39.4
1.55
14.2
0.56
DC Power-Jack
69.6
2.74
15.1
0.59
13.42
0.53
20.7
0.81
91.35
3.6
168
6.61
29
1.14
21.7
0.85
17.4
0.69
16.35
0.64
BNC
12.8
0.5
43.2
1.7
EM 300-500 G4
PRODUCT SPECIFICATION
5/7
evolution wireless G4
ew 500-G4-Ci1 | Instrument Set
DIMENSIONS
84.3
3.32
max. 120
4.72
SK 500 G4
31
1.22
3,5mm Klinke
3,5mm plug
65.4
2.57
PRODUCT SPECIFICATION
6/7
evolution wireless G4
ew 500-G4-Ci1 | Instrument Set
PRODUCT VARIANTS
Made in Germany
ew 500 G4-Ci1-GBw
606 - 678 MHz
Art. no. 507743
ew 500 G4-Ci1-Gw
558 - 626 MHz
Art. no. 507744
ew 500 G4-Ci1-Bw
626 - 698 MHz
Art. no. 507745
ew 500 G4-Ci1-Cw
718 - 790 MHz
Art. no. 507746
ew 500 G4-Ci1-Dw
790 - 865 MHz
Art. no. 507747
ew 500 G4-Ci1-Aw+
470 - 558 MHz
Art. no. 508409
ew 500 G4-Ci1-AS
520 - 558 MHz
Art. no. 508083
ew 500 G4-Ci1-Gw
558 - 626 MHz
Art. no. 508084
ew 500 G4-Ci1-Bw
626 - 698 MHz
Art. no. 508085
ew 500 G4-Ci1-Cw
718 - 790 MHz
Art. no. 508086
ew 500 G4-Ci1-Dw
790 - 865 MHz
Art. no. 508087
ew 500 G4-Ci1-Aw+
470 - 558 MHz
Art. no. 508430
ew 500 G4-Ci1-Gw1
558 - 608 MHz
Art. no. 508451
Assembled in USA
ARCHITECT‘S SPECIFICATION
A wireless RF transmission system consisting of a stationary receiver and a bodypack transmitter.
The system shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 88 MHz: 470 – 558 MHz,
520 – 558 MHz, 558 – 608 MHz, 558 – 626 MHz, 606 – 678 MHz, 626 – 698 MHz, 718 – 790 MHz, 790 – 865 MHz, 806
– 810 MHz, 925 – 937.5 MHz; receiving frequencies shall be 3520 per range and shall be tunable in 25 kHz steps. The
system shall feature 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32
user programmable frequencies.
The receiver shall be menu-driven with a backlit OLED display showing the current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, pilot tone evaluation, muting function, and battery
status of the associated transmitter. An auto-lock feature shall be provided to prevent settings from being accidentally
altered. The receiver shall provide a sound check mode.
Some receiver parameters such as receiving frequency, receiver name and pilot tone setting shall be synchronizable with
the associated transmitter via an integrated infrared interface.
The receiver shall feature a balanced XLR-3M audio output with a maximum output of +18 dBu along with an unbalanced
¼“ (6.3 mm) audio output with a maximum output of +12 dBu. A headphone output with headphone volume control shall
be provided and shall utilize a ¼“ (6.3 mm) stereo jack socket. The receiver shall have an Ethernet port (RJ-45) for remote
network-based monitoring and control using the Sennheiser Control Cockpit or the Sennheiser Wireless System Manager
software. Two BNC-type input sockets shall be provided for connecting the antennas.
Nominal/peak deviation shall be ±24 kHz/±48 kHz. Squelch threshold shall be defeatable (off) or adjustable from 5 25 dBμV in steps of 2 dB.
The receiver shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch. Sensitivity
shall be < 2 μV for 52 dBA eff S/N with HDX engaged at peak deviation. Adjacent channel rejection shall be ≥ 75 dB (typical). Intermodulation attenuation shall be ≥ 70 dB (typical); blocking shall be ≥ 75 dB. Four selectable equalizer presets
shall be provided: “Flat”, “Low Cut” (−3 dB at 180 Hz), “Low Cut/High Boost” (−3 dB at 180 Hz/+5.5 dB at 10 kHz) and
“High Boost” (+5.5 dB at 10 kHz). Signal-to-noise ratio at 1 mV and peak deviation shall be ≥ 115 dBA. Total harmonic distortion (THD) shall be ≤ 0.9 %. The audio output level shall be adjustable within a 48 dB range in steps of 3 dB.
PRODUCT SPECIFICATION
7/7
evolution wireless G4
ew 500-G4-Ci1 | Instrument Set
The receiver shall operate on 12 V power supplied from the NT 2-3 CW mains unit (for 100 – 240 V AC, 50/60 Hz). Power
consumption shall be 350 mA. The receiver shall have a rugged metal housing; dimensions shall be approximately 202 x
212 x 43 mm (7.95“ x 8.35“ x 1.69“). Weight shall be approximately 980 grams (2.16 lbs). Operating temperature shall range
from −10 °C to +55 °C (+14 °F to +131 °F).
The receiver shall be the Sennheiser EM 300-500 G4.
The bodypack transmitter shall be menu-driven with a backlit LC display showing the current frequency, frequency bank
and channel number, metering of AF level, transmission status, lock status, pilot tone transmission, muting function, and
battery status. An auto-lock feature shall be provided to prevent settings from being accidentally altered. The bodypack
transmitter parameters shall either be configurable in the associated receiver’s menu and synchronized with the bodypack transmitter via an integrated infrared interface or shall be programmable in the bodypack transmitter menu.
The bodypack transmitter shall be equipped with a mute switch, which shall be switchable between “AF on/off”, “RF on/
off” and “Disabled” via the user interface.
Nominal/peak deviation shall be ±24 kHz/±48 kHz. Frequency stability shall be ≤ ±15 ppm. RF output power at 50 Ω shall
be switchable between 10 mW (typical, low) and 30 mW (typical, standard) and 50 mW (typical, high).
The bodypack transmitter shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch.
Audio frequency response shall range from 80 – 18,000 Hz (microphone) or 25 - 18,000 Hz (line). Signal-to-noise ratio at
1 mV and peak deviation shall be ≥ 115 dBA. Total harmonic distortion (THD) shall be ≤ 0.9 %. Input sensitivity shall be
adjustable within a 60 dB range in steps of 3 dB.
Power shall be supplied to the bodypack transmitter by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage shall be 2.4 V, current consumption shall be typical 180 mA at nominal voltage; ≤ 25 μA
when bodypack transmitter is switched off. Operating time shall be typical 8 hours. The bodypack transmitter shall have
a rugged metal housing; dimensions shall be approximately 82 x 64 x 24 mm (3.23“ x 2.52“ x 0.94“). Weight including the
batteries shall be approximately 160 grams (0.35 lbs). Operating temperature shall range from −10 °C to +55 °C (+14 °F to
+131 °F).
The bodypack transmitter shall be the Sennheiser SK 500 G4.
