Sennheiser MMK 965 Specification

Sennheiser MMK 965 Specification

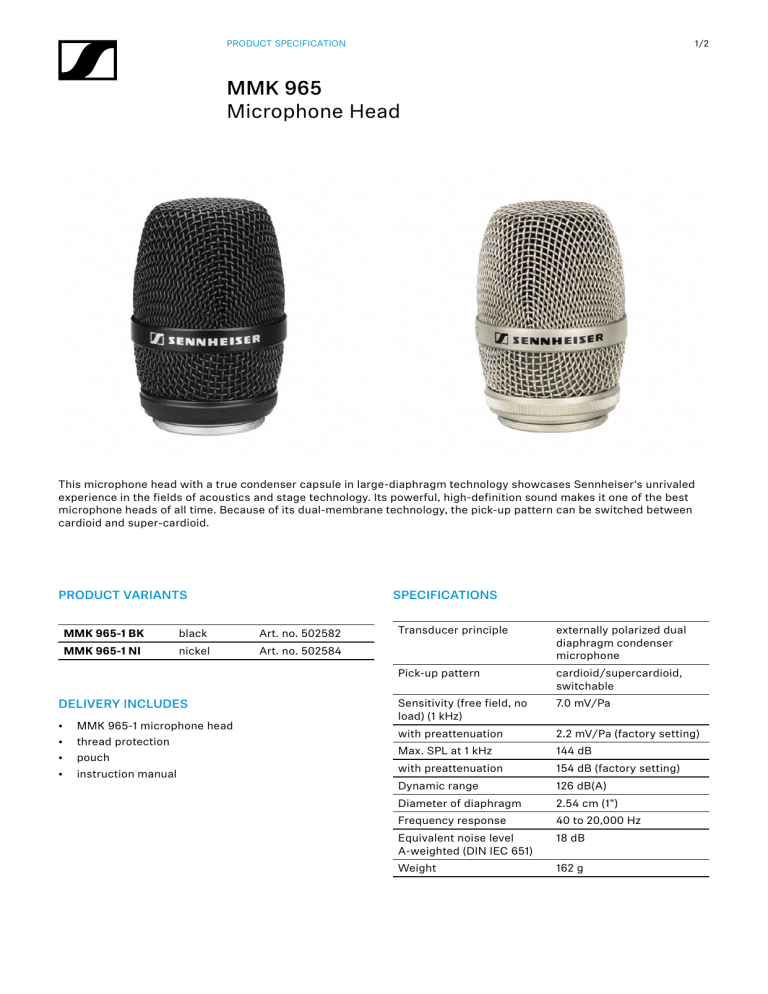

PRODUCT SPECIFICATION
1/2
MMK 965
Microphone Head
This microphone head with a true condenser capsule in large-diaphragm technology showcases Sennheiser‘s unrivaled
experience in the fields of acoustics and stage technology. Its powerful, high-definition sound makes it one of the best
microphone heads of all time. Because of its dual-membrane technology, the pick-up pattern can be switched between
cardioid and super-cardioid.
PRODUCT VARIANTS
SPECIFICATIONS
MMK 965-1 BK
black
Art. no. 502582
MMK 965-1 NI
nickel
Art. no. 502584
DELIVERY INCLUDES
•
MMK 965-1 microphone head
•
thread protection
•
pouch
•
instruction manual
Transducer principle
externally polarized dual
diaphragm condenser
microphone
Pick-up pattern
cardioid/supercardioid,
switchable
Sensitivity (free field, no
load) (1 kHz)
7.0 mV/Pa
with preattenuation
2.2 mV/Pa (factory setting)
Max. SPL at 1 kHz
144 dB
with preattenuation
154 dB (factory setting)
Dynamic range
126 dB(A)
Diameter of diaphragm
2.54 cm (1")
Frequency response
40 to 20,000 Hz
Equivalent noise level
A-weighted (DIN IEC 651)
18 dB
Weight
162 g
PRODUCT SPECIFICATION
2/2
MMK 965
Microphone Head
POLAR PATTERN
cardioid
supercardioid
FREQUENCY RESPONSE
cardioid
dBV
-30
-40
-50
-60
-70
-80
50
100
200
500
Hz
1k
PAD
2k
5k
10k
20k
5k
10k
20k
0° 1 m
supercardioid
dBV
-30
-40
-50
-60
-70
-80
50
100
200
500
PAD
Hz
1k
2k
0° 1 m
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
