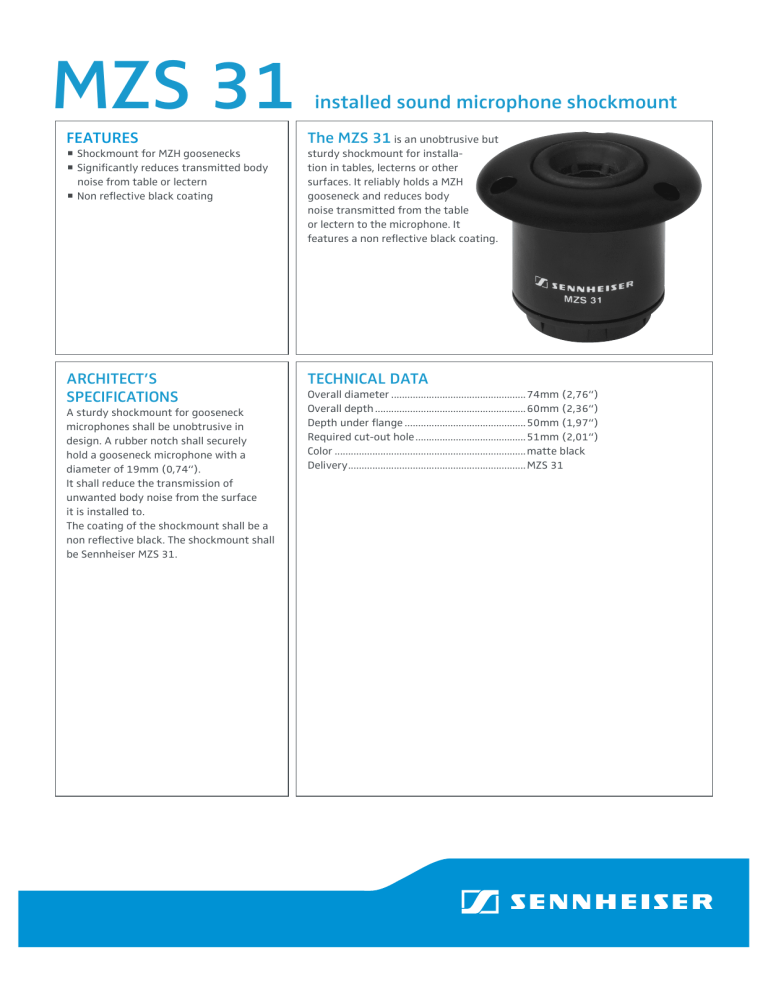

Sennheiser MZS 31 Specification

Sennheiser MZS 31 Specification
MZS 31
installed sound microphone shockmount
FEATURES
The MZS 31 is an unobtrusive but
Shockmount
for MZH goosenecks
Significantly reduces transmitted body
noise from table or lectern
Non reflective black coating
sturdy shockmount for installation in tables, lecterns or other
surfaces. It reliably holds a MZH
gooseneck and reduces body
noise transmitted from the table
or lectern to the microphone. It
features a non reflective black coating.
ARCHITECT’S
SPECIFICATIONS
TECHNICAL DATA
A sturdy shockmount for gooseneck
microphones shall be unobtrusive in
design. A rubber notch shall securely
hold a gooseneck microphone with a
diameter of 19mm (0,74“).
It shall reduce the transmission of
unwanted body noise from the surface
it is installed to.
The coating of the shockmount shall be a
non reflective black. The shockmount shall
be Sennheiser MZS 31.
Overall diameter................................................... 74mm (2,76“)
Overall depth......................................................... 60mm (2,36“)
Depth under flange.............................................. 50mm (1,97“)
Required cut-out hole.......................................... 51mm (2,01“)
Color........................................................................ matte black
Delivery................................................................... MZS 31
MZS 31 installed sound microphone shockmount
PRODUCT VARIANTS
RECOMMENDED ACCESSORIES
Cat.No. 005087
MZH 3015, 15cm gooseneck
MZH 3040, 40cm gooseneck
MZH 3042, 40cm gooseneck
MZH 3062, 60cm gooseneck MZH 3072, 70cm gooseneck
MZH 3015-L, 15cm gooseneck, lightring
MZH 3040-L, 40cm gooseneck, lightring
MZH 3042-L, 40cm gooseneck, lightring
MZH 3062-L, 60cm gooseneck, lightring
MZH 3072-L, 70cm gooseneck, lightring
Cat.No. 005074
Cat.No. 005076
Cat.No. 009384
Cat.No. 500652
Cat.No. 500653
Cat.No. 009435
Cat.No. 009436
Cat.No. 009437
Cat.No. 500652
Cat.No. 500653
06/10
MZS 31, shockmount
Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. www.sennheiser.com. Copyright © 2010. All rights reserved. Errors and omissions excepted.
DIMENSIONS
Contact your local Service Partner:
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
