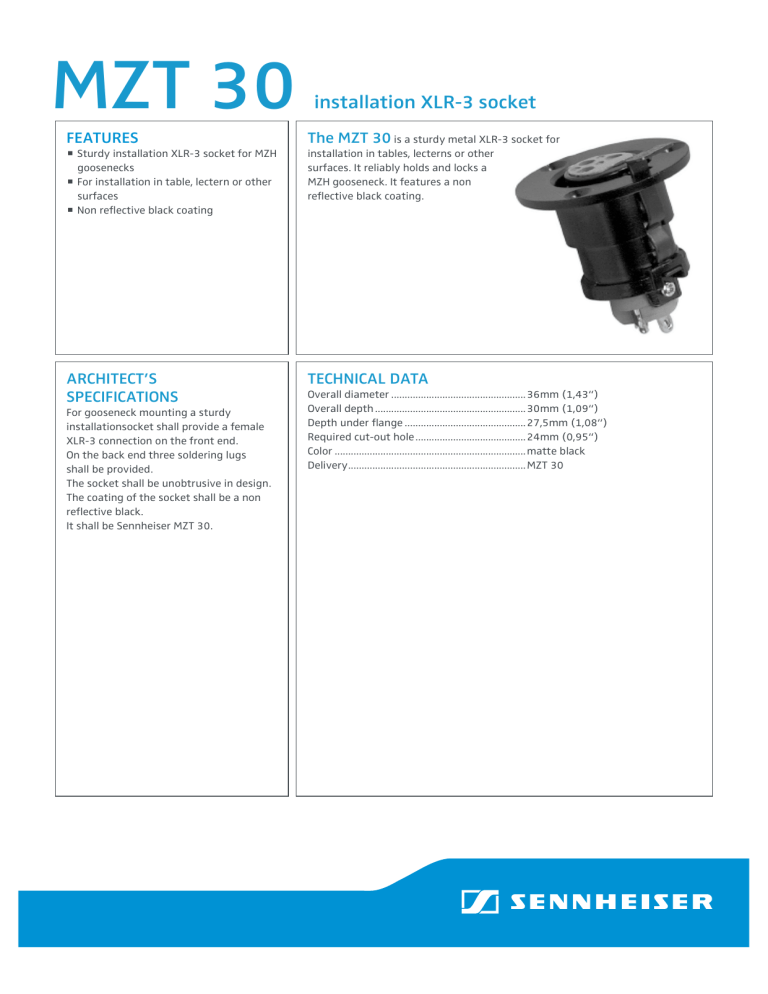

MZT 30
installation XLR-3 socket
FEATURES
The MZT 30 is a sturdy metal XLR-3 socket for
Sturdy
installation XLR-3 socket for MZH
goosenecks
For installation in table, lectern or other
surfaces
Non reflective black coating
installation in tables, lecterns or other
surfaces. It reliably holds and locks a
MZH gooseneck. It features a non
reflective black coating.
ARCHITECT’S
SPECIFICATIONS
TECHNICAL DATA
For gooseneck mounting a sturdy
installationsocket shall provide a female
XLR-3 connection on the front end.
On the back end three soldering lugs
shall be provided.
The socket shall be unobtrusive in design.
The coating of the socket shall be a non
reflective black.
It shall be Sennheiser MZT 30.
Overall diameter................................................... 36mm (1,43“)
Overall depth......................................................... 30mm (1,09“)
Depth under flange.............................................. 27,5mm (1,08“)
Required cut-out hole.......................................... 24mm (0,95“)
Color........................................................................ matte black
Delivery................................................................... MZT 30
MZT 30 installation XLR-3 socket
CONNECTIVITY
Mic –
Mic +
XLR-3
PRODUCT VARIANTS
RECOMMENDED ACCESSORIES
Cat.No. 005085
Cat.No. 009446
MZH 3015, 15cm gooseneck
MZH 3040, 40cm gooseneck
MZH 3042, 40cm gooseneck
MZH 3062, 60cm gooseneck MZH 3072, 70cm gooseneck
Cat.No. 005074
Cat.No. 005076
Cat.No. 009384
Cat.No. 500652
Cat.No. 500653
06/10
MZT 30, XLR-3 installation socket MZT 30-L, XLR-5 installation socket Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. www.sennheiser.com. Copyright © 2010. All rights reserved. Errors and omissions excepted.
DIMENSIONS
Contact your local Service Partner:
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
