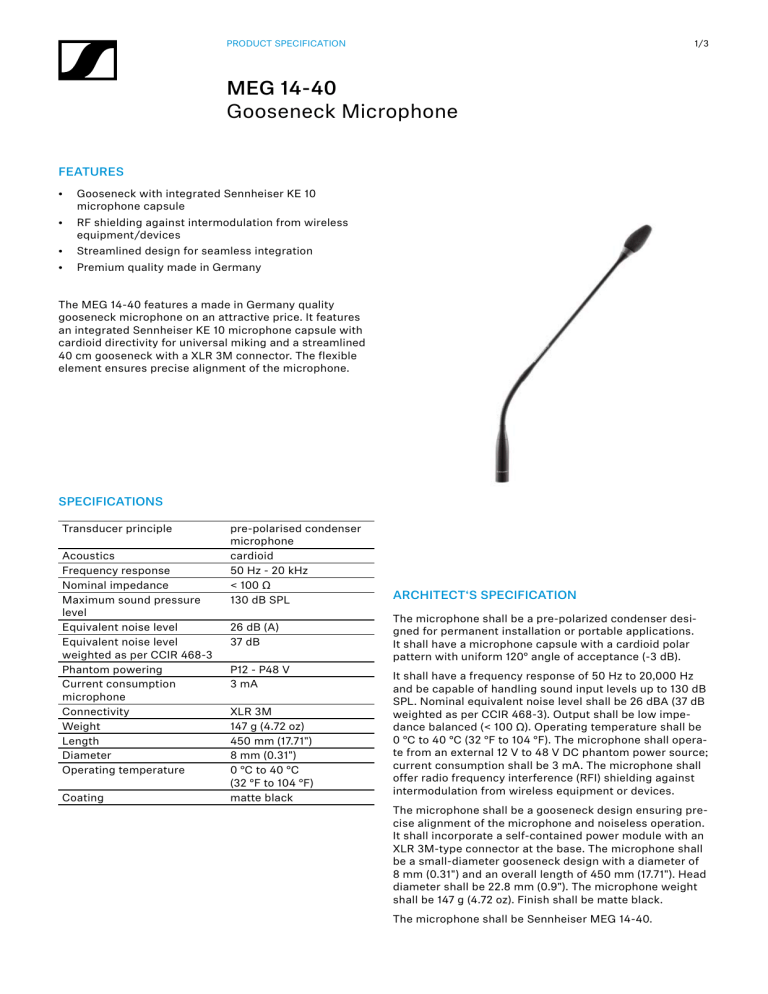

PRODUCT SPECIFICATION
1/3
MEG 14-40
Gooseneck Microphone
FEATURES
•
Gooseneck with integrated Sennheiser KE 10
microphone capsule
•
RF shielding against intermodulation from wireless
equipment/devices
•
Streamlined design for seamless integration
•
Premium quality made in Germany
The MEG 14-40 features a made in Germany quality
gooseneck microphone on an attractive price. It features
an integrated Sennheiser KE 10 microphone capsule with
cardioid directivity for universal miking and a streamlined
40 cm gooseneck with a XLR 3M connector. The flexible
element ensures precise alignment of the microphone.
SPECIFICATIONS
Transducer principle
Acoustics
Frequency response
Nominal impedance
Maximum sound pressure
level
Equivalent noise level
Equivalent noise level
weighted as per CCIR 468-3
Phantom powering
Current consumption
microphone
Connectivity
Weight
Length
Diameter
Operating temperature
Coating
pre-polarised condenser
microphone
cardioid
50 Hz - 20 kHz
< 100 Ω
130 dB SPL
26 dB (A)
37 dB
P12 - P48 V
3 mA
XLR 3M
147 g (4.72 oz)
450 mm (17.71")
8 mm (0.31")
0 °C to 40 °C
(32 °F to 104 °F)
matte black
ARCHITECT‘S SPECIFICATION
The microphone shall be a pre-polarized condenser designed for permanent installation or portable applications.
It shall have a microphone capsule with a cardioid polar
pattern with uniform 120° angle of acceptance (-3 dB).
It shall have a frequency response of 50 Hz to 20,000 Hz
and be capable of handling sound input levels up to 130 dB
SPL. Nominal equivalent noise level shall be 26 dBA (37 dB
weighted as per CCIR 468-3). Output shall be low impedance balanced (< 100 Ω). Operating temperature shall be
0 °C to 40 °C (32 °F to 104 °F). The microphone shall operate from an external 12 V to 48 V DC phantom power source;
current consumption shall be 3 mA. The microphone shall
offer radio frequency interference (RFI) shielding against
intermodulation from wireless equipment or devices.
The microphone shall be a gooseneck design ensuring precise alignment of the microphone and noiseless operation.
It shall incorporate a self-contained power module with an
XLR 3M-type connector at the base. The microphone shall
be a small-diameter gooseneck design with a diameter of
8 mm (0.31") and an overall length of 450 mm (17.71"). Head
diameter shall be 22.8 mm (0.9"). The microphone weight
shall be 147 g (4.72 oz). Finish shall be matte black.
The microphone shall be Sennheiser MEG 14-40.
PRODUCT SPECIFICATION
2/3
MEG 14-40
Gooseneck Microphone
⌀ 0.9"
[22,8 mm]
⌀ 0.73"
[19 mm]
DIMENSIONS
POLAR PATTERN
30°
XLR 3
18"
[450 mm]
0°
PIN ASSIGNMENT
330°
1
2
300°
60°
90°
3
270°
1 Ground
2 Microphone +
3 Microphone –
240°
120°
150°
180°
210°
FREQUENCY RESPONSE
-20
-30
dBV
-40
-50
-60
50
100
200
500
Hz
1k
2k
5k
10k
20k
PRODUCT SPECIFICATION
3/3
MEG 14-40
Gooseneck Microphone
PRODUCT VARIANTS
Product
Features
MEG 14-40 B
•
Art. no. 504791
Gooseneck with integrated Sennheiser KE 10 microphone capsule
•
RF shielding against intermodulation from wireless equipment/
devices
•
Streamlined design for seamless
integration
•
Premium quality made in Germany
MEG 14-40-L B
•
Art. no. 504792
Gooseneck with integrated Sennheiser KE 10 microphone capsule
•
RF shielding against intermodulation from wireless equipment/
devices
•
Streamlined design for seamless
integration
MEG 14-40-L-II B
Art. no. 506398
•
LED ring for speech indication
•
AC/DC lightring powering
•
Premium quality made in Germany
•
Intuitive handling
•
Clearly visible LED ring and microphone button
•
Proven Sennheiser KE 10 microphone capsule
The MEG 14-40 features a made in Germany quality
gooseneck microphone on an attractive price. It features
an integrated Sennheiser KE 10 microphone capsule with
cardioid directivity for universal miking and a streamlined
40 cm gooseneck with a XLR 3M connector. The flexible
element ensures precise alignment of the microphone.
The MEG 14-40-L features a made in Germany quality
gooseneck microphone on an attractive price. A lightring
indicates the spokesperson that is allowed to take the
floor. It features a Se nnheiser KE 10 microphone capsule
with cardioid directivity for universal miking. The flexible
element of the streamlined 40 cm gooseneck ensures
precise alignment of the microphone. A XLR 5M connector delivers power for the red LED ring and connects the
microphone signal.
The MEG 14-40-L-II features a made in Germany quality
gooseneck microphone on an attractive price. A lightring
indicates the spokesperson that is allowed to take the
floor. It features a Sennheiser KE 10 microphone capsule
with cardioid directivity for universal miking. The flexible
element of the streamlined 40 cm gooseneck ensures
precise alignment of the microphone. An XLR 5M connector delivers power for the red LED ring and connects the
microphone signal.
