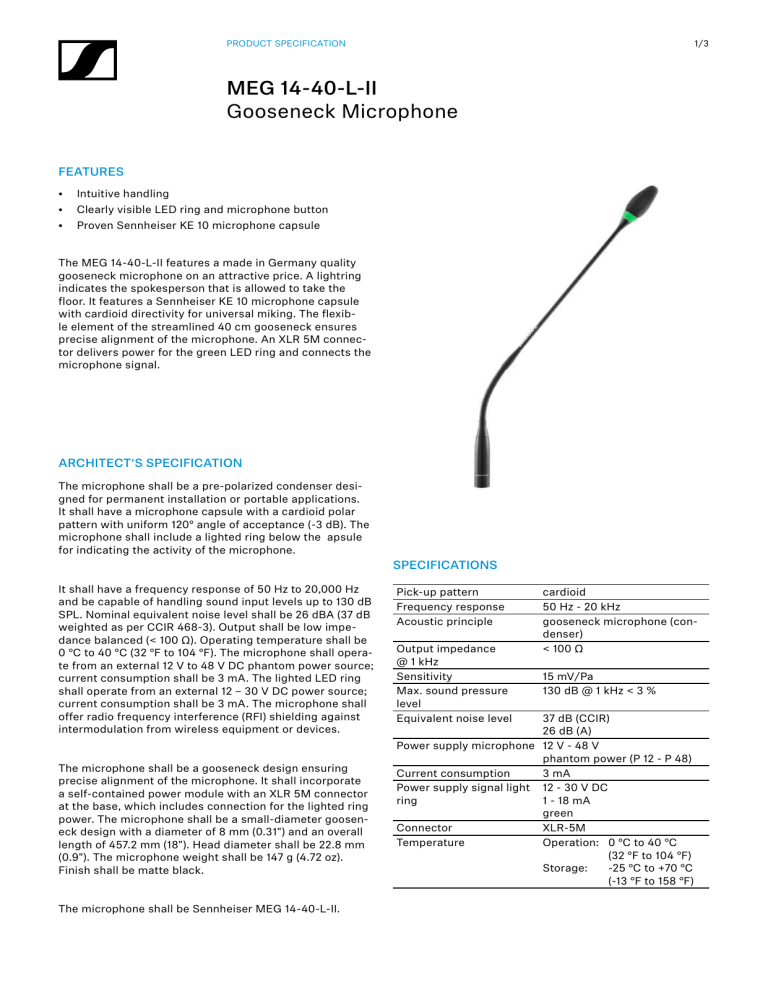

PRODUCT SPECIFICATION MEG 14-40-L-II Gooseneck Microphone

FEATURES

• Intuitive handling • Clearly visible LED ring and microphone button • Proven Sennheiser KE  10 microphone capsule The MEG 14-40-L-II features a made in Germany quality gooseneck microphone on an attractive price. A lightring indicates the spokesperson that is allowed to take the floor. It features a Sennheiser KE  10 microphone capsule with cardioid directivity for universal miking. The flexib le element of the streamlined 40  cm gooseneck ensures precise alignment of the microphone. An XLR  5M connec tor delivers power for the green LED ring and connects the microphone signal.

ARCHITECT‘S SPECIFICATION

The microphone shall be a pre-polarized condenser desi gned for permanent installation or portable applications. It shall have a microphone capsule with a cardioid polar pattern with uniform 120° angle of acceptance (-3  dB). The microphone shall include a lighted ring below the apsule for indicating the activity of the microphone.

It shall have a frequency response of 50  Hz to 20,000  Hz and be capable of handling sound input levels up to 130  dB SPL. Nominal equivalent noise level shall be 26  dBA (37  dB weighted as per CCIR 468-3). Output shall be low impe dance balanced (< 100  Ω). Operating temperature shall be 0  °C to 40  °C (32  °F to 104  °F). The microphone shall opera te from an external 12  V to 48  V  DC phantom power source; current consumption shall be 3  mA. The lighted LED ring shall operate from an external 12 – 30  V  DC power source; current consumption shall be 3  mA. The microphone shall offer radio frequency interference (RFI) shielding against intermodulation from wireless equipment or devices.

The microphone shall be a gooseneck design ensuring precise alignment of the microphone. It shall incorporate a self-contained power module with an XLR  5M connector at the base, which includes connection for the lighted ring power. The microphone shall be a small-diameter goosen eck design with a diameter of 8  mm (0.31") and an overall length of 457.2  mm (18"). Head diameter shall be 22.8  mm (0.9"). The microphone weight shall be 147  g (4.72  oz). Finish shall be matte black.

SPECIFICATIONS

Pick-up pattern Frequency response Acoustic principle Output impedance @  1  kHz Sensitivity Max. sound pressure level Power supply signal light ring Connector Temperature cardioid 50 Hz - 20  kHz gooseneck microphone (con denser) < 100  Ω 15  mV/Pa 130  dB @ 1 kHz < 3  % Equivalent noise level 37 dB (CCIR) 26 dB (A) Power supply microphone 12 V - 48 V phantom power (P 12 - P 48) Current consumption 3 mA 12 - 30 V DC 1 - 18 mA green XLR-5M Operation: Storage: 0 °C to 40 °C (32 °F to 104 °F) -25 °C to +70 °C (-13 °F to 158 °F) The microphone shall be Sennheiser MEG  14-40-L-II.

1/3

DIMENSIONS

PRODUCT SPECIFICATION MEG 14-40-L-II Gooseneck Microphone XLR 5

POLAR PATTERN

30° 90° 60° 0° 330° 120° 150° 210° 180°

FREQUENCY RESPONSE

-20 -30 -40 -50 -60 50 100 240° 200 300° 270° 18" [450 mm]

PIN ASSIGNMENT

1 5 2 3 4 1 Microphone Ground 2 Microphone + 3 Microphone – 4 LED Ground 5 LED: 12 – 30 V 500 Hz 1k 2k 5k 10k 20k 2/3

PRODUCT SPECIFICATION MEG 14-40-L-II Gooseneck Microphone 3/3

PRODUCT VARIANTS

Product MEG 14-40 B

Art. no. 504791

Features

• Gooseneck with integrated Senn heiser KE  10 microphone capsule • RF shielding against intermodu lation from wireless equipment/ devices • Streamlined design for seamless integration • Premium quality made in Germany

MEG 14-40-L B

Art. no. 504792 • Gooseneck with integrated Senn heiser KE  10 microphone capsule • RF shielding against intermodu lation from wireless equipment/ devices • Streamlined design for seamless integration • LED ring for speech indication • AC/DC lightring powering • Premium quality made in Germany

MEG 14-40-L-II B

Art. no. 506398 • Intuitive handling • Clearly visible LED ring and micro phone button • Proven Sennheiser KE  10 micro phone capsule The MEG  14-40 features a made in Germany quality gooseneck microphone on an attractive price. It features an integrated Sennheiser KE  10 microphone capsule with cardioid directivity for universal miking and a streamlined 40  cm gooseneck with a XLR  3M connector. The flexible element ensures precise alignment of the microphone.

The MEG  14-40-L features a made in Germany quality gooseneck microphone on an attractive price. A lightring indicates the spokesperson that is allowed to take the floor. It features a Sennheiser KE  10 microphone capsule with cardioid directivity for universal miking. The flexible element of the streamlined 40  cm gooseneck ensures precise alignment of the microphone. A XLR  5M connec tor delivers power for the green LED ring and connects the microphone signal.

The MEG  14-40-L-II features a made in Germany quality gooseneck microphone on an attractive price. A lightring indicates the spokesperson that is allowed to take the floor. It features a Sennheiser KE  10 microphone capsule with cardioid directivity for universal miking. The flexible element of the streamlined 40  cm gooseneck ensures precise alignment of the microphone. An XLR  5M connec tor delivers power for the green LED ring and connects the microphone signal.
