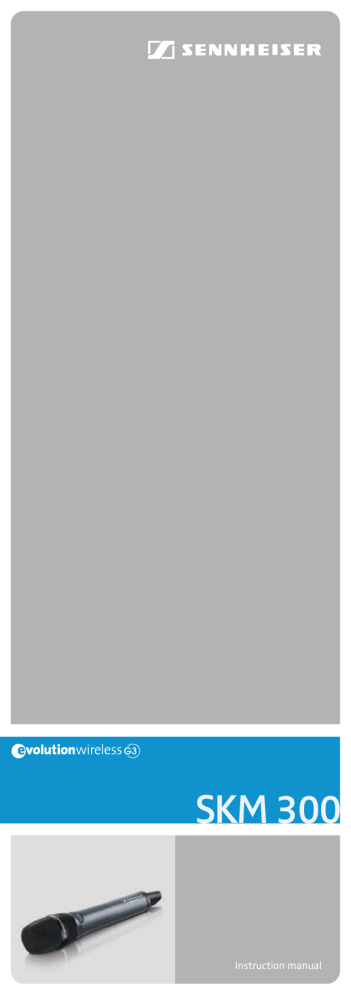

SKM 300
Instruction manual
Contents
Contents
Important safety instructions ............................................2
The SKM 300 G3 radio microphone family ......................3
The frequency bank system .........................................3
Areas of application .......................................................4
Delivery includes...................................................................5
Product overview ..................................................................6
Overview of the SKM 300 G3 radio microphone.......6
Overview of the displays...............................................7
Putting the radio microphone into operation.................8
Inserting and changing the batteries/accupack ......8
Charging the accupack...................................................9
Changing the microphone head................................ 10
Changing the color-coded protection ring.............. 11
Using the radio microphone ............................................ 12
Switching the radio microphone on/off.................. 12
Deactivating the lock mode temporarily ................ 14
Muting the audio signal or deactivating
the RF signal ................................................................. 15
Selecting a standard display ..................................... 17
Using the operating menu ............................................... 18
The buttons................................................................... 18
Overview of the operating menu.............................. 18
Working with the operating menu .......................... 20
Adjusting settings via the operating menu ................. 22
The main menu “Menu” ............................................. 22
The extended menu “Advanced Menu” .................. 24
Synchronizing the radio microphone with
a receiver ............................................................................. 29
Synchronizing the radio microphone
with the receiver – individual operation................. 29
Synchronizing radio microphones
with receivers – multi-channel operation............... 29
Cleaning and maintaining the radio microphone........ 30
Recommendations and tips ............................................. 31
If a problem occurs ... ........................................................ 32
Specifications...................................................................... 33
Polar diagrams and frequency response curves
of the microphone heads ........................................... 34
An animated instruction manual can be
viewed on the SKM 300 G3 product page
on our website at www.sennheiser.com.
SKM 300 G3 | 1
Important safety instructions
Important safety instructions
•
Read this instruction manual.
•
Keep this instruction manual. Always include this
instruction manual when passing the product on to
third parties.
•
Heed all warnings and follow all instructions.
•
Clean the product only with a slightly damp cloth.
•
Do not place the product near any heat sources such
as radiators, stoves, or other devices (including
amplifiers) that produce heat.
•
Only use attachments/accessories specified by
Sennheiser.
•
Refer all servicing to qualified service personnel.
Servicing is required if the device has been damaged
in any way, liquid has been spilled, objects have
fallen inside, the product has been exposed to rain or
moisture, does not operate properly or has been
dropped.
•
WARNING: To reduce the risk of short circuits, do not
use the product near water and do not expose it to
rain or moisture.
Intended use
Intended use of the ew 300 G3 series products includes:
•
having read this instruction manual, especially the
chapter “Important safety instructions” above on
this page,
•
using the products within the operating conditions
and limitations described in this instruction manual.
“Improper use” means using the products other than
as described in these instructions, or under operating
conditions which differ from those described herein.
2 | SKM 300 G3
The SKM 300 G3 radio microphone family
The SKM 300 G3 radio
microphone family
The SKM 300 G3 radio microphone is part of the
evolution wireless series generation 3 (ew G3).
This series offers high-quality state-of-the-art RF
transmission systems with a high level of operational
reliability and ease of use. Transmitters and receivers
permit wireless transmission with studio-quality sound.
Features of the evolution wireless 300 G3 series:
•
Optimized PLL synthesizer and microprocessor
technology
•
HDX noise reduction system
•
Pilot tone squelch control
•
True diversity technology
•
Switching bandwidth of 42 MHz
•
Increased immunity to intermodulation
interferences in multi-channel operation
•
Interchangeable microphone heads, allowing the use
of different pick-up patterns and sensitivities
•
Extended muting function due to MIC button on the
radio microphone
and
The frequency bank system
The radio microphone is available in 6 UHF frequency
ranges with 1,680 transmission frequencies per
frequency range:
Range A:
516 – 558
Range G:
566 – 608
Range B:
626 – 668
Range C:
734 – 776
Range D:
780 – 822
Range E:
823 – 865
Each frequency range (A–E, G) offers 26 frequency
banks with up to 24 channels each:
Channel 1 – frequency preset
Channel 2 – frequency preset
Frequency bank 1 ... 20
Channel 24 – frequency preset
Channel 1 – freely selectable frequency
Channel 2 – freely selectable frequency
Frequency bank U1 ... U6
Channel 24 – freely selectable frequency
Each of the channels in the frequency banks “1” to “20”
has been factory-preset to a fixed transmission
frequency (frequency preset).
SKM 300 G3 | 3
The SKM 300 G3 radio microphone family
The factory-preset frequencies within one frequency
bank are intermodulation-free. These frequencies
cannot be changed.
For an overview of the frequency presets, please refer to
the supplied frequency information sheet. Updated
versions of the frequency information sheet can
be downloaded from the SKM 300 G3 product page on
our website at www.sennheiser.com.
The frequency banks “U1” to “U6” allow you to freely
select and store transmission frequencies. It might be
that these transmission frequencies are not
intermodulation-free.
Areas of application
The radio microphone family can be combined with the
EM 300 G3 rack-mount receiver.
The EM 300 G3 rack-mount receiver is available in the
same UHF frequency ranges and is equipped with the
same frequency bank system with factory-preset
frequencies. This has the advantage that:
•
a transmission system is ready for immediate use
after switch-on,
•
several transmission systems can be operated
simultaneously on the preset frequencies without
causing intermodulation interference.
Radio
microphone
Interchangeable
microphone heads Receiver
PEAK
40
30
20
10
RF
SKM 300-835 G3* MMD 835-1
*
MMD 845-1
*
MMD 865-1
SKM 300-845 G3
SKM 300-865 G3
0
-10
-20
-30
-40
AF
B.Ch: 01.01
ew300 G3
806.125 MHz
SKM300
EQ
P + 12dB MUTE
EM 300 G3
* The name of the radio microphone is a combination of the name of
the transmitter and the name of the microphone head:
Transmitter + Microphone head =Name of the radio microphone
SKM 300
+ MMD 835-1
=SKM 300-835 G3
Overview of the microphone heads:
Microphone head Type
Pick-up pattern
MMD 835-1
dynamic
– cardioid
MMD 845-1
dynamic
– super-cardioid
MMD 865-1
condenser
– super-cardioid
The name and pick-up pattern of the microphone head
are printed on the sound inlet basket of the radio
microphone.
4 | SKM 300 G3
Delivery includes
Delivery includes
The packaging contains the following items:
1 SKM 300 G3 radio microphone incl.
microphone head
2 AA size batteries, 1.5 V
1 microphone clamp
1 instruction manual
1 frequency information sheet
1 supplement “Framework requirements and
restrictions on frequency usage”
A list of accessories can be found on the
SKM 300 G3 product page at www.sennheiser.com.
For information on suppliers, contact your local
Sennheiser partner:
www.sennheiser.com > “Service & Support”.
SKM 300 G3 | 5
Product overview
Product overview
Overview of the SKM 300 G3
radio microphone
3
6
4
1
7
8
5
2
9
B
A
0
9
A
A
C
1 Microphone head (interchangeable)
2 Name and pick-up pattern of the microphone head
(not visible here, see page 4)
3 MIC button
4 Body of radio microphone
5 Battery compartment (not visible from outside)
6 Display panel, backlit in orange
7 Infra-red interface
8 Antenna
9 Color-coded protection ring;
available in different colors
0 Operation and battery status indicator, red LED
(lit = ON/flashing = LOW BATTERY)
A Charging contacts
B Multi-function switch:
(DOWN), (UP) and
C ON/OFF button
with ESC function (cancel)
6 | SKM 300 G3
(SET)
Product overview
Overview of the displays
After switch-on, the radio microphone displays the
standard display “Frequency/Name”. For further
illustrations and examples of the different standard
displays, refer to page 17.
The display backlighting is automatically reduced after
approx. 20 seconds.
햲
햳 햴
햵
햶
806.125 MHz
ew300 G3
P MUTE
AF
햷
Display
햸
햹
Meaning
1 Audio level “AF” Modulation of the radio
microphone with peak hold
function
2 Frequency
Current transmission frequency
3 Name
User selectable name
4 Transmission
icon
RF signal is being transmitted
5 Lock mode icon
Lock mode is activated
6 “P” (pilot)
Pilot tone transmission is
activated
7 “MUTE”
Audio signal is muted/
RF signal is deactivated
8 Battery status
Charge status:
approx. 100%
approx. 70%
approx. 30%
critical charge status,
the red LOW BATTERY
LED 0 is flashing:
0
SKM 300 G3 | 7
Putting the radio microphone into operation
Putting the radio microphone
into operation
Inserting and changing the batteries/
accupack
For powering the radio microphone, you can either
use two 1.5 V AA size batteries or the rechargeable
Sennheiser BA 2015 accupack (optional accessory).
CAUTION
Danger of damage to the radio microphone!
When unscrewing the radio microphone during
operation while pressing the MIC button 3 at the same
time, the radio microphone can be damaged.
Hold the radio microphone’s body 4 as shown below
to make sure that the MIC button 3 is not
accidentally pressed.
Unscrew the lower part of the radio microphone
from the radio microphone’s body 4 by turning it
counterclockwise.
4
3
When unscrewing the radio microphone during
operation, the muting function is automatically
activated. “MUTE” appears on the display panel.
When screwing the lower part of the radio
microphone back to the radio microphone’s body,
the muting function is deactivated and “MUTE”
disappears from the display panel.
Slide back the lower part of the radio microphone as
far as it will go.
D
Open the battery compartment cover D.
8 | SKM 300 G3
Putting the radio microphone into operation
D
Insert the batteries or the BA 2015 accupack as
shown on the battery compartment cover. Observe
correct polarity when inserting the batteries/
accupack.
D
Close the battery compartment cover D.
Push the battery compartment into the radio
microphone’s body.
Screw the lower part of the radio microphone back to
the radio microphone’s body 4.
Charging the accupack
To charge the radio microphone with the inserted
BA 2015 accupack (optional accessory):
Insert the radio microphone into the LA 2 charging
adapter (optional accessory) until it locks into place.
LA 2
L 2015
Plug the LA 2 charging adapter with the inserted
radio microphone into the L 2015 charger (optional
accessory).
The LA 2 charging adapter and L 2015 charger can
only charge the radio microphone with the
BA 2015 accupack installed. Standard batteries
(primary cells) or individual rechargeable battery
cells cannot be charged in this way.
SKM 300 G3 | 9
Putting the radio microphone into operation
Changing the microphone head
The microphone head 1 easy to change.
Unscrew the microphone head 1.
1
Do not touch the contacts of the radio microphone
nor the contacts of the microphone head 1. The
contacts can become dirty or damaged if touched.
When unscrewing the microphone head 1 during
operation, the muting function is automatically
activated. “MUTE” appears on the display panel.
When screwing the microphone head 1 back to
the radio microphone’s body, the muting function
is deactivated and “MUTE” disappears from the
display panel.
Screw the desired microphone head to the radio
microphone.
The radio microphone is operational again.
10 | SKM 300 G3
Putting the radio microphone into operation
Changing the color-coded protection ring
The color-coded protection ring 9 prevents the multifunction switch from accidental operation.
Protection rings 9 in different colors are available as
accessories. The protection rings allow you to clearly
identify each radio microphone.
Remove the color-coded protection ring 9 as shown.
9
9
Put on a new protection ring as shown.
9
9
SKM 300 G3 | 11
Using the radio microphone
Using the radio microphone
CAUTION
Reduced transmission power!
If you touch the antenna 8 of the radio microphone,
the transmission power will be considerably reduced!
8
Only hold the radio microphone by its body.
To establish a transmission link, proceed as follows:
1. Switch the radio microphone on (see next section).
2. Switch the receiver on (see the receiver’s instruction
manual).
The transmission link is established and the display
backlighting of the receiver changes from red to
orange.
It is vital to observe the notes on frequency
selection on page 29.
If you cannot establish a transmission link between
transmitter and receiver, read the chapter
“Synchronizing the radio microphone with a receiver”
on page 29.
Switching the radio microphone on/off
0
C
12 | SKM 300 G3
3
Using the radio microphone
To switch the radio microphone on (online operation):
ON/OFF
Briefly press the ON/OFF button C.
The red ON LED 0 lights up. The “Frequency/
Name” standard display appears on the
display panel. The backlighting of the
MIC button 3 depends on the setting in the
“MIC LED” menu item (see page 26). The
transmission icon 4 is displayed. The radio
microphone transmits an RF signal.
You can switch the radio microphone on and
deactivate the RF signal on switch-on. For more
information, see below.
To switch the radio microphone off:
If necessary, deactivate the lock mode (see next
chapter).
ON/OFF
Press the ON/OFF button C until “OFF”
appears on the display panel. The red
ON LED 0 and the MIC button 3 go off. The
display panel turns off.
When in the operating menu, pressing the ON/
OFF button C will cancel your entry (ESC function)
and return you to the current standard display.
To switch the radio microphone on and to deactivate the
RF signal on switch-on (offline operation):
ON/OFF
Keep the ON/OFF button pressed until “RF
Mute Off?” appears on the display panel.
Move the multi-function switch.
“RF Mute On?” appears on the display panel.
Press the multi-function switch.
The transmission frequency is displayed
but the radio microphone does not transmit
an RF signal. The transmission icon 4 is
not displayed. The backlighting of the
MIC button 3 depends on the setting in the
“MIC LED” menu item (see page 26). When
the pilot tone function is activated on both
radio microphone and receiver, “RF Mute”
appears on the receiver’s display panel.
806.125 MHz
ew300 G3
AF
햵
P MUTE
Use this function to save battery power or to
prepare a radio microphone for use during live
operation without causing interference to existing
transmission links.
To activate the RF signal:
ON/OFF
Briefly press the ON/OFF button C.
“RF Mute On?” appears on the display panel.
Move the multi-function switch.
“RF Mute Off?” appears on the display panel.
Press the multi-function switch.
The transmission icon 4 is displayed again.
SKM 300 G3 | 13
Using the radio microphone
Deactivating the lock mode temporarily
You can activate or deactivate the automatic lock mode
via the “Auto Lock” menu item (see page 24).
If the lock mode is activated, you have to temporarily
deactivate it in order to be able to operate the radio
microphone:
Press the multi-function switch.
“Locked” appears on the display panel.
Move the multi-function switch.
“Unlock?” appears on the display panel.
Press the multi-function switch.
The lock mode is temporarily deactivated.
How you are using the radio microphone
determines how long the lock mode remains
deactivated:
When you are in the operating menu
The lock mode remains deactivated until
you exit the operating menu.
When one of the standard displays is
shown
The lock mode is automatically activated
after 10 seconds.
The lock mode icon 5 flashes prior to the lock mode
being activated again.
806.125 MHz
ew300 G3
AF
P MUTE
14 | SKM 300 G3
햶
Using the radio microphone
Muting the audio signal or deactivating
the RF signal
3
The MIC button 3 allows you to mute the audio signal
or to deactivate the RF signal.
Via the “Mute Mode” menu item, you can set the
desired function of the MIC button 3:
Setting
MIC button 3 ... Function
“AF On/
Off”
Press briefly
Mutes the audio signal
permanently
Unmutes the audio
signal permanently
“RF On/
Off”
Press briefly
Deactivates the RF
signal
(offline operation)
Activates the RF signal
(online operation)
“Push To
Mute”
Keep pressed
Mutes the audio signal
temporarily (cough
function)
“Push To
Talk”*
Keep pressed
Unmutes the audio
signal temporarily
(speech function)
“Disabled” No function
*
If you select “Push To Talk”, the radio microphone will be
permanently muted until until you press the MIC button.
From the “Mute Mode” menu item, select the desired
setting (see page 25).
Exit the operating menu.
Briefly press the MIC button 3 or keep it pressed.
The radio microphone reacts as indicated in the table.
The current state of the muting function or the
RF signal is displayed on the radio microphone’s
display panel (see next section).
An additional display appears on the receiver’s
display panel
•
when the pilot tone function is activated on
both radio microphone and receiver and,
in addition,
•
this display has been activated via the
receiver’s “Warnings” menu item (see the
receiver’s instruction manual).
SKM 300 G3 | 15
Using the radio microphone
3
806.125 MHz
ew300 G3
AF
햵
P MUTE
햸
The backlighting of the MIC button 3 depends on
the setting in the “MIC LED” menu item (see
page 26).
Audio signal is muted
Radio microphone’s
display panel:
“MUTE” 7 is displayed,
transmission icon 4 is
displayed
Receiver’s display panel: “TX Mute” is displayed*
* only when activated on the receiver (see above)
Audio signal is activated (muting is deactivated)
Radio microphone’s
display panel:
“MUTE” 7 is not displayed,
transmission icon 4 is
displayed
Receiver’s display panel: “TX Mute” is not displayed
RF signal is deactivated
Radio microphone’s
display panel:
Transmission icon 4 is not
displayed,
“MUTE” 7 is displayed
Receiver’s display panel: “RF Mute” is displayed*
* only when activated on the receiver (see above)
RF signal is activated
Radio microphone’s
display panel:
Transmission icon 4 is
displayed,
“MUTE” 7 is not displayed
Receiver’s display panel: “RF Mute” is not displayed
You can also deactivate the RF signal on switch-on.
For more information, refer to the chapter
“Switching the radio microphone on/off” on
page 13.
Using the ON/OFF button, you can also activate/
deactivate the RF signal during operation. To do so,
briefly press the ON/OFF button and proceed as
described on page 13.
16 | SKM 300 G3
Using the radio microphone
Selecting a standard display
Move the multi-function switch to select a
standard display.
Contents of the display Selectable standard display
806.125 MHz
ew300 G3
AF
P MUTE
B.Ch: 01.01
806.125 MHz
AF
“Channel/Frequency”
P MUTE
ew300 G3
B.Ch: 01.01
AF
“Frequency/Name”
“Name/Channel”
P MUTE
SKM 300 G3 | 17
Using the operating menu
Using the operating menu
A special feature of the Sennheiser evolution wireless
ew 300 G3 series is the consistent, intuitive menu
structure of transmitters and receivers. As a result,
adjustments to the settings can be made quickly – even
in stressful situations, for example on stage or during a
live show or presentation.
Make use of the possibility to adjust settings
via the operating menu of the receiver and
to transfer these settings to the radio
microphone.
For more information on how to transfer
settings to the radio microphone, refer to the
instruction manual of the receiver. The relevant
information is marked with the sync icon.
The buttons
Button
Function of the button
Press the
ON/OFF
button
•
Switches the radio microphone on and
off
•
Cancels the entry and returns to the
current standard display (ESC function)
•
Activates/deactivates the RF signal
(special function, see page 13)
•
Changes from the current standard
display to the operating menu
•
Calls up a menu item
•
Enters a submenu
•
Stores the settings and returns to the
operating menu
ON/OFF
Press the
multifunction
switch
Move the •
multi•
function
switch
•
Selects a standard display
Changes to the next/previous menu
item
Changes the setting of a menu item
Overview of the operating menu
Main menu
“Menu”
Sensitivity
Frequency Preset
Name
Auto Lock
Advanced
Exit
18 | SKM 300 G3
Extended menu
“Advanced Menu”
Tune
Mute Mode
MIC LED
RF Power
Pilot Tone
LCD Contrast
Reset
Software Revision
Exit
Using the operating menu
Display
Function of the menu item
Main menu “Menu”
Sensitivity
Adjusts the sensitivity “AF”
(see page 22)
Frequency Preset
Changes the frequency bank and
the channel (see page 23)
Name
Enters a name (see page 23)
Auto Lock
Activates/deactivates the
automatic lock mode
(see page 24)
Advanced
Calls up the extended menu
“Advanced Menu” (see page 24)
Exit
Exits the operating menu and
returns to the current standard
display
Extended menu “Advanced Menu”
Tune
Sets the transmission frequencies
for the frequency banks “U1” to
“U6” (see page 24)
Sets a frequency bank, a channel
and a transmission frequency
(frequency banks “U1” to “U6”
(see page 24))
Mute Mode
Sets the mode for the MIC
button 3 (see page 25)
MIC LED
Adjusts the backlighting of the
MIC button 3 (see page 26)
RF Power
Adjusts the transmission power
(see page 26)
Pilot Tone
Activates/deactivates the pilot
tone transmission (see page 27)
LCD Contrast
Adjusts the contrast of the
display panel (see page 28)
Reset
Resets the settings made in the
operating menu (see page 28)
Software Revision Displays the current software
revision (see page 28)
Exit
Exits the extended menu
“Advanced Menu” and returns to
the main menu
SKM 300 G3 | 19
Using the operating menu
Working with the operating menu
If the lock mode is activated, you have to
deactivate it In order to be able to work with the
operating menu (see page 14).
By way of example of the “Sensitivity” menu, this
section describes how to use the operating menu.
Changing from a standard display to the operating
menu
Press the multi-function switch.
The current standard display is replaced by
the main menu.
The last called up menu item is displayed.
Selecting a menu item
Move the multi-function switch to change to
the “Sensitivity” menu item.
The current setting of the selected menu item
is displayed:
Menu
Sensitivity
–12 dB
Calling up a menu item and adjusting and storing the
setting
Menu
Sensitivity
–12 dB
Sensitivity
–12 dB
Sensitivity
–36 dB
Call up
“Sensitivity”
Select the desired
setting
Store the setting
“Stored”
Press the multi-function switch to call up the
menu item.
Move the multi-function switch to adjust the
input sensitivity.
Press the multi-function switch to store the
setting.
Canceling an entry
ON/OFF
Press the ON/OFF button to cancel the entry.
The current standard display appears on the
display panel.
To subsequently return to the last edited menu item:
Press the multi-function switch repeatedly
until the last edited menu item appears.
20 | SKM 300 G3
Using the operating menu
Exiting a menu
Change to the “Exit” menu item.
Menu
Exit
Confirm your selection.
You return to the next higher menu level or
exit the operating menu and return to the
current standard display.
To directly return to the current standard display:
ON/OFF
Press the ON/OFF button.
SKM 300 G3 | 21
Adjusting settings via the operating menu
Adjusting settings via the
operating menu
Make use of the possibility to adjust
settings via the operating menu of the
receiver and to transfer these settings to
the radio microphone.
For more information on how to transfer
settings to the radio microphone, refer to
the instruction manual of the receiver. The
relevant information is marked with the
sync icon.
The main menu “Menu”
Adjusting the input sensitivity – “Sensitivity”
Menu
Sensitivity
–12 dB
Sensitivity
–12 dB
Sensitivity
–36 dB
Call up
“Sensitivity”
Select the desired
setting
Store the setting
“Stored”
Adjustment range: 0 to −48 dB, adjustable in steps of
6 dB
The audio level display “AF” always indicates the
audio level, even if the radio microphone is muted,
e.g. allowing you to check the adjusted sensitivity
before live operation.
B.Ch: 01.01
806.125 MHz
AF
P MUTE
햲
Input sensitivity
Effect/display
is adjusted...
... too high
Close talking distances, speakers
with loud voices or loud music
passages cause overmodulation
in the transmission link.
The audio level display “AF” 1
shows full deflection for the
duration of the overmodulation.
... correctly
The audio level display “AF” 1
shows full deflection only during
the loudest passages.
... too low
The transmission link is undermodulated. This results in a signal
with high background noise.
22 | SKM 300 G3
Adjusting settings via the operating menu
The following figures are a guide to the best settings:
Transmission situation
Sensitivity setting
Loud music/vocals
−48 to −18 dB
Presentations
−18 to −12 dB
Interviews
−12 to 0 dB
Selecting the frequency bank and the channel
manually – “Frequency Preset”
Menu
Frequency Preset
B.Ch: 1. 1
Frequency Preset
B.Ch: 1. 1
806.125 MHz
Frequency Preset
B.Ch: 1. 1
806.125 MHz
Call up “Frequency
Preset”
Select the frequency
bank and confirm
Select the channel;
store the setting
“Stored”
When you are in the “Frequency Preset” menu
item, the RF signal is deactivated.
Overview of the frequency banks and channels:
e:Frequency bank Channels
Type
“1” to “20”
up to 24 per
frequency
bank
System bank:
frequencies are
factory-preset
“U1” to “U6”
up to 24 per
frequency
bank
User bank:
frequencies are
freely selectable
When setting up multi-channel systems, please
observe the following:
Only the factory-preset transmission frequencies
within one frequency bank are intermodulationfree (see page 29).
Radio microphone and receiver of a transmission
link have to be set to the same frequency.
Pay special attention to the notes on frequency
selection on page 29.
Entering a name – “Name”
Menu
Name
Lichael
Call up “Name”
Name
Lichael
Enter a character
and confirm
Name
Michael
Enter a character;
store the setting
“Stored”
Via the “Name” menu item, you can enter a freely
selectable name for the radio microphone.
The name can be displayed on the “Frequency/Name”
and “Name/Channel” standard displays and can consist
of up to 8 characters such as:
•
letters (without pronounciation marks),
SKM 300 G3 | 23
Adjusting settings via the operating menu
•
numbers from 0 to 9,
•
special characters and spaces.
To enter a name, proceed as follows:
Move the multi-function switch to select a
character.
Press the multi-function switch to change to
the next segment/character or to store the
complete entry.
Activating/deactivating the automatic lock mode –
“Auto Lock”
Menu
Auto Lock
Active
Call up “Auto
Lock”
Auto Lock
Active
Select the desired
setting
Auto Lock
Inactive
Store the setting
“Stored”
The lock mode prevents that the radio microphone
is accidentally switched off or programed during
operation. The lock mode icon 5
on the current
standard display indicates that the lock mode
is activated.
Move the multi-function switch to select the
desired setting.
For information on how to use the lock mode, refer to
page 14.
The extended menu “Advanced Menu”
Setting transmission frequencies and frequency banks
– “Tune”
When you have selected one of the system banks
and then select the “Tune” menu item, the radio
microphone automatically switches to channel 1
of the frequency bank “U1”. In this case, “U1.1”
briefly appears on the display panel.
Upon delivery, the channels of the frequency
banks “U1” to “U6” are not assigned a
transmission frequency.
When you are in the “Tune” menu item, the RF
signal is deactivated.
Via the “Tune” menu item, you can set a transmission
frequency to be stored in the current channel or you can
select a different channel in one of the frequency banks
“U1” to “U6” and assign this channel a transmission
frequency.
It is vital to observe the notes on frequency
selection on page 29.
24 | SKM 300 G3
Adjusting settings via the operating menu
Setting a transmission frequency for the current
channel
왘 Move the multi-function switch until the
“Tune” menu item appears.
왘 Press the multi-function switch.
The frequency selection appears.
Advanced Menu
Tune
806.125 MHz
Tune
806.125 MHz
B.Ch: U1. 1
Tune
806.125 MHz
B.Ch: U1. 1
Call up “Tune”
Select the MHz
value and confirm
Select the kHz
value; store the
setting
“Stored”
왘 Set the desired frequency.
왘 Press the multi-function switch.
Your settings are stored.
You are back to the operating menu.
Selecting a channel and assigning this channel a
frequency
왘 Move the multi-function switch until the
“Tune” menu item appears.
왘 Press the multi-function switch until the
frequency bank selection appears.
Advanced Menu
Tune
806.125 MHz
Call up “Tune”
(special function)
Tune
806.125 MHz
B.Ch: U1. 1
Tune
806.125 MHz
B.Ch: U1. 1
Set the frequency
bank and the
channel
Set the frequency;
store the setting
“Stored”
왘 Set the desired frequency bank.
왘 Press the multi-function switch.
The channel selection appears.
왘 Set the desired channel.
왘 Press the multi-function switch.
The frequency selection appears.
왘 Set the desired frequency.
왘 Press the multi-function switch.
Your settings are stored.
You are back to the operating menu.
Setting the mode for the MIC button – “Mute Mode”
Advanced Menu
Mute Mode
AF On/Off
Call up “Mute
Mode”
Mute Mode
AF On/Off
Select the desired
setting
Mute Mode
RF On/Off
Store the setting
“Stored”
SKM 300 G3 | 25
Adjusting settings via the operating menu
*
Mode
Function
“AF On/Off”
If you press the MIC button, the
audio signal is muted.
“RF On/Off”
If you press the MIC button, the
RF signal is deactivated.
“Push To Mute”
The audio signal is muted as long
as you press the MIC button.
“Push To Talk”*
The audio signal is activated as
long as you press the MIC button.
“Disabled”
No function
If you select “Push To Talk”, the radio microphone will be
permanently muted until you press theMIC button.
For information on how to use the MIC button, refer to
page 15.
Adjusting the backlighting of the MIC button –
“MIC LED”
Advanced Menu
MIC LED
MIC LED
LED On: Unmute
MIC LED
LED On: Mute
LED On: Unmute
Call up “MIC LED”
Select the desired
setting
Store the setting
“Stored”
Via the “MIC LED” menu item, you can adjust the
backlighting of the MIC button 3 based on the setting
of the “Mute Mode” menu item and the status of the RF
signal or deactivate the backlighting.
Setting of the
MIC LED menu item Backlighting of the MIC button 3
LED On: Unmute
The MIC button 3 is backlit
when the radio microphone is
transmitting an RF signal or is
not muted.
LED ON: Mute
The MIC button 3 is backlit when
the radio microphone is not
transmitting an RF signal or is
muted.
Disable LED
The backlighting of the
MIC button 3 is deactivated.
Adjusting the transmission power – “RF Power”
Advanced Menu
RF Power
RF Power
Standard
RF Power
Low
Standard
Call up
“RF Power”
Select the desired
setting
Store the setting
“Stored”
Via the “RF Power” menu item, you can adjust the
transmission power in two steps. It is vital to observe
the notes on the supplied frequency information sheet!
26 | SKM 300 G3
Adjusting settings via the operating menu
Activating/deactivating the pilot tone transmission –
“Pilot Tone”
Advanced Menu
Name
Pilot Tone
Active
Call up
“Pilot Tone”
Pilot Tone
Active
Select the desired
setting
Pilot Tone
Inactive
Store the setting
“Stored”
The radio microphone adds an inaudible signal, known
as the pilot tone, to the transmitted signal. The receiver
detects and evaluates the pilot tone.
The pilot tone supports the receiver’s squelch function,
thus protecting against interference due to RF signals
from other devices.
Devices of the ew 300 G1 series (generation 1) do not
support the pilot tone function. Therefore, please
observe the following when combining a radio
microphone or receiver of the ew 300 G3 series
(generation 3) with devices from an earlier evolution
wireless generation:
Radio
microphone
Receiver
Make sure to ...
w G3/ w G2
w G2/ w G3 ... activate the pilot
tone function on
both radio
microphone and
receiver.
w G3
w G1
... deactivate the
pilot tone function
on the ew 300 G3
radio microphone.
w G1
w G3
... deactivate the
pilot tone function
on the ew 300 G3
receiver.
SKM 300 G3 | 27
Adjusting settings via the operating menu
Adjusting the contrast of the display panel –
“LCD Contrast”
You can adjust the contrast of the display panel in
16 steps.
Resetting the settings made in the operating menu –
“Reset”
Advanced Menu
Reset
Reset
Yes
Select the desired
setting; apply the
setting
Call up “Reset”
“Stored”
When resetting the settings made in the operating
menu, only the selected settings for the pilot tone
and for the frequency banks “U1” to “U6” remain
unchanged.
When the radio microphone is offline, i.e. when the RF
signal is deactivated (see page 13 and page 15), it
remains offline even after resetting the settings.
For an overview of the factory-preset default settings,
refer to the enclosed frequency information sheet.
Displaying the software revision – “Software Revision”
You can display the current software revision of the
radio microphone.
For information on software updates, visit the
SKM 300 G3 product page at www.sennheiser.com.
28 | SKM 300 G3
Synchronizing the radio microphone with a receiver
Synchronizing the radio
microphone with a receiver
When synchronizing the radio microphone with a
receiver, please observe the following:
Only use a radio microphone and a receiver from
the same frequency range (see the type plate
on the radio microphone and the receiver).
Make sure that the desired frequencies are
listed in the enclosed frequency information
sheet.
Make sure that the desired frequencies are
approved and legal in your country and, if
necessary, apply for an operating license.
Synchronizing the radio microphone with
the receiver – individual operation
Upon delivery, the radio microphone and the receiver
are synchronized with each other.
However, if you cannot establish a transmission link
between radio microphone and receiver, you have to
synchronize the channels of the devices.
For information on automatic synchronization of
the radio microphone with the receiver (individual
operation), refer to the instruction manual of the
receiver. The relevant information is marked with the
icon.
Alternatively, you can set the channel on the radio
microphone manually:
Make sure that you set the radio microphone to the
same frequency bank and the same channel as the
receiver (see page 23).
If you still cannot establish a transmission link, refer to
the chapter “If a problem occurs ...” on page 32.
Synchronizing radio microphones with
receivers – multi-channel operation
Combined with ew 300 G3 receivers, ew 300 G3 radio
microphones can form transmission links that can be
used in multi-channel systems.
For information on automatic synchronization of radio
microphones with receivers (multi-channel operation),
refer to the instruction manual of your receiver.
For more information on multi-channel operation, visit
the SKM 300 G3 product page at www.sennheiser.com.
SKM 300 G3 | 29
Cleaning and maintaining the radio microphone
Cleaning and maintaining the
radio microphone
CAUTION
Liquids can damage the electronics of the radio
microphone!
Liquids entering the housing of the product can cause a
short-circuit and damage the electronics.
Keep all liquids away from the radio microphone.
Use a cloth to clean the radio microphone from time
to time.
Do not use any solvents or cleansing agents.
To clean the sound inlet basket of the microphone head
(MMD 835-1, MMD 845-1, MME 865-1):
Unscrew the upper sound inlet basket from the
microphone head by turning it counterclockwise (see
diagram).
CAUTION
Liquids will damage the microphone head!
Liquids will damage the microphone head.
Only clean the upper sound inlet basket.
Remove the foam insert.
To clean the sound inlet basket:
– Use a cloth to clean the upper sound inlet basket
from the inside and outside
– or scrub with a brush and rinse with clear water.
If necessary, clean the foam insert with a mild
detergent or replace the foam insert.
Dry the upper sound inlet basket.
Dry the foam insert.
Reinsert the foam insert.
Replace the sound inlet basket on the microphone
head and screw it tight.
You should also clean the contact rings of the
microphone head from time to time:
Wipe the contact rings of the microphone head with
a cloth.
30 | SKM 300 G3
Recommendations and tips
Recommendations and tips
... for optimum sound
•
Hold the radio microphone in the middle of the
microphone body. Holding it close to the sound
inlet basket will influence the radio microphone’s
pick-up pattern.
•
You can vary the bass reproduction by increasing/
decreasing the talking distance.
•
For best results, make sure that the sensitivity is
correctly adjusted.
... for optimum reception
•
Transmission range depends to a large extent on
location and can vary from about 10 m to about
150 m. There should be a “free line of sight”
between transmitting and receiving antennas.
•
To avoid overloading the receiver, observe a
minimum distance of 5 m between transmitting
and receiving antennas.
•
Only hold the radio microphone by its body. If you
touch the antenna of the radio microphone, the
transmission power will be considerably reduced.
... for multi-channel operation
•
For multi-channel operation, you should only use
the channels within one frequency bank. Each of
the frequency banks “1” to “20” accommodates
factory-preset frequencies which are intermodulation-free.
•
When using several radio microphones/
transmitters simultaneously, interference can be
avoided by maintaining a minimum distance
of 20cm between two radio microphones/
transmitters.
SKM 300 G3 | 31
If a problem occurs ...
If a problem occurs ...
Problem
Possible cause
Possible solution
Radio
microphone
cannot be
operated,
“Locked”
appears on
the display
panel
Lock mode is
activated
Deactivate the lock
mode (see page 14).
No operation Batteries are flat Replace the
indication
or accupack is flat batteries or
recharge the
accupack
(see page 8).
No RF signal Radio microphone
at the
and receiver are
receiver
not on the same
channel
Set the radio
microphone to the
same channel as the
receiver.
Synchronize the
radio microphone
with the receiver
(see page 18).
Transmission
Reduce the distance
range is exceeded between radio
microphone and
receiving antennas.
Increase the
transmission power
(see page 26).
RF signal is
deactivated
(“RF Mute”)
Activate the RF
signal
(see page 15).
RF signal
available,
no audio
signal,
“MUTE”
appears on
the display
panel
Receiver’s squelch Reduce the squelch
threshold is
threshold setting on
adjusted too high the receiver.
Audio signal
has a high
level of
background
noise or is
distorted
Radio
Adjust the input
microphone’s
sensitivity
sensitivity is
(see page 22).
adjusted too low/
too high
Radio microphone Activate or
doesn’t transmit deactivate the pilot
a pilot tone
tone transmission
(see page 27).
If a problem occurs that is not listed in the above table
or if the problem cannot be solved with the proposed
solutions, please contact your local Sennheiser partner
for assistance. To find a Sennheiser partner in your
country, search at www.sennheiser.com under “Service
& Support”.
32 | SKM 300 G3
Specifications
Specifications
RF characteristics
Modulation
wideband FM
Frequency ranges
516–558, 566–608,
626–668, 734–776,
780–822, 823–865 MHz
(A–E, G, see page 3)
Transmission frequencies
1,680 frequencies,
tuneable in steps of
25 kHz
20 frequency banks, each
with up to 24 factorypreset channels
6 frequency banks
with up to 24 user
programmable channels
Switching bandwidth
42 MHz
Nominal/peak deviation
±24 kHz / ±48 kHz
Frequency stability
≤ ±15 ppm
RF output power at 50 Ω,
switchable
typ. 10 mW (Low)
typ. 30 mW (Standard)
Pilot tone squelch
can be switched off
AF characteristics
Compander system
Sennheiser HDX
AF frequency response
80 to 18,000 Hz
Signal-to-noise ratio
(1 mV RF, peak deviation) ≥ 115 dBA
THD
≤ 0.9%
Adjustment range of input 48 dB,
sensitivity (“Sensitivity”) adjustable in steps of
6 dB
Overall device
Temperature range
−10°C to +55°C
Power supply
2 AA size batteries, 1.5 V
or BA 2015 accupack
Nominal voltage
2.4 V
Power consumption:
• at nominal voltage
• with switched-off radio
microphone
typ. 180 mA (30 mW)
≤ 25 μA
Operating time
typ. 8 h
Dimensions
approx. ∅ 50 mm x
265 mm
Weight (incl. batteries)
approx. 450 g
SKM 300 G3 | 33
Specifications
In compliance with
Europe
EMC
Radio
Safety
EN 301489-1/-9
EN 300422-1/-2
EN 60065
EN 62311 (SAR)
Approved by
Canada
Industry Canada RSS-123
IC: 2099A-G3SKMEM
limited to 698 MHz
USA
FCC-Part 74
FCC-ID: DMO G3SKMEM
limited to 698 MHz
Microphone heads
MMD 835-1 MMD 845-1 MME 865-1
Microphone
type
dynamic
dynamic
condenser
Sensitivity
2.1 mV/Pa
1.6 mV/Pa
1.6 mV/Pa
Pick-up
pattern
cardioid
supercardioid
supercardioid
Max. SPL
154 dB SPL
154 dB SPL
152 dB SPL
Polar diagrams and frequency response
curves of the microphone heads
Polar diagram
MMD 835-1
30°
60°
Polar diagram
MMD 845-1
0°
0
5
10
60°
60°
20
25
25
90°
120°
120°
150°
150°
90°
2000 Hz
4000 Hz
125 Hz
250 Hz
8000 Hz
1000 Hz
16000 Hz
500 Hz
1000 Hz
180°
Polar diagram
MME 865-1
30°
0°
0
30°
5
10
60°
60°
15
20
25
90°
90°
dB
120°
125 Hz
250 Hz
120°
150°
150°
180°
2000 Hz
4000 Hz
500 Hz
8000 Hz
1000 Hz
16000 Hz
34 | SKM 300 G3
60°
90°
dB
120°
500 Hz
250 Hz
30°
15
20
dB
125 Hz
0°
0
10
15
90°
30°
30°
5
120°
150°
150°
180°
2000 Hz
4000 Hz
8000 Hz
16000 Hz
Specifications
Frequency response curve MMD 835-1
dBV
-30
-40
-50
-60
-70
-80
50
100
200
500
1.000
1k
2k
5k
10.000
10k
20k
Hz
2k
5k
10.000
10k
20k
Hz
2k
5k
10.000
10k
20k
Hz
Frequency response curve MMD 845-1
dBV
-30
-40
-50
-60
-70
-80
50
100
200
500
1.000
1k
Frequency response curve MME 865-1
dBV
-30
-40
-50
-60
-70
-80
50
100
0°
200
500
1.000
1k
90°
SKM 300 G3 | 35
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Publ 12/16
547009
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
