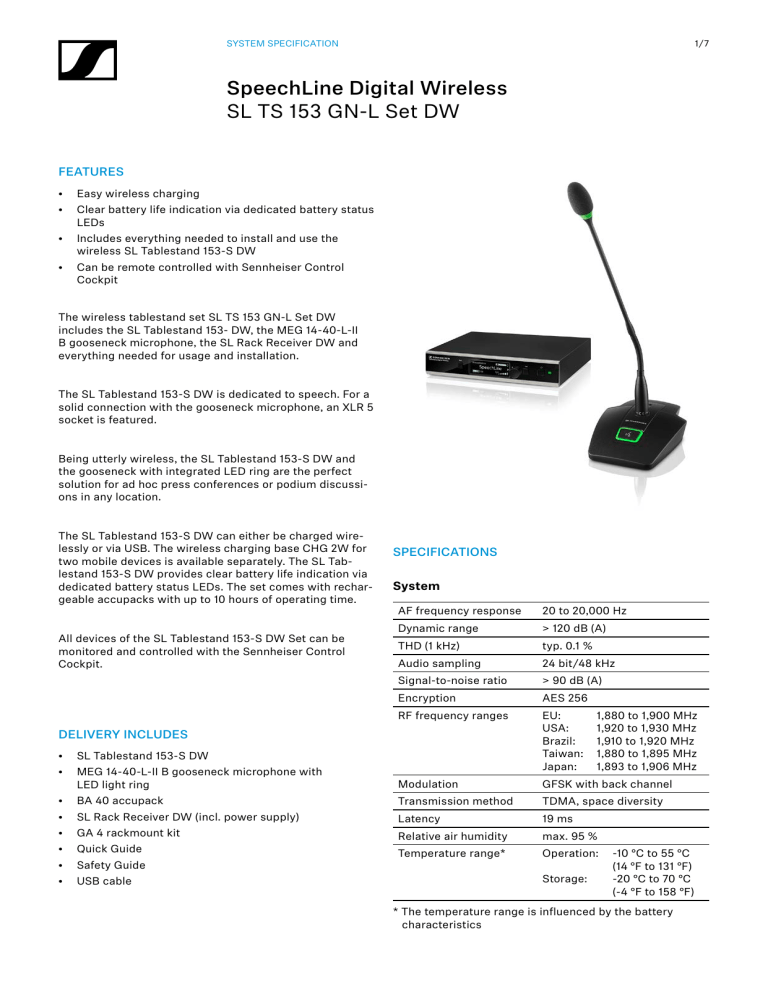

SYSTEM SPECIFICATION
1/7
SpeechLine Digital Wireless
SL TS 153 GN-L Set DW
FEATURES
•
Easy wireless charging
•
Clear battery life indication via dedicated battery status
LEDs
•
Includes everything needed to install and use the
wireless SL Tablestand 153-S DW
•
Can be remote controlled with Sennheiser Control
Cockpit
The wireless tablestand set SL TS 153 GN-L Set DW
includes the SL Tablestand 153- DW, the MEG 14-40-L-II
B gooseneck microphone, the SL Rack Receiver DW and
everything needed for usage and installation.
The SL Tablestand 153-S DW is dedicated to speech. For a
solid connection with the gooseneck microphone, an XLR 5
socket is featured.
Being utterly wireless, the SL Tablestand 153-S DW and
the gooseneck with integrated LED ring are the perfect
solution for ad hoc press conferences or podium discussions in any location.
The SL Tablestand 153-S DW can either be charged wirelessly or via USB. The wireless charging base CHG 2W for
two mobile devices is available separately. The SL Tablestand 153-S DW provides clear battery life indication via
dedicated battery status LEDs. The set comes with rechargeable accupacks with up to 10 hours of operating time.
All devices of the SL Tablestand 153-S DW Set can be
monitored and controlled with the Sennheiser Control
Cockpit.
SPECIFICATIONS
System
AF frequency response
20 to 20,000 Hz
Dynamic range
> 120 dB (A)
THD (1 kHz)
typ. 0.1 %
Audio sampling
24 bit/48 kHz
Signal-to-noise ratio
> 90 dB (A)
Encryption
AES 256
RF frequency ranges
EU:
USA:
Brazil:
Taiwan:
Japan:
DELIVERY INCLUDES
1,880 to 1,900 MHz
1,920 to 1,930 MHz
1,910 to 1,920 MHz
1,880 to 1,895 MHz
1,893 to 1,906 MHz
•
SL Tablestand 153-S DW
•
MEG 14-40-L-II B gooseneck microphone with
LED light ring
Modulation
GFSK with back channel
•
BA 40 accupack
Transmission method
TDMA, space diversity
•
SL Rack Receiver DW (incl. power supply)
Latency
19 ms
•
GA 4 rackmount kit
•
Quick Guide
Relative air humidity
max. 95 %
•
Safety Guide
Temperature range*
Operation:
•
USB cable
Storage:
-10 °C to 55 °C
(14 °F to 131 °F)
-20 °C to 70 °C
(-4 °F to 158 °F)
* The temperature range is influenced by the battery
characteristics
SYSTEM SPECIFICATION
2/7
SpeechLine Digital Wireless
SL TS 153 GN-L Set DW
SPECIFICATIONS
Accupack
SL Rack Receiver DW
BA 40
RF sensitivity
< -90 dBm
RF output power back
channel
adaptive, up to 250 mW
(country-specific)
XLR output level,
balanced
max. +18 dBu
RCA output level,
unbalanced
max. +6 dBu
Audio effects
Low cut:
-3 dB at 120 Hz
Equalizer:
7-band graphic
equalizer with
sound presets
Sound profiles:
• female voice
• male voice
• media
OLED
Network protocol
Media Control Protocol,
TCP/IP IPv4 (DHCP, manual)/
IPv6
Power supply
12 V DC
Current consumption
350 mA
AF connection sockets
XLR/2 x RCA
Antenna sockets
2 x reverse SMA
Network sockets
RJ-45
DC socket for power
supply
hollow jack
Weight
approx. 828 g
3.6 V
AF frequency response
75 to 20,000 Hz
Max. input level
1.7 V RMS
Input impedance
30 kΩ
Power supply
BA 40 accupack (Li Ion 3.6 V)
Operating time
Accupack: typ. 10 h
Microphone connector
XLR-5F
Relative humidity
max. 95 %
Dimensions
166.7 x 120.2 x 47.9 mm
(6.56" x 4.73" x 1.88")
Weight
approx. 660 g
(without accupack)
Operating temperature
10 °C to 45 °C (50 °F to 113 °F)
Pick-up pattern
cardioid
Frequency response
50 Hz - 20,000 Hz
Acoustic principle
gooseneck microphone
(condenser)
Output impedance
@ 1 kHz
< 100 Ω
Sensitivity
15 mV/Pa
Max. sound pressure level 130 dB @ 1 kHz < 3 %
NT 12-4C
Nominal input voltage
NT 2-3
100 to 240 V–
Power frequency
50 or 60 Hz
Input current
max. 120 mA
Nominal output voltage
12 V
Standby power
consumption
Equivalent noise level
Power supply signal light
ring
12 - 30 V DC
1 - 18 mA
green
Current consumption
3 mA
Connector
XLR-5M
Temperature
Operation:
≤ 0.3 W
V
IV
-10 °C to 55 °C (14 °F to 131 °F)
-20 °C to +70 °C (-4 °F to 158 °F)
Relative air humidity
max. 95 %
approx. 100 g
37 dB (CCIR)
26 dB (A)
Power supply microphone 12 V - 48 V
phantom power (P 12 - P 48)
Storage temperature
Weight
Output voltage
MEG 14-40-L-II B
Power supply units
Operating temperature
2200 mAh
SL Tablestand 153-S DW
Display
Energy efficiency level
Charging capacity
approx. 105 g
Storage:
0 °C to 40 °C
(32 °F to 104 °F)
-25 °C to +70 °C
(-13 °F to 158 °F)
SYSTEM SPECIFICATION
3/7
SpeechLine Digital Wireless
SL TS 153 GN-L Set DW
ARCHITECT‘S SPECIFICATION
A wireless RF transmission system designed for presentation use and other applications where maximum speech
intelligibility is required.
The system shall consist of a stationary receiver, a wireless tablestand and a condenser gooseneck microphone.
Operating in the license-free 1.9 GHz band (frequency ranges are between 1,880 and 1,930 MHz, depending on country-specific regulations), the system shall use automatic
frequency management to determine the best free available frequency and to automatically start the transmission. Additionally, the system shall incorporate automatic
interference management, allowing the transmitter and
receiver to move to an undisturbed, compatible frequency with no audio signal interruption, should interference
occur. Furthermore, advanced 256-bit AES encryption shall
be used for secure wireless transmission.
The system’s AF frequency response shall range from 20 –
20,000 Hz. The dynamic range shall be > 120 dB (A). Total
harmonic distortion (THD) at 1 kHz shall be typical 0.1 %.
Signal-to-noise ratio shall be > 90 dB (A). Latency shall be
19 ms. Operating temperature shall range from -10 °C to
+55 °C (+14 °F to +131 °F).
The user interface of the receiver shall be operated by jog
dial and OLED display. The receiver shall have dedicated
pairing, escape and power buttons.
The receiver shall feature a low-cut filter as well as speech-optimized sound profiles or custom settings with a
7-band graphic equalizer. The receiver’s RF sensitivity
shall be -90 dBm. RF output power of the receiver’s back
channel shall be adaptive and up to 250 mW (country-specific). The receiver’s audio output shall utilize a balanced
XLR-3M socket with a maximum output of +18 dBu along
with two unbalanced RCA sockets with a maximum output of +6 dBu. The receiver shall feature automatic gain
optimization. Two reverse SMA sockets shall be provided
for connecting the antennas. The receiver shall feature
RJ-45 network connectivity compatible with IPv4 and IPv6
networks. For remote control the receiver shall have media
control protocol integration.
The receiver shall operate on 12 V DC power supplied from
the NT 12-4C power supply unit (100-240 V AC, 50/60 Hz,
for use in the USA, the UK, and Europe) or the NT 2-3
power supply unit (100-240 V AC, 50/60 Hz, for use in
countries other than the USA, the UK, and Europe). Power
consumption shall be 350 mA. The dimensions shall be
approximately 168 x 212 x 43 mm (6.61" x 8.35" x 1.69").
Weight shall be approximately 828 grams (1.83 lbs). The
receiver shall be the Sennheiser SL Rack Receiver DW.
The wireless tablestand shall be designed for use with the
Sennheiser MEG 14-40-L-II gooseneck microphone and be
optimized for podium discussions, speeches and lectures.
The tablestand shall be powered by one Sennheiser Lithium-Ion rechargeable accupack with a typical operating
time of 10 hours and shall support wireless charging as
well as charging via USB. In addition, the tablestand shall
be capable of being remotely controlled and monitored via
the Sennheiser Control Cockpit software.
The tablestand shall feature a 5-pin XLR socket for
connection of XLR-5 gooseneck microphones with a logic
control and a signal light ring. RF output power shall be
adaptive and up to 250 mW (country-specific). The AF
frequency response shall range from 75 – 20,000 Hz. The
maximum input level shall be 1.7 Vrms and input impedance shall be 30 kΩ. The tablestand shall have automatic
sensitivity adjustment.
Dimensions shall be 166.7 x 120.2 x 47.9 mm (6.56" x 4.73"
x 1.88"). Weight (without accupack) shall be approximately
660 grams. Operating temperature shall range from 10 °C
to 45 °C (50 °F to 113 °F).
The tablestand shall be the Sennheiser SL Tablestand
153-S DW.
The microphone suitable for use with the wireless tablestand shall be a condenser type with a cardioid pick-up
pattern and a sensitivity of 15 mV/Pa. Maximum sound
pressure level shall be 130 dB SPL. It shall have a frequency response of 50 Hz to 20,000 Hz. Nominal equivalent noise level shall be 26 dBA (37 dB weighted as per
CCIR 468-3). Output shall be low impedance balanced
(<100 ohms). Operating temperature shall be 0 °C to 40 °C
(32 °F to 104 °F). The microphone shall operate from an external 12 V to 48 V DC phantom power source; the lighted
LED ring shall operate from an external 12 – 30 V AC or
DC power source current consumption shall be 3 mA. The
microphone shall offer radio frequency interference (RFI)
shielding against intermodulation from wireless equipment
or devices. The microphone shall be a gooseneck design
ensuring precise alignment of the microphone and noiseless operation. It shall incorporate a self-contained power
module with an XLR-5M type connector at the base, which
includes connection for the lighted LED ring power supply.
The gooseneck microphone shall be the Sennheiser MEG
14-40.
The wireless RF transmission system shall be the Sennheiser SpeechLine Digital Wireless SL TS 153 GN-L Set DW.
SYSTEM SPECIFICATION
4/7
SpeechLine Digital Wireless
SL TS 153 GN-L Set DW
PRODUCT VARIANTS
SL TS 153 GN-L Set
DW-3-EU
SL TS 153 GN-L Set
DW-3-UK
SL TS 153 GN-L Set
DW-3-AU
SL TS 153 GN-L Set
DW-4-EU
Art. No. 506616
Art. No. 506619
Art. No. 506622
Art. No. 506635
-3 EU variant
-3 UK variant
-3 AU variant
-4 EU variant
1,880 to 1,900 MHz
1,880 to 1,900 MHz
1,880 to 1,900 MHz
1,920 to 1,930 MHz
EU power supply
UK power supply
AU power supply
EU power supply
Europe
UK
Australia
Latin America
India
Hong Kong
Indonesia
Singapore
Malaysia
SL TS 153 GN-L Set
DW-4-US
SL TS 153 GN-L Set
DW-5-US
SL TS 153 GN-L Set
DW-6-US
SL TS 153 GN-L Set
DW-7-BR
Art. No. 506632
Art. No. 506655
Art. No. 506645
Art. No. 506970
-4 US variant
-5 US variant
-6 US variant
-7 BR variant
1,920 to 1,930 MHz
1,893 to 1,906 MHz
1,880 to 1,895 MHz
1,910 to 1,920 MHz
US power supply
US power supply
US power supply
BR power supply
USA
Japan
Taiwan
Brazil
Canada
SYSTEM SPECIFICATION
5/7
SpeechLine Digital Wireless
SL TS 153 GN-L Set DW
DIMENSIONS
SL Tablestand 153-S DW
120.21
4.73
166.71
6.56
47.86
1.88
XLR5F
60.11
2.37
19.9
0.78
USB2 Micro-USB-B Buchse /
USB2 micro USB-B connector
70.31
2.77
Zentrum drahtlose
Energieübertragung
center wireless charging
SYSTEM SPECIFICATION
SpeechLine Digital Wireless
SL TS 153 GN-L Set DW
DIMENSIONS
SL Rack Receiver DW
6/7
SYSTEM SPECIFICATION
7/7
SpeechLine Digital Wireless
SL TS 153 GN-L Set DW
DIMENSIONS
MEG 14-40-L-II
FREQUENCY RESPONSE
MEG 14-40-L-II
POLAR DIAGRAM
PIN ASSIGNMENT
MEG 14-40-L-II
MEG 14-40-L-II
0°
30°
330°
1
60°
5
300°
2
90°
270°
120°
240°
150°
210°
180°
3
4
1 Microphone Ground
2 Microphone +
3 Microphone –
4 LED Ground
5 LED: 12 – 30 V
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
