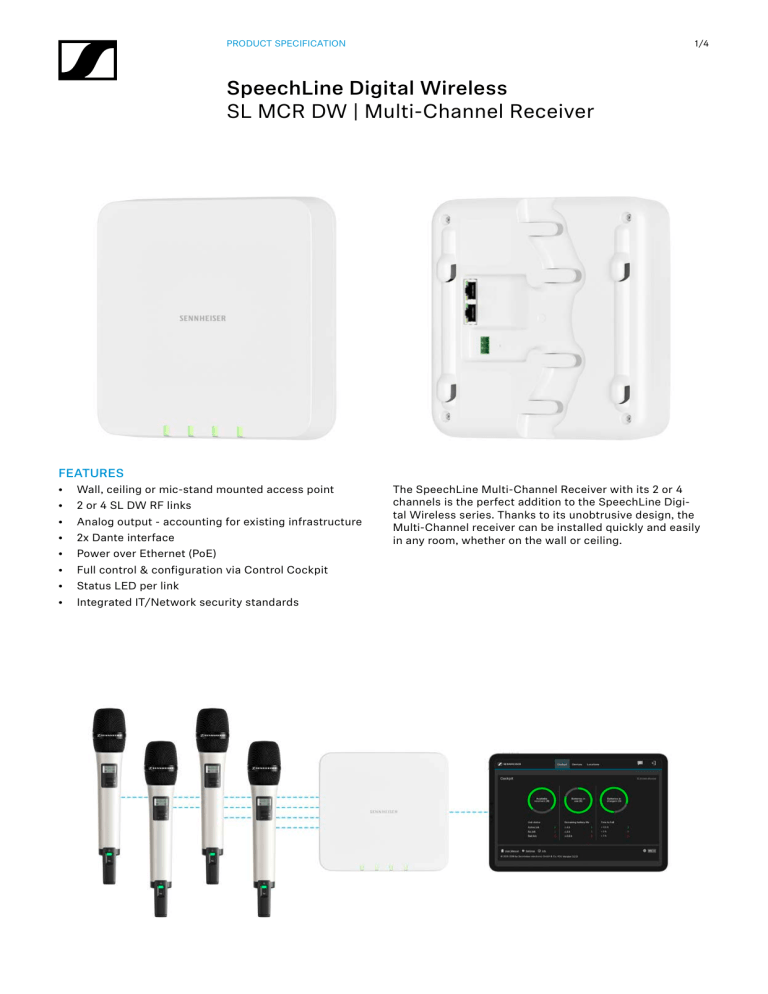

PRODUCT SPECIFICATION
1/4
SpeechLine Digital Wireless
SL MCR DW | Multi-Channel Receiver
FEATURES
•
Wall, ceiling or mic-stand mounted access point
•
2 or 4 SL DW RF links
•
Analog output - accounting for existing infrastructure
•
2x Dante interface
•
Power over Ethernet (PoE)
•
Full control & configuration via Control Cockpit
•
Status LED per link
•
Integrated IT/Network security standards
The SpeechLine Multi-Channel Receiver with its 2 or 4
channels is the perfect addition to the SpeechLine Digital Wireless series. Thanks to its unobtrusive design, the
Multi-Channel receiver can be installed quickly and easily
in any room, whether on the wall or ceiling.
PRODUCT SPECIFICATION
2/4
SpeechLine Digital Wireless
SL MCR DW | Multi-Channel Receiver
DELIVERY INCLUDES
SPECIFICATIONS
•
SL MCR DW Multi-channel receiver
•
Wall mount adapter
•
Drilling template
AF frequency response
20 to 20,000 Hz
•
Quick guide
•
Safety guide
Dynamic range
> 120 dB(A)
•
Manufacturer declarations
THD (1 kHz)
typ. 0.1 %
System
PRODUCT VARIANTS
SL MCR 2 DW-3
1,880 to 1,900 MHz
Audio sampling
24 bit/48 kHz
Signal-to-noise ratio
> 90 dB(A)
Encryption
AES 256
RF frequency ranges
EU:
USA:
Brazil:
Taiwan:
Japan:
Art. No. 508849
2-channel version | Europe, Hong Kong, Singapore,
Malaysia, India, Indonesia, Australia
SL MCR 2 DW-4
1,920 to 1,930 MHz
Art. No. 508850
1,880 - 1,900 MHz
1,920 - 1,930 MHz
1,910 - 1,920 MHz
1,880 - 1,895 MHz
1,893 - 1,906 MHz
Modulation
GFSK with back channel
2-channel version | USA, Canada, Latin America
Transmission method
TDMA, space diversity
SL MCR 2 DW-5
Latency
19 ms
1,893 to 1,906 MHz
Art. No. 508851
2-channel version | Japan
SL MCR 2 DW-6
1,880 to 1,895 MHz
Art. No. 508852
2-channel version | Taiwan
SL MCR 2 DW-7
1,910 to 1,920 MHz
Art. No. 508853
2-channel version | Brazil
SL MCR 4 DW-3
1,880 to 1,900 MHz
Art. No. 508854
4-channel version | Europe, Hong Kong, Singapore,
Malaysia, India, Indonesia, Australia
SL MCR 4 DW-4
1,920 to 1,930 MHz
Art. No. 508855
4-channel version | USA, Canada, Latin America
SL MCR 4 DW-5
1,893 to 1,906 MHz
Art. No. 508856
SL MCR DW
RF sensitivity
< -90 dBm
RF output power back
channel
adaptive or manual,
up to 250 mW
(country-specific)
Network protocol
Media Control Protocol,
UDP IPv4 (DHCP, Manual)/IPv6,
mDNS (switchable)
Power supply
PoE IEEE 802.3af Class 3
Audio outputs
One 3-pin socket
(suitable for Phoenix Contact
MCVW 1.5-3-ST-3.81)
Two Dante™ Digital Audio
Network sockets (RJ-45)
Weight
650 g (incl. wallmount)
560 g (without wallmount)
Dimensions
180 x 180 x 45 mm
(incl. wallmount)
Operating
temperature
–10 °C to +45 °C
(14 °F to 113 °F)
Storage
temperature
–20 °C to +70 °C
(–4 °F to 158 °F)
Relative air
humidity
max. 95 %
4-channel version | Japan
SL MCR 4 DW-6
1,880 to 1,895 MHz
Art. No. 508857
4-channel version | Taiwan
SL MCR 4 DW-7
1,910 to 1,920 MHz
Art. No. 508858
4-channel version | Brazil
ACCESSORIES
SL MCR Wallmount Adapter
Art. No. 508891
PRODUCT SPECIFICATION
3/4
SpeechLine Digital Wireless
SL MCR DW | Multi-Channel Receiver
DIMENSIONS
180
35
180
PRODUCT SPECIFICATION
4/4
SpeechLine Digital Wireless
SL MCR DW | Multi-Channel Receiver
ARCHITECT‘S SPECIFICATION
The multi-channel receiver shall be for use with up to four companion transmitters as part of a wireless RF transmission
system.
The receiver shall operate in the license-free 1.9 GHz band (frequency ranges shall be from 1,880 to 1,930 MHz, depending
on country-specific regulations) and shall use automatic frequency management to find and select the best available
frequency in the spectrum and to automatically start the transmission.
The receiver shall also incorporate automatic interference management, allowing it to inaudibly and seamlessly change
to another frequency if any interference is detected. Time Division Multiple Access (TDMA) and space diversity shall be
used to provide for increased transmission reliability.
The receiver shall be available as a 2-channel version and a 4-channel version. The receiver shall have a discreet design
with fully integrated antennas. With the supplied mounting adapter it shall be mountable to a wall, a ceiling, a tripod or a
VESA 100 mount.
The receiver shall have two RJ-45 network sockets for power supply (Power over Ethernet: PoE IEEE 802.3af Class 3) and
remote control via a control software solution like the Sennheiser Control Cockpit or a media control system (e. g. Crestron and AMX). The two RJ-45 network sockets shall also output digital audio signals to a Dante™ audio network.
In addition, the receiver shall feature a 3-pin socket for analog audio output. The 3-pin socket shall be compatible with
Phoenix Contact MCVW 1.5-3-ST-3.81 plugs.
Control and operation of the receiver shall be performed via the control software solution Sennheiser Control Cockpit.
The following features shall be adjustable via the control software: speech-optimized sound profiles, 7-band graphic
equalizer for custom audio settings, low-cut filter, automatic gain control (AGC) settings, audio sensitivity settings, audio
output level settings, transmitter RF power level, transmitter mute mode and mute switch functionality, RF synchronisation, receiver and transmitter firmware update.
Via the control software the receiver shall support automatic or manual mixing of the audio channels to a sum signal. The
analog audio output shall output the sum signal. The digital audio outputs shall be able to output the individual channels
or the sum signal.
The receiver’s AF frequency response shall range from 20 – 20,000 Hz. The dynamic range shall be > 120 dB(A). Total
harmonic distortion (THD) at 1 kHz shall be typical 0.1 %. Signal-to-noise ratio shall be > 90 dB(A). The receiver’s RF sensitivity shall be -90 dBm. RF output power of the receiver’s back channel shall be adaptive and up to 250 mW (country-specific).
The dimensions shall be approximately 180 x 180 x 45 mm (including the mounting adapter). Weight shall be approximately 560 grams (650 grams with the mounting adapter). Operating temperature shall range from -10 °C to +45 °C (+14 °F
to +113 °F).
The receiver shall be the Sennheiser SL MCR 2 DW (2-channel version) or the SL MCR 4 DW (4-channel version).
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
