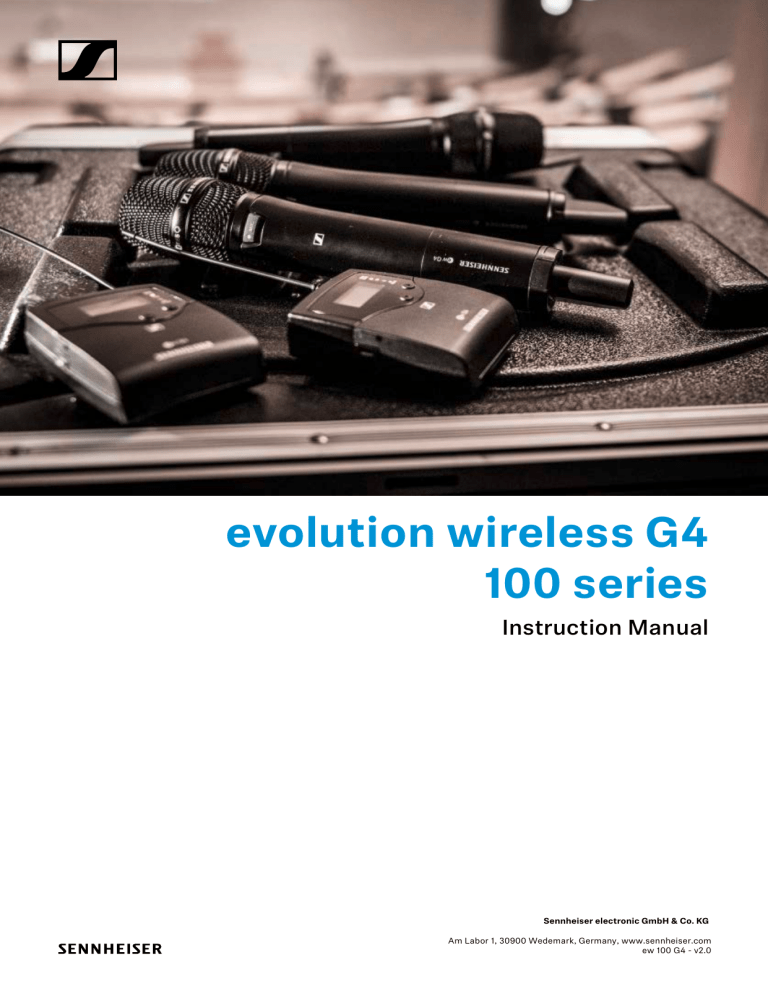

evolution wireless G4 100 series

Instruction Manual

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com

ew 100 G4 - v 2 .

0

Overview 6

ew 100 G4 series products 7

EM 100 G4 rack receiver 8

SKM 100 G4 handheld transmitter 9

SK 100 G4 bodypack transmitter 10

Accessories 11

Microphones and cables 12 Microphone modules 12 Headset and Lavalier microphones 12

Line/instrument cables 13

Rechargeable battery and charger 14 BA 2015 rechargeable battery 14 L 2015 charger 14

LA 2 charging adapter 15

Accessories for rack mounting 16 GA 3 rack mount kit 16 AM 2 antenna front mounting kit 16

Antennas and accessories 17 Omni-directional antennas 17 Directional antennas 17 Antenna splitter 17 Antenna amplifiers 17 Antenna cables 17

Additional accessories 18 Color labeling set 18 Microphone clamp 18

The frequency bank system 19

Installing and starting up ew 100 G4 series devices 20

Installing the EM 100 G4 21

Connectors on the rear of the device 22 Product overview for the rear side of the

EM 100 G4 22

Connecting/disconnecting the EM 100 G4 to/from the power supply system 23

Creating a data network 24

Setting up a multi-channel system with more than 12 receivers 25

Outputting audio signals 26

Connecting antennas 27

Installing the EM 100 G4 in a rack 28

Mounting a single receiver in a rack 29

Mounting two receivers side by side in a rack 30

Installing the SKM 100 G4 31

Inserting and removing the batteries/rechargeable bat teries 32

Battery status 33

Replacing the microphone module 34

Changing the colored ring 35

Installing the SK 100 G4 36

Inserting and removing the batteries/rechargeable bat-

1

teries 37

Battery status 38

Connecting a microphone to the SK 100 G4 39

Connecting an instrument or line source to the SK 100 G4 40

Attaching the bodypack transmitter to clothing 41

Installing the ASA 214 42

Connectors on the rear of the device 43 Product overview for the rear side of the ASA 214 43

Connecting/disconnecting the ASA 214 to/from the po wer supply system 44

Connecting receivers to the ASA 214 45

Connecting antennas 47 Connecting remote antennas 47 Connecting rod antennas 47

Information on antenna amplifiers and cable lengths 48

Configuring multi-channel systems 50 Option 1: Two antennas supply a 4-channel system 50

Option 2: Two 4-channel systems are interconnected 51 Option 3: Two antennas supply a 8-channel system 51

Installing the ASA 214 in a rack 52

Mounting a single antenna splitter in a rack 53

Mounting two antenna splitters side by side in a rack 55

Using ew 100 G4 series devices 56

Using the EM 100 G4 58

Operating elements on the front of the device 59 Product overview for the front of the

EM 100 G4 59

Switching the EM 100 G4 on and off 60

Muting the audio output 61

Lock-off function 62

Displays on the EM 100 G4 display panel 63 Buttons for navigating through the menu 63

Home screen 65

Receiver Parameters

standard display 65

Soundcheck

standard display 66

RF Min 66

RF Max 67 AF Max 67

Guitar Tuner

standard display 67

Setting options in the menu 68

Menu structure 69

Squelch menu item 70

Easy Setup menu item 72 Scan New List 72

Current List 73 Reset 73 Performing multi-channel frequency setup 73

Setting up a multi-channel system with more than 12 receivers 75

2

Frequency Preset menu item 76

Name menu item 77

AF Out menu item 78

Equalizer menu item 79

Auto Lock menu item 80

Advanced menu item 81

Advanced -> Tune menu item 82 Only adjusting the frequency 82 Setting the channel and frequency 82

Advanced -> Guitar Tuner menu item 83 Advanced -> Pilot Tone menu item 83

Advanced -> LCD Contrast menu item 84 Advanced -> Reset menu item 84 Advanced -> Software Revision menu item 84

Using the SKM 100 G4 85

Operating elements of the SKM 100 G4 handheld trans mitter 86

Switching the SKM 100 G4 handheld transmitter on and off 87

Muting the handheld transmitter (AF mute) 88 SKM 100 G4 88 SKM 100 G4-S 88

Deactivating the RF signal (RF mute) 89

Lock-off function 90

Displays on the SKM 100 G4 handheld transmitter dis play panel 91

Select a standard display 92

Buttons for navigating the SKM 100 G4 menu 93 Navigating through the menu 93 Making changes in a menu item 93

Setting options in the menu 94

Sensitivity menu item 95

Frequency Preset menu item 96 Name menu item 96

Auto Lock menu item 97

Advanced menu item 98

Advanced > Tune menu item 99 Only adjusting the frequency 99 Setting the channel and frequency 99

Advanced > Mute Mode menu item (SKM 100 G4-S only) 100 Advanced > Pilot Tone menu item 100 Advanced > LCD Contrast menu item 100

Advanced > Reset menu item 101 Advanced > Software Revision menu item 101

Using the SK 100 G4 102

Operating elements of the SK 100 G4 bodypack transmit ter 103

Switching the SK 100 G4 bodypack transmitter on and off 104

Muting the bodypack transmitter (AF mute) 105

3

Deactivating the RF signal (RF mute) 106 Deactivating the RF signal with the

MUTE

switch 106

Deactivating the RF signal with the

ON/OFF

button 108

Lock-off function 109

Displays on the SK 100 G4 bodypack transmitter display panel 110

Select a standard display 111

Buttons for navigating the SK 100 G4 menu 112 Navigating through the menu 112 Making changes in a menu item 112

Setting options in the menu 113

Sensitivity menu item 114 Frequency Preset menu item 114

Name menu item 115 Auto Lock menu item 115

Advanced menu item 116

Advanced > Tune menu item 117 Only adjusting the frequency 117 Setting the channel and frequency 117

Advanced > Mute Mode menu item 118 Advanced > Cable Emulation menu item 118

Advanced > Pilot Tone menu item 119 Advanced > LCD Contrast menu item 119 Advanced > Reset menu item 119 Advanced > Software Revision menu item 119

Establishing a radio link 120

Setting notes 120

Synchronizing devices 121

Using the ASA 214 123

Operating elements on the front of the device 124

Switching the ASA 214 on and off 125

Overview 126

Product variants 127

EM 100 G4 product variants 127 Made in Germany 127 Assembled in the USA 127

SKM 100 G4 product variants 128 Made in Germany 128 Assembled in the USA 128

SK 100 G4 product variants 129 Made in Germany 129 Assembled in the USA 129

Frequency tables 130

Specifications 131

EM 100 G4 132 RF characteristics 132

AF characteristics 133 Overall device 133

SKM 100 G4 134 RF characteristics 134

4

AF characteristics 134

Overall device 135

SK 100 G4 136 RF characteristics 136 AF characteristics 136

Overall device 137

ASA 214 138 Specifications 138

Block diagram 139

Pin assignment 140

3.5 mm stereo jack plug 140 3.5 mm mic jack plug 140 3.5 mm line jack plug 140 6.3 mm stereo jack plug, balanced (audio in/loop out) 140

6.3 mm mono jack plug, unbalanced 141 6.3 mm stereo jack plug for headphone jack 141 XLR-3 plug, balanced 141 Hollow jack plug for power supply 141

Cleaning and maintenance 142

Cleaning the sound inlet basket of the microphone mo dule 142

5

Overview

PRODUCT INFORMATION Overview

You can find information about the individual products in the ew 100 G4 se-

ries under “ew 100 G4 series products”.

For information about the available accessories, see “Accessories”.

You can find information about the ew 100 G4 series frequency bank sys-

tem under “The frequency bank system”.

6

ew 100 G4 series products

ew 100 G4 series products You can also find more information here: • • • • A variety of

frequency variants

are available from the individual prod-

ucts. You can find more information under “Product variants”.

You can find

technical specifications

about the individual products un-

der “Specifications”.

You can find information about

installing

the products under “Installing and starting up ew 100 G4 series devices”.

You can find information about

operating

the products under “Using ew 100 G4 series devices”.

7

EM 100 G4 rack receiver

• • • You can find more detailed information about the EM 100 G4 in the following sections:

Installation and Startup

: “Installing the EM 100 G4”

Operation

: “Using the EM 100 G4”

Technical Data

: “EM 100 G4”

8

SKM 100 G4 handheld transmitter

SKM 100 G4 variant:

SKM 100 G4-S variant:

The SKM 100 G4 handheld transmitter is also available in the SKM 100 G4 S variant with an integrated mute switch.

• • • You can find more detailed information about the SKM 100 G4 in the following sections:

Installation and Startup

: “Installing the SKM 100 G4”

Operation

: “Using the SKM 100 G4”

Technical Data

: “SKM 100 G4”

9

SK 100 G4 bodypack transmitter

• • • You can find more detailed information about the SK 100 G4 in the following sections:

Installation and Startup

: “Installing the SK 100 G4”

Operation

: “Using the SK 100 G4”

Technical Data

: “SK 100 G4”

10

Accessories

A variety of accessories are available for the ew 100 G4 series.

Accessories 11

Accessories

Microphones and cables

► Microphone modules We recommend using the following microphone modules with the SKM 100 G4 and SKM 100 G4-S handheld transmitters.

Module Features Article no.

MMD 835-1 BK MMD 845-1 BK

Dynamic, cardioid, black Dynamic, super-cardioid, black 502575 502576

MME 865-1 BK MMD 935-1 BK MMD 945-1 BK MMK 965-1 BK

Capacitor, super-cardioid, black Dynamic, cardioid, black Dynamic, super-cardioid, black Capacitor, switchable Cardioid/super-cardioid, black 502581 502577 502579 502582

MMK 965-1 NI MMD 42-1

Capacitor, switchable Cardioid/super-cardioid, nickel Dynamic, omni-directional, black 502584 506772 You can find more information about the individual microphone mod ules on their respective product pages at www.sennheiser.com.

► Headset and Lavalier microphones We recommend using the following Lavalier microphones and headset mi crophones with the SK 100 G4 bodypack transmitter.

Microphone Features Article no.

ME 2-II

507437

ME 3-II

Lavalier microphone, omni-direc tional, black Headset microphone, cardioid, black 506295

ME 4-N

005020

MKE 1-ew MKE 1-ew-3 MKE 2-ew Gold

Lavalier microphone, cardioid, black Lavalier microphone, omni-direc tional, black Lavalier microphone, omni-direc tional, beige Lavalier microphone, omni-direc tional, black 502876 502879 009831

MKE 2 ew-3 Gold MKE 40-ew

Lavalier microphone, omni-direc tional, beige Lavalier microphone, cardioid, black 009832 500527 12

Accessories Microphone

SL Headmic 1 BE SL Headmic 1 BK SL Headmic 1 SB

Features Headband microphone, omni-di rectional, beige Headband microphone, omni-di rectional, black Headband microphone, omni-di rectional, silver Article no.

506272 506271 506904 You can find more information about the individual microphones on their respective product pages at www.sennheiser.com.

► Line/instrument cables The following cables are available to connect instruments and line sources to the SK 100 G4 bodypack transmitter: •

Sennheiser CL 2

Line cable with XLR-3F plug on lockable 3.5 mm jack plug, article no.

004840 ► •

Sennheiser Ci 1-N

Guitar cable with 6.3 mm jack plug on lockable 3.5 mm jack plug, article no. 005021 13

Accessories

Rechargeable battery and charger

► BA 2015 rechargeable battery The BA 2015 rechargeable battery is designed for use with evolution wire less G4 series handheld transmitters, bodypack transmitters and bodypack receivers.

Article no. 009950 ► L 2015 charger The BA 2015 rechargeable battery can be charged in the L 2015 charger on its own or inside of the bodypack transmitter/bodypack receiver.

Article no. 009828 14

Accessories ► LA 2 charging adapter Charging adapter for L 2015 charger for charging SKM G4 handheld trans mitters with installed BA 2015 rechargeable battery.

Article no. 503162 15

Accessories

Accessories for rack mounting

► GA 3 rack mount kit 19” rack adapter for mounting the EM 100 G4, EM 300-500 G4 or SR IEM G4 in a 19” rack.

Article no. 503167 ► ► AM 2 antenna front mounting kit Antenna front mounting kit for installing antenna connections on the front of the rack when using the EM 100 G4, EM 300-500 G4 or SR IEM G4 to gether with the GA 3 rack mounting kit.

Article no. 009912 16

Accessories

Antennas and accessories

The following antenna components are available as accessory parts.

Omni-directional antennas •

A 1031-U

, passive omni-directional antenna, article no. 004645 Directional antennas • •

A 2003 UHF AD 1800

, passive directional antenna, article no. 003658 , passive directional antenna, 1.8 GHz range, article no. 504916 ► Antenna splitter •

ASA 214

, active antenna splitter 2×1:4 •

ASA 214-UHF

variant, 470 – 870 MHz, article no. 508241 •

ASA 214-1G8

variant, 1785 – 1800 MHz, article no. 508242

• See “Installing the ASA 214” and “Using the ASA 214”

Antenna amplifiers • •

AB 3700

, broadband antenna amplifier, article no. 502196

AB 3

, antenna amplifier, up to 42 MHz bandwidth •

AB 3-A

variant, frequency range A, article no. 502567 •

AB 3-A1

variant, frequency range A1, article no. 507367 •

AB 3-B

variant, frequency range B, article no. 502568 •

AB 3-C

variant, frequency range C, article no. 502569 •

AB 3-D

variant, frequency range D, article no. 502570 •

AB 3-E

variant, frequency range E, article no. 502571 •

AB 3-G

variant, frequency range G, article no. 502572 •

AB 3-GB

variant, frequency range GB, article no. 504680 •

AB 3-K

variant, frequency range K, article no. 505550 •

AB 3-1G8

variant, frequency range 1G8, article no. 504915 Antenna cables •

GZL 1019

, BNC/BNC coaxial cable, antenna cable with 50 Ω character istic (wave) impedance •

GZL 1019-A1

variant, 1 m (3 ft), article no. 002324 •

GZL 1019-A5

variant, 5 m (16 ft), article no. 002325 •

GZL 1019-A10

variant, 10 m (32 ft), article no. 002326 17

Accessories

Additional accessories

► Color labeling set •

KEN 2

530195 , color labeling set for SKM handheld transmitters, article no.

► Microphone clamp •

MZQ 1

, microphone clamp for SKM handheld transmitters, article no.

076670 18

The frequency bank system

The frequency bank system

• • • • • • • • • • • • • There are different frequency ranges in the UHF band available for trans mission.

The following frequency ranges are available for the

ew 100 G4

series:

A1 range

: 470 – 516 MHz

A range

: 516 – 558 MHz

AS range

: 520 – 558 MHz

G range

: 566 – 608 MHz

GB range

: 606 – 648 MHz

B range

: 626 – 668 MHz

C range

: 734 – 776 MHz

D range

: 780 – 822 MHz

TH range

: 794 – 806 MHz

JB range

: 806 – 810 MHz

E range

: 823 – 865 MHz

K+ range

: 925 – 937.5 MHz

1G8 range

: 1785 – 1800 MHz ► Every frequency range has

21 frequency banks

with up to 12 channels: You can find information about the frequency presets in the frequen-

cy tables of the respective frequency ranges under “Frequency ta bles”.

19

Installing and starting up ew 100 G4 series devices

INSTALLATION Installing and starting up ew 100 G4 se ries devices

You can find information about installing and connecting ew 100 G4 series devices in the following sections.

EM 100 G4

rack receiver >> “Installing the EM 100 G4”

SKM 100 G4(-S)

handheld transmitter >> “Installing the SKM 100 G4”

SK 100 G4

bodypack transmitter >> “Installing the SK 100 G4”

ASA 214

antenna splitter>> “Installing the ASA 214”

You can find information about

operating

the products under “Using ew 100 G4 series devices”.

20

Installing the EM 100 G4

Installing the EM 100 G4

These sections contain detailed information about installing and starting up the EM 100 G4.

You can find information about operating the EM 100 G4 under “Using the EM 100 G4”.

21

Installing the EM 100 G4

Connectors on the rear of the device

► Product overview for the rear side of the

EM 100 G4 1

Strain relief for the cable of the power supply unit

• See “Connecting/disconnecting the EM 100 G4 to/from the power supply system”

2

Connecting cables for the power supply unit (

DC IN

)

• See “Connecting/disconnecting the EM 100 G4 to/from the power supply system”

3

XLR-3 socket for audio output, balanced (

AF OUT BAL

)

• See “Outputting audio signals”

4

6.3 mm jack socket for audio output, unbalanced (

AF OUT UNBAL

)

• See “Outputting audio signals”

5

RJ-10 interface (

DATA

)

• See “Creating a data network”

6

RJ-10 interface (

DATA

)

• See “Creating a data network”

7

BNC socket, antenna input II (

ANT II

) with remote power supply unit

• See “Connecting antennas”

8

BNC socket, antenna input I (

ANT I

) with remote power supply unit

• See “Connecting antennas”

22

Installing the EM 100 G4

Connecting/disconnecting the EM 100 G4 to/from the power supply system

Only use the supplied power supply unit. It is designed for your receiver and ensures safe operation.

To connect the EM 100 G4 to the power supply system:

▷ ▷ ▷ ▷

Insert the plug of the power supply unit into the ceiver.

Plug the power supply unit into the wall socket.

DC IN

socket of the re Pass the cable of the power supply unit through the cable grip.

Slide the supplied country adapter onto the power supply unit.

To completely disconnect the EM 100 G4 from the power supply system:

Unplug the power supply unit from the wall socket.

Unplug the power supply unit from the

DC IN

socket of the receiver.

23

Installing the EM 100 G4

Creating a data network

You can cascade multiple EM 100 G4s to a multi-channel system using the two

DATA

RJ-10 interfaces (up to 12 receivers). You can perform a frequen cy setup for the entire multi-channel system via this data network using the

Easy Setup

function.

The setup only works when all of the receivers have the same frequency range.

Connect the receivers to create a multi-channel system using the sup plied RJ-10 cables as shown in the diagram. Both RJ-10 sockets are interchangeable. There is no set order for ca bling.

You can find more information about the

Easy Setup

function under

“Easy Setup menu item”.

24

Installing the EM 100 G4 Setting up a multi-channel system with more than 12 receivers You can use the

Easy Setup

function to automatically set up a maximum of

12

receivers.

► If you assign the frequencies manually, however, you can use up to

20

re ceivers in a multi-channel system (not possible in the TH, JB, K+ and 1G8 frequency ranges).

▷ ▷

To do so, set a frequency manually in each receiver (see “Advanced -> Tune menu item”).

Use the frequencies from the following table.

25

Installing the EM 100 G4

Outputting audio signals

The EM 100 G4 has a balanced XLR-3M output socket and an unbalanced 6.3 mm jack output socket.

Always use only one of the two

AF OUT

output sockets for each chan nel.

To connect an XLR cable:

Plug the XLR cable into the

AF OUT BAL

socket of the EM 100 G4.

To connect a jack cable:

Plug the jack cable into the

AF OUT UNBAL

socket of the EM 100 G4.

26

Installing the EM 100 G4

Connecting antennas

To connect the supplied rod antennas:

▷ ▷

Connect the first rod antenna to the EM 100 G4.

ANT I

socket on the rear side of the Connect the second rod antenna to the

ANT II

socket on the rear side of the EM 100 G4.

Gently angle the rod antennas to the left and right as shown in the fig ure.

• • If you are using more than one receiver, we recommend using remote antennas and the ASA 214 antenna splitter. You can find more infor mation here:

“Installing the ASA 214”

“Using the ASA 214”

27

Installing the EM 100 G4 in a rack

Installing the EM 100 G4 CAUTION

Rack mounting poses risks

When installing the device in a closed or multi-rack assembly, please con sider that, during operation, the ambient temperature, the mechanical loading and the electrical potentials will be different from those of devices which are not mounted into a rack.

Make sure that the ambient temperature within the rack does not ex ceed the permissible temperature limit specified in the specifications.

See “EM 100 G4”.

Ensure sufficient ventilation; if necessary, provide additional ventila tion.

Make sure that the mechanical loading of the rack is even.

When connecting to the power supply system, observe the information indicated on the type plate. Avoid circuit overloading. If necessary, pro vide overcurrent protection.

When rack mounting, please note that intrinsically harmless leakage currents of the individual power supply units may accumulate, thereby exceeding the allowable limit value. As a remedy, ground the rack via an additional ground connection.

28

Installing the EM 100 G4 ► Mounting a single receiver in a rack To mount the receiver in a rack, you will need the GA 3 rack mounting kit (optional accessory).

To fasten the mounting angle of the GA 3 rack mounting kit:

▷ ▷

Unscrew and remove the two recessed head screws (M4x8) on each side of the receiver.

Secure both of the the mounting angles to the sides of the receiver us ing the previously removed recessed head screws.

▷ ▷

Secure the blanking plate to one of the mounting angles using two re cessed head screws (M6x10).

Attach the AM 2 antenna front mounting set (optional accessory) and mount the rod antennas on the blanking plate (right diagram).

▷ ▷ ▷

Slide the receiver with the mounted blanking plate into the 19" rack.

Secure the mounting angle and the blanking plate to the 19" rack.

Align the mounted antennas in a V-shape.

29

Installing the EM 100 G4 Mounting two receivers side by side in a rack When you mount two receivers side by side, it is only possible to front mount antennas when you use the ASA 214 antenna splitter in com bination with the AM 2 front mounting kit and an additional GA 3 rack mounting kit, ► To mount the receiver using the GA 3 rack mounting kit (optional accesso ry):

▷ ▷ ▷

Place both receivers upside down and side by side on an even surface.

Secure the jointing plate to the transmitters using the six recessed head screws (M3x6).

Secure the mounting angle.

30

Installing the SKM 100 G4

Installing the SKM 100 G4

These sections contain detailed information about installing and starting up the SKM 100 G4.

You can find information about operating the SKM 100 G4 under “Using the SKM 100 G4”.

31

Installing the SKM 100 G4

Inserting and removing the batteries/rechargeable batteries

You can operate the wireless microphone either with batteries (AA, 1.5 V) or with the rechargeable Sennheiser BA 2015 battery.

Screw the rear part of the wireless microphone in the direction of the arrow (counter-clockwise) off of the handle of the wireless microphone.

When you remove the wireless microphone during operation, mute is automatically activated.

MUTE

appears in the display panel. When you screw the microphone back together, mute is deactivated.

▷ ▷ ▷

Pull the rear part of the wireless microphone all the way out.

Open the cover of the battery compartment.

Place the batteries or the BA 2015 rechargeable battery in the battery compartment as shown on the cover. Please observe correct polarity when inserting the batteries/accupack.

▷ ▷ ▷

Close the cover.

Push the battery compartment into the handle of the wireless micro phone.

Screw the rear part of the wireless microphone back onto the handle.

32

► Battery status Charge status of the batteries: Installing the SKM 100 G4 ► Charge status is critical (LOW BATT): 33

Installing the SKM 100 G4

Replacing the microphone module

You can find a list of the recommended microphone modules for the hand-

held transmitter under “Microphones and cables”.

▷ ▷

To change the microphone module: Unscrew the microphone module.

Screw the desired microphone module on.

Do not touch the wireless microphone contacts or the microphone module contacts. If you touch the contacts, they may become dirty or bent.

When you unscrew the microphone module during operation, mute is au tomatically activated.

MUTE

appears in the display panel. When you screw the microphone module back on, mute is deactivated.

34

Installing the SKM 100 G4

Changing the colored ring

► To change the colored ring:

Pull the colored ring off as shown in the diagram.

Attached a colored ring in the color you want as shown in the diagram.

35

Installing the SK 100 G4

Installing the SK 100 G4

These sections contain detailed information about installing and starting up the SK 100 G4.

You can find information about operating the SK 100 G4 under “Using the SK 100 G4”.

36

Installing the SK 100 G4

Inserting and removing the batteries/rechargeable batteries

► You can operate the bodypack transmitter either with batteries (AA, 1.5 V) or with the rechargeable Sennheiser BA 2015 battery.

▷ ▷

Press the two catches and open the battery compartment cover.

Insert the batteries or the rechargeable battery as shown below. Please observe correct polarity when inserting the batteries.

Close the battery compartment.

The cover locks into place with an audible click.

37

► Battery status Charge status of the batteries: Installing the SK 100 G4 ► Charge status is critical (LOW BATT): 38

Installing the SK 100 G4

Connecting a microphone to the SK 100 G4

You can find a list of recommended Lavalier and headset microphones for

the bodypack transmitter under “Microphones and cables”.

To connect a microphone to the bodypack transmitter:

▷ ▷

Insert the cable’s 3.5 mm jack plug into the MIC/LINE socket on the bodypack transmitter as shown in the diagram.

Screw the plug’s coupling ring onto the audio socket thread of the bodypack transmitter.

39

Installing the SK 100 G4

Connecting an instrument or line source to the SK 100 G4

You can connect instruments or audio sources with a line level to the bodypack transmitter.

To do this, you will need the

Ci 1-N

(6.3 mm jack plug on a lockable 3.5 mm jack plug) or

CL 2

(XLR-3F plug on lockable 3.5 mm jack plug) Sennheiser cables.

► To connect an instrument or line source to bodypack transmitter:

▷ ▷

Insert the cable’s 3.5 mm jack plug into the MIC/LINE socket on the bodypack transmitter as shown in the diagram.

Screw the plug’s coupling ring onto the audio socket thread of the bodypack transmitter.

40

Installing the SK 100 G4

Attaching the bodypack transmitter to clothing

► You can use the belt clip to attach the bodypack transmitter to your waist band or on a guitar strap.

The belt clip is detachable so that you can also attach the bodypack trans mitter with the antenna pointing downwards. To do so, withdraw the belt clip from its fixing points and attach it the other way round.

The belt clip is secured so that it cannot slide out of its fixing points acci dentally.

To detach the belt clip:

▷ ▷

Lift the belt clip as shown in the diagram.

Press one side of the clip downward on the fixing hole and pull it out of the transmitter housing.

Do the same thing on the other side.

41

Installing the ASA 214

Installing the ASA 214

These sections contain detailed information about installing and starting up the ASA 214.

You can find information about operating the ASA 214 under “Using the ASA 214”.

42

Connectors on the rear of the device

► Product overview for the rear side of the ASA 214 Installing the ASA 214

1 ANT RF IN B

BNC socket • Antenna input of diversity branch B

• See “Connecting antennas”

2 RF OUT A

BNC socket • RF output only for connecting an additional ASA 214 to build an 8 channel diversity system

• See “Configuring multi-channel systems”

3 DC IN

socket • To connect the NT 1-1 power supply unit

• See “Connecting/disconnecting the ASA 214 to/from the power sup ply system”

4

4 BNC sockets

B1

to

B4

• RF outputs of diversity branch B for connection to the receiver

• See “Connecting receivers to the ASA 214”

5 ANT RF IN A

BNC socket • Antenna input of diversity branch A

• See “Connecting antennas”

6

4 BNC sockets

A1

to

A4

• RF outputs of diversity branch A for connection to the receiver • Every one of these RF outputs can also provide voltage to a receiver.

• See “Connecting receivers to the ASA 214”

7

Strain relief for the cable of the power supply unit

• See “Connecting/disconnecting the ASA 214 to/from the power sup ply system”

43

Installing the ASA 214

Connecting/disconnecting the ASA 214 to/from the power supply system

To supply power to the ASA 214, the connected receivers and any antenna amplifiers used, you will need the NT 1-1 power supply unit.

Only use the supplied NT 1-1 power supply unit. It is designed for your an tenna splitter and ensures safe operation.

To connect the ASA 214 antenna splitter to the power supply system:

▷ ▷ ▷ ▷

Plug the hollow jack plug of the power supply unit into the of the antenna splitter.

Plug the power supply unit into the wall socket.

DC IN

Pass the cable of the power supply unit through the cable grip.

Slide the supplied country adapter onto the power supply unit.

socket To completely disconnect the ASA 214 antenna splitter from the power supply system:

▷ ▷

Unplug the power supply unit from the wall socket.

Unplug the hollow jack plug of the power supply unit from the

DC IN

socket of the antenna splitter.

44

Installing the ASA 214

Connecting receivers to the ASA 214

You can connect and operate up to four stationary receivers to the ASA 214. Sennheiser receivers of the ew G4 and ew G3 series can also be supplied with power from the ASA 214.

The following receivers are compatible:

evolution wireless G4:

• • EM 100 G4 EM 300-500 G4

evolution wireless G3:

• • • EM 100 G3 EM 300 G3 EM 500 G3

2000 series:

• • EM 2000 (with its own power supply) EM 2050 (with its own power supply) 45

Installing the ASA 214 To connect the receivers to the ASA 214 antenna splitter:

Connect one of the receiver’s antenna inputs to one of the BNC sockets

A1

to

A4

using one of the supplied BNC cables.

The compatible receivers listed above do not require their own power supply. They are powered via the BNC sockets

A1

to

A4

.

Connect the receiver’s other antenna input to one of the BNC sockets

B1

to

B4

using one of the supplied BNC cables.

46

Installing the ASA 214

Connecting antennas

For more information about antennas and antenna accessories, see

“Antennas and accessories”.

In order to ensure optimal reception even in the case of poor recep tion conditions, we recommend using remote antennas.

► Connecting remote antennas

Mount two antennas or a combination of an antenna and an antenna amplifier to the BNC sockets

ANT RF IN A

and

ANT RF IN B

.

Connecting rod antennas

▷ ▷

Mount the antennas to the BNC sockets

ANT RF IN A

and

ANT RF IN B

.

Align the antennas in a V-shape in order to ensure the best possible re ception.

47

Installing the ASA 214

Information on antenna amplifiers and cable lengths

The following table shows which cable lengths require the use of the AB 3 or AB 4 antenna amplifier as well as the maximum recommended cable lengths.

Device ASA 214 (AB 3 & AB 4) Frequen cy range around Number of AB 3 or AB 4 500 MHz 0 1 2 700 MHz 0 1 900 MHz 2 0 1 2 ASA 214 - 1G8 (AB 3) 1800 MHz 0 1 2 Max. cable length RG 58 GZL 5000 8 m 16 m 36 m 64 m 7 m 30 m 53 m 6 m 26 m 46 m 4 m 16 m 28 m 72 m 128 m 14 m 60 m 106 m 12 m 52 m 92 m 8 m 36 m 64 m Use the

AB 3

for the following frequency ranges: • • • • • • • • • • • •

A1 range

: 470 – 516 MHz

A range

: 516 – 558 MHz

G range

: 566 – 608 MHz

GB range

: 606 – 648 MHz

B range

: 626 – 668 MHz

C range

: 734 – 776 MHz

D range

: 780 – 822 MHz

TH range JB range E range K+ range

: 794 – 806 MHz : 806 – 810 MHz : 823 – 865 MHz : 925 – 937.5 MHz

1G8 range

: 1785 – 1800 MHz Use the

AB 4

for the following frequency ranges: 48

• • • • • •

Aw+ range

: 470 – 558 MHz

Gw range

: 558 – 626 MHz

GBw range

: 606 – 678 MHz

Bw range

: 526 – 698 MHz

Cw range

: 718 – 790 MHz

Dw range

: 790 – 865 MHz Installing the ASA 214 49

Installing the ASA 214

Configuring multi-channel systems

The following options for connecting multi-channel systems are possible: Option 1: Two antennas supply a 4-channel system 50

Installing the ASA 214 Option 2: Two 4-channel systems are interconnected Option 3: Two antennas supply a 8-channel system 51

Installing the ASA 214

Installing the ASA 214 in a rack

CAUTION

Rack mounting poses risks

When installing the device in a closed or multi-rack assembly, please con sider that, during operation, the ambient temperature, the mechanical loading and the electrical potentials will be different from those of devices which are not mounted into a rack.

Make sure that the ambient temperature within the rack does not ex ceed the permissible temperature limit specified in the specifications.

See “Specifications”.

Ensure sufficient ventilation; if necessary, provide additional ventila tion.

Make sure that the mechanical loading of the rack is even.

When connecting to the power supply system, observe the information indicated on the type plate. Avoid circuit overloading. If necessary, pro vide overcurrent protection.

When rack mounting, please note that intrinsically harmless leakage currents of the individual power supply units may accumulate, thereby exceeding the allowable limit value. As a remedy, ground the rack via an additional ground connection.

52

Installing the ASA 214 ► Mounting a single antenna splitter in a rack To mount the antenna splitter in a rack, you will need the GA 3 rack mount ing kit (optional accessory).

To fasten the mounting angle of the GA 3 rack mounting kit:

▷ ▷

Unscrew and remove the two recessed head screws (M4x8) on each side of the antenna splitter.

Secure the mounting angles to the sides of the antenna splitter using the previously removed recessed head screws.

Secure the blanking plate to one of the mounting angles using two re cessed head screws (M6x10).

53

► Installing the ASA 214 ►

Attach the antennas. You have the following options: • Connect the supplied rod antennas on the rear side of the antenna splitter. In this case, cover the antenna holes with the two covers (left diagram).

• Attach the AM 2 antenna front mounting set (optional accessory) and mount the rod antennas on the blanking plate (right diagram).

▷ ▷ ▷

Slide the antenna splitter with the mounted blanking plate into the 19" rack.

Secure the mounting angle and the blanking plate to the 19" rack.

Align the mounted antennas in a V-shape.

54

Installing the ASA 214 Mounting two antenna splitters side by side in a rack To mount the antenna splitters using the GA 3 rack mounting kit (optional accessory):

▷ ▷

Place both antenna splitters upside down and side by side on an even surface.

Secure the jointing plate to the transmitters using the six recessed head screws (M3x6).

Secure the mounting angle.

55

Using ew 100 G4 series devices

OPERATION Using ew 100 G4 series devices

You can find information about using ew 100 G4 series devices in the fol lowing sections.

EM 100 G4

rack receiver >> “Using the EM 100 G4”

SKM 100 G4(-S)

handheld transmitter >> “Using the SKM 100 G4”

SK 100 G4

bodypack transmitter >> “Using the SK 100 G4”

ASA 214

antenna splitter>> “Using the ASA 214”

You can find information about

installation and start up

of the prod-

ucts under “Installing and starting up ew 100 G4 series devices”.

56

Using ew 100 G4 series devices In the sections below, you can find important

information about specific use cases

.

• Establishing a

radio link

between the transmitter and receiver >> “Es tablishing a radio link”

Synchronizing

the receiver

settings

to the transmitter >> “Synchroniz ing devices”

• Using the

menu

of the

receiver

>> “Displays on the EM 100 G4 display panel”

• Using the

menu

of the

handheld transmitter

>> “Displays on the SKM 100 G4 handheld transmitter display panel”

• Using the

menu

of the

bodypack transmitter

>> “Displays on the SK 100 G4 bodypack transmitter display panel”

57

Using the EM 100 G4

Using the EM 100 G4

These sections contain detailed information about using the EM 100 G4.

You can find information on installation and startup of the EM 100 G4 un-

der “Installing the EM 100 G4”.

58

Using the EM 100 G4

Operating elements on the front of the device

► Product overview for the front of the

EM 100 G4 1

Infrared interface with a blue LED

• See “Synchronizing devices”

2

Display panel

• See “Displays on the EM 100 G4 display panel”

3 UP/DOWN

buttons

• See “Buttons for navigating through the menu”

4 SYNC

button

• See “Synchronizing devices”

5 ESC

button

• See “Buttons for navigating through the menu”

6 SET

button

• See “Buttons for navigating through the menu”

7 STANDBY

button

• See “Switching the EM 100 G4 on and off”

59

Using the EM 100 G4 ►

Switching the EM 100 G4 on and off

To switch the receiver on:

Short-press the

STANDBY

button.

The receiver switches on and the

Receiver Parameters

standard dis play appears.

To switch the receiver to standby mode :

If necessary, deactivate the lock-off function (see “Lock-off function”).

Press and hold the panel.

STANDBY

button until The display panel switches off.

OFF appears on the display To completely switch the receiver off :

Disconnect the receiver from the power supply system by unplugging the power supply unit from the wall socket.

60

Using the EM 100 G4 ►

Muting the audio output

To mute the audio signal of the receiver:

Short-press the

STANDBY

button in one of the standard displays.

The RX Mute On?

display appears.

Press the

SET

button.

The audio signal is muted.

To cancel the muting :

Short-press the

STANDBY

button.

The RX Mute Off?

display appears.

Press the

SET

button.

The audio output is no longer muted.

61

Using the EM 100 G4

Lock-off function

You can set the automatic lock-off function in the

Auto lock

menu (see

“Auto Lock menu item”).

When you have switched on the lock-off function, you will have to turn the receiver off and on again in order to operate it.

► To temporarily deactivate the lock-off function:

Press the

SET

button.

Locked appears in the display panel.

▷ ▷

Press the

UP

or

DOWN

button.

Unlock?

appears in the display panel.

Press the

SET

button.

Lock-off function is now temporarily deactivated.

When you are in the operating menu

>> Lock-off function is deactivated long enough for you to work in the op erating menu.

When one of the standard displays is shown

>> Lock-off function is automatically activated after 10 seconds.

The Lock-off function icon flashes while the lock-off function is being acti vated again.

62

Using the EM 100 G4

Displays on the EM 100 G4 display panel

Status information

such as reception quality, battery status, audio level, etc. is displayed on the

home screen

of the display panel. •

See “Home screen”.

The display panel also displays the

operating menu

which you can use to configure all of the

settings

. •

See “Setting options in the menu”.

Buttons for navigating through the menu

► To navigate through the EM 100 G4 operating menu, you need the follow ing buttons.

► Short-press the

ESC

button • Cancels the entry and returns to the previous display Long-press the

ESC

button • Cancels the entry and returns to the home screen 63

Using the EM 100 G4 ► ► Press the

SET

button • • • • Changes from the current standard display to the operating menu Calls up a menu item Changes to a submenu Stores the settings and returns to the operating menu Press the

UP

or

DOWN

button • • •

Selects a standard display (see “Home screen”)

Changes to the previous or next menu item Changes the setting of a menu item 64

Using the EM 100 G4

Home screen

After you switch on the receiver, the display panel initially displays the Sennheiser logo. After a short time, the home screen is then displayed.

The home screen has three different standard displays.

On the home screen, press the

UP

and

DOWN

buttons to switch be tween the standard displays.

Receiver Parameters

standard display

1 RF

RF level (radio frequency) • RF signal level display

• including the display of the squelch threshold (see “Squelch menu item”)

2 AF

audio level (audio frequency) • Displays the audio level of the received transmitter When the display shows full deflection, the audio input level is exces sively high. When the transmitter is overloaded frequently or for ex tended periods of time, the PEAK display is shown inverted.

• See “AF Out menu item”

3

Frequency bank and channel • Current frequency bank and channel number

• See “Frequency Preset menu item”

4

Frequency • Current receiving frequency

• See “Frequency Preset menu item”

5

Name • Freely selectable name of the receiver

• See “Name menu item”

6 P

pilot tone 65

Using the EM 100 G4 • Activated pilot tone evaluation

• See “Advanced -> Pilot Tone menu item”

7 MUTE

muting function • Receiver or transmitter is muted

• See “Muting the audio output”

8

Battery status of the transmitter

• SKM 100 G4: see “Inserting and removing the batteries/rechargeable batteries”

• SK 100 G4: see “Inserting and removing the batteries/rechargeable batteries”

9

Lock-off function • Lock-off function is activated on the receiver

• See “Lock-off function”

Soundcheck

standard display The Soundcheck standard display shows the transmission quality between the transmitter and the receiver.

By doing a soundcheck, you can ensure adequate transmission quality in the entire area in which you want to use the transmitter. You can do the soundcheck without the help of another person.

With the transmitter, walk up and down the area in which you want to use the transmitter.

The receiver records the following parameters: RF Min • • Minimum RF signal level must be well above the squelch threshold level for one of the two anten nas

Ways to optimize ▷ ▷ ▷

Check that the antennas and the antenna cables are correctly connect ed.

Improve the position of the antennas.

If necessary, use an antenna booster.

66

Using the EM 100 G4 RF Max • • Maximum RF signal level both antennas should reach 40 dBμV

Ways to optimize ▷ ▷ ▷

Check that the antennas and the antenna cables are correctly connect ed.

Improve the position of the antennas.

If necessary, use an antenna booster.

AF Max Maximum audio level

Ways to optimize

On your transmitter, adjust the audio level as high as possible without the display for the audio level showing full deflection ( AF Max is at a level with the PEAK display).

See “AF Out menu item”.

Guitar Tuner

standard display The

Guitar Tuner

standard display shows the guitar tuner (only for the SK 100 G4).

The

Guitar Tuner

standard display is deactivated upon delivery. To show

this standard display, you have to activate it (see “Advanced -> Guitar Tun er menu item”).

67

Using the EM 100 G4

Setting options in the menu

In the EM 100 G4 menu, you can configure the following settings.

Adjusting the squelch threshold ▷

See “Squelch menu item”

Scanning for unused frequency presets, releases and selects frequen cy presets ▷

See “Easy Setup menu item”

Setting the frequency bank and the channel ▷

See “Frequency Preset menu item”

Entering a freely selectable name ▷

See “Name menu item”

Adjusting the audio output level ▷

See “AF Out menu item”

Adjusting the frequency response of the output signal ▷

See “Equalizer menu item”

Activate/deactivate the automatic lock-off function ▷

See “Auto Lock menu item”

Configuring enhanced settings in the Advanced Menu :

• • • • • •

Adjusting the receiving frequencies for the U frequency bank Adjusting the guitar tuner options Activating/deactivating the pilot tone evaluation Adjusting the contrast of the display panel Resetting the receiver Displaying the current software revision

See “Advanced menu item”

68

Using the EM 100 G4

Menu structure

► The figure shows the complete EM 100 G4 menu structure in an overview.

69

Using the EM 100 G4

Squelch menu item

• • • You can adjust the squelch threshold in the

Squelch

menu item.

Setting range

: Low >> 5 dBμV Middle >> 15 dBμV High >> 25 dBμV ► The squelch threshold is displayed on the home screen in the RF signal lev el area.

CAUTION

Risk of hearing and material damage

If you set the squelch threshold to a very low value, a very loud hissing noise can occur in the receiver. This hissing noise can be loud enough to cause hearing damage or overload your system’s loudspeakers.

Before adjusting the squelch threshold, set the volume of the audio out put to the minimum.

Never change the squelch threshold during a live transmission.

70

Using the EM 100 G4 ► To open the

Squelch

menu item:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

Squelch

menu item appears in the selection frame.

▷ ▷

Press the

SET

button to open the menu item.

Adjust the settings as desired.

▷ ▷

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the setting.

71

Using the EM 100 G4

Easy Setup menu item

You can scan for unused frequencies using the

Easy Setup

menu item.

When you have connected multiple EM 100 G4 devices to a network via the

RJ-10 interfaces (see “Creating a data network”), you can perform the fre-

quency setup for all of the connected receivers. You can find more informa-

tion about connecting multiple devices under “Performing multi-channel frequency setup”

Switch off all transmitters before you perform the scan. If transmit ters are still switched on, they are detected as unavailable frequen cies and the frequencies that are actually available cannot then be used. The squelch threshold setting influences the result. Set the squelch thresh old to

Low

for as many frequencies as possible, and to

High

for as many

safe frequencies as possible (see “Squelch menu item”).

To open the

Easy Setup

menu item:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

Easy Setup

menu item appears in the selection frame.

Press the

SET

button to open the menu item.

▷ ▷ ▷

Scan New List

▷ ▷

Select

Scan New List

Press the

SET

to scan for unused frequencies.

button to start the scan.

The frequency range of the receiver is scanned. As a result, the number of unused frequencies is displayed for every frequency bank.

Press the

UP

or

DOWN

buttons to select a frequency bank.

Press the

SET

button to confirm your selection.

Press the

UP

or

DOWN

buttons to select an unused frequency from the selected bank.

72

Using the EM 100 G4

Press the

SET

button to save your selection and synchronize the select-

ed frequency with the transmitter at a later point (see “Synchronizing devices”).

or

Press the

SYNC

button to synchronize the selected frequency with the transmitter immediately.

Current List

Select

Current List

to show the list of unused frequencies from the last scan.

Reset

Select

Reset List

to delete the list of unused frequencies.

Performing multi-channel frequency setup To perform the automatic frequency setup for multiple receivers (max. 12) simultaneously:

Connect all of the receivers to one network.

See “Creating a data network”.

Open the

Easy Setup

menu item on one of the receivers.

This receiver is the master. You can choose any receiver to be the mas ter.

Perform the frequency scan on the master receiver as described above.

After the scan, the display panels of the other receivers will display the message Assign New Frequency?

.

Receivers with non-compatible frequency ranges will display the mes sage Unassignable Frequency!

.

▷ ▷ ▷ ▷

Select an unused frequency for the first receiver on the master receiv er.

Press the

SET

button on the receiver that you would like to assign this frequency to.

Use this procedure to assign a frequency to each connected receiver, one after another.

For the last step, assign a frequency to the master receiver.

This completes the multi-channel frequency setup.

73

► Using the EM 100 G4 74

Using the EM 100 G4 Setting up a multi-channel system with more than 12 receivers You can use the

Easy Setup

function to automatically set up a maximum of

12

receivers.

► If you assign the frequencies manually, however, you can use up to

20

re ceivers in a multi-channel system (not possible in the JB, K+ and 1G8 fre quency ranges).

▷ ▷

To do so, set a frequency manually in each receiver (see “Advanced -> Tune menu item”).

Use the frequencies from the following table.

75

Using the EM 100 G4

Frequency Preset menu item

In the

Frequency Preset

menu item, you can adjust the receiving frequen cy of the receiver by adjusting the frequency bank and the channel.

► To open the

Frequency Preset

menu item:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

Frequency Preset

menu item appears in the selection frame.

▷ ▷

Press the

SET

button to open the menu item.

Adjust the settings as desired.

▷ ▷

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the setting.

You can set the frequencies of the frequency bank

U

here: “Advanced -> Tune menu item”

76

Using the EM 100 G4

Name menu item

In the

Name

menu item you can enter a name for the radio link. ► To open the

Name

menu item:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

Name

menu item appears in the selection frame.

▷ ▷

Press the

SET

button to open the menu item.

Adjust the settings as desired.

▷ ▷

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the setting.

77

Using the EM 100 G4

AF Out menu item

In the

AF Out

menu item, you can set the audio level that is output via the receiver audio outputs.

Setting range:

• –24 dB to +18 dB in 3 dB steps ► To open the

AF Out

menu item:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

AF Out

menu item appears in the selection frame.

▷ ▷

Press the

SET

button to open the menu item.

Adjust the settings as desired.

▷ ▷

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the setting.

78

Using the EM 100 G4

Equalizer menu item

In the

Equalizer

menu item, you can change the frequency response of the output signal. You can reduce the bass range and boost the treble range.

► To open the

Equalizer

menu item:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

Equalizer

menu item appears in the selection frame.

▷ ▷

Press the

SET

button to open the menu item.

Adjust the settings as desired.

▷ ▷ ▷

Press the

UP

or

DOWN

buttons to configure the desired settings.

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the setting.

79

Using the EM 100 G4

Auto Lock menu item

In the

Auto Lock

menu item you can activate or deactivate the auto lock off function.

You can find information about temporarily deactivating the lock-off

function during operation under “Lock-off function”.

► To open the

Auto Lock

menu item:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

Auto Lock

menu item appears in the selection frame.

▷ ▷

Press the

SET

button to open the menu item.

Adjust the settings as desired.

▷ ▷

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the setting.

80

Using the EM 100 G4

Advanced menu item

In the

Advanced

submenu you can configure enhanced settings.

To open the

Advanced

submenu:

▷ ▷

On the home screen, press the

SET

button to open the operating menu.

Press the

UP

or

DOWN

button until the

Advanced

menu item appears in the selection frame.

Press the

SET

button to open the menu item.

The following sub-items are available:

Adjusting the receiving frequencies for the U frequency bank ▷

See “Advanced -> Tune menu item”

Adjusting the guitar tuner options ▷

See “Advanced -> Guitar Tuner menu item”

Activating/deactivating the pilot tone evaluation ▷

See “Advanced -> Pilot Tone menu item”

Adjusting the contrast of the display panel ▷

See “Advanced -> LCD Contrast menu item”

Resetting the receiver ▷

See “Advanced -> Reset menu item”

Displaying the current software revision ▷

See “Advanced -> Software Revision menu item”

81

Using the EM 100 G4

Advanced -> Tune menu item

In the

Tune

menu item of the

Advanced

submenu, you can configure the receiving frequencies for the

U

frequency bank.

You can save a total of 12 frequencies in the

U

frequency bank.

► Only adjusting the frequency

▷ ▷

Open the

Tune

menu item in the

Advanced

menu.

Adjust the settings.

▷ ▷

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the setting.

► Setting the channel and frequency

▷ ▷

Select the

Tune

menu item and call it up by holding down the ton until the channel selection appears.

Adjust the settings.

SET

but-

▷ ▷

Press the

SET

button to save the changes you made to the settings.

or Press the

ESC

button to cancel the entry without saving the settings.

82

Using the EM 100 G4 ►

Advanced -> Guitar Tuner menu item

In the

Guitar Tuner

menu item of the

Advanced

submenu, you can adjust the options of the guitar tuner.

The guitar tuner is opened in the

Guitar Tuner

standard display on the

home screen. See “

Guitar Tuner

standard display”.

• • •

Inactive

: The guitar tuner is deactivated.

Active

: The guitar tuner is activated.

Audio mute

: The guitar tuner is activated. Once the

Guitar Tuner

stan dard display is open on the home screen, the audio signal is muted.

Advanced -> Pilot Tone menu item

In the

Pilot Tone

menu item of the

Advanced

submenu, you can activate and deactivate the pilot tone evaluation.

The pilot tone has an inaudible frequency that is sent from the transmitter and evaluated by the receiver. It supports the receiver’s squelch function.

For the best possible operational reliability, we recommend leaving the pilot tone activated.

83

Using the EM 100 G4 ►

Advanced -> LCD Contrast menu item

In the

LCD Contrast

menu item of the

Advanced

submenu, you can adjust the display contrast of the display panel.

Advanced -> Reset menu item

In the

Reset

menu item of the

Advanced

submenu, you can reset all of the settings of the receiver to the factory settings.

Advanced -> Software Revision menu item

In the

Software Revision

menu item of the

Advanced

submenu, you can display the current software version of the receiver.

84

Using the SKM 100 G4

Using the SKM 100 G4

These sections contain detailed information about using the SKM 100 G4 and SKM 100 G4-S.

You can find information on installation and startup of the SKM 100 G4 and

SKM 100 G4-S under “Installing the SKM 100 G4”.

85

Using the SKM 100 G4 ►

Operating elements of the SKM 100 G4 handheld transmitter

1

Display panel

• See “Displays on the SKM 100 G4 handheld transmitter display pan el”

2

Infra-red interface

• See “Synchronizing devices”

3 DOWN

,

UP

and

SET

multi-function switch

• See “Buttons for navigating the SKM 100 G4 menu”

4 ON/OFF

button with ESC function in the operating menu • Switch the transmitter on or off

See “Switching the SKM 100 G4 handheld transmitter on and off”

• Escape function in the menu

See “Buttons for navigating the SKM 100 G4 menu”

5

Colored ring

• Available in different colors (see “Additional accessories” and

“Changing the colored ring”)

• Can be turned to protect the multi-function switch 86

Using the SKM 100 G4

6

Operation and battery indicator, red LED • illuminated = ON

See “Switching the SKM 100 G4 handheld transmitter on and off”

• flashing = LOW BATTERY

See “Inserting and removing the batteries/rechargeable batteries”

7 MIC

button (only SKM 100 G4-S)

• See “Muting the handheld transmitter (AF mute)”

• See “Advanced > Mute Mode menu item (SKM 100 G4-S only)”

Switching the SKM 100 G4 handheld transmitter on and off

► To switch on the SKM 100 G4:

Hold down the display.

ON/OFF

button until the Sennheiser logo appears on the To switch off the SKM 100 G4:

Hold down the

ON/OFF

button until the display goes off.

87

Using the SKM 100 G4

Muting the handheld transmitter (AF mute)

SKM 100 G4 The audio signal of the transmitter cannot be muted.

However, when you deactivate the RF signal no AF signal is output. See

“Deactivating the RF signal (RF mute)”.

SKM 100 G4-S You can mute the audio signal by pressing the

MIC

button.

• • The

MIC

button lights up red: the audio signal is activated The

MIC

button is not lit: the audio signal is muted 88

Using the SKM 100 G4

Deactivating the RF signal (RF mute)

You can temporarily deactivate the RF signal when the microphone is switched on. When the RF signal is deactivated, no audio signal is output.

Use this function to save battery or when you want to prepare a micro phone for use during live broadcast without interfering with the current transmission path.

To deactivate the RF signal :

Short-press the

ON/OFF

RF Mute On?

appears.

button.

Press the

SET

button.

The transmission frequency is displayed, however the wireless micro phone is not transmitting an RF signal. The transmission icon is not lit

(see “Displays on the SKM 100 G4 handheld transmitter display pan el”).

► To activate the RF signal :

Short-press the

ON/OFF

RF Mute Off?

appears.

button.

Press the

SET

button.

The transmission icon appears again (see “Displays on the SKM 100 G4 handheld transmitter display panel”).

89

Using the SKM 100 G4 ►

Lock-off function

You can set the automatic lock-off function in the

Auto lock

menu (see

“Buttons for navigating the SKM 100 G4 menu”).

When you have switched on the lock-off function, you will have to turn the transmitter off and on again in order to operate it.

To temporarily deactivate the lock-off function:

Press the

SET

button.

Locked appears in the display panel.

▷ ▷

Press the

UP

or

DOWN

button.

Unlock?

appears in the display panel.

Press the SET button.

Lock-off function is now temporarily deactivated.

90

Using the SKM 100 G4

Displays on the SKM 100 G4 handheld transmitter display panel

► You can view the following information on the transmitter display.

1 AF

audio level • Displays the audio level with peak hold function

• See “Sensitivity menu item”

2

Frequency • Configured transmission frequency

• See “Frequency Preset menu item”

3

Name • Freely selectable name of the receiver

• See “Name menu item”

4

Transmission icon • RF signal is being transmitted

• See “Deactivating the RF signal (RF mute)”

5

Lock-off function • Lock-off function is activated

• See “Auto Lock menu item”

6

Battery status

• See “Battery status”

7 MUTE

muting function • The audio signal is muted

• See “Muting the handheld transmitter (AF mute)”

• See “Deactivating the RF signal (RF mute)”

8 P

pilot tone • Pilot tone transmission is activated

• See “Advanced > Pilot Tone menu item”

91

Using the SKM 100 G4

>> “Buttons for navigating the SKM 100 G4 menu”

>> “Setting options in the menu”

Select a standard display

Move the

multi-function switch

to select a standard display: ►

Frequency/Name standard display AF

548.100

MHz ew100 G4

P MUTE

Channel/Frequency standard display AF

548.100

P MUTE

MHz ►

Name/Channel standard display AF

ew100 G4 B.Ch: 20.12

P MUTE

92

Using the SKM 100 G4

Buttons for navigating the SKM 100 G4 menu

Navigating through the menu To open the menu:

Press the

SET

button.

The operating menu is shown on the transmitter display panel.

To open a menu item:

▷ ▷

Press the

UP

menu items.

or

DOWN

buttons to navigate through the individual Press the

SET

button to open the selected menu item.

“Operating elements of the SKM 100 G4 handheld transmitter”

▷ ▷ ▷

Making changes in a menu item After you open a menu item, you can make changes as follows: Press the

UP

or

DOWN

buttons to set the displayed value.

Press the

SET

button to save the setting.

Press the

ESC (ON/OFF)

button to leave the menu item without saving the setting.

“Operating elements of the SKM 100 G4 handheld transmitter”

>> “Displays on the SKM 100 G4 handheld transmitter display panel”

>> “Setting options in the menu”

93

Using the SKM 100 G4

Setting options in the menu

In the SKM 100 G4 menu, you can configure the following settings.

Adjusting the input sensitivity ▷

See “Sensitivity menu item”

Setting the frequency bank and the channel ▷

See “Frequency Preset menu item”

Entering a freely selectable name ▷

See “Name menu item”

Activating/deactivating the automatic lock-off function ▷

See “Auto Lock menu item”

Configuring enhanced settings in the Advanced Menu :

• • • • • •

Adjusting the transmission frequencies for the U frequency bank Defining the MIC button setting (SKM 100 G4-S only) Activating/deactivating the pilot tone evaluation Adjusting the contrast of the display panel Resetting the transmitter Displaying the current software revision

See “Advanced menu item”

94

► •

Sensitivity menu item

Adjusting the input sensitivity –

AF

audio level Using the SKM 100 G4

Setting range

: 0 dB to -48 dB in 6 dB steps.

The

AF

audio level is also displayed when the wireless microphone is mut ed, e.g. to check the sensitivity before a live broadcast.

Recommended presets

: • • • Loud music/vocals: -48 to -18 dB Moderation: -18 to -12 dB Interviews: -12 to 0 dB 95

► •

Frequency Preset menu item

Manually selecting a frequency bank and channel Using the SKM 100 G4 While you work in the Frequency Preset menu, the RF signal is deac tivated.

Please note when creating multi-channel systems:

Only the factory-preset frequencies within one frequency bank are inter modulation-free. The wireless microphone and receiver must be set to the same frequency. Be sure to note the information on frequency selection

under “Establishing a radio link”.

► •

Name menu item

Entering names • • • In the

Name

menu item you can enter any name you want for the wireless microphone (e.g. the names of the musicians).

The name can be shown in the Frequency/Name and Name/Channel stan dard displays. The names are a maximum of 8 characters: All letters except umlauts.

Numbers from 0 to 9 Special characters and spaces Enter the names as follows:

▷ ▷

Move the multi-function switch to select a character.

Press the multi-function switch to jump to the next space or to save the name you have entered once it is complete.

96

Using the SKM 100 G4 ► •

Auto Lock menu item

Switching the automatic lock-off function on and off This lock prevents the wireless microphone from being unintentionally switched off and also prevents any unintentional changes to the transmit ter’s configuration. In the current standard display, the lock icon shows whether the lock-off function is currently switched on.

You can find information about using the lock-off function under “Lock-off function”.

97

Using the SKM 100 G4

Advanced menu item

In the

Advanced

submenu you can configure enhanced settings.

The following sub-items are available:

Adjusting the transmission frequencies for the U frequency bank ▷

See “Advanced > Tune menu item”

Defining the MIC button setting (SKM 100 G4-S only) ▷

See “Advanced > Mute Mode menu item (SKM 100 G4-S only)”

Activating/deactivating the pilot tone evaluation ▷

See “Advanced > Pilot Tone menu item”

Adjusting the contrast of the display panel ▷

See “Advanced > LCD Contrast menu item”

Resetting the transmitter ▷

See “Advanced > Reset menu item”

Displaying the current software revision ▷

See “Advanced > Software Revision menu item”

98

Using the SKM 100 G4

Advanced > Tune menu item

• Configuring the transmission frequency and frequency bank U When you have configured the wireless microphone to a system bank and you call up the

Tune

menu item, channel 1 of the frequency bank

U

is auto matically set. The message

U.1

briefly appears in the display. In the factory settings, the channels of the frequency bank

U

are not assigned to any transmission frequency.

While you work in the

Tune

menu, the RF signal is deactivated.

You can configure a transmission frequency for the current channel or se lect a channel in the frequency bank

U

and configure a transmission fre quency for this channel in the

Tune

menu. Be sure to note the information

on frequency selection, see “Setting notes”.

Only adjusting the frequency ► To configure the transmission frequency for the current channel:

Open the

Tune

menu item in the The frequency selection appears.

Advanced

menu.

▷ ▷

Configure the desired frequency.

Press the multi-function switch.

Your settings will be saved. You are now back in the operating menu.

Setting the channel and frequency ► To select a channel and assign it a frequency:

Move the multi-function switch until the

Tune

menu item appears.

Hold down the multi-function switch until the frequency bank selection appears.

▷ ▷ ▷

Set the desired channel.

Press the multi-function switch.

The frequency selection appears.

Configure the frequency.

99

Using the SKM 100 G4 ► •

Advanced > Mute Mode menu item (SKM 100 G4-S only)

Configuring the function of the

MIC

button

AF On/Off

mode • When you press the

MIC

button, no audio signal is transmitted.

Disabled

mode • No function You can find information about the

MIC

button under “Muting the handheld transmitter (AF mute)”.

► •

Advanced > Pilot Tone menu item

Activating/deactivating pilot tone transmission The pilot tone has an inaudible frequency that is sent from the transmitter and evaluated by the receiver. It supports the receiver’s squelch function.

Advanced > LCD Contrast menu item

• Adjusting the contrast of the display panel You can configure the contrast of the display in 16 steps.

100

► •

Advanced > Reset menu item

Resetting the wireless microphone Using the SKM 100 G4 When you reset the wireless microphone, only the selected settings of the pilot tone and the

U

frequency bank are retained.

Advanced > Software Revision menu item

• Show software revision You can display the current software revision.

101

Using the SK 100 G4

Using the SK 100 G4

These sections contain detailed information about using the SK 100 G4.

You can find information on installation and startup of the SK 100 G4 under

“Installing the SK 100 G4”.

102

Using the SK 100 G4 ►

Operating elements of the SK 100 G4 bodypack transmitter

1

Display panel

• See “Displays on the SK 100 G4 bodypack transmitter display panel”

2

Operation and battery indicator, red LED • illuminated = ON

See “Switching the SK 100 G4 bodypack transmitter on and off”

• flashing = LOW BATTERY

See “Inserting and removing the batteries/rechargeable batteries”

3

Audio overload indicator, yellow LED • illuminated = AF PEAK (overload)

See “Sensitivity menu item”

4 UP

button

• See “Buttons for navigating the SK 100 G4 menu”

5 SET

button

• See “Buttons for navigating the SK 100 G4 menu”

6 DOWN

button

• See “Buttons for navigating the SK 100 G4 menu”

103

Using the SK 100 G4

7 ON/OFF

button with ESC function in the operating menu • Switch the transmitter on or off

See “Switching the SK 100 G4 bodypack transmitter on and off”

• Escape function in the menu

See “Buttons for navigating the SK 100 G4 menu”

8

Infra-red interface

• See “Synchronizing devices”

9 MUTE

switch • Deactivate and activate audio signal

See “Muting the bodypack transmitter (AF mute)”

• Deactivate and activate RF signal

See “Deactivating the RF signal (RF mute)”

Switching the SK 100 G4 bodypack transmitter on and off

Press the two catches and open the battery compartment cover.

To switch on the SK 100 G4:

Hold down the

ON/OFF

button until the Sennheiser logo appears on the display.

To switch off the SK 100 G4:

Hold down the

ON/OFF

button until the display goes off.

104

Using the SK 100 G4 ►

Muting the bodypack transmitter (AF mute)

You can deactivate the audio signal with the

MUTE

switch.

To do this, the

MUTE

switch function must be configured to

AF On/Off

.

You can find more information about this subject under “Advanced > Mute Mode menu item”.

Slide the

MUTE

switch to the MUTE position.

The audio signal is muted. The message MUTE is shown on the display.

105

Using the SK 100 G4

Deactivating the RF signal (RF mute)

You can deactivate the RF signal in two ways: ► Deactivating the RF signal with the

MUTE

switch You can deactivate the RF signal with the

MUTE

switch.

To do this, the

MUTE

switch function must be configured to

RF On/Off.

You can find more information about this subject under “Advanced > Mute Mode menu item”.

106

Using the SK 100 G4

Slide the

MUTE

switch to the MUTE position.

The RF signal is deactivated. The message MUTE is shown in the dis play and the transmission icon no longer appears.

107

Using the SK 100 G4 Deactivating the RF signal with the

ON/OFF

button You can deactivate the RF signal with the

ON/OFF

button.

To deactivate the RF signal:

Short-press the

ON/OFF

RF Mute On?

appears.

button.

Press the

SET

button.

The RF signal is deactivated. The message MUTE is shown in the dis play and the transmission icon no longer appears.

To activate the RF signal:

Short-press the

ON/OFF

RF Mute Off?

appears.

button.

Press the

SET

button.

The transmission icon appears again.

108

Using the SK 100 G4 ►

Lock-off function

You can set the automatic lock-off function in the

Auto lock

menu (see

“Buttons for navigating the SK 100 G4 menu”).

When you have switched on the lock-off function, you will have to turn the transmitter off and on again in order to operate it.

To temporarily deactivate the lock-off function:

Press the

SET

button.

Locked appears in the display panel.

▷ ▷

Press the

UP

or

DOWN

button.

Unlock?

appears in the display panel.

Press the SET button.

Lock-off function is now temporarily deactivated.

109

Using the SK 100 G4

Displays on the SK 100 G4 bodypack transmitter display panel

► You can view the following information on the transmitter display.

1 AF

audio level • Displays the audio level with peak hold function

• See “Sensitivity menu item”

2

Frequency • Configured transmission frequency

• See “Frequency Preset menu item”

3

Name • Freely selectable name of the receiver

• See “Name menu item”

4

Transmission icon • RF signal is being transmitted

• See “Deactivating the RF signal (RF mute)”

5

Lock-off function • Lock-off function is activated

• See “Auto Lock menu item”

6

Battery status

• See “Battery status”

7 MUTE

muting function • The audio signal is muted

• See “Muting the bodypack transmitter (AF mute)”

• See “Deactivating the RF signal (RF mute)”

8 P

pilot tone • Pilot tone transmission is activated

• See “Advanced > Pilot Tone menu item”

110

Using the SK 100 G4

>> “Buttons for navigating the SK 100 G4 menu”

>> “Setting options in the menu”

Select a standard display

Press the

UP

or

DOWN

buttons to select a standard display.

Frequency/Name standard display AF

548.100

MHz ew100 G4

P MUTE

Channel/Frequency standard display AF

548.100

P MUTE

MHz ►

Name/Channel standard display AF

ew100 G4 B.Ch: 20.12

P MUTE

111

Using the SK 100 G4

Buttons for navigating the SK 100 G4 menu

Navigating through the menu To open the menu:

Press the

SET

button.

The operating menu is shown on the transmitter display panel.

To open a menu item:

▷ ▷

Press the

UP

menu items.

or

DOWN

buttons to navigate through the individual Press the

SET

button to open the selected menu item.

“Operating elements of the SK 100 G4 bodypack transmitter”

▷ ▷ ▷

Making changes in a menu item After you open a menu item, you can make changes as follows: Press the

UP

or

DOWN

buttons to set the displayed value.

Press the

SET

button to save the setting.

Press the

ESC (ON/OFF)

button to leave the menu item without saving the setting.

“Operating elements of the SK 100 G4 bodypack transmitter”

>> “Displays on the SK 100 G4 bodypack transmitter display panel”

>> “Setting options in the menu”

112

Using the SK 100 G4

Setting options in the menu

In the SK 100 G4 menu, you can configure the following settings.

Adjusting the input sensitivity ▷

See “Sensitivity menu item”

Setting the frequency bank and the channel ▷

See “Frequency Preset menu item”

Entering a freely selectable name ▷

See “Name menu item”

Activating/deactivating the automatic lock-off function ▷

See “Auto Lock menu item”

Configuring enhanced settings in the Advanced Menu :

• • • • • • •

Adjusting the transmission frequencies for the U frequency bank Configuring the MUTE switch Configuring the guitar cable emulation Activating/deactivating the pilot tone evaluation Adjusting the contrast of the display panel Resetting the transmitter Displaying the current software revision

See “Advanced menu item”

113

► •

Sensitivity menu item

Adjusting the input sensitivity –

AF

audio level Using the SK 100 G4

Setting range

: 0 dB to –60 dB in 6 dB steps.

The

AF

audio level is also displayed when the bodypack transmitter is mut ed, e.g. to check the sensitivity before a live broadcast.

Recommended presets

: • • • • • Loud music/vocals: –30 to –21 dB Moderation: -21 to 0 dB Electric guitar with single-coil pickups: –30 to -24 dB Electric guitar with Humbucker pickups: -45 to -30 dB Electric guitars with active electronics: -45 to -30 dB ► •

Frequency Preset menu item

Manually selecting a frequency bank and channel While you work in the Frequency Preset menu, the RF signal is deac tivated.

Please note when creating multi-channel systems:

Only the factory-preset frequencies within one frequency bank are inter modulation-free. The bodypack transmitter and receiver must be set to the same frequency. Be sure to note the information on frequency selection

under “Establishing a radio link”.

114

Using the SK 100 G4 ► •

Name menu item

Entering names • • • In the

Name

menu item you can enter any name you want for the bodypack transmitters (e.g. the names of the musicians).

The name can be shown in the Frequency/Name and Name/Channel stan dard displays. The names are a maximum of 8 characters: All letters except umlauts.

Numbers from 0 to 9 Special characters and spaces Enter the names as follows:

▷ ▷

Press the

UP

or

DOWN

buttons to select a character.

Press the

SET

button to switch to the next space or to save the name you have entered once it is complete.

► •

Auto Lock menu item

Switching the automatic lock-off function on and off This lock prevents the wireless microphone from being unintentionally switched off and also prevents any unintentional changes to the transmit ter’s configuration. In the current standard display, the lock icon shows whether the lock-off function is currently switched on.

You can find information about using the lock-off function under “Lock-off function”.

115

Using the SK 100 G4

Advanced menu item

In the

Advanced

submenu you can configure enhanced settings.

The following sub-items are available:

Adjusting the transmission frequencies for the U frequency bank ▷

See “Advanced > Tune menu item”

Configuring the MUTE switch ▷

See “Advanced > Mute Mode menu item”

Configuring the guitar cable emulation ▷

See “Advanced > Cable Emulation menu item”

Activating/deactivating the pilot tone evaluation ▷

See “Advanced > Pilot Tone menu item”

Adjusting the contrast of the display panel ▷

See “Advanced > LCD Contrast menu item”

Resetting the transmitter ▷

See “Advanced > Reset menu item”

Displaying the current software revision ▷

See “Advanced > Software Revision menu item”

116

Using the SK 100 G4

Advanced > Tune menu item

• Configuring the transmission frequency and frequency bank U When you have configured the bodypack transmitter to a system bank and you call up the

Tune

menu item, channel 1 of the frequency bank

U

is auto matically set. The message

U.1

briefly appears in the display. In the factory settings, the channels of the frequency bank

U

are not assigned to any transmission frequency.

While you work in the

Tune

menu, the RF signal is deactivated.

You can configure a transmission frequency for the current channel or se lect a channel in the frequency bank

U

and configure a transmission fre quency for this channel in the

Tune

menu. Be sure to note the information

on frequency selection, see “Setting notes”.

Only adjusting the frequency ► To configure the transmission frequency for the current channel:

Open the

Tune

menu item in the The frequency selection appears.

Advanced

menu.

▷ ▷

Configure the desired frequency.

Press the

SET

button.

Your settings will be saved. You are now back in the operating menu.

Setting the channel and frequency ► To select a channel and assign it a frequency:

Open the

Tune

menu item in the

Advanced

menu by pressing and hold ing the

SET

button until the frequency bank selection appears.

▷ ▷ ▷

Set the desired channel.

Press the

SET

button.

The frequency selection appears.

Configure the frequency.

117

► •

Advanced > Mute Mode menu item

Configuring the

MUTE

switch Using the SK 100 G4

AF On/Off

mode • If set to position MUTE, the audio signal is muted.

RF On/Off

mode • If set to position MUTE, the RF signal is deactivated.

Disabled

mode • No function

You can find information about operating the mute switch under “Muting

the bodypack transmitter (AF mute)” and “Deactivating the RF signal (RF mute)”.

► •

Advanced > Cable Emulation menu item

Emulating a guitar cable Using this menu item you can emulate the capacitances of your guitar ca bles and influence the sound of your guitar.

118

► •

Advanced > Pilot Tone menu item

Activating/deactivating pilot tone transmission Using the SK 100 G4 The pilot tone has an inaudible frequency that is sent from the transmitter and evaluated by the receiver. It supports the receiver’s squelch function.

Advanced > LCD Contrast menu item

• Adjusting the contrast of the display panel You can configure the contrast of the display in 16 steps.

► •

Advanced > Reset menu item

Resetting the bodypack transmitter When you reset the bodypack transmitter, only the selected settings of the pilot tone and the

U

frequency bank are retained.

Advanced > Software Revision menu item

• Show software revision You can display the current software revision.

119

Establishing a radio link

Establishing a radio link

To establish a radio link between the transmitter and receiver, the same frequency must be set in both devices.

You can do this in a number of different ways: 1.

Use the

Easy Setup

function to perform an

automatic frequency set up

(see “Easy Setup menu item”).

2. Set a frequency in the receiver

manually

(see “Frequency Preset menu item”) and

synchronize

it with the transmitter (see “Synchronizing de vices”).

3. Set the frequency on the receiver and the transmitter

manually

(EM 100 G4: “Frequency Preset menu item”, SKM 100 G4: “Frequency

Preset menu item”, SK 100 G4: “Frequency Preset menu item”)

Setting notes Please note the following when synchronizing a transmitter with a receiv ers:

▷ ▷ ▷

Only use transmitters and receivers from the same frequency range (see the type plate on the transmitter and receiver).

Make sure that your chosen frequencies are listed in the frequency ta-

ble for the particular frequency range (see “Frequency tables”).

Ensure that the desired frequencies are permitted in your country and apply for an operating license if necessary.

Please note the information at the following address:

General conditions and restrictions for the use of frequencies 120

Synchronizing devices

Synchronizing devices

You can synchronize ew 100 G4 series transmitters and receivers via the receiver’s infrared interface.

The following

Parameters

are transferred to the transmitters: •

Frequency Preset

>> currently configured frequency (see “Frequency Preset menu item”)

Name

>> individually configured name (see “Name menu item”)

Pilot Tone

>> current setting of the pilot tone on the receiver (see “Ad vanced -> Pilot Tone menu item”)

To synchronize the devices:

Switch the transmitter and the receiver on.

Press the

SYNC

button on the receiver.

Sync

appears in the receiver’s display and the blue LED turns blue.

Hold the infra-red interface of the transmitter (see “Operating elements

121

Synchronizing devices

of the SKM 100 G4 handheld transmitter” and “Operating elements of the SK 100 G4 bodypack transmitter”) in front of the infra-red interface

of the receiver (see “Operating elements on the front of the device”).

The parameters are transferred to the transmitter. The blue LED blinks during transmission.

When the transfer is complete, a tick appears in the receiver’s display as a confirmation. Then the receiver will return to the current standard display.

To cancel synchronization:

Press the

ESC

button on the receiver.

An

X

appears in the display.

This icon also appears when: • • no transmitter is found or the transmitter is not compatible.

no transmitter is found and the synchronization process automatically ends after 30 seconds.

122

Using the ASA 214

Using the ASA 214

These sections contain detailed information about operating the ASA 214.

You can find information on installation and startup of the ASA 214 under

“Installing the ASA 214”.

123

Using the ASA 214 ►

Operating elements on the front of the device

1

STANDBY button

• See “Switching the ASA 214 on and off”

2

LED: Operation indicator 124

Using the ASA 214

Switching the ASA 214 on and off

To switch on the antenna splitter:

Short-press the

STANDBY

button.

The antenna splitter switches on and the power LED turns green.

The RF signals of the connected antennas are distributed to all con nected receivers.

To switch the antenna splitter to standby mode :

Press the

STANDBY

button for approx. 2 seconds.

The LED turns off. The connected antenna amplifiers are switched off.

Connected receivers are switched off if they draw their supply voltage

from the BNC sockets A1 to A4 (see “Connecting receivers to the ASA 214”).

To fully switch off the antenna splitter:

Disconnect the antenna splitter from the power supply system by un plugging the power supply unit from the wall socket.

The LED turns off.

125

Overview

SPECIFICATIONS Overview

• • • • In the sections below, you can find information about the different variants of the products in the

ew 100 G4

series as well as technical data for the in dividual products.

Product variants and frequency variants >> “Product variants”

Frequency tables with overviews of all banks and channels >> “Fre quency tables”

Product-specific technical data >> “Specifications”

Information about plug assignments >> “Pin assignment”

You can also find information about safely cleaning and maintaining

evolution wireless G4

series products.

“Cleaning and maintenance”

126

Product variants

Product variants

EM 100 G4 product variants

► Made in Germany EM 100 G4-A1 EM 100 G4-A EM 100 G4-GB EM 100 G4-G EM 100 G4-B EM 100 G4-C EM 100 G4-E EM 100 G4-1G8 EM 100 G4-K+ 470 – 516 MHz 516 – 558 MHz 606 – 648 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 823 – 865 MHz 1785 – 1800 MHz 925 – 937.5 MHz Art. no. 507603 Art. no. 507604 Art. no. 507605 Art. no. 507606 Art. no. 507607 Art. no. 507608 Art. no. 507609 Art. no. 507610 Art. no. 507611 ► Assembled in the USA EM 100 G4-A1 EM 100 G4-A EM 100 G4-AS EM 100 G4-G EM 100 G4-B EM 100 G4-C EM 100 G4-D EM 100 G4-JB 470 – 516 MHz 516 – 558 MHz 520 – 558 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 780 – 822 MHz 806 – 810 MHz Art. no. 507945 Art. no. 507946 Art. no. 507947 Art. no. 507948 Art. no. 507949 Art. no. 507950 Art. no. 507951 Art. no. 507952 127

Product variants

SKM 100 G4 product variants

► Made in Germany

SKM 100 G4-S

SKM 100 G4-S-A1 SKM 100 G4-S-A SKM 100 G4-S-GB SKM 100 G4-S-G SKM 100 G4-S-B SKM 100 G4-S-C SKM 100 G4-S-E SKM 100 G4-S-1G8 SKM 100 G4-S-K+ 470 – 516 MHz 516 – 558 MHz 606 – 648 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 823 – 865 MHz 1785 – 1800 MHz 925 – 937.5 MHz Art. no. 507594 Art. no. 507595 Art. no. 507596 Art. no. 507597 Art. no. 507598 Art. no. 507599 Art. no. 507600 Art. no. 507601 Art. no. 507602 ►

SKM 100 G4

SKM 100 G4-A1 SKM 100 G4-A SKM 100 G4-GB SKM 100 G4-G SKM 100 G4-B SKM 100 G4-C SKM 100 G4-E SKM 100 G4-1G8 SKM 100 G4-K+ 470 – 516 MHz 516 – 558 MHz 606 – 648 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 823 – 865 MHz 1785 – 1800 MHz 925 – 937.5 MHz Art. no. 507660 Art. no. 507661 Art. no. 507662 Art. no. 507663 Art. no. 507664 Art. no. 507665 Art. no. 507666 Art. no. 507667 Art. no. 507668 ► Assembled in the USA

SKM 100 G4-S

SKM 100 G4-S-A1 SKM 100 G4-S-A SKM 100 G4-S-AS SKM 100 G4-S-G SKM 100 G4-S-B SKM 100 G4-S-C SKM 100 G4-S-D SKM 100 G4-S-JB 470 – 516 MHz 516 – 558 MHz 520 – 558 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 780 – 822 MHz 806 – 810 MHz Art. no. 507937 Art. no. 507938 Art. no. 507939 Art. no. 507940 Art. no. 507941 Art. no. 507942 Art. no. 507943 Art. no. 507945 128

Product variants ►

SKM 100 G4-S

SKM 100 G4-A1 SKM 100 G4-A SKM 100 G4-AS SKM 100 G4-G SKM 100 G4-B SKM 100 G4-C SKM 100 G4-D SKM 100 G4-JB 470 – 516 MHz 516 – 558 MHz 520 – 558 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 780 – 822 MHz 806 – 810 MHz Art. no. 508001 Art. no. 508002 Art. no. 508003 Art. no. 508004 Art. no. 508005 Art. no. 508006 Art. no. 508007 Art. no. 508008

SK 100 G4 product variants

► Made in Germany SK 100 G4-A1 SK 100 G4-A SK 100 G4-GB SK 100 G4-G SK 100 G4-B SK 100 G4-C SK 100 G4-E SK 100 G4-1G8 SK 100 G4-K+ 470 – 516 MHz 516 – 558 MHz 606 – 648 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 823 – 865 MHz 1785 – 1800 MHz 925 – 937.5 MHz Art. no. 507585 Art. no. 507586 Art. no. 507587 Art. no. 507588 Art. no. 507589 Art. no. 507590 Art. no. 507591 Art. no. 507592 Art. no. 507593 ► Assembled in the USA SK 100 G4-A1 SK 100 G4-A SK 100 G4-AS SK 100 G4-G SK 100 G4-B SK 100 G4-C SK 100 G4-D SK 100 G4-JB 470 – 516 MHz 516 – 558 MHz 520 – 558 MHz 566 – 608 MHz 626 – 668 MHz 734 – 776 MHz 780 – 822 MHz 806 – 810 MHz Art. no. 507929 Art. no. 507930 Art. no. 507931 Art. no. 507932 Art. no. 507933 Art. no. 507934 Art. no. 507935 Art. no. 507936 129

Frequency tables

Frequency tables

You can find frequency tables for all available frequency ranges in the download section of the Sennheiser website uneer www.sennheiser.com/ download.

Download area of the Sennheiser website Enter

ew G4

into the search bar to show the frequency tables.

130

Specifications

Specifications

You can find product-specific technical data in the sections below.

131

EM 100 G4

► RF characteristics

Modulation Receiving frequency ranges Receiving frequencies Switching bandwidth Nominal/peak deviation Receiver principle Sensitivity (with HDX, peak deviation) Adjacent channel selection Intermodulation attenuation Blocking Squelch Pilot tone squelch Antenna inputs

Wideband FM A1: 470 – 516 MHz A: 516 – 558 MHz AS: 520 – 558 MHz G: 566 – 608 MHz GB: 606 – 648 MHz B: 626 – 668 MHz C: 734 – 776 MHz D: 780 – 822 MHz TH: 794 – 806 MHz E: 823 – 865 MHz JB: 806 – 810 MHz K+: 925 – 937.5 MHz 1G8: 1785 – 1800 MHz Max 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels up to 42 MHz ±24 kHz / ±48 kHz True diversity < 2.5 μV for 52 dBA eff S/N Typically ≥ 65 dB Typically ≥ 65 dB ≥ 70 dB Off Low: 5 dBμV Middle: 15 dBμV High: 25 dBμV Can be switched off 2 BNC sockets 132

► AF characteristics

Compander system EQ presets (switchable, act on line and monitor outputs): Preset 1:

Flat

Preset 2: Preset 3:

AF OUT Low Cut Low Cut

/

High Boost

Preset 4:

High Boost

Signal-to-noise ratio (1 mV, peak deviation) Total harmonic distortion (THD) AF output voltage (at peak deviation, 1 kHz AF) setting range

Sennheiser HDX –3 dB at 180 Hz –3 dB at 180 Hz +6 dB at 10 kHz +6 dB at 10 kHz ≥ 110 dBA ≤ 0.9 % 6.3 mm jack socket (unbalanced): +12 dBu BNC socket (balanced): +18 dBu 48 dB in 3 dB steps ► Overall device

Temperature range Power supply Power consumption Dimensions Weight

-10 °C to +55 °C (14 °F to 131 °F) 12 V DC 300 mA Approx. 190 x 212 x 43 mm approx. 980 g 133

SKM 100 G4

► RF characteristics

Modulation Receiving frequency ranges Transmission frequencies Switching bandwidth Nominal/peak deviation Frequency stability RF output power at 50 ?

Pilot tone squelch

Wideband FM A1: 470 – 516 MHz A: 516 – 558 MHz AS: 520 – 558 MHz G: 566 – 608 MHz GB: 606 – 648 MHz B: 626 – 668 MHz C: 734 – 776 MHz D: 780 – 822 MHz E: 823 – 865 MHz JB: 806 – 810 MHz K+: 925 – 937.5 MHz 1G8: 1785 – 1800 MHz Max 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels 1 frequency bank with up to 12 programmable channels up to 42 MHz ±24 kHz / ±48 kHz ≤ ±15 ppm Max. 30 mW Can be switched off ► AF characteristics

Compander system AF frequency response Signal-to-noise ratio (1 mV, peak deviation) Total harmonic distortion (THD)

Input voltage Input impedance Input capacitance

Setting range for input sensitivity

Sennheiser HDX 80 – 18,000 Hz ≥ 110 dBA ≤ 0.9 % 3 V eff 40 k Ω Switchable 48 dB in 6 dB steps 134

► Overall device

Temperature range Power supply Nominal voltage Power consumption at nominal voltage with transmitter switched off Operating time Dimensions Weight (with batteries)

-10 °C to +55 °C (14 °F to 131 °F) 2 AA batteries, 1,5 V or BA 2015 accupack 3 V battery / 2.4 V rechargeable battery typically 180 mA ≤ 25 μA Typically 8 h Approx. Ø 50 x 265 mm Approx. 450 g 135

SK 100 G4

► RF characteristics

Modulation Receiving frequency ranges Transmission frequencies Switching bandwidth Nominal/peak deviation Frequency stability RF output power at 50 ?

Pilot tone squelch

Wideband FM A1: 470 – 516 MHz A: 516 – 558 MHz AS: 520 – 558 MHz G: 566 – 608 MHz GB: 606 – 648 MHz B: 626 – 668 MHz C: 734 – 776 MHz D: 780 – 822 MHz E: 823 – 865 MHz JB: 806 – 810 MHz K+: 925 – 937.5 MHz 1G8: 1785 – 1800 MHz Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels 1 frequency bank with up to 12 programmable channels up to 42 MHz ±24 kHz / ±48 kHz ≤ ±15 ppm Max. 30 mW Can be switched off ► AF characteristics

Compander system AF frequency response Signal-to-noise ratio (1 mV, peak deviation) Total harmonic distortion (THD) Max. input voltage Microphone/line Input impedance Microphone/line Input capacitance Setting range for input sensitivity

Sennheiser HDX Microphone: 80 – 18,000 Hz Line: 25 – 18,000 Hz ≥ 110 dBA ≤ 0.9 % 3 V eff 40 kΩ, unbalanced/1 MΩ Switchable 60 dB in 3 dB steps 136

► Overall device

Temperature range Power supply Nominal voltage Power consumption at nominal voltage with transmitter switched off Operating time Dimensions Weight (with batteries)

-10 °C to +55 °C (14 °F to 131 °F) 2 AA batteries, 1,5 V or BA 2015 accupack 3 V battery 2.4 V rechargeable battery typically 180 mA ≤ 25 μA Typically 8 h approx. 82 x 64 x 24 mm Approx. 160 g 137

ASA 214

► Specifications

ASA 214 antenna splitter Connection cable Frequency range

ASA 214-UHF: ASA 214-1G8:

Amplification

2 × 1:4 or 1 × 1:8, active 8 pieces, 50 cm, BNC 470 – 870 MHz at –3 dB 1785 – 1805 MHz at –3 dB In A – Out A In A – Out A1 ... A4 In B – Out B1 ... B4

IIP3 Impedance Reflection loss Operating voltage Power consumption Total power consumption

0 ± 1 dB 0 ± 1 dB 0 ± 1 dB 20 dBm min.

23 dBm, typical 50 Ω 10 dB (all RF outputs) 13.8 V DC (with power supply unit NT 1-1) ASA 1: 245 mA ASA 1-1G8: 350 mA max. 2.0 A with 4 receivers and 2 × 2 antenna amplifiers per antenna input 12 V, 130 mA

Antenna amplifier power supply at ANT RF IN A and ANT RF IN B Receiver power supply at A1 to A4 Relative air humidity Temperature range

12 V (protected against reverse supply), 350 mA 5 to 95% Operation: Storage:

Dimensions Weight

-10 °C to +55 °C (14 °F to 131 °F) -20 °C to +70 °C (-4 °F to 158 °F) approx. 212 x 168 x 43 mm approx. 1090 g 138

Block diagram 139

Pin assignment

► 3.5 mm stereo jack plug • • L R Plug for headphone and earphone cables, e.g. IE 4.

Connect to: • EK IEM G4 • EK 500 G4 ► 3.5 mm mic jack plug Mic • • Plug for lavalier and headset microphone, e.g. ME 2.

Connect to: • SK 100 G4 • SK 300 G4 • SK 500 G4 3.5 mm line jack plug ► Line

+

Pin assignment • • Plug for line and instrument cables, e.g. Ci 1-N Connect to: • SK 100 G4 • SK 300 G4 • SK 500 G4 ► 6.3 mm stereo jack plug, balanced (audio in/loop out) • Connect to: • SR IEM G4 Audio In • SR IEM G4 Loop Out 140

► 6.3 mm mono jack plug, unbalanced • Connect to: • EM 100 G4 Audio Out • EM 300-500 G4 Audio Out ► 6.3 mm stereo jack plug for headphone jack • L R Connect to: • EM 100 G4 headphone input • EM 300-500 G4 headphone input • SR IEM G4 headphone input ► XLR-3 plug, balanced 2 3 1 ► Hollow jack plug for power supply Pin assignment 141

Cleaning and maintenance

Cleaning and maintenance

Note the following information when cleaning and maintaining evolution wireless G4 series products.

CAUTION

Liquids can damage the products’ electronics.

Liquids entering the product housing can cause a short-circuit and damage the electronics.

Keep all liquids away from the products.

Do not use any solvents or cleansing agents.

▷ ▷

Disconnect the products from the power supply system and remove re chargeable batteries and batteries before you begin cleaning.

Clean all products only with a soft, dry cloth.

Note the special cleaning instructions below for the following products.

Cleaning the sound inlet basket of the microphone module

▷ ▷

Unscrew the top sound inlet basket from the microphone module by turning it counterclockwise.

Remove the foam insert.

You can clean the sound inlet basket in two ways:

Use a slightly damp cloth to clean the top sound inlet basket from the inside and outside.

▷ ▷ ▷ ▷

Use a brush and rinse with clean water.

If necessary, clean the foam insert with a mild detergent or replace the foam insert.

Dry the top sound inlet basket and foam insert.

Reinsert the foam insert.

142

Cleaning and maintenance

Screw the sound inlet basket back onto the microphone module.

From time to time, you should also clean the microphone module contacts:

Wipe the contacts of the microphone module with a soft, dry cloth.

143

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
