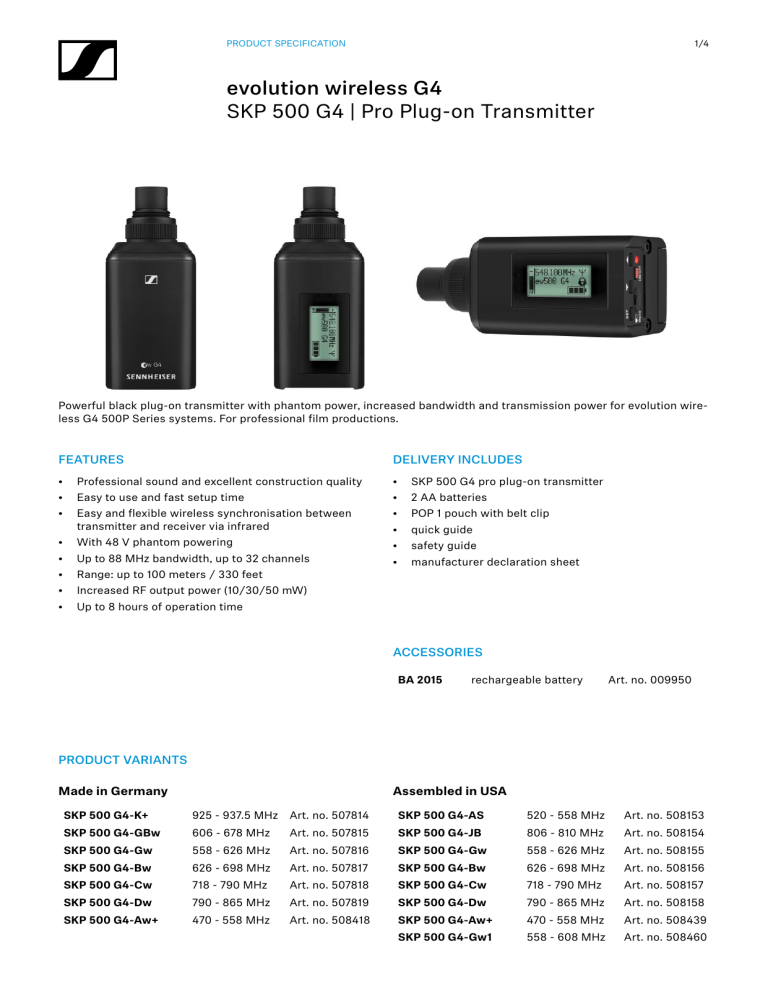

PRODUCT SPECIFICATION
1/4
evolution wireless G4
SKP 500 G4 | Pro Plug-on Transmitter
Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.
FEATURES
DELIVERY INCLUDES
•
Professional sound and excellent construction quality
•
SKP 500 G4 pro plug-on transmitter
•
Easy to use and fast setup time
•
2 AA batteries
•
Easy and flexible wireless synchronisation between
transmitter and receiver via infrared
•
POP 1 pouch with belt clip
•
With 48 V phantom powering
•
quick guide
•
Up to 88 MHz bandwidth, up to 32 channels
•
safety guide
•
Range: up to 100 meters / 330 feet
•
manufacturer declaration sheet
•
Increased RF output power (10/30/50 mW)
•
Up to 8 hours of operation time
ACCESSORIES
BA 2015
rechargeable battery
Art. no. 009950
PRODUCT VARIANTS
Made in Germany
Assembled in USA
SKP 500 G4-K+
925 - 937.5 MHz Art. no. 507814
SKP 500 G4-AS
520 - 558 MHz
Art. no. 508153
SKP 500 G4-GBw
606 - 678 MHz
Art. no. 507815
SKP 500 G4-JB
806 - 810 MHz
Art. no. 508154
SKP 500 G4-Gw
558 - 626 MHz
Art. no. 507816
SKP 500 G4-Gw
558 - 626 MHz
Art. no. 508155
SKP 500 G4-Bw
626 - 698 MHz
Art. no. 507817
SKP 500 G4-Bw
626 - 698 MHz
Art. no. 508156
SKP 500 G4-Cw
718 - 790 MHz
Art. no. 507818
SKP 500 G4-Cw
718 - 790 MHz
Art. no. 508157
SKP 500 G4-Dw
790 - 865 MHz
Art. no. 507819
SKP 500 G4-Dw
790 - 865 MHz
Art. no. 508158
SKP 500 G4-Aw+
470 - 558 MHz
Art. no. 508418
SKP 500 G4-Aw+
470 - 558 MHz
Art. no. 508439
SKP 500 G4-Gw1
558 - 608 MHz
Art. no. 508460
PRODUCT SPECIFICATION
2/4
evolution wireless G4
SKP 500 G4 | Pro Plug-on Transmitter
SPECIFICATIONS
RF characteristics
Modulation
Wideband FM
Frequency ranges
Aw+: 470 - 558 MHz
AS: 520 - 558 MHz
Gw1: 558 - 608 MHz
Gw: 558 - 626 MHz
GBw: 606 - 678 MHz
Bw: 526 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
Transmission frequencies
Max. 3520 frequencies,
adjustable in 25 kHz steps
20 frequency banks, each
with up to 32 factory-preset channels, no intermodulation
AF characteristics
Compander system
Sennheiser HDX
AF frequency response
80 – 18,000 Hz
Signal-to-noise ratio (1 mV,
peak deviation)
≥ 120 dBA
Total harmonic distortion
(THD)
≤ 0.9 %
Max. input voltage
6 Veff
Input impedance
68 kΩ, unbalanced
Input capacitance
Switchable
Setting range for input
sensitivity
48 dB,
adjustable in 6 dB steps
Overall device
Temperature range
-10 °C to +55 °C
Power supply
6 frequency banks with
up to 32 programmable
channels
2 AA batteries, 1.5 V or
BA 2015 accupack
Nominal voltage
3 V battery /
2.4 V rechargeable battery
Switching bandwidth
up to 88 MHz
Current consumption
Nominal/peak deviation
±24 kHz / ±48 kHz
Frequency stability
≤ ±15 ppm
at nominal voltage:
typ. 210 mA
with transmitter switched
off: ≤ 25 µA
RF output power at 50 Ω
switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Operating time
Typically 8 h
Dimensions
Approx. 105 x 43 x 43 mm
Weight (incl. batteries)
approx. 195 g
Pilot tone squelch
Can be switched off
PRODUCT SPECIFICATION
3/4
evolution wireless G4
SKP 500 G4 | Pro Plug-on Transmitter
DIMENSIONS
42.4
1.67
XLR 3
103.5
4.07
PRODUCT SPECIFICATION
4/4
evolution wireless G4
SKP 500 G4 | Pro Plug-on Transmitter
ARCHITECT‘S SPECIFICATION
The plug-on transmitter shall be for use to turn XLR-equipped microphones into wireless ones as part of a wireless RF
transmission system.
The plug-on transmitter shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 88 MHz:
470 – 558 MHz, 520 – 558 MHz, 558 – 608 MHz, 558 – 626 MHz, 606 – 678 MHz, 626 – 698 MHz, 718 – 790 MHz, 790 –
865 MHz, 806 – 810 MHz, 925 – 937.5 MHz; receiving frequencies shall be 3520 per range and shall be tunable in 25 kHz
steps. The plug-on transmitter shall feature 20 fixed frequency banks with up to 32 compatible frequency presets and 6
user banks with up to 32 user programmable frequencies.
The plug-on transmitter shall be menu-driven with a backlit LC display showing the current frequency, frequency bank
and channel number, metering of AF level, lock status, pilot tone evaluation, muting function, and battery status. An auto-lock feature shall be provided to prevent settings from being accidentally altered.
Some plug-on transmitter parameters such as receiving frequency, plug-on transmitter name and pilot tone setting shall
be synchronizable with the associated plug-on transmitter via an integrated infrared interface.
The plug-on transmitter shall be equipped with a mute switch, which shall be switchable between “AF on/off”, “RF on/off”
and “Disabled” via the user interface. The plug-on transmitter shall feature an Audio-XLR-3F connector.
Via the “PhantomPower 48V” menu item, the 48 V phantom powering for condenser microphones shall be switchable
between “Active” and “Inactive”.
Nominal/peak deviation shall be ±24 kHz/±48 kHz. Frequency stability shall be ≤ ±15 ppm. RF output power at 50 Ω shall
be switchable between 10 mW (typical, low) and 30 mW (typical, standard) and 50 mW (typical, high).
The plug-on transmitter shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch.
Audio frequency response shall range from 80 – 18,000 Hz. Signal-to-noise ratio at 1 mV and peak deviation shall be ≥ 120
dBA. Total harmonic distortion (THD) shall be ≤ 0.9 %.
The plug-on transmitters max. input voltage shall be 6 Veff; the unbalanced input impedance shall be 6 kΩ; the input
capacitance shall be switchable. The input sensitivity shall be adjustable within a 48 dB range in steps of 6 dB.
Power shall be supplied to the plug-on transmitter by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. Nominal voltage shall be 2.4 V, current consumption shall be typical 210 mA at nominal voltage; ≤ 25
μA when plug-on transmitter is switched off. Operating time shall be typical 8 hours. The plug-on transmitter shall have
a rugged metal housing; dimensions shall be approximately 105 x 43 x 43 mm (4.13" x 1.69" x 1.69"). Weight including the
batteries shall beapproximately 195 grams (0.43 lbs). Operating temperature shall range from −10 °C to +55 °C (+14 °F to
+131 °F).
The plug-on transmitter shall be the Sennheiser SKP 500 G4.
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
