Bresser Tripod Adapter for Binoculars Owner Manual

ANL1916500GB1103BRESSER
GB
12.12.2003
16:51 Uhr

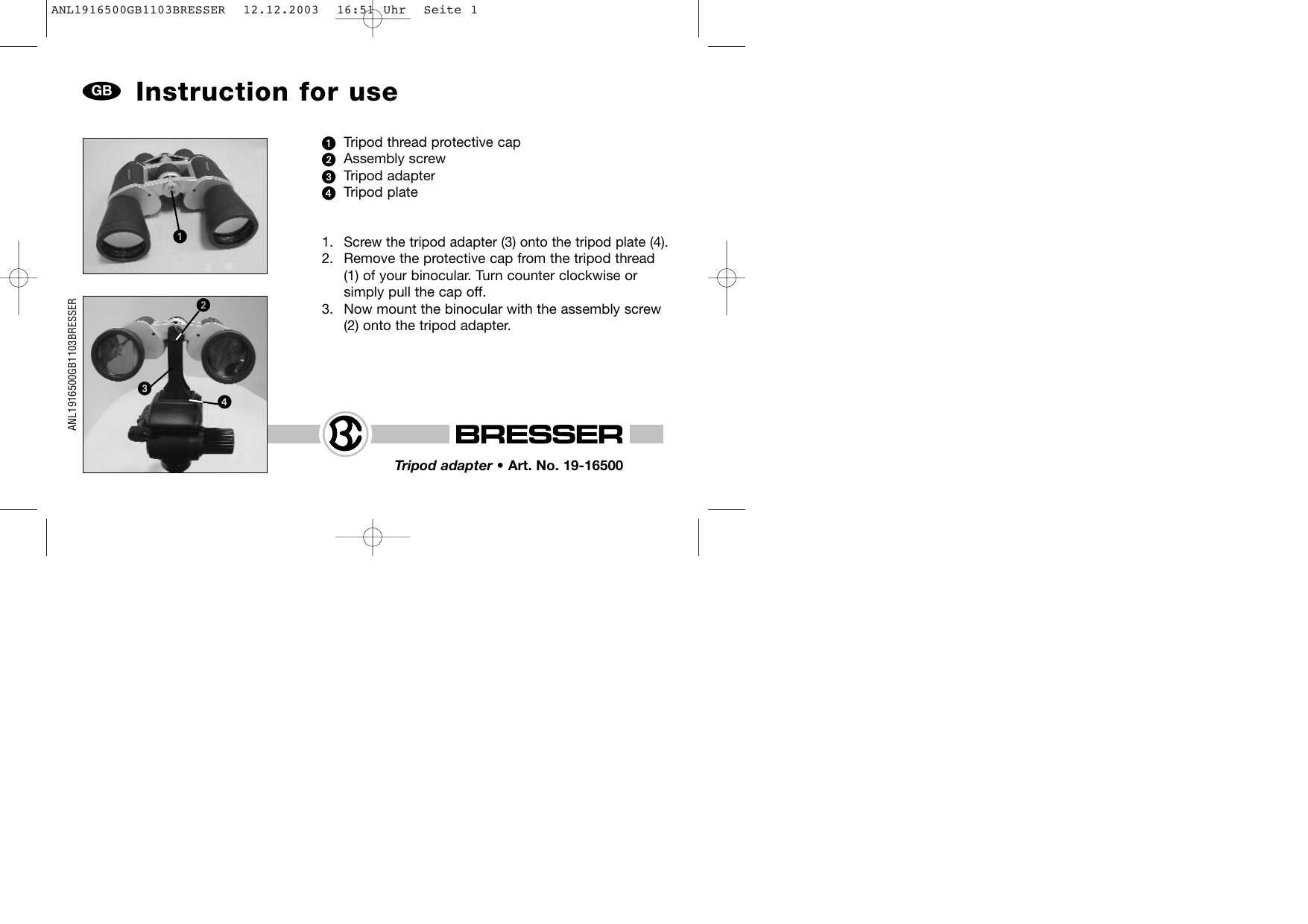

Instruction for use
ANL1916500GB1103BRESSER
Seite 1
1. Screw the tripod adapter (3) onto the tripod plate (4).
2. Remove the protective cap from the tripod thread
(1) of your binocular. Turn counter clockwise or
simply pull the cap off.
3. Now mount the binocular with the assembly screw
(2) onto the tripod adapter.
Tripod thread protective cap
Assembly screw
Tripod adapter
Tripod plate
Tripod adapter • Art. No. 19-16500
