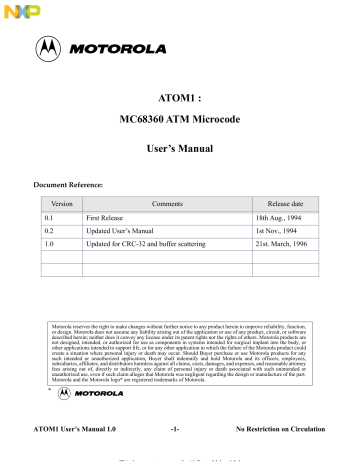

ATOM1 :
MC68360 ATM Microcode
User’s Manual
Document Reference:
Version
Comments
Release date
0.1
First Release
18th Aug., 1994
0.2
Updated User’s Manual
1st Nov., 1994
1.0
Updated for CRC-32 and buffer scattering
21st. March, 1996
Motorola reserves the right to make changes without further notice to any product herein to improve reliability, function,
or design. Motorola does not assume any liability arising out of the application or use of any product, circuit, or software
described herein; neither does it convey any license under its patent rights nor the rights of others. Motorola products are
not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or
other applications intended to support life, or for any other application in which the failure of the Motorola product could
create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any
such intended or unauthorized application, Buyer shall indemnify and hold Motorola and its officers, employees,
subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney
fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or
unauthorized use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part.
Motorola and the Motorola logo* are registered trademarks of Motorola.
*
ATOM1 User’s Manual 1.0
-1-
Thi d
t
t d ith F
No Restriction on Circulation
M k
404
TABLE OF CONTENTS
1.
1.1.
1.2.
1.3.
INTRODUCTION ............................................................................................................. 5
Key Features of ATOM1 ............................................................................................ 5
MC68360 SCCs .......................................................................................................... 6
Conventions ................................................................................................................ 6
2.
2.1.
2.2.
2.3.
2.4.
2.5.
2.6.
2.7.
ATOM1 OPERATION ...................................................................................................... 7
Number of Connections .............................................................................................. 7
Cell Delineation .......................................................................................................... 7
AAL Frame Check Sequences .................................................................................... 8
PDH & SDH Physical Layer Signalling & OAM Functions ...................................... 8
Traffic Control ............................................................................................................ 8
Physical Interface ........................................................................................................ 8
Buffer Descriptor and Buffer Structures ..................................................................... 8
3.
REGISTERS ...................................................................................................................... 9
3.1.
General Registers ........................................................................................................ 9
3.1.1.
RISC Controller Configuration Register (RCCR) .................................................. 9
3.1.2.
CP Control Registers ............................................................................................... 9
3.2.
SCC Registers ........................................................................................................... 10
3.2.1.
General SCC Mode Register (GSMR) .................................................................. 10
3.2.2.
Protocol Specific Mode Register (PSMR) ............................................................ 10
3.2.3.
SCC Event Register (SCCE) ................................................................................. 11
3.2.4.
SCC Mask Register (SCCM) ................................................................................ 11
3.2.5.
SCC Status Register (SCCS) ................................................................................. 12
3.3.
Serial Interface .......................................................................................................... 12
3.3.1.
Serial Interface Registers ...................................................................................... 12
3.3.2.
Serial Interface RAM ............................................................................................ 12
3.4.
Parallel Port Registers ............................................................................................... 13
4.
ATOM1 SCC PARAMETER RAM ................................................................................ 14
4.0.1.
BD Queue Pointers (RBASE and TBASE) ........................................................... 15
4.0.2.
SCC Function Code Registers (RFCR and TFCR) ............................................... 15
4.0.3.
Transparent Mode Receive Maximum Buffer Length (MRBLR) ........................ 15
4.0.4.
SCC Internal State Parameters (RSTATE and TSTATE) ..................................... 15
4.0.5.
BD and Buffer Pointers (R_PTR, RBD_PTR, T_PTR and TBD_PTR) ............... 16
4.0.6.
Transmit and Receive Buffer Queue Start Pointers (TX_BUFF1, RX_BUFF1) .. 16
4.0.7.
Buffer Counters (R_CNT and T_CNT) ................................................................ 16
4.0.8.
Receiver Delineation Counters (ALPHA and DELTA) ........................................ 16
4.0.9.
Version Number (AVERSION) ............................................................................ 16
4.0.10.
CAM Port Selection (CAM_PORT) ..................................................................... 16
4.0.11.
Empty Cell Data (EHEAD and EPAYLOAD) ..................................................... 16
4.0.12.
Status Information (ASTATUS) ........................................................................... 17
4.0.13.
Non-Matching Header Storage and Counter (NMA_HEAD and NMA_CNT) .... 17
4.0.14.
HEC Error Counter (HEC_ERR) .......................................................................... 17
4.0.15.
Incoming Header Mask and Look-up Table (HEADMASK and HEADn) .......... 18
4.0.16.
Temporary Data Storage ....................................................................................... 18
ATOM1 User’s Manual 1.0
-2-
No Restriction on Circulation
5.
5.1.
5.2.
ATOM1 COMMANDS ................................................................................................... 18
Restart Reception Command .................................................................................... 19
CRC-32 Calculator .................................................................................................... 19
6.
BUFFER DESCRIPTORS & BUFFERS ........................................................................ 21
6.1.
ATOM1 Buffer Descriptor and Buffer Queues ........................................................ 21
6.2.
Receive Buffer Descriptor and Data Buffer .............................................................. 22
6.3.
Transmit Buffer Descriptor and Data Buffer ............................................................ 23
6.3.1.
Transmit Bandwidth Reservation .......................................................................... 24
7.
ATOM1 CAM INTERFACE .......................................................................................... 25
8.
LOADING & CONFIGURING ATOM1 ........................................................................ 27
9.
9.1.
9.2.
PERFORMANCE ............................................................................................................ 27
Command Execution Latency ................................................................................... 29
CRC-32 Calculation Execution ................................................................................. 29
10.
ATOM1 DISK STRUCTURE ......................................................................................... 30
11.
MC68360 MASK SET APPLICABILITY ...................................................................... 30
12.
ORDERING INFORMATION ........................................................................................ 31
13.
REFERENCES ................................................................................................................ 31
Appendix 1.
STATE MACHINE DETAILS ...................................................................... 32
ATOM1 Transmitter .................................................................................. 32
ATM Cell Payload Scrambling .................................................................. 33
ATOM1 Receiver ....................................................................................... 33
HEC Delineation Mechanism .................................................................... 33
Appendix 2.
ATOM1 DEMONSTRATION SOFTWARE ................................................ 36
ATOM1 User’s Manual 1.0
-3-
No Restriction on Circulation
LIST OF TABLES
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
Table 6.
Table 7.
Table 8.
Table 9.
Table 10.
CP Control Registers ........................................................................................... 9
MC68360 Serial Interface Programming Example ....................................... 12
Serial Interface RAM Programming Example .............................................. 12
ATOM1 TDM A Port Pin Requirements ........................................................ 13
MC68360 Port Register Programming ........................................................... 13
ATOM1 SCC Parameter RAM Memory Map ............................................... 14
ATOM1 CRC-32 Calculator Parameter RAM Memory Map ...................... 20
ATOM1 Performance ........................................................................................ 28
ATOM1 and other Protocol Performance ...................................................... 28
CRC-32 Calculator Performance ..................................................................... 29
LIST OF FIGURES
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.
Figure 11.
Figure 12.
Figure 13.
Figure 14.
Figure 15.
Figure 16.
Figure 17.
Figure 18.
Typical ATOM1 Application System ............................................................... 6
ATOM1 RCCR ..................................................................................................... 9
ATOM1 PSMR ................................................................................................... 10
ATOM1 SCCE .................................................................................................... 11
ASTATUS ........................................................................................................... 17
HEADMASK ...................................................................................................... 18
HEADn ............................................................................................................... 18
ATOM1 Transmit Buffer and BD Queue Example ...................................... 21
ATOM1 Receive Buffer Descriptor ................................................................. 22
ATOM1 Transmit Buffer Descriptor .............................................................. 23
Transmit Buffer ................................................................................................. 24
Mixed Voice and Data Transmission Example ............................................. 25
ATOM1 CAM Interface .................................................................................... 26
ATOM1 Disk Structure ..................................................................................... 30
ATOM1 Transmitter Procedure ...................................................................... 32
ATM Cell Payload Scrambling Mechanism .................................................. 33
ATOM1 Receiver Procedure ............................................................................ 34
Cell Delineation State Diagram ....................................................................... 35
ATOM1 User’s Manual 1.0
-4-
No Restriction on Circulation
ATOM1
Asynchronous Transfer Mode Microcode for the QUICC
1.
INTRODUCTION
ATOM1 is an MC68360 RAM-based microcode that provides physical layer ATM functions by
converting one or more of the QUICC's serial communication controllers (SCCs) into an ATM
cell transmitter and receiver. ATOM1 provides the user with cell streaming facilities (cell
reception and transmission) and event indications. The user can add AAL functions to ATOM1
using software.
The primary application of ATOM1 is intended to be G.804 plesiochronous digital hierarchy
(PDH) and synchronous digital hierarchy (SDH) E1 and DS1 ATM equipment. Such equipment
is used for signalling and low rate data transfer and may be part of the telecommunications
infrastructure or terminal equipment.
Figure 1 shows an ATM communications module built around the QUICC running an ATOM1
microcode. This module could be a board within a larger system or part of a larger ATM board.
The ATOM1 microcode runs on the QUICC’s RISC communications processor (CP) and is
stored in the dual port RAM. The user interface to ATOM1 is through buffer descriptors located
in the QUICC’s dual port RAM and data buffers located in external memory. The QUICC’s
CPU32+ controls the module and memory using the on-chip memory controller and other
integration features.
1.1.
Key Features of ATOM1
The key features of ATOM1 are:
• Cell transmission and reception for all AAL protocols.
• Handles serial data rates up to 8 Mbps with a 25 MHz QUICC and up to 11 Mbps with
a 33 MHz QUICC.
• Any or all of the QUICC’s SCCs can simultaneously handle ATM cells.
• Transmit and receive data buffers located in main memory.
• On transmission, ATOM1 constructs the cell header and appends the user defined
payload.
• Bandwidth reservation option in the transmit queue to allow mixing of data and
isochronous services.
• On reception, ATOM1 verifies incoming cell headers and strips the HEC before passing
the cell to the user.
• Automatic empty cell transmission when there are no pending data transfers.
• Receiver filters and discards empty cells and those with non-matching addresses.
• CAM support on reception for handling many connections.
• User controlled cell scrambling option.
• Incoming cells with incorrect HECs are received and marked as such.
• A CRC-32 calculator is available to reduce processor performance requirements when
ATOM1 User’s Manual 1.0
-5-
No Restriction on Circulation
handling AAL5 cells.
• Standard QUICC features are available when ATOM1 is running.
E1 ATM
Frame
Relay
UART
E1 ATM Line
Transceiver
E1 ATM Line
Transceiver
Frame
Relay Driver
SCC1
RISC CP
CPU32+ Core
Dual Port RAM
SIM
Periodic Timers
14 SDMAs
System
Protection
SCC2
Time Slot Assigner
E1 ATM
SCC3
SCC4
SMC1
SMC2
RS-232
Driver
2 IDMAs
SPI
CPM
4Timers
Clock
Generator
Interrupt
Controller
Memory
Controller
Chip Selects
MC68360
QUICC
System
System
Interface
DRAMC
SRAMC
8-bit Boot ROM
32-bit SRAM
32-bit DRAM
Figure 1. Typical ATOM1 Application System
1.2.
MC68360 SCCs
ATOM1 can operate on any MC68360 SCC and can simultaneously operate on any two, three
or all four SCCs. To maintain the performance of ATOM1, it is recommended that the highest
speed connection operates on SCC1 and the lowest speed connection on SCC4.
ATOM1 uses the SCC in transparent mode with microcode performing ATM cell functions.
When ATOM1 is loaded and RAM microcode is enabled, transparent mode operation is
available on any SCC other than ones running ATOM1.
1.3.
Conventions
The reader is assumed to be familiar with the QUICC and ATM. For further information about
the QUICC, please refer to the MC68360 User's Manual. Full details of the ATM protocols can
be found in the relevant ITU-T recommendations and the ATM Forum UNI document listed at
the end of this manual.
ATOM1 User’s Manual 1.0
-6-
No Restriction on Circulation
In this manual, the term “user” is used to describe the CPU software that drives ATOM1. In the
MC68360 this may be the CPU32+ or an external CPU.
2.
ATOM1 OPERATION
ATOM1 transmits and receives 53-byte ATM cells as defined in the ATM Forum UNI
specification (ATOM1 also handles NNI cells). Cells are transmitted from a single queue and
the user has full control over each cell’s GFC, VPI, VCI, PT, CLP and payload fields. ATOM1
generates and inserts the cell HEC field on transmission and checks and strips it on reception.
An option is included to apply the HEC coset pattern (binary 01010101) to transmitted and
received cells.
ATOM1 performs cell rate adaptation to the capacity of the transmission link by the inserting
empty cells when no cells are queued by the user. On reception, ATOM1 ignores empty cells.
The user can define the empty cell to be either an unassigned or idle cell.
Received cells with HEC errors are received and marked as such. The HEC is passed to the user
to allow user software to implement HEC correction algorithms as required. ATOM1 does not
attempt to correct any HEC errors.
ATOM1 provides an option to scramble data on transmission and receive scrambled data using
the X43+1 scrambling algorithm. The first cell to be transmitted by ATOM1 after initialisation
will not be correctly scrambled because there is no valid data in the 43-bit delay line. ATOM1
always transmits an empty cell first therefore avoiding data corruption. On reception, the
descrambling algorithm self-synchronises before the HEC delineation process is complete and
cell reception begins.
2.1.
Number of Connections
ATOM1 transmits one cell at a time on the virtual connection specified for that cell. The user
can transmit ATM cells with the whole range of the cell's address field (VCI and VPI combined).
ATOM1 receives cells after matching the cell header with a header look-up table or an external
CAM. The internal look-up table has up to 16 entries and cell headers can have bits masked
before the comparison.
The user must maintain enough open channels to receive OAM and signalling cells. User
software must handle OAM and signalling cells.
2.2.
Cell Delineation
The user must provide synchronisation signals to the QUICC and octet-align incoming cells to
the synchronisation signals. ATOM1 provide SDH/PDH oriented cell delineation using the
HEC mechanism defined in I.432 on an octet basis. The synchronisation signals need not
delimit the start of cell but must be octet aligned with incoming cells. When using E1 and T1
ATM links, the cells are always octet aligned (see ITU G.804) and synchronisation signals are
provided by the E1 and T1 interface devices.
ATOM1 User’s Manual 1.0
-7-
No Restriction on Circulation
When reception commences, ATOM1 takes a short while to acquire correct cell delineation.
Once ATOM1 has locked to the incoming cell stream, it remains locked unless there are
excessive errors. An interrupt is generated whenever the cell lock status changes and a status
bit will indicate the current delineation status.
Further details of the cell delineation mechanism are given in Appendix A.
2.3.
AAL Frame Check Sequences
To increase software throughput of AAL5 frames, a CRC-32 calculator is included. This is not
an integral part of the cell transmission and reception process in order that CRC-32 sequences
may be calculated across long AAL5 frames made up of interleaved ATM cells. The CRC-32
calculator is a command which ATOM1 interprets by working through a data buffer generating
the required CRC-32 sequence.
2.4.
PDH & SDH Physical Layer Signalling & OAM Functions
PDH and SDH framing physical layer signalling and OAM functions are not provided by
ATOM1 but the user can handle these by routing the PDH/SDH OAM, signalling and
overhead timeslots to one of the QUICC's SMCs or another SCC.
2.5.
Traffic Control
ATOM1 transmits cells from it's single transmission queue in the order that they are presented.
It is the user's responsibility to apply traffic management techniques to avoid congestion and
breaking the UPC rules if the connection data rate is less than the transmit bit rate. Failure to
apply these techniques may result in bursty traffic on open connections.
When ATOM1's transmit queue is empty, ATOM1 will automatically transmit empty cells.
2.6.
Physical Interface
The ATOM1 microcode is independent of the physical interface standard used. Generally, one
of the QUICC’s TDM ports will be used with ATOM1 to allow easy connection to an E1 or T1
line interface device. Other serial interfaces are not precluded and may be selected when
programming the MC68360 serial interface. This User’s Manual describes the TDM interface
using the Time Slot Assigner (TSA).
2.7.
Buffer Descriptor and Buffer Structures
ATOM1 uses an optimized version of the standard MC68360 data buffer and buffer descriptor
(BD) structures. The ATOM1 structures are better suited to handling numerous small data
buffers as is required in ATM. The BDs are just two bytes long instead of the normal eight byte
BDs and buffers are fixed length. Data buffers are scattered in receive and transmit buffer
memory areas, each 16K bytes, located anywhere in the processor’s memory map.
ATOM1 User’s Manual 1.0
-8-
No Restriction on Circulation
3.
REGISTERS
ATOM1 requires several general MC68360 and SCC registers to be configured for operation
and reports status in SCC registers.
3.1.
General Registers
All the MC68360 general registers (SIM, memory controller, chip select, SDMA, etc.) must be
configured as described in the MC68360 User’s Manual with the exception of the CP Control
Registers and RISC Controller Configuration Register. Interrupts are generated by ATOM1 and
the MC68360 interrupt controller must be configured by the user (see the MC68360 User’s
Manual, section 7.15 for details).
3.1.1.
RISC Controller Configuration Register (RCCR)
The MC68360’s RCCR controls microcode operation. To run ATOM1, the RCCR should be set
as shown in Figure 2. Further details are given in the MC68360 User’s Manual, section 7.1.1.
ATOM1
15
14
TIME
-
0
0
13
8
7
6
TIMEP
EX1M
EX0M
0
0
0
5
4
3
2
1
0
EX1P
EIEE
SCD
LRAM
ERAM
00
0
0
1
1
Figure 2. ATOM1 RCCR
Setting RCCR bit 0 enables RAM microcode operation and this should not be done until
ATOM1 and the MC68360 are initialized.
Note: the RISC timers are unavailable when ATOM1 is running and the TIME and TIMEP bits
must be cleared in the RCCR.
3.1.2.
CP Control Registers
The user must configure CP Control registers as shown in Table 1. Note, the value programmed
into CPCR4 depends on the QUICC device version used.
Address
Name
Description
User Writes (hex)
REGB+$5CC
CPCR1
CP Control Register 1
8056
REGB+$5CE
CPCR2
CP Control Register 2
8076
REGB+$5D0
CPCR3
CP Control Register 3
8036
REGB+$5D2
CPCR4
CP Control Register 4
8E18 rev B1 MC68360
8818 rev B2, B3, B4, C0,
C1 and E MC68360s
Table 1: CP Control Registers
ATOM1 User’s Manual 1.0
-9-
No Restriction on Circulation
3.2.
SCC Registers
ATOM1 operates using an SCC and is enabled in the SCC’s General SCC Mode Register
(GSMR). The clock source is configured in the serial interface registers (see section 3.3.1).
3.2.1.
General SCC Mode Register (GSMR)
ATOM1 requires the following bits to be set in the GSMR: TRX, TTX, CDP, CTSP, CDS and
CTSS. To enable ATOM1’s transmit and receive functions, the ENT and ENR bits must be set
when the initialisation sequence has been completed. Full GSMR details are given in the
MC68360 User’s Manual, section 7.10.2.
Additionally, the REVD bit in the GSMR (bit 45) changes function to become the CAM control
bit when ATOM1 is running:
CAM
0
1
Use the internal address table for address matching.
Use the external CAM for address matching.
To enable an SCC to run ATOM1, the SCC must be in transparent mode and have MRBLR = 0.
When MRBLR is programmed with a non-zero value, the SCC operates in transparent mode.
Mixed mode operation of an SCC (where the transmitter runs ATOM1 and the receiver is in
transparent mode or vice versa) running ATOM1 is not allowed.
When ATOM1 is loaded and running, the maximum serial performance of an SCC in
transparent mode is reduced very slightly.
3.2.2.
Protocol Specific Mode Register (PSMR)
The SCC Protocol Specific Mode Register (PSMR) controls various SCC functions that are
protocol specific. Before enabling ATOM1, the user should initialize the PSMR. The PSMR
should only be written when the transmitter and receiver are disabled, otherwise erratic
behaviour could result.
For ATOM1, the PSMR is used to control the scrambling and HEC coset functions of both the
transmitter and receiver (see Figure 3).
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
-
-
SCRAM
-
-
-
-
COSET
-
-
-
-
-
-
-
-
Figure 3. ATOM1 PSMR
SCRAM
0
1
Disable cell payload scrambling during transmission and reception.
Enable cell payload scrambling during transmission and reception.
COSET
0
1
Do not apply the HEC coset rules.
Apply the HEC coset to all transmitted and received cells.
ATOM1 User’s Manual 1.0
-10-
No Restriction on Circulation
3.2.3.
SCC Event Register (SCCE)
The SCC event register (SCCE) contains status bits for events recognized by ATOM1 and the
SCC circuitry. Whenever a bit is set in the SCCE, an interrupt to the user is generated unless the
corresponding bit in the SCC Mask register (SCCM) is set. All bits in the SCCE are sticky bits:
they are set by the SCC hardware or ATOM1 and must be reset by the user writing a one.
Bits 15-8 are set by the SCC hardware and some unused bits may be set. The user should mask
interrupts from all unused bits in the SCCM. Bits 7-0 are set by ATOM1 to indicate events that
it has detected (see Figure 4).
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
-
-
-
GLR
GLT
DCC
-
-
NMA
SYNC
FIFO
HEC
OAM
BSY
TX
RX
Figure 4. ATOM1 SCCE
RX
A cell has been received and a receive buffer used. This bit is set on completion of reception.
TX
A cell has been transmitted and a transmit buffer used.
BSY
A cell was received and discarded due to lack of receive buffers.
OAM
A control cell (OAM or reserved for future use as indicated by the PT field) been received and a
receive buffer used. This bit is set on completion of reception. When this bit is set, the RX bit is
also set but about 10 system clocks later.
HEC
A cell has been received with a HEC error. This bit is also set when the SYNC bit is set. The HEC
bit is set as soon as a HEC error is detected - it does not wait until the complete cell is received.
FIFO
A transmit FIFO underrun or receive FIFO overrun error has occurred. See ASTATUS for the
exact status.
SYNC
ATOM1 has lost or gained cell delineation.
NMA
ATOM1 received a cell with a non-matching address.
DCC
The carrier sense status as generated by the DPLL has changed. See description of the Transparent
Mode SCCE in the MC68360 User’s Manual, section 7.10.21.11.
GLT
A clock glitch was detected by the SCC on the transmit clock. See description of the Transparent
Mode SCCE in the MC68360 User’s Manual, section 7.10.21.11.
GLR
A clock glitch was detected by the SCC on the receive clock. See description of the Transparent
Mode SCCE in the MC68360 User’s Manual, section 7.10.21.11.
3.2.4.
SCC Mask Register (SCCM)
The SCCM has the same bit definitions as the SCCE and allows the user to mask interrupts.
Further details are given in the MC68360 User’s Manual, section 7.10.8.2.
ATOM1 User’s Manual 1.0
-11-
No Restriction on Circulation
3.2.5.
SCC Status Register (SCCS)
The function of the SCCS register is unchanged when ATOM1 uses an SCC.
3.3.
Serial Interface
ATOM1 may use the MC68360’s serial interface (SI) in any mode although the time division
multiplex mode to allows easy connection to E1 and T1 line interface devices. This section of
the User’s Manual concentrates on the TDM interface although use of other serial interfaces is
not precluded.
It is the user’s responsibility to ensure that incoming cells are octet aligned with the SI
handshake or synchronisation pulses. ATOM1 will then apply the cell HEC delineation
mechanism correctly and synchronise with the incoming cell stream.
ATOM1 can use either of the MC68360 TDM ports. Programming information is given here for
use of TDM A and can easily be converted for TDM B. Further information about the SI is given
in the MC68360 User’s Manual, section 7.8.
3.3.1.
Serial Interface Registers
The SI registers SIMODE, SIGMR and SICR should be programmed for the required interface
standard and the user must configure the SI RAM pointer (SIRP) as required in the system. An
example of programming the SI registers for connection to a line interface device with common
transmit and receive clocks is shown in Table 2. In this example, ATOM1 is running on SCC1.
Note: the timeslot assigner TSA must not be enabled in SIGMR until the SI RAM and other
registers have been configured.
Register
SIMODE
User Writes (hex)
Serial Interface Mode Register
0000 0058
SIGMR
Serial Interface Global Mode Register
04
SICR
Serial Interface Clock Route Register
0000 0040
Table 2: MC68360 Serial Interface Programming Example
3.3.2.
Serial Interface RAM
ATOM1 can use the MC68360 TSA with independent receiver and transmitter routing RAM
tables. An example of programming these two tables for back-to-back ATM cell transmission
and reception is given in Table 3. TDM A is used and data is routed to SCC1. Other SCCs and
TDM B may be used. For debug purposes, all four SI strobes are asserted during various
timeslots: L1ST1 during cell header transmission, L1ST2 on HEC transmission, L1ST3 during
cell header reception and L1ST4 on HEC reception.
SI RAM Entry
User Writes (hex)
Strobe Asserted
Rx A 0
104E
L1ST3
Receive four bytes of cell header
Remarks
Rx A 1
2042
L1ST4
Receive one byte HEC field
Rx A 2
007E
-
Receive first sixteen bytes of cell payload
Table 3: Serial Interface RAM Programming Example
ATOM1 User’s Manual 1.0
-12-
No Restriction on Circulation
SI RAM Entry
User Writes (hex)
Strobe Asserted
Remarks
Rx A 3
007E
-
Receive second sixteen bytes of cell payload
Rx A 4
007F
-
Receive final sixteen bytes of cell payload
Tx A 0
044E
L1ST1
Tx A 1
0842
L1ST2
Tx A 2
007E
-
Transmit first sixteen bytes of cell payload
Tx A 3
007E
-
Transmit second sixteen bytes of cell payload
Tx A 4
007F
-
Transmit final sixteen bytes of cell payload
Transmit four bytes of cell header
Transmit one byte HEC field
Table 3: Serial Interface RAM Programming Example
3.4.
Parallel Port Registers
For ATOM1 operation over TDM A, the MC68360 parallel port pins should be set up to
interface to external signals as shown in Table 4. The TSA strobes and SDMA Acknowledge
pins are shown and common receive and transmit clocks are used.
Signal
Pin
Direction
L1TXDA
PA6
Output
L1RXDA
PA7
Input
L1RSYNCA
PC11
Input
L1RCLKA
PA8
Input
L1ST1
PB12
Output
L1ST2
PB13
Output
L1ST3
PB14
Output
L1ST4
PB15
Output
SDACK1*
PC10
Output
SDACK2*
PC8
Output
Table 4: ATOM1 TDM A Port Pin Requirements
To achieve this, Table 5 shows an example of how the port registers may be programmed.
Register
User Writes (hex)
PIP Configuration Register
0000
PADIR
Port A Data Direction Register
00C0
PAPAR
Port A Pin Assignment Register
01C0
PAODR
Port A Open Drain Register
0000
PBDIR
Port B Data Direction Register
0000 0000
PBPAR
Port B Pin Assignment Register
0000 F000
PBODR
Port B Open Drain Register
0000
PCDIR
Port C Data Direction Register
0500
PCPAR
Port C Pin Assignment Register
0D00
PCSO
Port C Special Option Register
0000
PCINT
Port C Interrupt Control Register
0000
PIPC
Table 5: MC68360 Port Register Programming
ATOM1 User’s Manual 1.0
-13-
No Restriction on Circulation
4.
ATOM1 SCC PARAMETER RAM
When ATOM1 operates on a particular SCC, the SCC parameter RAM memory map is that
shown in Table 6. The user must initialize the parameter RAM with the values given after reset
or when re-initializing ATOM1.
Address
Name
Width
Description
User Writes (hex)
SCC Base + 00
RBASE
Word
Receive BD Base Address
UD
SCC Base + 02
TBASE
Word
Transmit BD Base Address
UD
SCC Base + 04
RFCR
Byte
Receive Function Code
UD
SCC Base + 05
TFCR
Byte
Transmit Function Code
UD
SCC Base + 06
MRBLR
Word
Transparent Rx Max Buffer Length
SCC Base + 08
RSTATE
Long
Receiver Internal State
SCC Base + 0C
R_PTR
Long
Receiver Internal Data Pointer
SCC Base + 10
RBD_PTR
Word
Receive BD Pointer
SCC Base + 12
R_CNT
Word
Receive Internal Byte Counter
-
SCC Base + 14
RTEMP
Long
Receiver Temporary Data Storage
-
SCC Base + 18
TSTATE
Long
Transmitter Internal State
SCC Base + 1C
T_PTR
Long
Transmit Internal Data Pointer
0000
use init rx/tx
command
use init rx/tx
command
use init rx/tx
command
use init rx/tx
command
SCC Base + 20
TBD_PTR
Word
Transmit BD Pointer
SCC Base + 22
T_CNT
Word
Transmit Internal Byte Counter
SCC Base + 24
TTEMP
Long
Transmitter Temporary Data Storage
-
SCC Base + 28
ALPHA
Word
Receiver Delineation Alpha Counter
-
SCC Base + 2A
DELTA
Word
Receiver Delineation Delta Counter
-
SCC Base + 2C
AVERSION
Word
ATOM1 Version Number
-
SCC Base + 2E
CAM_PORT
Word
CAM Port B Mask
SCC Base + 30
RX_BUFF1
Long
Receive Buffer Area Start Address
UD
SCC Base + 34
TX_BUFF1
Long
Transmit Buffer Area Start Address
UD
SCC Base + 38
EHEAD
Long
Empty Cell Header
(little endian byte format)
0000 0000
or 0100 0000
SCC Base + 3C
EPAYLOAD
Long
Empty Cell Payload
(little endian byte format)
6A6A 6A6A
SCC Base + 40
RSTUFF
Long
Receive Data Stuffing Location (53
to 52 byte conversion)
SCC Base + 44
SHUFFLESTATE
Word
Receiver Data Shuffling State
SCC Base + 46
RHECTEMP
Word
Temporary HEC Storage
-
SCC Base + 48
THECTEMP
Word
Temporary HEC storage area
-
SCC Base + 4A
ASTATUS
Word
ATOM1 status word
SCC Base + 4C
NMA_HEAD
Long
Non-Matching Address Cell Header
-
SCC Base + 50
NMA_CNT
Word
Non-Matching Address Cell Counter
0000
SCC Base + 52
HEC_ERR
Word
HEC Error Counter
0000
-
-
0000
0000
Table 6: ATOM1 SCC Parameter RAM Memory Map
ATOM1 User’s Manual 1.0
-14-
No Restriction on Circulation
Address
Name
Width
SCC Base + 54
RSCRAM
Long
SCC Base + 58
RSCRAM1
Long
SCC Base + 5C
TSCRAM
Long
Description
User Writes (hex)
Receiver Scrambling Storage
Transmitter Scrambling Storage
-
SCC Base + 60
TSCRAM1
Long
SCC Base + 64
HEADMASK
Long
Cell Header Comparison Mask
UD
-
SCC Base + 68
HEAD1
Long
Cell Header Look-Up Table Entry 1
UD
SCC Base + 6C
HEAD2
Long
Cell Header Look-Up Table Entry 2
UD
SCC Base + 70
HEAD3
Long
Cell Header Look-Up Table Entry 3
UD
SCC Base + 74
HEAD4
Long
Cell Header Look-Up Table Entry 4
UD
SCC Base + 78
HEAD5
Long
Cell Header Look-Up Table Entry 5
UD
SCC Base + 7C
HEAD6
Long
Cell Header Look-Up Table Entry 6
UD
SCC Base + 80
HEAD7
Long
Cell Header Look-Up Table Entry 7
UD
SCC Base + 84
HEAD8
Long
Cell Header Look-Up Table Entry 8
UD
SCC Base + 88
HEAD9
Long
Cell Header Look-Up Table Entry 9
UD
SCC Base + 8C
HEAD10
Long
Cell Header Look-Up Table Entry 10
UD
SCC Base + 90
HEAD11
Long
Cell Header Look-Up Table Entry 11
UD
SCC Base + 94
HEAD12
Long
Cell Header Look-Up Table Entry 12
UD
SCC Base + 98
HEAD13
Long
Cell Header Look-Up Table Entry 13
UD
SCC Base + 9C
HEAD14
Long
Cell Header Look-Up Table Entry 14
UD
SCC Base + A0
HEAD15
Long
Cell Header Look-Up Table Entry 15
UD
SCC Base + A4
HEAD16
Long
Cell Header Look-Up Table Entry 16
UD
UD = User Defined
Table 6: ATOM1 SCC Parameter RAM Memory Map
4.0.1.
BD Queue Pointers (RBASE and TBASE)
The user configures RBASE and TBASE to define the starting location of the receive and
transmit BD queues in the dual-port RAM. Further information is given in the MC68360 User’s
Manual, section 7.10.7.1.
4.0.2.
SCC Function Code Registers (RFCR and TFCR)
The user configures RFCR and TFCR to define the SDMA function code pin settings during
SDMA transfers. Further information is given in the MC68360 User’s Manual, section 7.10.7.2.
4.0.3.
Transparent Mode Receive Maximum Buffer Length (MRBLR)
To run ATOM1 on an SCC, the user must program that SCC’s MRBLR to zero. When MRBLR
is programmed with a non-zero value, the SCC operates in transparent mode as described in
the MC68360 User’s Manual, section 7.10.21.
4.0.4.
SCC Internal State Parameters (RSTATE and TSTATE)
ATOM1 uses RSTATE and TSTATE to store internal state variables and flags during operation.
The user must not write to these locations.
ATOM1 User’s Manual 1.0
-15-
No Restriction on Circulation
4.0.5.
BD and Buffer Pointers (R_PTR, RBD_PTR, T_PTR and TBD_PTR)
During cell transmission and reception, ATOM1 uses R_PTR, RBD_PTR, T_PTR and TBD_PTR
as pointers to the current BD and data locations. RBD_PTR and TBD_PTR point to the current
or next BD to use and need to be initialized with the Init Rx/Tx command to point to the
locations given in RBASE and TBASE. R_PTR, and T_PTR point to the next data location in
memory. When ATOM1 is operating, these locations should not be written by the user. Further
information is given in the MC68360 User’s Manual, sections 7.10.7.4 and 7.10.7.5.
4.0.6.
Transmit and Receive Buffer Queue Start Pointers (TX_BUFF1, RX_BUFF1)
The user configures TX_BUFF1 and RX_BUFF1 to define the starting location of the transmit
and receive buffer areas in main memory. This is the starting address of the 16K byte areas
where transmit and receive buffers reside. TX_BUFF1 and RX_BUFF1 must be long-word
aligned addresses (bits 0 and 1 must be zero).
TX_BUFF1 and RX_BUFF1 can be dynamically changed provided that care is taken to
synchronise the buffer queues held in user software and the queues that the QUICC’s CP sees.
The CPM reads TX_BUFF1 and RX_BUFF1 every time that it opens a data buffer so it is advised
that the transmit and receive queues are allowed to empty before TX_BUFF1 and RX_BUFF1
are changed.
4.0.7.
Buffer Counters (R_CNT and T_CNT)
During ATM cell transmission and reception, ATOM1 uses R_CNT and T_CNT to count the
number of bytes transmitter or received. The user must not write to these locations.
4.0.8.
Receiver Delineation Counters (ALPHA and DELTA)
ATOM1 applies the HEC delineation mechanism described in I.432 with Alpha=7 and Delta=6
to locate and maintain cell synchronisation. During reception, ATOM1 updates the ALPHA
and DELTA parameter locations and the user must not write to these locations. There is no need
to initialise these locations.
4.0.9.
Version Number (AVERSION)
During operation, ATOM1 writes a version number to AVERSION. The current version
number stored in AVERSION is $0001.
4.0.10.
CAM Port Selection (CAM_PORT)
When the CAM interface is enabled, the user should set one or more bits in CAM_PORT to
select which of the QUICC’s Port B pins is the match input or inputs for this SCC. Bit 0 of
CAM_PORT corresponds to PB0, bit 1 to PB1, etc.
4.0.11.
Empty Cell Data (EHEAD and EPAYLOAD)
ATOM1 transmits and receives empty cells using EHEAD and EPAYLOAD. On transmission,
an empty cell is made up by transmitting EHEAD once, calculating and transmitting a HEC and
transmitting EPAYLOAD twelve times. On reception, the incoming header is compared with
EHEAD to check for empty cells and EPAYLOAD is not used.
ATOM1 User’s Manual 1.0
-16-
No Restriction on Circulation
The user is free to select whatever empty cell header and payload values are required: the ATM
Forum UNI Specification states that unassigned cells should be transmitted while the ITU
mandates use of idle cells.
The user must write the EHEAD and EPAYLOAD parameters as required and these two
locations must be written in little endian byte order. Unassigned cells are used as empty cells
when EHEAD = $0000 0000 and idle cells when EHEAD = $0100 0000. In both cases,
EPAYLOAD should be initialised to $6A6A 6A6A.
4.0.12.
Status Information (ASTATUS)
The ATOM1 Status parameter provides the user with additional status information concerning
FIFO errors and receiver synchronisation status. ASTATUS is shown in Figure 5.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
-
-
-
-
-
-
ORUN
URUN
-
-
-
-
-
-
-
LOCK
Figure 5. ASTATUS
Bits in the upper byte is set by ATOM1 and cleared by the user. Bits in the lower byte are set
and cleared by ATOM1. During initialisation, the user must clear all bits in ASTATUS. During
operation, the user can read and clear (write zero) to the upper byte but must only read the
lower byte.
FIFO overruns and underruns are reported in the SCCE FIFO bit and further information is
given in the ORUN and URUN bits:
ORUN
0
1
No Receiver FIFO Overrun.
Receiver FIFO Overrun.
URUN
0
1
No transmitter FIFO underrun.
Transmitter FIFO underrun.
Each change in state of the receiver cell delineation is reported in the SCCE SYNC bit. The
LOCK bit shows the current delineation status:
LOCK
4.0.13.
0
1
The ATOM1 receiver is out of synchronisation and is not receiving cells.
The ATOM1 receiver has gained cell delineation and is receiving cells.
Non-Matching Header Storage and Counter (NMA_HEAD and NMA_CNT)
When a cell is received with a non-matching header, the header (minus the HEC) is written to
NMA_HEAD, NMA_CNT is incremented and the NMA bit set in the SCCE. NMA_HEAD is a
location where headers from non-matching cells are logged and NMA_CNT is a counter of nonmatching cells. The user is free to read and clear NMA_CNT at any time.
4.0.14.
HEC Error Counter (HEC_ERR)
HEC_ERR is a 16-bit counter of incoming cells with HEC errors. The user is free to read and
clear HEC_ERR at any time.
ATOM1 User’s Manual 1.0
-17-
No Restriction on Circulation
4.0.15.
Incoming Header Mask and Look-up Table (HEADMASK and HEADn)
When the CAM option is disabled, ATOM1 masks the header of each incoming cell with
HEADMASK and then searches for the result in the HEADn table. When a match is found, the
cell is received otherwise the cell header is logged in NMA_HEAD and the remainder of the cell
is discarded.
The HEADMASK masking process uses a bitwise AND function so bits can be masked out by
clearing the relevant bit in HEADMASK. The bit locations for HEADMASK are shown in
Figure 6. Bit 0 must always be written with zero.
31
28
27
GFC
20
19
VPI
4
3
VCI
1
PT
0
0
Figure 6. HEADMASK
The result of the masking is then compared with each of the HEADn values, starting with
HEAD1. Although sixteen locations are shown in the HEADn table, the user may define fewer.
The final location in the table is denoted with the Last bit being set. When multiple HEADn
locations are being used, the user should take care because the look-up table can overlap other
peripheral areas in memory (see the MC68360 User’s Manual section 3.2 for further details). If
the look-up table is extended to overlap other peripheral’s parameter RAM areas, the other
peripherals cannot be used.
The bit locations for the HEADn locations are shown in Figure 7. Bit 0 should be written with
zero except for the last entry in the table.
31
28
27
GFC
20
19
VPI
4
VCI
3
1
PT
0
Last
Figure 7. HEADn
ATOM1 searches the HEADn table sequentially so the headers for the most frequently
connections should be at the beginning of the table.
4.0.16.
Temporary Data Storage
During ATM cell transmission and reception, ATOM1 uses RTEMP, TTEMP, RSTUFF,
RHECTEMP, THECTEMP, RSCRAM, RSCRAM1, TSCRAM and TSCRAM1 to store temporary
data. This data is for internal use and the user must not write to these locations.
5.
ATOM1 COMMANDS
The following commands are understood by ATOM1:
• Initialise Receiver and Transmitter Parameters
• Initialise Receiver Parameters
ATOM1 User’s Manual 1.0
-18-
No Restriction on Circulation
•
•
•
•
•
Initialise Transmitter Parameters
Stop Transmit
Restart Transmit
Restart Reception
CRC-32 Calculator
Execution of other SCC commands may cause errant behaviour. All commands are given
through the Command Register and operate as with other protocols except Restart Reception.
The ATOM1 commands to initialise the receiver and transmitter parameters operate the same
as for other SCC protocols. If the initialisation commands are given during cell transmission
and reception, cell synchronisation will be lost.
The Stop Transmit Command stops cell transmission immediately and the transmit line goes
high. To stop transmission of data cells but continue with empty cells, the user must wait for
the transmit BD queue to empty.
The commands are run by writing the command and channel number to the QUICC’s
Command Register (CR). The op-codes for the initialisation, Stop Transmit and Restart
Transmit command are the same as for the QUICC’s other protocols. The op-code for the
Restart Reception command is and the CRC-32 calculator 1111. All other bits in the CR remain
unchanged.
Command execution latency for the initialisation, Stop Transmit and Restart Transmit
command are the same as for the QUICC’s other protocols. The Restart Reception command is
executed when the current cell being received is complete and execution time therefore
depends on the data rate and when the command is given. For all commands, ATOM1 clears
the FLG bit in the CR to indicate completion of the command.
5.1.
Restart Reception Command
The Restart Reception Command is similar to Enter Hunt Mode. If ATOM1 is currently
receiving an empty cell, cell delineation is immediately lost and the resynchronisation process
begins. If the current cell being received is a data or control cell (being received or discarded by
ATOM1), the current buffer is closed and cell delineation is lost at the end of the cell. The Enter
Hunt Mode command should not be used with ATOM1.
To restart the receiver immediately regardless of the current state, the Init Rx Parameter
command can be used.
The Restart Reception Command and the CRC-32 Calculator share the same op-code in the
command register. To issue a Restart Reception Command, the user must ensure that the
current CRC-32 calculation is complete and the CRC_CNT parameter is zero.
5.2.
CRC-32 Calculator
The CRC-32 Calculator command calculates the 32-bit CRC sequence used in AAL5 frames on
a data buffer defined by a pointer and length. Multiple buffers may be strung together by the
ATOM1 User’s Manual 1.0
-19-
No Restriction on Circulation
user to calculate the CRC-32 value over a large AAL5 frame made up of multiple CRC-32
buffers. ITU I.363 gives more details and examples of AAL5 CRC calculations.
Note: The QUICC’s CP runs the ATOM1 CRC-32 calculator as its lowest priority task. High
traffic throughput on the SCCs and other CP activity will adversely affect the CRC-32
calculator’s performance.
The ATOM1 CRC-32 calculator replaces four parameters in QUICC’s RISC Timer Parameter
RAM area (starting at DPRBASE + $DB0) as shown in Table 7. The user must initialize the CRC32 parameter RAM with the values given after reset or when re-initializing ATOM1.
Name
Width
DPRBASE + $DB0
Address
CRC_PTR
Long
CRC-32 Calculator Pointer
Description
User Writes (hex)
UD
DPRBASE + $DB4
CRC_CNT
Word
CRC-32 Calculator Counter
UD
DPRBASE + $DB6
CRC_FC
Byte
CRC-32 Calculator Function Code
UD
DPRBASE + $DB8
CRC_RESULT
Long
CRC-32 Calculator Seed Value and
Result
0000 0000 or UD
UD = User Defined
Table 7: ATOM1 CRC-32 Calculator Parameter RAM Memory Map
To start a CRC-32 calculation, the CRC_PTR, CRC_CNT, CRC_RESULT and CRC_FC
parameters must be initialised to give the start address of the data block for the calculation,
block length, starting CRC-32 seed and function code. ATOM1 reads and writes these four
parameters during a CRC-32 calculation so they must not be altered by the user while the
calculation is in progress.
The CRC_PTR may be programmed with any address that corresponds to the start of the CRC32 buffer in memory. The length of the buffer must be programmed into the CRC_CNT
parameter. If CRC_CNT is zero at the start of the command, ATOM1 will run a Restart
Reception command rather than the CRC-32 calculator.
The CRC_RESULT parameter must be preset to zero at the start of a new CRC-32 calculation.
On completion of the calculation, CRC_RESULT holds the resulting 32-bit CRC value. At the
beginning of a CRC-32 calculation, CRC_RESULT may be programmed with the result of a
previous CRC-32 calculation if buffers are being strung together.
The user configures CRC_FC to define the SDMA function code pin settings when the SDMA
reads the CRC-32 buffer. Further information is given in the MC68360 User’s Manual, section
7.10.7.2.
A CRC-32 calculation is started by writing $0F01 to the command register. When the command
has been accepted and CRC-32 processing begins, ATOM1 clears the FLG bit in the command
register. Processing continues through the whole CRC-32 buffer and when the calculation is
complete, ATOM1 sets bit 15 in the RISC Timer Even Register (RTER). This can be used to
generate a processor interrupt by programming the QUICC’s interrupt controller.
Bit 15 of the RTER should be cleared before a CRC-32 calculation is started.
ATOM1 User’s Manual 1.0
-20-
No Restriction on Circulation
6.
BUFFER DESCRIPTORS & BUFFERS
ATOM1 uses a modified version of the standard MC68360 BD and buffer data structure better
suited to the high number of and small size of ATM cells. There is a single transmit BD queue
and a single receive queue. Associated with each BD queue is a buffer queue. All ATOM1 BDs
are two bytes long and buffers are all 52 bytes long. These BD and buffer sizes maximise the
number of BDs that can be located in the QUICC’s dual port RAM when the ATOM1 microcode
is also present and running.
The BDs are a subset of the standard QUICC BDs containing only a 16-bit status and control
word. Buffer length and pointer fields are not implemented as for other QUICC serial protocols.
BDs are located in the QUICC’s dual port RAM.
All data buffers have a fixed length of 52 bytes and are located within 16K byte buffer areas in
memory. Receive BD1 is associated with buffer 1, receive BD2 with buffer 2, etc. Transmit and
receive buffers are scattered within a 16K byte memory area and use an eleven bit pointer
within the transmit BD to locate the buffer exactly. The transmitter and receiver each use
different 16K byte buffer areas which may be located anywhere in memory.
6.1.
ATOM1 Buffer Descriptor and Buffer Queues
Figure 8 shows an example of the transmitter BD and data buffer queues and the pointers
associated with them. In this example, there are 20 BDs, each linked to a buffer. TBASE points
to the start of the BD queue and TX_BUFF1 points to the start of the buffer area. ATOM1
calculates the exact start address of a transmit buffer by adding TX_BUFF1 to the address field
in the transmit BD. Buffers may thus be scattered randomly throughout the 16K byte area.
.
Queue of 20
Tx BDs
Queue of 20
Transmit Buffers
TX_BUFF1
TBASE
TBD_PTR
Tx Buffer 1
Tx BD 1
Tx BD 2
Tx BD 3
Address
Offset in
Tx BD 2
Tx Buffer 2
Tx Buffer 3
T_CNT
T_PTR
Tx BD 19
Tx BD 20
Tx Buffer 20
Tx Buffer 19
16K Byte
Buffer Area
Figure 8. ATOM1 Transmit Buffer and BD Queue Example
ATOM1 User’s Manual 1.0
-21-
No Restriction on Circulation
In this example, the first two buffers have been transmitted and ATOM1 has advanced the
TBD_PTR pointer to point at the current BD. Similarly, the T_PTR pointer has been advanced
to point to the current data being transmitted by ATOM1. T_CNT is the offset of T_PTR from
the start of the data buffer. When the end of the BD queue is reached, TBD_PTR is wrapped
back by loading it from TBASE. Receive BD and buffer queues follow the same structure as
shown here for transmission.
6.2.
Receive Buffer Descriptor and Data Buffer
Receive BDs are two bytes long as shown in Figure 9. Each BD is linked to one buffer that can
hold a received ATM cell. Receive buffers may be scattered around a 16K byte area of memory
but each buffer must start on a long word aligned address. If the start address of a buffer is at
the very end of the 16K byte area (for example, the BD is programmed with $8FFF) then the end
of the received cell will be 48 bytes outside of the 16K byte area.
When the user prepares an empty receive BD, the address pointer to the start of the data buffer
must be written into the BD. When the Empty bit is set, ownership if the BD is handed over
from the user to the QUICC’s CP and the user must not modify any part of the BD. Once a cell
is received and ATOM1 returns the BD and buffer to the user, the address pointer field is
replaced with OAM and error status flags and the HEC of the incoming cell. User software must
maintain a copy of the address pointer for each receive BD in the receive queue.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
E
-
W
I
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
Empty Receive BD as Written by User
E
-
W
I
-
-
OAM
ERR
HEC
Used Receive BD after reception of a Cell
Figure 9. ATOM1 Receive Buffer Descriptor
E
Empty
Control bit set by the user to indicate that the associated buffer is empty and ATOM1
can receive a cell into it.
W
Wrap
Control bit set by the user to wrap the receive BD queue after this BD.
I
Interrupt
Control bit set by the user. When a cell is received into the buffer associated with this
BD, a receive interrupt is generated.
A2-A13
Address
Address offset to the start of the data buffer from the start of the 16K byte receive
data area.
OAM
OAM Cell
Status bit set by ATOM1. The associated cell is an OAM or reserved cell (cell PT field
= 1xx).
ERR
HEC Error Status bit set by ATOM1. The associated cell was received with an error in the header
as detected by the HEC check.
ATOM1 User’s Manual 1.0
-22-
No Restriction on Circulation
HEC
HEC Byte
Byte containing the received cell’s HEC field.
ATOM1 stores received ATM cells in receive buffers after removing the HEC. Receive data
buffers have the same structure as transmit buffers. The first byte of the buffer is the first byte
received (the GFC field and part of the VPI). The HEC field is removed and stored in the receive
BD.
6.3.
Transmit Buffer Descriptor and Data Buffer
Transmit BDs are two bytes long as shown in Figure 10. Each BD is linked to one buffer that
must hold the complete ATM cell to be transmitted. Transmit buffers may be scattered around
a 16K byte area of memory but must start on a long word aligned address. If the start address
of a buffer is at the very end of the 16K byte area (for example, the transmit BD is programmed
with $8FFF) then the end of the transmit cell will be 48 bytes outside of the 16K byte area.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
R
SKIP
W
I
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
Figure 10. ATOM1 Transmit Buffer Descriptor
R
Ready
Control bit set by the user to initiate transmission of the associated cell. ATOM1
clears the Ready bit when the associated buffer has been transmitted.
SKIP
Skip BD
Control bit set by the user. When ATOM1 encounters a transmit BD with the Skip bit
set, an empty cell is transmitted and control passes to the next BD. When the Skip bit
is set, the Ready bit is ignored.
W
Wrap
Control bit set by the user to wrap the transmit BD queue after this BD.
I
Interrupt
Control bit set by the user. When the cell associated with this BD is transmitted, a
transmit interrupt is generated. This bit is ignored when the Skip bit is also set.
A2-A13
Address
Address offset to the start of the data buffer from the start of the 16K byte transmit
data area.
ATOM1 transmits the ATM cell stored in the transmit buffer and automatically inserts the
HEC. Data buffers are all 52 bytes long with the first four bytes being the cell header as shown
in Figure 11. The first byte of the buffer is the first byte to be transmitted.
ATOM1 User’s Manual 1.0
-23-
No Restriction on Circulation
GFC
VPI
VCI
PT
CLP
Payload
Payload
Payload
Figure 11. Transmit Buffer
6.3.1.
Transmit Bandwidth Reservation
ATOM1 includes a mechanism to reserve transmit bandwidth to aid tasks that require low
latency transmission. An example of such a system might be one that simultaneously handles
voice and data transmissions: the data transmission task can queue a large number of ATM cells
that are not delay sensitive while the voice transmission circuit has less traffic but must be
serviced at regular intervals.
The mixed voice and data example is used here to illustrate the bandwidth reservation system.
In most systems, the number of transmit and receive buffer descriptors and buffers per SCC is
fixed when the system software is designed. For example, the ATOM1 transmit queue may be
fixed at ten buffers. The data transmission software can maintain its own software queue that
may hold several hundred cells. The voice task must transmit each cell as soon as it is generated
and not store them in a queue. If the voice cells were to be placed at the end of the software data
transmission queue, the latency would be too high.
The transmit bandwidth reservation system avoids this problem by allowing selected BDs to be
reserved for the voice transmission. When ten BDs are allocated to the data and voice
transmission software tasks, nine can be assigned for data and one for voice. This reserves 10%
of the transmission bandwidth for voice channels.
The reservation mechanism uses the Skip bit in the transmit BD. As ATOM1 processes the
transmit BD queue, it transmits cells where the Skip bit is zero. When a BD with the Skip is
encountered, it is skipped and an empty cell is transmitted in its place.
In the mixed data and voice example, the data transmission software can control nine of the ten
BDs and set their Ready bits to initiate transmission. The voice transmission software reserves
one BD by setting its Skip bit. When a voice cell is ready for transmission, the voice transmission
software inserts the header and payload in the relevant transmit data buffer, clears the Skip bit
and sets the Ready bit. Next time that ATOM1 checks this BD, it will see only the Ready bit set
and therefore transmit the voice cell.
Figure 12 illustrates this example. The tenth transmit BD is reserved for voice traffic. While the
voice transmission task is constructing an ATM cell and has nothing in the transmit BD queue,
ATOM1 User’s Manual 1.0
-24-
No Restriction on Circulation
it reserves bandwidth by setting the Skip bit. When the voice cell has been constructed and
loaded into the tenth transmit buffer, the Skip bit is cleared and the Ready bit set. The voice cell
is then transmitted with a maximum delay of nine cells.
Data Tx Task
Incoming Data
Traffic (Bursty)
Incoming Voice
Traffic (Regular)
Data
Transmission
Task Controls
Nine BDs
Internal Data
Transmission
Queue
Voice Tx Task
Single Cell for
Transmission
Voice
Transmission
Task Controls
One BD
Queue of
10 Tx BDs
Tx BD 1
Tx BD 2
Tx BD 3
Tx BD 4
Tx BD 5
Tx BD 6
Tx BD 7
Tx BD 8
Tx BD 9
Tx BD 10
Figure 12. Mixed Voice and Data Transmission Example
7.
ATOM1 CAM INTERFACE
Figure 13 shows the ATOM1 CAM interface and a timing diagram illustrating operation.
Operation is similar to the Ethernet CAM interface (see the MC68360 User’s Manual section
7.10.23.7 for further details). The SDACK1* signal delimits a header write cycle on the data bus
and SDACK2* delimits payload write cycles. Both SDACK1* and SDACK2* are asserted during
the final payload write cycle. ATOM1 samples the MATCH* signal during the last data transfer
of the cell.
ATOM1 User’s Manual 1.0
-25-
No Restriction on Circulation
E1 ATM
TSA
SCC
SDMA
RAM
MC68360
QUICC
MATCH*
CPU32+ Core
SDACK1* &
SDACK2*
CAM
FC(3:0)
CAM Control
Logic
SDMA Bus Write Cycle
4 Byte
Header
48 Bytes Payload
SDACK1* Output Signal
SDACK2* Output Signal
MATCH* Input Signal
Figure 13. ATOM1 CAM Interface
The user selects the pin to be used as the MATCH* input from the port B PB0-PB15 pins using
the CAM_PORT parameter. Multiple CAMs can be connected to a single SCC running ATOM1
by using multiple MATCH* inputs. ATOM1 looks for one or more of the MATCH* inputs to be
active. The port B pins being used as the MATCH* input must be configured as input ports
using the port B configuration registers PBPAR and PBDIR.
When ATOM1 is operating on several SCCs concurrently, each may be connected to a CAM. To
distinguish between the SDMA cycles for each SCC, each receiver function codes should be
programmed to a different value.
When the CAM interface is operating with ATOM1, the Ethernet CAM interface can still be
used. The CAM control logic will need to check the function codes and SDACK signals to
determine which SCC has initiated a particular bus cycle and enable the appropriate CAM chip.
ATOM1 User’s Manual 1.0
-26-
No Restriction on Circulation
8.
LOADING & CONFIGURING ATOM1
Before operation, the ATOM1 microcode must be loaded into the MC68360’s internal RAM. The
microcode is delivered in a file of S-records ready to download to a Motorola QUADS board
and a general M68000 assembly code file. Further details of QUADS download procedures are
given in the QUADS User’s Manual.
The microcode occupies the internal RAM blocks DPRBASE+0 to DPRBASE+3FF and
DPRBASE+600 to DPRBASE+6FF. These areas are unavailable for use by the user.
Once the ATOM1 microcode is loaded into the MC68360’s internal RAM, it is initialized as
follows:
1.
2.
3.
4.
5.
6.
7.
Configure SDMA.
Configure parallel ports.
Configure serial interface.
Enable TSA.
Configure CP registers.
Enable RAM microcode.
Configure SCC registers. Configure GSMR, PSMR, SCCE and SCCM to select required
operation.
8. Configure ATOM1 parameter RAM.
9. Initialize queue of empty receive BDs and buffers.
10. Clear transmit BDs.
11. Enable SCC by setting ENT and ENR bits in the GSMR lower long word.
Once initialisation is complete, ATOM1 can be controlled through the transmit and receive BD
queues and commands.
Example source code for initialisation and operation of ATOM1 is given in Appendix B.
9.
PERFORMANCE
Tables 8 and 9 show the results of some performance characterisation experiments where
ATOM1 is run concurrently with other SCCs. All results are for zero wait state access to
memory. In the experiments, all SCCs were continually transmitting and receiving data cells
(no commands or CRC-32 calculations) and frames of the following size:
HDLC frames
Ethernet frames
ATM cells
ATOM1 User’s Manual 1.0
24 bytes data + 2 bytes CRC
64 bytes data + 4 bytes CRC
5 byte header + 48 bytes payload
-27-
No Restriction on Circulation
Configuration
ATOM1 SCCs
Mode
Frequency Ratio
1 ATM
SCC1
ATOM1 - No Scrambling
1:3
1 ATM
SCC1
ATOM1 - Scrambling
1:4.5
2 ATM
SCC1, 2
ATOM1 - No Scrambling
1:8
2 ATM
SCC1, 2
ATOM1 - Scrambling
1:10
3 ATM
SCC1, 2, 3
ATOM1 - No Scrambling
1:10
3 ATM
SCC1, 2, 3
ATOM1 - Scrambling
1:14
4 ATM
SCC1, 2, 3, 4
ATOM1 - No Scrambling
1:13
4 ATM
SCC1, 2, 3, 4
ATOM1 - Scrambling
1:19
System
Frequency
25 MHz /
33 MHz
Table 8: ATOM1 Performance
ATOM1 SCC
Configuration
Other SCCs
SCC
Mode
Frequency
Ratio
SCC1
ATOM1
No Scrambling
1:12
(note 1)
SCC2/3/4
HDLC
1:8
SCC1
ATOM1
Scrambling
1:12
(note 1)
SCC2/3/4
HDLC
1:9
SCC1
ATOM1
No Scrambling
1:3.5
SCC2/3/4
HDLC
1:390
(note 2)
SCC1
ATOM1
Scrambling
1:5
SCC2/3/4
HDLC
1:390
(note 2)
1 ATM +
1 Ethernet
channel
SCC1
ATOM1
No Scrambling
1:6
SCC2
Ethernet
1:2.5
SCC1
ATOM1
Scrambling
1:7
SCC2
Ethernet
1:2.5
1 ATM,
1 Ethernet +
1 HDLC
channel
SCC1
ATOM1
No Scrambling
1:12
(note 1)
SCC2
Ethernet
1:2.5
SCC3
HDLC
1:4
Ethernet
1:2.5
1 ATM
channel
+
3 HDLC
channels
1 ATM +
1 Ethernet
channel
1 ATM,
1 Ethernet +
1 HDLC
channel
SCC
Mode
Frequency
Ratio
SCC1
ATOM1
Scrambling
1:12
(note 1)
SCC3
HDLC
1:5
SCC1
ATOM1
No Scrambling
1:3.5
SCC2
Ethernet
1:3.3
SCC1
ATOM1
Scrambling
1:4
SCC2
Ethernet
1:3.3
SCC1
ATOM1
No Scrambling
1:16
(note 3)
SCC2
Ethernet
1:3.3
SCC3
HDLC
1:4
1:16
(note 3)
SCC2
Ethernet
1:3.3
SCC3
HDLC
1:5
ATOM1
Scrambling
25 MHz /
33 MHz
25 MHz
SCC2
SCC1
System
Frequency
25 MHz
33 MHz
33 MHz
Notes:
1. A frequency ratio of 1:12 equates to 2.048 MHz at 25 MHz.
2. A frequency ratio of 1:390 equates to 64 KHz at 25 MHz.
3. A frequency ratio of 1:16 equates to 2.048 MHz at 33 MHz.
Table 9: ATOM1 and other Protocol Performance
ATOM1 User’s Manual 1.0
-28-
No Restriction on Circulation
This data traffic in the experiments represents typical worst case scenarios for real life
applications where QUICC data structures were organised to maximise performance. All
frames were restricted to single buffers that were aligned to long-word addresses and receive
frame address comparisons were disabled. The Ethernet figures quoted in Table 8 are for half
duplex operation1.
The frequency ratios quoted are between the main QUICC clock and SCC bit clock.
9.1.
Command Execution Latency
When ATOM1 is operating, typical and worst-case command execution latencies are slightly
longer than when only the standard ROM microcodes are running.
Note: The ATOM1 Restart Reception command is not executed until ATOM1 processes the end
of the current cell being received. Therefore command latency for the Restart Reception
command depends on when the command is given and data rate.
9.2.
CRC-32 Calculation Execution
Table 10 shows the results of some performance characterisation experiments where ATOM1 is
running on one or more SCCs while CRC-32 calculations are also running. The QUICC’s CP
runs the CRC-32 calculator as its lowest priority task so the duration of a calculation varies
depending on the exact loading and state of the CP. The CRC-32 calculations were run over a
buffer of 44 bytes representing the AAL5 payload of a single cell AAL5 frame with start of the
data buffer aligned to a longword address. All results shown in Table 10 are for system
operation at 25MHz and can be scaled for operation at other frequencies.
Configuration
ATOM1 SCCs
Mode
Frequency Ratio
CRC-32
Calculation
Duration
1 ATM
SCC1
ATOM1 - No Scrambling
1:12 (note 1)
20 - 24 µs
1 ATM
SCC1
ATOM1 - Scrambling
1:12 (note 1)
20 - 28 µs
2 ATM
SCC1, 2
ATOM1 - No Scrambling
1:12 (note 1)
28 - 37 µs
2 ATM
SCC1, 2
ATOM1 - Scrambling
1:12 (note 1)
52 - 72 µs
3 ATM
SCC1, 2, 3
ATOM1 - No Scrambling
1:12 (note 1)
52 - 76 µs
3 ATM
SCC1, 2, 3
ATOM1 - No Scrambling
1:25 (note 2)
23 - 30 µs
3 ATM
SCC1, 2, 3
ATOM1 - Scrambling
1:25 (note 2)
27 - 52 µs
4 ATM
SCC1, 2, 3, 4
ATOM1 - No Scrambling
1:25 (note 2)
26 - 34 µs
4 ATM
SCC1, 2, 3, 4
ATOM1 - Scrambling
1:25 (note 2)
40 - 65 µs
Notes:
1. A frequency ratio of 1:12 equates to 2.083 MHz at 25 MHz.
2. A frequency ratio of 1:25 equates to 1 MHz at 25 MHz.
Table 10: CRC-32 Calculator Performance
1. The experimental Ethernet data rate was 5 Mbps full duplex which equates to 10 Mbps on a conventional half
duplex Ethernet system.
ATOM1 User’s Manual 1.0
-29-
No Restriction on Circulation
10.
ATOM1 DISK STRUCTURE
ATOM1 is shipped on a PC format disk. Figure 14 shows the disk structure. The microcode is
held in the UCODE directory and demonstration software is stored in the DEMO directory.
ATOM1.SRX is the S-record microcode file for the QUADS board memory map. ATOM1.SRC
is an M68000 assembly code file for the ATOM1 microcode that can be assembled and linked to
any system memory map.
The file ATOM1.C contains the C source code for the initialisation and ping-pong
demonstration software given in Appendix B. ATOM1 and ATOM1.CMD are the makefiles for
the C demonstration software and ATOM1.X is the S-record file of the demonstration software,
ready to download to a QUADS board.
ATOM1
UCODE
DEMO
ATOM1.SRX
ATOM1
ATOM1.SRC
ATOM1.CMD
ATOM1.C
ATOM1.X
Figure 14. ATOM1 Disk Structure
11.
MC68360 MASK SET APPLICABILITY
ATOM1 microcode operates on revision B or later MC68360s and MC68EN360s. Note: there are
slight differences to the initialisation software for revision B1 and later devices (see section
3.1.2). The ATOM1 microcode cannot be used in conjunction with the QMC protocol for multichannel operation on an MC68MH360 due to on-chip RAM space constraints.
ATOM1 User’s Manual 1.0
-30-
No Restriction on Circulation
12.
ORDERING INFORMATION
The ATOM1 package contains relocatable ATOM1 object code, object code for the QUADS
board, a User’s Manual and demonstration software for the QUADS board. ATOM1 is available
on DOS media by using the following part number:
M68360SWATM1-DOS
13.
PC disk.
REFERENCES
1.
2.
3.
4.
MC68360 User's Manual, MC68360UM/AD Rev 1, Motorola, 1995.
ITU I.432, B-ISDN User Network Interface - Physical Layer Specification, 1991.
ATM Forum User Network Interface Specification, version 3.0, 1993.
Draft Recommendation ITU G.804, ATM Cell Mapping into Plesiochronous Digital
Hierarchy (PDH), 1993.
5. ITU I.363, B-ISDN ATM Adaptation Layer Specification.
ATOM1 User’s Manual 1.0
-31-
No Restriction on Circulation
Appendix 1. STATE MACHINE DETAILS
A1.1
ATOM1 Transmitter
Figure 15 shows the ATOM1 transmitter procedure. After start-up when MRBLR is zero, an
empty cell is transmitted before the first transmit BD is polled. If the BD has the Skip bit set, an
empty cell is transmitted and the transmitter moves to the next BD. If the BD is ready, a user
defined ATM cell is transmitted, otherwise another empty cell is transmitted. Operation
continues in this manner until the Stop Transmit command or a FIFO underrun error occurs of
the user disables the SCC transmitter. The transmitted cells may have their payloads scrambled
as described below.
ATOM1
Tx Start
MRBLR = 0 ?
No
Goto Transparent
Mode ROM Microcode
Yes
Transmit
Empty
Cell
Yes
Transmit Empty
Cell Header
Transmit Data
Cell Header
Calculate
Empty Cell HEC
Calculate Data
Cell HEC
Transmit
HEC Byte
Transmit
HEC Byte
Transmit Empty
Cell Payload
Transmit Data
Cell Payload
Transmit
Data
Cell
Skip Next
BD ?
No
No
Data Cell
Ready ?
Yes
Figure 15. ATOM1 Transmitter Procedure
ATOM1 User’s Manual 1.0
-32-
No Restriction on Circulation
A1.2
ATM Cell Payload Scrambling
ATOM1 provides a scrambling option on a per line basis for cell payload bytes using the
polynomial X43+1. Figure 16 illustrates the payload transmitter and receiver scrambling
mechanism used by ATOM1.
Transmit Data
Scrambled Data
43-Bit Delay
Receive Data
43-Bit Delay
Receiver
Transmitter
Figure 16. ATM Cell Payload Scrambling Mechanism
The context of the transmit and receive scrambling mechanism is independent of the cell’s
virtual connection. The seed value for the scrambling algorithm for a particular cell is obtained
from the 43 cell payload bits transmitted or received immediately prior to the current cell. Two
consecutive cells may be from different connections and scrambling mechanism ignores this.
A1.3
ATOM1 Receiver
Figure 17 shows the ATOM1 receiver procedure. After start-up when MRBLR is zero, the HEC
delineation procedure begins (see below). Once complete, cell reception commences.
For each cell received, the HEC is checked and if incorrect the cell is usually received. It is not
received only when the receiver losses cell delineation. In the cell is an empty cell, the payload
is discarded. If there is a header match using internal the header lookup table then the cell
payload is received. When the external CAM option is enabled, the cell is received before the
CAM match is checked.
Operation continues in this manner until the Restart Reception command or a FIFO overrun
error occurs or the user disables the SCC receiver. Received cells may have their payloads
descrambled as described earlier.
A1.4
HEC Delineation Mechanism
ATOM1 applies the cell delineation mechanism specified in I.432 and shown in Figure 18 to
synchronise to the incoming cell stream. The SDH-based physical layer values for alpha and
delta, 7 and 6 respectively, are used by ATOM1.
At start-up, the hunt mode is entered where the CRC-8 value is calculated on each incoming
longword. When this matches the next received byte, it is assumed that the HEC is found and
the state machine advances to the presync state. Because the hunt state only finds a HEC field
that is aligned to the start of reception, it can take up to four correct cells to leave the hunt state.
ATOM1 User’s Manual 1.0
-33-
No Restriction on Circulation
ATOM1
Rx Start
MRBLR = 0 ?
No
Goto Transparent
Mode ROM Microcode
Yes
Cell Delineated ?
Apply HEC
Delineation
Mechanism
No
Yes
Receive Cell
Header
Yes
HEC Correct ?
Loss of
Delineation ?
No
Yes
Discard Cell
Payload
Yes
No
Empty Cell?
No
No
Header Match ?
Yes
No
Buffer Available ?
Yes
Receive and
Store Cell
Payload
Close Buffer
and Update BD
Figure 17. ATOM1 Receiver Procedure
ATOM1 User’s Manual 1.0
-34-
No Restriction on Circulation
Initial Entry
Point
HUNT
Alpha (7)
Consecutive
Incorrect HECs
4 Byte by 4 Byte
Search for
Correct HEC
Restart
Reception
Command
Single Correct
HEC
Single
Incorrect
HEC
SYNCH
Cell by Cell
Verification of
HECs
PRESYNC
Restart
Reception
Command
Cell by Cell
Search for
Correct HECs
Delta (6) Consecutive
Correct HECs
Figure 18. Cell Delineation State Diagram
I.432 specifies that the hunt state searches for a correct HEC on a bit-by-bit basis but ATOM1
uses a longword by longword search. For G.804 framing of ATM cells, the HEC field is always
aligned with the E1 or T1 frame octet timeslots so bit-by-bit searching is not required. To ease
implementation, this was taken a stage further and ATOM1 uses a longword by longword
search. Over the course of four cells received (212 bytes) with correct HECs, there will be one
matching and aligned HEC. This is the point where the state machine jumps to the presync
state.
In the presync state, ATOM1 has detected cell boundaries and is verifying that they are correct.
ATOM1 leaves the presync state after a single cell with an incorrect HEC is received or the
Restart Reception command is given. When six consecutive cells with valid HECs are received,
ATOM1 jumps to the sync state and begins reception. The state machine advances immediately
after reception of the sixth correct HEC and is not delayed until the end of the cell. This means
that five cells with valid HECs are discarded and the sixth is received into a data buffer.
In the synch state, ATOM1 receives data and control cells and discards incoming empty cells.
When a stream of cells with incorrect HECs are received, the first six consecutive cells are
received and on reception of the seventh incorrect HEC, ATOM1 immediately jumps to the
hunt state and does nor receive the cell with the seventh incorrect HEC. ATOM1 also jumps to
the hunt state after the Restart Reception command.
When cell payload scrambling is enabled, the descrambler will self-synchronise with the
incoming data after 43 bits. Hence, after starting the receiver, the descrambler will attain
synchronisation during reception of the first cell in the presync state.
ATOM1 User’s Manual 1.0
-35-
No Restriction on Circulation
Appendix 2. ATOM1 DEMONSTRATION SOFTWARE
This appendix contains demonstration software for ATOM1. The software is assembled for use
on the QUADS board and assumes that the ATOM1 microcode is downloaded separately.
Before running this software, the user should either link two QUADS boards, both running
ATOM1, or externally loopback the master MC68360 transmitter and receiver on one QUADS
board.
/******************************************************************
* ATOM1 Microcode *
* Initialisation and Ping-Pong Software.
*
*******************************************************************
* Last Modified :
21 March 1996
Rev : 1
*
*******************************************************************
* Filename:
atom1.c
*
*******************************************************************
* <C> Copyright Motorola Inc 1996
*
* Written by Kevin Godfrey, Motorola EKB.
*
*******************************************************************
* Revision History:
*
*
0 Initial software.
*
*
1 CRC-32 Calculator and buffer scattering added.
*
*******************************************************************
* Associated Documentation:
*
*
ATOM1 User's Manual
DATE: 21 March 1996
REV: 1.0
*
*******************************************************************
* Target System: Motorola QUADS board running QUICCbug.
*
* The target system must use an MC68360 or MC68EN360 Rev B or
*
* later.
*
******************************************************************/
/******************************************************************
* This software initialises SCC1 to transmit and receive ATM
*
* cells. SCC1 runs ATOM1 microcode.
*
*
*
* Ping-Pong demonstration code is included to demonstrate simple *
* receive and transmit buffer handling and CRC-32 calculations.
*
*
*
* The ATOM1 microcode is loaded by other means before running
*
* this program.
*
*
*
* To demonstrate ATOM1 receiver, an external loopback is required *
* between L1TXDA and L1RXDA or the QUADS board can be connected
*
* to another QUICC running ATOM1 microcode.
*
*
*
* External clock and synchronisation signals are required.
*
******************************************************************/
/************* Definitions *************/
typedef unsigned char ubyte;
typedef unsigned short uword;
typedef unsigned long ulong;
ATOM1 User’s Manual 1.0
-36-
No Restriction on Circulation
/* Microtec compiler treats char variables as bytes, short integers */
/* as 32-bit quantities and long integers as 32-bit quantities.
*/
/************* QUADS Board memory Map *************/
#define
#define
#define
#define
#define
#define
QUICC
BDArea
ARXBD0
ATXBD0
TXBUFF
RXBUFF
0x20000
0x20400
0x20400
0x20440
0x4f0000
0x4e0000
/*
/*
/*
/*
/*
/*
QUICC address = 0x20000 */
256 bytes of BD space starts at 0x20400 */
ATOM1 rx BDs start at 0x20400 */
ATOM1 tx BDs start at 0x20440 */
ATOM1 tx Buffer page starts at 0x4F0000 */
ATOM1 rx Buffers start at 0x4E0000 */
/************* ATOM1 Demo Buffer Sizes, Limits, etc. *************/
#define
#define
#define
#define
#define
#define
#define
BUFFSIZE
CELLSIZE
MAXBUFF
SI_RAM_SIZE
MAXBDAREA
NO
YES
52
53
9
128
128
0
1
/*
/*
/*
/*
/*
ATM buffer size 52 bytes */
ATM cell length 53 bytes */
Maximum number of buffers = 10 */
128 words of SI RAM */
256 bytes of BD space */
/****** Define QUICC Registers and Parameter RAM Data Structures ******/
struct CP_regs {
volatile uword
uword
volatile uword
uword
ulong
volatile uword
volatile uword
volatile uword
volatile uword
uword
volatile uword
volatile uword
} ;
CR
reserved1
RCCR
reserved2
reserved3
CPCR1
CPCR2
CPCR3
CPCR4
reserved4
RTER
RTMR
;
;
;
;
;
;
;
;
;
;
;
;
/* Command Register */
struct Int_regs {
volatile
volatile
volatile
volatile
} ;
ulong
ulong
ulong
ulong
CICR
CIPR
CIMR
CISR
;
;
;
;
/*
/*
/*
/*
CP
CP
CP
CP
struct PortA_regs
volatile
volatile
volatile
volatile
} ;
{
uword
uword
uword
uword
PADIR
PAPAR
PAODR
PADAT
;
;
;
;
/*
/*
/*
/*
Port
Port
Port
Port
A
A
A
A
Data Direction Register */
Pin Assignment Register */
Open Drain Register */
Data Register */
struct PortC_regs
volatile
volatile
volatile
volatile
volatile
{
uword
uword
uword
uword
uword
PCDIR
PCPAR
PCSO
PCDAT
PCINT
;
;
;
;
;
/*
/*
/*
/*
/*
Port
Port
Port
Port
Port
C
C
C
C
C
Data Direction Register */
Pin Assignment Register */
Special Option Register */
Data Register */
Interrupt Control Register */
ATOM1 User’s Manual 1.0
/* RISC Configuration Register */
/*
/*
/*
/*
CP
CP
CP
CP
Control
Control
Control
Control
Register
Register
Register
Register
1
2
3
4
*/
*/
*/
*/
/* RISC Timers Event Register - used by CRC-32 calculator */
/* RISC Timers Mask Register */
Interrupt
Interrupt
Interrupt
Interrupt
-37-
Control Register */
Pending Register */
Mask Register */
In-Service Register */
No Restriction on Circulation
} ;
struct PIP_regs {
volatile uword
uword
volatile uword
volatile ulong
volatile ulong
volatile uword
uword
volatile ulong
} ;
PIPC
reserved1
PTPR
PBDIR
PBPAR
PBODR
reserved2
PBDAT
;
;
;
;
;
;
;
;
/* PIP Configuration Register */
struct SI_regs {
volatile ulong SIMODE
volatile ubyte SIGMR
ubyte reserved1
volatile ubyte SISTR
volatile ubyte SICMR
ulong reserved2
volatile ulong SICR
uword reserved3
volatile ulong SIRP
} ;
;
;
;
;
;
;
;
;
;
/* SI mode register */
/* SI global mode register */
struct SDMA_regs {
volatile uword SDCR
volatile ulong SDAR
} ;
;
;
/* SDMA Configuration Register */
/* SDMA Address Register */
struct SCC_regs {
volatile ulong GSMRL
volatile ulong GSMRH
volatile uword PSMR
uword reserved1
volatile uword TODR
volatile uword DSR
volatile uword SCCE
uword reserved2
volatile uword SCCM
ubyte reserved3
volatile ubyte SCCS
} ;
;
;
;
;
;
;
;
;
;
;
;
/*
/*
/*
/*
PIP Timing Parameter Register */
Port B Data Direction Register */
Port B Pin Assignment Register */
Port B Open Drain Register */
/* Port B Data Register */
/* SI status register */
/* SI command register */
/* SI clock route */
/* SI RAM pointer */
/* SCC General Mode Register - lower long-word */
/* SCC General Mode Register - upper long-word */
/* SCC protocol specific mode register */
/* SCC tx on demand register */
/* SCC data sync register */
/* SCC event register */
/* SCC mask register */
/* SCC status register */
/* ATOM1 SCC Parameter RAM */
struct ATOM1_Params {
volatile uword
volatile uword
volatile ubyte
volatile ubyte
volatile uword
volatile ulong
volatile ulong
volatile uword
volatile uword
volatile ulong
volatile ulong
volatile ulong
volatile uword
volatile uword
RBASE
TBASE
RFCR
TFCR
MRBLR
RSTATE
R_PTR
RBD_PTR
R_CNT
RTEMP
TSTATE
T_PTR
TBD_PTR
T_CNT
ATOM1 User’s Manual 1.0
;
;
;
;
;
;
;
;
;
;
;
;
;
;
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
ATOM1 rx BD Base Address */
ATOM1 tx BD Base Address */
ATOM1 SDMA rx Function Code */
ATOM1 SDMA tx Function Code */
Transparent receiver max buffer length */
ATOM1 rx internal state storage */
ATOM1 rx data pointer */
ATOM1 rx BD Pointer */
ATOM1 rx counter */
Receiver Temporary Storage */
ATOM1 tx internal state storage */
ATOM1 tx data pointer */
ATOM1 tx BD pointer */
ATOM1 tx counter */
-38-
No Restriction on Circulation
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
volatile
} ;
ulong
uword
uword
uword
uword
ulong
ulong
ulong
ulong
ulong
uword
uword
uword
uword
ulong
uword
uword
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
ulong
struct CRC32_calculator
volatile ulong
volatile uword
volatile ubyte
ubyte
volatile ulong
} ;
TTEMP
;
/* Transmitter Temporary Storage */
ALPHA
;
/* Receiver Synchronisation Alpha Counter */
DELTA
;
/* Receiver Synchronisation Delta Counter */
AVERSION ;
/* ATOM1 version number */
CAM_PORT ;
/* ATOM1 CAM Port Mask */
RX_BUFF1 ;
/* Receive Buffer Area Start Pointer */
TX_BUFF1 ;
/* Transmit Buffer Page Start Pointer */
EHEAD
;
/* Empty Cell Header */
EPAYLOAD ;
/* Empty Cell Payload */
RSTUFF
;
/* Receive Data Stuffing Location */
SHUFFLESTATE ; /* Receive Data Stuffing State */
RHECTEMP ;
/* Temporary HEC storage area */
THECTEMP ;
/* Temporary HEC storage area */
ASTATUS
;
/* ATOM1 status word */
NMA_HEAD ;
/* Non-Matching Address Cell Header */
NMA_CNT
;
/* Non-Matching Address Cell Counter */
HEC_ERR
;
/* HEC Error Counter */
RSCRAM
;
/* Receiver Scrambling Storage */
RSCRAM1
;
/* Receiver Scrambling Storage */
TSCRAM
;
/* Transmitter Scrambling Storage */
TSCRAM1
;
/* Transmitter Scrambling Storage */
HEADMASK ;
/* Cell Header Comparison Mask */
HEAD1
;
/* Cell Header Look-Up Table Entry 1 */
HEAD2
;
/* Cell Header Look-Up Table Entry 2 */
HEAD3
;
/* Cell Header Look-Up Table Entry 3 */
HEAD4
;
/* Cell Header Look-Up Table Entry 4 */
HEAD5
;
/* Cell Header Look-Up Table Entry 5 */
HEAD6
;
/* Cell Header Look-Up Table Entry 6 */
HEAD7
;
/* Cell Header Look-Up Table Entry 7 */
HEAD8
;
/* Cell Header Look-Up Table Entry 8 */
HEAD9
;
/* Cell Header Look-Up Table Entry 9 */
HEAD10
;
/* Cell Header Look-Up Table Entry 10 */
HEAD11
;
/* Cell Header Look-Up Table Entry 11 */
HEAD12
;
/* Cell Header Look-Up Table Entry 12 */
HEAD13
;
/* Cell Header Look-Up Table Entry 13 */
HEAD14
;
/* Cell Header Look-Up Table Entry 14 */
HEAD15
;
/* Cell Header Look-Up Table Entry 15 */
HEAD16
;
/* Cell Header Look-Up Table Entry 16 */
{
CRC_PTR
CRC_CNT
CRC_FC
reserved1
CRC_RESULT
;
;
;
;
;
/* CRC-32 calculator pointer */
/* CRC-32 calculator counter register */
/* CRC-32 calculator Function Code */
/* CRC-32 calculator preset and result register */
/* Define Pointers to QUICC Registers and SCC Parameter RAM */
struct
struct
struct
struct
struct
struct
struct
struct
struct
CP_regs
Int_regs
PortA_regs
PortC_regs
PIP_regs
SI_regs
SDMA_regs
SCC_regs
ATOM1_Params
*CP
*Intr
*PortA
*PortC
*PIP
*SI
*SDMA
*SCC1
*ATOM1_1
ATOM1 User’s Manual 1.0
;
;
;
;
;
;
;
;
;
-39-
No Restriction on Circulation
struct CRC32_calculator *CRC32 ;
uword
ulong
uword
uword
uword
ubyte
ubyte
*SIRAM
*BRGC3
*BDSpace
*ATXBD
*ARXBD
*ATXBuff
*ARXBuff
;
;
;
;
;
;
;
/*
/*
/*
/*
/*
/*
/*
Pointer to 256 bytes of SI routing RAM */
Baud Rate Generator 3 control register */
Pointer to start of 256 byte BD space */
Pointer to ATOM1 Tx BD Queue */
Pointer to ATOM1 Rx BD Queue */
Pointer to ATOM1 Tx data queue */
Pointer to ATOM1 Rx data queue */
main()
{
/* Local Variables */
int
int
int
char
int
int
buffnum
bytecnt
count
dataval
txcount
pperror
;
/* General buffer counting variable (32-bit) */
;
/* General byte counting variable (32-bit) */
;
/* General counting variable (32-bit) */
;
/* General 8-bit data value */
= 0, rxcount = 0 ; /* Ping-Pong receive and transmit cell counters */
= 0 ; /* Ping-pong error flag */
/* Initialise Memory Pointers */
CP
Intr
PortA
PortC
PIP
SI
SDMA
SCC1
ATOM1_1
CRC32
=
=
=
=
=
=
=
=
=
=
(struct
(struct
(struct
(struct
(struct
(struct
(struct
(struct
(struct
(struct
SIRAM
BRGC3
ATXBD
ARXBD
ATXBuff
ARXBuff
BDSpace
=
=
=
=
=
=
=
(uword
(ulong
(uword
(uword
(ubyte
(ubyte
(uword
CP_regs *)
(QUICC+0x15c0) ;
Int_regs *)
(QUICC+0x1540) ;
PortA_regs *)
(QUICC+0x1550) ;
PortC_regs *)
(QUICC+0x1560) ;
PIP_regs *)
(QUICC+0x16b2) ;
SI_regs *)
(QUICC+0x16e0) ;
SDMA_regs *)
(QUICC+0x151e) ;
SCC_regs *)
(QUICC+0x1600) ;
ATOM1_Params *) (QUICC+0x0c00) ;
CRC32_calculator *) (QUICC+0x0db0) ;
*)
*)
*)
*)
*)
*)
*)
(QUICC+0x1700) ;
(QUICC+0x15f8) ;
ATXBD0 ;
ARXBD0 ;
TXBUFF ;
RXBUFF ;
BDArea ;
/* Configure QUICC Parallel Ports */
config_parallel_ports() ;
/* Reset QUICC CPM */
CP->RCCR = 0 ;
CP->CR = 0x8001 ;
/* Clear RCCR */
/* Reset CPM */
/* Configure BRG3 for external use */
*BRGC3
= 0x0001000a ;
ATOM1 User’s Manual 1.0
/* BRG3 = 4.17MHz clock at 25MHz */
-40-
No Restriction on Circulation
/* Configure SDMA */
SDMA->SDCR = 0x0740 ;
/* SDMA configuration register */
/* Configure Serial Interface and TSA */
config_tsa() ;
/* Disable all interrupts */
Intr->CIMR = 0 ;
/* Initialise and enable RAM microcode */
config_ucode() ;
/* Configure SCC1 for ATOM1 */
atom_init(SCC1, ATOM1_1) ;
CP->CR = 0x0001
; /* Initialise SCC1 rx and tx parameters */
/* Configure ATOM1 Data Buffers & Buffer Descriptors */
/* Clear out the whole BD area */
for (count=0 ; count<MAXBDAREA ; count++)
*(BDSpace + count) = 0 ;
/* Clear and set up ten empty receive BDs.
/*
All are made ready and the wrap bit in tenth BD is set.
/*
The first nine buffers are actually in contiguous memory starting at the
/*
begining of the receive buffer area. The tenth buffer at the end of the
/*
receive buffer area.
*/
*/
*/
*/
*/
for (count=0 ; count<MAXBUFF ; count++)
BD_init((ARXBD + count), NO, YES, NO, RXBUFF, RXBUFF + count*52) ;
BD_init((ARXBD + MAXBUFF), NO, YES, YES, RXBUFF, RXBUFF + 0x3ffc) ;
/* Clear receive buffer area */
for (bytecnt=0 ; bytecnt<(MAXBUFF*BUFFSIZE) ; bytecnt++)
*(ARXBuff + bytecnt) = 0 ;
/* Clear and set up ten transmit BDs.
/*
All are made ready and the wrap bit in tenth BD is set.
/*
The first nine buffers are actually in contiguous memory starting at the
/*
begining of the transmit buffer area. The tenth buffer at the end of the
/*
transmit buffer area.
*/
*/
*/
*/
*/
for (count=0 ; count<MAXBUFF ; count++)
BD_init((ATXBD + count), NO, YES, NO, TXBUFF, TXBUFF + count*52) ;
BD_init((ATXBD + MAXBUFF), NO, YES, YES, TXBUFF, TXBUFF + 0x3ffc) ;
ATOM1 User’s Manual 1.0
-41-
No Restriction on Circulation
/*
Fill transmit buffer area with ascending numbers */
dataval=1 ;
for (bytecnt=0 ; bytecnt<(MAXBUFF*BUFFSIZE) ; bytecnt++)
*(ATXBuff + bytecnt) = dataval++ ;
/* Initialisation is complete so enable SCC1 for ATM Reception. */
SCC1->GSMRL = 0x00000030 ;
/* SCC1 Enabled */
/* Initialise the CRC-32 calculator and perform one sample calculation over the transmit */
/* buffer that was just created. */
CRC32->CRC_PTR = TXBUFF ;
CRC32->CRC_CNT = 48 ;
CRC32->CRC_FC = 0x18 ;
CRC32->CRC_RESULT = 0 ; /* Result register must be preset to zero at the start */
CP->RTER = 0xffff ;
/* Clear RTER so that no interruprs are pending. */
/* RTER is used to indicate that a CRC-32 calculation has completed. */
CP->CR = 0x0f01 ;
/* Start the CRC-32 calculation. */
/* Return to QUADS debugger. TEMPORARY ENDING AFTER CONFIGURATION */
asm(" trap #15");
asm(" dc.w $0063");
/*
Now Enter the ATOM1 Ping-Pong Demonstration. */
/************* ATOM1 PING-PONG SOFTWARE *************/
/**********************************************************************/
/* This routine uses SCC1 to transmit and receive ATM cells in a game */
/* of ping-pong. It is assumed that SCC1 is either connected with an */
/* external loopback or to another QUADs board also running this
*/
/* ping-pong software.
*/
/*
*/
/* SCC1 must be initialised before running this software.
*/
/*
*/
/* The PA15 pin is driven high by software for the duration of the
*/
/* single cell CRC-32 calculations to allow an external counter or
*/
/* oscilloscape to measure the CRC-32 calculation duration.
*/
/**********************************************************************/
/* Tx enough frames to empty the receive queue. */
/* The tx queue was emptied by the initialisation code. */
/* First transmit enough frames to empty the receive queue */
while (ATOM1_1->RBD_PTR != ATOM1_1->RBASE)
BD_init(ATXBD, NO, NO, YES, TXBUFF, TXBUFF + 0) ;
ATOM1 User’s Manual 1.0
-42-
No Restriction on Circulation
/* Configure tx buffer area with AAL5 sample frame given in I.363 appendix. */
(ulong *) *(ATXBuff + 0) = 0x12345678 ;
/* AAL5 single cell frame payload consists
/* length = 40 and CRC32 = 0x864d7f99
/* cell header = 0x12345678
*/
40 bytes of zero, CPCS-UU = 0,
*/
*/
for (bytecnt=4 ; bytecnt<44 ; bytecnt++)
*(ATXBuff + bytecnt) = 0x00 ; /* AAL5 frame payload */
(ulong *) *(ATXBuff + bytecnt) = 0x00000028 ; /* AAL5 frame control long word */
bytecnt = bytecnt + 4 ;
(ulong *) *(ATXBuff + bytecnt) = 0x864d7f99 ; /* AAL5 frame CRC */
pperror = 0 ;
while (pperror == 0)
{
SCC1->SCCE = 0xffff ;
/* Clear SCCE1 */
/* Set up one rx BD with Int and Wrap bits set */
BD_init(ARXBD, NO, YES, YES, RXBUFF, RXBUFF + 0) ;
/* Tx one ATM cell - BD Int and Wrap bits set */
BD_init(ATXBD, NO, YES, YES, TXBUFF, TXBUFF + 0) ;
txcount++ ;
/* Increment transmit cell counter */
while ((SCC1->SCCE & 0x007d) == 0x0000) ;
/* Wait for reception or error */
if ((SCC1->SCCE & 0x00f4) == 0x0000) /* On error, set error flag. */
rxcount++ ;
/* Otherwise increment rx counter. */
else pperror = 1 ;
/* Check that received cells have the correct AAL5 CRC-32 value */
CRC32->CRC_PTR = RXBUFF + 4 ;
CRC32->CRC_CNT = 44 ;
CRC32->CRC_FC = 0x18 ;
CRC32->CRC_RESULT = 0 ; /* Result register must be preset to zero at the start */
CP->RTER = 0x8000 ;
/* RTER is used to indicate that a CRC-32 calculation has completed. */
CP->CR = 0x0f01 ;
/* Start the CRC-32 calculation. */
PortA->PADAT = 0x8000 ;
/* Set PA15 pin */
while (CP->CR != 0x0f00) ;
/* Wait for the CP command to complete */
while (CP->RTER != 0x8000) ; /* Wait for the CRC32 calculator to complete */
PortA->PADAT = 0x0000 ;
/* Reset PA15 pin */
/* If incorrect CRC32 receiver, set error flag */
if (CRC32->CRC_RESULT != 0x864d7f99 )
pperror = 1 ;
}
/* Return to QUADS debugger. */
ATOM1 User’s Manual 1.0
-43-
No Restriction on Circulation
asm(" trap #15");
asm(" dc.w $0063");
} /* End of Main */
/*********************************************************************/
/*
QUICC PARALLEL PORT CONFIGURATION
*/
/*********************************************************************/
/* Function name: config_parallel_ports
*/
/*********************************************************************/
/* Configure QUICC Parallel Ports as follows:
*/
/*
L1TXDA
(PA6)
Transmit data output
*/
/*
L1RXDA
(PA7)
Receive data input
*/
/*
L1RSYNCA (PC11)
Synchronisation input
*/
/*
L1RCLKA
(PA8)
Clock input
*/
/*
L1ST1
(PB12)
TSA strobe output
*/
/*
L1ST2
(PB13)
TSA strobe output
*/
/*
L1ST3
(PB14)
TSA strobe output
*/
/*
L1ST4
(PB15)
TSA strobe output
*/
/*
SDACK1*
(PC10)
SDMA cycle output
*/
/*
SDACK2*
(PC8)
SDMA cycle output
*/
/*
PA15
(PA15)
CRC-32 PIO output pin for software use
*/
/*
BRGO3
(PB16)
BRG3 Output Signal
*/
/*********************************************************************/
/* Input Parameters:
global data structures PIP, PortA and PortC
*/
/*
*/
/* Output Parameters: PIP, PortA and PortC modified
*/
/*
*/
/*********************************************************************/
config_parallel_ports()
{
PIP->PIPC = 0x0000
;
/* PIP configuration register */
PortA->PADAT
PortA->PADIR
PortA->PAPAR
PortA->PAODR
=
=
=
=
0x0000
0x80c0
0x01c0
0x0000
;
;
;
;
/*
/*
/*
/*
Port
Port
Port
Port
A
A
A
A
data register */
data direction register */
pin assignment register */
open drain register */
PortC->PCDIR
PortC->PCPAR
PortC->PCSO
PortC->PCINT
=
=
=
=
0x0500
0x0d00
0x0000
0x0000
;
;
;
;
/*
/*
/*
/*
Port
Port
Port
Port
C
C
C
C
data direction register */
pin assignment register */
secial option register */
interrupt control register */
PIP->PBDIR = 0x00010000 ; /* Port B data direction register */
PIP->PBPAR = 0x0001f000 ; /* Port B pin assignment register */
PIP->PBODR = 0x0000
;
/* Port B open drain register */
} /* End of config_parallel_ports */
/*********************************************************************/
/*
QUICC TSA CONFIGURATION & INITIALISATION
*/
/*********************************************************************/
ATOM1 User’s Manual 1.0
-44-
No Restriction on Circulation
/* Function name: config_tsa
*/
/*********************************************************************/
/* Configure Serial Interface and TSA as follows:
*/
/*
TDMA used to tx and rx 53 byte ATM cells via SCC1 and SCC2.
*/
/*
Common rx and tx clock and synchronisation signals.
*/
/*
Tx data on falling clock edges and rx on rising edges.
*/
/*
Frame sync signal recognised on a rising clock edge.
*/
/*********************************************************************/
/* Input Parameters:
global data structure SI and pointer SIRAM
*/
/*
*/
/* Output Parameters: SI modified
*/
/*
*/
/*********************************************************************/
config_tsa()
{
int count ;
/* SI registers: */
/*
SI->SIGMR
SI->SIMODE
SI->SIMODE
SI->SICR
=
=
=
=
0x00 ;
/*
0x00000058 ; /*
0x00000858 ;
0x00004040 ; /*
Disable SI */
SI mode register without loopback */
SI mode register with TSA loopback */
SI clock route */
/* Clear SI RAM: */
for (count=0 ; count<SI_RAM_SIZE ; count++)
*(SIRAM + count) = 0x0000 ;
/* Configure SI RAM:
L1ST1 asserted during
L1ST2 asserted during
L1ST3 asserted during
L1ST4 asserted during
count=0
*(SIRAM
*(SIRAM
*(SIRAM
*(SIRAM
*(SIRAM
;
+
+
+
+
+
the
the
the
the
first
fifth
first
fifth
4 tx bytes (cell header except HEC).
tx byte (HEC).
4 rx bytes (cell header except HEC).
rx byte (HEC). */
count++)
count++)
count++)
count++)
count++)
=
=
=
=
=
0x104e
0x2042
0x007e
0x007e
0x007f
;
;
;
;
;
/*
/*
/*
/*
/*
Rx
Rx
Rx
Rx
Rx
cell
cell
cell
cell
cell
header - SCC1
*/
HEC - SCC1
*/
payload - 16 bytes - SCC1 */
payload - 16 bytes - SCC1 */
payload - 16 bytes - SCC1 */
count=0x40 ;
*(SIRAM + count++)
*(SIRAM + count++)
*(SIRAM + count++)
*(SIRAM + count++)
*(SIRAM + count++)
=
=
=
=
=
0x044e
0x0842
0x007e
0x007e
0x007f
;
;
;
;
;
/*
/*
/*
/*
/*
Tx
Tx
Tx
Tx
Tx
cell
cell
cell
cell
cell
header - SCC1
*/
HEC - SCC1
*/
payload - 16 bytes - SCC1 */
payload - 16 bytes - SCC1 */
payload - 16 bytes - SCC1 */
/* Enable SI */
SI->SIGMR
= 0x04 ;
/* Enable TDMA */
} /* End of config_tsa */
/*********************************************************************/
/*
QUICC RAM MICROCODE CONFIGURATION & INITIALISATION
*/
/*********************************************************************/
ATOM1 User’s Manual 1.0
-45-
No Restriction on Circulation
/* Function name: config_ucode
*/
/*********************************************************************/
/* Configure CP control registers and enable RAM microcode.
*/
/*********************************************************************/
/* Input Parameters:
global data structure CP
*/
/*
*/
/* Output Parameters: CP modified
*/
/*
*/
/*********************************************************************/
config_ucode()
{
CP->CPCR1 =
CP->CPCR2 =
CP->CPCR3 =
/* CP->CPCR4 =
CP->CPCR4 =
CP->RCCR
0x8056
0x8076
0x8036
0x8e18
0x8818
;
;
;
;
;
= 0x0003 ;
/* CP Control Register
/* CP Control Register
/* CP Control Register
CP Control Register
/* CP Control Register
1
2
3
4
4
*/
*/
*/
- QUICC rev B1 */
- QUICC rev B2 */
/* Large RAM microcode now running */
} /* End of config_ucode */
/*********************************************************************/
/*
ATOM SCC CONFIGURATION & INITIALISATION
*/
/*********************************************************************/
/* Function name: atom_init
*/
/*********************************************************************/
/* This routine initialises an SCC to transmit and receive ATM cells.*/
/* The SCC is configured but not enabled.
*/
/*********************************************************************/
/* Input Parameters:
Pointers to the SCC register, SCC parameter
*/
/*
RAM and CP register data structures.
*/
/*
Accesses global data structure CP.
*/
/*
*/
/* Output Parameters: CP modified
*/
/*
*/
/*********************************************************************/
atom_init(SCC, ATOM)
struct SCC_regs
struct ATOM1_Params
*SCC ;
*ATOM ;
{
/* SCC registers: */
/*
SCC->GSMRL
SCC->GSMRH
SCC->PSMR
SCC->PSMR
SCC->SCCM
SCC->SCCE
=
=
=
=
=
=
0
0x00001F80
0x2100
0
0
0xffff
;
;
;
;
;
;
/* SCC Disabled */
/* Set sync and transparent bits */
/* Enable scrambling and HEC coset */
Disable scrambling and HEC coset */
/* Mask out interrupts */
/* Clear SCC event register */
/* Configure SCC parameter RAM for ATOM1: */
ATOM->RBASE
ATOM->TBASE
ATOM->RFCR
ATOM->TFCR
=
=
=
=
(ARXBD0-QUICC)
(ATXBD0-QUICC)
0x18
0x19
ATOM1 User’s Manual 1.0
;
;
;
;
/*
/*
/*
/*
Rx BD Base Address */
Tx BD Base Address */
SDMA Rx Function Code */
SDMA Tx Function Code */
-46-
No Restriction on Circulation
ATOM->MRBLR
= 0
ATOM->ALPHA
= 0
ATOM->DELTA
= 0
ATOM->CAM_PORT = 0x0001
ATOM->RX_BUFF1 = RXBUFF
ATOM->TX_BUFF1 = TXBUFF
ATOM->EHEAD
= 0x01000000
ATOM->EPAYLOAD = 0x6a6a6a6a
ATOM->RSTUFF
= 0
ATOM->SHUFFLESTATE = 0
ATOM->RHECTEMP = 0x00ff
ATOM->THECTEMP = 0
ATOM->ASTATUS = 0
ATOM->NMA_HEAD = 0
ATOM->NMA_CNT = 0
ATOM->HEC_ERR = 0
ATOM->RSCRAM
= 0
ATOM->RSCRAM1 = 0
ATOM->TSCRAM
= 0
ATOM->TSCRAM1 = 0
ATOM->HEADMASK = 0
ATOM->HEAD1
= 0
ATOM->HEAD2
= 0
ATOM->HEAD3
= 0
ATOM->HEAD4
= 0
ATOM->HEAD5
= 0
ATOM->HEAD6
= 0
ATOM->HEAD7
= 0
ATOM->HEAD8
= 0
ATOM->HEAD9
= 0
ATOM->HEAD10
= 0
ATOM->HEAD11
= 0
ATOM->HEAD12
= 0
ATOM->HEAD13
= 0
ATOM->HEAD14
= 0
ATOM->HEAD15
= 0
ATOM->HEAD16
= 0
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
Transparent Receiver Max Buffer Length */
Receiver Synchronisation Alpha Counter */
Receiver Synchronisation Delta Counter */
CAM Match* signal on PB0 */
Receive Buffer Area Start Pointer */
Transmit Buffer Page Start Pointer */
Empty Cell Header (little-endian) */
Empty Cell Payload */
Receive Data Stuffing Location */
Receive Data Stuffing State */
Preset rx temp HEC storage area */
Temporary HEC storage area */
ATOM1 status word */
Non-Matching Address Cell Header */
Non-Matching Address Cell Counter */
HEC Error Counter */
Receiver Scrambling Storage */
Receiver Scrambling Storage */
Transmitter Scrambling Storage */
Transmitter Scrambling Storage */
Cell Header Comparison Mask */
Cell Header Look-Up Table Entry 1 */
Cell Header Look-Up Table Entry 2 */
Cell Header Look-Up Table Entry 3 */
Cell Header Look-Up Table Entry 4 */
Cell Header Look-Up Table Entry 5 */
Cell Header Look-Up Table Entry 6 */
Cell Header Look-Up Table Entry 7 */
Cell Header Look-Up Table Entry 8 */
Cell Header Look-Up Table Entry 9 */
Cell Header Look-Up Table Entry 10 */
Cell Header Look-Up Table Entry 11 */
Cell Header Look-Up Table Entry 12 */
Cell Header Look-Up Table Entry 13 */
Cell Header Look-Up Table Entry 14 */
Cell Header Look-Up Table Entry 15 */
Cell Header Look-Up Table Entry 16 */
} /* End of atom_init */
/*********************************************************************/
/*
ATOM1 TRANSMIT & RECEIVE BD INITIALISATION ROUTINE
*/
/*********************************************************************/
/* Function name:
BD_init
*/
/*********************************************************************/
/* This routine initialises an ATOM1 transmit or receive BD.
*/
/*********************************************************************/
/* Input Parameters:
Pointer to the BD.
*/
/*
Flags for Skip, Interrupt and Wrap bits.
*/
/*
The adresses of the start of data buffer
*/
/*
area and the actual data buffer within that. */
/*
area to tx
*/
/*
*/
/* Output Parameters: BD queue modified
*/
/*
*/
/*********************************************************************/
BD_init(new_BD, skip, i_rupt, wrap, page, address)
ATOM1 User’s Manual 1.0
-47-
No Restriction on Circulation
uword
int
ulong
*new_BD ;
skip, i_rupt, wrap ;
page, address ;
uword
BD_contents ;
{
BD_contents = 0x8000 ;
if (skip != 0)
(BD_contents = BD_contents | 0x4000) ; /* Set tx BD skip bit */
if (i_rupt != 0)
(BD_contents = BD_contents | 0x1000) ; /* Set BD interrupt bit */
if (wrap != 0)
(BD_contents = BD_contents | 0x2000) ; /* Set BD wrap bit */
/* Append address */
BD_contents = BD_contents + (uword) ((address - page) >> 2) ;
*new_BD = BD_contents ;
} /* End of BD_init */
/* End File */
ATOM1 User’s Manual 1.0
-48-
No Restriction on Circulation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
