Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...

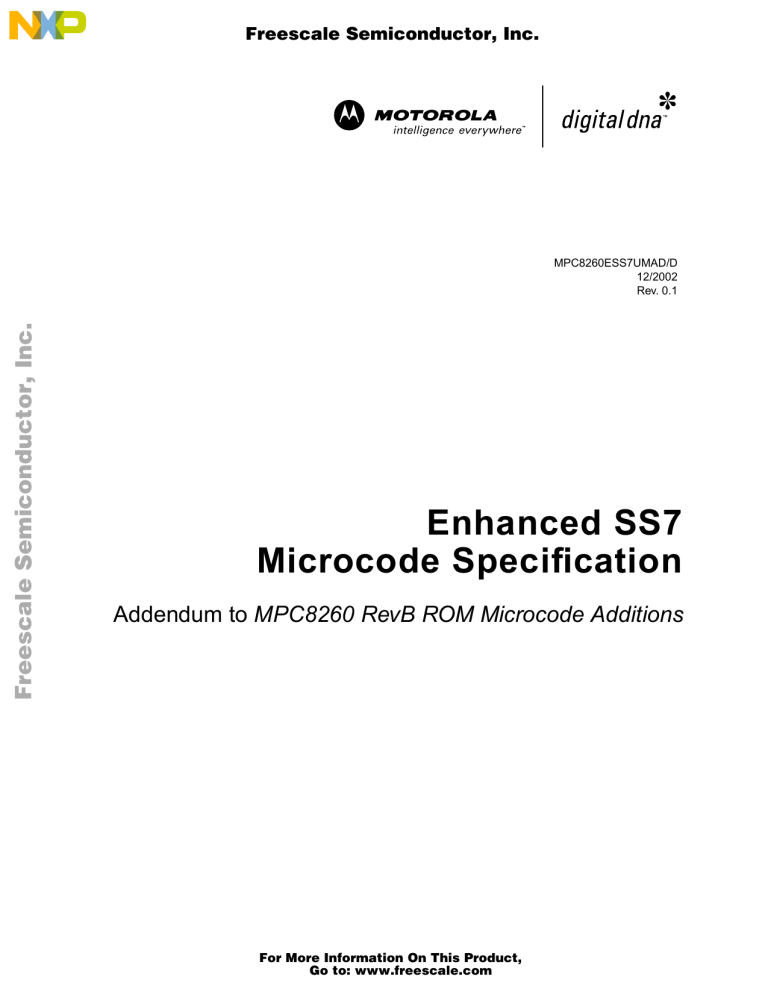

MPC8260ESS7UMAD/D
12/2002
Rev. 0.1
Enhanced SS7
Microcode Specification
Addendum to MPC8260 RevB ROM Microcode Additions
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
About This Document
Freescale Semiconductor, Inc...
This document describes additional functionality available only with the enhanced SS7
RAM microcode package supplement to the SS7 microcode available in ROM on the
MPC8260.
Definitions
SS7
SS7 microcode is standard on all MPC8260 devices (beginning with HiP3 Rev. B.3) and
supports MTP-2 features according to the following standards:
•
•
•
ITU-T Q.703
— Section 3: Signal unit delimitation
— Section 4: Acceptance procedure
— Section 10: Signaling link error monitoring
ANSI T1.111
Japanese JT Q.703
Enhanced SS7
The enhanced SS7 microcode is a product (product #: MPC8260SW-ESS7) that can only
be obtained by contacting your local Motorola sales office. In addition to the above
standards, it supports the following:
•
•
ITU-T Q.703 Annex A (provides for high speed SS7 channels at T1/E1 rates)
— Section A.1.x
— Section A.4.x
— Section A.10.x
Chinese 2M GB standard (supports SS7 at a speed of 2Mbps for the Chinese market)
— Section 4.2.1: Signal unit delimitation and alignment
— Section 4.2.2: Error detection
— Section 4.2.5: Signalling link error monitoring
— Section 4.2.8: Signal unit format
— Section 4.2.9.8: EIM and AERM
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
1
Freescale Semiconductor, Inc.
References
Dual-Port RAM Limitations
The enhanced SS7 microcode requires 8Kbyte of RAM. On MPC8260 HiP3 silicon
(beginning with Rev. B.3), this microcode package occupies the first 8Kbytes of DPRAM.
Therefore, MCC1 channels are not available.
On MPC826xA HiP4 silicon, which has an additional 32 Kbytes of DPRAM, the enhanced
SS7 microcode package does not affect MCC1 channels.
References
Freescale Semiconductor, Inc...
Users of this document should also be familiar with the following:
•
•
MPC8260 PowerQUICC II User’s Manual (Doc ID: MPC8260UM/D)
— Errata to the MPC8260 User’s Manual (Doc ID: MPC8260UMAD/D)
MPC8260 RevB ROM Microcode Additions (Doc ID: MPC8260BMCUMAD/D)
The above are available for free download. Go to www.motorola.com/semiconductors.
Document Revision History
Document Revision
0
0.1
Changes
• Initial version
• Change to description of proving in Section 7.3.4.2, “Japanese SS7:”
Part I Introduction
Based on the HDLC protocol, the signalling system #7 (SS7) protocol is used to manage
public switching networks. The SS7 protocol operates on signal units (SU), which are
analogous to HDLC frames. The physical, data-link, and network-layer functions of the
SS7 protocol are collectively called the message transfer part (MTP). The enhanced SS7
microcode on the MPC8260 enables applications that require multi-channel SS7
processing.
The enhanced SS7 controller is implemented using the MCC hardware with microcode
running on the CPM. Each MCC implements the following layer 2 (data-link) functions of
the MTP:
•
•
•
•
•
2
Signal unit (SU) retransmission
Automatic fill-in signal unit (FISU) transmission
Short SU filtering
Duplicate fill-in and link-status signal unit (FISU/LSSU) filtering
Octet counting
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
•
•
•
•
•
References
Signal unit error rate monitoring
Extended sequence number
errored interval monitoring
Good frame counter and bad frame counting
Initial alignment (Supports Alignment Error Rate Monitoring)
Note, however, that host software is needed to handle the following higher-level functions
of the MTP layer 2 not supported by the SS7 controller:
Freescale Semiconductor, Inc...
•
•
Link state control
Flow control
Part II Enhanced SS7 Controller Features
The primary features of the enhanced SS7 controller are as follows:
•
•
•
•
•
•
•
•
•
•
•
•
Support for up to 4 independent channels (AnnexA/GB) on MCCs
— Refer to “Dual-Port RAM Limitations” note on page 2
Independent mapping for receive and transmit
Standard HDLC features
— Flag/Abort/Idle generation/detection
— Zero insertion/deletion
— 16-bit CRC-CCITT generation/checking
— Detection of non-octet aligned signal units
— Programmable number of flags between signal units
Maintenance of errored interval monitor (EIM) (not applicable in Japanese mode)
Maintenance of signal unit error monitor (SUERM)
Maintenance of alignment error rate monitor (AERM)
Maintenance of separate counters for error-free and bad frames
Detection and stripping of long signal units
Discard of short signal units (those that are less than 5 octets or less than 8 if
extended sequence number is used for Annex A/GB standards)
Transmission of signal units with a programmable delay (applies to JT-Q.703
standard)
Automatic transmission of fill-in signal units (FISU)
Automatic retransmission of signal units (for link-status signal unit (LSSU)
retransmission)
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
3
References
•
•
•
Freescale Semiconductor, Inc...
•
•
•
•
•
•
Freescale Semiconductor, Inc.
Automatic discard of identical FISUs and LSSUs using a user-defined mask
Octet counting mode in case of long signal units and receiver overrun
Five circular interrupt tables with programmable size and overflow
identification—one for transmit and four for receive.
Global or individual channel loop modes
Efficient bus usage (no bus usage for inactive channels or for active channels with
nothing to send)
Efficient control of interrupts to the CPU
Supports external BD tables
Uses on-chip dual-port RAM for parameter storage
Uses 64-bit data transactions for reading and writing data in BDs
Part III SS7 Data Structure Organization
The enhanced SS7 controller uses the same data structures as MCC. Refer to Section 27.2,
“MCC Data Structures Organization,” in the MPC8260 PowerQUICC II User’s Manual.
Part IV Global SS7 Parameters
The global parameters of enhanced SS7 controller are identical to MCC global parameters.
Refer to Section 27.3, “Global MCC Parameters,” in the MPC8260 PowerQUICC II User’s
Manual.
Part V Channel Extra Parameters
The extra parameters of enhanced SS7 channels are identical to the MCC channel extra
parameters. Refer to Section 27.4, “Channel Extra Parameters,” in the MPC8260
PowerQUICC II User’s Manual.
Part VI Super Channel Table
The super channel table of enhanced SS7 controller is identical to MCC super channel
table. Refer to Section 27.5, “Super Channel Table,” in the MPC8260 PowerQUICC II
User’s Manual.
4
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
References
Part VII Channel-Specific Parameters
Table 7-1 describes channel-specific parameters for enhanced SS7. Note that a given
parameter location may have a different definition depending on the standard used
(ITU-T/ANSI or AnnexA/GB/Japanese standard).
Table 7-1. Channel-Specific Parameters for SS7
Freescale Semiconductor, Inc...
Offset 1
Name 2
Width
Description
0x00
TSTATE
Word
Tx internal state. The user must write to TSTATE 0xHH80_0000. HH is the TSTATE
High Byte. Refer to Section 27.6.1, “Internal Transmitter State (TSTATE)” in the
MPC8260 PowerQUICC II User’s Manual.
0x04
ZISTATE
Word
Zero-insertion machine state.(User-initialized to 0x10000207 for regular channel, and
0x30000207 for reversed bit order channel).
0x08
ZIDATA0
Word
Zero-insertion high word data buffer (User-initialized to 0xFFFFFFFF)
0x0C
ZIDATA1
Word
Zero-insertion low word data buffer (User-initialized to 0xFFFFFFFF)
0x10
TBDFlags
Hword
TxBD flags. Used by the CP (read-only for the user).
0x12
TBDCNT
Hword
Tx internal byte count. Number of remaining bytes in buffer, used by the CP (read-only
for the user).
0x14
TBDPTR
Word
Tx internal data pointer. Points to current absolute data address of channel, used by
the CP (read-only for the user).
0x18
ECHAMR
Word
Extended channel mode register. Refer to Section 7.1, “Extended Channel Mode
Register (ECHAMR).”
0x1C
TCRC
Word
Temporary transmit CRC. Temporary value of CRC calculation result, used by the CP
(read-only for the user).
0x20
RSTATE
Word
Rx internal state. To start a receiver channel the user must write to RSTATE
0xHH80_0000. HH is the RSTATE High Byte. Refer to Section 27.6.4, “Internal
Receiver State (RSTATE)” in the MPC8260 PowerQUICC II User’s Manual.
0x24
ZDSTATE
Word
Zero-deletion machine state (User-initialized to 0x00FFFFE0 for regular channel, and
0x20FFFFE0 for reversed bit order channel)
0x28
ZDDATA0
Word
Zero-deletion high word data buffer (User-initialized to 0xFFFFFFFF)
0x2C
ZDDATA1
Word
Zero-deletion low word data buffer (User-initialized to 0xFFFFFFFF)
0x30
RBDFlags
Hword
RxBD flags. Used by the CP (read-only for the user).
0x32
RBDCNT
Hword
Rx internal byte count. Number of remaining bytes in buffer, used by the CP
(read-only for the user).
0x34
RBDPTR
Word
Rx internal data pointer. Points to current absolute data address of channel, used by
the CP (read-only for the user).
0x38
MFLR
Hword
Maximum frame length register. Defines the longest expected frame for this channel.
(64-Kbyte maximum). The remainder of a frame that is larger than MFLR is discarded
and the LG flag is set in the last frame’s BD. An interrupt request might be generated
(RXF and RXB) depending on the interrupt mask. A frame’s length is considered to
be everything between flags, including CRC. No more data is written into the current
buffer when the MFLR violation is detected.
0x3A
MAX_cnt
Hword
Max_length counter. Used by the CP (read-only for the user).
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
5
Freescale Semiconductor, Inc.
References
Table 7-1. Channel-Specific Parameters for SS7 (continued)
Freescale Semiconductor, Inc...
Offset 1
Name 2
Width
Description
0x3C
RCRC
Word
Temporary receive CRC. Used by the CP (read-only for the user).
0x40
N
Hword
Applies to ITU-T/ANSI (including ITU-T Annex A) SS7 only. Interrupt threshold in octet
counting mode (N=16). Refer to Section 7.2, “Signal Unit Error Monitor (SUERM).”
N_cnt
Hword
Applies to ITU-T/ANSI (including ITU-T Annex A) SS7 only. Temporary down counter
for N (user initialized to the value of N).
JTSTTmp
Word
Applies to Japanese SS7 only. Temporary storage for Time-Stamp Register Value.
Used by the CP to implement a 24-ms delay before sending FISU.
0x44
D
Hword
Signal unit to signal unit error ratio (SUERM parameter, user initialized to 256). Refer
to Section 7.2, “Signal Unit Error Monitor (SUERM).” For Japanese SS7 refer to
Section 7.2.1, “SUERM in Japanese SS7.” For EIM refer to Section 7.3.2, “EIM
Implementation.”
0x46
D_cnt
Hword
Applies to ITU-T/ANSI SS7 only. Temporary down-counter for D (user initialized to the
value of D). D_cnt is decremented only when receive buffers are available.
JTTDelay
Applies to Japanese SS7 only. FISU retransmission delay (specified in units of 512
µs). According to the Japanese SS7 standard, the delay should be 24 ms and thus
JTTDelay should be programmed to 24 ms/512 µs = 46.875 (approximately 47).
Hence, the user should program JTTDelay to 0x2F and the RTSCR to generate a 1
µs time stamp period. Refer to Section 13.3.7, “RISC Time-Stamp Control Register
(RTSCR),” in the MPC8260 PowerQUICC II User’s Manual. According to SS7 Annex
A, the delay should be cleared (0x00).
0x48
Mask1
Word
Mask for SU filtering, bytes 1-4. Refer to Section 7.3.7, “SU Filtering.”
0x4C
Mask2
Hword
Mask for SU filtering, byte 5-6. Refer to Section 7.3.7, “SU Filtering.
0x4E
SS7_OPT
Hword
SS7 configuration register. Refer to Section 7.3, “SS7 Configuration Register
(SS7_OPT).”
0x50
LRB1_Tmp
Word
Temporary storage. Used by CP for SU filtering.
0x54
LRB2_Tmp
Hword
Temporary storage. Used by CP for SU filtering.
0x56
SUERM
Hword
Signal unit error rate monitor counter (user initialized to 0). Refer to Section 7.2,
“Signal Unit Error Monitor (SUERM).” For Japanese SS7, refer toSection 7.2.1,
“SUERM in Japanese SS7.” For errored interval monitor, refer to Section 7.3.2, “EIM
Implementation.”
0x58
LRB1
Word
Four first bytes of last received signal unit. Used by CP for SU filtering. Refer to
Section 7.3.7, “SU Filtering.”
0x5C
LRB2
Hword
Fifth and sixth byte of last received signal unit. Used by CP for SU filtering. Refer to
Section 7.3.7, “SU Filtering.”
0x5E
T
Hword
SUERM threshold value (user initialized to 64 for SUERM). Refer to Section 7.2,
“Signal Unit Error Monitor (SUERM).” For Japanese SS7, refer toSection 7.2.1,
“SUERM in Japanese SS7.” For errored interval monitor, refer to Section 7.3.2, “EIM
Implementation.” For AERM refer to Section 7.3.4, “AERM Implementation.”
0x60
LHDR
Word
The BSN, BIB, FSN, FIB fields of last transmitted signal unit and result of CRC. Used
by CP for automatic FISU transmission.
0x64
LHDR_Tmp Word
6
Used by CP for automatic FISU transmission.
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Extended Channel Mode Register (ECHAMR)
Table 7-1. Channel-Specific Parameters for SS7 (continued)
Freescale Semiconductor, Inc...
Offset 1
Name 2
Width
Description
0x68
EFSUC
Word
Error-free signal unit counter, user initialized to 0. The counter is incremented
whenever an error-free (no CRC error, no non-octet aligned error, no short or long
frame errors) signal unit is received.
0x6C
SUEC
Word
Signal unit error counter, user initialized to 0. Incremented each time an SU is
received that contains an error. These errors are: short frame, long frame, CRC error,
and non-octet aligned error.
0x70
SS7STATE
Word
Internal state of SS7 controller. User initialized to 0.
0x74
JTSRTmp
Word
Used by the CP to implement signal unit error rate monitoring in Japanese SS7 and
errored interval monitoring in SS7 Annex A/GB.
0x78
JTRDelay
Hword
Specified in units of 512 µs. SUERM delay in Japanese SS7 and the interval in
“errored interval monitor”; otherwise should be cleared. According to the Japanese
SS7 standard, the delay should be 24 ms and thus JTRDelay should be programmed
to 24 ms/512 µs = 46.875 (approximately 47). Hence, the user should program
JTRDelay to 0x2F and the RTSCR to generate a 1 µs time stamp period. Refer to
Section 13.3.7, “RISC Time-Stamp Control Register (RTSCR),” in the MPC8260
PowerQUICC II User’s Manual. For EIM, According to SS7 AnnexA/GB, the delay
should be 100ms and thus JTRDelay should be programmed to 100ms/512µs = 195.3
(approximately 195). Hence, the user should program JTRDelay to 0xC3. Refer to
Section 7.3.2, “EIM Implementation.”
0x7A
M
Hword
ITU threshold for AERM. If M_cnt reaches M, an AERM interrupt is generated. Note
that M is normally programmed to 5.
0x7C
M_cnt
Hword
Up-counter for M. Should be cleared during initialization.
0x7E
Mask_3
Hword
Mask for SU filtering byte 7 and 8.
0x80
LRB3_Tmp
Hword
Temp storage for SU filtering.
0x82
LRB3
Hword
Seventh and eighth byte of last received SU.
0x84
U
Hword
Down counter for EIM in GB only. Refer to Section 7.3.2.2, “GB SS7.”
0x86–
0xFF
Reserved
—
Reserved, should be cleared.
1
The offset is relative to the dual-port RAM address + 64 x CH_NUM.
SS7 (ITU 64k)channel specific parameters require twice the amount of dual-port RAM required for HDLC or
Transparent channel specific parameters. Therefore, for ITU 64k SS7, even channel numbers (0, 2, 4 etc.) must be
used.
Annex A/GB channel specific parameters require four times the amount of dual-port RAM required for HDLC or
Transparent channel specific parameters. Therefore, for Annex A/GB every fourth channel numbers (0, 4, 8, etc.) must
be used and all channel numbers in between must be left unused.
2 BOLD entries in the above table indicate parameters which MUST be initialized by the user. All other parameters are
managed by the microcode and should be initialized to zero unless otherwise stated.
7.1
Extended Channel Mode Register (ECHAMR)
The extended channel mode register (ECHAMR) is a user-initialized register, is shown in
Figure 7-1. It includes both the interrupt mask bits and channel configuration bits.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
7
Freescale Semiconductor, Inc.
Extended Channel Mode Register (ECHAMR)
The interrupt mask provides bits for enabling/disabling each event defined in the interrupt
table entry. Other bits provide various channel configuration options.
0
Field MODE0
1
2
—
OCT
3
4
SUERM FISU
Reset
6
7
8
—
UN
TXB
—
9
10
11
12
13
14
15
AERM NID IDL MRF RXF BSY RXB
No reset value
R/W
R/W
Offset
0x18
16
Freescale Semiconductor, Inc...
5
17
18
19
Field MODE1 POL
—
IDLM
Reset No reset value
1
20
25
—
26
TS
27
28
RQN
29
31
NOF
No reset value
R/W
R/W
Offset
0x1A
Figure 7-1. Extended Channel Mode Register (ECHAMR)
ECHAMR fields are described in Table 7-2.
Table 7-2. ECHAMR Fields Description
Bits
Name
Description
0,16
MODE0
MODE1
00
01
10
11
1, 5,
8
0
Reserved, must be cleared.
2-4,
6-7,
9-15
INTMSK
Interrupt mask bits. Refer to Section 10.1, “Interrupt Table Entry.”
17
POL
Enable polling. POL enables the transmitter to poll the TxBDs.
0 Polling is disabled (The CPM does not access the external bus to check the R bit in the TxBD).
1 Polling is enabled.
POL can be used to optimize the use of the external bus. Software should always set POL at the
beginning of a transmit sequence of one or more frames. The CP clears POL when no more
buffers are ready in the transmit queue, i.e. when it finds a BD with R = 0 (for example, at the end
of a frame or at the end of a multi-frame transmission). To prevent a significant number of
useless transactions on the external bus, software should always prepare the new BD, or
multiple BDs, and set BD[R] before enabling polling.
18
1
Reserved, must be set.
8
Transparent mode
HDLC mode
Reserved
SS #7 mode (This is the required bit setting for an MCC to perform SS7.)
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Signal Unit Error Monitor (SUERM)
Table 7-2. ECHAMR Fields Description (continued)
Bits
Freescale Semiconductor, Inc...
19
Name
IDLM
Description
Idle mode.
0 No idle patterns are transmitted between frames. After transmitting NOF+1 flags, the transmitter
starts sending the data of the frame. If the transmission is between frames and the frame buffers
are not ready, the transmitter sends flags until it can start transmitting the data.
1 At least one idle pattern is sent between adjacent frames. The NOF value shall be no smaller
than the PAD setting, see TxBD. If NOF = 0, this is identical to flag sharing in SS7. Mode flags
precede the actual data. When IDLM = 1, at least one idle pattern is sent between adjacent
frames. If the transmission is between frames and the frame buffer is not ready, the transmitter
sends idle characters. When data is ready, the NOF+1 flags are sent followed by the data frame.
If IDLE mode is selected and NOF = 1, the following sequence is sent:
......init value, FF, FF, flag, flag, data, ........
The init value before the idle will be ones.
For EIM, IDLM must be cleared
20-23
0
Reserved, must be cleared.
24
0
Reserved, must be cleared.
25
0
Reserved, must be cleared.
10
TS
Receive time stamp. If this bit is set a 4 byte time stamp is written at the beginning of every data
buffer that the BD points to.If this bit is set the data buffer must start from an address equal to 8*n-4
(n is any integer larger than 0).
11–12
RQN
Receive queue number. Specifies the receive interrupt queue number.
00 Queue number 0.
01 Queue number 1.
10 Queue number 2.
11 Queue number 3.
13–15
NOF
Number of flags. NOF defines the minimum number of flags before frames:
000 - at least 1 flag
001 - at least 2 flags
....
111 - at least 8 flags
7.2
Signal Unit Error Monitor (SUERM)
The microcode maintains the signal unit error rate monitor as described in ITU-T Q.703
paragraph 10 and ANSI T1.111-1996 paragraph 10.
The microcode uses SUERM, N, N_cnt, D, D_cnt and T parameters for the leaky-bucket
implementation of the SU error monitor.
•
After every N octets received while in octet counting mode, SUERM is incremented
and an interrupt request can be generated (SUERM) depending on the interrupt
mask.
• After D error-free frames have been received, SUERM is decremented. SUERM
will not be decremented below zero.
¥ If SUERM reaches T, the SUERM is cleared and an interrupt is generated.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
9
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
To disable SUERM, refer to Section 7.3.5, “Disabling SUERM.”
7.2.1
SUERM in Japanese SS7
The Japanese SS7 uses a time interval to monitor errors. If an error is present, it checks
every 24 ms.
Freescale Semiconductor, Inc...
•
•
•
•
•
An error flag is set that indicates whether current frame is errored or not.
For every JTRDelay an error flag is checked.
If there is no error, decrement the counter SUERM by 1 (not below zero).
If there is an error, increment the counter SUERM by D.
If SUERM reaches T, the counter SUERM is cleared and a “signal unit error rate
monitor” interrupt is generated.
Table 7-3. Parameter Values for SUERM in Japanese SS7
Parameter
Definition
Value
T
Threshold
285
D
Upcount
16
JTRDelay Length of interval (24ms)
7.3
0x2F
SS7 Configuration Register (SS7_OPT)
Figure 7-2 shows the SS7 configuration register.
0
1
2
3
4
5
6
7
8
9
10
11
12
15
Field — EN_GB EIM ExtSN AERM SUERM_DIS STD SF_DIS SU_FIL SEN_FIS O_ORN O_ITUT FISU_PAD
Reset
No reset value
R/W
R/W
Figure 7-2. SS7 Configuration Register (SS7_OPT)
Table 7-4 describes SS7 configuration register fields.
Table 7-4. SS7 Configuration Register Fields Description
Bits
Name
Description
0
—
Reserved, should be cleared.
1
EN_GB
Enable GB features in EIM. Refer to Table 7-5 and to Section 7.3.2, “EIM Implementation.”
0 Disable GB features in EIM, only use AnnexA feature.
1 Enable GB features in EIM, EIM and STD must also be set.
2
EIM
Errored interval monitor. Refer to Table 7-5 and to Section 7.3.2, “EIM Implementation.”
0 Disable Errored Interval Monitoring.
1 Enable Errored Interval Monitoring, STD must also be set.
10
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
Table 7-4. SS7 Configuration Register Fields Description (continued)
Freescale Semiconductor, Inc...
Bits
Name
Description
3
ExtSN
EXTended Sequence Number. Refer to Section 7.3.3, “ExtSN Implementation.”
0 Disable Extended Sequence Number.
1 Enable Extended Sequence Number.
4
AERM
Alignment error rate monitor enable. Refer to Table 7-5 and to Section 7.3.4, “AERM
Implementation.”
0 Do not enable AERM.
1 Enable AERM.
5
SUERM_
DIS
Disable the error monitoring. Refer to Section 7.3.5, “Disabling SUERM.”
Disable the Japanese SUERM. Refer to Section 7.3.4, “AERM Implementation.”
Disable the errored interval monitor. Refer to Section 7.3.4, “AERM Implementation.”
0 Enable SUERM/Japanese SUERM/EIM.
1 Disable SUERM/Japanese SUERM/EIM.
6
STD
Standard compliance. Refer to Table 7-5 and to Section 7.3.6, “STD.”
0 ITU-T/ANSI compliant
1 Japanese SS7 compliant/ITU-T Annex A/GB (EIM)
7
SF_DIS
Discard short frames (less than 5 octets or 8 octets if Extended sequence number is enabled)
0 Do not discard short frames.
1 Discard short frames.
8
SU_FIL
SU Filtering. Refer to Section 7.3.7, “SU Filtering.”
0 Disable SU filtering.
1 Enable SU filtering.
9
SEN_FIS
Send FISU if first BD of frame is not ready.
0 Flags are sent if the current BD, which is the first BD of the frame, does not have its ready bit set.
1 FISUs are automatically sent if the current BD, which is the first BD of the frame, does not have
its ready bit set.
10
O_ORN
In ITU-T mode, Enter octet counting mode (OCM) on overrun. Refer to Table 7-6 and to
Section 7.3.8, “Octet Counting Mode.”
0 Disable entering OCM if there are no receive BDs available.
1 Enter OCM if there are no receive BDs available,
In AnnexA/GB/Japanese mode, error counter may increase for current interval on overrun. Refer to
Table 7-6 and to Section 7.3.8, “Octet Counting Mode.”
0 Error counter will not increase if there are no receive BDs available.
1 Error counter will increase if there are no receive BDs available.
11
O_ITUT
Enter octet counting mode (OCM) on ITU-T conditions (after an abort sequence or when an SU is
too long). Should be cleared if using the Japanese standard or Annex A/GB (EIM). Refer to
Table 7-6 and to Section 7.3.8, “Octet Counting Mode.”
0 Disable entering OCM on ITU-T conditions.
1 Enable entering OCM on ITU-T conditions.
12-15 FISU_PAD Padding of the automatically transmitted FISUs. If the SEN_FISU bit is set, the CP will use the value
of FISU_PAD as a number of pad character. Please refer to PAD parameter in 7.7.2, “SS7 Transmit
Buffer Descriptor (TxBD).
7.3.1
Mode Configurations
Table 7-5 shows the SS7_OPT bit values required for various error monitoring modes.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
11
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
Table 7-5. Error Monitor Modes
Freescale Semiconductor, Inc...
Modes
EN_GB
EIM
AERM
STD
SUERM. SUERM is the default mode when using ITU-T Q.703. Refer to
Section 7.2, “Signal Unit Error Monitor (SUERM).”
0
0
0
0
SUERM & AERM in Japanese mode. When STD is set the Japanese mode is
entered and another type of SUERM is used (refer to Section 7.2.1, “SUERM in
Japanese SS7”). Japanese AERM is requires different parameter settings. Refer
to Section 7.3.4.2, “Japanese SS7.”
0
0
0
1
AERM. See 7.3.1.2, “AERM Implementation. There are no changes for AERM
implementation between standard SS7 and enhanced SS7 except that octet
count mode is not used. Refer to Section 7.3.4, “AERM Implementation.”
0
0
1
0
Reserved
0
0
1
1
Reserved
0
1
0
0
EIM in AnnexA. Refer to the document ITU-T Q.703 (07/96) for Annex A. Also
refer to Section 7.3.2, “EIM Implementation.”
0
1
0
1
EIM in GB. Refer to the document Chinese National No.7 Signaling System
2Mbit/s High Speed Link Technical Specification. Also refer to Section 7.3.2, “EIM
Implementation.”
1
1
0
1
Reserved
0/1
1
1
0
Reserved
0/1
1
1
1
Table 7-6 shows the SS7_OPT bit values required for Octet count mode.
Table 7-6. Octet Count Mode
Modes
Description
SS7
Japanese SS7
Enhanced SS7
(Annex A /GB)
7.3.2
O_ORN O_ITUT
Octet count mode is not used.
0
0
Octet count mode is entered when ABORT is received or SU is too long.
0
1
Octet count mode is entered when no Rx buffers are available.
1
0
Octet count mode is entered when ABORT or SU is too long or when no Rx
buffers are available.
1
1
Error counter does not increase when a Rx buffer is not available
0
0
Error counter does increase when a Rx buffer is not available.
1
0
Error counter does not increase when a Rx buffer is not available.
0
0
Error counter does increase when a Rx buffer is not available.
1
0
EIM Implementation
Errored interval monitor (EIM) is implemented instead of SUERM.
12
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
7.3.2.1
Annex A SS7
As stated in ITU-T Q.703 (07/96) for Annex A, the errored interval monitor is implemented
as follows:
1.
2.
3.
4.
On every errored Signal Unit an error flag is set.
If the interval is error free; decrement the counter SUERM by 1 (not below zero)
If there is an error in the interval; increment the counter SUERM by D.
If SUERM reaches T, the counter SUERM is cleared and a “signal unit error rate
monitor” interrupt is generated.
Freescale Semiconductor, Inc...
Table 7-7. Values for the Annex A Errored Interval Parameters
Parameter
Definition
T
Threshold
65
73
D
Upcount
16
18
0xC3
0xC3
JTRDelay Length of interval (100ms)
7.3.2.2
1.5 Mbit/s 2.0 Mbit/s
GB SS7
According to Chinese National No.7 Signaling System 2Mbit/s High Speed Link Technical
Specification (refer as GB in this manual), EIM is implemented for GB (provided
SS7_OPT[EN_GB] is set) in the following way:
1.
2.
3.
4.
On every errored Signal Unit an error flag is set.
If the interval is error free, decrement the counter SUERM by U (not below zero).
If there is an error in the interval, increment the counter SUERM by D.
If SUERM reaches T, the counter SUERM is cleared and a “signal unit error rate
monitor” interrupt is generated.
Table 7-8. Values for the GB Errored Interval Parameters
Parameter
Definition
T
Threshold
794
D
Upcount
198
U
Downcount
11
JTRDelay Length of interval (100ms)
7.3.3
2.0 Mbit/ s
0xC3
ExtSN Implementation
The extended sequence number (ExtSN) option implements the ITU-T Q.703 (07/96)
Annex A/GB standard. The option extended sequence number uses 12 instead of 7 bits for
sequence numbering.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
13
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
7.3.4
AERM Implementation
The SS7 microcode implements the ITU Q.703 alignment error rate monitor (AERM). The
microcode uses the T, SUERM, M and M_cnt parameters. The M_cnt parameter is
incremented for every T errored frames. If M_cnt reaches M, an AERM interrupt is
generated to layer 3.
Note that in AERM mode no SUERM interrupt is generated. Also, the algorithm associated
with D and D_cnt is disabled as per the ITU specification.
Freescale Semiconductor, Inc...
7.3.4.1
Annex A/GB SS7
The EIM or STD options cannot be set when using ITU Q.703 AERM. Also note that the
octet count mode is not used in Annex A/GB.
To disable AERM and enter EIM, do the following:
1. Set SUERM_DIS bit in SS7_OPT.
2. Clear AERM bit in SS7_OPT.
3. Annex A: set up parameters (T, D, SUERM) for EIM.
GB: set up parameters (T, D, U, SUERM) for EIM.
4. Set EIM and STD bits in SS7_OPT.
5. Clear SUERM_DIS bit in SS7_OPT.
7.3.4.2
Japanese SS7
To meet the Japanese AERM requirements the user must change the parameters T and D.
Note that the interrupt generated is not AERM but SUERM.
During proving, do the following:
1. Set SS7_OPT register to 0b0000 001X XX00 XXXX. The value of X does not
matter because these bits do not affect the operation of the error counter.
2. Clear JTRdelay parameter to'0.'
3. Set parameters T(threshold) and D(up counter) to '1.'
4. Clear parameter SUERM (error counter) to '0.'
5. Set JTTDelay to value required to generate 24ms delay.
These settings allow FISU or LSSU transmission to be delayed by the required 24ms
(JTTDelay). They also allow the correct operation of the JT Q703 error counter and ensure
that an SUERM interrupt is generated on the first SU received in error.
After proving period, set the parameters (T and D) to values according to the Japanese
SUERM. See section Table 7-3.
14
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
To disable AERM and enter SUERM, do the following:
1. Set SUERM_DIS bit in SS7_OPT.
2. Set parameters (T, D & SUERM) for Japanese SUERM.
3. Clear SUERM_DIS bit in SS7_OPT.
Freescale Semiconductor, Inc...
7.3.5
Disabling SUERM
When SS7_OPT[SUERM_DIS] is set, the N_cnt and D_cnt parameters are not
decremented by the microcode and no SUERM interrupt is generated. This allows these
parameters to be updated, for example, at the end of the proving period in alignment error
monitoring. If the SS7 controller is in the octet counting mode (OCM), the user software
should wait until an error free frame is received upon which OCM is left, thereby
deactivating the N_cnt parameter. Hence, after setting SUERM_DIS, it is recommended to
wait one good frame length before changing the SUERM counter parameters.
7.3.6
STD
When SS7_OPT[STD] is set and SS7_OPT[EIM] is cleared, the Japanese SS7 mode is
entered. It will use it’s own signal unit error monitoring that checks every 24 ms if an error
is present. The AERM implementation in ITU Q.703 is not applicable on Japanese SS7. It
also differs from the ITU Q.703 standard by sending the AUTOFISU with a 24 ms delay.
Both EIM and Japanese SUERM use a time interval to monitor errors.
7.3.6.1
Annex A SS7
When both SS7_OPT[STD] and SS7_OPT[EIM] are set, the microcode implements the
ITU-T Q.703 (07/96) for Annex A. Annex A uses EIM instead of SUERM.
7.3.6.2
GB SS7
When SS7_OPT[EN_GB], SS7_OPT[STD] and SS7_OPT[EIM] are set, the microcode
implements the GB features. GB uses EIM instead of SUERM.
7.3.7
SU Filtering
To reduce overhead to the user software, a filtering algorithm has been adopted to allow
superfluous frames to be discarded. This algorithm compares the first 3–5 bytes (6-8 if
ExtSN is used) of the current FISU or LSSU to the last SU received and discards the current
SU if it has already been received twice.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
15
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
7.3.7.1
Comparison Mask
A user programmable 8-byte mask exists in the parameter RAM map. When an SU is
received, the controller checks the contents of the LI field. If LI is between 0 and 2, the SU
(except for the CRC portion) is masked according to the user programmable mask and is
then compared to the last SU received. The state machine for the matching algorithm is in
Section 7.3.7.2, “Comparison State Machine.”
The Mask 1, Mask 2, and Mask 3 channel-specific parameters construct the 8-byte user
mask. The exact format and byte ordering are shown in Section 7.3.6.1.1, “Mask for SS7,”
and Section 7.3.7.1.2, “Mask for SS7 Extended Sequence Number.”
Freescale Semiconductor, Inc...
7.3.7.1.1
Mask for SS7
msb
lsb
Byte 1
Byte 2
Byte 3
Byte 4
Figure 7-3. Mask 1
msb
lsb
Reserved, should be cleared.
Byte 5
Figure 7-4. Mask 2
7.3.7.1.2
Mask for SS7 Extended Sequence Number
msb
lsb
Byte 1
Byte 2
Byte 3
Byte 4
Figure 7-5. Mask 1
msb
lsb
Byte 5
Byte 6
Figure 7-6. Mask 2
msb
lsb
Byte 7
Byte 8
Figure 7-7. Mask 3
7.3.7.2
Comparison State Machine
The following state machine exists for filtering.
16
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
Freescale Semiconductor, Inc...
0
2
•
•
•
1
State 0. The first 3–5 (or 6–8 if extended sequence number is used) bytes (depending
on the contents of the LI field) are masked and then compared with the first 3–5 (or
6–8) bytes of the last SU. If there is a match, go to State 1; if there is not a match,
remain in State 0. The current SU is received into a buffer descriptor.
State 1. The first 3–5 (or 6–8) bytes (depending on the content of the LI field) are
masked and then compared with the first 3–5 (or 6–8) bytes of the last SU. If there
is a match, go to State 2; if there is not a match, go to State 0. The current SU is
received into a buffer descriptor.
State 2. The first 3–5 (or 6–8) bytes (depending on the content of the LI field) are
masked and then compared with the first 3–5 (or 6–8) bytes of the last SU. If there
is a match, the current SU is discarded (unless there is an error), the channel remains
in state 2, and SU error monitor is adjusted accordingly. If the frames do not match,
the current SU is received into a buffer descriptor and the channel returns to State 0.
7.3.7.3
Filtering Limitations
Because the algorithm is purely checking identical SUs, two FISUs are received after each
MSU rather than merely one, even though they have the same sequence numbers.
Reception of an MSU resets the filtering algorithm. Also, reception of a short frame resets
the
filtering
algorithm
when
SS7_OPT[SF_DIS] = 0;
however,
when
SS7_OPT[SF_DIS] = 1 (short frames are discarded), the filtering algorithm remains
unchanged.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
17
Freescale Semiconductor, Inc.
SS7 Configuration Register (SS7_OPT)
7.3.7.4
Resetting the SU Filtering Mechanism
This command resets the filtering algorithm to ensure that the next SU is received, even if
it would normally have been filtered. This command could be issued periodically so that the
603e core can check to make sure that the link is up and not simply receiving flags.
To issue this MCC command, refer to Section 13.4, “Command Set,” in the MPC8260
PowerQUICC II User’s Manual. Use opcode 1110 (0xE).
Freescale Semiconductor, Inc...
7.3.8
Octet Counting Mode
When entering the octet counting mode (OCM), the CP loads the user defined N register to
its internal octet counter. While in the octet counting mode the CP decrements its internal
counter for every unstuffed octet received. When the internal counter is decremented to
zero, the CP increment the SUERM register and reload the N register into the internal count
register. In addition, an interrupt (OCT) might be generated depending on the interrupt
mask. The SS7 controller enters octet counting mode under the following circumstances:
•
•
•
An ABORT character is received at any time and SS7_OPT[O_ITUT] is set.
The SU currently being received has exceeded the length programmed in the MFLR
register and SS7_OPT[O_ITUT] is set.
The receiver overruns and SS7_OPT[O_ORN] is set. Note that when no receive
buffers are available, only octets are counted (that is, D_cnt is not decremented after
receiving the frame).
The SS7 controller leaves octet counting mode when a valid signal unit is detected (with a
valid CRC and a length less than MFLR and greater than 4).
NOTE
Octet counting mode applies only to the ITU-T and ANSI
standards. The SS7 microcode does not work if both the
Japanese standard or Annex A/GB (EIM) and OCM features
are selected. Refer to Table 7-6.
Part VIII TDM Mapping
The mapping of SS7 channels to TDM channels is identical to mapping of MCC channels.
Refer to Section 27.8, “MCC Configuration Register,” in the MPC8260 PowerQUICC II
User’s Manual.
18
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
Interrupt Table Entry
Part IX SS7 Commands
The commands of the SS7 controller are identical to MCC commands. Refer to Section
24.9, “MCC Commands,” in the MPC8260 PowerQUICC II User’s Manual.
Freescale Semiconductor, Inc...
Part X SS7 Exceptions
The SS7 exceptions are almost identical to MCC exceptions. Refer to Section 24.10, “MCC
Exceptions,” in the MPC8260 PowerQUICC II User’s Manual. The differences are in
additional indications in the interrupt table entries. The SS7 interrupt table entry is
described in Section 10.1, “Interrupt Table Entry.”
10.1 Interrupt Table Entry
Each interrupt table entry, shown in Figure 10-8, contains information about
channel-specific events. Transmit interrupt table entries show only events caused by
transmission; receive interrupt table entries show only events caused by reception.
Field
0
1
V
W
2
3
4
OCT SUERM FISU
5
6
7
8
—
UN
TXB
—
Reset
9
10
AERM NID
11
IDL
12
13
14
15
MRF RXF BSY RXB
No reset value
R/W
R/W
16
Field
17
—
18
25
Channel Number
Reset
26
27
28
29
30
31
0
0
0
0
0
0
No reset value
R/W
R/W
Figure 10-8. Interrupt Table Entry
Table 10-9 describes interrupt table fields.
Table 10-9. Interrupt Table Entry Field Descriptions
Bits
Name
Description
0
V
Valid bit. V = 1 indicates that this entry contains valid interrupt information. Upon generating a new
entry, the CP sets V = 1. The user clears V immediately after it reads the interrupt flags of the entry
(before processing the interrupt). The V bits in the table are user-initialized. During initialization, the
user must clear the valid bit for each table entry.
1
W
Wrap bit. W = 1 indicates the last interrupt table entry. The next event’s entry is written/read (by
CP/user) from the address contained in INTBASE. Refer to Section 24.3, “Global MCC Parameters”
in the MPC8260 PowerQUICC II User’s Manual. During initialization, the user must clear all W bits in
the table except for the last one which must be set.
2
OCT
N octets received. If the channel is in octet counting, this bit is set when N octets have been received.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
19
Interrupt Table Entry
Freescale Semiconductor, Inc.
Table 10-9. Interrupt Table Entry Field Descriptions (continued)
Freescale Semiconductor, Inc...
Bits
Name
Description
3
SUERM
SU error monitor threshold reached. The SU error monitor has reached the programmed threshold T.
4
FISU
FISU transmission started. The CP has started automatic FISU transmission if the first BD of frame
does not have its ready bit set and the SEN_FISU bit is enabled in SS7_OPT register. Please refer to
SEN_FISU bit in Section 7.3, “SS7 Configuration Register (SS7_OPT).”
5
—
Reserved, should be cleared.
6
UN
Tx no data. The CP sets this flag if there is no data available to be sent to the transmitter. The
transmitter sends an ABORT indication and then sends idles.
7
TXB
Tx buffer. A buffer has been completely transmitted. TXB is set (and an interrupt request is generated)
as soon as the programmed number of PAD characters (or the closing flag, for PAD = 0) is written to
MCC transmit FIFO. This controls when the TXB interrupt is given in relation to the closing flag sent
out at TXD. Section 11.1.1, “SS7 Transmit Buffer Descriptor (TxBD),” describes how PAD characters
are used.
8
—
Reserved, should be cleared.
9
AERM
The alignment error rate monitor has reached the programmed threshold M.
10
NID
Set whenever a pattern that is not an idle pattern is identified.
11
IDL
Idle. Set when the channel’s receiver identifies the first occurrence of SS7 idle (0xFFFE) after any
non-idle pattern.
12
MRF
Maximum receive frame length violation. This interrupt occurs in SS7 mode when more bytes are
received than the value specified in MFLR. This interrupt is generated as soon as the MFLR value is
exceeded; the remainder of the frame is discarded.
13
RXF
Rx frame. A complete SS7 frame (signal unit) has been received.
14
BSY
Busy. A frame was received but was discarded due to lack of buffers.
15
RXB
Rx buffer. A buffer has been received on this channel that was not the last buffer in frame.
16–17 —
Reserved, should be cleared.
18–25 CN
Channel number. Identifies the channel index (0–255) of the requesting channel.
26–31 —
Reserved, should be cleared.
Part XI SS7 Buffer Descriptors
The SS7 buffer descriptors (BDs) are almost identical to MCC buffer descriptors. Refer to
Section 27.11, “MCC Buffer Descriptors,” in the MPC8260 PowerQUICC II User’s
Manual. The SS7 RxBDs have an additional status flag for short frames (RxBD[SF]), and
the SS7 TxBDs have a retransmit control bit (TxBD[RT]). The following sections describe
the BD structures for SS7 operation.
20
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SS7 Receive Buffer Descriptor (RxBD)
11.1 SS7 Receive Buffer Descriptor (RxBD)
Figure 11-9 shows the SS7 RxBD.
Offset + 0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
E
—
W
I
L
F
CM
—
UB
—
LG
NO
AB
CR
SF
—
Offset + 2
Data Length
Offset + 4
Rx Data Buffer Pointer
Offset + 6
Figure 11-9. SS7 Receive Buffer Descriptor (RxBD)
Freescale Semiconductor, Inc...
SS7 RxBD fields are described in Table 11-10.
Table 11-10. SS7 RxBD Field Descriptions
Bits
Name
Description
0
E
Empty
0 The data buffer associated with this BD has been filled with received data, or data reception has
been aborted due to an error condition. The user is free to examine or write to any fields of this
RxBD. The CP does not use this BD again while the empty bit remains zero.
1 The data buffer associated with this BD is empty, or reception is in progress. This RxBD and its
associated receive buffer are in use by the CP. When E = 1, the user should not write any fields of
this RxBD.
1
—
Reserved, should be cleared.
2
W
Wrap (final BD in table)
0 This is not the last BD in the RxBD table.
1 This is the last BD in the RxBD table. After this buffer has been used, the CP receives incoming
data into the first BD in the table (the BD pointed to by RBASE). The number of RxBDs in this table
is programmable and is determined by the wrap bit.
3
I
Interrupt
0 The RXB bit is not set after this buffer has been used, but RXF operation remains unaffected.
1 The RXB or RXF bit in the HDLC interrupt circular table entry is set when this buffer has been used
by the HDLC controller. These two bits may cause interrupts (if enabled).
4
L
Last in frame (only for HDLC mode of operation). The HDLC controller sets L = 1, when this buffer is
the last in a frame. This implies the reception either of a closing flag or of an error, in which case one
or more of the CD, OV, AB, and LG bits are set. The HDLC controller writes the number of frame octets
to the data length field.
0 This buffer is not the last in a frame.
1 This buffer is the last in a frame.
5
F
First in frame. The HDLC controller sets F = 1 for the first buffer in a frame. In transparent mode, F
indicates that there was a synchronization before receiving data in this BD.
0 This is not the first buffer in a frame.
1 This is the first buffer in a frame.
6
CM
Continuous mode
0 Normal operation (The empty bit (bit 0) is cleared by the CP after this BD is closed).
1 The empty bit (bit 0) is not cleared by the CP after this BD is closed, allowing the associated data
buffer to be overwritten automatically when the CP next accesses this BD. However, if an error
occurs during reception, the empty bit is cleared regardless of the CM bit setting.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
21
Freescale Semiconductor, Inc.
SS7 Receive Buffer Descriptor (RxBD)
Table 11-10. SS7 RxBD Field Descriptions (continued)
Freescale Semiconductor, Inc...
Bits
Name
Description
7
—
Reserved, should be cleared.
8
UB
User bit. UB is a user-defined bit that the CPM never sets nor clears. The user determines how this
bit is used.
9
—
Reserved, should be cleared.
10
LG
Rx frame length violation (HDLC mode only). Indicates that a frame length greater than the maximum
value was received in this channel. Only the maximum-allowed number of bytes, MFLR rounded to
the nearest higher word alignment, are written to the data buffer. This event is recognized as soon as
the MFLR value is exceeded when data is word-aligned. When data is not word-aligned, this interrupt
occurs when the SDMA writes 64 bits to memory. The worst-case latency from MFLR violation until
detected is 7 bytes timing for this channel. When MFLR violation is detected, the receiver is still
receiving even though the data is discarded. The buffer is closed upon detecting a flag, and this is
considered to be the closing flag for this buffer. At this point, LG is set (1) and an interrupt may be
generated. The length field for this buffer is everything between the opening flag and this last
identifying flag.
11
NO
Rx nonoctet-aligned frame. A frame of bits not divisible exactly by eight was received. NO = 1 for any
type of nonalignment regardless of frame length. The shortest frame that can be detected is of type
FLAG-BIT-FLAG, which causes the buffer to be closed with NO error indicated.
The following shows how the nonoctet alignment is reported and where data can be found.
msb
lsb
xxx .................................... xx
Valid data
1
000...... 0
Invalid data
To accommodate the extra word of data that may be written at the end of the frame, it is recommended
to reserve MFLR + 8 bytes for each buffer data.
12
AB
Rx abort sequence. A minimum of seven consecutive 1s was received during frame reception. Abort
is not detected between frames. The sequence
Closing-Flag, data, CRC, AB, data, opening-flag...
does not cause an abort error. If the abort is long enough to be an idle, an idle line interrupt may be
generated. An abort within the frame is not reported by a unique interrupt but rather with a RXF
interrupt and the user has to examine the BD.
13
CR
Rx CRC error. Set if this frame contains a CRC error. The received CRC bytes are always written to
the receive buffer.
14
SF
Short frame indication. Set if the received frame is less than 5 octets. If Extended Sequence Number
is used, this bit will be asserted whenever a frame less then 8 octets is received.
15
—
Reserved, should be cleared.
The data length and buffer pointer are described as follows:
•
22
Data length. Data length is the number of octets written by the CP into this BD’s data
buffer. It is written by the CP when the BD is closed. When this is the last BD in the
frame (L = 1), the data length contains the total number of frame octets (including
two or four bytes for CRC). Note that memory allocated for buffers should not be
smaller than the contents of the maximum receive buffer length register (MRBLR).
The data length does not include the time stamp.
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SS7 Receive Buffer Descriptor (RxBD)
•
Rx buffer pointer. The receive buffer pointer points to the first location of the
associated data buffer. This value must be equal to 8 x n if ECHAMR[TS]=0 and
equal to 8 x n-4 if ECHAMR[TS]=1 (n = any integer larger than 0).
11.1.1 SS7 Transmit Buffer Descriptor (TxBD)
Figure 11-10 shows the SS7 TxBD.
Freescale Semiconductor, Inc...
Offset + 0
0
1
2
3
4
5
6
7
8
R
RT
W
I
L
TC
CM
—
UB
9
Offset + 2
Data Length
Offset + 4
Tx Data Buffer Pointer
11
—
12
SUD
15
PAD
Offset + 6
Figure 11-10. SS7 Transmit Buffer Descriptor (TxBD)
Table 11-11 describes SS7 TxBD fields.
Table 11-11. SS7 TxBD Field Descriptions
Bits
Name
Description
0
R
Ready
0 The buffer associated with this BD is not ready for transmission. The user is free to manipulate this BD
or its associated data buffer. The CP clears this bit after the buffer has been transmitted or after an
error condition is encountered.
1 The data buffer is ready to be transmitted. The transmission may have begun, but it has not completed.
The user cannot modify this BD once this bit is set.
1
RT
Retransmit
0 Normal operation
1 The CP will repeat transmission of this BD until the RT bit is cleared. After the RT bit is cleared the CP
advances to the next BD in the table. This feature is useful for automatic LSSU retransmission.
2
W
Wrap (final BD in table)
0 This is not the last BD in the TxBD table.
1 This is the last BD in the TxBD table. After this buffer is used, the CP receives incoming data into the
first BD in the table (the BD pointed to by TBASE). The number of TxBDs in this table is programmable
and is determined the wrap bit.
3
I
Interrupt
0 No interrupt is generated after this buffer has been serviced.
1 TXB in the interrupt table entry is set when this buffer has been serviced by the MCC. This bit can
cause an interrupt (if enabled).
4
L
Last
0 This is not the last buffer in the frame.
1 This is the last buffer in the current frame.
5
TC
Tx CRC. Valid only when L = 1. Otherwise it must be ignored.
0 Transmit the closing flag after the last data byte. This setting can be used for testing purposes to send
an erroneous CRC after the data.
1 Transmit the CRC sequence after the last data byte.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
23
Freescale Semiconductor, Inc.
SS7 Receive Buffer Descriptor (RxBD)
Table 11-11. SS7 TxBD Field Descriptions (continued)
Freescale Semiconductor, Inc...
Bits
Name
Description
6
CM
Continuous mode
0 Normal operation.
1 The CP does not clear the ready bit after this BD is closed, allowing the associated data buffer to be
retransmitted automatically when the CP next accesses this BD. However, the R bit is cleared if an
error occurs during transmission, regardless of the CM bit setting.
7
—
Reserved, should be cleared.
8
UB
User bit. UB is a user-defined bit that the CPM never sets nor clears. The user determines how this bit is
used.
9–10
—
Reserved, should be cleared.
11
SUD
Signal unit delay
0 This buffer does not have a transmission delay.
1 A time delay of JTTDelay x 512 µs passes before this buffer is transmitted. Can be used for LSSU
transmission according to the JT Q.703 Standard which defines a 24 ms delay between back-to-back
LSSUs. This bit is only valid when SS7_OPT[STD] is set.
12–15 PAD
Pad characters. These four bits indicate the number of PAD characters (0x7E or 0xFF depending on the
IDLM mode selected in the ECHAMR register) that the transmitter sends after the closing flag. The
transmitter issues a TXB interrupt only after sending the programmed number of pads to the Tx FIFO
buffer. The user can use the PAD value to guarantee that the TXB interrupt occurs after the closing flag
has been sent out on the TXD line. PAD = 0, means that the TXB interrupt is issued immediately after the
closing flag is sent to the Tx FIFO buffer. The number of PAD characters depends on the FIFO size
assigned to the channel in the MCC hardware. If the channel is not part of a super channel then the MCC
hardware assigns to this channel a FIFO of 4 bytes. So in this case a pad of 4 bytes ensures that the TXB
interrupt is not given before the closing flag has been sent over the TXD line. For a super channel, FIFO
length equals the number of channels included in the super channel multiplied by two.
The data length and buffer pointer are described below:
•
•
24
Data length. The data length is the number of bytes the MCC should transmit from
this BD’s data buffer. It is never modified by the CP. The value of this field should
be greater than zero.
Tx buffer pointer. The transmit buffer pointer, which contains the address of the
associated data buffer, may be even or odd provided that SS7_OPT[SEN_FIS] = 0
(refer to Section 7.3, “SS7 Configuration Register (SS7_OPT)”). If the automatic
FISU option is required then the buffer pointer must be 4-byte aligned. The buffer
may reside in either internal or external memory. This value is never modified by the
CP.
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Freescale Semiconductor, Inc.
SS7 Receive Buffer Descriptor (RxBD)
Part XII SS7 Initialization and Start/Stop
Sequence
Freescale Semiconductor, Inc...
The initialization and start/stop sequence of SS7 channel is identical to MCC initialization
and start/stop sequence. Refer to Section 27.12, “MCC Initialization and Start/Stop
Sequence,” in the MPC8260 PowerQUICC II User’s Manual.
MOTOROLA
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
25
Freescale Semiconductor, Inc.
Freescale Semiconductor, Inc...
SS7 Receive Buffer Descriptor (RxBD)
26
Enhanced SS7 Microcode Specification
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
