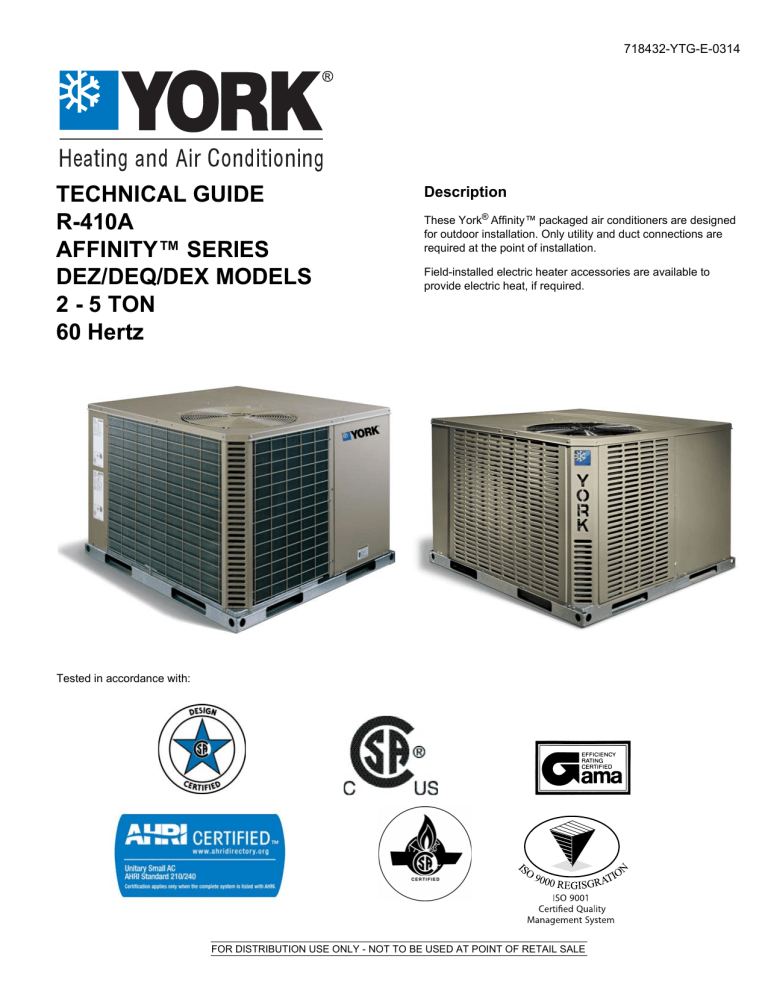

TECHNICAL GUIDE
R-410A
AFFINITY™ SERIES
DEZ/DEQ/DEX MODELS
2 - 5 TON
60 Hertz
Description
These York® Affinity™ packaged air conditioners are designed
for outdoor installation. Only utility and duct connections are
required at the point of installation.
Field-installed electric heater accessories are available to
provide electric heat, if required.
Tested in accordance with:
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
718432-YTG-E-0314
Table of Contents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Capacity Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Airflow Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Sound Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Typical Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
DEX/DEQ/DEX Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Component Location
Cooling Only
Direct Drive Condenser
Fan Motor
Highly Efficient Enhanced Copper
Tube/Aluminum Fin Indoor Coil
Back And Bottom
Return Air and Supply
Air Duct Opening
DEZ Micro-Channel Aluminum Tube/Aluminum Fin Condenser
DEQ/DEX Highly Efficient Enhanced Copper
Tube/Aluminum Fin Outdoor Coil
Decorative Protective
Coil Guard
High Voltage
Terminal Block
Low Voltage
Terminal Block
DEQ/DEX ECM Direct Drive Blower Motor With
Slide-Out Blower Assembly
DEZ 5-Speed Direct Drive Blower Motor With
Slide-Out Blower Assembly
Long-Lasting
Powder Paint Finish
High-Efficiency Compressor
Rigidly Mounted
2
Heavy Gauge
Removable Base Rails
Johnson Controls Unitary Products
718432-YTG-E-0314
Nomenclature
Cooling Only
D 6
EZ
024 A
06
Product Category
Voltage Code
D = Single Package Air Conditioner
(Air Cooled)
06 = 208/230-1-60
25 = 208/230-3-60
46 = 460-3-60
Product Generation
Factory Installed Electric Heat
6 = Sixth Generation
A = No Electric Heat Installed
Product Identifier
EZ = R-410A 13 SEER
EQ = R-410A 14 SEER
EX = R-410A 15 SEER
Nominal Cooling Capacity (MBH)
024 = 24,000 BTUH
030 = 30,000 BTUH
036 = 36,000 BTUH
Features and Benefits
Standard Features
• Operating Efficiency - All DEZ air conditioners provide
operating efficiencies of 13 SEER. All DEQ air
conditioners provide operating efficiencies of 14 SEER.
All DEX air conditioners provide operating efficiencies of
15 SEER. All efficiencies exceed legislated minimum
levels.
• On Site Flexibility - All model sizes share a common,
compact design cabinet in a single footprint. The installer
has the flexibility of setting one curb and placing the
proper tonnage unit on that curb after the internal load has
been determined. Field convertible duct connections from
side shot to down shot allows the installer to have greater
flexibility with less inventory.
• Lower Installation Cost - Installation time and costs are
reduced by easy power and control wiring connections.
The small base dimension means less space is required
on the ground or roof, plus, the installer can fit this unit
between the wheel wells of full size pick-up truck.
All units are completely wired, charged with R-410A and
tested prior to shipment. Unique test stations using a new
state of the art computerized process system are used to
insure product quality. Refrigerant charge and component
part numbers are verified via computers at assembly. Vital
run test statistics such as system pressure, motor
currents, air velocity and temperature, unit vibration, and
gas system safeties are monitored and recorded by the
system to insure unit performance.
Equal size, side supply and return duct connections
allows easy hook-up of ducts to match low crawl spaces
without transition pieces.
• Utility Connections Made Easy - Electric utility knockouts
are provided through the bottom as well as the side of the
unit. Utility connections can be made quickly and with a
minimum amount of field labor. A field supplied and field
installed electrical disconnect switch must be installed.
• Convertible Airflow Design - The bottom duct openings
are covered when they leave the factory ready to be used
for a side supply/side return application. If a bottom
supply/bottom return application is desired, you simply
remove the two panels from the bottom of the unit and
place them in the side supply/side return duct openings.
Johnson Controls Unitary Products
•
•
•
•
•
•
•
042 = 42,000 BTUH
048 = 48,000 BTUH
060 = 60,000 BTUH
No panel cutting is required and no accessory panel is
necessary. Convertible airflow design allows maximum
field flexibility and minimum inventory.
Condensate Pan - A non-corrosive, long-lasting, watertight pan is positioned below the evaporator coil to collect
and drain all condensate. Less collection of stagnate
condensate will build-up. The condensate pan conforms
to ASHRAE 62-89 standards (Ventilation for Acceptable
Indoor Air Quality).
Condensate Drain - The heavy duty, 3/4 inch NPTI copper
connection is more durable over time. The connection is
rigidly mounted to assure proper fit and leak tight seal.
Durable Finish - The cabinet is made of pre-painted
steel. The pre-treated galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
Full Perimeter Base Rails - The easily removable base
rails provide a solid foundation for the entire unit and
protects the unit during shipment. The rails provide fork lift
access from all sides, and rigging holes are also provided
so that an overhead crane can be used to place the units
on a roof. On applications where the unit is placed on a
pad, the base will keep the unit off the pad to deter
corrosion. On applications where height is limited, the inch
high base rails may be removed on location.
More Attractive Appearance - A single piece Water Shed
top cover containing a top discharge condenser fan
arrangement requires less square footage on installation
and provides a wider variety of installations. The one piece
design adds greater water integrity. Rounded corners with
water drip edges add to the attractive appearance. The
cabinet panels have a non-fibrous insulation that will not
release insulation fibers into conditioned area.
Top Discharge - The top discharge condenser fan does
not disrupt neighboring areas or dry-out vegetation
surrounding the unit. The warm air from the top mounted fan
is blown up away from the structure and any landscaping.
This allows compact location on multi-unit applications.
Condenser Coil Grille - All DEZ models utilize a
decorative "Wire-Form" coil guard to provide impact
protection against large objects. All DEQ/DEX models
utilize a stamped "Louvered" design which provides
3
718432-YTG-E-0314
•
•
•
•
•
•
•
•
•
•
4
superior impact protection against smaller objects during
transit and after installation.
Low Operating Sound Level - The upward air flow
carries the normal operating noise up and away from the
living area. The rigid top panel effectively isolates any
motor sound. Isolator mounted compressor and the
rippled fins of the condenser coil muffle the normal fan
motor and compressor operating sounds. The unique
formed base pan also aids in sound alterations with it's
Super-Structure design. This design strategically places
embossments in the pan for optimum strength and rigidity.
Fan System - All models operate over a wide range of
design conditions with an electrically commutated fan
motor. These units easily match all types of applications
and provide greater on site flexibility to match comfort
requirement. The cooling speed is factory set and can be
field adjusted to a second speed. The heating speed is
factory set but can be field adjusted. This allows
maximum comfort conditions.
Simple Control Circuit - A low voltage printed circuit
board contains a diagnostic indicator light and a low
voltage terminal strip. An additional set of pin connectors
is also provided to simplify the field interface of external
controls. Mate-n-lock plug connectors are used. The
electrical control box is not located in the compressor
compartment. The controls are mounted on a Control-Tilt
control panel to allow the access cover to be removed for
trouble shooting and maintenance without affecting the
normal system operating pressures. All wiring internal to
the unit is color/number coded.
Protected Compressor - The compressor is internally
protected against high pressure and temperature. This is
accomplished by the simultaneous operation of high
pressure relief valve and a temperature sensor which protect
the compressor if undesirable operating conditions occur.
Pressure Switches - High pressure and low pressure/
loss of charge switches standard in all units. When
abnormal conditions are sensed through the pressure
switches, the unit will lock out preventing any further
operation until reset or problem is corrected.
Exclusive Coil Design - Grooved copper tubes and
enhanced aluminum fin construction improves heat
transfer for maximum efficiency and durability.
Self Diagnostic Fan Control Module - Due to this self
diagnostic control, less on site time is required to trouble
shoot these units.
Low Maintenance - Long life, permanently lubricated
condenser and evaporator fan motor bearings need no
annual maintenance adding greater reliability to the unit.
Blower assembly can be easily cleaned by the unique
Slip- Track slide-out blower assembly.
Secured Service Access Ports - Protected, externally
mounted, re-usable service access ports are provided on
both the high and low lines for ease of evacuating and
charging the system. No final field mounting required.
Easy Service Access - A large, single panel covers the
electrical controls to make servicing easy. The blower
compartment has an additional large panel with a built-in
handle tab. Removing this panel will allow the blower
assembly to slide-out for easy removal for maintenance
and ease of trouble shooting.
• Replacement Parts - The installer requires no special
training to replace any of the components of these units
and does not need to maintain an inventory of unique parts.
• System Integration - Each unit has the internal ability to
integrate an electronic air cleaner or humidifier to work in
conjunction with the base unit.
Field Installed Accessories
• Economizer Down Discharge/Supply Kit - Modulating
integrated economizer provides simultaneous operation
between the mechanical cooling and economizer
operation. Independent blade design insures proper
control and less than 1% leak rate. Includes hood and
mesh bird screen filter integrated into the hood, dry bulb
sensor and relief damper. Separate field accessories of
single enthalpy and dual enthalpy are also available. A
built-in barometric relief of 25% is provided.
• Single Enthalpy Sensor - Sensor replaces dry bulb
sensor standard in economizer kit. Provides improved
economizer operation by sensing the dry bulb temperature
from outdoors plus the enthalpy content of the outdoor air.
• Dual Enthalpy Sensor - Additional sensor to single
enthalpy sensor. Sensor senses both the return air
temperature dry bulb and humidity in conjunction with the
single enthalpy to determine the most economical mix.
Single Enthalpy sensor also required.
• Hail Guard Kit - Kit contains protective grilles made of
expanded aluminum with full perimeter frame. Sloped
hoods are also included to assure maximum protection.
• Filter/Frame Kit (Single Phase Only) - Kit contains the
necessary hardware to field install return air filters into the
base unit. Pre-cut filter racks and appropriate cleanable
standard size filters are shipped in one kit. The filter rack
is suitable for either 1" or 2" filters. (1" filter is supplied)
This kit is available for single phase horizontal or vertical
duct application only. Standard in all 3 Phase models.
• Motorized Fresh Air Damper - Designed for duct
mounted side supply/return and unit mounted down
supply/return applications. Damper capable of providing
0% through 50% of outdoor air (field supplied). Closes on
power loss, includes hood and screen assembly.
• Rectangle To Round Adapters - Kit includes one supply
and one return air rectangle to round duct adapter.
Adapters are preformed and designed to fit over current
duct openings on the base unit. Transition is from side
square duct opening to 14" round duct opening.
• Roof Curbs - NRCA approved curbs provide proper fit to
base unit for rooftop installations. Curbs are designed to
be assembled through hinge pins in each corner. Kit also
provides seal strip to assure a water tight seal. 8 and 14
inch high roof curbs are available.
• Manual Outdoor Damper - Provides 0% through 50%
outdoor air capability (field adjustable). Designed for duct
mounted side supply/return applications. Includes hood
and screen assembly.
• Wall Thermostat - The units are designed to operate with
24-volt electronic and electro-mechanical thermostats. All
units can operate with single stage heat/single stage cool
thermostats - with or without the economizer.
Johnson Controls Unitary Products
718432-YTG-E-0314
• Low Ambient Kit - Kit provides necessary hardware to
convert unit to operate in cooling cycle down to 0º F.
Standard unit operation 45º F.
• Transformer Kit - Kit provides necessary hardware to
provide single phase models from factory furnished 40 VA
transformer capability to 75 VA transformer capability.
(Required on installations with economizer or motorized
damper.)
Guide Specifications
General
Units shall be manufactured by Johnson Controls Unitary
Products in an ISO 9001 certified facility. YORK’s Affinity™
package units give you the flexibility and choices you need in
today’s market. These packaged air conditioners are designed
for outdoor installation. Only utility and duct connections are
required at the point of installation.
Description
Units shall be factory-assembled, single packaged, Electric
Cooling units, designed for outdoor mounted installation. For
SEER ratings, refer to technical literature. They shall have built
in, equal size, field convertible duct connections for down
discharge supply/return or horizontal discharge supply/return.
The units shall be factory wired, piped, charged with R-410A
Refrigerant and factory tested prior to shipment. All unit wiring
shall be both numbered and color coded. All units shall be
manufactured in a facility certified to ISO 9001 standards, and
the cooling performance shall be rated in accordance with DOE
and AHRI test procedures. Units shall be CSA listed and
classified to ANSI Z21.47/CAN/CSA 2.3 standards and UL
1995/CAN/CSA No. 236-M90 conditions.
Unit Cabinet
Unit cabinet shall be constructed of G-90, pre-paint textured steel,
certified at 500 hours salt spray test per ASTM-B117 standards.
The unit top shall be a single piece “Water Shed” design, with drip
edges and no-seam corners to provide optimum water integrity.
Unit shall have a rigidly mounted condenser coil guard to provide
protection from objects and personnel after installation. Indoor
blower section shall be insulated with up to 3/4” thick, aluminum,
foil faced insulation, fastened to prevent insulation from entering
the air stream. Cabinet panels shall be “large” size, easily
removable for servicing and maintenance, with built-in lift handles.
Unit shall be built on a formed, “Super-Structure” design base pan,
with embossments at critical points to add strength, rigidity and aid
in minimizing sound. Full perimeter base rails shall be provided to
assure reliable transit of equipment, overhead rigging, for truck
access and proper sealing on roof curb applications. Base rails
shall be removable, when required, to lower unit height. Filters
shall be furnished and be accessible through a removable access
door, sealed airtight. Units vertical discharge and return duct
configuration shall be designed to fit between standard 24” O.C.
beams without modification to building structure, duct work and
base unit. Condensate pan shall be internally sloped and conform
to ASHRAE 62-89 self-draining standards, with 3/4” NPTI copper,
ridged mount connection.
Johnson Controls Unitary Products
Indoor (Evaporator) Fan Assembly
Fan shall be direct drive design. Fan wheel shall be double-inlet
type with forward-curved blades, dynamically balanced to
operate smoothly throughout the entire range of operation.
Airflow design shall be constant air volume. Bearings shall be
sealed and permanently lubricated for longer life and no
maintenance. Fan assembly shall be “Slip Track” (slide-out)
design for easy removal and cleaning.
Outdoor (Condenser) Fan Assembly
The outdoor fan shall be of the direct-driven propeller type,
discharge air vertically, have aluminum blades riveted to
corrosion resistant steel spider bracket and shall be statically
balanced for smooth operation. The outdoor fan motor shall be
totally enclosed with permanently lubricated bearings and
internally protected against overload conditions.
Refrigerant Components
Compressors:
a. Shall be fully hermetic type, direct drive, internally
protected with internal high-pressure relief and over
temperature protection. The hermetic motor shall be
suction gas cooled and have a voltage range of +/- 10%
of the unit nameplate voltage.
b. Shall have internal isolation and sound muffling to
minimize vibration and noise, and be externally isolated
on a dedicated, independent mounting.
Coils:
a. Evaporator coils shall have aluminum plate fins
mechanically bonded to seamless internally enhanced
copper tubes with all joints brazed.
b. Evaporator coil shall be of the direct expansion, draw
through design.
c. Condenser coils shall have aluminum plate fins
mechanically bonded to seamless internally enhanced
copper tubes with all joints brazed or Mircro-Channel
aluminum tube, aluminum fins.
d. Condenser coil shall be draw through design.
Refrigerant Circuit and Refrigerant Safety Components shall
include:
a. Independent fixed orifice expansion devices.
b. Filter/strainer to eliminate any foreign matter.
Electric Heating Section
(Field Install Accessory)
An electric heating section, with nickel chromium elements,
shall be provided in a range of 5 thru 25 KW. The heating
section shall have a primary limit control(s) (automatic reset) to
prevent the heating element system from operating at an
excessive temperature. The Heating Section assembly shall
slide out of the unit for easy maintenance and service. Units
with Electric Heating Sections shall be wired for a single point
power supply with branch circuit fusing (where required).
5
718432-YTG-E-0314
Physical Data
DEZ Physical Data
Component
Nominal Tonnage
Models
DEZ024
DEZ030
DEZ036
DEZ042
DEZ048
DEZ060
2.0
2.5
3.0
3.5
4.0
5.0
24.4
30.7
35.3
42.8
49.5
59.2
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point
(MBH)
AHRI net capacity (MBH)
24.0
30.0
34.5
41.5
48.0
57.5
EER
12.6
11.55
11.35
11.80
11.90
11.05
SEER
13.0
13.0
13.0
13.0
13.0
13.0
Nominal CFM
780
1050
1200
1450
1500
1550
System power (KW)
1.90
2.60
3.04
3.52
4.03
5.21
R-410A
R-410A
R-410A
R-410A
R-410A
R-410A
3-2
3-7
3-6
4-4
4-0
4-8
Length
49 1/8
49 1/8
49 1/8
49 1/8
49 1/8
49 1/8
Width
47 1/4
47 1/4
47 1/4
47 1/4
47 1/4
47 1/4
33 1/2
33 1/2
33 1/2
33 1/2
41 1/2
41 1/2
374
375
379
400
401
405
Recip
Recip
Recip
Recip
Recip
Scroll
15
Refrigerant type
Refrigerant charge (lb-oz)
DIMENSIONS (inches)
Height
OPERATING WT. (lbs.)
Unit Weight (lbs.)
COMPRESSOR
Type
CONDENSER COIL DATA
Face area (Sq. Ft.)
11.9
11.9
11.9
11.9
15
Rows
1
1
1
1
1
1
Fins per inch
23
23
23
23
23
23
0.71/18
0.71/18
0.71/18
0.71/18
0.71/18
0.71/18
Tube diameter (in.)
Circuitry Type
2-pass Microchannel 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel
EVAPORATOR COIL DATA
Face area (Sq. Ft.)
4.38
4.38
4.38
5.63
5.63
Rows
2
2
2
3
2
5.63
3
Fins per inch
15
15
15
15
16
16
Tube diameter
3/8
3/8
3/8
3/8
3/8
3/8
Circuitry Type
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
Orifice
Orifice
Orifice
Orifice
Orifice
Orifice
Refrigerant control
CONDENSER FAN DATA
Fan diameter (Inch)
22
22
22
22
22
22
Type
Prop
Prop
Prop
Prop
Prop
Prop
Drive type
Direct
Direct
Direct
Direct
Direct
Direct
No. speeds
1
1
1
1
1
1
Motor HP
1/4
1/4
1/4
1/3
1/3
1/3
RPM
850
850
850
1120
1120
1100
Nominal total CFM
1800
1800
2400
3000
3000
3000
DIRECT DRIVE EVAP FAN DATA
Fan Size (Inch)
Type
10 x 8
10 x 8
11 x 10
11 x 10
11 x 10
11 x 10
Centrifugal
Centrifugal
Centrifugal
Centrifugal
Centrifugal
Centrifugal
No. speeds
5
5
5
5
5
5
Motor HP
1/2
1/2
1/2
3/4
3/4
1
Variable
Variable
Variable
Variable
Variable
Variable
48
48
48
48
48
48
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
RPM
Frame size
FILTERS
Quantity - Size
6
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ Physical Data
Component
Nominal Tonnage
Models
DEQ024
DEQ030
DEQ036
DEQ042
DEQ048
DEQ060
2.0
2.5
3.0
3.5
4.0
5.0
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (MBH)
23.3
32.3
36.9
43.5
49.0
58.0
AHRI net capacity (MBH)
23.0
31.0
36.0
42.0
47.0
56.0
EER
12.0
12.0
12.0
12.1
12.0
12.0
SEER
14.3
14.1
14.0
14.0
14.0
14.0
1550
Nominal CFM
800
900
1150
1400
1500
System power (KW)
1.92
2.58
3.00
3.47
3.92
4.67
R-410A
R-410A
R-410A
R-410A
R-410A
R-410A
5-0
7-8
8-2
7-12
10-10
10-4
Length
49 1/8
49 1/8
49 1/8
49 1/8
49 1/8
49 1/8
Width
47 1/4
47 1/4
47 1/4
47 1/4
47 1/4
47 1/4
Height
33 1/2
33 1/2
33 1/2
41 1/2
41 1/2
41 1/2
346
386
396
406
440
452
Recip
Recip
Recip
Recip
Scroll
Scroll
16.4
Refrigerant type
Refrigerant charge (lb-oz)
DIMENSIONS (inches)
OPERATING WT. (lbs.)
Unit Weight (lbs.)
COMPRESSOR
Type
CONDENSER COIL DATA
Face area (Sq. Ft.)
11.7
11.7
11.7
16.4
16.4
Rows
1
2
2
1
2
2
Fins per inch
20
20
20
20
20
20
Tube diameter (in.)
Circuitry Type
3/8
3/8
3/8
3/8
3/8
3/8
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
5.63
EVAPORATOR COIL DATA
Face area (Sq. Ft.)
4.38
4.38
4.38
5.63
5.63
Rows
2
2
3
3
3
3
Fins per inch
15
15
15
16
16
16
Tube diameter
3/8
3/8
3/8
3/8
3/8
3/8
Circuitry Type
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
Orifice
Orifice
Orifice
Orifice
Orifice
TX Valve
Refrigerant control
CONDENSER FAN DATA
Fan diameter (Inch)
22
22
22
22
22
22
Type
Prop
Prop
Prop
Prop
Prop
Prop
Drive type
Direct
Direct
Direct
Direct
Direct
Direct
No. speeds
1
1
1
1
1
1
Motor HP
1/4
1/4
1/4
1/4
1/3
1/3
RPM
850
850
850
1100
1100
1100
Nominal total CFM
1800
1800
2400
3000
3000
3000
DIRECT DRIVE EVAP FAN DATA
Fan Size (Inch)
Type
10 x 8
10 x 8
10 x 8
11 x 10
11 x 10
11 x 10
Centrifugal
Centrifugal
Centrifugal
Centrifugal
Centrifugal
Centrifugal
No. speeds
1
1
1
1
1
1
Motor HP
1/2
1/2
1/2
3/4
3/4
1
Variable
Variable
Variable
Variable
Variable
Variable
48
48
48
48
48
48
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
RPM
Frame size
FILTERS
Quantity - Size
Johnson Controls Unitary Products
7
718432-YTG-E-0314
DEX Physical Data
Component
Nominal Tonnage
Models
DEX024
DEX030
DEX036
DEX042
DEX048
2.0
2.5
3.0
3.5
4.0
50.8
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (MBH)
23.5
29.2
36.8
44.5
AHRI net capacity (MBH)
23.2
28.6
36.0
43.5
49.0
EER
12.35
12.25
12.3
12.3
12.3
SEER
15.1
15.2
15.2
15.4
15.2
Nominal CFM
800
1000
1150
1400
1600
System power (KW)
1.9
2.3
2.9
3.5
4.0
R-410A
R-410A
R-410A
R-410A
R-410A
5-0
8-0
8-0
7-8
10-0
Length
49 1/8
49 1/8
49 1/8
49 1/8
49 1/8
Width
47 1/4
47 1/4
47 1/4
47 1/4
47 1/4
33 1/2
33 1/2
33 1/2
41 1/2
41 1/2
355
390
400
410
440
Scroll 2-spd
Scroll 2-spd
Scroll 2-spd
Scroll 2-spd
Scroll 2-spd
16.4
Refrigerant type
Refrigerant charge (lb-oz)
DIMENSIONS (inches)
Height
OPERATING WT. (lbs.)
Unit Weight (lbs.)
COMPRESSOR
Type
CONDENSER COIL DATA
Face area (Sq. Ft.)
11.7
11.7
11.7
16.4
Rows
1
2
2
1
2
Fins per inch
20
20
20
20
20
Tube diameter (in.)
Circuitry Type
3/8
3/8
3/8
3/8
3/8
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
5.63
EVAPORATOR COIL DATA
Face area (Sq. Ft.)
4.38
4.38
4.38
5.63
Rows
2
2
3
3
3
Fins per inch
15
15
15
16
16
Tube diameter
3/8
3/8
3/8
3/8
3/8
Circuitry Type
Interlaced
Interlaced
Interlaced
Interlaced
Interlaced
TX Valve
TX Valve
TX Valve
TX Valve
TX Valve
Refrigerant control
CONDENSER FAN DATA
Fan diameter (Inch)
22
22
22
22
22
Type
Prop.
Prop.
Prop.
Prop.
Prop.
Drive type
Direct
Direct
Direct
Direct
Direct
No. speeds
1
1
1
1
1
Motor HP
1/4
1/4
1/4
1/4
1/3
RPM
850
850
850
1100
1100
Nominal total CFM
1800
1800
2400
3000
3000
DIRECT DRIVE EVAP FAN DATA
Fan Size (Inch)
Type
10 x 8
10 x 8
10 x 8
11 x 10
11 x 10
Centrifugal
Centrifugal
Centrifugal
Centrifugal
Centrifugal
No. speeds
2
2
2
2
2
Motor HP
1/2
1/2
1/2
3/4
3/4
Variable
Variable
Variable
Variable
Variable
48
48
48
48
48
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
2 - 22 x 14 x 1
RPM
Frame size
FILTERS
Quantity - Size
8
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ/DEQ Unit Limitations
Model
(Tons)
DEZ/DEQ 024
(2.0)
DEZ/DEQ 030
(2.5)
DEZ/DEQ 036
(3.0)
DEZ/DEQ 042
(3.5)
DEZ/DEQ 048
(4.0)
DEZ/DEQ 060
(5.0)
Unit Voltage
Unit Limitations
Applied Voltage
Min
Max
208/230-1-60
187
252
125
208/230-1-60
187
252
125
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
187
187
432
187
187
432
187
187
432
187
187
432
252
252
504
252
252
504
252
252
504
252
252
504
125
125
125
125
125
125
115
115
115
115
115
115
Outdoor DB Temp
Max (°F)
DEX Unit Limitations
Unit Limitations
Model
(Tons)
Unit Voltage
DEX024
(2.0)
DEX030
(2.5)
DEX036
(3.0)
DEX042
(3.5)
DEX048
(4.0)
Applied Voltage
Outdoor DB Temp
Min
Max
Max (°F)
208/230-1-60
187
252
115
208/230-1-60
187
252
115
208/230-1-60
187
252
115
208/230-3-60
187
252
115
460-3-60
432
504
115
208/230-1-60
187
252
115
208/230-3-60
187
252
115
460-3-60
432
504
115
208/230-1-60
187
252
115
208/230-3-60
187
252
115
460-3-60
432
504
115
Johnson Controls Unitary Products
9
718432-YTG-E-0314
Capacity Performance
DEZ024-060 Cooling Capacities
DEZ024 (2.0 Ton)
Air on
Evaporator Coil
CFM
600
700
800
900
1000
600
700
800
900
1000
10
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
30.3
28.5
26.6
24.1
23.5
31.8
29.8
27.9
25.3
24.7
33.2
31.2
29.2
26.4
25.8
31.8
29.7
26.9
26.3
32.4
30.3
27.4
26.8
1.2
1.4
1.6
1.4
1.4
1.3
1.5
1.7
1.5
1.5
1.4
1.6
1.8
1.6
1.6
1.8
2.0
1.7
1.7
1.9
2.1
1.9
1.9
8.6
15.0
21.4
23.8
23.5
10.5
17.9
25.4
25.1
24.7
12.4
20.8
29.2
26.4
25.8
21.0
29.7
26.9
26.3
21.2
30.3
27.4
26.8
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
26.8
24.3
21.8
19.5
20.1
28.3
25.6
22.9
20.6
21.2
29.7
26.9
24.1
21.6
22.3
27.0
24.2
21.7
22.3
27.0
24.2
21.8
22.4
2.0
1.9
1.9
1.9
1.9
1.9
1.9
1.9
1.9
1.9
1.9
1.9
1.9
1.9
1.9
2.0
2.0
1.9
1.9
2.1
2.1
2.0
2.0
12.8
16.2
19.6
19.5
20.1
14.3
18.1
21.8
20.6
21.2
15.8
20.0
24.1
21.6
22.3
21.2
24.1
21.7
22.3
22.5
24.2
21.8
22.4
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Capacity1
Return Dry Bulb (°F)
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
6.3
4.0
28.6
1.6
12.7
10.4
8.1
26.4
1.7
19.1
16.8
14.5
12.2
24.2
1.8
19.1
16.2
13.9
11.6
9.3
21.8
1.6
20.1
17.6
15.3
13.0
10.7
21.8
1.6
7.7
5.2
30.0
1.6
15.4
12.9
10.4
27.7
1.7
23.1
20.6
18.1
15.6
25.4
1.8
22.8
20.1
17.6
15.1
12.6
22.9
1.7
23.0
21.7
19.2
16.7
14.2
22.9
1.7
9.1
6.3
31.5
1.7
18.1
15.4
12.7
29.1
1.8
27.1
24.4
21.7
19.0
26.7
1.9
26.4
24.0
21.3
18.6
15.9
24.0
1.7
25.8
25.8
23.1
20.4
17.7
24.1
1.7
17.8
14.6
11.4
29.4
1.9
26.6
23.4
20.3
17.1
27.0
2.0
26.9
23.9
20.7
17.5
14.3
24.3
1.8
26.3
25.5
22.3
19.1
16.0
24.3
1.8
17.5
13.9
10.2
29.7
2.0
26.1
22.5
18.8
15.2
27.2
2.1
27.4
23.7
20.1
16.4
12.8
24.6
1.9
26.8
25.2
21.5
17.9
14.2
24.6
1.9
95°F
10.4
8.0
24.6
2.1
13.8
11.4
9.0
21.9
2.1
17.2
14.8
12.4
10.0
19.2
2.0
19.5
17.7
15.3
12.9
10.5
18.3
2.0
20.1
17.9
15.6
13.2
10.8
18.6
2.0
11.6
8.8
25.5
2.1
15.3
12.6
9.9
22.7
2.1
19.1
16.3
13.6
10.9
19.9
2.0
20.6
19.6
16.9
14.1
11.4
18.9
2.0
21.2
19.9
17.1
14.4
11.7
19.3
2.0
12.8
9.7
26.4
2.1
16.9
13.8
10.7
23.5
2.1
21.0
17.9
14.8
11.8
20.6
2.0
21.6
21.5
18.4
15.3
12.3
19.6
2.0
22.3
21.8
18.7
15.6
12.6
19.9
2.0
17.9
14.6
11.2
23.9
2.1
22.2
18.9
15.6
12.2
20.9
2.1
21.7
21.6
18.3
15.0
11.7
19.9
2.1
22.3
22.1
18.8
15.4
12.1
20.3
2.1
18.9
15.3
11.7
24.2
2.2
23.4
19.9
16.3
12.7
21.2
2.2
21.8
21.8
18.2
14.6
11.0
20.2
2.2
22.4
22.4
18.8
15.2
11.7
20.6
2.2
90
10.7
15.6
20.5
21.7
21.8
12.4
18.0
23.6
22.9
22.9
14.1
20.4
26.7
24.0
24.1
21.1
27.0
24.3
24.3
21.8
27.2
24.6
24.6
12.5
15.3
18.1
18.3
18.6
14.7
17.0
19.3
18.9
19.3
16.9
18.8
20.6
19.6
19.9
20.1
20.9
19.9
20.3
21.4
21.2
20.2
20.6
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
8.3
6.0
13.2
10.9
8.5
18.1
15.8
13.5
11.1
19.3
17.0
14.6
12.3
20.1
17.8
15.4
13.1
9.6
7.0
15.4
12.7
10.1
21.1
18.5
15.9
13.2
21.7
19.9
17.2
14.6
22.1
20.8
18.2
15.5
10.9
8.0
17.5
14.6
11.7
24.1
21.2
18.3
15.4
24.0
22.7
19.8
17.0
24.1
23.8
20.9
18.0
17.8
14.6
11.3
24.4
21.2
17.9
14.7
24.3
22.7
19.5
16.2
24.3
23.8
20.5
17.3
18.2
14.6
11.0
24.8
21.2
17.6
13.9
24.6
22.7
19.1
15.5
24.6
23.8
20.2
16.6
105°F
9.6
7.2
12.9
10.5
8.0
16.2
13.8
11.3
8.9
18.3
16.3
13.8
11.4
18.5
16.2
13.7
11.3
10.9
7.9
14.3
11.5
8.7
17.6
15.1
12.4
9.6
18.9
17.9
15.1
12.4
19.2
17.8
15.0
12.3
12.3
8.6
15.7
12.5
9.4
19.1
16.5
13.4
10.3
19.6
19.5
16.4
13.3
19.9
19.4
16.3
13.2
16.7
13.3
10.0
19.9
17.6
14.2
10.8
19.9
19.9
16.5
13.1
20.3
20.0
16.6
13.2
17.8
14.1
10.5
20.8
18.6
14.9
11.3
20.2
20.2
16.6
12.9
20.6
20.6
16.9
13.3
65
9.9
10.7
12.0
12.9
14.1
15.1
13.0
14.0
11.9
12.9
9.0
8.9
9.6
9.5
10.2
10.1
9.7
9.8
9.3
9.6
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ024 (2.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
600
700
800
900
1000
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
22.4
19.5
16.6
17.0
17.0
22.8
19.8
16.8
17.2
17.3
23.1
20.1
17.1
17.5
17.6
20.8
17.7
18.1
18.2
21.4
18.2
18.7
18.8
2.3
2.2
2.2
2.2
2.2
2.3
2.2
2.2
2.1
2.1
2.3
2.2
2.2
2.1
2.1
2.3
2.2
2.2
2.2
2.4
2.3
2.3
2.3
12.3
14.4
16.6
17.0
17.0
15.2
16.0
16.8
17.2
17.3
18.0
17.6
17.1
17.5
17.6
19.0
17.7
18.1
18.2
20.4
18.2
18.7
18.8
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
8.8
6.3
20.1
2.4
12.0
9.5
7.1
17.0
2.4
15.2
12.7
10.3
7.9
13.9
2.3
17.0
14.8
12.4
9.9
7.5
15.7
2.3
16.8
14.4
11.9
9.5
7.0
15.5
2.3
10.3
6.9
20.0
2.4
13.2
10.4
7.6
16.9
2.4
16.2
13.9
11.1
8.3
13.8
2.3
17.2
16.2
13.4
10.6
7.8
15.6
2.3
17.2
15.7
12.9
10.1
7.3
15.4
2.3
11.7
7.5
19.9
2.4
14.4
11.3
8.2
16.7
2.3
17.1
15.1
12.0
8.8
13.6
2.3
17.5
17.5
14.4
11.3
8.1
15.5
2.3
17.6
17.0
13.9
10.7
7.6
15.3
2.3
15.6
12.1
8.7
17.7
2.4
17.7
16.2
12.8
9.3
14.4
2.4
18.1
18.1
14.7
11.2
7.8
16.3
2.4
18.2
17.9
14.5
11.0
7.6
16.1
2.4
16.7
13.0
9.2
18.6
2.5
18.2
17.3
13.6
9.9
15.2
2.5
18.7
18.7
14.9
11.2
7.5
17.1
2.5
18.8
18.8
15.0
11.3
7.6
17.0
2.4
90
13.1
13.5
13.9
15.7
15.5
16.1
15.0
13.8
15.6
15.4
19.1
16.4
13.6
15.5
15.3
17.7
14.4
16.3
16.1
18.6
15.2
17.1
17.0
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
8.2
5.5
11.1
8.6
6.1
13.9
11.7
9.3
6.8
15.7
13.4
10.9
8.4
15.2
12.6
10.1
7.7
10.5
6.0
12.1
9.3
6.5
13.8
12.7
9.9
7.1
15.6
14.5
11.6
8.8
15.2
13.6
10.8
8.0
12.8
6.4
13.2
10.0
6.9
13.6
13.6
10.5
7.3
15.5
15.5
12.4
9.2
15.3
14.7
11.5
8.3
14.4
10.9
7.4
14.4
14.4
11.4
7.9
16.3
16.3
12.9
9.4
16.1
15.8
12.3
8.8
15.6
11.8
8.0
15.2
15.2
12.3
8.4
17.1
17.1
13.3
9.5
17.0
17.0
13.2
9.3
65
6.0
5.2
6.0
5.2
6.0
5.1
5.9
5.3
5.7
5.5
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
11
718432-YTG-E-0314
DEZ030 (2.5 Ton)
Air on
Evaporator Coil
CFM
750
875
1000
1125
1250
750
875
1000
1125
1250
12
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
35.0
33.6
32.2
29.9
29.9
35.9
34.5
33.1
30.7
30.7
36.8
35.4
34.0
31.5
31.5
35.9
34.4
31.9
32.0
36.4
34.9
32.4
32.4
2.5
2.4
2.4
2.4
2.4
2.5
2.4
2.4
2.4
2.3
2.4
2.4
2.4
2.3
2.3
2.5
2.4
2.4
2.4
2.5
2.5
2.4
2.4
16.1
20.8
25.5
29.9
29.9
17.4
22.4
27.4
30.7
30.7
18.7
24.0
29.3
31.5
31.5
25.0
30.8
31.9
32.0
26.0
32.2
32.4
32.4
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
32.5
30.1
27.7
25.1
25.6
33.7
31.2
28.8
26.0
26.6
34.9
32.4
29.8
27.0
27.5
32.5
29.9
27.1
27.7
32.7
30.1
27.3
27.8
2.9
2.8
2.8
2.7
2.7
2.9
2.8
2.8
2.7
2.7
2.9
2.8
2.7
2.7
2.7
2.9
2.8
2.7
2.7
2.9
2.8
2.8
2.8
15.2
19.5
23.8
25.1
25.6
16.7
21.3
25.9
26.0
26.6
18.1
23.1
28.0
27.0
27.5
24.2
29.1
27.1
27.7
25.3
30.1
27.3
27.8
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
13.5
11.0
33.8
2.7
18.2
15.6
13.1
31.9
2.6
22.9
20.3
17.8
15.2
30.0
2.6
26.9
24.3
21.7
19.2
16.6
27.5
2.5
29.9
28.1
25.6
23.0
20.4
27.8
2.5
14.5
11.6
34.8
2.7
19.5
16.6
13.7
32.9
2.6
24.5
21.6
18.7
15.8
30.9
2.6
29.2
25.8
22.9
20.0
17.2
28.4
2.5
30.7
29.9
27.0
24.1
21.2
28.6
2.5
15.5
12.3
35.9
2.7
20.8
17.6
14.4
33.9
2.6
26.1
22.9
19.7
16.5
31.9
2.6
31.5
27.3
24.1
20.9
17.7
29.2
2.5
31.5
31.5
28.5
25.3
22.0
29.5
2.5
21.7
18.3
15.0
34.2
2.7
27.2
23.8
20.5
17.2
32.2
2.6
31.9
28.7
25.4
22.0
18.7
29.5
2.6
32.0
32.0
28.7
25.3
22.0
29.8
2.6
22.6
19.1
15.6
34.6
2.7
28.3
24.8
21.3
17.8
32.5
2.7
32.4
30.1
26.6
23.2
19.7
29.8
2.6
32.4
32.4
28.9
25.4
22.0
30.1
2.6
95°F
12.5
9.8
30.8
3.1
16.8
14.1
11.4
27.9
3.0
21.1
18.4
15.7
12.9
25.1
2.9
24.9
22.2
19.5
16.8
14.1
22.7
2.9
25.6
23.7
21.0
18.3
15.5
23.8
2.9
13.6
10.6
31.5
3.1
18.3
15.2
12.1
28.6
3.0
22.9
19.8
16.7
13.7
25.8
2.9
25.9
23.9
20.9
17.8
14.7
23.3
2.9
26.6
25.5
22.5
19.4
16.3
24.4
2.9
14.7
11.3
32.3
3.1
19.7
16.3
12.9
29.3
3.0
24.6
21.2
17.8
14.4
26.4
2.9
27.0
25.6
22.2
18.8
15.4
23.8
2.9
27.5
27.4
24.0
20.5
17.1
25.0
2.9
20.6
16.9
13.3
29.8
3.0
25.7
22.1
18.5
14.9
26.8
3.0
27.1
26.5
22.9
19.2
15.6
24.2
2.9
27.7
27.6
24.0
20.4
16.8
25.4
2.9
21.4
17.6
13.8
30.3
3.1
26.8
23.0
19.2
15.3
27.2
3.0
27.3
27.3
23.5
19.6
15.8
24.6
3.0
27.8
27.8
24.0
20.2
16.4
25.8
3.0
90
15.7
20.2
24.6
27.5
27.8
17.1
21.9
26.7
28.4
28.6
18.4
23.6
28.7
29.2
29.5
24.6
29.9
29.5
29.8
25.6
31.2
29.8
30.1
14.8
18.9
23.1
22.7
23.8
16.7
20.5
24.3
23.3
24.4
18.7
22.1
25.5
23.8
25.0
23.4
26.4
24.2
25.4
24.7
27.2
24.6
25.8
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
13.0
10.4
17.5
14.9
12.2
22.0
19.4
16.7
14.1
25.9
23.3
20.6
18.0
27.8
25.9
23.3
20.6
14.1
11.1
18.9
15.9
12.9
23.7
20.7
17.7
14.8
27.6
24.9
21.9
18.9
28.6
27.7
24.7
21.8
15.1
11.8
20.2
16.9
13.6
25.4
22.0
18.7
15.4
29.2
26.5
23.2
19.9
29.5
29.5
26.2
22.9
21.1
17.6
14.2
26.4
23.0
19.5
16.0
29.5
27.6
24.1
20.6
29.8
29.8
26.3
22.9
22.0
18.4
14.7
27.5
23.9
20.2
16.6
29.8
28.7
25.1
21.4
30.1
30.1
26.5
22.8
105°F
12.0
9.2
16.1
13.3
10.5
20.3
17.5
14.7
11.9
22.6
20.3
17.5
14.7
23.8
21.8
19.0
16.2
12.9
9.8
17.4
14.2
11.1
21.8
18.7
15.6
12.4
23.2
21.8
18.6
15.5
24.4
23.3
20.2
17.1
13.9
10.4
18.7
15.2
11.7
23.4
19.9
16.4
13.0
23.8
23.2
19.7
16.2
25.0
24.9
21.4
17.9
19.7
16.0
12.3
24.5
21.0
17.2
13.5
24.2
23.9
20.2
16.5
25.4
25.3
21.6
17.9
20.7
16.8
12.8
25.6
22.0
18.1
14.1
24.6
24.6
20.7
16.7
25.8
25.8
21.9
17.9
65
15.3
18.0
15.9
18.8
16.6
19.6
17.2
19.4
17.8
19.2
11.9
13.4
12.3
13.9
12.8
14.5
12.8
14.2
12.7
13.9
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ030 (2.5 Ton) (Continued)
Air on
Evaporator Coil
CFM
750
875
1000
1125
1250
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
29.0
25.7
22.5
20.3
22.0
29.3
26.0
22.8
20.5
22.2
29.6
26.3
23.0
20.7
22.5
27.1
23.7
21.3
23.1
27.8
24.4
21.9
23.8
3.3
3.2
3.1
3.1
3.1
3.3
3.2
3.1
3.1
3.1
3.3
3.2
3.1
3.0
3.1
3.2
3.1
3.1
3.1
3.3
3.2
3.1
3.2
14.3
18.3
22.3
20.3
22.0
16.8
19.7
22.7
20.5
22.2
19.3
21.2
23.0
20.7
22.5
22.6
23.7
21.3
23.1
24.1
24.4
21.9
23.8
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
11.4
8.5
27.2
3.5
15.4
12.5
9.6
23.5
3.4
19.4
16.5
13.7
10.8
19.9
3.3
20.3
18.4
15.6
12.7
9.8
17.9
3.3
22.0
19.9
17.0
14.1
11.3
20.2
3.3
12.3
9.0
27.1
3.5
16.5
13.3
10.1
23.4
3.4
20.8
17.6
14.4
11.1
19.8
3.3
20.5
19.6
16.4
13.2
10.0
17.7
3.2
22.2
21.2
17.9
14.7
11.5
20.1
3.3
13.1
9.6
27.0
3.5
17.6
14.1
10.5
23.3
3.4
22.1
18.6
15.1
11.5
19.6
3.3
20.7
20.7
17.2
13.7
10.1
17.6
3.2
22.5
22.4
18.9
15.3
11.8
20.0
3.2
18.8
15.0
11.2
24.4
3.4
23.2
19.8
16.0
12.2
20.6
3.3
21.3
21.3
17.5
13.7
9.9
18.4
3.3
23.1
23.1
19.3
15.5
11.7
20.9
3.3
20.0
15.9
11.8
25.4
3.5
24.4
21.0
17.0
12.9
21.5
3.4
21.9
21.9
17.8
13.8
9.7
19.3
3.3
23.8
23.8
19.7
15.6
11.5
21.8
3.4
90
15.5
17.7
19.9
17.9
20.2
18.1
18.9
19.8
17.7
20.1
20.7
20.2
19.6
17.6
20.0
21.9
20.6
18.4
20.9
23.5
21.5
19.3
21.8
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
10.8
7.9
14.7
11.7
8.8
18.6
15.6
12.7
9.7
17.9
16.6
13.6
10.6
20.2
18.0
15.1
12.1
12.2
8.3
15.7
12.4
9.1
19.7
16.5
13.2
9.9
17.7
17.4
14.1
10.8
20.1
19.0
15.7
12.4
13.5
8.7
16.6
13.0
9.4
19.6
17.3
13.7
10.1
17.6
17.6
14.7
11.1
20.0
19.9
16.3
12.7
17.9
14.0
10.1
20.6
18.7
14.8
10.9
18.4
18.4
14.9
10.9
20.9
20.8
16.9
13.0
19.3
15.1
10.9
21.5
20.1
15.8
11.6
19.3
19.3
15.0
10.8
21.8
21.8
17.5
13.3
65
7.6
9.1
7.6
9.1
7.5
9.1
7.0
9.1
6.6
9.1
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
13
718432-YTG-E-0314
DEZ036 (3.0 Ton)
Air on
Evaporator Coil
CFM
900
1050
1200
1300
1400
900
1050
1200
1300
1400
14
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
43.2
40.7
38.2
35.5
35.6
44.2
41.7
39.1
36.4
36.5
45.3
42.7
40.0
37.2
37.3
42.7
40.1
37.2
37.4
42.7
40.1
37.3
37.4
2.5
2.5
2.4
2.4
2.4
2.6
2.6
2.5
2.5
2.5
2.7
2.6
2.6
2.6
2.6
2.7
2.7
2.6
2.6
2.8
2.8
2.7
2.7
19.7
25.6
31.5
35.5
35.6
21.1
27.3
33.6
36.4
36.5
22.5
29.0
35.6
37.2
37.3
29.5
36.7
37.2
37.4
30.1
37.8
37.3
37.4
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
39.3
36.1
32.9
31.1
31.1
40.2
37.0
33.7
31.9
31.8
41.2
37.8
34.5
32.6
32.5
37.9
34.6
32.7
32.6
38.0
34.7
32.8
32.7
3.0
2.9
2.8
2.8
2.8
3.1
3.0
2.9
2.9
2.9
3.2
3.1
3.0
3.0
3.0
3.2
3.1
3.1
3.1
3.3
3.2
3.1
3.1
18.6
24.0
29.3
31.1
31.1
20.0
25.7
31.4
31.9
31.8
21.5
27.5
33.5
32.6
32.5
28.5
34.1
32.7
32.6
29.4
34.7
32.8
32.7
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
16.7
13.7
41.2
2.7
22.6
19.7
16.7
38.4
2.7
28.5
25.6
22.6
19.6
35.6
2.6
35.2
31.4
28.5
25.5
22.5
33.3
2.6
35.6
33.7
30.7
27.7
24.7
33.3
2.6
17.8
14.5
42.2
2.8
24.0
20.7
17.4
39.3
2.8
30.3
27.0
23.7
20.4
36.4
2.7
36.2
33.1
29.8
26.5
23.3
34.1
2.7
36.5
35.5
32.2
28.9
25.6
34.1
2.7
18.9
15.2
43.2
2.9
25.4
21.8
18.2
40.3
2.9
32.0
28.4
24.7
21.1
37.3
2.8
37.2
34.9
31.2
27.6
24.0
34.9
2.8
37.3
37.3
33.7
30.1
26.5
34.9
2.8
25.8
22.0
18.2
40.3
2.9
32.4
28.6
24.8
21.0
37.3
2.9
37.2
35.6
31.8
28.0
24.2
35.0
2.8
37.4
37.4
33.6
29.8
26.0
35.0
2.9
26.1
22.1
18.2
40.4
3.0
32.8
28.8
24.8
20.9
37.4
3.0
37.3
36.4
32.4
28.5
24.5
35.0
2.9
37.4
37.4
33.4
29.5
25.5
35.0
2.9
95°F
15.5
12.3
36.3
3.2
20.8
17.7
14.6
33.0
3.1
26.2
23.1
20.0
16.8
29.7
3.0
31.1
28.8
25.7
22.6
19.4
28.2
3.0
31.1
29.1
25.9
22.8
19.7
28.1
3.0
16.6
13.1
37.2
3.3
22.3
18.8
15.3
33.8
3.2
28.0
24.5
21.0
17.5
30.4
3.1
31.9
30.5
27.1
23.6
20.1
28.9
3.1
31.8
30.8
27.3
23.9
20.4
28.8
3.1
17.6
13.8
38.1
3.4
23.7
19.8
16.0
34.6
3.3
29.7
25.9
22.0
18.2
31.1
3.2
32.6
32.3
28.4
24.6
20.8
29.6
3.2
32.5
32.5
28.7
24.9
21.0
29.5
3.2
24.4
20.3
16.2
34.7
3.4
30.5
26.5
22.4
18.3
31.2
3.3
32.7
32.5
28.4
24.4
20.3
29.6
3.3
32.6
32.6
28.5
24.5
20.4
29.5
3.3
25.1
20.8
16.4
34.7
3.5
31.4
27.1
22.7
18.4
31.2
3.4
32.8
32.8
28.5
24.1
19.8
29.6
3.3
32.7
32.7
28.4
24.0
19.7
29.6
3.3
90
19.1
24.8
30.4
33.3
33.3
20.6
26.5
32.5
34.1
34.1
22.0
28.3
34.6
34.9
34.9
29.0
35.4
35.0
35.0
29.7
36.2
35.0
35.0
17.5
22.7
27.9
28.2
28.1
19.9
24.6
29.3
28.9
28.8
22.3
26.5
30.6
29.6
29.5
27.4
30.9
29.6
29.5
28.4
31.2
29.6
29.6
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
16.1
13.0
21.7
18.7
15.6
27.4
24.3
21.3
18.2
33.2
30.1
27.1
24.0
33.3
31.4
28.3
25.3
17.2
13.8
23.1
19.7
16.4
29.1
25.7
22.3
18.9
34.0
31.8
28.5
25.1
34.1
33.2
29.8
26.4
18.2
14.5
24.5
20.8
17.1
30.8
27.1
23.4
19.6
34.9
33.6
29.8
26.1
34.9
34.9
31.2
27.5
25.1
21.1
17.2
31.5
27.5
23.6
19.6
35.0
34.1
30.1
26.2
35.0
35.0
31.1
27.1
25.6
21.4
17.3
32.1
27.9
23.8
19.6
35.0
34.6
30.4
26.3
35.0
35.0
30.9
26.8
105°F
14.3
11.1
19.5
16.3
13.2
24.7
21.6
18.4
15.2
28.2
25.8
22.7
19.5
28.1
25.9
22.8
19.6
15.4
11.9
21.0
17.5
13.9
26.6
23.0
19.5
15.9
28.9
27.6
24.1
20.5
28.8
27.7
24.2
20.6
16.6
12.7
22.5
18.6
14.7
28.5
24.5
20.6
16.7
29.6
29.4
25.5
21.5
29.5
29.5
25.6
21.6
23.3
19.1
14.9
29.0
25.1
21.0
16.8
29.6
29.5
25.3
21.1
29.5
29.5
25.3
21.1
24.0
19.5
15.1
29.6
25.7
21.3
16.8
29.6
29.6
25.2
20.8
29.6
29.6
25.1
20.7
65
21.0
22.2
21.7
23.0
22.4
23.8
22.3
23.2
22.1
22.6
16.3
16.4
16.9
17.0
17.6
17.7
16.9
17.0
16.3
16.2
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ036 (3.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
900
1050
1200
1300
1400
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
33.4
29.9
26.4
25.3
25.2
34.2
30.7
27.1
25.9
25.8
35.1
31.4
27.8
26.5
26.5
31.4
27.7
26.5
26.4
31.4
27.7
26.5
26.4
3.4
3.3
3.2
3.2
3.2
3.5
3.4
3.3
3.3
3.3
3.6
3.5
3.4
3.4
3.4
3.6
3.5
3.5
3.5
3.7
3.6
3.6
3.6
16.4
21.4
26.4
25.3
25.2
19.8
23.4
27.1
25.9
25.8
23.2
25.5
27.8
26.5
26.5
26.4
27.7
26.5
26.4
27.4
27.7
26.5
26.4
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
13.1
9.9
30.4
3.6
18.2
15.0
11.7
26.8
3.5
23.2
20.0
16.8
13.6
23.2
3.4
25.3
22.9
19.6
16.4
13.2
22.3
3.4
25.2
22.8
19.6
16.3
13.1
22.3
3.4
14.3
10.7
31.2
3.7
19.8
16.2
12.5
27.5
3.6
25.3
21.6
18.0
14.4
23.8
3.5
25.9
24.7
21.1
17.4
13.8
22.9
3.5
25.8
24.6
21.0
17.4
13.7
22.8
3.5
15.6
11.5
32.0
3.9
21.4
17.4
13.3
28.2
3.7
27.3
23.2
19.2
15.1
24.4
3.6
26.5
26.5
22.5
18.4
14.4
23.5
3.6
26.5
26.5
22.4
18.4
14.3
23.4
3.6
22.1
17.8
13.5
28.1
3.8
27.5
23.8
19.5
15.2
24.3
3.7
26.5
26.5
22.2
17.9
13.6
23.4
3.7
26.4
26.4
22.1
17.8
13.5
23.4
3.7
22.8
18.3
13.7
28.0
3.9
27.7
24.4
19.9
15.3
24.2
3.8
26.5
26.5
21.9
17.4
12.8
23.4
3.8
26.4
26.4
21.9
17.3
12.7
23.3
3.8
90
17.0
20.1
23.2
22.3
22.3
20.8
22.3
23.8
22.9
22.8
24.6
24.5
24.4
23.5
23.4
25.4
24.3
23.4
23.4
26.4
24.2
23.4
23.3
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
12.0
8.7
16.8
13.6
10.3
21.7
18.5
15.2
11.9
22.3
19.9
16.6
13.3
22.3
19.6
16.4
13.1
14.1
9.5
18.6
14.9
11.1
23.8
20.2
16.5
12.8
22.9
21.8
18.1
14.3
22.8
21.5
17.8
14.1
16.2
10.4
20.3
16.1
12.0
24.4
21.9
17.8
13.6
23.5
23.5
19.5
15.4
23.4
23.4
19.3
15.1
21.0
16.6
12.2
24.3
22.5
18.1
13.7
23.4
23.4
19.1
14.7
23.4
23.4
18.9
14.5
21.7
17.0
12.3
24.2
23.1
18.4
13.8
23.4
23.4
18.7
14.0
23.3
23.3
18.6
13.9
65
10.1
9.8
10.6
10.4
11.2
10.9
10.3
10.1
9.3
9.2
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
15
718432-YTG-E-0314
DEZ042 (3.5 Ton)
Air on
Evaporator Coil
CFM
1050
1225
1400
1550
1700
1050
1225
1400
1550
1700
16
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
52.2
48.2
44.2
40.5
37.5
54.7
50.5
46.3
42.5
39.3
57.3
52.9
48.5
44.5
41.1
53.1
48.7
44.7
41.3
53.4
48.9
44.9
41.5
3.2
3.1
3.0
3.0
3.0
3.2
3.1
3.0
3.0
3.0
3.2
3.1
3.0
3.0
3.0
3.2
3.1
3.1
3.1
3.3
3.2
3.2
3.2
23.4
29.9
36.4
40.5
37.5
25.7
33.2
40.7
42.5
39.3
28.1
36.5
45.0
44.5
41.1
38.3
47.0
44.7
41.3
40.1
48.9
44.9
41.5
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
45.5
41.4
37.3
33.4
32.8
48.0
43.6
39.3
35.2
34.6
50.4
45.9
41.3
37.0
36.3
45.9
41.3
37.1
36.4
45.9
41.3
37.1
36.4
3.6
3.6
3.5
3.5
3.5
3.7
3.6
3.6
3.5
3.5
3.7
3.6
3.6
3.5
3.5
3.7
3.7
3.6
3.6
3.8
3.7
3.7
3.7
21.8
27.8
33.8
33.4
32.8
24.9
31.2
37.5
35.2
34.6
28.1
34.7
41.3
37.0
36.3
36.7
41.3
37.1
36.4
38.8
41.3
37.1
36.4
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
19.2
15.0
48.8
3.4
25.7
21.5
17.2
44.8
3.3
32.2
27.9
23.7
19.5
40.7
3.3
39.1
33.6
29.3
25.1
20.9
37.0
3.2
37.5
34.2
29.9
25.7
21.5
35.2
3.2
21.3
16.5
51.3
3.4
28.4
23.6
18.8
47.1
3.4
35.6
30.8
26.0
21.2
42.8
3.3
41.8
37.0
32.2
27.4
22.6
38.9
3.3
39.3
37.7
32.9
28.1
23.3
36.9
3.2
23.4
18.0
53.8
3.4
31.2
25.8
20.5
49.4
3.4
39.0
33.6
28.3
22.9
44.9
3.3
44.5
40.4
35.0
29.7
24.3
40.8
3.3
41.1
41.1
35.8
30.4
25.1
38.7
3.3
32.6
26.8
21.0
49.5
3.5
40.7
34.9
29.1
23.3
45.0
3.4
44.7
42.7
36.9
31.1
25.3
40.9
3.4
41.3
41.3
35.6
29.8
24.0
38.9
3.3
33.9
27.7
21.6
49.6
3.6
42.3
36.1
29.9
23.7
45.1
3.5
44.9
44.9
38.7
32.5
26.3
41.0
3.5
41.5
41.5
35.4
29.2
23.0
39.0
3.4
95°F
17.5
13.2
41.7
3.9
23.5
19.2
14.8
37.3
3.8
29.5
25.2
20.8
16.5
32.8
3.7
33.4
30.4
26.1
21.8
17.5
30.1
3.7
32.8
29.8
25.5
21.2
16.9
29.7
3.7
19.6
14.6
44.1
3.9
26.2
21.3
16.3
39.4
3.8
32.9
27.9
22.9
17.9
34.7
3.8
35.2
33.7
28.7
23.7
18.7
31.8
3.7
34.6
33.1
28.1
23.1
18.1
31.4
3.7
21.7
16.0
46.4
4.0
29.0
23.3
17.7
41.5
3.9
36.3
30.6
25.0
19.3
36.6
3.8
37.0
37.0
31.4
25.7
20.0
33.6
3.7
36.3
36.3
30.7
25.0
19.3
33.1
3.7
30.6
24.5
18.4
41.5
4.0
38.3
32.1
26.0
19.9
36.6
3.9
37.1
37.1
30.9
24.8
18.7
33.6
3.8
36.4
36.4
30.2
24.1
18.0
33.1
3.8
32.2
25.6
19.0
41.6
4.1
40.2
33.6
27.1
20.5
36.6
4.0
37.1
37.1
30.5
23.9
17.3
33.6
3.9
36.4
36.4
29.8
23.2
16.6
33.1
3.9
90
22.6
28.9
35.1
37.0
35.2
25.3
32.2
39.1
38.9
36.9
28.1
35.6
43.2
40.8
38.7
37.5
44.1
40.9
38.9
39.5
45.1
41.0
39.0
21.6
26.3
31.1
30.1
29.7
25.7
29.8
33.9
31.8
31.4
29.8
33.2
36.6
33.6
33.1
35.3
36.6
33.6
33.1
37.5
36.6
33.6
33.1
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
18.3
14.1
24.6
20.3
16.0
30.8
26.5
22.3
18.0
36.3
32.0
27.7
23.4
35.2
32.0
27.7
23.5
20.4
15.5
27.3
22.4
17.5
34.2
29.3
24.4
19.5
38.5
35.4
30.5
25.6
36.9
35.4
30.5
25.6
22.5
17.0
30.1
24.6
19.1
37.6
32.1
26.6
21.1
40.8
38.7
33.2
27.7
38.7
38.7
33.2
27.7
31.6
25.6
19.7
39.5
33.5
27.6
21.6
40.9
39.9
33.9
28.0
38.9
38.9
32.9
27.0
33.1
26.7
20.3
41.3
34.9
28.5
22.1
41.0
41.0
34.6
28.2
39.0
39.0
32.6
26.2
105°F
16.3
12.0
22.0
17.7
13.4
27.7
23.4
19.1
14.8
30.1
27.3
23.0
18.7
29.7
26.9
22.6
18.3
18.6
13.4
24.8
19.8
14.8
30.9
26.2
21.2
16.2
31.8
30.4
25.4
20.4
31.4
30.0
25.0
20.0
20.9
14.8
27.5
21.8
16.2
34.1
28.9
23.2
17.5
33.6
33.6
27.9
22.2
33.1
33.1
27.4
21.7
29.2
23.0
16.8
35.1
30.4
24.2
18.1
33.6
33.6
27.4
21.2
33.1
33.1
26.9
20.8
30.8
24.2
17.5
36.1
31.9
25.3
18.6
33.6
33.6
26.9
20.3
33.1
33.1
26.4
19.8
65
19.2
19.2
20.7
20.7
22.2
22.2
22.0
21.0
21.8
19.8
14.4
13.9
15.5
15.0
16.6
16.1
15.1
14.6
13.6
13.1
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ042 (3.5 Ton) (Continued)
Air on
Evaporator Coil
CFM
1050
1225
1400
1550
1700
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
37.8
33.1
28.4
26.8
26.5
40.2
35.2
30.2
28.4
28.2
42.5
37.2
31.9
30.1
29.8
37.2
31.9
30.1
29.8
37.2
31.9
30.1
29.8
4.2
4.0
3.9
3.9
3.9
4.2
4.1
4.0
3.9
3.9
4.2
4.1
4.0
4.0
4.0
4.2
4.1
4.1
4.1
4.3
4.2
4.2
4.2
21.3
24.9
28.4
26.8
26.5
26.4
28.3
30.2
28.4
28.2
31.5
31.7
31.9
30.1
29.8
33.9
31.9
30.1
29.8
36.2
31.9
30.1
29.8
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
15.2
10.9
34.0
4.4
20.6
16.3
12.0
29.0
4.3
26.0
21.7
17.4
13.1
24.0
4.1
26.8
24.1
19.8
15.5
11.2
23.5
4.1
26.5
23.9
19.6
15.3
11.0
23.4
4.1
17.7
12.2
36.3
4.5
23.3
18.3
13.3
30.9
4.3
29.0
24.4
19.4
14.4
25.6
4.2
28.4
27.1
22.1
17.1
12.2
25.0
4.1
28.2
26.8
21.9
16.9
11.9
25.0
4.2
20.1
13.6
38.5
4.5
26.0
20.3
14.7
32.9
4.4
31.9
27.1
21.4
15.7
27.2
4.2
30.1
30.1
24.4
18.7
13.1
26.6
4.2
29.8
29.8
24.1
18.4
12.8
26.5
4.2
27.7
21.5
15.3
32.9
4.5
31.9
28.7
22.5
16.3
27.2
4.3
30.1
30.1
23.9
17.7
11.5
26.6
4.3
29.8
29.8
23.6
17.4
11.2
26.5
4.3
29.4
22.7
16.0
32.9
4.6
31.9
30.2
23.5
16.8
27.2
4.5
30.1
30.1
23.4
16.6
9.9
26.6
4.4
29.8
29.8
23.1
16.3
9.6
26.5
4.4
90
22.8
23.4
24.0
23.5
23.4
28.0
26.8
25.6
25.0
25.0
33.2
30.2
27.2
26.6
26.5
32.5
27.2
26.6
26.5
32.9
27.2
26.6
26.5
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
14.3
9.8
19.1
14.9
10.6
24.0
20.0
15.7
11.5
23.5
21.0
16.7
12.4
23.4
20.9
16.6
12.4
18.1
11.1
21.8
16.9
11.9
25.6
22.7
17.7
12.7
25.0
23.8
18.8
13.8
25.0
23.7
18.7
13.8
21.8
12.4
24.5
18.9
13.2
27.2
25.3
19.6
14.0
26.6
26.6
20.9
15.2
26.5
26.5
20.8
15.2
26.3
20.1
13.8
27.2
26.9
20.7
14.4
26.6
26.6
20.4
14.1
26.5
26.5
20.3
14.0
28.1
21.3
14.4
27.2
27.2
21.7
14.9
26.6
26.6
19.8
13.0
26.5
26.5
19.7
12.9
65
8.1
8.1
8.9
8.8
9.6
9.5
7.9
7.8
6.2
6.1
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
17
718432-YTG-E-0314
DEZ048 (4.0 Ton)
Air on
Evaporator Coil
CFM
1200
1400
1600
1700
1800
1200
1400
1600
1700
1800
18
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
59.7
57.1
54.5
49.7
51.4
61.0
58.3
55.7
50.7
52.5
62.3
59.6
56.9
51.8
53.6
59.4
56.7
51.7
53.5
59.2
56.6
51.5
53.3
3.6
3.5
3.5
3.5
3.5
3.6
3.6
3.5
3.5
3.5
3.6
3.6
3.5
3.5
3.5
3.7
3.6
3.6
3.6
3.7
3.7
3.7
3.7
26.9
34.5
42.1
49.7
51.4
29.0
37.1
45.3
50.7
52.5
31.1
39.7
48.4
51.8
53.6
40.3
49.0
51.7
53.5
40.9
49.7
51.5
53.3
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
55.5
51.3
47.2
44.3
45.4
56.4
52.1
47.9
45.0
46.1
57.3
53.0
48.7
45.7
46.8
53.3
49.0
46.0
47.1
53.7
49.3
46.3
47.4
4.2
4.2
4.1
4.0
4.1
4.3
4.2
4.1
4.1
4.1
4.3
4.2
4.1
4.1
4.1
4.3
4.2
4.2
4.2
4.4
4.3
4.3
4.3
24.5
32.2
39.8
44.3
45.4
26.5
34.7
42.8
45.0
46.1
28.5
37.2
45.8
45.7
46.8
38.1
46.9
46.0
47.1
39.0
48.0
46.3
47.4
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
22.8
18.7
57.6
3.9
30.4
26.3
22.2
54.2
3.9
38.0
33.9
29.8
25.7
50.9
3.8
43.2
39.1
35.0
30.9
26.8
47.0
3.8
50.3
46.2
42.1
37.9
33.8
48.4
3.8
24.5
19.9
58.7
3.9
32.6
28.1
23.5
55.2
3.9
40.7
36.2
31.7
27.1
51.8
3.8
47.5
41.8
37.2
32.7
28.2
47.9
3.8
52.0
49.3
44.8
40.2
35.7
49.3
3.8
26.1
21.2
59.8
3.9
34.8
29.8
24.9
56.3
3.9
43.4
38.5
33.6
28.6
52.8
3.8
51.8
44.4
39.5
34.6
29.6
48.7
3.8
53.6
52.4
47.5
42.6
37.6
50.2
3.8
35.2
30.1
25.0
56.4
4.0
43.9
38.9
33.8
28.7
52.9
3.9
51.7
44.8
39.8
34.7
29.6
48.8
3.9
53.5
52.9
47.9
42.8
37.7
50.3
3.9
35.6
30.4
25.2
56.4
4.1
44.5
39.2
34.0
28.8
52.9
4.0
51.5
45.2
40.0
34.8
29.5
48.9
4.0
53.3
53.3
48.2
43.0
37.8
50.4
4.0
95°F
20.1
15.8
54.4
4.6
27.8
23.4
19.1
48.5
4.5
35.4
31.1
26.7
22.4
42.6
4.4
43.0
38.7
34.3
30.0
25.6
41.3
4.3
44.3
39.9
35.6
31.2
26.9
41.7
4.3
21.7
16.8
54.5
4.6
29.8
25.0
20.1
48.6
4.5
38.0
33.1
28.3
23.5
42.7
4.4
44.4
41.2
36.4
31.6
26.7
41.4
4.4
45.5
42.6
37.7
32.9
28.0
41.9
4.4
23.2
17.9
54.7
4.6
31.9
26.5
21.2
48.8
4.5
40.5
35.2
29.9
24.5
42.9
4.5
45.7
43.8
38.5
33.1
27.8
41.6
4.4
46.8
45.2
39.9
34.6
29.2
42.0
4.4
32.6
27.0
21.5
49.7
4.6
41.4
35.8
30.3
24.8
43.7
4.6
46.0
44.6
39.1
33.5
28.0
42.4
4.5
47.1
46.0
40.5
35.0
29.4
42.8
4.5
33.3
27.5
21.8
50.7
4.7
42.2
36.5
30.7
25.0
44.5
4.7
46.3
45.4
39.7
33.9
28.2
43.2
4.6
47.4
46.9
41.1
35.4
29.6
43.7
4.6
90
25.7
33.3
41.0
47.0
48.4
27.8
35.9
44.0
47.9
49.3
29.8
38.5
47.1
48.7
50.2
39.2
48.0
48.8
50.3
39.9
48.8
48.9
50.4
24.3
31.2
38.1
41.3
41.7
27.4
33.6
39.8
41.4
41.9
30.5
36.0
41.5
41.6
42.0
37.2
42.7
42.4
42.8
38.5
43.9
43.2
43.7
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
21.5
17.2
29.1
24.9
20.6
36.7
32.5
28.3
24.0
43.1
38.9
34.7
30.4
47.3
43.1
38.8
34.6
23.1
18.4
31.2
26.5
21.8
39.4
34.7
30.0
25.3
45.9
41.5
36.8
32.1
48.8
45.9
41.3
36.6
24.7
19.5
33.3
28.2
23.1
42.0
36.8
31.7
26.6
48.7
44.1
39.0
33.9
50.2
48.8
43.7
38.6
33.9
28.6
23.3
42.7
37.4
32.0
26.7
48.8
44.7
39.4
34.1
50.3
49.5
44.2
38.9
34.5
29.0
23.5
43.3
37.9
32.4
26.9
48.9
45.3
39.8
34.3
50.4
50.2
44.7
39.2
105°F
19.9
15.4
26.8
22.3
17.8
33.6
29.2
24.7
20.3
40.6
36.1
31.7
27.2
41.1
36.6
32.2
27.7
21.3
16.4
28.6
23.7
18.7
35.9
31.0
26.0
21.1
41.1
38.4
33.4
28.5
41.5
38.9
34.0
29.0
22.8
17.3
30.5
25.1
19.6
38.3
32.8
27.4
21.9
41.6
40.6
35.2
29.7
42.0
41.2
35.8
30.3
31.5
25.8
20.1
39.5
33.7
28.0
22.3
42.4
41.7
36.0
30.3
42.8
42.3
36.6
30.9
32.5
26.5
20.5
40.7
34.7
28.7
22.7
43.2
42.8
36.8
30.8
43.7
43.4
37.4
31.5
65
26.2
30.3
27.5
31.9
28.7
33.4
28.8
33.6
28.9
33.7
22.7
23.3
23.5
24.0
24.3
24.8
24.6
25.2
24.9
25.5
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ048 (4.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
1200
1400
1600
1700
1800
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
53.3
45.6
37.9
38.4
38.1
52.7
45.1
37.5
37.9
37.7
52.1
44.6
37.1
37.5
37.2
46.2
38.4
38.8
38.6
47.8
39.7
40.2
39.9
4.9
4.8
4.7
4.6
4.6
4.9
4.8
4.7
4.7
4.7
5.0
4.9
4.8
4.7
4.7
5.0
4.9
4.8
4.8
5.1
5.0
4.9
4.9
24.2
30.3
36.4
38.4
38.1
28.4
32.5
36.7
37.9
37.7
32.6
34.8
37.1
37.5
37.2
36.4
38.4
38.8
38.6
37.9
39.7
40.2
39.9
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
19.6
15.1
52.2
5.2
25.7
21.1
16.6
42.8
5.1
31.8
27.2
22.7
18.1
33.3
5.0
38.1
33.5
29.0
24.4
19.9
35.4
4.9
37.9
33.3
28.8
24.2
19.7
34.5
4.9
21.0
15.9
50.9
5.3
27.5
22.4
17.3
41.6
5.1
33.9
28.8
23.8
18.7
32.3
5.0
37.8
35.5
30.4
25.3
20.3
34.4
5.0
37.6
35.3
30.2
25.1
20.0
33.5
4.9
22.4
16.8
49.5
5.3
29.2
23.6
18.0
40.4
5.2
36.0
30.4
24.8
19.2
31.3
5.1
37.5
37.5
31.9
26.3
20.7
33.4
5.0
37.2
37.2
31.6
26.0
20.4
32.4
5.0
30.5
24.6
18.7
42.6
5.3
37.5
31.6
25.8
19.9
33.1
5.2
38.8
38.8
32.9
27.0
21.1
35.2
5.1
38.6
38.6
32.7
26.8
20.9
34.3
5.1
31.7
25.5
19.3
44.9
5.4
39.1
32.9
26.7
20.5
35.0
5.3
40.2
40.2
34.0
27.8
21.6
37.1
5.2
39.9
39.9
33.7
27.5
21.3
36.2
5.2
90
25.3
29.3
33.3
35.4
34.5
30.6
31.5
32.3
34.4
33.5
36.0
33.6
31.3
33.4
32.4
35.5
33.1
35.2
34.3
37.4
35.0
37.1
36.2
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
19.3
14.7
24.7
20.0
15.3
30.0
25.3
20.7
16.0
35.4
31.0
26.3
21.6
34.5
30.0
25.4
20.7
21.9
15.5
26.3
21.1
15.9
31.9
26.7
21.5
16.3
34.4
32.6
27.4
22.2
33.5
31.6
26.4
21.2
24.5
16.3
27.9
22.2
16.4
31.3
28.0
22.3
16.6
33.4
33.4
28.6
22.8
32.4
32.4
27.5
21.8
29.4
23.3
17.3
33.1
29.6
23.5
17.4
35.2
35.2
29.8
23.8
34.3
34.3
28.8
22.7
30.9
24.5
18.1
35.0
31.1
24.6
18.2
37.1
37.1
31.1
24.7
36.2
36.2
30.0
23.6
65
17.0
16.0
17.0
16.0
17.1
16.0
17.7
16.6
18.3
17.2
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
19
718432-YTG-E-0314
DEZ060 (5.0 Ton)
Air on
Evaporator Coil
CFM
1500
1625
1750
1875
2000
1500
1625
1750
1875
2000
20
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
71.2
65.3
59.3
55.1
55.9
72.2
66.1
60.1
55.9
56.6
73.2
67.0
60.9
56.6
57.4
67.6
61.5
57.1
57.9
68.3
62.0
57.7
58.5
3.5
3.4
3.4
3.3
3.3
3.5
3.5
3.4
3.3
3.4
3.5
3.5
3.5
3.3
3.4
3.5
3.4
3.3
3.4
3.4
3.4
3.3
3.3
29.9
39.6
49.2
55.1
55.9
32.3
42.8
53.4
55.9
56.6
34.7
46.1
57.5
56.6
57.4
46.1
57.5
57.1
57.9
46.1
57.4
57.7
58.5
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
63.1
58.3
53.5
50.3
49.6
64.1
59.2
54.3
51.1
50.4
65.1
60.1
55.1
51.8
51.1
60.1
55.1
51.8
51.1
60.1
55.1
51.8
51.1
4.6
4.5
4.3
4.3
4.3
4.6
4.5
4.3
4.3
4.3
4.6
4.5
4.3
4.3
4.3
4.5
4.4
4.3
4.3
4.5
4.4
4.4
4.4
34.6
41.5
48.4
50.3
49.6
36.2
43.3
50.5
51.1
50.4
37.8
45.2
52.6
51.8
51.1
46.4
53.9
51.8
51.1
47.7
55.1
51.8
51.1
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
24.6
19.3
67.2
4.0
34.3
29.0
23.8
61.8
4.0
44.0
38.7
33.4
28.2
56.4
3.9
52.0
44.1
38.9
33.6
28.3
52.7
3.8
54.4
46.3
41.1
35.8
30.5
52.7
3.8
26.8
21.3
68.1
4.0
37.4
31.9
26.4
62.7
4.0
47.9
42.4
36.9
31.4
57.2
3.9
54.3
48.5
43.0
37.5
32.0
53.5
3.8
55.9
50.8
45.3
39.8
34.4
53.5
3.8
29.0
23.3
69.1
4.1
40.4
34.7
29.0
63.6
4.0
51.8
46.1
40.4
34.7
58.0
3.9
56.6
52.8
47.1
41.4
35.7
54.2
3.8
57.4
55.3
49.6
43.9
38.2
54.3
3.8
40.0
33.9
27.8
63.9
4.0
51.2
45.1
39.0
33.0
58.3
3.9
57.1
52.2
46.1
40.0
33.9
54.5
3.8
57.9
54.8
48.7
42.6
36.5
54.5
3.9
39.6
33.2
26.7
64.2
4.0
50.7
44.2
37.7
31.2
58.6
3.9
57.7
51.6
45.1
38.6
32.1
54.8
3.8
58.5
54.2
47.7
41.3
34.8
54.8
3.9
95°F
28.8
23.0
58.3
5.0
35.7
29.9
24.2
53.5
4.9
42.6
36.8
31.1
25.3
48.8
4.9
50.3
47.1
41.3
35.6
29.8
46.4
4.8
49.6
46.6
40.8
35.1
29.3
46.4
4.8
30.0
23.8
59.5
5.0
37.2
31.0
24.8
54.6
4.9
44.3
38.1
31.9
25.8
49.8
4.9
51.1
48.7
42.6
36.4
30.2
47.4
4.8
50.4
48.2
42.0
35.9
29.7
47.4
4.8
31.2
24.6
60.7
5.0
38.6
32.0
25.4
55.8
4.9
46.0
39.4
32.8
26.2
50.8
4.9
51.8
50.4
43.8
37.2
30.6
48.4
4.8
51.1
49.8
43.2
36.6
30.0
48.4
4.8
39.6
32.9
26.1
55.8
5.0
47.2
40.4
33.6
26.8
50.9
4.9
51.8
51.1
44.3
37.5
30.7
48.4
4.8
51.1
50.5
43.7
36.9
30.1
48.4
4.8
40.7
33.7
26.7
55.9
5.0
48.4
41.5
34.5
27.5
50.9
4.9
51.8
51.8
44.9
37.9
30.9
48.5
4.8
51.1
51.1
44.1
37.2
30.2
48.5
4.9
90
32.2
40.5
48.8
52.7
52.7
34.3
43.1
51.9
53.5
53.5
36.3
45.7
55.1
54.2
54.3
46.3
55.7
54.5
54.5
46.9
56.3
54.8
54.8
32.0
39.1
46.2
46.4
46.4
35.2
41.6
47.9
47.4
47.4
38.4
44.0
49.5
48.4
48.4
45.0
50.2
48.4
48.4
46.0
50.9
48.5
48.5
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
26.7
21.2
35.0
29.5
24.0
43.3
37.8
32.3
26.7
51.1
45.6
40.1
34.6
52.0
46.5
40.9
35.4
28.4
22.6
37.3
31.4
25.6
46.1
40.3
34.4
28.6
52.7
48.6
42.8
36.9
53.1
49.5
43.7
37.9
30.1
24.0
39.5
33.4
27.2
48.9
42.7
36.6
30.4
54.2
51.6
45.5
39.3
54.3
52.6
46.4
40.3
39.8
33.4
27.0
49.2
42.8
36.3
29.9
54.5
51.7
45.2
38.8
54.5
52.6
46.2
39.7
40.1
33.4
26.7
49.5
42.8
36.1
29.4
54.8
51.7
45.0
38.2
54.8
52.7
45.9
39.2
105°F
25.4
19.5
33.2
27.3
21.4
41.0
35.0
29.1
23.2
46.4
42.3
36.4
30.4
46.3
41.7
35.8
29.9
27.0
20.6
35.2
28.9
22.5
43.5
37.1
30.8
24.4
47.4
44.7
38.4
32.0
47.3
44.1
37.8
31.4
28.5
21.7
37.2
30.4
23.7
46.0
39.2
32.4
25.6
48.4
47.1
40.4
33.6
48.4
46.5
39.8
33.0
38.0
30.9
23.9
46.8
39.8
32.7
25.7
48.4
47.6
40.6
33.5
48.4
47.0
39.9
32.9
38.7
31.4
24.1
47.6
40.4
33.1
25.8
48.5
48.1
40.8
33.5
48.5
47.4
40.1
32.7
65
29.1
29.9
31.1
32.0
33.2
34.1
32.3
33.3
31.5
32.5
24.5
24.0
25.7
25.1
26.8
26.2
26.5
25.8
26.1
25.4
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ060 (5.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
1500
1625
1750
1875
2000
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
53.5
48.8
44.1
42.6
43.2
54.9
50.1
45.3
43.7
44.4
56.4
51.4
46.5
44.9
45.6
51.6
46.6
45.0
45.7
51.7
46.7
45.1
45.8
5.4
5.4
5.4
5.3
5.3
5.4
5.4
5.4
5.3
5.3
5.4
5.4
5.4
5.3
5.3
5.4
5.4
5.3
5.3
5.4
5.4
5.3
5.3
29.5
36.8
44.1
42.6
43.2
34.3
39.8
45.3
43.7
44.4
39.0
42.8
46.5
44.9
45.6
43.6
46.6
45.0
45.7
44.4
46.7
45.1
45.8
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
22.1
16.0
48.7
5.8
30.7
24.6
18.5
44.0
5.9
39.3
33.2
27.1
21.1
39.4
5.9
42.6
37.5
31.4
25.3
19.2
38.7
5.8
42.9
36.9
30.8
24.7
18.6
40.0
5.8
23.9
17.4
50.4
5.8
33.3
26.7
20.2
45.6
5.9
42.6
36.1
29.6
23.1
40.8
5.9
43.7
40.7
34.2
27.7
21.1
40.1
5.8
44.3
40.0
33.5
27.0
20.5
41.4
5.8
25.7
18.8
52.1
5.8
35.8
28.9
21.9
47.1
5.9
45.9
39.0
32.0
25.1
42.2
5.9
44.9
43.9
37.0
30.0
23.1
41.4
5.8
45.6
43.2
36.3
29.3
22.4
42.8
5.8
36.3
29.0
21.7
47.3
5.9
46.3
39.1
31.8
24.5
42.3
5.9
45.0
44.1
36.8
29.5
22.2
41.6
5.8
45.7
43.4
36.1
28.8
21.5
43.0
5.8
36.8
29.1
21.5
47.5
5.9
46.7
39.3
31.7
24.0
42.5
5.9
45.1
44.3
36.7
29.0
21.4
41.8
5.8
45.8
43.6
36.0
28.3
20.7
43.2
5.8
90
29.5
34.4
39.4
38.7
40.0
35.2
38.0
40.8
40.1
41.4
40.9
41.5
42.2
41.4
42.8
42.2
42.3
41.6
43.0
42.8
42.5
41.8
43.2
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
18.7
12.5
28.2
22.0
15.7
37.7
31.4
25.2
18.9
38.7
32.6
26.4
20.2
39.6
32.0
25.8
19.5
22.7
14.2
31.3
24.6
17.9
40.8
35.1
28.4
21.7
40.1
36.7
30.0
23.3
41.2
36.0
29.3
22.6
26.6
15.8
34.4
27.3
20.2
42.2
38.7
31.6
24.5
41.4
40.7
33.6
26.4
42.8
39.9
32.8
25.7
34.6
27.1
19.5
42.3
38.5
30.9
23.4
41.6
40.6
33.1
25.5
43.0
39.9
32.3
24.8
34.8
26.9
18.9
42.5
38.3
30.3
22.3
41.8
40.6
32.6
24.6
43.2
39.9
31.9
23.9
65
13.9
13.3
16.6
15.9
19.3
18.5
18.0
17.2
16.6
15.9
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
21
718432-YTG-E-0314
DEQ024-060 Cooling Capacities
DEQ024 (2.0 Ton)
Air on
Evaporator Coil
CFM
600
700
800
900
600
700
800
900
22
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
27.3
26.2
25.2
23.5
22.6
28.6
27.5
26.3
24.6
23.6
29.8
28.7
27.5
25.8
24.7
30.4
29.1
27.3
26.1
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
10.8
16.0
21.2
23.5
22.6
12.1
18.1
24.1
24.6
23.6
13.3
20.1
26.9
25.8
24.7
19.1
27.0
27.3
26.1
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
24.3
22.5
20.7
18.8
18.9
25.6
23.7
21.7
19.8
19.9
26.8
24.8
22.8
20.7
20.8
26.4
24.2
22.0
22.1
1.9
1.8
1.8
1.8
1.8
1.9
1.8
1.8
1.8
1.8
1.9
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
12.6
16.0
19.4
18.8
18.9
14.1
17.6
21.1
19.8
19.9
15.6
19.2
22.8
20.7
20.8
21.7
24.2
22.0
22.1
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Capacity1
Return Dry Bulb (°F)
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
8.5
6.2
25.8
1.7
13.7
11.4
9.1
24.4
1.7
18.9
16.6
14.4
12.1
22.9
1.7
21.6
17.9
15.6
13.3
11.0
21.2
1.6
22.6
19.7
17.4
15.1
12.8
20.7
1.6
9.7
7.2
27.1
1.7
15.5
13.0
10.5
25.6
1.7
21.4
18.9
16.4
13.9
24.0
1.7
23.7
20.4
17.9
15.4
12.9
22.2
1.6
23.6
22.4
19.8
17.3
14.8
21.8
1.6
10.8
8.1
28.3
1.7
17.4
14.6
11.9
26.7
1.7
23.9
21.2
18.4
15.7
25.1
1.7
25.8
22.9
20.2
17.4
14.7
23.2
1.6
24.7
24.7
22.3
19.6
16.8
22.8
1.6
15.8
12.5
9.2
28.4
1.7
21.7
18.4
15.1
11.8
26.7
1.7
27.3
20.6
17.3
14.0
10.7
24.7
1.6
26.1
23.0
19.7
16.4
13.2
24.1
1.6
95°F
10.3
7.9
22.1
2.0
13.7
11.3
9.0
20.1
2.0
17.1
14.7
12.4
10.1
18.1
1.9
18.8
17.9
15.6
13.2
10.9
16.7
1.9
18.9
18.1
15.8
13.4
11.1
17.1
1.9
11.2
8.4
23.2
2.0
14.8
12.1
9.3
21.1
2.0
18.5
15.7
12.9
10.2
19.0
1.9
19.8
19.1
16.3
13.5
10.8
17.6
1.9
19.9
19.3
16.5
13.8
11.0
17.9
1.9
12.1
9.0
24.3
2.0
16.0
12.8
9.6
22.1
2.0
19.8
16.6
13.5
10.3
19.9
1.9
20.7
20.2
17.0
13.8
10.7
18.4
1.9
20.8
20.5
17.3
14.1
10.9
18.8
1.9
18.3
14.9
11.5
23.6
2.0
22.8
19.4
16.0
12.6
21.2
2.0
22.0
22.6
19.2
15.8
12.4
19.6
1.9
22.1
22.5
19.1
15.7
12.3
20.0
1.9
90
11.7
16.0
20.3
21.2
20.7
13.1
17.8
22.6
22.2
21.8
14.5
19.7
24.8
23.2
22.8
20.4
25.6
24.7
24.1
12.7
15.1
17.5
16.7
17.1
14.6
16.7
18.7
17.6
17.9
16.6
18.2
19.9
18.4
18.8
20.7
21.2
19.6
20.0
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
9.4
7.1
13.7
11.4
9.1
18.0
15.7
13.4
11.1
20.2
17.9
15.6
13.3
20.7
18.9
16.6
14.3
10.4
7.8
15.2
12.6
9.9
19.9
17.3
14.7
12.0
21.7
19.7
17.1
14.5
21.8
20.8
18.2
15.5
11.5
8.5
16.7
13.7
10.8
21.9
18.9
15.9
13.0
23.2
21.6
18.6
15.6
22.8
22.8
19.8
16.8
17.1
13.7
10.4
22.2
18.9
15.6
12.2
24.7
21.6
18.2
14.9
24.1
22.8
19.4
16.1
105°F
9.5
7.2
12.8
10.4
8.1
16.0
13.7
11.4
9.0
16.7
16.0
13.7
11.3
17.1
16.3
13.9
11.6
10.6
7.7
13.9
11.1
8.4
17.2
14.6
11.8
9.1
17.6
17.1
14.3
11.5
17.9
17.3
14.6
11.8
11.6
8.1
15.0
11.8
8.6
18.4
15.5
12.3
9.1
18.4
18.1
14.9
11.7
18.8
18.4
15.2
12.0
17.2
13.8
10.4
20.5
18.1
14.7
11.2
19.6
19.9
16.4
13.0
20.0
20.4
16.9
13.5
65
11.0
11.9
11.8
12.9
12.7
13.9
11.6
12.7
9.0
9.3
8.8
9.0
8.5
8.8
9.6
10.1
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ024 (2.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
600
700
800
900
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
19.9
17.7
15.5
14.7
15.3
20.8
18.5
16.3
15.3
16.0
21.7
19.4
17.0
16.0
16.7
20.7
18.2
17.2
17.9
2.2
2.1
2.1
2.1
2.1
2.2
2.1
2.1
2.1
2.1
2.2
2.1
2.1
2.1
2.1
2.2
2.1
2.1
2.1
12.8
14.2
15.5
14.7
15.3
15.2
15.7
16.3
15.3
16.0
17.5
17.2
17.0
16.0
16.7
19.6
18.2
17.2
17.9
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
8.8
6.5
17.7
2.4
11.9
9.6
7.2
15.3
2.3
15.0
12.6
10.3
8.0
13.0
2.2
14.7
14.1
11.8
9.5
7.2
12.6
2.2
15.3
14.4
12.1
9.8
7.5
13.5
2.2
10.0
6.9
18.5
2.4
13.0
10.2
7.4
16.0
2.3
16.0
13.5
10.7
8.0
13.5
2.2
15.3
15.0
12.3
9.5
6.8
13.1
2.2
16.0
15.4
12.6
9.9
7.1
14.0
2.2
11.1
7.3
19.2
2.4
14.0
10.8
7.6
16.6
2.3
17.0
14.3
11.1
7.9
14.1
2.2
16.0
16.0
12.8
9.6
6.4
13.6
2.2
16.7
16.3
13.1
9.9
6.7
14.6
2.2
16.1
12.7
9.2
17.9
2.3
18.2
16.8
13.3
9.8
15.2
2.2
17.2
17.2
13.7
10.2
6.8
14.7
2.2
17.9
18.2
14.8
11.3
7.8
15.8
2.2
90
13.6
13.3
13.0
12.6
13.5
16.0
14.8
13.5
13.1
14.0
18.5
16.3
14.1
13.6
14.6
18.2
15.2
14.7
15.8
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
8.9
5.7
11.0
8.7
6.4
13.0
11.6
9.3
7.0
12.6
12.2
9.9
7.6
13.5
12.5
10.2
7.9
10.5
6.1
12.0
9.3
6.5
13.5
12.4
9.6
6.9
13.1
13.0
10.3
7.5
14.0
13.4
10.7
7.9
12.1
6.5
13.1
9.9
6.6
14.1
13.2
10.0
6.8
13.6
13.6
10.7
7.5
14.6
14.3
11.1
7.9
15.1
11.6
8.1
15.2
15.4
11.9
8.4
14.7
14.7
10.9
7.4
15.8
16.1
12.6
9.1
65
5.3
5.6
4.8
5.2
4.3
4.7
3.9
5.6
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
23
718432-YTG-E-0314
DEQ030 (2.5 Ton)
Air on
Evaporator Coil
CFM
925
1000
1075
1150
925
1000
1075
1150
24
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
38.7
38.6
38.6
34.8
33.1
38.5
38.5
38.4
34.6
32.9
38.3
38.3
38.2
34.4
32.8
38.8
38.8
34.9
33.3
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
2.1
18.3
25.0
31.8
34.8
33.1
18.7
25.6
32.5
34.6
32.9
19.1
26.1
33.2
34.4
32.8
26.9
34.4
34.9
33.3
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
35.4
34.1
32.8
28.8
28.7
35.4
34.1
32.8
28.8
28.7
35.5
34.2
32.8
28.8
28.7
34.6
33.3
29.2
29.1
2.6
2.6
2.5
2.5
2.5
2.6
2.6
2.5
2.5
2.5
2.6
2.6
2.6
2.5
2.5
2.6
2.5
2.5
2.5
17.5
23.8
30.1
28.8
28.7
18.2
24.7
31.3
28.8
28.7
18.9
25.7
32.5
28.8
28.7
26.2
32.7
29.2
29.1
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
14.9
11.5
37.1
2.4
21.7
18.3
14.9
36.4
2.3
28.4
25.0
21.7
18.3
35.7
2.3
33.8
30.3
26.9
23.6
20.2
31.8
2.3
33.1
32.5
29.3
25.9
22.5
30.9
2.3
15.2
11.8
37.0
2.4
22.1
18.7
15.2
36.3
2.4
29.0
25.5
22.1
18.6
35.6
2.3
34.6
30.9
27.5
24.0
20.5
31.7
2.3
32.9
32.9
29.8
26.4
22.9
30.8
2.3
15.6
12.0
36.9
2.4
22.6
19.0
15.5
36.2
2.4
29.6
26.0
22.5
18.9
35.5
2.3
35.4
31.5
28.0
24.4
20.9
31.6
2.3
32.8
33.4
30.4
26.8
23.3
30.7
2.3
23.1
19.4
15.6
36.7
2.4
30.2
26.5
22.8
19.0
36.0
2.3
34.9
32.3
28.6
24.9
21.1
32.1
2.3
33.3
33.3
29.7
25.9
22.2
31.2
2.3
95°F
13.9
10.3
33.0
2.8
20.2
16.7
13.1
31.1
2.8
26.6
23.0
19.4
15.9
29.3
2.7
28.5
26.9
23.4
19.8
16.2
25.7
2.7
28.5
27.3
23.8
20.2
16.6
26.0
2.7
14.4
10.7
33.0
2.8
21.0
17.3
13.5
31.1
2.8
27.6
23.8
20.1
16.4
29.3
2.7
28.8
27.9
24.2
20.4
16.7
25.7
2.7
28.7
28.3
24.6
20.9
17.1
26.0
2.7
15.0
11.1
33.0
2.9
21.8
17.9
14.0
31.1
2.8
28.6
24.7
20.8
16.9
29.3
2.7
29.1
28.9
25.0
21.1
17.2
25.7
2.7
28.8
29.3
25.4
21.5
17.6
26.0
2.7
22.1
18.0
13.9
31.5
2.8
29.0
24.8
20.7
16.6
29.7
2.7
29.2
28.8
24.7
20.6
16.5
26.1
2.7
29.1
28.9
24.8
20.7
16.6
26.4
2.7
90
17.9
24.4
31.0
31.8
30.9
18.4
25.2
31.9
31.7
30.8
19.0
25.9
32.8
31.6
30.7
26.5
33.5
32.1
31.2
17.7
22.7
27.7
25.7
26.0
18.8
23.7
28.5
25.7
26.0
20.0
24.6
29.3
25.7
26.0
25.2
29.4
26.1
26.4
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
14.4
10.9
20.9
17.5
14.0
27.5
24.0
20.6
17.1
31.2
28.6
25.1
21.7
30.9
30.0
26.5
23.0
14.8
11.2
21.6
18.0
14.4
28.3
24.7
21.1
17.5
31.7
29.4
25.8
22.2
30.8
30.8
27.2
23.6
15.3
11.6
22.2
18.5
14.7
29.1
25.4
21.6
17.9
32.2
30.2
26.5
22.7
30.7
31.6
27.9
24.2
22.6
18.7
14.8
29.6
25.7
21.7
17.8
32.1
30.6
26.7
22.7
31.2
31.2
27.2
23.3
105°F
13.1
9.5
19.1
15.5
11.9
25.1
21.5
18.0
14.4
25.6
24.3
20.7
17.2
25.9
24.8
21.2
17.6
13.7
9.9
19.9
16.1
12.4
26.2
22.4
18.6
14.9
25.7
25.3
21.5
17.8
26.0
25.8
22.0
18.2
14.2
10.3
20.7
16.7
12.8
27.2
23.2
19.3
15.0
25.9
26.2
22.3
17.7
26.1
26.7
22.8
18.1
21.1
16.9
12.7
27.3
23.4
19.3
15.1
26.1
25.9
21.7
17.6
26.4
26.3
22.1
17.9
65
18.2
19.6
18.6
20.0
19.0
20.5
18.8
19.4
13.6
14.0
14.0
14.5
13.7
14.1
13.4
13.8
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ030 (2.5 Ton) (Continued)
Air on
Evaporator Coil
CFM
925
1000
1075
1150
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
30.5
28.1
25.7
22.7
23.4
30.5
28.1
25.7
22.7
23.4
30.5
28.1
25.7
22.7
23.4
28.5
26.1
23.0
23.7
3.0
3.0
2.9
2.8
2.8
3.1
3.0
2.9
2.9
2.9
3.1
3.0
2.9
2.9
2.9
3.0
2.9
2.9
2.9
17.9
21.6
25.4
22.7
23.4
19.5
22.6
25.7
22.7
23.4
21.0
23.6
26.1
22.7
23.4
24.2
26.1
23.0
23.7
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
12.3
8.7
28.0
3.3
18.0
14.4
10.8
25.1
3.2
23.7
20.1
16.5
12.9
22.2
3.1
22.7
21.7
18.1
14.5
10.9
19.6
3.0
23.3
22.3
18.7
15.0
11.4
20.7
3.0
12.9
9.1
28.0
3.3
18.8
15.0
11.2
25.1
3.2
24.7
21.0
17.2
13.4
22.2
3.1
22.7
22.7
18.9
15.1
11.3
19.6
3.0
23.4
23.2
19.4
15.6
11.8
20.7
3.0
13.4
9.4
28.0
3.3
19.6
15.6
11.7
25.1
3.2
25.8
21.8
17.8
13.9
22.2
3.1
22.7
23.6
19.6
15.7
11.7
19.6
3.1
23.4
24.2
20.2
16.2
12.3
20.7
3.1
20.0
15.8
11.6
25.4
3.2
25.7
22.0
17.8
13.6
22.5
3.1
23.0
23.0
18.8
14.5
10.3
19.9
3.0
23.7
23.6
19.4
15.2
11.0
21.0
3.1
90
18.8
20.5
22.2
19.6
20.7
20.9
21.5
22.2
19.6
20.7
22.9
22.5
22.2
19.6
20.7
23.2
22.5
19.9
21.0
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
12.3
7.9
16.9
13.3
9.6
21.8
18.6
15.0
11.4
19.6
19.0
15.5
11.9
20.7
19.7
16.1
12.5
13.2
8.2
17.7
13.9
10.1
22.2
19.5
15.7
11.9
19.6
19.6
16.2
12.4
20.7
20.7
16.9
13.0
14.1
8.6
18.5
14.5
10.5
22.6
20.4
16.4
12.0
19.6
20.3
17.0
12.0
20.7
21.6
17.6
12.7
18.9
14.7
10.4
22.5
20.6
16.3
12.1
19.9
19.9
15.8
11.5
21.0
21.0
16.7
12.4
65
8.3
8.8
8.6
9.2
7.9
8.7
7.2
8.2
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
25
718432-YTG-E-0314
DEQ036 (3.0 Ton)
Air on
Evaporator Coil
CFM
1000
1100
1200
1300
1000
1100
1200
1300
26
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
46.0
44.1
42.2
39.0
32.9
46.5
44.6
42.6
39.4
33.3
47.0
45.0
43.1
39.8
33.6
44.7
42.8
39.6
33.4
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
23.9
29.4
34.9
39.0
32.9
24.9
30.6
36.3
39.4
33.3
25.8
31.8
37.7
39.8
33.6
34.1
41.5
39.6
33.4
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
40.8
38.2
35.7
31.9
28.3
41.3
38.7
36.2
32.3
28.7
41.9
39.3
36.6
32.7
29.0
39.6
36.9
33.0
29.3
2.8
2.8
2.8
2.7
2.7
2.8
2.8
2.8
2.7
2.7
2.8
2.8
2.8
2.7
2.7
2.8
2.8
2.7
2.7
20.6
27.1
33.6
31.9
28.3
21.7
28.4
35.1
32.3
28.7
22.9
29.8
36.6
32.7
29.0
30.9
36.9
33.0
29.3
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
20.3
16.4
43.4
2.6
25.6
21.7
17.9
41.2
2.5
30.9
27.0
23.1
19.3
38.9
2.5
38.3
34.5
30.7
26.8
23.0
35.4
2.5
32.9
32.6
28.7
24.9
21.0
30.6
2.5
21.0
16.7
43.9
2.6
26.3
22.1
17.8
41.7
2.5
31.6
27.4
23.1
18.8
39.4
2.5
39.1
35.0
30.8
26.5
22.2
35.8
2.5
33.3
33.1
28.8
24.6
20.3
31.0
2.5
21.7
17.1
44.4
2.6
27.1
22.4
17.7
42.1
2.5
32.4
27.7
23.0
18.3
39.9
2.5
39.8
35.6
30.9
26.2
21.5
36.3
2.5
33.6
33.6
28.9
24.3
19.6
31.3
2.5
29.0
24.0
18.9
42.1
2.6
34.8
29.8
24.7
19.7
39.9
2.5
39.6
38.1
33.1
28.0
23.0
36.3
2.5
33.4
33.4
28.4
23.3
18.3
31.3
2.5
95°F
15.9
11.3
37.9
3.1
22.6
18.0
13.5
34.7
3.0
29.3
24.8
20.2
15.7
31.4
3.0
31.9
28.9
24.4
19.9
15.3
28.8
2.9
28.3
26.0
21.4
16.9
12.4
26.6
2.9
16.7
12.0
38.3
3.1
23.8
19.1
14.5
35.1
3.0
30.9
26.2
21.6
16.9
31.8
3.0
32.3
30.6
26.0
21.3
16.6
29.1
2.9
28.7
27.5
22.8
18.2
13.5
26.9
2.9
17.5
12.7
38.8
3.1
25.0
20.2
15.4
35.5
3.0
32.5
27.7
22.9
18.1
32.2
3.0
32.7
32.3
27.5
22.7
18.0
29.5
2.9
29.0
29.0
24.2
19.5
14.7
27.3
2.9
25.7
20.6
15.4
35.8
3.1
33.4
28.2
23.0
17.9
32.5
3.0
33.0
32.9
27.8
22.6
17.5
29.8
2.9
29.3
29.3
24.1
19.0
13.8
27.5
3.0
90
22.3
28.3
34.3
35.4
30.6
23.3
29.5
35.7
35.8
31.0
24.3
30.8
37.2
36.3
31.3
32.5
39.2
36.3
31.3
21.3
25.8
30.4
28.8
26.6
23.1
27.2
31.3
29.1
26.9
25.0
28.6
32.2
29.5
27.3
30.3
32.5
29.8
27.5
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
18.1
13.9
24.1
19.9
15.7
30.1
25.9
21.7
17.5
35.1
31.7
27.5
23.3
30.6
29.3
25.1
20.9
18.8
14.4
25.0
20.6
16.1
31.3
26.8
22.3
17.9
35.7
32.8
28.4
23.9
31.0
30.3
25.8
21.4
19.6
14.9
26.0
21.3
16.5
32.4
27.7
23.0
18.2
36.3
33.9
29.2
24.5
31.3
31.3
26.6
21.9
27.4
22.3
17.2
34.1
29.0
23.9
18.8
36.3
35.5
30.4
25.3
31.3
31.3
26.2
21.1
105°F
15.6
11.1
21.4
17.0
12.6
27.3
23.0
18.6
14.2
28.8
26.4
22.0
17.6
26.6
24.6
20.2
15.8
16.5
11.7
22.6
18.0
13.3
28.7
24.2
19.6
15.0
29.1
27.9
23.2
18.6
26.9
25.9
21.3
16.7
17.3
12.3
23.7
18.9
14.0
30.1
25.4
20.6
15.8
29.5
29.3
24.4
19.6
27.3
27.3
22.4
17.6
25.0
19.8
14.6
30.7
26.7
21.5
16.3
29.8
29.7
24.5
19.3
27.5
27.5
22.3
17.1
65
19.1
16.7
19.4
16.9
19.7
17.1
20.2
16.0
13.2
11.4
14.0
12.1
14.7
12.7
14.1
11.9
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ036 (3.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
1000
1100
1200
1300
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
35.0
31.1
27.2
25.7
25.0
35.3
31.4
27.4
26.0
25.2
35.7
31.7
27.7
26.2
25.5
32.1
28.1
26.6
25.8
3.3
3.3
3.2
3.1
3.1
3.3
3.3
3.2
3.1
3.1
3.4
3.3
3.2
3.1
3.1
3.3
3.2
3.2
3.2
22.0
24.6
27.2
25.7
25.0
24.5
26.0
27.4
26.0
25.2
27.0
27.4
27.7
26.2
25.5
29.6
28.1
26.6
25.8
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
15.3
10.9
32.1
3.6
20.3
16.0
11.8
27.5
3.5
25.3
21.2
16.9
12.7
22.9
3.4
25.7
24.0
19.7
15.4
11.2
22.6
3.3
25.0
23.3
19.0
14.8
10.5
23.3
3.3
16.2
11.4
32.3
3.6
21.4
16.8
12.2
27.7
3.5
26.5
22.2
17.6
13.0
23.1
3.4
26.0
25.1
20.5
15.9
11.3
22.8
3.3
25.2
24.4
19.8
15.2
10.6
23.5
3.3
17.2
11.9
32.6
3.6
22.5
17.6
12.7
27.9
3.5
27.7
23.2
18.3
13.4
23.3
3.4
26.2
26.2
21.3
16.4
11.5
23.0
3.4
25.5
25.5
20.6
15.7
10.8
23.7
3.4
24.4
19.1
13.8
28.4
3.6
28.1
25.2
19.9
14.7
23.7
3.4
26.6
26.6
21.3
16.0
10.7
23.4
3.4
25.8
25.8
20.6
15.3
10.0
24.1
3.4
90
23.7
23.3
22.9
22.6
23.3
26.4
24.7
23.1
22.8
23.5
29.1
26.2
23.3
23.0
23.7
28.4
23.7
23.4
24.1
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
15.7
10.7
19.2
15.0
10.9
22.8
19.4
15.3
11.2
22.6
21.5
17.3
13.2
23.3
22.0
17.8
13.7
17.4
11.1
20.2
15.6
11.1
23.1
20.2
15.6
11.1
22.8
22.3
17.8
13.2
23.5
22.8
18.3
13.7
19.2
11.5
21.2
16.3
11.3
23.3
21.0
16.0
11.0
23.0
23.0
18.2
13.2
23.7
23.7
18.8
13.8
23.7
18.4
13.0
23.7
23.7
18.4
13.1
23.4
23.4
18.0
12.7
24.1
24.1
18.8
13.4
65
9.1
9.6
8.7
9.2
8.3
8.8
7.4
8.1
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
27
718432-YTG-E-0314
DEQ042 (3.5 Ton)
Air on
Evaporator Coil
CFM
1200
1300
1400
1500
1200
1300
1400
1500
28
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
58.6
54.7
50.8
46.3
45.4
58.7
54.8
50.9
46.3
45.4
58.7
54.8
50.9
46.3
45.4
55.8
51.8
47.2
46.2
2.9
2.8
2.8
2.7
2.6
2.9
2.8
2.7
2.7
2.5
2.9
2.8
2.7
2.7
2.5
2.8
2.8
2.7
2.5
27.7
36.7
45.7
46.3
45.4
27.9
37.7
47.6
46.3
45.4
28.1
38.8
49.4
46.3
45.4
41.3
51.1
47.2
46.2
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
51.2
46.8
42.5
39.3
39.3
51.3
47.0
42.7
39.4
39.5
51.5
47.2
42.8
39.5
39.6
47.3
42.9
39.6
39.7
3.4
3.3
3.2
3.2
3.1
3.4
3.3
3.2
3.2
3.1
3.4
3.3
3.2
3.1
3.1
3.3
3.2
3.1
3.1
27.9
34.2
40.6
39.3
39.3
29.7
35.7
41.7
39.4
39.5
31.5
37.2
42.8
39.5
39.6
38.3
42.9
39.6
39.7
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
23.2
17.8
54.9
3.2
31.3
25.8
20.4
50.8
3.1
39.3
33.9
28.4
23.0
46.7
3.0
46.2
42.8
37.3
31.9
26.5
42.8
2.9
45.4
43.0
37.5
32.1
26.7
42.3
2.9
23.9
18.3
55.0
3.2
32.1
26.6
21.0
50.9
3.1
40.4
34.8
29.2
23.6
46.8
3.0
46.3
44.0
38.4
32.8
27.2
42.9
2.9
45.4
44.2
38.6
33.0
27.4
42.4
2.8
24.5
18.8
55.1
3.2
33.0
27.3
21.5
51.0
3.1
41.5
35.8
30.0
24.3
46.8
3.0
46.3
45.2
39.4
33.7
27.9
42.9
2.9
45.4
45.4
39.7
33.9
28.2
42.5
2.8
35.1
28.9
22.8
51.5
3.1
44.1
38.0
31.8
25.7
47.4
3.0
47.2
46.6
40.5
34.3
28.2
43.4
2.9
46.2
46.2
40.1
33.9
27.8
43.0
2.8
95°F
21.3
15.6
46.6
3.7
28.6
22.9
17.2
42.2
3.6
35.8
30.1
24.5
18.8
37.8
3.5
39.2
35.8
30.1
24.4
18.8
34.7
3.4
39.3
36.8
31.1
25.4
19.7
35.2
3.4
22.2
16.2
46.9
3.7
29.7
23.7
17.8
42.5
3.6
37.3
31.3
25.3
19.3
38.1
3.4
39.4
37.2
31.2
25.2
19.2
34.9
3.4
39.5
38.2
32.2
26.2
20.3
35.5
3.4
23.1
16.8
47.2
3.7
30.9
24.6
18.3
42.8
3.6
38.7
32.4
26.2
19.9
38.4
3.4
39.5
38.5
32.3
26.0
19.7
35.2
3.4
39.6
39.6
33.3
27.0
20.8
35.7
3.4
31.6
25.0
18.3
42.6
3.6
39.6
32.9
26.2
19.6
38.2
3.4
39.6
39.1
32.4
25.8
19.1
35.0
3.4
39.7
39.7
33.0
26.4
19.7
35.6
3.4
90
27.8
35.5
43.1
42.8
42.3
28.8
36.7
44.6
42.9
42.4
29.8
38.0
46.1
42.9
42.5
39.8
47.0
43.4
43.0
28.1
32.5
36.9
34.7
35.2
30.4
34.0
37.6
34.9
35.5
32.7
35.5
38.4
35.2
35.7
36.4
38.2
35.0
35.6
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
22.3
16.7
29.9
24.4
37.6
32.0
26.5
20.9
42.7
39.3
33.7
28.2
42.3
39.9
34.3
28.8
23.0
17.2
30.9
25.2
19.4
38.8
33.1
27.3
21.5
42.8
40.6
34.8
29.0
42.4
41.2
35.4
29.6
23.8
17.8
32.0
25.9
19.9
40.1
34.1
28.1
22.1
42.9
41.9
35.8
29.8
42.5
42.5
36.5
30.5
33.4
27.0
20.5
41.8
35.4
29.0
22.6
43.4
42.9
36.5
30.0
43.0
43.0
36.6
30.1
105°F
20.0
14.1
26.8
21.2
15.5
33.7
28.3
22.6
16.9
34.7
31.7
26.1
20.4
35.2
33.0
27.3
21.7
21.1
14.6
28.0
22.0
16.1
35.0
29.5
23.5
17.5
34.9
33.0
27.1
21.1
35.5
34.4
28.4
22.4
22.1
15.2
29.2
22.9
16.6
36.3
30.6
24.3
18.1
35.2
34.4
28.1
21.8
35.7
35.7
29.4
23.2
29.7
23.0
16.3
36.5
30.7
24.0
17.3
35.0
34.5
27.8
21.1
35.6
35.6
28.9
22.2
65
22.6
23.2
23.2
23.8
23.8
24.5
23.6
23.7
14.7
16.0
15.1
16.4
15.5
16.9
14.4
15.5
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ042 (3.5 Ton) (Continued)
Air on
Evaporator Coil
CFM
1200
1300
1400
1500
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
42.0
37.6
33.2
30.1
31.2
42.4
38.0
33.5
30.4
31.5
42.9
38.4
33.9
30.8
31.9
38.0
33.5
30.4
31.5
4.0
3.8
3.7
3.6
3.6
4.0
3.8
3.7
3.6
3.6
4.0
3.8
3.7
3.6
3.6
3.8
3.7
3.6
3.6
28.4
30.8
33.2
30.1
31.2
31.1
32.3
33.5
30.4
31.5
33.8
33.9
33.9
30.8
31.9
34.5
33.5
30.4
31.5
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
18.7
12.5
37.4
4.2
25.1
19.5
13.8
32.9
4.0
31.5
26.4
20.7
15.1
28.5
3.9
30.1
27.6
22.0
16.3
10.7
25.5
3.8
31.2
29.2
23.5
17.9
12.2
27.1
3.9
19.9
13.1
38.0
4.2
26.3
20.3
14.4
33.5
4.0
32.7
27.6
21.6
15.7
29.0
3.9
30.4
28.9
22.9
16.9
11.0
26.0
3.8
31.5
30.5
24.5
18.6
12.6
27.5
3.9
21.2
13.7
38.6
4.2
27.5
21.2
14.9
34.0
4.1
33.9
28.8
22.5
16.2
29.5
3.9
30.8
30.2
23.9
17.6
11.3
26.4
3.8
31.9
31.9
25.6
19.3
13.0
28.0
3.9
27.8
21.0
14.3
33.3
4.0
33.5
28.5
21.8
15.1
28.8
3.9
30.4
29.9
23.1
16.4
9.7
25.9
3.8
31.5
31.5
24.8
18.1
11.3
27.4
3.9
90
29.6
29.0
28.5
25.5
27.1
32.2
30.6
29.0
26.0
27.5
34.9
32.2
29.5
26.4
28.0
32.6
28.8
25.9
27.4
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
18.3
11.0
23.4
17.7
12.1
28.5
24.5
18.9
13.2
25.5
23.5
17.9
12.3
27.1
25.4
19.7
14.1
20.3
11.5
24.6
18.7
12.7
29.0
25.8
19.8
13.8
26.0
24.8
18.8
12.8
27.5
26.7
20.7
14.7
22.3
12.1
25.9
19.6
13.2
29.5
27.0
20.7
14.4
26.4
26.0
19.7
13.4
28.0
28.0
21.7
15.4
25.8
19.1
12.3
28.8
26.4
19.6
12.8
25.9
25.3
18.5
11.8
27.4
27.4
20.7
13.9
65
6.6
8.5
6.8
8.8
7.0
9.0
5.0
7.2
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
29
718432-YTG-E-0314
DEQ048 (4.0 Ton)
Air on
Evaporator Coil
CFM
1400
1500
1650
1800
1400
1500
1650
1800
30
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
58.8
55.0
51.2
45.7
45.6
58.8
55.0
51.2
45.7
45.6
55.0
51.2
45.7
45.6
54.9
51.1
45.7
45.6
2.6
2.6
2.6
2.6
2.5
2.6
2.6
2.6
2.6
2.5
2.6
2.6
2.6
2.5
2.6
2.6
2.6
2.5
31.6
40.1
48.6
45.7
45.6
32.5
41.9
51.2
45.7
45.6
44.3
51.2
45.7
45.6
46.7
51.1
45.7
45.6
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
53.5
50.2
46.8
45.6
42.9
53.1
49.8
46.4
45.2
42.5
49.1
45.7
44.6
41.9
48.3
45.1
44.0
41.3
3.4
3.3
3.3
3.3
3.3
3.4
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
32.2
39.2
46.1
45.6
42.9
33.9
40.2
46.4
45.2
42.5
42.6
45.7
44.6
41.9
45.0
45.1
44.0
41.3
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
26.4
20.6
56.2
3.0
34.3
28.5
22.7
52.6
3.0
42.2
36.4
30.6
24.8
49.0
3.0
45.7
44.3
38.6
32.8
27.0
45.7
2.9
45.6
41.7
35.9
30.2
24.4
44.2
2.9
27.5
21.2
56.0
3.0
35.6
29.4
23.2
52.4
3.0
43.8
37.6
31.4
25.2
48.8
3.0
45.7
45.7
39.6
33.4
27.2
45.5
3.0
45.6
43.1
36.9
30.7
24.5
44.1
2.9
37.6
30.9
24.2
52.0
3.0
46.7
39.5
32.8
26.1
48.5
3.0
45.7
45.7
39.1
32.4
25.7
45.2
3.0
45.6
44.3
37.6
30.9
24.2
43.8
2.9
39.6
32.4
25.2
51.6
3.0
49.7
41.4
34.2
27.0
48.1
3.0
45.7
45.7
38.5
31.4
24.2
44.8
2.9
45.6
45.6
38.4
31.2
24.0
43.4
2.9
95°F
25.5
19.6
50.4
3.8
33.2
27.3
21.4
47.3
3.8
41.0
35.0
29.1
23.1
44.3
3.8
45.6
42.1
36.1
30.2
24.3
43.6
3.7
42.9
39.6
33.7
27.8
21.8
42.5
3.7
26.1
19.8
49.9
3.8
33.9
27.6
21.4
46.8
3.8
41.7
35.5
29.2
22.9
43.8
3.7
45.2
42.6
36.3
30.1
23.8
43.1
3.7
42.5
40.1
33.9
27.6
21.3
42.0
3.7
35.8
28.9
22.1
45.8
3.8
43.4
37.1
30.3
23.5
42.8
3.7
44.6
43.3
36.5
29.6
22.8
42.2
3.7
41.9
40.7
33.9
27.1
20.3
41.1
3.7
37.6
30.2
22.9
44.8
3.8
45.1
38.8
31.5
24.1
41.9
3.7
44.0
44.0
36.6
29.2
21.8
41.2
3.7
41.3
41.3
33.9
26.6
19.2
40.1
3.7
90
31.9
39.6
47.3
45.7
44.2
33.2
41.0
48.8
45.5
44.1
43.4
48.5
45.2
43.8
45.9
48.1
44.8
43.4
32.6
38.3
43.9
43.6
42.5
35.2
39.5
43.8
43.1
42.0
41.3
42.8
42.2
41.1
43.1
41.9
41.2
40.1
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
25.9
20.1
33.8
27.9
22.0
41.6
35.7
29.8
24.0
45.7
43.2
37.3
31.5
44.2
40.7
34.8
29.0
26.8
20.5
34.8
28.5
22.3
42.8
36.5
30.3
24.0
45.5
44.2
38.0
31.7
44.1
41.6
35.4
29.1
36.7
29.9
23.2
45.1
38.3
31.6
24.8
45.2
44.5
37.8
31.0
43.8
42.5
35.8
29.0
38.6
31.3
24.0
47.4
40.1
32.8
25.6
44.8
44.8
37.6
30.3
43.4
43.4
36.2
28.9
105°F
24.5
18.5
32.2
26.2
20.2
40.0
34.0
27.9
21.9
43.2
39.0
33.0
27.0
42.1
38.0
32.0
26.0
25.2
18.8
33.1
26.7
20.3
41.0
34.6
28.2
21.8
43.1
39.7
33.3
26.9
42.0
38.7
32.3
25.9
34.7
27.8
20.9
41.4
36.0
29.1
22.1
42.2
40.4
33.5
26.6
41.1
39.4
32.5
25.5
36.4
28.9
21.5
41.9
37.5
30.0
22.5
41.2
41.2
33.7
26.3
40.1
40.1
32.6
25.2
65
25.6
23.1
25.5
22.9
24.2
22.2
23.0
21.6
20.9
20.0
20.5
19.5
19.6
18.6
18.8
17.7
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ048 (4.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
1400
1500
1650
1800
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
47.2
44.5
41.8
41.5
42.0
46.6
43.9
41.2
41.0
41.5
42.6
39.9
39.7
40.2
41.2
38.7
38.4
38.9
4.2
4.2
4.2
4.2
4.2
4.2
4.2
4.2
4.1
4.1
4.2
4.2
4.2
4.1
4.2
4.2
4.2
4.2
32.9
37.4
41.8
41.5
42.0
36.4
38.8
41.2
41.0
41.5
40.0
39.9
39.7
40.2
41.2
38.7
38.4
38.9
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
23.5
17.4
44.1
4.6
31.3
25.2
19.1
41.7
4.6
39.0
32.9
26.8
20.7
39.3
4.6
40.8
35.9
29.8
23.7
17.6
39.5
4.6
41.4
36.4
30.3
24.2
18.1
41.6
4.6
24.4
17.9
43.4
4.6
32.3
25.8
19.2
41.0
4.6
40.2
33.7
27.1
20.6
38.6
4.6
41.0
36.8
30.2
23.7
17.2
38.8
4.6
41.5
37.3
30.8
24.2
17.7
41.0
4.6
33.7
26.7
19.6
39.3
4.6
39.4
34.9
27.8
20.8
37.0
4.6
39.7
37.6
30.5
23.5
16.4
37.3
4.6
40.2
38.1
31.1
24.0
17.0
39.3
4.6
35.2
27.6
20.1
37.6
4.6
38.7
36.1
28.5
21.0
35.4
4.6
38.4
38.4
30.9
23.3
15.7
35.7
4.6
38.9
38.9
31.4
23.8
16.2
37.7
4.6
90
33.6
36.4
39.3
39.5
41.6
37.7
38.2
38.6
38.8
41.0
38.7
37.0
37.3
39.3
37.6
35.4
35.7
37.7
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
23.0
16.4
30.3
24.1
17.9
38.0
31.8
25.6
19.5
38.5
32.8
26.6
20.5
40.6
34.8
28.6
22.5
24.3
16.9
31.5
24.8
18.2
38.6
32.8
26.1
19.4
38.8
33.8
27.2
20.5
41.0
35.9
29.2
22.5
32.7
25.6
18.4
37.0
33.7
26.6
19.4
37.3
34.8
27.6
20.4
39.3
36.8
29.6
22.5
34.0
26.3
18.6
35.4
34.7
27.1
19.4
35.7
35.7
28.0
20.4
37.7
37.7
30.1
22.4
65
14.3
16.3
13.8
15.9
13.3
15.3
12.7
14.7
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
31
718432-YTG-E-0314
DEQ060 (5.0 Ton)
Air on
Evaporator Coil
CFM
1500
1650
1800
1900
2000
1500
1650
1800
1900
2000
32
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
78.3
71.4
64.4
59.1
57.4
79.0
72.0
65.0
59.6
57.9
79.7
72.6
65.6
60.2
58.5
73.3
66.2
60.8
59.1
74.1
66.9
61.4
59.7
3.4
3.3
3.2
3.2
3.7
3.4
3.3
3.2
3.2
3.7
3.4
3.3
3.3
3.2
3.7
3.3
3.2
3.2
3.7
3.3
3.2
3.2
3.7
36.3
45.4
54.4
59.1
57.4
38.2
47.6
57.1
59.6
57.9
40.1
49.9
59.7
60.2
58.5
51.4
62.4
60.8
59.1
52.8
65.2
61.4
59.7
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
66.8
61.8
56.9
52.6
56.2
67.0
62.0
57.1
52.8
56.4
67.2
62.3
57.3
53.0
56.6
62.2
57.2
53.0
56.5
62.2
57.2
52.9
56.5
4.3
4.3
4.2
4.2
3.7
4.3
4.3
4.2
4.2
3.7
4.3
4.2
4.2
4.2
3.7
4.3
4.2
4.2
3.7
4.3
4.2
4.2
3.7
33.1
42.2
51.3
52.6
56.2
34.7
44.2
53.6
52.8
56.4
36.4
46.2
55.9
53.0
56.6
47.5
56.6
53.0
56.5
48.9
57.2
52.9
56.5
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
30.3
24.2
72.6
3.8
39.3
33.3
27.2
66.6
3.8
48.4
42.3
36.3
30.3
60.6
3.7
58.9
51.7
45.7
39.7
33.6
55.9
3.7
57.4
53.4
47.4
41.3
35.3
56.8
3.7
31.7
25.2
73.0
3.8
41.1
34.6
28.1
67.0
3.8
50.6
44.1
37.6
31.1
61.0
3.7
59.5
53.8
47.3
40.8
34.3
56.2
3.7
57.9
55.6
49.1
42.6
36.1
57.2
3.7
33.2
26.2
73.5
3.8
43.0
36.0
29.0
67.4
3.8
52.8
45.8
38.8
31.9
61.4
3.7
60.2
56.0
49.0
42.0
35.1
56.6
3.7
58.5
57.8
50.8
43.8
36.9
57.5
3.7
44.2
37.0
29.8
67.8
3.8
54.2
47.0
39.9
32.7
61.7
3.7
60.8
58.1
50.9
43.7
36.5
56.9
3.7
59.1
58.7
51.5
44.4
37.2
57.8
3.7
45.4
38.0
30.6
68.1
3.8
55.7
48.3
40.9
33.5
62.0
3.7
61.4
60.2
52.8
45.3
37.9
57.2
3.7
59.7
59.7
52.3
44.9
37.5
58.1
3.7
95°F
27.0
20.9
61.8
4.8
36.1
30.1
24.0
57.1
4.8
45.3
39.2
33.1
27.0
52.3
4.7
52.6
47.7
41.6
35.6
29.5
48.8
4.7
56.0
49.9
43.9
37.8
31.7
51.5
4.5
28.2
21.7
61.9
4.8
37.7
31.2
24.6
57.2
4.8
47.1
40.6
34.1
27.6
52.4
4.7
52.8
49.4
42.9
36.4
29.9
48.9
4.7
56.3
51.8
45.2
38.7
32.2
51.5
4.5
29.4
22.5
62.0
4.8
39.2
32.2
25.3
57.2
4.8
49.0
42.0
35.1
28.1
52.5
4.7
53.0
51.2
44.2
37.3
30.3
49.0
4.7
56.6
53.6
46.6
39.7
32.7
51.6
4.5
40.3
33.2
26.0
57.0
4.8
50.4
43.2
36.0
28.8
52.2
4.7
53.0
52.1
44.9
37.7
30.5
48.7
4.7
56.5
55.0
47.9
40.7
33.5
51.4
4.5
41.5
34.1
26.6
56.7
4.8
51.8
44.4
37.0
29.5
52.0
4.7
52.9
52.9
45.5
38.1
30.6
48.5
4.7
56.5
56.5
49.1
41.7
34.2
51.1
4.5
90
34.7
43.8
52.9
55.9
56.8
36.5
45.9
55.3
56.2
57.2
38.3
48.0
57.8
56.6
57.5
49.5
59.5
56.9
57.8
50.9
61.2
57.2
58.1
31.1
40.2
49.2
48.8
51.5
33.8
42.2
50.5
48.9
51.5
36.5
44.2
51.8
49.0
51.6
45.4
51.9
48.7
51.4
46.7
52.0
48.5
51.1
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
28.6
22.6
37.7
31.7
25.6
46.8
40.8
34.7
28.6
55.8
49.7
43.7
37.6
56.8
51.7
45.6
39.6
30.0
23.5
39.4
32.9
26.4
48.8
42.3
35.8
29.3
56.2
51.6
45.1
38.6
57.2
53.7
47.2
40.7
31.3
24.3
41.1
34.1
27.2
50.9
43.9
36.9
30.0
56.6
53.6
46.6
39.7
57.5
55.7
48.7
41.8
42.3
35.1
27.9
52.3
45.1
37.9
30.7
56.9
55.1
47.9
40.7
57.8
56.9
49.7
42.5
43.4
36.0
28.6
53.8
46.3
38.9
31.5
57.2
56.6
49.1
41.7
58.1
58.1
50.7
43.3
105°F
25.1
19.1
34.1
28.1
22.1
43.2
37.2
31.1
25.1
48.8
44.6
38.6
32.5
51.4
45.6
39.6
33.5
26.3
19.8
35.7
29.2
22.7
45.1
38.6
32.1
25.6
48.9
46.3
39.8
33.4
51.5
47.4
40.9
34.4
27.5
20.5
37.2
30.3
23.3
47.0
40.0
33.1
26.2
49.0
48.1
41.1
34.2
51.6
49.1
42.2
35.3
38.3
31.1
23.9
48.1
41.1
33.9
26.8
48.7
48.3
41.1
33.9
51.4
50.1
43.0
35.8
39.3
31.9
24.5
49.3
42.2
34.8
27.4
48.5
48.5
41.1
33.7
51.1
51.1
43.7
36.3
65
31.6
33.5
32.1
34.2
32.7
34.8
33.5
35.3
34.3
35.8
26.5
27.5
26.9
27.9
27.2
28.3
26.8
28.6
26.3
28.9
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ060 (5.0 Ton) (Continued)
Air on
Evaporator Coil
CFM
1500
1650
1800
1900
2000
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
77
72
67
62
57
72
67
62
57
72
67
62
57
56.8
52.3
47.8
45.0
46.7
56.8
52.3
47.8
45.0
46.7
56.8
52.2
47.7
44.9
46.7
51.7
47.3
44.5
46.2
51.2
46.8
44.0
45.7
5.3
5.3
5.3
5.2
5.3
5.3
5.3
5.2
5.2
5.2
5.3
5.3
5.2
5.2
5.2
5.3
5.2
5.2
5.2
5.2
5.2
5.2
5.2
29.2
38.1
47.1
45.0
46.7
32.9
40.1
47.4
45.0
46.7
36.6
42.2
47.7
44.9
46.7
43.3
47.3
44.5
46.2
44.5
46.8
44.0
45.7
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
115°F
23.2
17.2
51.8
5.8
32.1
26.1
20.1
47.5
5.8
41.1
35.1
29.1
23.1
43.2
5.8
45.0
41.5
35.5
29.5
23.5
41.2
5.7
46.7
41.3
35.3
29.3
23.3
42.0
6.0
24.3
17.9
51.7
5.8
33.7
27.2
20.8
47.4
5.8
43.0
36.6
30.1
23.7
43.1
5.8
45.0
43.2
36.7
30.3
23.8
41.0
5.7
46.7
43.0
36.5
30.1
23.6
41.9
6.0
25.5
18.6
51.5
5.8
35.2
28.3
21.4
47.2
5.8
45.0
38.0
31.1
24.2
43.0
5.7
44.9
44.9
38.0
31.1
24.2
40.9
5.7
46.7
44.7
37.8
30.9
24.0
41.7
6.0
36.2
29.0
21.9
46.5
5.8
45.9
39.0
31.9
24.7
42.3
5.7
44.5
44.5
37.3
30.2
23.1
40.2
5.7
46.2
45.2
38.1
30.9
23.8
41.0
6.0
37.1
29.7
22.4
45.7
5.7
46.8
40.0
32.6
25.2
41.6
5.7
44.0
44.0
36.7
29.3
21.9
39.6
5.7
45.7
45.7
38.4
31.0
23.7
40.4
6.0
90
28.9
36.1
43.2
41.2
42.0
33.1
38.1
43.1
41.0
41.9
37.3
40.2
43.0
40.9
41.7
41.2
42.3
40.2
41.0
42.2
41.6
39.6
40.4
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
125°F
21.2
15.3
30.1
24.2
18.2
39.0
33.1
27.1
21.2
41.2
38.4
32.4
26.4
42.0
36.9
31.0
25.0
22.4
16.0
31.7
25.3
18.8
41.0
34.6
28.1
21.7
41.0
40.1
33.7
27.2
41.9
38.6
32.2
25.8
23.6
16.7
33.3
26.4
19.4
43.0
36.0
29.1
22.2
40.9
40.9
34.9
28.0
41.7
40.3
33.4
26.5
34.1
27.0
19.8
42.3
36.9
29.8
22.7
40.2
40.2
33.6
26.5
41.0
40.3
33.2
26.1
34.9
27.6
20.2
41.6
37.7
30.4
23.1
39.6
39.6
32.3
24.9
40.4
40.4
33.0
25.7
65
20.5
19.1
20.8
19.3
21.1
19.6
19.3
19.0
17.6
18.4
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
33
718432-YTG-E-0314
DEX024-048 Cooling Capacities
DEX024 (2.0 Ton)
Air on
Evaporator Coil
CFM
600
800
600
800
600
800
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
21.5
21.3
21.2
20.2
19.4
30.1
28.4
26.7
24.0
24.4
1.1
1.1
1.1
1.1
1.1
1.6
1.6
1.5
1.5
1.5
7.5
14.3
21.2
20.2
19.4
13.1
19.9
26.7
24.0
24.4
77
72
67
62
57
77
72
67
62
57
21.8
20.0
18.3
16.6
17.0
27.8
25.5
23.2
21.4
21.6
1.4
1.4
1.4
1.4
1.4
2.0
1.9
1.9
1.9
1.8
12.1
15.2
18.3
16.6
17.0
14.7
18.9
23.2
21.4
21.6
77
72
67
62
57
77
72
67
62
57
18.7
16.8
15.0
14.2
14.1
23.7
21.7
19.6
18.4
18.3
1.8
1.8
1.8
1.8
1.8
2.5
2.4
2.3
2.3
2.3
13.2
14.1
15.0
14.2
14.1
15.7
17.6
19.6
18.4
18.3
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
7.8
6.8
21.6
1.3
12.7
11.0
9.3
20.7
1.3
17.6
15.2
12.9
10.6
19.7
1.3
20.2
19.9
15.6
11.4
7.1
18.4
1.3
19.4
19.4
15.1
10.9
6.6
18.2
1.3
12.3
10.2
28.9
1.8
17.3
14.8
12.2
26.9
1.8
22.4
19.3
16.2
13.1
24.9
1.7
24.0
24.0
20.6
17.1
13.7
22.7
1.7
24.4
24.4
20.8
17.3
13.7
23.0
1.7
95°F
8.8
7.0
20.2
1.6
13.0
10.7
8.4
18.4
1.6
17.1
14.3
11.6
8.8
16.6
1.6
16.6
16.6
12.4
8.2
3.9
15.4
1.6
17.0
17.0
12.7
8.3
4.0
15.5
1.6
11.2
9.0
25.8
2.3
16.2
13.4
10.7
23.6
2.2
21.2
17.9
14.6
11.3
21.4
2.2
21.4
21.4
17.9
14.4
10.9
19.9
2.1
21.6
21.6
18.1
14.6
11.1
20.0
2.1
115°F
8.5
6.0
11.8
9.4
7.1
15.0
12.9
9.0
5.1
14.2
14.2
10.1
6.0
1.9
14.1
14.1
11.3
8.4
5.6
10.1
7.6
14.8
11.9
9.1
19.5
16.2
13.0
9.7
18.4
18.4
15.0
11.5
8.0
18.3
18.3
14.8
11.3
7.8
90
9.8
14.8
19.7
18.4
18.2
13.9
19.4
24.9
22.7
23.0
12.7
14.7
16.6
15.4
15.5
15.2
18.3
21.4
19.9
20.0
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
8.3
6.9
12.8
10.8
8.9
17.3
14.8
12.2
9.7
18.4
18.3
14.0
9.8
18.2
18.2
13.9
9.6
11.7
9.6
16.8
14.1
11.4
21.8
18.6
15.4
12.2
22.7
22.7
19.2
15.7
23.0
23.0
19.5
15.9
105°F
8.7
6.5
12.4
10.1
7.8
16.0
13.6
10.3
6.9
15.4
15.4
11.2
7.1
15.5
15.5
12.0
8.4
10.6
8.3
15.5
12.7
9.9
20.4
17.1
13.8
10.5
19.9
19.9
16.4
12.9
20.0
20.0
16.5
13.0
65
5.5
5.3
12.3
12.4
2.9
4.8
9.4
9.5
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
34
Johnson Controls Unitary Products
718432-YTG-E-0314
DEX030 (2.5 Ton)
Air on
Evaporator Coil
CFM
675
1000
675
1000
675
1000
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
29.5
27.2
25.0
22.8
20.1
37.4
36.3
35.3
31.0
30.5
1.3
1.3
1.3
1.4
1.4
2.1
2.1
2.1
1.9
1.9
14.1
18.6
23.0
22.8
20.1
16.7
24.7
32.7
31.0
30.5
77
72
67
62
57
77
72
67
62
57
26.3
24.2
22.0
20.2
19.9
37.1
32.9
28.6
27.5
27.3
1.7
1.7
1.7
1.7
1.7
2.7
2.5
2.3
2.4
2.4
12.6
17.3
21.9
20.2
19.9
18.1
23.4
28.6
27.5
27.3
77
72
67
62
57
77
72
67
62
57
22.3
20.3
18.3
16.5
16.8
30.8
28.2
25.6
23.8
23.7
2.2
2.2
2.2
2.2
2.2
3.1
3.1
3.0
2.9
2.9
12.8
15.5
18.3
16.5
16.8
17.4
21.5
25.6
23.8
23.7
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
12.0
9.9
27.9
1.5
16.2
13.7
11.3
25.7
1.5
20.3
17.5
14.8
12.0
23.5
1.5
22.8
21.4
17.3
13.3
9.2
21.5
1.5
20.1
20.3
15.8
11.2
6.6
20.0
1.5
14.7
12.0
37.2
2.3
21.5
18.3
15.1
34.6
2.2
28.3
24.5
20.8
17.0
32.0
2.2
31.0
28.8
24.8
20.7
16.6
29.2
2.1
30.5
30.5
26.3
22.1
17.9
28.9
2.1
95°F
10.6
8.6
24.3
2.0
14.8
12.4
10.0
22.2
2.0
19.1
16.2
13.4
10.6
20.2
2.0
20.2
20.0
15.7
11.5
7.3
18.3
2.0
19.9
20.2
15.9
11.6
7.4
18.3
2.0
14.7
12.0
34.0
2.9
20.1
16.9
13.7
30.5
2.8
25.5
21.8
18.0
14.3
27.1
2.7
27.5
27.1
23.0
18.9
14.8
25.6
2.7
27.3
27.2
23.1
18.9
14.8
25.5
2.7
115°F
8.1
7.1
13.2
10.8
8.5
18.3
14.6
10.8
7.1
16.5
16.7
12.5
8.4
4.2
16.8
17.0
13.8
10.6
7.4
12.5
9.8
18.3
15.1
11.9
24.1
20.4
16.7
12.9
23.8
23.7
19.7
15.6
11.5
23.7
23.7
19.6
15.5
11.4
90
13.4
17.9
22.5
21.5
20.0
17.4
24.0
30.7
29.2
28.9
12.7
16.4
20.1
18.3
18.3
17.7
22.4
27.1
25.6
25.5
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
11.3
9.2
15.5
13.1
10.6
19.7
16.9
14.1
11.3
21.5
20.7
16.5
12.4
20.0
20.2
15.8
11.4
14.7
12.0
20.8
17.6
14.4
26.9
23.2
19.4
15.7
29.2
28.0
23.9
19.8
28.9
28.8
24.7
20.5
105°F
9.3
7.8
14.0
11.6
9.2
18.7
15.4
12.1
8.8
18.3
18.3
14.1
10.0
18.3
18.6
14.9
11.1
13.6
10.9
19.2
16.0
12.8
24.8
21.1
17.4
13.6
25.6
25.4
21.3
17.3
25.5
25.4
21.3
17.2
65
8.3
7.0
15.7
16.3
5.8
7.4
13.2
13.1
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
35
718432-YTG-E-0314
DEX036 (3.0 Ton)
Air on
Evaporator Coil
CFM
800
1150
800
1150
800
1150
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
36.6
31.9
27.2
26.6
23.8
48.0
44.5
41.1
37.5
37.6
1.5
1.5
1.5
1.5
1.5
2.4
2.4
2.4
2.3
2.3
17.4
21.9
26.5
26.6
23.8
23.1
30.7
38.3
37.5
37.6
77
72
67
62
57
77
72
67
62
57
31.4
28.4
25.4
23.5
23.5
44.2
40.1
36.0
33.9
33.7
1.9
1.9
1.9
1.9
1.9
3.2
3.1
2.9
2.9
2.9
16.9
21.2
25.4
23.5
23.5
21.3
28.6
36.0
33.9
33.7
77
72
67
62
57
77
72
67
62
57
26.1
23.8
21.6
19.8
20.3
38.0
34.8
31.6
29.2
29.6
2.4
2.4
2.4
2.4
2.4
3.8
3.8
3.7
3.6
3.6
16.2
18.9
21.6
19.8
20.3
21.2
26.4
31.6
29.2
29.6
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
15.3
12.6
34.0
1.7
18.9
15.9
12.9
30.1
1.7
22.6
19.2
15.7
12.3
26.3
1.7
26.6
25.4
21.2
17.0
12.8
25.1
1.7
23.8
24.0
19.8
15.5
11.2
23.6
1.7
19.5
15.9
46.1
2.7
26.6
22.5
18.4
42.3
2.7
33.7
29.1
24.5
19.9
38.5
2.6
37.5
36.4
31.4
26.4
21.4
35.7
2.5
37.6
37.8
32.6
27.4
22.3
35.7
2.5
95°F
13.6
10.7
28.7
2.2
18.0
14.9
11.8
26.1
2.2
22.5
19.1
15.7
12.3
23.5
2.2
23.5
23.1
19.0
14.9
10.8
21.6
2.2
23.5
23.2
19.0
14.9
10.7
21.9
2.2
17.8
14.3
41.1
3.4
24.6
20.6
16.5
37.4
3.3
31.4
26.8
22.3
17.7
33.8
3.2
33.9
32.9
28.0
23.0
18.0
31.5
3.2
33.7
33.5
28.5
23.4
18.3
31.7
3.1
115°F
10.5
8.3
15.8
12.8
9.8
21.2
17.3
13.5
9.6
19.8
19.8
15.7
11.6
7.6
20.3
20.1
16.5
12.9
9.3
15.2
11.7
22.4
18.3
14.3
29.6
25.0
20.5
15.9
29.2
29.2
24.4
19.7
14.9
29.6
29.5
24.7
19.8
15.0
90
17.2
21.6
25.9
25.1
23.6
22.2
29.7
37.1
35.7
35.7
16.5
20.0
23.5
21.6
21.9
21.3
27.5
33.8
31.5
31.7
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
14.4
11.7
18.5
15.4
12.3
22.5
19.1
15.7
12.3
25.1
24.2
20.1
15.9
23.6
23.6
19.4
15.2
18.7
15.1
25.6
21.5
17.5
32.6
28.0
23.4
18.8
35.7
34.7
29.7
24.7
35.7
35.7
30.5
25.4
105°F
12.0
9.5
16.9
13.9
10.8
21.9
18.2
14.6
11.0
21.6
21.4
17.3
13.3
21.9
21.7
17.8
13.9
16.5
13.0
23.5
19.4
15.4
30.5
25.9
21.4
16.8
31.5
31.1
26.2
21.3
31.7
31.5
26.6
21.6
65
11.8
11.0
19.7
20.3
9.2
10.0
16.5
16.6
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
36
Johnson Controls Unitary Products
718432-YTG-E-0314
DEX042 (3.5 Ton)
Air on
Evaporator Coil
CFM
925
1400
925
1400
925
1400
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
40.2
37.1
34.0
30.5
29.4
61.7
55.5
49.4
44.5
46.0
1.9
1.9
1.9
1.9
1.8
3.4
3.1
3.1
3.0
2.9
21.0
26.3
31.6
30.5
29.4
29.1
37.9
46.7
44.5
46.0
77
72
67
62
57
77
72
67
62
57
34.4
31.8
29.2
25.7
25.6
51.7
47.6
43.5
39.2
39.8
2.4
2.3
2.3
2.4
2.4
3.8
3.7
3.5
3.5
3.5
17.5
23.3
29.1
25.7
25.6
25.3
34.3
43.3
39.2
39.8
77
72
67
62
57
77
72
67
62
57
28.9
26.2
23.4
21.3
21.5
43.2
39.4
35.6
33.2
33.6
2.9
2.9
2.9
2.9
2.9
4.5
4.4
4.3
4.2
4.2
17.9
20.6
23.4
21.3
21.5
24.6
30.1
35.6
33.2
33.6
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
17.4
13.7
37.3
2.2
22.4
18.5
14.7
34.5
2.1
27.5
23.3
19.2
15.1
31.6
2.1
30.5
27.7
23.2
18.8
14.3
28.1
2.1
29.4
29.4
24.8
20.1
15.5
27.5
2.1
24.8
20.4
56.7
3.3
32.7
27.6
22.4
51.6
3.3
40.7
34.7
28.8
22.8
46.5
3.3
44.5
42.4
36.2
30.1
23.9
41.8
3.2
46.0
45.5
39.2
32.8
26.4
42.9
3.1
95°F
14.0
10.6
31.7
2.6
19.5
15.7
11.9
29.0
2.6
24.9
20.8
16.7
12.6
26.3
2.6
25.7
25.3
20.9
16.5
12.1
23.5
2.6
25.6
25.6
21.0
16.5
11.9
23.6
2.7
20.8
16.3
47.4
4.1
29.2
24.1
19.0
43.5
4.0
37.6
31.9
26.2
20.5
39.5
3.9
39.2
39.2
33.0
26.8
20.7
36.2
3.8
39.8
39.8
33.6
27.4
21.2
36.7
3.8
115°F
11.5
8.6
17.1
13.5
9.9
22.6
18.4
14.3
10.1
21.3
21.3
16.9
12.6
8.2
21.5
21.4
17.2
13.0
8.8
16.5
12.6
25.4
20.7
16.0
34.2
28.7
23.3
17.8
33.2
33.3
27.2
21.2
15.2
33.6
33.8
27.8
21.9
15.9
90
19.2
24.8
30.3
28.1
27.5
27.2
36.1
45.0
41.8
42.9
17.7
21.9
26.2
23.5
23.6
24.9
32.2
39.4
36.2
36.7
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
15.7
12.2
20.9
17.1
13.3
26.2
22.1
18.0
13.8
28.1
26.5
22.0
17.6
27.5
27.5
22.9
18.3
22.8
18.4
31.0
25.8
20.7
39.1
33.3
27.5
21.7
41.8
40.8
34.6
28.4
42.9
42.7
36.4
30.1
105°F
12.8
9.6
18.3
14.6
10.9
23.8
19.6
15.5
11.4
23.5
23.3
18.9
14.5
23.6
23.5
19.1
14.7
18.7
14.5
27.3
22.4
17.5
35.9
30.3
24.7
19.1
36.2
36.2
30.1
24.0
36.7
36.8
30.7
24.6
65
13.2
13.7
22.3
23.8
10.1
10.4
17.9
18.5
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
Johnson Controls Unitary Products
37
718432-YTG-E-0314
DEX048 (4.0 Ton)
Air on
Evaporator Coil
CFM
1050
1600
1050
1600
1050
1600
WB
(°F)
Net
Capacity1
(MBh)
Total
Input
(kW)2
90
77
72
67
62
57
77
72
67
62
57
47.3
43.7
40.1
35.9
35.5
66.0
61.0
56.0
51.7
50.8
2.2
2.1
2.1
2.1
2.1
3.6
3.5
3.4
3.3
3.2
23.6
30.5
37.3
35.9
35.5
30.9
42.4
53.9
51.7
50.8
77
72
67
62
57
77
72
67
62
57
42.1
38.5
35.0
31.8
31.3
58.1
53.6
49.0
45.6
44.9
2.7
2.7
2.7
2.7
2.7
4.2
4.1
4.0
3.9
3.9
21.6
28.3
35.0
31.8
31.3
29.0
39.0
49.0
45.6
44.9
77
72
67
62
57
77
72
67
62
57
34.3
31.6
28.9
26.4
26.7
48.7
44.4
40.2
37.7
37.9
3.4
3.4
3.3
3.3
3.3
4.9
4.8
4.8
4.6
4.6
22.6
25.7
28.9
26.4
26.7
31.7
36.0
40.2
37.7
37.9
Temperature of Air on Condenser Coil
Sensible Capacity (MBh)
Net
Total
Return Dry Bulb (°F)
Capacity1
Input
(MBh)
(kW)2
85
80
75
70
65
75°F
19.9
16.0
44.7
2.4
26.1
21.8
17.5
41.1
2.4
32.3
27.6
22.9
18.1
37.5
2.4
35.9
33.2
28.9
24.6
20.3
33.8
2.4
35.5
35.5
30.9
26.3
21.6
33.4
2.4
26.5
21.0
62.1
3.8
36.3
30.1
24.0
57.3
3.7
46.0
39.2
32.4
25.7
52.5
3.6
51.7
48.9
41.6
34.2
26.8
48.7
3.5
50.8
50.7
43.0
35.4
27.7
47.8
3.5
95°F
17.3
13.2
38.2
3.1
23.8
19.4
14.9
35.1
3.0
30.4
25.6
20.7
15.9
31.9
3.0
31.8
30.9
26.4
22.0
17.5
29.1
3.0
31.3
31.3
26.8
22.2
17.7
29.0
3.0
22.5
17.1
53.4
4.5
32.9
26.8
20.7
49.0
4.4
43.4
36.5
29.7
22.9
44.6
4.3
45.6
45.5
38.0
30.5
23.0
41.6
4.2
44.9
44.8
37.4
29.9
22.4
41.4
4.2
115°F
15.4
10.8
21.3
16.9
12.6
27.2
23.1
18.9
14.7
26.4
26.4
22.0
17.5
13.0
26.7
26.7
21.6
16.5
11.4
19.6
14.4
29.9
23.8
17.8
40.2
33.3
26.4
19.5
37.7
37.7
30.2
22.8
15.3
37.9
37.9
30.6
23.4
16.2
90
22.6
29.4
36.1
33.8
33.4
29.9
40.7
51.5
48.7
47.8
22.1
27.0
31.9
29.1
29.0
30.3
37.5
44.6
41.6
41.4
Sensible Capacity (MBh)
Return Dry Bulb (°F)
85
80
75
70
85°F
18.6
14.6
25.0
20.6
16.2
31.4
26.6
21.8
17.0
33.8
32.1
27.7
23.3
33.4
33.4
28.8
24.2
24.5
19.1
34.6
28.5
22.3
44.7
37.9
31.1
24.3
48.7
47.2
39.8
32.4
47.8
47.7
40.2
32.6
105°F
16.4
12.0
22.6
18.2
13.7
28.8
24.3
19.8
15.3
29.1
28.7
24.2
19.7
29.0
29.0
24.2
19.4
21.0
15.7
31.4
25.3
19.3
41.8
34.9
28.1
21.2
41.6
41.6
34.1
26.6
41.4
41.3
34.0
26.7
65
18.9
19.7
24.9
25.1
15.3
14.6
19.2
19.3
1. These capacities are Net Capacities.
2. These ratings include the compressor, condenser fan and supply air blower motors.
38
Johnson Controls Unitary Products
718432-YTG-E-0314
Airflow Performance
DEZ Side Duct Application
Model
(Tons)
DEZ024
(2.0)
DEZ030
(2.5)
DEZ036
(3.0)
DEZ042
(3.5)
DEZ048
(4.0)
DEZ060
(5.0)
RPM
External Static Pressure (Inches Water Gauge)
0.4
0.6
0.8
CFM W RPM CFM W RPM CFM W RPM
CFM
1.0
W
RPM
632
651
704
755
673
735
807
861
771
763
766
778
797
702
759
808
858
695
817
858
895
929
859
888
972
1073
1104
629
679
812
934
759
894
1041
1144
1235
890
1062
1167
1267
1362
1151
1325
1461
1584
1687
1513
1624
1726
1819
1504
1579
1783
2021
2089
979
1000
1022
1033
1061
1086
983
981
986
959
988
1019
1051
995
1021
1046
1069
1049
1104
1148
1148
696
813
785
912
1007
964
1040
1072
1223
1344
1428
1276
1386
1476
1547
1528
1567
1576
227
261
273
316
352
393
436
396
468
542
615
501
571
639
706
659
685
689
1078
1090
1106
1132
1147
1048
1048
1025
1046
1070
1097
1058
1077
1096
1112
1146
1154
1154
CFM
0.2
W
RPM
External Static Pressure (Inches Water Gauge)
0.4
0.6
0.8
CFM W RPM CFM W RPM CFM W RPM
CFM
1.0
W
RPM
726
768
883
990
828
953
1091
1189
966
1148
1258
1361
1458
1241
1406
1536
1656
1287
1596
1705
1806
1898
1580
1650
1854
2120
2214
87
97
131
170
110
153
214
269
168
215
255
301
354
221
299
376
466
222
397
476
561
652
394
448
605
856
968
632
651
704
755
673
735
807
861
771
763
766
778
797
702
759
808
858
695
817
858
895
929
859
888
972
1073
1104
629
679
812
934
759
894
1041
1144
1235
890
1062
1167
1267
1362
1151
1325
1461
1584
1687
1513
1624
1726
1819
1504
1579
1783
2021
2089
696
813
785
912
1007
964
1040
1072
1223
1344
1428
1276
1386
1476
1547
1528
1567
1576
227
261
273
316
352
393
436
396
468
542
615
501
571
639
706
659
685
689
1078
1090
1106
1132
1147
1048
1048
1025
1046
1070
1097
1058
1077
1096
1112
1146
1154
1154
Blower Speed Setting
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
CFM
0.2
W
726
768
883
990
828
953
1091
1189
966
1148
1258
1361
1458
1241
1406
1536
1656
1287
1596
1705
1806
1898
1580
1650
1854
2120
2214
87
97
131
170
110
153
214
269
168
215
255
301
354
221
299
376
466
222
397
476
561
652
394
448
605
856
968
99
110
147
187
125
172
234
288
347
186
237
278
325
379
245
324
403
492
590
422
501
587
679
420
476
629
840
918
739
754
797
839
771
823
883
927
970
860
841
839
845
859
778
826
869
912
955
875
911
945
977
917
945
1020
1102
1121
736
868
985
824
983
1091
1186
975
1075
1170
1262
1058
1242
1384
1509
1611
1432
1545
1646
1736
1499
1703
1908
1949
162
202
245
189
253
305
360
259
301
349
402
268
349
427
515
610
447
526
610
698
478
646
815
859
889
920
952
909
958
994
1028
918
911
913
923
853
893
928
966
1004
934
966
995
1023
1003
1065
1127
1136
651
791
913
910
1027
1125
980
1070
1156
1158
1305
1430
1527
1354
1466
1564
1646
1401
1605
1769
1785
177
216
257
269
318
368
325
372
423
373
449
533
620
474
549
628
709
494
648
772
787
DEZ Bottom Duct Application
Model
(Tons)
DEZ024
(2.0)
DEZ030
(2.5)
DEZ036
(3.0)
DEZ042
(3.5)
DEZ048
(4.0)
DEZ060
(5.0)
Blower Speed Setting
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Low (1)
Low/Medium (2)
Medium (3)
Medium/High (4)
High (5)
Johnson Controls Unitary Products
99
110
147
187
125
172
234
288
347
186
237
278
325
379
245
324
403
492
590
422
501
587
679
420
476
629
840
918
739
754
797
839
771
823
883
927
970
860
841
839
845
859
778
826
869
912
955
875
911
945
977
917
945
1020
1102
1121
736
868
985
824
983
1091
1186
975
1075
1170
1262
1058
1242
1384
1509
1611
1432
1545
1646
1736
1499
1703
1908
1949
162
202
245
189
253
305
360
259
301
349
402
268
349
427
515
610
447
526
610
698
478
646
815
859
889
920
952
909
958
994
1028
918
911
913
923
853
893
928
966
1004
934
966
995
1023
1003
1065
1127
1136
651
791
913
910
1027
1125
980
1070
1156
1158
1305
1430
1527
1354
1466
1564
1646
1401
1605
1769
1785
177
216
257
269
318
368
325
372
423
373
449
533
620
474
549
628
709
494
648
772
787
979
1000
1022
1033
1061
1086
983
981
986
959
988
1019
1051
995
1021
1046
1069
1049
1104
1148
1148
39
718432-YTG-E-0314
DEQ Side Duct Application
Model
(Tons)
Mode
Cool
DEQ024
(2.0)
Heat
Cool
DEQ030
(2.5)
Heat
Cool
DEQ036
(3.0)
Heat
Cool
DEQ042
(3.5)
Heat
Cool
DEQ048
(4.0)
Heat
Cool
DEQ060
(5.0)
Heat
40
Thermostat
Input
Speed
Tap
CFM
Y1
Y1
Y1
Y1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
800
600
700
900
800
720
880
1000
925
1075
1150
1000
900
1100
1000
1200
1000
1100
1300
1200
1080
1275
1200
1400
1200
1300
1500
1225
1100
1350
1225
1600
1400
1500
1700
1600
1440
1760
1600
1500
1650
1800
1900
1900
1975
2150
2070
0.2
Watts
99
57
76
126
99
80
120
159
129
194
233
159
120
206
159
261
159
206
325
261
196
308
261
338
245
290
391
256
203
314
256
408
290
349
467
408
313
503
408
404
498
590
654
654
703
823
767
0.3
Watts
117
74
94
146
117
98
140
179
148
214
254
179
139
227
179
283
179
227
346
283
217
330
283
383
281
330
439
293
237
356
293
461
334
397
524
461
359
562
461
438
542
643
715
715
772
913
847
External Static Pressure (Inch Water Gauge)
0.4
0.5
0.6
0.7
0.8
Watts
Watts
Watts
Watts
Watts
137
156
176
196
217
91
108
126
143
161
112
130
148
167
186
166
187
208
231
253
137
156
116
135
160
180
200
222
246
270
296
169
190
211
233
256
236
260
285
312
341
277
302
330
360
392
200
222
159
180
249
274
200
222
306
333
362
394
429
200
222
246
270
296
249
274
300
328
357
372
401
434
471
511
306
333
239
263
355
383
306
333
426
468
509
549
589
318
354
390
426
462
370
409
447
485
523
486
532
576
618
660
330
367
270
304
397
438
330
367
512
562
610
657
703
378
422
465
508
550
445
492
537
582
626
579
632
683
732
779
512
562
610
657
405
450
494
537
619
674
726
777
512
562
610
657
475
512
555
597
644
588
634
683
732
783
696
750
805
860
916
775
836
895
955
1013
775
836
895
839
904
968
999
1079
1154
923
997
1066
-
0.9
Watts
237
179
205
277
323
280
371
427
467
323
389
556
627
497
560
700
747
592
669
825
692
835
973
1072
-
1.0
Watts
258
197
224
300
350
304
403
463
507
350
422
604
664
533
596
739
790
633
711
868
728
888
1030
-
Johnson Controls Unitary Products
718432-YTG-E-0314
DEQ Bottom Duct Application
Model
(Tons)
Mode
Cool
DEQ024
(2.0)
Heat
Cool
DEQ030
(2.5)
Heat
Cool
DEQ036
(3.0)
Heat
Cool
DEQ042
(3.5)
Heat
Cool
DEQ048
(4.0)
Heat
Cool
DEQ060
(5.0)
Heat
Thermostat
Input
Speed
Tap
CFM
Y1
Y1
Y1
Y1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
Y1
Y1
Y1
Y1
W1
W1
W1
W1
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
800
600
700
900
800
720
880
1000
925
1075
1150
1000
900
1100
1000
1200
1000
1100
1300
1200
1080
1275
1200
1400
1200
1300
1500
1225
1100
1350
1225
1600
1400
1500
1700
1600
1440
1760
1600
1500
1650
1800
1900
1900
1975
2150
2070
Johnson Controls Unitary Products
0.2
Watts
99
57
76
126
99
80
120
159
129
194
233
159
120
206
159
261
159
206
325
261
196
308
261
338
245
290
391
256
203
314
256
408
290
349
467
408
313
503
408
404
498
590
654
654
703
823
767
0.3
Watts
117
74
94
146
117
98
140
179
148
214
254
179
139
227
179
283
179
227
346
283
217
330
283
383
281
330
439
293
237
356
293
461
334
397
524
461
359
562
461
438
542
643
715
715
772
913
847
External Static Pressure (Inch Water Gauge)
0.4
0.5
0.6
0.7
0.8
Watts
Watts
Watts
Watts
Watts
137
156
176
196
217
91
108
126
143
161
112
130
148
167
186
166
187
208
231
253
137
156
116
135
160
180
200
222
246
270
296
169
190
211
233
256
236
260
285
312
341
277
302
330
360
392
200
222
159
180
249
274
200
222
306
333
362
394
429
200
222
246
270
296
249
274
300
328
357
372
401
434
471
511
306
333
239
263
355
383
306
333
426
468
509
549
589
318
354
390
426
462
370
409
447
485
523
486
532
576
618
660
330
367
270
304
397
438
330
367
512
562
610
657
703
378
422
465
508
550
445
492
537
582
626
579
632
683
732
779
512
562
610
657
405
450
494
537
619
674
726
777
512
562
610
657
475
512
555
597
644
588
634
683
732
783
696
750
805
860
916
775
836
895
955
1013
775
836
895
839
904
968
999
1079
1154
923
997
1066
-
0.9
Watts
237
179
205
277
323
280
371
427
467
323
389
556
627
497
560
700
747
592
669
825
692
835
973
1072
-
1.0
Watts
258
197
224
300
350
304
403
463
507
350
422
604
664
533
596
739
790
633
711
868
728
888
1030
-
41
718432-YTG-E-0314
DEX Side Duct Application
Model
(Tons)
Mode
Low
Cool
DEX024
(2.0)
High
Heat
Low
Cool
DEX030
(2.5)
High
Heat
Low
Cool
DEX036
(3.0)
High
Heat
Low
Cool
DEX042
(3.5)
High
Heat
Low
Cool
DEX048
(4.0)
High
Heat
42
Thermostat
Input
Speed
Tap
CFM
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
600
450
525
675
800
600
700
900
800
720
880
800
670
620
720
770
1000
925
1075
1150
1000
900
1100
1000
900
750
830
980
1200
1000
1100
1300
1200
1080
1275
1200
920
790
850
980
1400
1200
1300
1500
1225
1100
1350
1225
1050
920
980
1120
1600
1400
1500
1700
1600
1440
1760
1600
0.2
Watts
57
39
47
71
99
57
76
126
99
80
120
99
61
54
70
81
159
129
194
233
159
120
206
159
120
76
97
150
261
159
206
325
261
196
308
261
139
100
117
159
338
245
290
391
256
203
314
256
184
139
159
211
448
338
391
508
448
359
546
448
0.3
Watts
74
54
63
88
117
74
94
146
117
98
140
117
78
70
88
99
179
148
214
254
179
139
227
179
139
94
116
170
283
179
227
346
283
217
330
283
166
124
143
188
383
281
330
439
293
237
356
293
216
166
188
245
500
383
439
565
500
405
606
500
External Static Pressure (Inch Water Gauge)
0.4
0.5
0.6
0.7
0.8
0.9
Watts
Watts
Watts
Watts
Watts
Watts
91
108
126
143
161
179
69
84
100
117
134
152
79
95
112
129
146
164
106
124
142
161
179
198
137
156
176
196
217
237
91
108
126
143
161
179
112
130
148
167
186
205
166
187
208
231
253
277
137
156
116
135
160
180
137
156
95
113
130
148
166
184
87
104
121
138
156
173
106
124
142
160
178
197
118
136
155
174
193
213
200
222
246
270
296
323
169
190
211
233
256
280
236
260
285
312
341
371
277
302
330
360
392
427
200
222
159
180
249
274
200
222
159
180
201
222
244
267
113
131
150
168
187
206
135
155
174
194
215
236
191
213
236
260
285
311
306
333
362
394
429
467
200
222
246
270
296
323
249
274
300
328
357
389
372
401
434
471
511
556
306
333
239
263
355
383
306
333
195
224
255
286
319
352
149
176
205
235
266
299
170
198
227
257
289
322
218
249
281
313
346
379
426
468
509
549
589
627
318
354
390
426
462
497
370
409
447
485
523
560
486
532
576
618
660
700
330
367
270
304
397
438
330
367
248
280
313
346
380
414
195
224
255
286
319
352
218
249
281
313
346
379
279
313
348
382
417
452
551
600
647
693
736
779
426
468
509
549
589
627
486
532
576
618
660
700
620
672
723
772
818
863
551
600
647
449
493
535
663
718
771
551
600
647
-
1.0
Watts
197
171
182
216
258
197
224
300
201
191
215
232
350
304
403
463
291
225
256
337
507
350
422
604
386
333
356
414
664
533
596
739
449
386
414
486
819
664
739
905
-
Johnson Controls Unitary Products
718432-YTG-E-0314
DEX Bottom Duct Application
Model
(Tons)
Mode
Low
Cool
DEX024
(2.0)
High
Heat
Low
Cool
DEX030
(2.5)
High
Heat
Low
Cool
DEX036
(3.0)
High
Heat
Low
Cool
DEX042
(3.5)
High
Heat
Low
Cool
DEX048
(4.0)
High
Heat
Thermostat
Input
Speed
Tap
CFM
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
Y1
Y1
Y1
Y1
Y1+Y2
Y1+Y2
Y1+Y2
Y1+Y2
W1
W1
W1
W1
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
COOL-A
COOL-B
COOL-C
COOL-D
COOL-A
COOL-B
COOL-C
COOL-D
HEAT-A
HEAT-B
HEAT-C
HEAT-D
600
450
525
675
800
600
700
900
800
720
880
800
670
620
720
770
1000
925
1075
1150
1000
900
1100
1000
900
750
830
980
1200
1000
1100
1300
1200
1080
1275
1200
920
790
850
980
1400
1200
1300
1500
1225
1100
1350
1225
1050
920
980
1120
1600
1400
1500
1700
1600
1440
1760
1600
Johnson Controls Unitary Products
0.2
Watts
57
39
47
71
99
57
76
126
99
80
120
99
61
54
70
81
159
129
194
233
159
120
206
159
120
76
97
150
261
159
206
325
261
196
308
261
139
100
117
159
338
245
290
391
256
203
314
256
184
139
159
211
448
338
391
508
448
359
546
448
0.3
Watts
74
54
63
88
117
74
94
146
117
98
140
117
78
70
88
99
179
148
214
254
179
139
227
179
139
94
116
170
283
179
227
346
283
217
330
283
166
124
143
188
383
281
330
439
293
237
356
293
216
166
188
245
500
383
439
565
500
405
606
500
External Static Pressure (Inch Water Gauge)
0.4
0.5
0.6
0.7
0.8
0.9
Watts
Watts
Watts
Watts
Watts
Watts
91
108
126
143
161
179
69
84
100
117
134
152
79
95
112
129
146
164
106
124
142
161
179
198
137
156
176
196
217
237
91
108
126
143
161
179
112
130
148
167
186
205
166
187
208
231
253
277
137
156
116
135
160
180
137
156
95
113
130
148
166
184
87
104
121
138
156
173
106
124
142
160
178
197
118
136
155
174
193
213
200
222
246
270
296
323
169
190
211
233
256
280
236
260
285
312
341
371
277
302
330
360
392
427
200
222
159
180
249
274
200
222
159
180
201
222
244
267
113
131
150
168
187
206
135
155
174
194
215
236
191
213
236
260
285
311
306
333
362
394
429
467
200
222
246
270
296
323
249
274
300
328
357
389
372
401
434
471
511
556
306
333
239
263
355
383
306
333
195
224
255
286
319
352
149
176
205
235
266
299
170
198
227
257
289
322
218
249
281
313
346
379
426
468
509
549
589
627
318
354
390
426
462
497
370
409
447
485
523
560
486
532
576
618
660
700
330
367
270
304
397
438
330
367
248
280
313
346
380
414
195
224
255
286
319
352
218
249
281
313
346
379
279
313
348
382
417
452
551
600
647
693
736
779
426
468
509
549
589
627
486
532
576
618
660
700
620
672
723
772
818
863
551
600
647
449
493
535
663
718
771
551
600
647
-
1.0
Watts
197
171
182
216
258
197
224
300
201
191
215
232
350
304
403
463
291
225
256
337
507
350
422
604
386
333
356
414
664
533
596
739
449
386
414
486
819
664
739
905
-
43
718432-YTG-E-0314
DEZ/DEQ Additional Static Resistance
Size
(Tons)
DEZ/DEQ
024
(2.0)
DEZ/DEQ
030
(2.5)
DEZ/DEQ
036
(3.0)
DEZ/DEQ
042
(3.5)
DEZ/DEQ
048
(4.0)
DEZ/DEQ
060
(5.0)
CFM
Wet Indoor Coil
Economizer1
Filter/Frame Kit
Electric Heat
500
600
700
800
900
1000
1100
1200
700
800
900
1000
1100
1200
1300
700
800
900
1000
1100
1200
1300
1400
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
0.01
0.01
0.01
0.01
0.01
0.02
0.03
0.04
0.01
0.01
0.01
0.02
0.03
0.04
0.07
0.01
0.01
0.01
0.02
0.03
0.04
0.04
0.04
0.03
0.04
0.04
0.04
0.04
0.04
0.05
0.05
0.06
0.07
0.03
0.04
0.04
0.04
0.04
0.04
0.05
0.05
0.06
0.07
0.03
0.04
0.04
0.04
0.04
0.04
0.05
0.05
0.06
0.07
0.00
0.00
0.00
0.01
0.01
0.01
0.01
0.02
0.00
0.01
0.01
0.01
0.01
0.02
0.03
0.00
0.01
0.01
0.01
0.01
0.02
0.03
0.04
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.07
0.08
0.08
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.07
0.08
0.08
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.07
0.08
0.08
0.01
0.02
0.02
0.02
0.02
0.02
0.03
0.03
0.02
0.02
0.02
0.02
0.03
0.03
0.17
0.02
0.02
0.02
0.02
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.04
0.05
0.05
0.06
0.06
0.07
0.03
0.03
0.03
0.03
0.04
0.05
0.05
0.06
0.06
0.07
0.03
0.03
0.03
0.03
0.04
0.05
0.05
0.06
0.06
0.07
0.02
0.03
0.03
0.03
0.04
0.04
0.05
0.06
0.03
0.03
0.04
0.04
0.05
0.06
0.03
0.03
0.04
0.04
0.05
0.06
0.07
0.08
0.05
0.06
0.07
0.08
0.09
0.10
0.11
0.11
0.11
0.12
0.05
0.06
0.07
0.08
0.09
0.10
0.11
0.11
0.11
0.12
0.05
0.06
0.07
0.08
0.09
0.10
0.11
0.11
0.11
0.12
1. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance
of the return air duct is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.
44
Johnson Controls Unitary Products
718432-YTG-E-0314
DEX Additional Static Resistance
Model
(Tons)
DEX024
(2.0)
DEX030
(2.5)
DEX036
(3.0)
DEX042
(3.5)
DEX048
(4.0)
CFM
Wet Indoor Coil
Economizer1
Filter/Frame Kit
Electric Heat
500
600
700
800
900
1000
1100
1200
700
800
900
1000
1100
1200
1300
700
800
900
1000
1100
1200
1300
1400
1100
1200
1300
1400
1500
1600
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
0.01
0.01
0.01
0.01
0.01
0.02
0.03
0.04
0.01
0.01
0.01
0.02
0.03
0.04
0.07
0.01
0.01
0.01
0.02
0.03
0.04
0.04
0.04
0.03
0.04
0.04
0.04
0.05
0.06
0.03
0.04
0.04
0.04
0.04
0.04
0.05
0.05
0.06
0.07
0.00
0.00
0.00
0.01
0.01
0.01
0.01
0.02
0.00
0.01
0.01
0.01
0.01
0.02
0.03
0.00
0.01
0.01
0.01
0.01
0.02
0.03
0.04
0.01
0.02
0.03
0.04
0.05
0.06
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.07
0.08
0.08
0.01
0.02
0.02
0.02
0.02
0.02
0.03
0.03
0.02
0.02
0.02
0.02
0.03
0.03
0.17
0.02
0.02
0.02
0.02
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.04
0.05
0.03
0.03
0.03
0.03
0.04
0.05
0.05
0.06
0.06
0.07
0.02
0.03
0.03
0.03
0.04
0.04
0.05
0.06
0.03
0.03
0.04
0.04
0.05
0.06
0.03
0.03
0.04
0.04
0.05
0.06
0.07
0.08
0.05
0.06
0.07
0.08
0.09
0.10
0.05
0.06
0.07
0.08
0.09
0.10
0.11
0.11
0.11
0.12
1. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance
of the return air duct is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.
Johnson Controls Unitary Products
45
718432-YTG-E-0314
DEZ Electric Heat Minimum Supply Air
Model
(Tons)
DEZ024
(2.0)
DEZ030
(2.5)
DEZ036
(3.0)
DEZ042
(3.5)
DEZ048
(4.0)
DEZ060
(5.0)
Voltage
3.8/5.0
Minimum Supply Air (CFM)
Heater kW
5.6/7.5
7.5/10.0
11.3/15.0 15.0/20.0
18.8/25.0
208/230-1-60
800
800
800
-
-
-
208/230-1-60
800
800
800
1000
-
-
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
1200
1200
1200
1200
-
1200
1200
1200
1200
-
1200
1200
1200
1200
1200
1200
1600
1600
1600
1900
1900
1900
1200
1200
1200
1200
1200
1200
1600
1600
1600
1900
1900
1900
1600
1600
1600
1900
1900
1900
1600
1600
1600
1900
1900
1900
20.0
25.0
DEQ Electric Heat Minimum Supply Air
Model
(Tons)
DEQ024
(2.0)
DEQ030
(2.5)
DEQ036
(3.0)
DEQ042
(3.5)
DEQ048
(4.0)
DEQ060
(5.0)
Voltage
Minimum Supply Air (CFM)
Heater kW
10.0
15.0
5.0
7.5
208/230-1-60
630
630
800
-
-
-
208/230-1-60
630
630
800
800
-
-
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
1070
1070
1070
1225
1225
1225
-
1070
1070
1070
1225
1225
1225
-
1070
1070
1070
1225
1225
1225
1200
1200
1200
1615
1615
1615
1070
1070
1070
1225
1225
1225
1430
1430
1430
1615
1615
1615
1430
1430
1430
1955
1955
1955
1430
1430
1430
1955
1955
1955
DEX Electric Heat Minimum Supply Air
Model
(Tons)
DEX024
(2.0)
DEX030
(2.5)
DEX036
(3.0)
DEX042
(3.5)
DEX048
(4.0)
46
Voltage
208/230-1-60
5.0
7.5
630
630
Minimum Supply Air (CFM)
Heater kW
10.0
15.0
800
20.0
25.0
-
-
-
208/230-1-60
630
630
800
800
-
-
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
208/230-1-60
208/230-3-60
460-3-60
1070
1070
1070
1225
1225
1225
-
1070
1070
1070
1225
1225
1225
-
1070
1070
1070
1225
1225
1225
1200
1200
1200
1070
1070
1070
1225
1225
1225
1430
1430
1430
1430
1430
1430
1430
1430
1430
Johnson Controls Unitary Products
718432-YTG-E-0314
DEZ/DEQ/DEX Indoor Blower Specifications
Size
(Tons)
024
(2.0)
030
(2.5)
036
(3.0)
042
(3.5)
048
(4.0)
060
(5.0)
HP
RPM
Motor
Eff.
SF
Frame
1/2
Variable
0.8
1.0
48
1/2
Variable
0.8
1.0
48
1/2
Variable
0.8
1.0
48
3/4
Variable
0.8
1.0
48
3/4
Variable
0.8
1.0
48
1
Variable
0.8
1.0
48
Electric Heat Multipliers
Voltage
Nominal
kW Capacity Multipliers1
Applied
208
230
460
240
480
0.75
0.92
0.92
1. Electric heaters are rated at nominal voltage. Use this table to determine the electric heat
capacity for heaters applied at lower voltages.
Sound Performance
DEZ Outdoor Sound Power Levels
Size
(Tons)
DEZ024
(2.0)
DEZ030
(2.5)
DEZ036
(3.0)
DEZ042
(3.5)
DEZ048
(4.0)
DEZ060
(5.0)
Sound Rating1
dB (A)
125
Octave Band Centerline Frequency (Hz)
250
500
1000
2000
4000
80
72
70
65
76
66
72
58
79
66
67
67
76
75
66
57
74
65
64
67
68
67
65
59
74
64
65
68
69
63
59
57
80
71
72
74
73
69
67
62
80
68
71
74
73
72
72
60
8000
1. Rated in accordance with AHRI 270 standard.
DEQ Outdoor Sound Power Levels
Size
(Tons)
DEQ024
(2.0)
DEQ030
(2.5)
DEQ036
(3.0)
DEQ042
(3.5)
DEQ048
(4.0)
DEQ060
(5.0)
Sound Rating1
dB (A)
125
Octave Band Centerline Frequency (Hz)
250
500
1000
2000
4000
80
72
70
65
76
66
72
58
79
66
67
67
76
75
66
57
74
65
64
67
68
67
65
59
74
64
65
68
69
63
59
57
80
71
72
74
73
69
67
62
80
68
71
74
73
72
72
60
8000
1. Rated in accordance with AHRI 270 standard.
Johnson Controls Unitary Products
47
718432-YTG-E-0314
DEX Outdoor Sound Power Levels
Size
(Tons)
DEX024
(2.0)
DEX030
(2.5)
DEX036
(3.0)
DEX042
(3.5)
DEX048
(4.0)
Sound Rating1
dB (A)
125
Octave Band Centerline Frequency (Hz)
250
500
1000
2000
4000
73
61.5
64.5
68.5
66.5
62
60
54
77
60
62.5
64.5
75.5
62.5
59.5
58.5
78
63
65
76
73
64.5
62.5
60
76
67.5
68.5
69.5
69
66
63.5
60
79
71.5
69.5
71.5
75.5
68
67
62
8000
1. Rated in accordance with AHRI 270 standard.
48
Johnson Controls Unitary Products
718432-YTG-E-0314
Electrical Data
DEZ Electrical Data
Model
(Tons)
Volt
Compressor
OD Fan
Motor
RLA LRA MCC
FLA
Supply
Blower
Motor
FLA
DEZ024
(2.0)
208/230-1-60
8.3
43
13
1.3
4.1
DEZ030
(2.5)
208/230-1-60 13.1
74
21
1.3
4.1
208/230-1-60 14.7
74
23
1.3
4.1
208/230-3-60
9.1
68
14
1.3
4.1
460-3-60
4.5
34
7
0.8
4.1
208/230-1-60 15.7
88
25
1.7
6.0
208/230-3-60
9.3
68
15
1.7
6.0
460-3-60
5.1
34
8
1.0
6.0
208/230-1-60 16.8
115
25
1.7
6.0
208/230-3-60 11.2
120
18
1.7
6.0
5.1
50
8
1.0
6.0
208/230-1-60 26.2
150
41
2.2
7.6
208/230-3-60 17.9
120
28
2.2
7.6
70
15
1.1
7.6
DEZ036
(3.0)
DEZ042
(3.5)
DEZ048
(4.0)
460-3-60
DEZ060
(5.0)
460-3-60
9.6
Electric Heat Option
Model
None
2NH04500506
2NH04500706
2NH04501006
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04501025
2NH04501525
None
2NH04501046
2NH04501546
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04501025
2NH04501525
None
2NH04501046
2NH04501546
None
2NH04501006
2NH04501506
2NH04502006
2NH04502506
None
2NH04501025
2NH04501525
2NH04502025
2NH04502525
None
2NH04501046
2NH04501546
2NH04502046
2NH04502546
None
2NH04501006
2NH04501506
2NH04502006
2NH04502506
None
2NH04501025
2NH04501525
2NH04502025
2NH04502525
None
2NH04501046
2NH04501546
2NH04502046
2NH04502546
MCA1
(Amps)
kW
Stages
Amps
15.8
3.8 / 5
1
18.1 / 20.8 27.7 / 31.2
5.6 / 7.5
2
27.1 / 31.3
39 / 44.2
7.5 / 10
2
36.1 / 41.7 50.3 / 57.2
21.8
3.8 / 5
1
18.1 / 20.8 27.7 / 31.2
5.6 / 7.5
2
27.1 / 31.3
39 / 44.2
7.5 / 10
2
36.1 / 41.7 50.3 / 57.2
11.3 / 15
2
54.2 / 62.5 72.8 / 83.3
23.8
3.8 / 5
1
18.1 / 20.8 27.7 / 31.2
5.6 / 7.5
2
27.1 / 31.3
39 / 44.2
7.5 / 10
2
36.1 / 41.7 50.3 / 57.2
11.3 / 15
2
54.2 / 62.5 72.8 / 83.3
16.8
7.5 / 10
1
20.8 / 24.1 31.2 / 35.2
11.3 / 15
1
31.3 / 36.1 44.2 / 50.2
10.5
10
1
12
20.2
15
1
18
27.7
27.3
3.8 / 5
1
18.1 / 20.8 30.1 / 33.5
5.6 / 7.5
2
27.1 / 31.3 41.4 / 46.6
7.5 / 10
2
36.1 / 41.7 52.6 / 59.6
11.3 / 15
2
54.2 / 62.5 75.2 / 85.6
19.3
7.5 / 10
1
20.8 / 24.1 33.6 / 37.6
11.3 / 15
1
31.3 / 36.1 46.6 / 52.6
13.6
10
1
12
22.5
15
1
18
30.1
28.7
7.5 / 10
2
36.1 / 41.7 52.6 / 59.6
11.3 / 15
2
54.2 / 62.5 75.2 / 85.6
15 / 20
2
72.2 / 83.3 97.8 / 111.7
18.8 / 25
2
90.3 / 104.2 120.3 / 137.7
21.7
7.5 / 10
1
20.8 / 24.1 33.6 / 37.6
11.3 / 15
1
31.3 / 36.1 46.6 / 52.6
15 / 20
2
41.7 / 48.1 59.6 / 67.6
18.8 / 25
2
52.1 / 60.1 72.7 / 82.7
13.6
10
1
12
22.5
15
1
18
30.1
20
2
24.1
37.6
25
2
30.1
45.1
42.6
7.5 / 10
2
36.1 / 41.7 54.6 / 61.6
11.3 / 15
2
54.2 / 62.5 77.2 / 87.6
15 / 20
2
72.2 / 83.3 99.8 / 113.7
18.8 / 25
2
90.3 / 104.2 122.3 / 139.7
32.2
7.5 / 10
1
20.8 / 24.1 35.6 / 39.6
11.3 / 15
1
31.3 / 36.1 48.6 / 54.6
15 / 20
2
41.7 / 48.1 61.6 / 69.6
18.8 / 25
2
52.1 / 60.1 74.7 / 84.7
20.7
10
1
12
24.5
15
1
18
32.1
20
2
24.1
39.6
25
2
30.1
47.1
Max Fuse2/
Breaker3 Size
(Amps)
20
30 / 35
40 / 45
60 / 60
30
30 / 35
40 / 45
60 / 60
80 / 90
30
35 / 35
40 / 45
60 / 60
80 / 90
25
35 / 40
45 / 60
15
25
30
35
40 / 40
45 / 50
60 / 60
80 / 90
25
35 / 40
50 / 60
15
25
35
35
60 / 60
80 / 90
100 / 125
125 / 150
30
35 / 40
50 / 60
60 / 70
80 / 90
15
25
35
40
50
50
60 / 70
80 / 90
100 / 125
125 / 150
40
45 / 50
50 / 60
70 / 70
80 / 90
25
30
35
40
50
1. Minimum Circuit Ampacity.
2. Maximum Over Current Protection per standard UL 1995.
3. Fuse or HACR circuit breaker size installed at factory or field installed.
Johnson Controls Unitary Products
49
718432-YTG-E-0314
DEQ Electrical Data
Model
(Tons)
Volt
Compressor
OD Fan
Motor
RLA LRA MCC
FLA
Supply
Blower
Motor
FLA
DEQ024
(2.0)
208/230-1-60
8.3
43
13
1.2
4.3
DEQ030
(2.5)
208/230-1-60 13.1
74
21
1.2
4.3
208/230-1-60 14.7
74
23
1.2
4.3
208/230-3-60
9.1
68
14
1.2
4.3
460-3-60
4.5
34
7
0.8
2.2
208/230-1-60 15.7
88
25
1.4
6.8
208/230-3-60
9.3
68
15
1.4
6.8
460-3-60
5.1
34
8
0.8
3.4
208/230-1-60 21.8
117
34
1.7
6.8
208/230-3-60 13.7
83
21
1.7
6.8
6.2
41
10
1.0
3.4
208/230-1-60 25.0
134
39
2.8
9.1
208/230-3-60 20.2
110
25
2.8
9.1
52
11
1.4
4.6
DEQ036
(3.0)
DEQ042
(3.5)
DEQ048
(4.0)
460-3-60
DEQ060
(5.0)
460-3-60
7.0
Electric Heat Option
Model
None
2NH04500506
2NH04500706
2NH04501006
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04501025
2NH04501525
None
2NH04501046
2NH04501546
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04501025
2NH04501525
None
2NH04501046
2NH04501546
None
2NH04501006
2NH04501506
2NH04502006
2NH04502506
None
2NH04501025
2NH04501525
2NH04502025
2NH04502525
None
2NH04501046
2NH04501546
2NH04502046
2NH04502546
None
2NH04501006
2NH04501506
2NH04502006
2NH04502506
None
2NH04501025
2NH04501525
2NH04502025
2NH04502525
None
2NH04501046
2NH04501546
2NH04502046
2NH04502546
MCA1
(Amps)
kW
Stages
Amps
15.9
3.8 / 5
1
18.1 / 20.8 27.9 / 31.4
5.6 / 7.5
2
27.1 / 31.3 39.2 / 44.4
7.5 / 10
2
36.1 / 41.7 50.5 / 57.5
--21.9
3.8 / 5
1
18.1 / 20.8 27.9 / 31.4
5.6 / 7.5
2
27.1 / 31.3 39.2 / 44.4
7.5 / 10
2
36.1 / 41.7 50.5 / 57.5
11.3 / 15
2
54.2 / 62.5 73.1 / 83.5
23.9
3.8 / 5
1
18.1 / 20.8 27.9 / 31.4
5.6 / 7.5
2
27.1 / 31.3 39.2 / 44.4
7.5 / 10
2
36.1 / 41.7 50.5 / 57.5
11.3 / 15
2
54.2 / 62.5 73.1 / 83.5
16.9
7.5 / 10
1
20.8 / 24.1 31.4 / 35.4
11.3 / 15
1
31.3 / 36.1 44.5 / 50.5
8.6
10
1
12
17.8
15
1
18
25.3
27.8
3.8 / 5
1
18.1 / 20.8 31.1 / 34.5
5.6 / 7.5
2
27.1 / 31.3 42.4 / 47.6
7.5 / 10
2
36.1 / 41.7 53.6 / 60.6
11.3 / 15
2
54.2 / 62.5 76.2 / 86.6
19.8
7.5 / 10
1
20.8 / 24.1 34.6 / 38.6
11.3 / 15
1
31.3 / 36.1 47.6 / 53.6
10.6
10
1
12
19.3
15
1
18
26.8
------35.8
7.5 / 10
2
36.1 / 41.7 53.6 / 60.6
11.3 / 15
2
54.2 / 62.5 76.2 / 86.6
15 / 20
2
72.2 / 83.3 98.8 / 112.7
18.8 / 25
2
90.3 / 104.2 121.3 / 138.7
------25.6
7.5 / 10
1
20.8 / 24.1 34.6 / 38.6
11.3 / 15
1
31.3 / 36.1 47.6 / 53.6
15 / 20
2
41.7 / 48.1 60.6 / 68.6
18.8 / 25
2
52.1 / 60.1 73.7 / 83.7
------12.2
10
1
12
19.3
15
1
18
26.8
20
2
24.1
34.3
25
2
30.1
41.8
43.2
7.5 / 10
2
36.1 / 41.7 56.5 / 63.5
11.3 / 15
2
54.2 / 62.5 79.1 / 89.5
15 / 20
2
72.2 / 83.3 101.7 / 115.5
18.8 / 25
2
90.3 / 104.2 124.2 / 141.6
37.3
7.5 / 10
1
20.8 / 24.1 37.4 / 41.4
11.3 / 15
1
31.3 / 36.1 50.5 / 56.5
15 / 20
2
41.7 / 48.1 63.5 / 71.5
18.8 / 25
2
52.1 / 60.1 76.5 / 86.6
14.8
10
1
12
20.8
15
1
18
28.3
20
2
24.1
35.8
25
2
30.1
43.3
Max Fuse2/
Breaker3 Size
(Amps)
20
30 / 35
40 / 45
60 / 60
30
30 / 35
40 / 45
60 / 60
80 / 90
30
35 / 35
40 / 45
60 / 60
80 / 90
25
35 / 40
45 / 60
15
20
30
35
40 / 40
45 / 50
60 / 70
80 / 90
25
35 / 40
50 / 60
15
20
30
45
60 / 70
80 / 90
100 / 125
125 / 150
35
35 / 40
50 / 60
70 / 70
80 / 90
15
20
30
35
45
60
60 / 70
80 / 90
110 / 125
125 / 150
45
45 / 50
60 / 60
70 / 80
80 / 90
20
25
30
40
45
1. Minimum Circuit Ampacity.
2. Maximum Over Current Protection per standard UL 1995.
3. Fuse or HACR circuit breaker size installed at factory or field installed.
50
Johnson Controls Unitary Products
718432-YTG-E-0314
DEX Electrical Data
Model
(Tons)
Volt
Compressor
OD Fan
Motor
RLA LRA MCC
FLA
Supply
Blower
Motor
FLA
DEX024
(2.0)
208/230-1-60 10.2
52
16
1.2
4.3
DEX030
(2.5)
208/230-1-60 14.1
70
22
1.2
4.3
208/230-1-60 16.6
82
26
1.2
4.3
208/230-3-60 11.1
58
17
1.2
4.3
4.5
29
7
0.8
4.3
208/230-1-60 16.6
96
26
1.4
6.8
208/230-3-60 13.4
88
21
1.4
6.8
6.1
44
10
0.8
6.8
208/230-1-60 21.1
96
33
1.7
6.8
208/230-3-60 13.4
88
21
1.7
6.8
41
10
1.0
6.8
DEX036
(3.0)
460-3-60
DEX042
(3.5)
460-3-60
DEX048
(4.0)
460-3-60
6.4
Electric Heat Option
Model
None
2NH04500506
2NH04500706
2NH04501006
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04501025
2NH04501525
None
2NH04501046
2NH04501546
None
2NH04500506
2NH04500706
2NH04501006
2NH04501506
None
2NH04501025
2NH04501525
None
2NH04501046
2NH04501546
None
2NH04501006
2NH04501506
2NH04502006
2NH04502506
None
2NH04501025
2NH04501525
2NH04502025
2NH04502525
None
2NH04501046
2NH04501546
2NH04502046
2NH04502546
MCA1
(Amps)
kW
Stages
Amps
18.3
3.8/5
1
18.1/20.8
27.9 / 31.4
5.6/7.5
2
27.1/31.3
39.2 / 44.4
7.5/10
2
36.1/41.7
50.5 / 57.5
23.1
3.8/5
1
18.1/20.8
27.9 / 31.4
5.6/7.5
2
27.1/31.3
39.2 / 44.4
7.5/10
2
36.1/41.7
50.5 / 57.5
11.3/15
2
54.2/62.5
73.1 / 83.5
26.3
3.8/5
1
18.1/20.8
27.9 / 31.4
5.6/7.5
2
27.1/31.3
39.2 / 44.4
7.5/10
2
36.1/41.7
50.5 / 57.5
11.3/15
2
54.2/62.5
73.1 / 83.5
19.4
7.5/10
1
20.8/24.1
31.4 / 35.4
11.3/15
1
31.3/36.1
44.5 / 50.5
10.7
10
1
12
20.4
15
1
18
27.9
29
3.8/5
1
18.1/20.8
31.1 / 34.5
5.6/7.5
2
27.1/31.3
42.4 / 47.6
7.5/10
2
36.1/41.7
53.6 / 60.6
11.3/15
2
54.2/62.5
76.2 / 86.6
25
7.5/10
1
20.8/24.1
34.6 / 38.6
11.3/15
1
31.3/36.1
47.6 / 53.6
15.4
10
1
12
23.5
15
1
18
31.1
34.9
7.5/10
2
36.1/41.7
53.6 / 60.6
11.3/15
2
54.2/62.5
76.2 / 86.6
15/20
2
72.2/83.3 98.8 / 112.7
18.8/25
2
90.3/104.2 121.3 / 138.7
25.3
7.5/10
1
20.8/24.1
34.6 / 38.6
11.3/15
1
31.3/36.1
47.6 / 53.6
15/20
2
41.7/48.1
60.6 / 68.6
18.8/25
2
52.1/60.1
73.7 / 83.7
15.9
10
1
12
23.5
15
1
18
31.1
20
2
24.1
38.6
25
2
30.1
46.1
Max Fuse2/
Breaker3 Size
(Amps)
25
30 / 35
40 / 45
60 / 60
30
35 / 35
40 / 45
60 / 60
80 / 90
35
35 / 40
40 / 45
60 / 60
80 / 90
25
35 / 40
45 / 60
15
25
30
35
40 / 45
45 / 50
60 / 70
80 / 90
30
35 / 40
50 / 60
20
25
35
45
60 / 70
80 / 90
100 / 125
125 / 150
35
35 / 40
50 / 60
70 / 70
80 / 90
20
25
35
40
50
1. Minimum Circuit Ampacity.
2. Maximum Over Current Protection per standard UL 1995.
3. Fuse or HACR circuit breaker size installed at factory or field installed.
Johnson Controls Unitary Products
51
BR
L2
L1
102/Y
L3
COMPR
103/BR
802/BK
804/BK
803/BK
804/BK
805/BL
101/BK
HP
LP
NO
NO
803/BK
712/BL
704/BL
701/Y
816/O
813/O
707/R
810/BL
PRP
BRN
HTR3
HTR2
BLK
COM
COM
HTR1
K4
K3
T
L2 L2
809/O
FAN CONTROL
204/BR K2 K1
128/BK
L1 L1
TRANS
FAN
(LOW) 1
BLK
BLK
715/R
707/R
1
K6
K5
B
A
K7
COM
7
COM
COM
202/Y
227/BK
716/PR
708/PR
815/R
714/BK
LS
814/BL
809/O
811/O
808/BR
CONTROL BOX
711/BK
233/BL
235/Y
2
226/0
280/BL
806/BR
805/BL
801/BL
4
3
2
1
281/BR
125/BK
GRN
127/PR
706/BK
714/BK
HP
LP
DEVICE
OFF
TH2
TH1
TC2
ON
TH2 ANT
TH1 ANT
TC2
ANT
AUTO
OPERATING PRESSURE (PSIG)
OPEN
+/CLOSE
+/625
25
525
25
7
3
22
5
W2
W1
Y2
Y1
G
Rc
R
C
O
W1
W2
G
Y
TB1
R
2_SPEED
LTRIP
ECM
K2
K1
H2
FU24
H3
C
O
W1
W2
G
Y
6
5
4
3
H4
FL
1
4
3
2
1
2
TB1
24V
P2
S3
FCB
LH
T
L1
L1
H1
L2
L2
L2
L1
L1
HTR5
HTR4
HTR3
HTR2
S2
P3
6
810/BL
812/R
808/BR
702/PR
701/Y
FU6
FU4
240V
128/BK
129/PR
716/PR
708/PR
713/PR
705/PR
FU2
814/BL
815/R
6. WIRE 204/BR IS REMOVED WHEN ELECTRIC HEAT IS INSTALLED.
A
A
A
A
K5
K3
K4
K6
LS
C
T1
M1_
203/BR
279/W
278/PR
277/Y
202/Y
205/R
HTR1
24V SEC
75 VA
2. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS
OPERTION.IF ANY OF THE WIRE, AS SUPPLIED WITH THE UNIT MUST BE
REMOVED,IT MUST BE REPLACED WITH TYPE 105 DEGREE C, 600 VOLT
WIRE OREQUIVALENT CLEARLY RENUMBERED FOR IDENTIFICATION. VERIFY
PROPER OPERATION AFTER SERVICING.
3. MOTORS INHERENTLY PROTECTED
L1
208V
PRI
1. ALL FIELD WIRING TO BE ACCOMPLISHED FOLLOWING CITY, LOCAL AND/OR
NATIONAL CODES IN EFFECT AT TIME OF INSTALLATION OF THIS UNIT.
NOTES:
226/O
715/R
K6
COM
NO
225/BK
707/R
K4
COM
NO
A K7_ B
FAN SWITCH
PRESSURE CONTROLS
COOL
AUTO
HEAT
TC1
TC1
ANT
ROOM THERMOSTAT
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
712/BL
704/BL
K5
COM
NO
K3
COM
NO
710/PR
5. SEE UNIT NAMEPLATE FOR MAXIMUM FUSE AND/OR CIRCUIT BREAKER SIZE
AND MINIMUM CIRCUIT AMPACITY.
C
L
G
K4
K5
K6
K7
LP
LS
LR
M1
OD_
P2/S2
P3/S3
RC1/RC2
RC1
RC2
T1
TB1
S2/P2
S3/P3
PTCR
HTR3
HTR4
HTR5
ID_FAN
K1
K2
K3
FU5
CRANKCASE HEATER (OPTIONAL)
ANTI-SHORT CYCLE TIMER (OPTIONAL)
COMPRESSOR
FAN CONTROL BOARD
FUSE (5, 7.5, 10, 15, 20 & 25 KW ELEC HEAT)
FUSE (7.5, 10, 15,20 & 25 KW ELEC HEAT)
FUSE (15, 20 & 25 KW ELEC HEAT)
FUSE 24V SECONDARY, 5 AMP
SWITCH, HIGH PRESSURE
ELEC HEATER (OPTIONAL: ALL KW ELEC HEAT)
ELEC HEATER (OPTIONAL:
7.5, 10, 15, 20 }& 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 20 & 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 15, 20 & 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 20 & 25 KW ELEC HEAT
INDOOR FAN MOTOR
RELAY, INDOOR FAN MOTOR
RELAY, ELEC HEATER
RELAY, ELEC HEAT 24 VDC COIL (7.5, 10, 15, 20
& 25 KW ELEC HEAT)
RELAY, ELEC HEAT 24 VDC COIL (20 KW ELEC HEAT)
RELAY, ELEC HEAT 24 VDC COIL (25 KW ELEC HEAT)
RELAY, ELEC HEAT 24 VDC COIL (20 & 25 KW ELEC HEAT)
RELAY, LIMIT TRIP 24VDC COIL
SWITCH, LOW PRESSURE (OPTIONAL)
SWITCH, LIMIT
LOCK OUT RELAY (OPTIONAL)
CONTACTOR, COMPR & OD_FAN
OUTDOOR FAN MOTOR
SOCKET/PLUG CONNECTION, 24V
SOCKET/PLUG CONNECTION, LINE VOLTAGE
COMP. START & OUTDOOR FAN RUN CAPACITOR
COMP. START (ALTERNATE)
OUTDOOR FAN CAPACITOR, RUN (ALTERNATE)}
TRANSFORMER, 24V, 40 VA
TERMINAL BLOCK, FCB
SOCKET/PLUG CONECTIONT ON FCB, LOW VOLTAGE
SOCKET/PLUG CONNECTION ON FCB, LINE VOLTAGE
START ASSIST
L2
711/BK
703/BK
709/BK
BRN OUTDOOR
FAN
PRP
M
230V
N
ID_FAN
ELECTRIC HEAT SECTION
HTR5
HTR4
NO
NO
1
NO
2
3
CCH
ASCT
COMPR
FCB
FU1-2
FU3-4
FU5-6
F24
HP
HTR1
HTR2
{LEGEND
BLK
FU3
FU1
BLK
5
4
3
201/BR
203/BR
281/BR
806/BR
L2
OPTIONAL CCH
D/P CONFIGURATION
CCH_
BLK
L1
BLK
OPTIONAL CCH
S/P CONFIGURATION
CCH
BLK
L1
109/BK
POWER SUPPLY WITH ELEC HEAT 208/230-1-60
USE COPPER CONDUCTORS ONLY
4. FACTORY WIRED FOR 230V. FOR 208V OPERATION, MOVE WIRE 108/PR TO
208V TAP ON TRANSFORMER T1.
(HIGH) 5
(MED/HIGH) 4
(MED) 3
2
1
816/O
715/R
811/O
817/O
712/BL
(LOW/MED) 2
CCH
713/PR
705/PR
702/PR
815/BL
812/R
706/BK
810/BL
814/BL
703/BK
104/R
B
710/PR
127/PR
129/PR
709/BK
710/PR
703/BK-711/BK
705/PR-713/PR
706/BK-714/BK
708/PR-716/PR
LR (SEE NOTE 7)
225/BK
224/R
102/Y
M1
FU1
FU2
FU3
FU4
FU5
FU6
ASCT (SEE NOTE 7)
A
807/BL
101/BK
BLK
202/Y
807/BL
709/BK
109/BK
125/BK
NOTE: JUMPER 204/BR NOT
PRESENT W/ELECTRIC HEAT
225/BK
LT
H3 LH
H2 FL
808/BR
24 L1 L1 H1 L2
VAC
202/Y
205/R
PR
GND
LUG
129/PR
701/Y
702/PR
103/BR
201/BR
226/O
203/BR
C
O
W1
W2
G
Y
R
RC1/RC2
224/R
817/O
813/O
FS
T1
24V SEC COM
704/BL
279/W
278/
PR
277/Y
104/R
C
240
208
109/BK
2 SPEED
BR
PR 105/R
RC1
ALTERNATE CAPACITOR WIRING
108/PR
104/R
RC2
103/BR
5
7.5 & 10
15
20 & 25
FU1 & 2
FU1 & 2
FU1 & 2
FU1-6
N/A
FU3&F4
FU3-6
N/A
KW
LTRIP
GND
B
B
B
B
T1
108/PR
M1
T2
9.
8.
8
A
224/R
104/R
M1
B
NO
RC2
RC1
BLK
S
B
PRP
M
5
4
3
2
1
281/BR
1
HP
127/PR
C
L
G
4
3
2
1
LP
GRN
851849-UWD-A-0412
CAUTION - OPEN ALL DISCONNECTS
BEFORE SERVICING THIS UNIT
SELECT SPEED TAP TO ATTAIN DESIRED AIRFLOW.
M
230V
ID_FAN
N
229/BL
229/BL
111/R
OD_FAN
A
COMPR
PTCR
BRN 1
BLK
M
125/BK
280/BL
9 (HIGH) 5
4
(MED) 3
(MED/HIGH)
C
R 1
105/R WITH ALT
CAPACITORS ONLY
(LOW) 1
COM
112/BR
PRP
BRN
(LOW/MED) 2
K7
103/BR
102/Y
101/BK
ELEMENTARY DIAGRAM
SHUNT CONTACT ALSO USED WITH CRANKCASE
HEATER. (OPTIONAL)
7. REMOVED.
817/O
813/O
816/O
809/O
L2
POWER SUPPLY W/OUT ELEC
HEAT 208/230-1-60
USE COPPER CONDUCTORS ONLY
811/O
COOLING UNIT WITH ELECTRIC HEAT
201/BR
P
52
30 AMP 250 VOLT
60 AMP 250 VOLT
REPLACE WITH/REMPLACER PAR:
REPLACE WITH/REMPLACER PAR:
BUSSMAN FRN-R30
BUSSMAN FRN-60
CHASE SHAWNUT TR30R
CHASE SHAWNUT TR60R
LITTLE FUSE FLN-R30
LITTLE FUSE FLN-R60
718432-YTG-E-0314
Typical Wiring Diagrams
Typical DEZ024-042 Cooling Only 208/230-1-60 volt Wiring Diagram
Johnson Controls Unitary Products
BR
C
240
NO
NO
L2
L1
102/Y
L3
COMPR
103/BR
802/BK
804/BK
803/BK
804/BK
805/BL
PRP
BRN
HTR3
HTR2
T
L1 L1
809/O
FAN CONTROL
(LOW)
BLK
BLK
5
4
3
2
1
715/R
5
4
3
2
1
816/O
715/R
811/O
817/O
712/BL
707/R
BRN OUTDOOR
FAN
PRP
BLK
(HIGH)
(MED/HIGH)
(MED)
(LOW/MED)
CCH
713/PR
705/PR
702/PR
815/BL
812/R
706/BK
810/BL
814/BL
703/BK
1
K6
K5
B
A
201/BR
203/BR
281/BR
806/BR
NO
K7
2
3
COM
7
COM
COM
202/Y
227/BK
716/PR
708/PR
815/R
714/BK
LS
814/BL
809/O
811/O
808/BR
CONTROL BOX
711/BK
233/BL
235/Y
2
226/0
280/BL
806/BR
805/BL
801/BL
M
230V
C
L
G
N
ID_FAN
4
3
2
1
281/BR
125/BK
GRN
127/PR
ELECTRIC HEAT SECTION
HTR5
HTR4
NO
NO
1
104/R
B
710/PR
127/PR
129/PR
709/BK
710/PR
703/BK-711/BK
705/PR-713/PR
706/BK-714/BK
708/PR-716/PR
LR (SEE NOTE 7)
225/BK
224/R
102/Y
M1
FU1
FU2
FU3
FU4
FU5
FU6
ASCT (SEE NOTE 7)
A
807/BL
101/BK
BLK
NOTE: JUMPER 204/BR NOT
PRESENT W/ELECTRIC HEAT
BLK
COM
COM
HTR1
K4
K3
LT
H3 LH
L2 L2
TRANS
FAN
128/BK
709/BK
109/BK
125/BK
202/Y
807/BL
204/BR K2 K1
808/BR
H2 FL
225/BK
226/O
101/BK
HP
LP
810/BL
24 L1 L1 H1 L2
VAC
202/Y
205/R
PR
GND
LUG
129/PR
701/Y
702/PR
103/BR
201/BR
803/BK
712/BL
704/BL
FS
C
O
W1
203/BR
701/Y
816/O
813/O
707/R
817/O
813/O
704/BL
279/W
W2
G
Y
R
RC1/RC2
224/R
24V SEC COM
T1
208
109/BK
278/
PR
277/Y
104/R
BR
PR 105/R
RC1
ALTERNATE CAPACITOR WIRING
108/PR
104/R
RC2
103/BR
5
7.5 & 10
15
20 & 25
FU1 & 2
FU1 & 2
FU1 & 2
FU1-6
N/A
FU3&F4
FU3-6
N/A
KW
2 SPEED
K4
K5
K6
K7
LP
LS
LR
M1
OD_FAN
P2/S2
P3/S3
RC1/RC2
RC1
RC2
T1
TB1
S2/P2
S3/P3
PTCR
HTR3
HTR4
HTR5
ID_FAN
K1
K2
K3
CCH
ASCT
COMPR
FCB
FU1-2
FU3-4
FU5-6
F24
HP
HTR1
HTR2
{LEGEND
L2
L2
FU5
FU3
FU1
714/BK
706/BK
711/BK
703/BK
709/BK
HP
LP
DEVICE
OFF
TH2
TH1
TC2
ON
TH2 ANT
TH1 ANT
TC2
ANT
AUTO
OPERATING PRESSURE (PSIG)
OPEN
+/CLOSE
+/625
25
525
25
7
3
22
5
W2
W1
Y2
Y1
G
Rc
R
C
O
W1
W2
G
Y
TB1
R
2_SPEED
K2
K1
H2
FU24
H3
C
O
W1
W2
G
Y
6
5
4
3
H4
FL
1
4
3
2
1
2
TB1
24V
P2
S3
FCB
LH
T
L1
L1
H1
L2
L2
L2
L1
L1
HTR5
HTR4
HTR3
HTR2
S2
P3
6
810/BL
812/R
808/BR
702/PR
701/Y
FU6
FU4
240V
128/BK
129/PR
716/PR
708/PR
713/PR
705/PR
FU2
814/BL
815/R
6. WIRE 204/BR IS REMOVED WHEN ELECTRIC HEAT IS INSTALLED.
5. SEE UNIT NAMEPLATE FOR MAXIMUM FUSE AND/OR CIRCUIT BREAKER SIZE
AND MINIMUM CIRCUIT AMPACITY.
4. FACTORY WIRED FOR 230V. FOR 208V OPERATION, MOVE WIRE 108/PR TO
208V TAP ON TRANSFORMER T1.
A
A
A
A
K5
K3
K4
K6
LS
C
T1
M1_
203/BR
279/W
278/PR
277/Y
202/Y
205/R
HTR1
24V SEC
75 VA
2. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS
OPERTION.IF ANY OF THE WIRE, AS SUPPLIED WITH THE UNIT MUST BE
REMOVED,IT MUST BE REPLACED WITH TYPE 105 DEGREE C, 600 VOLT
WIRE OREQUIVALENT CLEARLY RENUMBERED FOR IDENTIFICATION. VERIFY
PROPER OPERATION AFTER SERVICING.
3. MOTORS INHERENTLY PROTECTED
L1
208V
PRI
1. ALL FIELD WIRING TO BE ACCOMPLISHED FOLLOWING CITY, LOCAL AND/OR
NATIONAL CODES IN EFFECT AT TIME OF INSTALLATION OF THIS UNIT.
NOTES:
226/O
715/R
K6
COM
NO
LTRIP
ECM
707/R
K4
COM
NO
225/BK
712/BL
704/BL
K5
COM
NO
710/PR
109/BK
POWER SUPPLY WITH ELEC HEAT 208/230-1-60
USE COPPER CONDUCTORS ONLY
K3
COM
NO
A K7_ B
FAN SWITCH
PRESSURE CONTROLS
COOL
AUTO
HEAT
TC1
TC1
ANT
ROOM THERMOSTAT
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
RELAY, ELEC HEAT 24 VDC COIL (20 KW ELEC HEAT)
RELAY, ELEC HEAT 24 VDC COIL (25 KW ELEC HEAT)
RELAY, ELEC HEAT 24 VDC COIL (20 & 25 KW ELEC HEAT)
RELAY, LIMIT TRIP 24VDC COIL
SWITCH, LOW PRESSURE (OPTIONAL)
SWITCH, LIMIT
LOCK OUT RELAY (OPTIONAL)
CONTACTOR, COMPR & OD_FAN
OUTDOOR FAN MOTOR
SOCKET/PLUG CONNECTION, 24V
SOCKET/PLUG CONNECTION, LINE VOLTAGE
COMP. START & OUTDOOR FAN RUN CAPACITOR
COMP. START (ALTERNATE)
OUTDOOR FAN CAPACITOR, RUN (ALTERNATE)}
TRANSFORMER, 24V, 40 VA
TERMINAL BLOCK, FCB
SOCKET/PLUG CONECTIONT ON FCB, LOW VOLTAGE
SOCKET/PLUG CONNECTION ON FCB, LINE VOLTAGE
START ASSIST
CRANKCASE HEATER (OPTIONAL)
ANTI-SHORT CYCLE TIMER (OPTIONAL)
COMPRESSOR
FAN CONTROL BOARD
FUSE (5, 7.5, 10, 15, 20 & 25 KW ELEC HEAT)
FUSE (7.5, 10, 15,20 & 25 KW ELEC HEAT)
FUSE (15, 20 & 25 KW ELEC HEAT)
FUSE 24V SECONDARY, 5 AMP
SWITCH, HIGH PRESSURE
ELEC HEATER (OPTIONAL: ALL KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 7.5, 10, 15, 20,
& 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 20 & 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 15, 20 & 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 20 & 25 KW ELEC HEAT
INDOOR FAN MOTOR
RELAY, INDOOR FAN MOTOR
RELAY, ELEC HEATER
RELAY, ELEC HEAT 24 VDC COIL (7.5, 10, 15, 20,
BLK
OPTIONAL CCH
D/P CONFIGURATION
CCH_
BLK
L1
BLK
OPTIONAL CCH
S/P CONFIGURATION
CCH
BLK
L1
GND
B
B
B
B
T1
108/PR
M1
T2
9.
8.
8
A
224/R
104/R
M1
B
PRP
(LOW)
COM
112/BR
(MED)
(LOW/MED)
K7
BLK
BRN
9
(HIGH)
(MED/HIGH)
NO
RC2
RC1
103/BR
102/Y
101/BK
S
R 1
C
PTCR
M
5
4
3
2
1
281/BR
1
C
L
G
4
3
2
1
LP
GRN
851861-UWD-A-0412
CAUTION - OPEN ALL DISCONNECTS
BEFORE SERVICING THIS UNIT
SELECT SPEED TAP TO ATTAIN DESIRED AIRFLOW.
M
230V
ID_FAN
N
228/BK
229/BL
HP
127/PR
280/BL
5
4
3
2
1
111/R
125/BK
OD_FAN
A
COMPR
105/R WITH ALT
CAPACITORS ONLY
B
PRP
BRN 1
BLK
M
ELEMENTARY DIAGRAM
SHUNT CONTACT ALSO USED WITH CRANKCASE
HEATER. (OPTIONAL)
7. REMOVED
817/O
813/O
816/O
809/O
L2
POWER SUPPLY W/OUT ELEC
HEAT 208/230-1-60
USE COPPER CONDUCTORS ONLY
811/O
COOLING UNIT WITH ELECTRIC HEAT
LTRIP
Johnson Controls Unitary Products
201/BR
P
30 AMP 250 VOLT
60 AMP 250 VOLT
REPLACE WITH/REMPLACER PAR:
REPLACE WITH/REMPLACER PAR:
BUSSMAN FRN-R30
BUSSMAN FRN-60
CHASE SHAWNUT TR30R
CHASE SHAWNUT TR60R
LITTLE FUSE FLN-R30
LITTLE FUSE FLN-R60
718432-YTG-E-0314
Typical DEZ048 Cooling Only 208/230-1-60 Volt Wiring Diagram
53
BR
L2
L1
102/Y
L3
COMPR
103/BR
802/BK
804/BK
803/BK
804/BK
805/BL
101/BK
HP
LP
NO
NO
803/BK
712/BL
704/BL
701/Y
816/O
813/O
707/R
810/BL
PRP
BRN
HTR3
HTR2
BLK
COM
COM
HTR1
K4
K3
T
L2 L2
809/O
FAN CONTROL
204/BR K2 K1
128/BK
L1 L1
TRANS
FAN
(LOW)
BLK
BLK
5
4
3
2
1
715/R
5
4
3
2
1
816/O
715/R
811/O
817/O
712/BL
707/R
BRN OUTDOOR
FAN
PRP
BLK
(HIGH)
(MED/HIGH)
(MED)
(LOW/MED)
CCH
713/PR
705/PR
702/PR
815/BL
812/R
706/BK
810/BL
814/BL
703/BK
1
K6
K5
B
A
201/BR
203/BR
281/BR
806/BR
NO
K7
2
3
COM
7
COM
COM
202/Y
227/BK
716/PR
708/PR
815/R
714/BK
LS
814/BL
809/O
811/O
808/BR
CONTROL BOX
711/BK
233/BL
235/Y
2
226/0
280/BL
806/BR
805/BL
801/BL
M
230V
C
L
G
N
ID_FAN
4
3
2
1
281/BR
125/BK
GRN
127/PR
ELECTRIC HEAT SECTION
HTR5
HTR4
NO
NO
1
104/R
B
710/PR
127/PR
129/PR
709/BK
710/PR
703/BK-711/BK
705/PR-713/PR
706/BK-714/BK
708/PR-716/PR
LR (SEE NOTE 7)
225/BK
224/R
102/Y
M1
FU1
FU2
FU3
FU4
FU5
FU6
ASCT (SEE NOTE 7)
A
807/BL
101/BK
BLK
202/Y
807/BL
709/BK
109/BK
125/BK
NOTE: JUMPER 204/BR NOT
PRESENT W/ELECTRIC HEAT
225/BK
LT
H3 LH
H2 FL
808/BR
24 L1 L1 H1 L2
VAC
202/Y
205/R
PR
GND
LUG
129/PR
701/Y
702/PR
103/BR
201/BR
226/O
203/BR
C
O
W1
W2
G
Y
R
RC1/RC2
224/R
817/O
813/O
FS
T1
24V SEC COM
704/BL
279/W
278/
PR
277/Y
104/R
C
240
208
109/BK
2 SPEED
BR
PR 105/R
RC1
ALTERNATE CAPACITOR WIRING
108/PR
104/R
RC2
103/BR
5
7.5 & 10
15
20 & 25
FU1 & 2
FU1 & 2
FU1 & 2
FU1-6
N/A
FU3&F4
FU3-6
N/A
KW
LTRIP
K4
K5
K6
K7
LP
LS
LR
M1
OD_FAN
P2/S2
P3/S3
RC1/RC2
RC1
RC2
T1
TB1
S2/P2
S3/P3
PTCR
HTR3
HTR4
HTR5
ID_FAN
K1
K2
K3
CCH
ASCT
COMPR
FCB
FU1-2
FU3-4
FU5-6
F24
HP
HTR1
HTR2
{LEGEND
L2
L2
FU5
FU3
FU1
714/BK
706/BK
711/BK
703/BK
709/BK
HP
LP
DEVICE
OFF
TH2
TH1
TC2
ON
TH2 ANT
TH1 ANT
TC2
ANT
AUTO
OPERATING PRESSURE (PSIG)
OPEN
+/CLOSE
+/625
25
525
25
7
3
22
5
W2
W1
Y2
Y1
G
Rc
R
C
O
W1
W2
G
Y
TB1
R
2_SPEED
K2
K1
H2
FU24
H3
C
O
W1
W2
G
Y
6
5
4
3
H4
FL
1
4
3
2
1
2
TB1
24V
P2
S3
FCB
LH
T
L1
L1
H1
L2
L2
L2
L1
L1
HTR5
HTR4
HTR3
HTR2
S2
P3
6
810/BL
812/R
808/BR
702/PR
701/Y
FU6
FU4
240V
128/BK
129/PR
716/PR
708/PR
713/PR
705/PR
FU2
814/BL
815/R
6. WIRE 204/BR IS REMOVED WHEN ELECTRIC HEAT IS INSTALLED.
K6
K5
K3
K4
278/PR
277/Y
203/BR
279/W
5. SEE UNIT NAMEPLATE FOR MAXIMUM FUSE AND/OR CIRCUIT BREAKER SIZE
AND MINIMUM CIRCUIT AMPACITY.
4. FACTORY WIRED FOR 230V. FOR 208V OPERATION, MOVE WIRE 108/PR TO
208V TAP ON TRANSFORMER T1.
A
A
A
A
LS
C
T1
M1_
202/Y
205/R
HTR1
24V SEC
75 VA
2. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS
OPERTION.IF ANY OF THE WIRE, AS SUPPLIED WITH THE UNIT MUST BE
REMOVED,IT MUST BE REPLACED WITH TYPE 105 DEGREE C, 600 VOLT
WIRE OREQUIVALENT CLEARLY RENUMBERED FOR IDENTIFICATION. VERIFY
PROPER OPERATION AFTER SERVICING.
3. MOTORS INHERENTLY PROTECTED
L1
208V
PRI
1. ALL FIELD WIRING TO BE ACCOMPLISHED FOLLOWING CITY, LOCAL AND/OR
NATIONAL CODES IN EFFECT AT TIME OF INSTALLATION OF THIS UNIT.
NOTES:
226/O
715/R
K6
COM
NO
LTRIP
ECM
707/R
K4
COM
NO
225/BK
712/BL
704/BL
K5
COM
NO
710/PR
109/BK
POWER SUPPLY WITH ELEC HEAT 208/230-1-60
USE COPPER CONDUCTORS ONLY
K3
COM
NO
A K7_ B
FAN SWITCH
PRESSURE CONTROLS
COOL
AUTO
HEAT
TC1
TC1
ANT
ROOM THERMOSTAT
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
RELAY, ELEC HEAT 24 VDC COIL (20 KW ELEC HEAT)
RELAY, ELEC HEAT 24 VDC COIL (25 KW ELEC HEAT)
RELAY, ELEC HEAT 24 VDC COIL (20 & 25 KW ELEC HEAT)
RELAY, LIMIT TRIP 24VDC COIL
SWITCH, LOW PRESSURE (OPTIONAL)
SWITCH, LIMIT
LOCK OUT RELAY (OPTIONAL)
CONTACTOR, COMPR & OD_FAN
OUTDOOR FAN MOTOR
SOCKET/PLUG CONNECTION, 24V
SOCKET/PLUG CONNECTION, LINE VOLTAGE
COMP. START & OUTDOOR FAN RUN CAPACITOR
COMP. START (ALTERNATE)
OUTDOOR FAN CAPACITOR, RUN (ALTERNATE)}
TRANSFORMER, 24V, 40 VA
TERMINAL BLOCK, FCB
SOCKET/PLUG CONECTIONT ON FCB, LOW VOLTAGE
SOCKET/PLUG CONNECTION ON FCB, LINE VOLTAGE
START ASSIST
CRANKCASE HEATER (OPTIONAL)
ANTI-SHORT CYCLE TIMER (OPTIONAL)
COMPRESSOR
FAN CONTROL BOARD
FUSE (5, 7.5, 10, 15, 20 & 25 KW ELEC HEAT)
FUSE (7.5, 10, 15,20 & 25 KW ELEC HEAT)
FUSE (15, 20 & 25 KW ELEC HEAT)
FUSE 24V SECONDARY, 5 AMP
SWITCH, HIGH PRESSURE
ELEC HEATER (OPTIONAL: ALL KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 7.5, 10, 15, 20,
& 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 20 & 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 15, 20 & 25 KW ELEC HEAT)
ELEC HEATER (OPTIONAL: 20 & 25 KW ELEC HEAT
INDOOR FAN MOTOR
RELAY, INDOOR FAN MOTOR
RELAY, ELEC HEATER
RELAY, ELEC HEAT 24 VDC COIL (7.5, 10, 15, 20,
BLK
OPTIONAL CCH
D/P CONFIGURATION
CCH_
BLK
L1
BLK
OPTIONAL CCH
S/P CONFIGURATION
CCH
BLK
L1
GND
B
B
B
B
T1
108/PR
M1
T2
9.
8.
8
A
224/R
104/R
M1
B
PRP
(LOW)
COM
112/BR
(MED)
(LOW/MED)
K7
BLK
BRN
9
(HIGH)
(MED/HIGH)
NO
RC2
RC1
103/BR
102/Y
101/BK
S
R 1
C
PTCR
M
5
4
3
2
1
281/BR
1
C
L
G
4
3
2
1
LP
GRN
851862-UWD-A-0412
CAUTION - OPEN ALL DISCONNECTS
BEFORE SERVICING THIS UNIT
SELECT SPEED TAP TO ATTAIN DESIRED AIRFLOW.
M
230V
ID_FAN
N
228/BK
229/BL
HP
127/PR
280/BL
5
4
3
2
1
111/R
125/BK
OD_FAN
A
COMPR
105/R WITH ALT
CAPACITORS ONLY
B
PRP
BRN 1
BLK
M
ELEMENTARY DIAGRAM
SHUNT CONTACT ALSO USED WITH CRANKCASE
HEATER. (OPTIONAL)
7. REMOVED.
817/O
813/O
816/O
809/O
L2
POWER SUPPLY W/OUT ELEC
HEAT 208/230-1-60
USE COPPER CONDUCTORS ONLY
811/O
COOLING UNIT WITH ELECTRIC HEAT
201/BR
P
54
30 AMP 250 VOLT
60 AMP 250 VOLT
REPLACE WITH/REMPLACER PAR:
REPLACE WITH/REMPLACER PAR:
BUSSMAN FRN-R30
BUSSMAN FRN-60
CHASE SHAWNUT TR30R
CHASE SHAWNUT TR60R
LITTLE FUSE FLN-R30
LITTLE FUSE FLN-R60
718432-YTG-E-0314
Typical DEZ060 Cooling Only 208/230-1-60 Volt Wiring Diagram
Johnson Controls Unitary Products
2
233/BL
235/Y
L2
L1
126/Y
L3
COMPR
123/BL
802/BK
804/BK
803/BK
804/BK
805/BL
RC2
810/BL
BLK
PRP
BRN
710/O
707/O
717/R
FU3
FU6
FU7
FU9
L2 L2
L1 L1
TRANS
FAN
(LOW)
723/PR
LS
701/O
721/Y
(HIGH)
(MED/HIGH)
(MED)
(LOW/MED)
719/O
713/PR
722/R
717/R
707/O
706/PR
702/PR
723/PR
703/R
128/BK
121/BK
BLK
202/Y
807/BL
225/BK
224/R
5
4
3
2
1
NO
K3
720/Y
712/BL
718/BK
708/Y
705/BL
704/BK
COM
5
4
3
2
1
1
M
230V
C
109/BK
C
L
G
N
ID_FAN
4
3
2
1
HTR5
HTR4
HTR2
HTR1
811/O
281/BR
125/BK
GRN
127/PR
HTR6
HTR3
CONTROL BOX
226/0
280/BL
105/BL
126/Y
201/BR
203/BR
281/BR
806/BR
127/PR
108/PR
129/PR
710/O
201/BR
COM
721/Y
ELECTRIC HEAT SECTION
809/O
811/O
808/BR
810/BL
722/R
NO
K7
212/R
711/PR
M1
T1
208
24V SEC COM
240
COOL
AUTO
HEAT
HP
LP
OFF
TH2
TH1
TC2
ON
AUTO
TH2 ANT
TH1 ANT
TC2
ANT
FAN SWITCH
A
W2
W1
Y2
Y1
G
Rc
R
OPERATING PRESSURE (PSIG)
OPEN
+/CLOSE
+/625
25
525
25
7
3
22
5
PRESSURE CONTROLS
TC1
TC1
ANT
ROOM THERMOSTAT
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
226/O
L1
C
O
W1
W2
G
Y
TB1
R
2 SPEED
LTRIP ECM
K2
H2
FU24
H3
H4
FL
LH
T
L1
L1
H1
L2
L2
L2
L1
C
O
W1
W2
G
Y
TB1
24V
P2
S3
6
5
4
3
2
1
4
3
2
1
M3
M3
M3
M2
M2
M2
S2
P3
T3
T2
T1
T3
T2
T1
6
709/R
810/BL
808/BR
809/O
701/O
A
6. WIRE 204/BR IS REMOVED WHEN ELECTRIC HEAT IS INSTALLED.
5. SEE UNIT NAMEPLATE FOR MAXIMUM FUSE AND/OR CIRCUIT BREAKER SIZE
AND MINIMUM CIRCUIT AMPACITY.
4. FACTORY WIRED FOR 230V. FOR 208V OPERATION, MOVE WIRE 108/PR TO
208V TAP ON TRANSFORMER T1.
3. THREE PHASE MOTORS ARE INHERENTLY PROTECTED UNDER PRIMARY
SINGLE PHASE CONDITIONS.
2. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS
OPERTION.IF ANY OF THE WIRE, AS SUPPLIED WITH THE UNIT MUST BE
REMOVED,IT MUST BE REPLACED WITH TYPE 105 DEGREE C, 600 VOLT
WIRE OREQUIVALENT CLEARLY RENUMBERED FOR IDENTIFICATION. VERIFY
PROPER OPERATION AFTER SERVICING.
B
203/BR
279/W
278/PR
277/Y
723/PR
M2
A
HTR6
129/PR
B
L3
HTR3
128/BK
CB
202/Y
K3
LS
3.2
HTR5
HTR4
HTR2
HTR1
702/PR
205/R
720/Y
712/BL
718/BK
708/Y
705/BL
704/BK
710/O
711/PR
1. ALL FIELD WIRING TO BE ACCOMPLISHED FOLLOWING CITY, LOCAL AND/OR
NATIONAL CODES IN EFFECT AT TIME OF INSTALLATION OF THIS UNIT.
NOTES:
B
K1
L3
719/O
FU9
FCB
L2
713/PR
FU8
225/BK
K7
CIRCUIT BREAKER
COMPRESSOR
FAN CONTROL BOARD
FUSE (10, 15, 20 & 25 KW ELEC HEAT)
FUSE (10, 15, 20 & 25 KW ELEC HEAT)
FUSE (20 & 25 KW ELEC HEAT)
HIGH PRESSURE SWITCH
ELECTRIC HEATER (10, 15, 20 & 25 KW)
ELECTRIC HEATER (20 & 25 KW)
INDOOR FAN MOTOR
RELAY, ELECTRIC HEAT
RELAY LIMIT TRIP 24 VDC COIL
LOW PRESSURE SWITCH
LIMIT SWITCH
CONTACTOR, COMPRESSOR & OUTDOOR FAN
CONTACTOR, ELECTRIC HEAT
CONTACTOR, ELECTRIC HEAT
OUTDOOR FAN MOTOR
SOCKET/PLUG CONNECTION, 24V
SOCKET/PLUG CONNECTION, LINE VOLTAGE
RUN CAPACITOR
TRANSFORMER 24V 75VA
TERMINAL BLOCK, FCB
DEVICE
CB
COMPR
FCB
FU1-3
FU4-6
FU4-9
HP
HTR1-3
HTR4-6
ID_FAN
K3
K7
LP
LS
M1
M2
M3
OD_FAN
P2/S2
P3/S3
RC2
T1
TB1
LEGEND
L1
L3
L2
L1
717/R
707/O
706/PR
703/R
FU7
FU6
FU5
FU4
FU3
FU2
FU1
A
B
201/BR
B
M3
A
8
L1
C
T1
(HIGH)
(MED/HIGH)
(MED)
(LOW/MED)
(LOW)
722/R
K3
COM
NO
224/R
212/R
721/Y
4
208V
PRI
105/BL
24V SEC
75 VA
T2
240V
M1
5
4
3
2
5
4
3
2
1
M
230V
280/BL
1
K7
ID_FAN
229/BL
BLK
4
3
2
1
LP
GRN
PRP
BRN 1
BLK
OD_FAN
851846-UWD-A-0412
M
COMPR
M
CAUTION - OPEN ALL DISCONNECTS
BEFORE SERVICING THIS UNIT
C
L
G
N
COM
125/BK
PRP
BRN
L3
RC2
126/Y
L1
L2 3
123/BL
121/BK
228/BK
NO
127/PR
HP
T1
281/BR
P5
1
M1
ELEMENTARY DIAGRAM
8. SELECT SPEED TAP TO OBTAIN DESIRED AIR FLOW.
7. REMOVED.
T3
M1
M1
L2
POWER SUPPLY WITHOUT
ELECTRIC HEAT 208/230-3-60
109/BK
POWER SUPPLY
208/230-3-60
USE COPPER
CONDUCTORS ONLY
108/PR
108/PR
123/BL
709/R
719/O
125/BK
128/BK
109/BK
NOTE: JUMPER 204/BR NOT
PRESENT W/ELECTRIC HEAT
809/O
FAN CONTROL
BRN OUTDOOR
FAN
PRP
BLK
T
H3 LH
225/BK
706/PR
FU5
204/BR K2 K1
808/BR
H2 FL
LT
GND
LUG
711/PR
FU2
713/PR
703/R
FU4
FU8
709/R
FU1
129/PR
702/PR
701/O
BRN
105/BL
24 L1 L1 H1 L2
VAC
202/Y
205/R
202/Y
227/BK
806/BR
805/BL
801/BL
PRP
226/O
C
O
W1
121/BK
HP
LP
G
Y
R
W2
803/BK
720/Y
712/BL
718/BK
708/Y
705/BL
704/BK
FS
7
2
203/BR
279/W
278/PR
277/Y
B
A
LR (SEE NOTE 7)
807/BL
1
3
ASCT (SEE NOTE 7)
212/R
205/R
224/R
LTRIP
CB
FU1, FU2, FU3, FU4
FU5, FU6, FU7, FU8, FU9
50 AMP
250 VOLT
REPLACE WITH/REMPLACER PAR
BUSSMAN
FRN-R50
CHASE SHAWMUT
TR50R
LITTLEFUSE
FLN-R50
2 SPEED
M2
GND
811/O
Johnson Controls Unitary Products
M3
P
COOLING UNIT WITH ELECTRIC HEAT
718432-YTG-E-0314
Typical DEZ036, 060 Cooling Only 208/230-3-60 volt Wiring Diagram
55
C
T1
480
277/Y
212/R
8
K3
7
A
703/R
B
9
L2
L1
126/Y
L3
COMPR
123/BL
802/BK
804/BK
803/BK
804/BK
805/BL
803/BK
121/BK
HP
LP
FS
202/Y
BLK
PRP
BRN
7
2
RC2
LT
713/PR
706/PR
(LOW)
LS
(HIGH)
(MED/HIGH)
(MED)
(LOW/MED)
BRN OUTDOOR
FAN
PRP
BLK
719/O
720/Y
707/O
708/Y
809/O
FAN CONTROL
209/R
5
4
3
2
1
120/BK
T2
131/PR
120/BK
125/BK
127/PR
T2
720/Y
712/BL
718/BK
708/Y
705/BL
704/BK
5
4
3
2
1
1
M
230V
C
L
G
N
ID_FAN
4
3
2
1
HTR5
HTR4
HTR2
HTR1
ELECTRIC HEAT SECTION
809/O
811/O
808/BR
M1
COM
226/0
281/BR
125/BK
GRN
127/PR
HTR6
HTR3
T2
460V
T2
575V
126/Y
201/BR
203/BR
281/BR
806/BR
105/BL
COOL
AUTO
HEAT
HP
LP
OFF
TH2
TH1
TC2
ON
AUTO
TH2 ANT
TH1 ANT
TC2
ANT
FAN SWITCH
W2
W1
Y2
Y1
G
Rc
R
A
OPERATING PRESSURE (PSIG)
OPEN
+/CLOSE
+/675
25
575
25
7
3
22
5
PRESSURE CONTROLS
TC1
TC1
ANT
ROOM THERMOSTAT
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
226/O
K1
L1
C
O
W1
W2
G
Y
TB1
R
2 SPEED
LTRIP ECM
K2
719/O
H2
FU24
H3
H4
FL
LH
C
O
W1
W2
G
Y
TB1
24V
6
5
4
3
2
1
4
L1
T
3
1
2
K4
K4
L1
P2
S3
K3
K4
H1
L2
L2
L2
L1
9
713/PR
FCB
8
717/R
K3
K3
S2
P3
6
5
4
6
5
4
6
710/O
711/PR
709/R
203/BR
279/W
278/PR
277/Y
202/Y
810/BL
808/BR
809/O
814/Y
813/BR
206/BR
209/R
205/R
720/Y
712/BL
718/BK
708/Y
705/BL
704/BK
A
K4
LS
3.2
HTR5
HTR4
HTR2
HTR1
6. WIRE 204/BR IS REMOVED WHEN ELECTRIC HEAT IS INSTALLED.
5. SEE UNIT NAMEPLATE FOR MAXIMUM FUSE AND/OR CIRCUIT BREAKER SIZE
AND MINIMUM CIRCUIT AMPACITY.
4. FACTORY WIRED FOR 460V OR 575V.
3. THREE PHASE MOTORS ARE INHERENTLY PROTECTED UNDER PRIMARY
SINGLE PHASE CONDITIONS.
2. CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS
OPERTION.IF ANY OF THE WIRE, AS SUPPLIED WITH THE UNIT MUST BE
REMOVED,IT MUST BE REPLACED WITH TYPE 105 DEGREE C, 600 VOLT
WIRE OREQUIVALENT CLEARLY RENUMBERED FOR IDENTIFICATION. VERIFY
PROPER OPERATION AFTER SERVICING.
1. ALL FIELD WIRING TO BE ACCOMPLISHED FOLLOWING CITY, LOCAL AND/OR
NATIONAL CODES IN EFFECT AT TIME OF INSTALLATION OF THIS UNIT.
NOTES:
B
225/BK
K7
CIRCUIT BREAKER
COMPRESSOR
FAN CONTROL BOARD
FUSE (10, 15, 20 & 25 KW ELEC HEAT)
FUSE (10, 15, 20 & 25 KW ELEC HEAT)
FUSE (20 & 25 KW ELEC HEAT)
HIGH PRESSURE SWITCH OPENS @ 625 PSIG
ELECTRIC HEATER (10, 15, 20 & 25 KW)
ELECTRIC HEATER (20 & 25 KW)
INDOOR FAN MOTOR
RELAY, ELECTRIC HEAT
RELAY, ELECTRIC HEAT
RELAY LIMIT TRIP 24 VDC COIL
LOW PRESSURE SWITCH
LIMIT SWITCH
CONTACTOR, COMPRESSOR & OUTDOOR FAN
OUTDOOR FAN MOTOR
SOCKET/PLUG CONNECTION, 24V
SOCKET/PLUG CONNECTION, LINE VOLTAGE
TRANSFORMER 24V 75VA
TERMINAL BLOCK, FCB
TRANSFORMER, 460-575V/230V 2.2kVA
DEVICE
CB
COMPR
FCB
FU1-3
FU4-6
FU4-9
HP
HTR1-3
HTR4-6
ID_FAN
K3
K4
K7
LP
LS
M1
OD_FAN
P2/S2
P3/S3
T1
TB1
T2
LEGEND
9
7
707/O
8
7
706/PR
703/R
POWER SUPPLY WITH
460/575-3-60
USE COPPER
CONDUCTORS ONLY
B
B
CB
K3
A
HTR6
HTR3
L3
A
M1
B
PRI
131/PR
105/BL
8
(HIGH)
(MED/HIGH)
5
4
(MED) 3
2
5
4
3
2
1
NO
281/BR
1
M
230V
ID_FAN
C
L
G
N
228/BK
COM
229/BL
HP
K7
4
3
2
1
LP
L1
GRN
125/BK
PRP
OD_FAN
851847-UWD-A-0412
M
COMPR
M
BRN 1
BLK
L3
L2 3
127/PR
PRP
BRN
BLK
T2
6
5
4
3
2
RC2
126/Y
123/BL
121/BK
120/BK
1
T1
280/BL
P5
(LOW) 1
C
T1
(LOW/MED)
224/R
212/R
24V SEC
75 VA
T2
480V
M1
M1
8. SELECT SPEED TAP TO OBTAIN DESIRED AIR FLOW.
7. REMOVED.
T3
L2
L1
CAUTION - OPEN ALL DISCONNECTS
BEFORE SERVICING THIS UNIT
M1
201/BR
ELEMENTARY DIAGRAM
109/BK
POWER SUPPLY WITHOUT
ELECTRIC HEAT 460/575-3-60
108/PR
280/BL
108/PR
131/PR
710/O
131/PR
K7
711/PR
123/BL
709/R
225/BK
NO
125/BK
127/PR
CONTROL BOX
121/BK
BLK
202/Y
807/BL
120/BK
109/BK
NOTE: JUMPER 204/BR NOT
PRESENT W/ELECTRIC HEAT
T
H3 LH
L1 L1
204/BR K2 K1
808/BR
L2 L2
206/BR
BRN
105/BL
202/Y
TRANS
FAN
813/BR
814/Y
PRP
233/BL
235/Y
H2 FL
225/BK
811/O
B
K4
A
810/BL
9
8
7
717/R
6
5
4
718/BK
B
A
227/BK
806/BR
2
24 L1 L1 H1 L2
VAC
205/R
810/BL
6
1
807/BL
LR (SEE NOTE 7)
206/BR
814/Y 813/BR
712/BL
5
4
705/BL
203/BR
226/O
C
O
704/BK
279/W
W1
W2
G
Y
R
201/BR
24V SEC COM
109/BK
212/R
205/R
209/R
224/R
108/PR
CB
278/PR
L3
L2
805/BL
801/BL
575
575
3
460
460
575
GND
LUG 224/R
460
460
460
ASCT (SEE NOTE 7)
575
575
230
709/R
717/R
703/R
711/PR
713/PR
706/PR
710/O
719/O
707/O
2 SPEED
230
230
230
TERMINAL BLOCK
L1
LTRIP
230
230
460
GND
811/O
575
56
P
COOLING UNIT WITH ELECTRIC HEAT
718432-YTG-E-0314
Typical DEZ036, 060 Cooling Only 460-3-60 volt Wiring Diagram
Johnson Controls Unitary Products
718432-YTG-E-0314
Typical DEQ060 Cooling Only 208/230-1-60 volt Wiring Diagram
Johnson Controls Unitary Products
57
718432-YTG-E-0314
Typical DEQ036-048 Cooling Only 208/230-3-60 volt Wiring Diagram
58
Johnson Controls Unitary Products
718432-YTG-E-0314
Typical DEQ060 Cooling Only 208/230-3-60 volt Wiring Diagram
Johnson Controls Unitary Products
59
718432-YTG-E-0314
Typical DEQ036-048 Cooling Only 460-3-60 volt Wiring Diagram
60
Johnson Controls Unitary Products
718432-YTG-E-0314
Typical DEQ060 Cooling Only 460-3-60 volt Wiring Diagram
Johnson Controls Unitary Products
61
718432-YTG-E-0314
Typical DEX024-048 Cooling Only 208/230-1-60 volt Wiring Diagram
62
Johnson Controls Unitary Products
718432-YTG-E-0314
Typical DEX036-048 Cooling Only 208/230-3-60 volt Wiring Diagram
Johnson Controls Unitary Products
63
718432-YTG-E-0314
Typical DEX036-048 Cooling Only 460-3-60 volt Wiring Diagram
64
Johnson Controls Unitary Products
718432-YTG-E-0314
DEX/DEQ/DEX Weights and Dimensions
Unit 4 Point Load Location
"D"
CENTER OF
GRAVITY
FRONT
OF
UNIT
"C"
"A"
49-1/8
Table 1:
Y
47-1/4
DEZ 4 Point Load Weight
Weight (lbs.)
Center of Gravity
Model
(Tons) Shipping Operating
X
Y
DEZ024
379
374
23
23.25
(2.0)
DEZ030
380
375
23
22.25
(2.5)
DEZ036
384
379
23
22.25
(3.0)
DEZ042
405
400
23
21.25
(3.5)
DEZ048
406
401
21.5
21.75
(4.0)
DEZ060
410
405
23.5
22.75
(5.0)
Table 2:
"B"
X
4 Point Load Location (lbs.)
A
B
C
D
92
85
95
102
88
82
99
106
89
83
100
107
90
83
109
118
98
80
101
123
95
92
107
110
DEQ 4 Point Load Weight
Weight (lbs.)
Center of Gravity
Model
(Tons) Shipping Operating
X
Y
DEQ024
351
346
22.25
25
(2.0)
DEQ030
391
386
22.25
25
(2.5)
DEQ036
401
396
22.25
25
(3.0)
DEQ042
411
406
22.25
25
(3.5)
DEQ048
445
440
22.25
25
(4.0)
DEQ060
457
452
22.25
25
(5.0)
Johnson Controls Unitary Products
4 Point Load Location (lbs.)
A
B
C
D
94
82
79
91
105
92
88
101
108
94
91
104
110
96
93
106
120
104
101
115
123
107
103
119
65
718432-YTG-E-0314
Table 3:
DEX 4 Point Load Weight
Weight (lbs.)
Center of Gravity
Model
(Tons) Shipping Operating
X
Y
DEX024
360
355
22.25
25
(2.0)
DEX030
395
390
22.25
25
(2.5)
DEX036
405
400
22.25
25
(3.0)
DEX042
415
410
22.25
25
(3.5)
DEX048
445
440
22.25
25
(4.0)
4 Point Load Location (lbs.)
A
B
C
D
96
84
81
93
106
92
89
102
109
95
92
105
111
97
94
108
120
104
101
115
DEX/DEQ/DEX Unit Accessory Weights
Unit Accessory
Model
Add Economizer
Add Electric Heat1
All
All
Weight (lbs.)
Shipping
Operating
45
40
13
12
1. Weight given is for the maximum heater size available (25 kW).
Cooling Only Unit Dimensions
HIGH VOLTAGE CONN.
7/8" DIA. KNOCKOUT
FRONT
COMPRESSOR SERVICE
ACCESS COMPARTMENT
PANEL
HIGH VOLTAGE CONN.
1-31/32" DIA. KNOCKOUT
LOW VOLTAGE CONN.
7/8" DIA. KNOCKOUT
“A”
2-3/8
(OVERALL)
SIDE SUPPLY
AIR OPENING
REFRIGERANT
CONNECTIONS
SIDE RETURN
AIR OPENING
ELECTRICAL/FILTER
SERVICE ACCESS
COMPARTMENT PANEL
17-1/4
28-1/4
22-1/4
49-1/8
(OVERALL)
2-1/2
28-1/4
22-1/4
(OVERALL)
UNIT CONDENSATE
CONNECTION 3/4" NPTF
(TRAP REQUIRED)
4-1/2
DEZ Unit Dimensions Front
Unit Model
47-1/4
3-3/4
1-1/2
Table 4:
HIGH VOLTAGE CONN.
1-23/64" DIA. KNOCKOUT
17-1/4
Table 5:
DEQ Unit Dimensions Front
Dimensions
Dimensions
“A”
Unit Model
DEZ 024, 030, 036, 042
33-1/2
DEQ 024, 030, 036
33-1/2
DEZ 048, 060
41-1/2
DEQ 042, 048, 060
41-1/2
66
“A”
Johnson Controls Unitary Products
718432-YTG-E-0314
Table 6:
DEX Unit Dimensions Front
Dimensions
Unit Model
“A”
DEX 024, 030, 036
33-1/2
DEX 042, 048
41-1/2
DEZ/DEQ/DEX Cooling Only Unit Clearances
Distance
(in.)
Direction
Distance
(in.)
Direction
Top1
36
Right
24
Front
12
Left
24
Rear
0
Bottom2 3
0
1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air
discharge outlet.
2. Units may be installed on combustable floors made from wood or class A, B or C roof covering
materials.
3. Minimum Clearance of 1inch all sides of supply air duct for the first 3 foot of duct for 20 & 25 kW., zero
inches there after. For all other heaters, zero inch clearance all sides for entire length of duct.
Note: For units applied with a roof curb, the minimum clearance may be reduced from 1 inch to 1/2 inch
between combustible roof curb material and this supply air duct.
Unit Dimensions Front and Bottom
HIGH VOLTAGE
CONN. 1-3/32"
DIA. KNOCKOUT
8-7/8
11-7/8
19-1/4
FRONT
LOW VOLTAGE
CONN. 7/8" DIA.
KNOCKOUT
GAS SUPPLY 1-5/8"
DIA. KNOCKOUT (1/2"
NPTF CONNECTION)
LOW VOLTAGE
CONN. 7/8" DIA.
KNOCKOUT
HIGH VOLTAGE
CONN. 1-31/32" x 7/8"
KNOCKOUT
4-5/8
CONDENSATE
DRAIN 3/4" NPTF
40-1/2
26-3/4
22-1/2
43-1/2
6
Johnson Controls Unitary Products
67
718432-YTG-E-0314
Unit Dimensions Back and Bottom
SIDE SUPPLY
AIR OPENING
*CONDENSER
COIL
14-1/2
28-3/8
14-1/2
BACK
BOTTOM SUPPLY
AIR OPENING
3-3/8
SIDE RETURN
AIR OPENING
14-1/2
4 4-1/4
1-3/4
15
15
1-3/4
15
28-9/16
3-1/2
1-3/4
BOTTOM RETURN
AIR OPENING
Unit Typical Duct Applications
ROOF CURB
INSTALLATION
REAR DUCT
ROOF CURB
INSTALLATION
BOTTOM DUCT
SLAB ON GROUND
INSTALLATION
68
Johnson Controls Unitary Products
718432-YTG-E-0314
Unit Typical Slab on Ground Installation
SUPPLY AIR
DUCT
RETURN AIR
DUCT
FIELD SUPPLIED
DISCONNECT SWITCH
LOCATED TO REAR OF UNIT
TO POWER SUPPLY
CONTROL WIRING
TO INDOOR
THERMOSTAT
Unit Typical Roof Curb Installation
FIELD SUPPLIED
DISCONNECT SWITCH
MOUNTED ON UNIT
TO POWER SUPPLY
CONTROL WIRING
TO INDOOR THERMOSTAT
SUPPLY AIR
DUCT
RETURN AIR
DUCT
Johnson Controls Unitary Products
69
718432-YTG-E-0314
Unit Accessory Dimensions
Roof Curb1
RECOMMENDED
DUCT SIZE
17-1/2" x 16-3/4"
42-3/4
40-3/4
3-1/2
45-1/8
17-5/8
17-1/4
43-1/4
OPENING FOR
RETURN AIR DUCT
22
OPENING FOR
SUPPLY AIR DUCT
14
1
RECOMMENDED
DUCT SIZE
17-1/8" x 21-1/2"
1. 8” Roof Curb also available.
70
Johnson Controls Unitary Products
718432-YTG-E-0314
Roof Curb Cross Section
\
1"
3/4" x 1" WIDE GASKETING FOR CURB FRAME
AND ALL DUCT SUPPORT SURFACES
UNIT BASE
UNIT BASE RAIL
WOOD NAILER
COUNTERFLASHING
8" MIN. ABOVE FINISHED ROOF
14"
CANT STRIP
CURB FRAME
INSULATION AND ROOFING MATERIAL
INSULATION
ROOF DECK AND ROOFING MATERIAL
Johnson Controls Unitary Products
71
Subject to change without notice. Printed in U.S.A.
Copyright © 2014 by Johnson Controls, Inc. All rights reserved.
York International Corporation
5005 York Drive
Norman, OK 73069
718432-YTG-E-0314
Supersedes: 718432-YTG-D-0313
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
