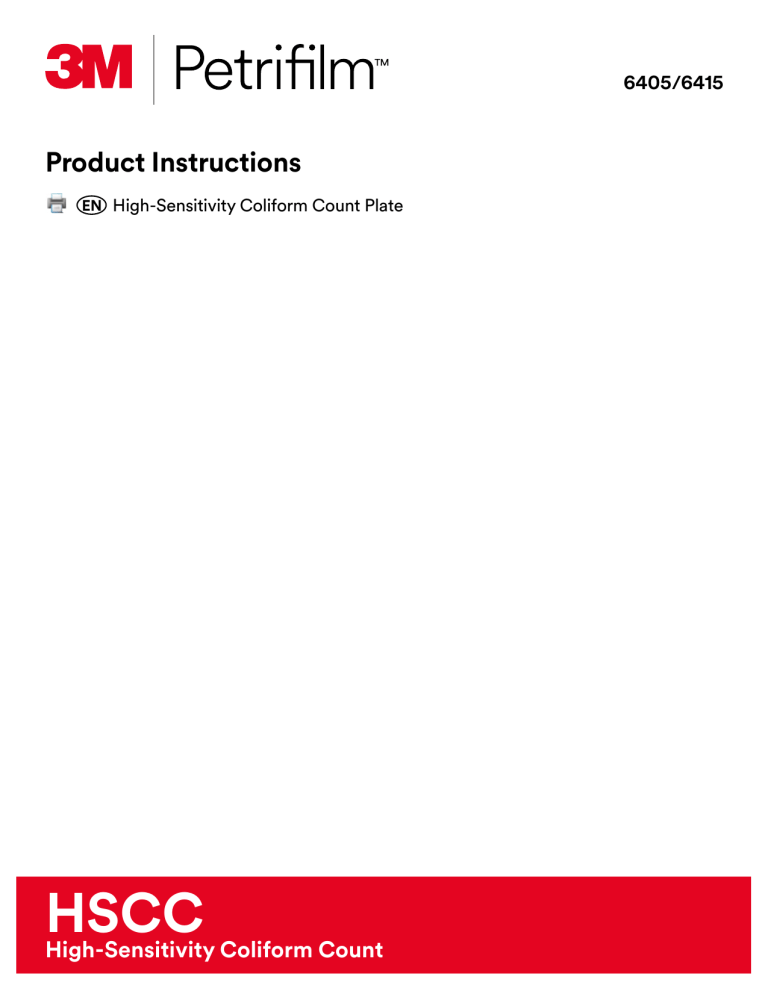

6405/6415
Product Instructions
EN High-Sensitivity Coliform Count Plate
HSCC
High-Sensitivity Coliform Count
EN (English)
Issue Date: 2019-02
Product Instructions
High-Sensitivity Coliform Count Plate
Product Description and Intended Use
The 3M™ Petrifilm™ High-Sensitivity Coliform Count (HSCC) Plate is a sample-ready-culture medium system which
contains modified Violet Red Bile (VRB) nutrients, a cold-water-soluble gelling agent, and a tetrazolium indicator that
facilitates colony enumeration. 3M Petrifilm HSCC Plates are used for the enumeration of low levels of coliforms in the
food and beverage industries. A 5 mL sample is plated onto one plate. This allows a 1-coliform-per-gram sensitivity if a
1:5 dilution of product made. A 2-coliform-per-gram sensitivity is achieved if a 1:10 dilution is used. 3M Petrifilm HSCC
Plate components are decontaminated though not sterilized. 3M Food Safety is certified to International Organization
for Standardization (ISO) 9001 for design and manufacturing. 3M Petrifilm HSCC Plates have not been evaluated with all
possible food products, food processes, testing protocols or with all possible microorganism strains.
The United States Food and Drug Administration (FDA) Bacteriological Analytical Manual (BAM)1 define coliforms as
Gram-negative rods, which produce acid and gas from lactose fermentation. Coliform colonies growing on the 3M
Petrifilm HSCC Plate produce acid, which causes the pH indicator to deepen the gel color; gas trapped around red
colonies indicates coliforms.
ISO defines coliforms by their ability to grow in method-specific, selective media. ISO method 48324, enumerating
coliforms by colony count technique, defines coliforms as acid producers on VRB with lactose (VRBL) agar. On 3M
Petrifilm HSCC Plates these acid-producing coliforms are indicated by red colonies with or without gas production. ISO
method 48313, enumerating coliforms by the most probable number (MPN) method, defines coliforms by their ability to
grow and produce gas from lactose in a selective broth. On 3M Petrifilm HSCC Plates these coliforms are indicated by red
colonies associated with gas.
AFNOR has validated 3M Petrifilm HSCC Plate in comparison to ISO method 48313 for enumeration of total coliforms.
Safety
The user should read, understand, and follow all safety information in the instructions for the 3M Petrifilm HSCC Plate.
Retain the safety instructions for future reference.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or serious injury and/or
property damage.
W WARNING
To reduce the risks associated with exposure to biohazards and environmental contamination:
• Follow current industry standards and local regulations for disposal of biohazardous waste.
To reduce the risks associated with release of contaminated product:
• Follow all product storage instructions contained in the instructions for use.
• Do not use beyond the expiration date.
To reduce the risks associated with bacterial infection and workplace contamination:
• Perform 3M Petrifilm HSCC Plate testing in a properly equipped laboratory under the control of a skilled microbiologist.
• The user must train personnel in current proper testing techniques: for example, Good Laboratory Practices6, ISO 170257
or ISO 72188.
To reduce the risks associated with misinterpretation of results:
• 3M has not documented 3M Petrifilm HSCC Plates for use in industries other than food and beverage. For example, 3M
has not documented 3M Petrifilm HSCC Plates for testing water, pharmaceuticals or cosmetics.
• Do not use 3M Petrifilm HSCC Plates in the diagnosis of conditions in humans or animals.
• 3M Petrifilm HSCC Plates do not differentiate any one coliform strain from another.
• When testing certain unprocessed foods 3M Petrifilm HSCC Plates may produce a softer gel, which may or may not
interfere with the ability to read the plate. Some of the foods that have been found to cause gel softening include some
raw shellfish and some raw flour, including mussels, oysters, scallops, shrimp, buckwheat flour, graham flour, and
organic whole-wheat flour.
• High sugar content foods may increase growth potential for gas producing non-coliform Enterobacteriaceae.
• A high level of background organisms in certain food (for example, some cheeses and some chilled unprocessed foods
including raw fish and raw milk) may elevate the number of red colonies without gas.
1
EN (English)
Consult the Safety Data Sheet for additional information.
If you have questions about specific applications or procedures, please visit our website at www.3M.com/foodsafety or
contact your local 3M representative or distributor.
User Responsibility
Users are responsible for familiarizing themselves with product instructions and information. Visit our website at
www.3M.com/foodsafety, or contact your local 3M representative or distributor for more information.
When selecting a test method, it is important to recognize that external factors such as sampling methods, testing
protocols, sample preparation, handling, and laboratory technique may influence results.
It is the user’s responsibility in selecting any test method to evaluate a sufficient number of samples with the appropriate
matrices and microbial challenges to satisfy the user that the chosen test method meets the user’s criteria.
It is also the user’s responsibility to determine that any test methods and results meet its customers’ or suppliers’
requirements.
As with any test method, results obtained from use of any 3M Food Safety product do not constitute a guarantee of the
quality of the matrices or processes tested.
Limitation of Warranties / Limited Remedy
EXCEPT AS EXPRESSLY STATED IN A LIMITED WARRANTY SECTION OF INDIVIDUAL PRODUCT PACKAGING, 3M
DISCLAIMS ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. If any 3M Food Safety Product is defective, 3M or its
authorized distributor will, at its option, replace or refund the purchase price of the product. These are your exclusive
remedies. You must promptly notify 3M within sixty days of discovery of any suspected defects in a product and return
it to 3M. Please call Customer Service (1-800-328-1671 in the U.S.) or your official 3M Food Safety representative for a
Returned Goods Authorization.
Limitation of 3M Liability
3M WILL NOT BE LIABLE TO USER OR OTHERS FOR ANY LOSS OR DAMAGE, WHETHER DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS. In no event shall
3M’s liability under any legal theory exceed the purchase price of the product alleged to be defective.
Storage
Store unopened 3M Petrifilm HSCC Plate pouches refrigerated or frozen at temperatures lower than or equal to 8°C (46°F).
Just prior to use, allow unopened pouches to come to room temperature before opening. Return unused plates to pouch.
Seal by folding the end of the pouch over and applying adhesive tape. To prevent exposure to moisture, do not refrigerate
opened pouches. Store resealed pouches in a cool dry place for no longer than four weeks. It is recommended that resealed
pouches of 3M Petrifilm HSCC Plates be stored in a freezer if the laboratory temperature exceeds 25ºC (77ºF) and/or the
laboratory is located in a region where the relative humidity exceeds 50% (with the exception of air-conditioned premises).
To store opened pouches in a freezer, place 3M Petrifilm HSCC Plates in a sealable container. To remove frozen 3M
Petrifilm HSCC Plates for use, open the container, remove the plates that are needed and immediately return remaining
plates to the freezer in the sealed container. 3M Petrifilm HSCC Plates should not be used past their expiration date. The
freezer that is used for open pouch storage must not have an automatic defrost cycle as this would repeatedly expose the
3M Petrifilm HSCC Plates to moisture which can damage the plates.
Do not use 3M Petrifilm HSCC Plates that show discoloration. Expiration date and lot number are noted on each package
of 3M Petrifilm HSCC Plates. The lot number is also noted on individual 3M Petrifilm HSCC Plates.
Disposal
After use, 3M Petrifilm HSCC Plates may contain microorganisms that may be a potential biohazard. Follow current industry
standards for plate disposal.
Instructions for Use
Sample Preparation
1. Use appropriate sterile diluents:
Butterfield’s phosphate buffered dilution water1, 0.1% peptone water1,2, peptone salt diluent2, quarter-strength Ringer’s
solution, dipotassium hydrogen phosphate, saline solution (0.85-0.90%)2, bisulfite-free letheen broth, or distilled water.
Do not use diluents containing citrate, bisulfite or thiosulfate with 3M Petrifilm HSCC Plates; they can inhibit
growth. If citrate buffer is indicated in the standard procedure, substitute with one of the buffers listed above, warmed
to 40-45°C.
2. Blend or homogenize sample.
3. For optimal growth and recovery of microorganisms, adjust the pH of the sample suspension to 6.5 - 7.5. For acidic
products, adjust the pH with 1N NaOH. For alkaline products, adjust the pH with 1N HCl.
2
EN (English)
Plating
1. Place the 3M Petrifilm HSCC Plate on a flat, level surface.
2. Lift the top film and with the pipette perpendicular to the inoculation area dispense 5 mL of sample suspension onto the
center of bottom film.
3. Roll the top film down onto the sample to prevent trapping air bubbles.
4. Place the 3M™ Petrifilm™ High Sensitivity Spreader (Catalog #6481) on the center of the plate. Press gently on the
center of the 3M Petrifilm High Sensitivity Spreader to distribute the sample evenly. Spread the inoculum over the entire
3M Petrifilm HSCC Plate growth area before the gel is formed. Do not slide the 3M Petrifilm High Sensitivity Spreader
across the film.
5. Remove the spreader and leave the plate undisturbed for at least two to five minutes to permit the gel to form.
Incubation
Incubate plates in a horizontal position with the clear side up in stacks of no more than 10 plates. Incubate 3M Petrifilm
HSCC Plates 24 hours ± 2 hours. Several incubation times and temperatures can be used depending on current local
reference methods, some of which are listed in the section below titled “Specific Instructions for Validated Methods”.
Interpretation
1. 3M Petrifilm HSCC Plates can be counted using a standard colony counter or other illuminated magnifier. Do not count
artifact bubbles that may be present.
The interpretation of coliform colonies on the 3M Petrifilm HSCC Plate varies by method depending on current local
reference methods, some of which are listed in the section below titled “Specific Instructions for Validated Methods”.
For example:
Enumeration of colonies associated with gas:
Coliform colonies are red and closely associated (within one colony diameter) with entrapped gas.
Enumeration of colonies with or without gas for thermotolerant enumeration:
After incubating the 3M Petrifilm HSCC Plates for 24 hours ± 2 hours at 44°C ± 1°C, thermotolerant coliforms are
defined as red colonies with or without gas.
2. The circular growth area is approximately 60 cm2. Estimates can be made on plates containing greater than 150
colonies by counting the number of colonies in two or more representative squares and determining the average
number per square. Multiply the average number by 60 to determine the estimated count per plate.
3. When colonies are present in large numbers, 3M Petrifilm HSCC Plates will have a deepening of the gel color and either
or both of the following characteristics: many small, indistinct colonies and/or many gas bubbles. When this occurs,
record results as too numerous to count (TNTC). When an actual count is required, plate at a higher dilution.
4. Where necessary, colonies may be isolated for further identification. Lift the top film using proper testing technique and
pick the colony from the gel. Test using standard procedures.
5. If the plates cannot be counted within 1 hour of removal from the incubator, they may be stored for later enumeration by
freezing in a sealable container at temperatures lower than or equal to negative 15°C for no longer than one week.
For further information refer to the appropriate “3M™ Petrifilm™ High Sensitivity Coliform Count Plate Interpretation
Guide.” If you have questions about specific applications or procedures, please contact your official 3M representative
nearest you or visit our website at www.3m.com/foodsafety.
Specific Instructions for Validated Methods
AOAC® Official MethodsSM (996.02 Coliform Count in Dairy Products, High-Sensitivity Dry Rehydratable Film Method)
Incubate 3M Petrifilm HSCC Plates 24 hours ± 2 hours at 32ºC ± 1ºC.
NF Validation by AFNOR Certification
NF Validation certified method in compliance with ISO 16140-23 in comparison to ISO 48313 and ISO 48324
(3M-01/7-03/99)
Use the following details when implementing the above Instructions for Use except for Sample Preparation, refer to the
information below:
Scope of the validation: human food products.
3
EN (English)
Sample preparation:
Use only ISO listed diluents2.
Do not use diluents containing citrate, bisulfite or thiosulfate with 3M Petrifilm HSCC Plates; they can inhibit growth. If
citrate buffer is indicated in the standard procedure, substitute with one of the buffers listed above, warmed to 40-45°C.
Incubation:
Incubate 3M Petrifilm HSCC Plates 24 hours ± 2 hours at 30ºC ± 1°C or 37°C ± 1°C.
Interpretation:
Coliforms are defined as red colonies with gas on 3M Petrifilm HSCC Plates. Calculate the number of microorganisms
present in the test sample according to ISO 72188 for one plate per dilution. Estimates are outside of the scope of the NF
VALIDATION Certification.
3M-01/7-03/99
Alternative Analytical methods for Agribusiness
http://nf-validation.afnor.org/en
For more information about end of validity, please refer to NF VALIDATION certificate available on the website
mentioned above.
References
1. FDA. Bacteriological Analytical Manual (BAM), 8th Edition, Revision A, 1998. Reagents Index for BAM found at: http://
www.fda.gov/Food/FoodScienceResearch/LaboratoryMethods/ucm055791.htm.
2. ISO 6887: Microbiology of the food chain – Preparation of test samples, initial suspension and decimal dilutions for
microbiological examination.
3. ISO 4831: Microbiology of food and animal feeding stuffs – Horizontal method for the detection and enumeration of
coliforms – Most probable number technique.
4. ISO 4832: Microbiology of food and animal feeding stuffs – Horizontal method for the enumeration of coliforms –
colony-count technique.
5. ISO 16140-2: Microbiology of the food chain – Method Validation – Protocol for the validation of alternative
(proprietary) methods against a reference method
6. U.S. Food and Drug Administration. Code of Federal Regulations, Title 21, Part 58. Good Laboratory Practice for
Nonclinical Laboratory Studies.
7. ISO/IEC 17025. General requirements for the competence of testing and calibration laboratories.
8. ISO 7218: Microbiology of food and animal feeding stuffs – General rules for microbiological examination.
Explanation of Symbols
www.3M.com/foodsafety/symbols
AOAC is a registered trademark of AOAC INTERNATIONAL
Official Methods is a service mark of AOAC INTERNATIONAL
4
3M Food Safety
3M United States
3M Center
Bldg. 275-5W-05
St. Paul, MN 55144-1000
USA
1-800-328-6553
3M Europe and MEA
3M Deutschland GmbH
Carl-Shurz - Strasse 1
D41453 Neuss/Germany
+49-2131-14-3000
3M Canada
Post Office Box 5757
London, Ontario N6A 4T1
Canada
1-800-563-2921
3M United Kingdom PLC
Morley Street, Loughborough
Leicestershire
LE11 1EP
United Kingdom
+(44) 1509 611 611
3M Latin America
3M Center
Bldg. 275-5W-05
St. Paul, MN 55144-1000
USA
1-954-340-8263
3M Österreich GmbH
Euro Plaza
Gebaude J, A-1120 Wien
Kranichberggasse 4
Austria
+(43) 1 86 686-0
3M Asia Pacific
No 1, Yishun Avenue 7
Singapore, 768923
65-64508869
3M Japan
3M Health Care Limited
6-7-29, Kita-Shinagawa
Shinagawa-ku, Tokyo
141-8684 Japan
81-570-011-321
3M Australia
Bldg A, 1 Rivett Road
North Ryde, NSW 2113
Australia
61 1300 363 878
3
3M Health Care
2510 Conway Ave
St. Paul, MN 55144 USA
www.3M.com/foodsafety
© 2019, 3M. All rights reserved.
3M and Petrifilm are trademarks of 3M. Used under license in Canada.
34-8724-2446-9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
