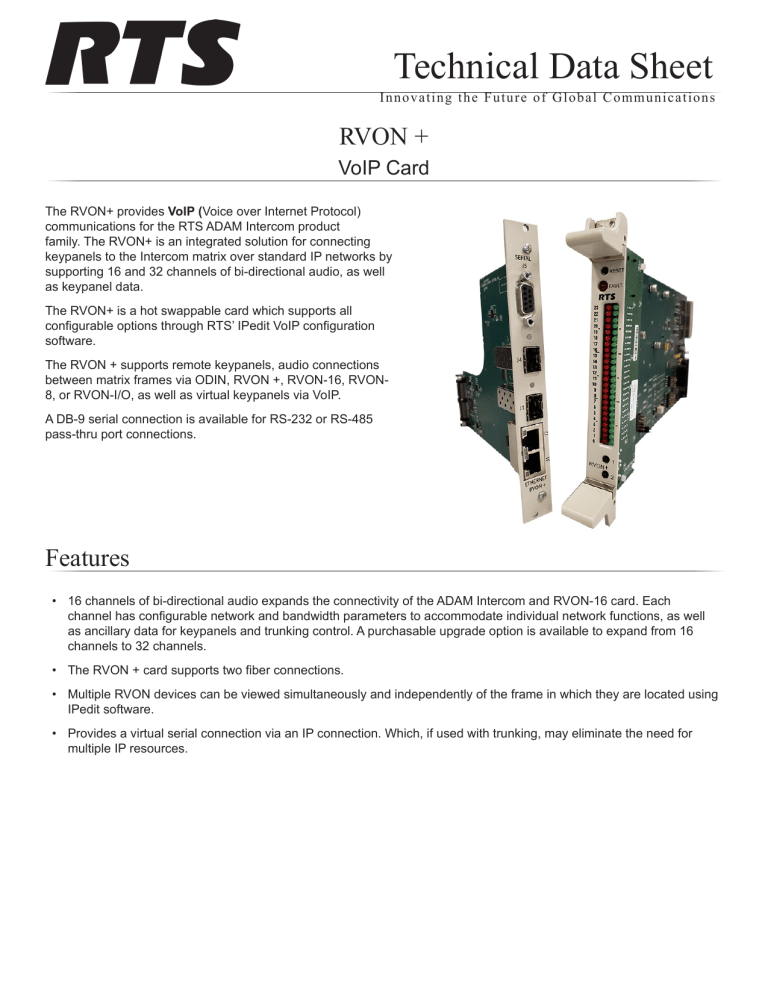

Technical Data Sheet
In n o v at i n g t h e F u t u re o f Gl o b al C o m m u n i c a t i o n s
RVON +
VoIP Card
The RVON+ provides VoIP (Voice over Internet Protocol)
communications for the RTS ADAM Intercom product
family. The RVON+ is an integrated solution for connecting
keypanels to the Intercom matrix over standard IP networks by
supporting 16 and 32 channels of bi-directional audio, as well
as keypanel data.
The RVON+ is a hot swappable card which supports all
configurable options through RTS’ IPedit VoIP configuration
software.
The RVON + supports remote keypanels, audio connections
between matrix frames via ODIN, RVON +, RVON-16, RVON8, or RVON-I/O, as well as virtual keypanels via VoIP.
A DB-9 serial connection is available for RS-232 or RS-485
pass-thru port connections.
Features
• 16 channels of bi-directional audio expands the connectivity of the ADAM Intercom and RVON-16 card. Each
channel has configurable network and bandwidth parameters to accommodate individual network functions, as well
as ancillary data for keypanels and trunking control. A purchasable upgrade option is available to expand from 16
channels to 32 channels.
• The RVON + card supports two fiber connections.
• Multiple RVON devices can be viewed simultaneously and independently of the frame in which they are located using
IPedit software.
• Provides a virtual serial connection via an IP connection. Which, if used with trunking, may eliminate the need for
multiple IP resources.
In n o v at i n g t h e F u t u re o f Gl o b al C o m m u n i c a t i o n s
Specifications
Connections
2 - RJ-45 Ethernet via backcard
1 - DB-9 serial port via backcard
2 - Fiber SFP
Physical
5.687” W x 11.024” L
Digital
Compression Bit Rate
Coding Delay Playout Delay Bandwidth
Sample Rate
G.711
64 k
125 μs
20–60ms
160–224 kbps
8k
G.729AB
8k
10 ms
20–120ms
32–112 kbps
8k
G.722
64 k
4 ms
20-60 ms
160-224 kbps
16 k
*Data Rate depends on Codec Selection
Note: The Playout Delay and Bandwidth depends on the configured amount of audio per packet.
Order Information
RVON+ 16-CH FC/BC • RVON+ 16 port Front/Back card kit
RVON+ 32-CH FC/BC • RVON+ 32 port Front/Back card kit
RVON+ UPGLIC16PORT • RVON+ Upgrade license 16 ports
The specification information is preliminary and is subject to change without notification.
Brand names mentioned are the property of their respective companies.
Bosch Security Systems, Inc. | 12000 Portland Avenue South | Burnsville, Minnesota 55337
Telephone: 877·863·4169 | Fax: (800) 323-0498
Form Number: F.01U.359.007 Rev 03
Date: June 2019
