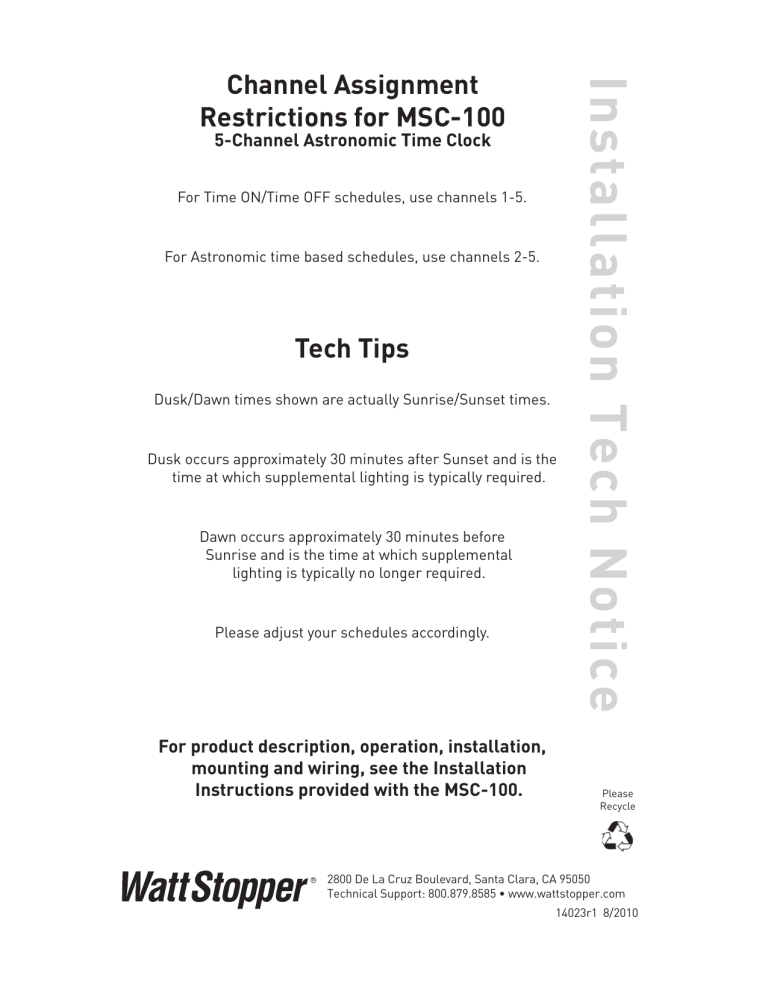

Channel Assignment Restrictions for MSC-100

5-Channel Astronomic Time Clock

For Time ON/Time OFF schedules, use channels 1-5.

For Astronomic time based schedules, use channels 2-5.

Tech Tips

Dusk/Dawn times shown are actually Sunrise/Sunset times. Dusk occurs approximately 30 minutes after Sunset and is the time at which supplemental lighting is typically required.

Dawn occurs approximately 30 minutes before Sunrise and is the time at which supplemental lighting is typically no longer required.

Please adjust your schedules accordingly.

For product description, operation, installation, mounting and wiring, see the Installation Instructions provided with the MSC-100.

Please Recycle 2800 De La Cruz Boulevard, Santa Clara, CA 95050 Technical Support: 800.879.8585 • www.wattstopper.com

14023r1 8/2010
