ORTRONICS
@ 125 EUGENE O’NEILL DRIVE

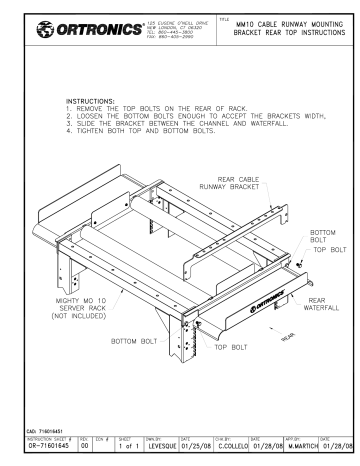

NEW LONDON, CT 06320 MM10 CABLE RUNWAY MOUNTING
TL: 860—449 3800 BRACKET REAR TOP INSTRUCTIONS
FAX: 860—405—2990
INSTRUCTIONS:
REMOVE THE TOP BOLTS ON THE REAR OF RACK.
2. LOOSEN THE BOTTOM BOLTS ENOUGH TO ACCEPT THE BRACKETS WIDTH,
5. SLIDE THE BRACKET BETWEEN THE CHANNEL AND WATERFALL.
4. TIGHTEN BOTH TOP AND BOTTOM BOLTS.
1.
bo”
REAR CABLE
RUNWAY BRACKET
BOTTOM
BOLT
MIGHTY MO 10 REAR
SERVER RACK — WATERFALL
(NOT INCLUDED)
BOTTOM BOLT |
CAD: 716016451
INSTRUCTION SHEET # REV. ECN # SHEET DWN.BY: DATE CHK.BY: DATE APP.BY: DATE
OR—71601645
00
1 of 1
LEVESQUE | 01/25/08 | C.COLLELO| 01/28/08] M.MARTICH| 01/28/08
