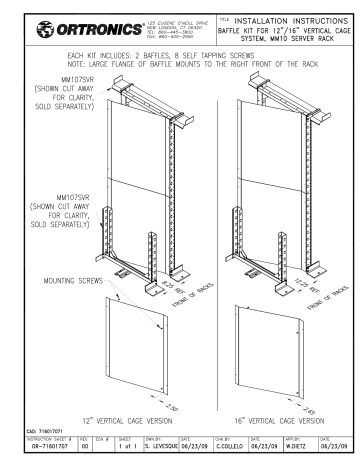

 » 125 EUGENE O'NEILL DRIVE | "- INSTALLATION INSTRUCTIONS
= ORTRONICS 222257 IBAFFLE KIT FOR 127/16” VERTICAL CAGE
FAX: 860-405-2990 SYSTEM, MM10 SERVER RACK
y
.
ol
af
EACH KIT INCLUDES: 2 BAFFLES, 8 SELF TAPPING SCREWS
NOTE: LARGE FLANGE OF BAFFLE MOUNTS TO THE RIGHT FRONT OF THE RACK
MM10/SVR
(SHOWN CUT AWAY
FOR CLARITY,
SOLD SEPARATELY)
MM107SVR
(SHOWN CUT AWAY
FOR CLARITY,
SOLD SEPARATELY)
MOUNTING SCREWS
— | |
Den N
a ~~
> Se
12” VERTICAL CAGE VERSION 16” VERTICAL CAGE VERSION
CAD: 716017071
INSTRUCTION SHEET # | REV. | ECN 4 | SHEET DWN.BY: DATE CHK-BY: DATE АРР.ВУ: DATE
OR-71601707 00 1 of 1 |S. LEVESQUE| 06/23/09 |C.COLLELO |06/23/09 |W.DIETZ 06/23/09
