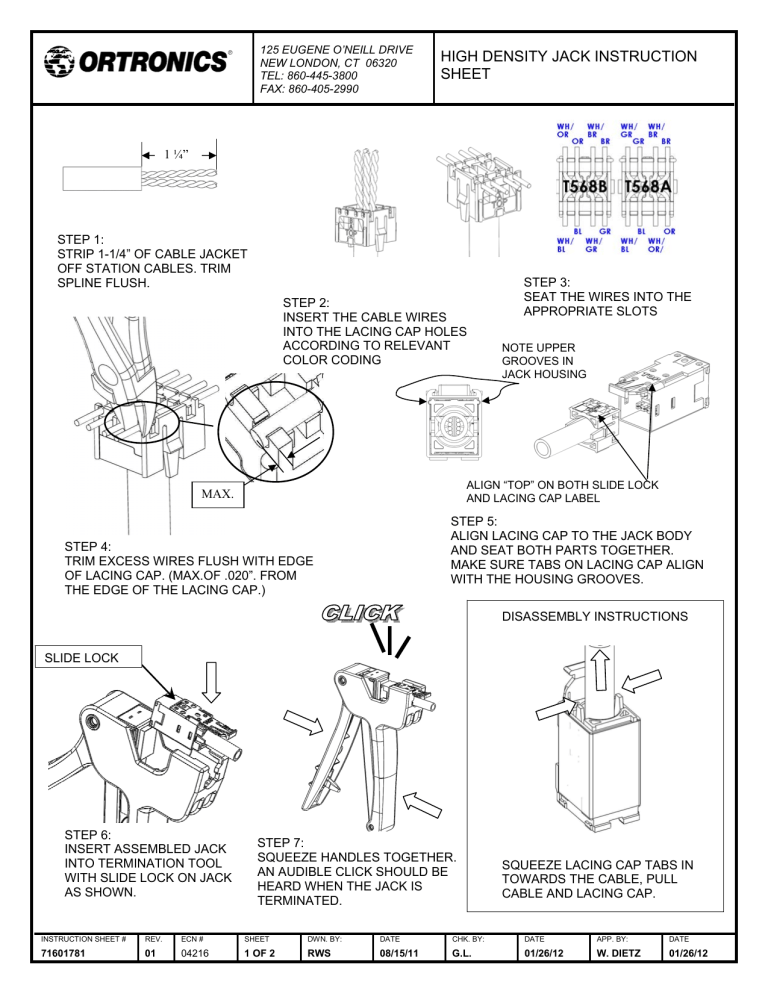

HIGH DENSITY JACK INSTRUCTION SHEET

STEP 1: SPLINE FLUSH. OFF STATION CABLES. TRIM INSERT THE CABLE WIRES INTO THE LACING CAP HOLES ACCORDING TO RELEVANT COLOR CODING STEP 3: SEAT THE WIRES INTO THE APPROPRIATE SLOTS NOTE UPPER GROOVES IN JACK HOUSING SLIDE LOCK 1 ¼” MAX. STEP 4: TRIM EXCESS WIRES FLUSH WITH EDGE OF LACING CAP. (MAX.OF .020”. FROM THE EDGE OF THE LACING CAP.) ALIGN “TOP” ON BOTH SLIDE LOCK AND LACING CAP LABEL STEP 5: ALIGN LACING CAP TO THE JACK BODY AND SEAT BOTH PARTS TOGETHER. MAKE SURE TABS ON LACING CAP ALIGN WITH THE HOUSING GROOVES. DISASSEMBLY INSTRUCTIONS STEP 6: INSERT ASSEMBLED JACK INTO TERMINATION TOOL WITH SLIDE LOCK ON JACK AS SHOWN. STEP 7: SQUEEZE HANDLES TOGETHER. AN AUDIBLE CLICK SHOULD BE HEARD WHEN THE JACK IS TERMINATED.

INSTRUCTION SHEET # REV.

ECN #

71601781 01

04216 SHEET

1 OF 2

DWN. BY:

RWS

DATE CHK. BY:

08/15/11 G.L.

SQUEEZE LACING CAP TABS IN TOWARDS THE CABLE, PULL CABLE AND LACING CAP. DATE APP. BY: DATE

TOP

125 EUGENE O’NEILL DRIVE NEW LONDON, CT 06320 TEL: 860-445-3800 FAX: 860-405-2990

HIGH DENSITY JACK TERMINATION AND INSTALLATION INSTRUCTION SHEET

PANEL INSTALLATION

STEP 1: INSERT HD JACK (PULL SLIDE LOCK ALL THE WAY BACK AND ON TOP) FROM REAR SIDE OF PANEL (JACK WILL GO IN ONLY ONE WAY WITH SLIDE LOCK UP. STEP 2: ONCE JACK SHOULDERS COME INTO CONTACT WITH BACKSIDE OF PANEL, PRESS JACK DOWNWARD. STEP 3: PUSH ON SLIDE LOCK UNTIL THE FRONT IS FLUSH WITH THE JACK FACE

FACEPLATE INSTALLATION

TOP STEP 1: INSERT HD JACK (PULL SLIDE LOCK ALL THE WAY BACK AND ON TOP) FROM REAR SIDE OF FACE PLATE (JACK WILL GO IN ONLY ONE WAY WITH SLIDE LOCK UP. STEP 2: ONCE JACK SHOULDERS COME INTO CONTACT WITH BACKSIDE OF FACE PLATE, PRESS JACK DOWNWARD. STEP 3: PUSH ON SLIDE LOCK UNTIL THE FRONT IS FLUSH WITH THE JACK FACE

JACK REMOVAL (STANDARD FOR ALL FACEPLATES AND PANELS

STEP 1: PULL SLIDE LOCK BACK WIRING CHART INSTRUCTION SHEET # REV.

ECN #

71601781 01

04216 SHEET

2 OF 2

DWN. BY:

RWS

STEP 2: LIFT UP JACK HOUSING STEP 3: PULL OUT JACK HOUSING DATE CHK. BY:

08/10/11 G.L.

DATE APP. BY: DATE
