Danfoss VACON 100 INDUSTRIAL Installation Guide

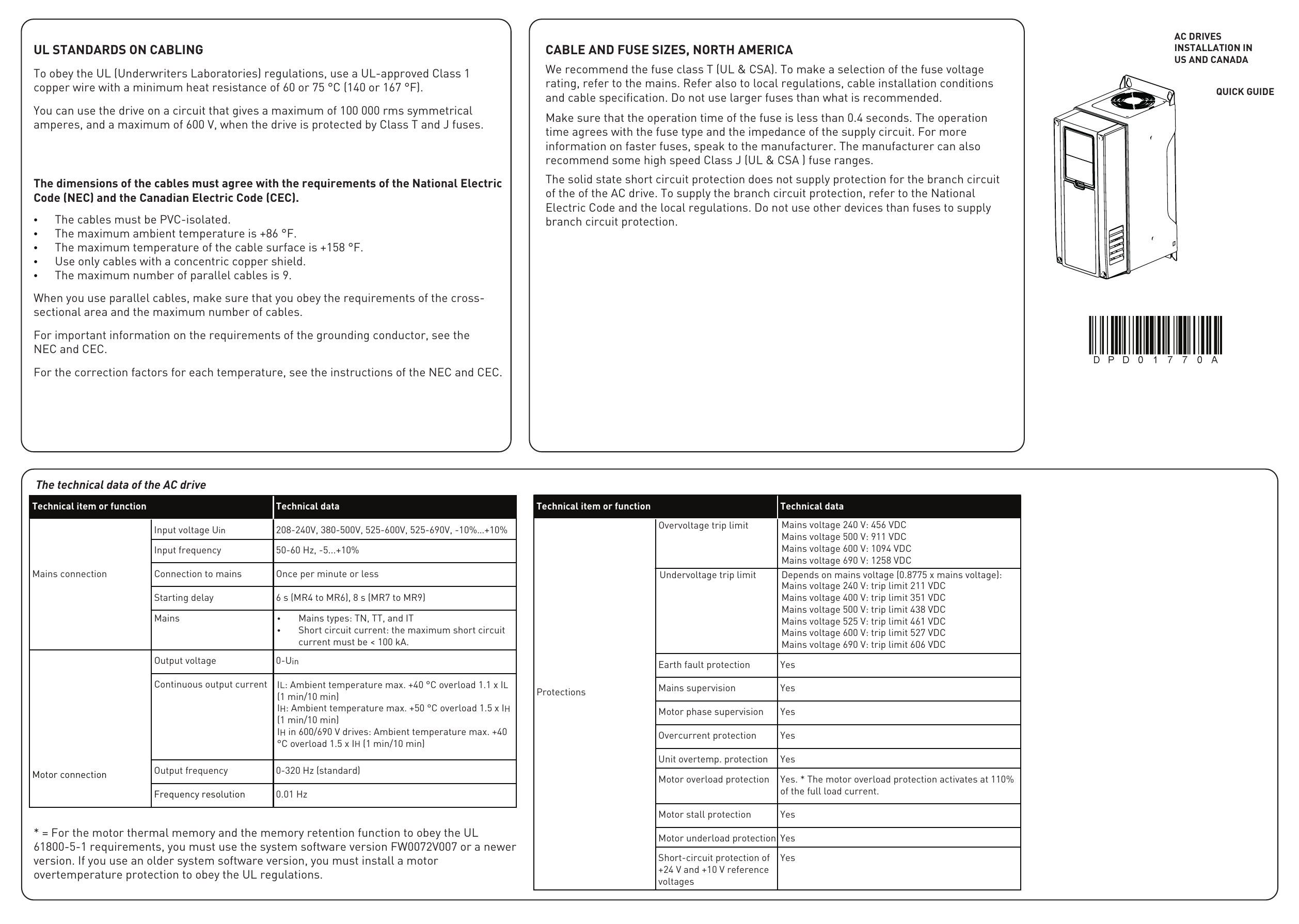

UL STANDARDS ON CABLING
CABLE AND FUSE SIZES, NORTH AMERICA
To obey the UL (Underwriters Laboratories) regulations, use a UL-approved Class 1
copper wire with a minimum heat resistance of 60 or 75 °C (140 or 167 °F).
We recommend the fuse class T (UL & CSA). To make a selection of the fuse voltage
rating, refer to the mains. Refer also to local regulations, cable installation conditions
and cable specification. Do not use larger fuses than what is recommended.
You can use the drive on a circuit that gives a maximum of 100 000 rms symmetrical
amperes, and a maximum of 600 V, when the drive is protected by Class T and J fuses.
The dimensions of the cables must agree with the requirements of the National Electric
Code (NEC) and the Canadian Electric Code (CEC).
•
•
•
•
•
The cables must be PVC-isolated.
The maximum ambient temperature is +86 °F.
The maximum temperature of the cable surface is +158 °F.
Use only cables with a concentric copper shield.
The maximum number of parallel cables is 9.
Make sure that the operation time of the fuse is less than 0.4 seconds. The operation
time agrees with the fuse type and the impedance of the supply circuit. For more
information on faster fuses, speak to the manufacturer. The manufacturer can also
recommend some high speed Class J (UL & CSA ) fuse ranges.
The solid state short circuit protection does not supply protection for the branch circuit
of the of the AC drive. To supply the branch circuit protection, refer to the National
Electric Code and the local regulations. Do not use other devices than fuses to supply
branch circuit protection.
When you use parallel cables, make sure that you obey the requirements of the crosssectional area and the maximum number of cables.
For important information on the requirements of the grounding conductor, see the
NEC and CEC.
For the correction factors for each temperature, see the instructions of the NEC and CEC.
The technical data of the AC drive
Technical item or function
Mains connection
Motor connection
Technical data
Input voltage Uin
208-240V, 380-500V, 525-600V, 525-690V, -10%…+10%
Input frequency
50-60 Hz, -5...+10%
Connection to mains
Once per minute or less
Starting delay
6 s (MR4 to MR6), 8 s (MR7 to MR9)
Mains
•
•
Output voltage
0-Uin
Continuous output current
IL: Ambient temperature max. +40 °C overload 1.1 x IL
(1 min/10 min)
IH: Ambient temperature max. +50 °C overload 1.5 x IH
(1 min/10 min)
IH in 600/690 V drives: Ambient temperature max. +40
°C overload 1.5 x IH (1 min/10 min)
Technical item or function
Technical data
Overvoltage trip limit
Mains voltage 240 V: 456 VDC
Mains voltage 500 V: 911 VDC
Mains voltage 600 V: 1094 VDC
Mains voltage 690 V: 1258 VDC
Undervoltage trip limit
Depends on mains voltage (0.8775 x mains voltage):
Mains voltage 240 V: trip limit 211 VDC
Mains voltage 400 V: trip limit 351 VDC
Mains voltage 500 V: trip limit 438 VDC
Mains voltage 525 V: trip limit 461 VDC
Mains voltage 600 V: trip limit 527 VDC
Mains voltage 690 V: trip limit 606 VDC
Earth fault protection
Yes
Mains supervision
Yes
Motor phase supervision
Yes
Overcurrent protection
Yes
Unit overtemp. protection
Yes
Motor overload protection
Yes. * The motor overload protection activates at 110%
of the full load current.
Motor stall protection
Yes
Mains types: TN, TT, and IT
Short circuit current: the maximum short circuit
current must be < 100 kA.
Output frequency
0-320 Hz (standard)
Frequency resolution
0.01 Hz
* = For the motor thermal memory and the memory retention function to obey the UL
61800-5-1 requirements, you must use the system software version FW0072V007 or a newer
version. If you use an older system software version, you must install a motor
overtemperature protection to obey the UL regulations.
Protections
Motor underload protection Yes
Short-circuit protection of
+24 V and +10 V reference
voltages
Yes
AC DRIVES
INSTALLATION IN
US AND CANADA
QUICK GUIDE
The cable and fuse sizes in North America, mains voltage 208-240 V and 380-500 V
The cable and fuse sizes in North America, mains voltage 525-600 V
Frame
Frame
MR4
MR5
MR6
MR7
MR8
MR9
Type
IL [A]
0003 2 / 0003 5
0004 2 / 0004 5
0006 2 / 0005 5
0008 2 / 0008 5
0011 2 / 0009 5
0012 2 / 0012 5
0018 2 / 0016 5
0024 2 / 0023 5
0031 2 / 0031 5
3.7 / 3.4
4.8
6.6 / 5.6
8.0
11.0 / 9.6
12.5 / 12.0
18.0 / 16.0
24.0 / 23.0
31.0
Fuse
(Class
T/J) [A]
Mains, motor and
brake resistor*
cable Cu [AWG]
Terminal cable size
6
6
10
10
15
20
25
30
40
14
14
14
14
14
14
10
10
8
24-10
24-10
24-10
24-10
24-10
24-10
20-5
20-5
20-5
17-10
17-10
17-10
17-10
17-10
17-10
17-8
17-8
17-8
MR5
(600V)
MR6
0038 5
38.0
50
4
13-0
13-2
48.0 / 46.0
62.0 / 61.0
60
80
4
4
13-0
13-0
13-2
13-2
0075 2 / 0072 5
75.0 / 72.0
100
2
9-2/0
9-2/0
0088 2 / 0087 5
0105 2 / 0105 5
88.0 / 87.0
105.0
110
150
1
1/0
9-2/0
9-2/0
9-2/0
9-2/0
0140 2 / 0140 5
0170 2 / 0170 5
0205 2 / 0205 5
0261 2 / 0261 5
0310 2 / 0310 5
140.0
170.0
205.0
261.0
310.0
25
30
40
60
80
3/0
250 kcmil
350 kcmil
2x250 kcmil
2x350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
MR7
* = If you use a multi-conductor cable, 1 of the conductors of the brake resistor cable stays
unconnected. It is also possible to use a single cable if you obey the minimum cross-sectional
area of the cable.
** = To obey the UL regulations with the 500 V drive, it is necessary to have cables with a
+ 90 °C (+194 °F) heat resistance.
The tightening torques of the terminals
Frame
MR4
MR5
Type
0003 2 - 0012 2
0003 5 - 0012 5
0018 2 - 0031 2
0016 5 - 0031 5
0004 6 - 0011 6
MR6
0048 2 - 0062 2
0038 5 - 0061 5
0018 6 - 0034 6
0007 7 - 0034 7
MR7
0075 2 - 0105 2
0072 5 - 0105 5
0041 6 - 0062 6
0041 7 - 0062 7
MR8
0140 2 - 0205 2
0140 5 - 0205 5
0080 6 - 0125 6
0080 7 - 0125 7
MR9
0261 2 - 0310 2
0261 5 - 0310 5
0144 6 - 0208 6
0144 7 - 0208 7
Tightening torque: the
grounding clamps for
cable shield
Tightening torque: the
grounding clamps for
grounding conductor
Nm
lb-in.
Nm
lb-in.
Nm
lb-in.
0.5-0.6
4.5-5.3
1.5
13.3
2.0
17.7
1.2-1.5
10.6-13.3
1.5
13.3
2.0
17.7
10
88.5
1.5
13.3
2.0
17.7
8 * / 5.6 **
70.8 * /
49.6 **
1.5
13.3
8 * / 5.6 **
70.8 * /
49.6 **
30
266
1.5
13.3
20
177
40
266
1.5
13.3
20
177
* = The tightening torque for a torx screw.
** = The tightening torque for an Allen screw.
IL [A]
Mains cable
Grounding
terminal [AWG] terminal [AWG]
0048 2 / 0046 5
0062 2 / 0061 5 **
Tightening torque: the
mains cable and motor
cable terminals
Type
MR8
MR9
Fuse
(Class
T/J) [A]
Mains, motor and
brake resistor*
cable Cu [AWG]
Terminal cable size
Mains cable
Grounding
terminal [AWG] terminal [AWG]
0004 6
3.9
6
14
20-5
17-8
0006 6
0009 6
0011 6
0007 7
6.1
9.0
11.0
7.5
10
10
15
10
14
14
14
12
20-5
20-5
20-5
13-0
17-8
17-8
17-8
13-2
0010 7
10.0
15
12
13-0
13-2
0013 7
0018 6 / 0018 7
0022 6 / 0022 7
0027 7 / 0027 7
13.5
18.0
22.0
27.0
20
20
25
30
12
10
10
8
13-0
13-0
13-0
13-0
13-2
13-2
13-2
13-2
0034 6 / 0034 7
34.0
40
8
13-0
13-2
0041 6 / 0041 7
0052 6 / 0052 7
0062 6 / 0062 7
0080 6 / 0080 7
0100 6 / 0100 7
0125 6 / 0125 7
41.0
52.0
62.0
80.0
100.0
125.0
50
60
70
90
110
150
6
6
4
1/0
1/0
2/0
9-2/0
9-2/0
9-2/0
9-2/0
9-2/0
9-2/0
1 AWG-350 kcmil 1 AWG-350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
0144 6 / 0144 7
144.0
175
3/0
1 AWG-350 kcmil 1 AWG-350 kcmil
0170 7
0208 6 / 0208 7
170.0
208.0
200
250
4/0
300 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
1 AWG-350 kcmil 1 AWG-350 kcmil
* = If you use a multi-conductor cable, 1 of the conductors of the brake resistor cable stays
unconnected. It is also possible to use a single cable if you obey the minimum cross-sectional
area of the cable.
