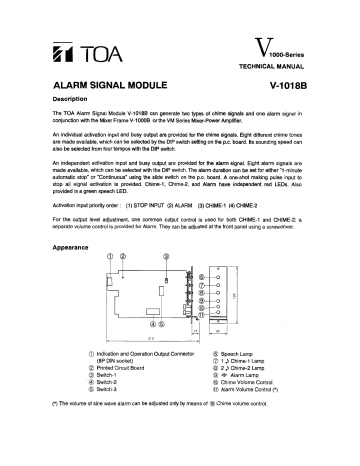

TECHNICAL MANUAL
-)
E
ALARM SIGNAL MODULE V-1018B
Description
The TOA Alarm Signal Module V-1018B can generate two types of chime signals and one alarm signal in
conjunction with the Mixer Frame V-1000B or the VM Series Mixer-Power Amplifier.
An individual activation input and busy output are provided for the chime signals. Eight different chime tones
are made available, which can be selected by the DIP switch setting on the p.c. board. Its sounding speed can
also be selected from four tempos with the DIP switch. -
An independent activation input and busy output are provided for the alarm signal. Eight alarm signals are
made available, which can be selected with the DIP switch. The alarm duration can be set for either "1-minute
automatic stop” or “Continuous” using the slide switch on the p.c. board. A one-shot making pulse input to
stop all signal activation is provided. Chime-1, Chime-2, and Alarm have independent red LEDs. Also
provided is a green speech LED.
Activation input priority order : (1) STOP INPUT (2) ALARM (3) CHIME-1 (4) CHIME-2
For the output level adjustment, one common output control is used for both CHIME-1 and CHIME-2; a
separate volume control is provided for Alarm. They can be adjusted at the front panel using a screwdriver.
Appearance
D ©
| _ —,
@ © . E
15 | 40
212
i
(D Indication and Operation Output Connector © Speech Lamp
(8P DIN socket) @ 1 J» Chime-1 Lamp
@) Printed Circuit Board 2 ) Chime-2 Lamp
(3) Switch-1 © # Alarm Lamp
“@ Switch-2 Chime Volume Control
® Switch-3 MD Alarm Volume Control (*)
(*) The volume of sine wave alarm can be adjusted only by means of (0 Chime volume control.
Switch Functions (SWITCH-1~SWITCH-3)
Switch-1 sets the alarm duration.
If Switch-1 is set as shown in Fig. 1, the alarm tone automatically stops
1 MIN. — after approximately one minute. The alarm signal is activated by one-shot
making pulse. Continuosly closing the alarm signal input continuously
CONT — sounds the alarm tone. The ringing tone stops if the alarm signal input is
opened. (If the alarm signal input is opened, the ringing tone does not stop
immediately, but automatically stops within approximately one minute.) If
Flg. 1 the stop input is closed, the ringing tone immediately stops .
1 MIN. — If Switch-1 is set as shown in Fig. 2, the alarm tone continuously sounds. If
the stop input is closed, the ringing tone immediately stops .
CONT —
Fig. 2
Switch-2 provides the following functions for each bit.
: —
_ | | | = Chime-1 Sounding speed adjustment (Bit Nos.7 and 8)
~ Chime-1 Chime tone selection (Bit Nos.4, 5 and 6)
> Alarm tone selection (Bit Nos.1, 2 and 3)
Refer to the following table for alarm tone selection. Refer to the following table for chime tone selection.
BIT NO. BIT NO.
ALARM TONE 11213 CHIME TONE 4 |5 |6
DIN 33404 GONG
Siren 1 O VS-01 O
Siren 2 O VS-02 O
Slow-whoop O 10 VS-03 ©) | О
Yelp O VS-04 O
Buzzer O O VS—05 O O
Alert О | © VS-06 O | O
Sine-wave О ТОТО VS-07 O | O | O
Note: O) stands for DIP switch "ON”.
Refer to the following table for sounding speed adjustment.
SOUNDING AT RO 7 | 8
SPEED
Very FAST Tempo O10
FAST Tempo O
SLOW Tempo O
Very SLOW Tempo
Note: ( stands for DIP switch "ON".
Switch-3 povides the following functions for each bit.
5
TT || ~ Chime-2 Sounding speed selection (Bit Nos.4 and 5)
— Chime-2 Chime tone selection (Bit Nos.1, 2 and 3)
Chime tone types and sounding speed are the same as those selectable with Switch-2.
Switch-3's Bit Nos. 1, 2, and 3 correspond to Switch-2's Bit Nos. 4, 5, and 6, respectively.
Switch-3's Bit Nos. 4 and 5 correspond to Switch-2's Bit Nos.7 and 8, respectively.
Modification for operating Chime-2 of the V-1018B Alarm Signal Module
Modification of the V-1018B
Assign the card-edge connector's pattern No.9 to the Chime-2 activation input, and pattern No.10 to the
indication output.
(1) Cut the pattern as shown in Fig. 3.
Cut between card-edge connector's
patterns No.9 and No.10.
(2) Connect point A to pattern No.9 via a lead wire. Similarly, connect point B to pattern No.10.
To cardedge connectors
pattern No.9
fa
To cardedge connector's
pattern No.10
Modification of the V1000B amplifier frame
Fig.4 assumes that the microphone input module in Slot No.3 plays Chime-1, and the module in Slot No.4
plays Chime-2.
v-1018B
V-1051B
V-1051B
(1) Cut the bus line 7 (jumper wire marked with @ )
between Slots No.3 and No.4.
(2) Cut the jumper wire (marked with ® ) between No.10
in Slot 1 and No.9 in Slot 2. Fe 0
(3) Cut the jumper wire (marked with ©) between No.10
in Slot 2 and No.9 in Slot 3.
(4) Connect No.7 in Slot 4 to No.9 in Slot 2 using a lead
a
Ц
980
o
©
/
/
7
—® ® © “© ——
wire. (Line marked with @ .) — © ©
(5) Connect No.10 in Slot 1 to No.9 in Slot 3 using a lead —© ©
wire. (Line marked with ©.) a , 0
Slot 1 Slot 2 Slot 3 Slot 4
- Highest Priority
Rear View
Fig. 4
Microphone (VR-1001) connection
(1) Insert the VR-1001's SPEECH DIN plugs into the V-1051B's DIN sockets in Slots 3 and 4. Refer to @ in
Fig. 5.
(2) Connect pin No.5 of CHIME DIN plug of the VR-1001 connected to Slot 4 to the card-edge connector's
pattern No.10 in Slot 2. (® in Fig. 5.)
(3) Connect between pins No.3 of CHIME DIN plug of two VR-1001’s connected to Slots 3 and 4, then insert
its DIN plug into the V-1018B's DIN socket. (© in Fig. 5.)
SPEECH]
VR-1001 VR-1001 =
For Chime-1 For Chime-2
Fig. 5
Pin No.3
O ©] of
+ +
V-1051B |V-1051B |V-10188B
Pin No.5 В
©
Pin No.3 O
DIN socket
Card-edge connector's
pattern No.10
With this modification, Chime-1 can be activated from the module in Slot 3, and Chime-2 from the module in
Slot 4. Note that the operation of the microphone module situated at the left hand side of Slot 4 also
automatically sounds Chime-2.
Card Edge Connector
Pin Assignment
© © © ч © с ов оо о —
Pattern side
8P DIN Socket
Pin Assignment
7 —~do— Stop
До
O
® A Alarm Indication
© _7o... Alarm Activation
M) so 1 JChime-1 Activation
>
5
@ 24V DC OUT
@ GND
(5 1 ) Chime-1 Indication
@ O Mic Indication
Block Diagram
8P-DIN Socket 8-bit Bus
Card-Edge
1 A © Connector
Ap —o— (©) 8-bit DIP SW
STOP—so— (7) oid 2d —
4 >
AP INDICATION (B) Y Y y si —() AUTO СНМЕ
Single Lo Sound ) ©
chip 1
+ cru DE Generator 5-bit DIP SW 9 Y
1 » INDICATION © UD J L.P.F. Alarm Volume Control (10) PRIORITY EMISSION
SN
IO INDICATION (3) — H>H — ep (€) PRIORITY RECEPTION
Г HS
a Chime Volume Control ppooroecananccanes
FEO SIGNAL INPUT
Reset ©) SIGNAL OUTPUT
Circuit :
Es | : BUSY
Generator
+24V (1) y — MHz + ;
+15 | Regula- | | +5 Ez |
tor Regulator
(2) +24v
E O © E
77
[ ©
ie Ш
Specifications
Signals Chime-1 & 2 : 8 tones (selectable)
4 chime speeds (selectable)
Alarm : 8 tones (selectable)
Alarm duration : "1-minute automatic stop” or “Continuous” (switchable)
Output level 280mVp-p
Output impedance 10k ohms
Power requirements 24V DC
Current consumption Under 65mA
Indicators
1 x green LED (speech)
3 x red LEDs (Chime-1 & 2 and Alarm)
Volume controls
1 x Chime-1 & 2 and Sine wave alarm control (common)
1 x Alarm control (except sine wave alarm)
Priority order (1) Stop (2) Alarm (3) Chime-1 (4) Chime-2
Connection Indication output, Activation input & Power supply : 8-pin DIN socket
Signal output & DC input : 20-pin card connector
Ambient temperature 0 °C - +50°C
Dimensions 129(H) x 40(W) x 212(D)mm
Weight 1759
Finish Black
* Specifications are subject to change without notice.
