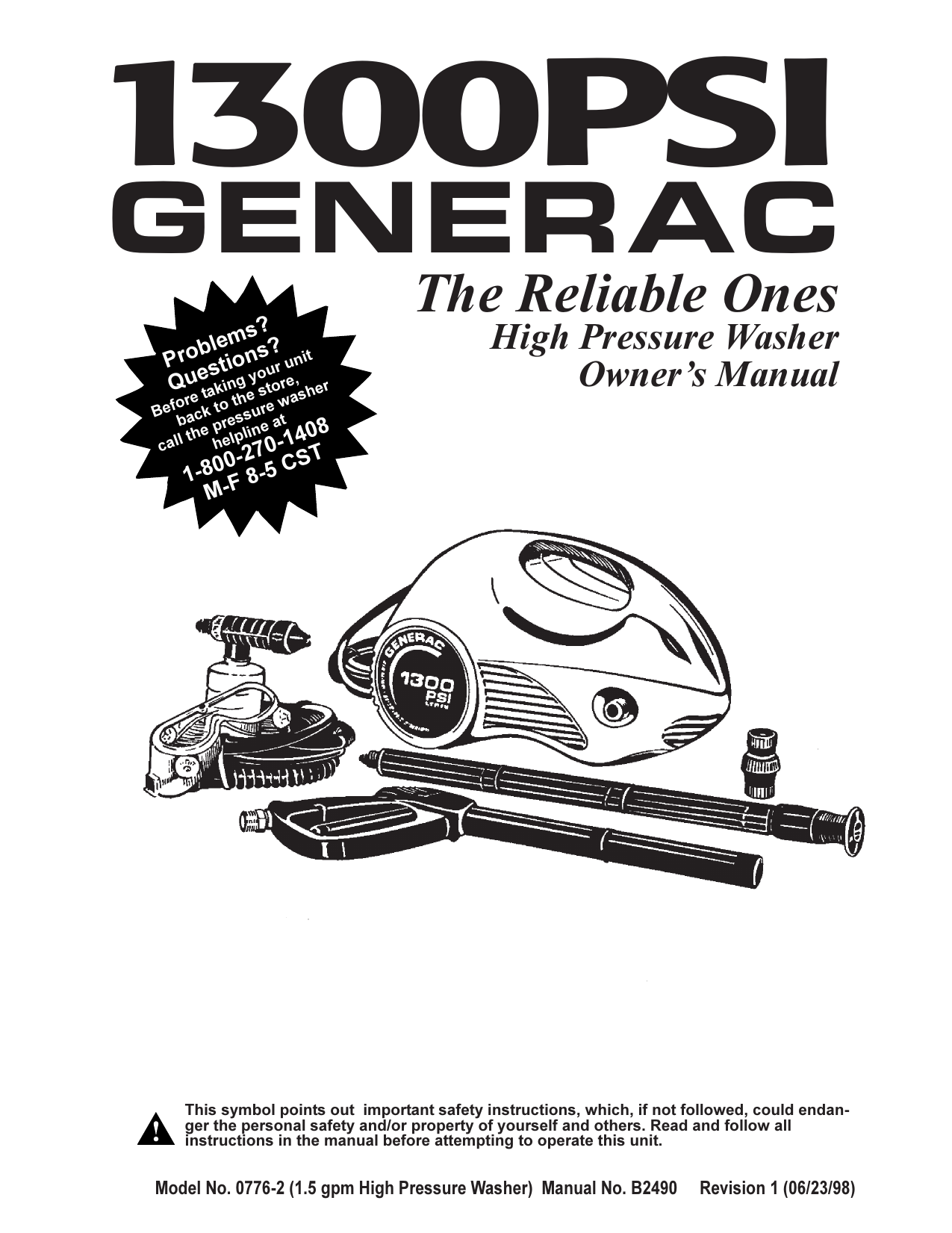

Simplicity 00776-2 Operator's Manual

1300PSI
GENERAC
s?
m
e
l
?
b
Pro stionsur unit
o
Que ing y re,
tak the sto asher
e
r
w
o
Bef ack to ssure
t
e
b
a
r
he p elpline 1408
t
l
l
h
ca
0-
The Reliable Ones
High Pressure Washer
Owner’s Manual
-27 CST
0
0
8
1- -F 8-5
M
This symbol points out important safety instructions, which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all
instructions in the manual before attempting to operate this unit.
Model No. 0776-2 (1.5 gpm High Pressure Washer) Manual No. B2490
Revision 1 (06/23/98)
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
IMPORTANT! — SAFETY INSTRUCTIONS — IMPORTANT!
Save these instructions
• Follow the maintenance instructions specified in the
CAUTION! Read all instructions
manual.
before using this product to reduce
• This product shall only be connected to a power
the risk of injury.
supply receptacle protected by a Ground Fault CirDANGER! Risk of electrocution!
cuit Interrupter (GFCI). This is done to comply with
• Inspect cord before every use. Do not use if cord is
damaged.
• Keep all connections dry and off the ground.
• Do not touch plug with wet hands.
• Double-insulated — When servicing, use only identical replacement parts.
• This product shall only be connected to a power
supply receptacle protected by a Ground Fault Circuit Interrupter (GFCI).
• Read instruction manual before using.
•
•
•
•
WARNING! To reduce the risk of
injury, close supervision is necessary when product is used near
children.
•
•
• Know how to stop the product and bleed the pressure quickly. Be thoroughly familiar with controls.
• Stay alert. Watch what you are doing.
• Do not operate the product when fatigued or under
the influence of alcohol or drugs.
• Keep operating area clear of all persons.
National Electrical Code (NFPA 70) and to provide
additional protection from risk of electrical shock.
Save these instructions.
Operate this pressure washer only in areas away
from combustible materials, combustible fumes or
dust.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting or poisoning. The harmful elements may cause
property damage or severe injury.
Do not allow CHILDREN to operate the Pressure
Washer at any time.
Before starting the Pressure Washer in cold
weather, check all parts of the equipment and be
sure ice has not formed.
Units with broken or missing parts, or without protective housing or covers should NEVER be
operated.
DANGER! Risk of Explosion — Do
not spray flammable liquids.
• Never aim the gun at people, animals or plants.
• For household use. For indoor or outdoor use.
• High pressure stream of fluid that this equipment
can produce may pierce skin and its underlying tissues, leading to serious injury and possible
amputation.
• High pressure spray can cause paint chips or other
particles to become airborne and fly at high speeds.
• Always wear eye protection when you use this
equipment or when you are in vicinity where the
equipment is in use.
WARNING! Risk of injury or injection
to persons – Do not discharge
stream at persons or animals.
• High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Do not point
the pressure washer spray at people or animals.
• Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
High Pressure Washer
2
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
IMPORTANT! — SAFETY INSTRUCTIONS — IMPORTANT!
Save these instructions
Servicing of a Double Insulated Product.
• Never move the machine by pulling on high pressure hose. Use the handle provided on the top of
the unit.
• Use a respirator or mask whenever there is a
chance that vapors may be inhaled. Read all
instructions with the mask so you are certain the
mask will provide the necessary protection against
inhaling harmful vapors.
• High pressure spray may damage fragile items
including glass. Do not point spray gun at glass
when in the high pressure mode.
• Keep the hose connected to machine or the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
• Hold the spray gun firmly in your hand before you
start the unit. Do not leave the pressure washer
unattended while the machine is turned on.
• Cleaning area should have adequate slopes and
drainage to reduce possibility of a fall due to slippery surfaces.
• Keep water spray away from electric wiring or fatal
electric shock may result.
• Do not by-pass any safety device on this machine.
• Operate and store this unit on a stable surface.
• Inspect hose each time before using it. Check all
hoses for cuts, leaks, abrasions, bulging of cover,
damage or movement of couplings. If any of these
conditions exist, replace hose immediately. Never
repair high pressure hose. Replace it with another
hose that meets minimum pressure rating of your
pressure washer.
• Store in a clean, dry area. Ideally, the unit should be
stored in a frost-free room.
In a double-insulated product, two systems of insulation are provided instead of grounding. No means of
grounding is provided on a double-insulated product,
nor should a means for grounding be added.
Servicing a double-insulated product requires extreme
care and knowledge of the system and should be
done only by qualified service personnel. Replacement parts for a double-insulated product must be
identical to the parts they replace. Use only genuine
replacement parts. A double-insulated product is
marked with the words “DOUBLE INSULATION” or
“DOUBLE INSULATED”.
The symbol
may also be marked on the product.
Extension Cords
Use only extension cords that are approved for outside use. These extension cords are identified by a
marking “ACCEPTABLE FOR USE WITH OUTDOOR
APPLIANCES; STORE INDOORS WHILE NOT IN
USE.” Use only extension cords having an electrical
rating greater than the rating of the product. Do not
use damaged extension cords. Examine extension
cord before using and replace if damaged. Do not
abuse extension cord and do not yank on any cord to
disconnect it. Keep cord away from heat and sharp
edges. Always disconnect the extension cord from the
receptacle before disconnecting the pressure washer
from the extension cord.
High Pressure Washer
3
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
CONGRATULATIONS on your purchase of a
GENERAC electric high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
Should you experience any problem you cannot easily
remedy, please contact your nearest GENERAC
Authorized Service facility, or call the
1–800–270–1408 number listed on the front of this
manual. We have competent, well-trained technicians
and the proper tools to service or repair this unit.
Please read and retain this manual. The instructions
will enable you to assemble and maintain your high
pressure washer properly. Always observe the
“SAFETY RULES.”
PRODUCT SPECIFICATIONS
CUSTOMER RESPONSIBILITIES
Read these instructions and Operator’s Manual in its
entirety before you attempt to assemble or operate
your new high pressure washer. Your high pressure
washer has, for the most part, been assembled at the
factory. Before you can operate your new high pressure washer, you must properly connect the high
pressure hose and the water supply.
If you have any problems with the assembly of your
pressure washer, please call the pressure washer
helpline at 1-800-270-1408.
Pressure Washer Specifications
Pressure
Flow Rate
Detergent Mix
Water Supply
Temperature
Motor
Rated Voltage
Current
• Read and observe the safety rules.
• Follow regular schedule in maintaining, caring for
and using your high pressure washer.
• Follow the instructions under “Maintenance” and
“Storage” sections of this Owner's Manual.
Model
Number
0776–2
Serial
Number_________________________________
Date of
Purchase________________________________
The model and serial numbers will be found on a
decal attached to the pressure washer. You
should record both serial number and date of purchase and keep in a safe place for future
reference
High Pressure Washer
4
1300 pounds per square inch
(PSI)
1.5 gallons per minute (GPM)
Use Undiluted Detergent
Inlet water not to exceed
104°F
Brush Type (Universal)
120 Volts
14 Amperes
C
A
Generac 1300PSI High Pressure Washer
R
E
N
E
G
Read this owner’s manual before operating your high pressure washer. Compare the illustrations with your
high pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this
manual for future reference.
High Pressure Outlet
Master On/Off Switch
Foamer
Quick Connect
Goggles
High Pressure Hose
Spray Gun
Water Inlet
Grip Start™ System
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
High Pressure Outlet — Connection for high pressure hose.
Master On/Off Switch — This switch ONLY enables
the Grip Start™ system to function.
Grip Start™ System – Pressing and releasing the
spray gun trigger starts and stops the electric motor in
the pressure washer.
Safety Flow™ System – Electric motor will not start
unless water is supplied to the pump.
Foamer — Used to apply detergent. Mixes water
and detergent in outlet water flow.
Adjustable Nozzle
Extension
Safety Flow™ System
Bayonet Adapter (Not Shown) — Connector accommodates the connection of a utility and rotating brush
to the spray gun.
Water Inlet — Connection for garden hose. (Note:
You need to use the quick–connect to attach the
garden hose to the pressure washer)
Adjustable Nozzle Extension — Turn nozzle clockwise for narrow spray and counterclockwise for fan
spray.
High Pressure Hose — Connect ends to spray gun
and high pressure outlet.
Goggles — Always wear eye protection when operating your pressure washer.
Quick–Connect — Allows rapid connection of your
garden hose to the water inlet.
High Pressure Washer
5
C
A
ASSEMBLY
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
• Attach the high pressure hose to the high pressure
outlet and tighten by hand (Figure 2).
CARTON CONTENTS
Items in the carton include:
• Main Unit
• Parts Box (which includes the following):
• Goggles
• Owner’s Manual
• Spray Gun
• Adjustable Nozzle Extension
• Foamer
• High Pressure Hose
• Parts Bag (which includes the following):
• Nozzle Cleaning Kit
• Bayonet adapter, must be used to attach the
brushes to the gun.
• Quick Connect (male and female ends)
Refer to the above list for an illustrated listing of all
items included with your pressure washer. Become
familiar with each piece before assembling the pressure washer. Check all contents against list. If any
parts are missing, call the pressure washer helpline at
1-800-270-1408.
Figure 2 — Attach High Pressure Hose to Main
Unit.
• Included with this unit is a quick-connect fitting that
you must attach to the water inlet and your garden
hose. You can install the grey male connector by
hand but you may need to use an adjustable
wrench to tighten it (Figure 3).
Figure 3 — Install Quick–Connect.
HOW TO SET UP YOUR PRESSURE WASHER
• Follow the instructions in the cart box to assemble
the cart and install it onto the main unit.
• Unwind the high pressure hose and attach it to
spray gun (Figure 1).
Male Quick–Connect
Figure 1 — Attach High Pressure Hose to Spray
Gun.
Female Quick–Connect
Connect high pressure
hose here
• Check the screen on the female connector. Make
sure it is clean and check for damage. If you see
any damage in the screen, do not use that female
connector.
• Attach the female quick connect to your garden
hose.
• Attach garden hose to the water inlet using the
quick–connect. The quick–connect should lock in
place. (Figure 4 on page 7).
High Pressure Washer
6
C
A
ASSEMBLY
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
• Attach the adjustable nozzle extension to spray gun
by aligning the locking tabs on the extension with
the grooves in the gun. Push extension inward and
twist clockwise to lock in place (Figure 5).
Figure 4 — Connect Garden Hose to Water
Inlet Opening.
Figure 5 — Connect the Adjustable Nozzle
Extension to the Spray Gun.
DANGER: When connecting the unit to a
power supply receptacle, use ONLY a
receptacle protected by a Ground Fault Circuit Interrupter (GFCI). This will help
protect against electrical shock.
• Press the master On/Off Switch to the “On” position
(Figure 6).
CAUTION: Before starting you should be
sure the electrical supply is rated at 120
volts, 15 amps.
Figure 6 — Press the Master On/Off Switch to
the “On” Position.
WARNING: To reduce the risk of electrocution, keep ALL connections dry and off the
ground. DO NOT touch plug with wet
hands.
• We do not recommend that you use extension
cords with this pressure washer. If, however, your
application requires that you need an extension
cord, use only extension cords that are approved for
outside use. These extension cords are identified by
a marking “ACCEPTABLE FOR USE WITH OUTDOOR APPLIANCES; STORE INDOORS WHILE
NOT IN USE.” Use only extension cords having an
electrical rating not less than the rating of the product. Do not use damaged extension cords.
• Turn on the water.
NOTE: Inlet water temperature should not exceed
104°F.
CAUTION: Before starting the pressure
washer, be sure you are wearing adequate
eye protection. Goggles are included with
this unit.
WARNING: Gun kicks back. Use both
hands.
DANGER: You must attach the spray gun
and all hoses before you start the motor.
DANGER: Risk of injury or injection to
people and animals. DO NOT discharge
stream at people or animals.
DANGER: You must be careful at this point.
Anytime you squeeze the trigger, the motor
will start and water will spray out of the
gun.
• Squeeze trigger to purge pump of system air and
impurities.
High Pressure Washer
7
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
• Squeeze trigger to produce spray.
NOTE: Behind the trigger to the gun is a SAFETY
LATCH. You can place this latch as shown in Figure 7
to keep the washer from accidentally spraying while
you are changing the nozzle head or foamer or performing other tasks.
HOW TO USE YOUR WASHER
You now should know how to START your pressure
washer and how to STOP it. The information in this
section will tell you how to adjust the spray pattern
and apply detergent or any other cleaning chemicals.
HOW TO USE ADJUSTABLE NOZZLE
Figure 7 — Apply the Safety Latch.
DANGER: Never adjust spray pattern when
spraying. Never put hands in front of spray
nozzle to adjust spray pattern. You could
be injured.
On the end of your spray gun is a nozzle that you can
twist from side to side. With the adjustable nozzle you
can adjust the spray configuration to be either concentrated in a stream or expanded into a fan pattern.
• Twist nozzle counterclockwise when you wish to
produce an expanded stream. Twist nozzle clockwise to produce a narrow, concentrated stream
(Figure 8).
Figure 8 — Using the Adjustable Nozzle.
STOPPING YOUR PRESSURE
WASHER
• If the pressure washer is running, release the trigger.
DANGER: Releasing the trigger will shut
off the motor but does not shut off the
unit. You must also place the Master
On/Off Switch to the “OFF” position.
• Place Master On/Off switch in “Off” position.
Simply shutting OFF motor will not release pressure in the system. Squeeze the trigger on the gun
to relieve the pressure in the hose.
Twist Nozzle
Counterclockwise
for Fan Spray
DANGER: Never leave your pressure
washer unattended even when turned off.
High Pressure Washer
8
Twist Nozzle
Clockwise for
Narrow Spray.
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
• The second step involves cleaning the surface you
have prepared with the pressure washer and then
rinsing it clean.
To apply detergent follow these steps:
• Detach the nozzle extension by pushing in and
unlocking it counterclockwise.
• Remove the bottle from the foamer.
• Align the locking tabs on the foamer with the groves
in the gun. Push inward and twist clockwise to lock
in place. (Note: make sure that the when you lock
the foamer into place you have the hose that connects to the foamer bottle hanging downward.)
• Prepare your detergent solution as required by your
job and fill bottle with the solution.
• Attach bottle back onto foamer making sure the
bottle hangs down.
• Start washer and apply detergent to a dry surface,
starting from the bottom and working up.
• To rinse, YOU MUST, stop the pressure washer,
remove the foamer and connect the adjustable
nozzle extension.
NOTE: Detergents are most effective applied to a dry
surface.
• Point the nozzle toward the ground and press the
trigger to test the pattern.
• For most effective cleaning, keep spray nozzle
between 8 to 24 inches of cleaning surface.
• If you get the spray nozzle too close, especially
using high pressure mode, you may damage the
cleaning surface.
• Do not get closer than 6 inches when cleaning automobile tires.
Applying Detergent With Foamer
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
NOTE: Never use garden hose inlet to siphon detergent or wax.
DANGER: You MUST attach all hoses and the spray
gun before you start the motor.
WARNING: Before removing any spray gun
extension, be sure to turn off the pressure
washer and relieve pressure by pressing
the trigger. You could be injured if you try
to remove an extension if the pressure
washer is running and there is pressure in
the system.
To Clean
Start at lower portion of area to be washed and work
upward, using long, even overlapping strokes. Detergent or degreaser works best when you apply it to a
dry surface first. Let it set for 3-5 minutes before
washing and rinsing.
Pressure washers are useful cleaning tools designed
to clean almost any surface in two easy steps.
• The first step involves applying an appropriate
detergent/solvent solution to penetrate and loosen
grime. The detergent is applied at low pressure
to avoid splashing, overspraying and waste.
Leave the solution on surface for 3 to 5 minutes to
allow solution to work.
Rinse
Start at the top of area to be rinsed, working down
with the same action as for cleaning.
Figure 9 — Connecting the Foamer.
High Pressure Washer
9
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
CUSTOMER RESPONSIBILITIES
AND MAINTENANCE
Check Gun and Wand
Examine hose connection and make sure it is secure.
Test trigger by pressing it and making sure it springs
back into place when released. Put safety latch in ON
position and test trigger. You should not be able to
press trigger.
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive full value from the
warranty, operator must maintain high pressure
washer as instructed in this manual.
PURGE PUMP OF AIR AND
CONTAMINANTS
BEFORE EACH USE
To remove the air from the pump, follow these
steps:
• Set up the pressure washer as described in the
ASSEMBLY section and connect the water supply.
• Remove the nozzle lance from the gun.
• Pull the trigger on the gun and hold.
To remove the contaminant from the pump, follow
these steps:
• Set up the pressure washer as described in the
ASSEMBLY section, connect the water supply and
start the pressure washer according to instructions
in the OPERATION section.
• Remove the nozzle lance from the gun.
• Pull the trigger on the gun and hold.
• When the water supply is steady and constant, you
may refasten the nozzle attachment and start the
pump.
Check and Clean Quick-Connect
Screen
Remove quick-connect and examine the inlet screen
on the female connector. Clean if clogged or replace
the quick-connect inlet screen if damaged.
Check High Pressure Hose
DANGER: Water spraying from a leak is
capable of injecting material into skin.
Inspect hose each time before using it.
Never repair high pressure hose. Replace it
with another hose that meets minimum
pressure rating of your pressure washer.
High pressure hose can develop leaks from wear,
kinking, and abuse. Check all hoses for cuts, leaks,
abrasions or bulging of cover, or damage or movement of couplings. If any of these conditions exist,
replace hose immediately.
High Pressure Washer
10
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
NOZZLE MAINTENANCE
Figure 11 — Backwashing the Nozzle.
If the nozzle becomes restricted or clogged with foreign materials, such as dirt, excessive pump pressure
may develop. A partially clogged nozzle can cause a
pulsing sensation during use. This generally is not a
pump related problem, but rather a clogged or partially restricted nozzle.
If the nozzle becomes clogged or partially restricted,
immediately clean the nozzle with the kit included with
your pressure washer by following these instructions:
• Shut off the washer and turn off the water supply.
• Separate the nozzle extension from the gun.
• Open the adjustable nozzle to the narrow stream
setting.
• Remove the nozzle using the allen wrench provided
in the kit.
• Use the wire included in the kit (Figure 10) or a
small paper clip to free the foreign materials clogging or restricting the nozzle.
• Reinstall the nozzle. Do not overtighten.
• Reconnect the wand to the gun.
• Reconnect the water supply, turn on the water, and
start the washer.
• Test the pressure washer by operating with nozzle
in narrow and expanded streams.
PREPARING THE UNIT FOR
STORAGE
Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump
parts and “freeze” pump action. If you do not plan to
use the Pressure Washer for more than 30 days,
follow this procedure:
1. Shut off the pressure washer, unplug it and let it
cool, then remove all hoses.
2. Store the pressure washer and its components in
such a way as to protect it from freezing.
5. Store in a clean, dry area. Ideally, the unit should
be stored in a frost-free room.
6. Coil the high pressure hose and inspect it for
damage. Cuts in the hose or fraying of it could result
in leaks and loss of pressure. Should any damage be
found, replace the hose. DO NOT attempt to repair a
damaged hose. Replace the hose with the genuine
Generac part.
7. Drain water from hose and properly store it to prevent cuts and general wear.
Figure 10 — Loosening Debris in Nozzle.
• Remove additional debris by back flushing water
supply through wand (Figure 11). Back flush
between 30 to 60 seconds. Turn wand to stream
spray while flushing.
High Pressure Washer
11
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
TROUBLESHOOTING POINTS
Problem
Pressure washer will not start.
Cause
Correction
1. No electrical power is available.
2. Motor overheats.
3. Low voltage.
4. Trigger not open.
5. Electrical defect.
Pressure washer does not
come up to pressure.
1. Pump is sucking air.
4. Pump is faulty.
1. Water hose must be 1/2-inch
or greater in diameter.
Be sure water supply is ON.
Be sure water supply is clean.
Check all connections for leaks
or blockage.
Turn OFF the unit, hold trigger in
OPEN position to relieve pressure
and allow air in line to escape.
With trigger still in OPEN position
turn ON the unit. Repeat if
necessary.
2. Clean water inlet screen.
3. Switch OFF washer, press trigger,
switch ON washer while pressing
trigger. Repeat if necessary.
4. Contact Generac service facility.
1. Nozzle or water supply is restricted.
2. Water supply is inadequate.
1. Unplug unit and clean nozzle.
2. Turn ON water to full position.
2. Water inlet is clogged.
3. Pump not bled to remove air.
High pressure spray is irregular.
1. Check cord, plug power, socket,
electrical supply and circuit
breaker/fuse.
2. Turn off the unit. Press trigger of
gun to relieve.pressure on the
unit. Allow unit to cool for about 2
min. It should run when you turn it
ON again.
3. Contact Generac service facility.
4. Open trigger.
5. Contact Generac service facility.
High Pressure Washer
12
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
NOTES
High Pressure Washer
13
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
Drawing No. B2452
EXPLODED VIEW — PUMP AND MOTOR
High Pressure Washer
14
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
Drawing No. B2542
PARTS LIST — PUMP AND MOTOR
Item
Part #
1
2
3
4
5
6
7
8
9
10
11
12
B1514
97100
21054
21055
20138
20928
20218
B2733
21525
B1124
97855
97934
13
Description
Item
Part #
Qty.
Description
1
1
1
1
1
1
1
1
2
1
1
3
ASSY, Motor Complete
CAP, HP
BOOT, Rubber
GROMMET, Rubber
SWITCH, Auto
HOUSING, Auto-Switch
CAP, Retainer
PISTON ASSY, Auto Switch
WIPER, Piston Bore
CAP, Inlet
“O” RING, dia. 6.5 x 2.01mm
“O” RING, Chk Valve dia. 12.4 x
33
97837
1
“O” RING, Hi-press dia. 9.2 x
34
97835
1
“O” RING, Hsg Seal, dia. 82.2 x
36
37
38
39
40
76353A
B2664
A1111A
97839
97851
1
3
1
3
3
20212
1
14
15
16
B1960
B2240
A1495
1
1
2
19
20
21124
21123
1
1
SPRING, 15.08 x dia. 1.62 CS x
22.3
SEAT, Ball
SCREW, Lock Socket
TAPTITE, M4-0.7x10mm SW
MTG
RING, Backup dia. 4.34 Id x 1.24
“O” RING dia. 3.68 Id x 1.78 CS
41
42
43
44
45
46
47
48
49
50
51
97832
40946
93873
93667
97831
93680
B1119
99503
40945
97962
97824A
3
4
4
3
3
3
1
3
3
3
1
21
22
21126
21125
1
1
RING, Backup dia. 26.0 ID
“O” RING dia. 25.07 ID x 2.62 CS
52
97826
1
23
24
26
29
31
20217
A1130
97852
28739A
97840
1
1
1
1
3
STOP, Piston Return
SPRING, Pop-off Valve
BALL, dia. 3/16" Pop-off Valve
TIE, Wrap
“O” RING, Hi-press dia. 15.6 x
53
97825
1
55
56
B2663
97822
1
1
PLUG, Taper dia. 5.4
ASSY., Check Valve, Inlet
PUMP, Head
ASSY., Check Valve, Outlet
“O” RING, Piston dia. 10.82 x
1.78mm
PISTON dia. 15 x 65mm
BOLT, SHCS M6- 1.0 x 35mm
LOCKWASHER, M6 Ribbed
SEAL, Piston “U” Cup
SPACER, Pilot
SEAL, Oil-piston dia. 15 TC4
HOUSING, Piston
SPRING, Piston Return
RETAINER, Piston Spring
BOLT, SHCS M6-1.0 x 20mm
BEARING, Needle dia. 40 x
60mm
WASHER, Brg dia. 40 x 60 x
1mm
WASHER, Brg dia. 36 x 60 x
6mm
ASSY., Cam/Gear
BEARING, Ndle Thrust dia. 35 x
57
20610
2
3
CAP, Check Valve
60
97833
1
3297841
Qty.
.78mm
[.070"]
[.103"]
1.78mm
High Pressure Washer
15
2.62mm
2.62mm
52mm
WASHER, Brg dia. 35 x 55 x
3mm
SHAFT, Idler Axial Cam
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
Drawing No. B2491
EXPLODED
EXPLODED VIEW
VIEW —
— MAIN
XXXXXX...
UNIT
High Pressure Washer
16
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
Drawing No. B2491
EXPLODED
PARTS LIST
VIEW
— MAIN
— XXXXXX...
UNIT
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
PART NO.
N/A
B1415
A1252
A1313
20566
98806
97893
20984
98801
97892
20985
20986
84543B
98805
84358
99349
B1053
B2492
99736
21334
21335
21265
96016
A1484
A1485
97835
99350
21336
21337
B1417
21338D
A1069
B1051
87815
98904
B1236D
QTY.
1
1
1
1
1
1
1
1
4
1
1
1
2
1
4
1
1
1
1
1
1
1
1
1
1
1
6
1
1
1
1
1
1
1
1
1
DESCRIPTION
ASSY., Motor and Pump (see exp. view B2452)
DECAL, Circuit
DECAL, Unit
DECAL, Instructions
DECAL, 1-800 #
FOAM, Air In, Fan-end
HOUSING, Switch and Cord
SWITCH, Rocker 16A
MOUNT, Rubber
COVER, Motor
ENCLOSURE, Rocker Switch Boot
BOOT, Rocker Switch
SCREW, 3.5mm x 12mm Plastite
CORD, Power
SCREW, #6-19 x .75 mm Plastite
STRAIN RELIEF, Cord
DECAL, ETL
DECAL, Data
OVERLAMINATE
HOUSING, Inlet
HOUSING, Outlet
QUICK DISCONNECT, Male
QUICK DISCONNECT, Female
NUT, Strain Relief Lock
SEAL RING, Strain Relief
“O” RING, Hsg Seal, dia. 82.2 x 2.62mm
SCREW, #6 Plastite
GUN, Spray
WAND, Extension
HOSE, High Pressure
NOZZLE, Head
FOAMER
ADAPTOR, Accessories
GOGGLES
HANG TAG CSA, Nozzle
NOZZLE, 1.15mm dia. (Lilac)
High Pressure Washer
17
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
NOTES
High Pressure Washer
18
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
NOTES
High Pressure Washer
19
C
A
Generac 1300PSI Electric High Pressure Washer
R
E
N
E
G
LIMITED PRESSURE WASHER WARRANTIES
(includes “Master Contractor”)
GENERAC warrants to the original retail purchaser, the pressure washer manufactured by GENERAC to be
free from defects in material and workmanship for the period(s) set forth below from the date of original purchase. This warranty is not transferable. The term “original purchaser” means the person for whom the
pressure washer is originally purchased.
Warranty Schedules
Electric Power Washer
1 year (does not apply to commercial or rental operations)
Generac GN-Series Engine-driven
Power Washer
All Other Engine-driven
Power Washers
CONSUMER*
Engine:
2 years
(2nd year parts only)
Pump:
1 year
Engine: Warranted solely by
Engine Manufacturer
COMMERCIAL*
1 year
90 days
Warranted solely by
Engine Manufacturer
Pump:
1 year
90 days
* NOTE: For the purpose of this warranty “Consumer Use” means personal residential household use
by original purchaser. “Commercial Use” means all other uses, including rental, construction, commercial and income producing purposes. Once a pressure washer has experienced commercial use, it
shall thereafter be considered a commercial use pressure washer for the purposes of this warranty.
During said warranty period, GENERAC will, at its option, repair or replace any part which, upon examination
by GENERAC or GENERAC Authorized Dealers, is found to be defective under normal use and service**. All
transportation costs under warranty, including return to the factory if necessary, are to be borne by the purchaser and prepaid by the purchaser.
** NORMAL WEAR: As with all mechanical devices, the GN-Series engines need periodic parts service and replacement to perform well. This warranty will not cover repair when normal use has
exhausted the life of a part or an engine.
THIS WARRANTY DOES NOT INCLUDE: Used products and demonstration equipment. Parts such as
GUNS, HOSES, WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, O-rings,
filters, pump packing, etc. Pumps which have been run without water supplied. Damage or malfunctions
resulting from: accidents, abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance such as adjustments, fuel system cleaning and obstruction (due to chemical,
dirt, carbon or lime, etc.).
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, SPECIFICALLY,
GENERAC MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The duration of any implied warranties which cannot be disclaimed is limited to the time
period as specified in the express warranty. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL
DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE A
DIRECT RESULT OF GENERAC’s NEGLIGENCE. Some states do not allow limitations on how long an
implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also
have other rights, which vary from state to state.
For service, see your nearest GENERAC authorized warranty service facility or call 1-800-333-1322. Warranty service can be performed only by a GENERAC authorized service facility. This warranty will not apply to
service at any other facility. At the time of requesting warranty service, evidence of original purchase date
must be presented.
GENERAC CORPORATION

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
