Simplicity 074025-00 Operator's Manual

ot
n
fo
rR
ep
ro
du
ct
io

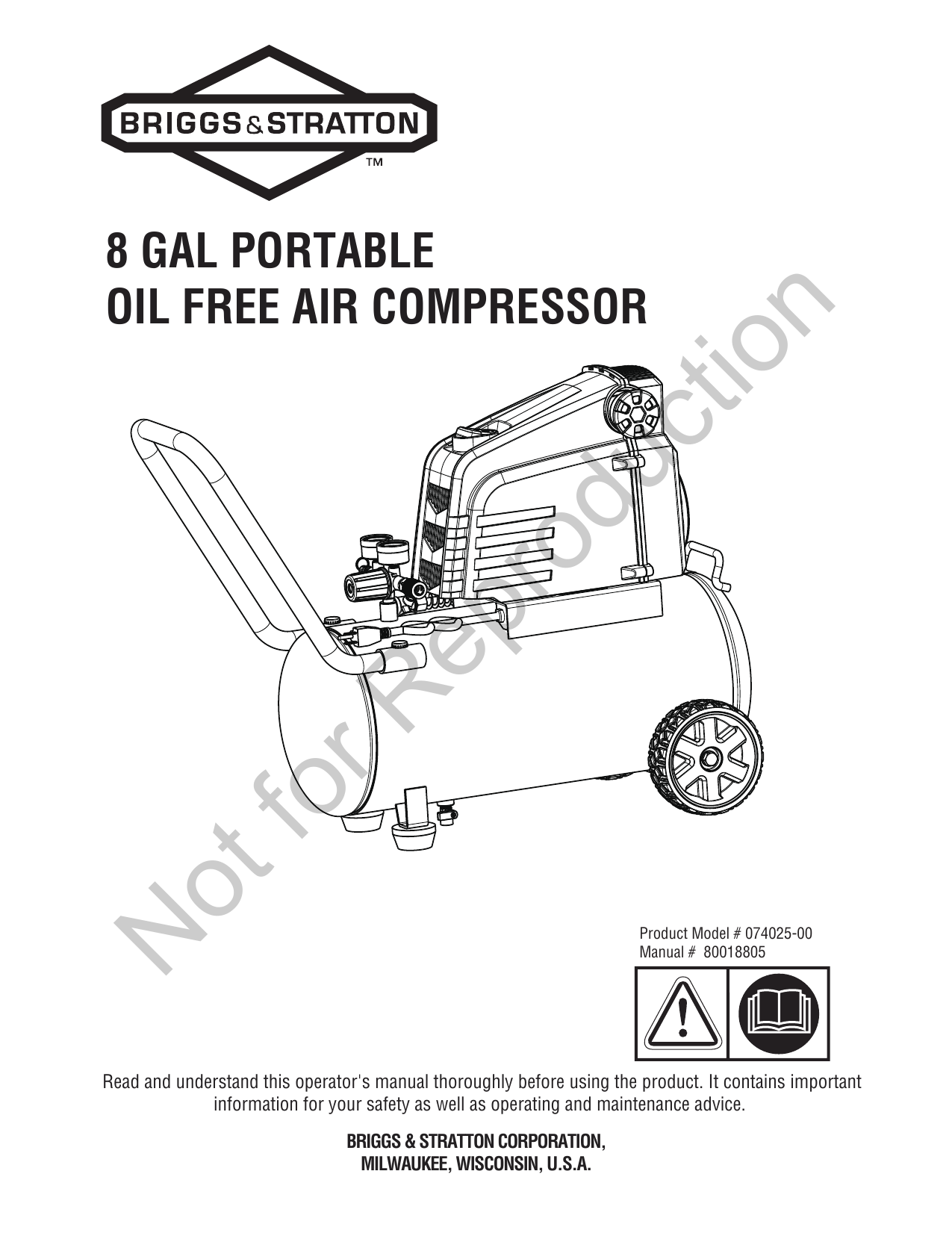

8 GAL PORTABLE
OIL FREE AIR COMPRESSOR
N
Product Model # 074025-00
Manual # 80018805
Read and understand this operator's manual thoroughly before using the product. It contains important
information for your safety as well as operating and maintenance advice.
BRIGGS & STRATTON CORPORATION,
MILWAUKEE, WISCONSIN, U.S.A.
Thank you for purchasing this quality-built Briggs & Stratton ™ air compressor. We are pleased that
Briggs & Stratton brand. When operated and maintained
according to the instructions in this manual, your Briggs &Stratton air compressor will provide many
years of dependable service.
ro
du
ct
io
n
You can contact Briggs & Stratton Customer Service by phone at (800) 743-4115, or on the
Internet at BRIGGSandSTRATTON.COM.
N
ot
fo
rR
ep
Date Purchased
2
BRIGGSandSTRATTON.COM
CONGRATULATIONS ON YOUR
NEW PRODUCT PURCHASE!
Thank you for choosing a product from the Briggs & Stratton family of brands. We are honored that you chose
us as your power equipment provider.
ro
du
ct
io
onlineproductregistration.com or scan the code below from your mobile device.
•
•
•
n
WE STRIVE TO CREATE HELPFUL, DEPENDABLE PRODUCTS THAT YOU CAN RELY ON FOR YEARS TO
COME, WHILE COUNTING ON US TO SUPPORT YOU THROUGH THE LIFE OF YOUR PRODUCT.
Product updates
product online.
•
Helpful maintenance and usage tips
•
Discounts and offers on future products
Whether you absolutely love your new product or have a suggestion to enhance it, we’d love to hear from you
and value your feedback.
rR
ep
At your service,
fo
David Cluka, Director of Customer Experience
Briggs & Stratton Corporation
N
ot
SCAN THIS CODE to start the registration process on your mobile device. Data rates apply.
80018805
Table of Contents
Product Registration Form.................................................................................................... 3
n
Safety Guidelines.................................................................................................................. 5
ro
du
ct
io
Key Parts Diagram................................................................................................................. 7
Parts Description.................................................................................................................. 8
Assembly Instructions..........................................................................................................
........................... 9
Operating Instructions.......................................................................................................... 10
Care and Maintenance...........................................................................................................11
rR
ep
Troubleshooting.................................................................................................................... 12
Warranty............................................................................................................................... 14
Technical Specifications........................................................................................................15
Exploded View.......................................................................................................................16
N
ot
fo
Parts List...............................................................................................................................17
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.
4
BRIGGSandSTRATTON.COM
Safety Guidelines
Important Safety Information
The manufacturer cannot possibly anticipate every possible circumstance that might involve a hazard. The warnings
Safety Symbols and Meanings
Electrical Shock
rR
ep
Toxic Fumes
ro
du
ct
io
n
work method, or operating technique that the manufacturer does not specifically recommend, you must satisfy
yourself that it is safe for you and others. You must also make sure that the procedure, work method, or operating
technique that you choose does not render the compressor unsafe.
Operator's Manual
fo
Fire
Flying Objects
Hot Surface
Warning
Bursting
Hearing
N
ot
The safety alert symbol indicates a potential hazard to personal injury. A signal word (DANGER, WARNING, or
CAUTION) is used with the alert symbol to designate a degree or level of hazard seriousness. A safety symbol may
be used to represent the type of hazard. The signal word NOTICE is used to address practices not related to personal
injury.
DANGER indicates a hazard which, if not avoided, will result in death or serious injury.
WARNING indicates a hazard which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided, could result in minor or moderate injury.
Notice
address practices not related to personal injury.
5
Safety Information
DO NOT OPERATE THIS UNIT UNTIL YOU READ AND UNDERSTAND THIS
INSTRUCTION MANUAL FOR SAFETY, OPERATION, AND MAINTENANCE
INSTRUCTIONS.
n
WARNING
ro
du
ct
io
compressor.
High pressure air could result in death or serious injury. Never operate above maximum operating pressure
of the spray gun or tool. Drain water from tank after each use.
Do not weld or repair tank.
Do not operate with pressure switch or safety valve set above maximum allowable working pressure.
Hot compressor surfaces could result in serious injury. Allow compressor to cool before touching.
Inhalation hazard. Using compressor to supply breathing air could result in death or serious injury. Do not
use compressor to supply breathing air.
rR
ep
Risk of fire could result in death or serious injury.
Do not spray flammable materials in vicinity of any flame or ignition sources including the compressor unit.
Do not restrict compressor ventilation openings or place objects against or on top of compressor. Operate
compressor only in a clean, dry, well ventilated area.
Do not operate unattended. Always turn off and unplug unit when not in use.
Risk of serious eye injury. Always wear ANSI Z87.1 approved safety glasses when using air compressor. Do
not spray any part of the body.
fo
Always wear hearing protection when using an air compressor. Failure to do so may result in hearing loss.
N
ot
Shock risk could result in death or serious injury. Only connect compressor to a properly grounded
receptacle. KEEP CHILDREN AWAY FROM THE AIR COMPRESSOR AT ALL TIMES.
6
.
BRIGGSandSTRATTON.COM
Key Parts Diagram
A
A.
Electric Motor & Air Compressor Pump
H.
Pressure Relief Valve
Air Tank
I.
ON/OFF Switch
ot
B.
fo
rR
ep
ro
du
ct
io
n
I
Tank Pressure Gauge
J.
Power Cord
D.
Air Pressure Regulator
K.
Handle
E.
Regulated Pressure Gauge
L.
Wheel
F.
Air Line Outlet
M.
Air Filter
G.
Air Tank Ball Valve
N
C.
7
Parts Description
A. ELECTRIC MOTOR: The motor is used to power the pump. It contains a thermal overload protector. If
the motor overheats for any reason, the thermal overload protector will shut it down in order to prevent
the motor from being damaged.
n
AIR COMPRESSOR PUMP: The pump is used to compress the air and discharge it into the tank via the
piston moving up and down in the cylinder.
B. AIR TANK: The tank is used to store the compressed air.
C. TANK PRESSURE GAUGE: The gauge is used to measure the stored air pressure level of the tank. It is
not adjustable by the operator and does not indicate line pressure.
ro
du
ct
io
D. AIR PRESSURE REGULATOR: The regulator is used to adjust line pressure to the tool you are using.
Turn the knob clockwise to increase pressure and counterclockwise to decrease pressure.
WARNING
Never exceed the maximum working pressure of the tool.
E. REGULATED PRESSURE GAUGE: The gauge is used to measure the regulated outlet pressure.
F. AIR LINE OUTLET: The outlet is used to connect air hose with quick connector.
G. AIR TANK BALL VALVE: The ball valve is used to remove moisture from the air tank after the unit is
shut off.
rR
ep
WARNING
Never attempt to open the drain valve when the tank pressure is more than 10 PSI.
H. PRESSURE RELIEF VALVE: The valve is used to prevent system the system. If the pressure reaches the
preset leve motor, it will automatically pop open. You can also pull the ring on the valve to open.
I. ON/OFF SWITCH: This switch turns on the compressor and is operated manually. When in the ON
position, it allows the operated manually. When in the ON demand. ALWAYS set this switch to OFF
when the compressor is not being used and before unplugging the compressor.
fo
J. POWER CORD: This product is for use on a nominal 120-volt circuit and should be grounded. A cord
with a grounding plug as illustrated must be used. Make sure that the product is connected to an outlet
that has the same configuration as the plug (see Figure 1). No adapter should be used with this
Check with a licensed electrician if the grounding instructions are not
understood or there is doubt as to whether the product is properly
grounded. Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a licensed electrician.
ot
Grounded
outlet
N
Plug
DANGER
Improper installation of the grounding plug will result in a risk
of electric shock. If repair or replacement of the cord or plug is
necessary, do not connect the grounding wire to either flat blade
terminal. The grounding wire is in the green outer surface.
Grounding Pin
Figure 1
8
BRIGGSandSTRATTON.COM
Assembly Instructions
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included): 11/16 in. Open Wrench or Adjustable Wrench.
n
ASSEMBLY INSTRUCTIONS
Hardware Used
ro
du
ct
io
1. Removable handle assembly
• Insert handle (K) into the fixed sleeves. Align the tapped holes (K1) with
the holes on the sleeve.
• Fasten the handle to the sleeve using the screws (AA).
1
AA
AA M6 × 14 Screw
K1
x2
Hardware Used
rR
ep
2. Wheel assembly
• Insert the bolt (BB) through one of the wheels (L),slide on washer (CC).
• Insert the bolt (BB) through the bracket on the bottom of the tank
assembly. Slide on washer (CC), spring washer (DD) and tighten the nut
(EE). Repeat this step for the second wheel.
• Once assembled, roll the air compressor to test the operation of the
wheels. Periodically check to ensure that wheel and the hardware is secure.
M10 Bolt
CC
Ø10 Washer
x2
DD
Ø10 Spring Washer
x2
EE
M10 Nut
x2
fo
BB
K
2
x2
N
ot
3
3. Air filter assembly
• Screw the air filter (M) onto the pump.
9
Operating Instructions
BEFORE EACH START UP
1. Set the ON/OFF switch (I) to the O (off) position.
2. Turn the air pressure regulator knob (D) counterclockwise until it stops.
3. Attach air hose/accessories or air tools (not included) to the air line outlet (F).
WARNING!
Risk of bursting. Too much air pressure causes a hazardous risk of bursting. Check
the manufacturer’s maximum pressure rating for air tools and accessories. The regulator outlet
pressure must never exceed the maximum pressure rating.
ro
du
ct
io
n
HOW TO START UP
1. Close the air tank ball valve (G) by turning clockwise.
2. Plug in the power cord (J).
3. Set the ON/OFF switch (I) to the I (on) position and allow tank pressure to build. Motor will stop
when tank pressure reaches “cut-out” pressure.
4. Turn the air pressure regulator (D) clockwise until desired pressure is reached.
5. The compressor is ready for use.
rR
ep
WARNING
High temperatures are generated by the electric motor
and the pump. To prevent burns or other injuries,
DO NOT touch the compressor while it is running.
Allow it to cool before handling or servicing.
Keep children away from the compressor at all times.
When adjusting from a higher to a lower pressure,
the knob counterclockwise past the desired setting. Then
turn clockwise to reach the desired pressure.
Do not exceed operating pressure of the tool or accessory
being used.
HOW TO SHUT DOWN
ot
fo
1. Set the ON/OFF switch (I) to the O (off) position.
2. Unplug the power cord (J).
3. Reduce the pressure in the tank through the outlet hose. Pulling the pressure relief valve ring (H) and
keeping it open will also reduce the pressure in the tank.
4. Tip the compressor so the tank drain valve is at the bottom of the tank, then open the tank drain valve
counterclockwise to allow moisture to drain from the tank.
N
CAUTION!
Escaping air and moisture can propel debr is that may cause eye injury. Wear safety glasses when
opening the drain valve.
WARNING!
To avoid personal injury, always shut off and unplug the unit and relieve all air pressure from the
system before performing any service on the air compressor.
Risk of unsafe operation. Unit cycles automatically when power is on. When performing
maintenance, you may be exposed to voltage sources, compressed air or moving parts. Personal
injuries can occur. Before performing any maintenance or repair, disconnect power source from the
compressor and bleed off all air pressure.
10
BRIGGSandSTRATTON.COM
Care and Maintenance
WARNING:
To avoid personal injury, always shut off and unplug the unit and relieve all air pressure from the
system before performing.
Regular maintenance will ensure trouble-free operation.
SERVICE
INTERVAL
DESCRIPTION
ro
du
ct
io
To prevent corrosion inside the tank, the condensation must be
drained at the end of every workday. Be sure to wear protective
goggles. Relieve the air pressure in the system and then open the
ball valve on the bottom of the tank.
n
TASK
Drain the
tank
Daily
OPEN
CLOSE
Pull the relief valve on the ring daily to ensure that it is operating
properly and to clear the valve of any possible obstructions.
rR
ep
Check the
relief valve
A dirty filter will reduce the unit’s performance and life. To avoid any
contamination inside the pump, the filter should be cleaned frequently
and replaced on a regular basis. Foam filter should be cleaned in
warm and soapy water.
Check all connections to see if tight. A small leak of any of part (the
tank, hoses, pipe connections or transfer tubes) will reduce the unit’s
performance. Spray a small amount of soapy water around the area
of the suspected leak with a spray bottle. If bubbles appear, repair or
replace the faulty component. Do not overtighten any connections.
Weekly
Monthly
N
ot
Test for
leakage
fo
Clean the
air filter
Daily
Storage
Before storing the unit for a long period, use an air blow gun to clean
all dust and debris from the compressor. Disconnect and coil the
power cord. Pull the pressure relief valve to release all pressure from
the tank. Drain all moisture from the tank. Cover the entire unit to
protect it from moisture and dust.
N/A
11
Troubleshooting
PROBLEM
CORRECTIVE ACTION
POSSIBLE CAUSE
1. The tank ball valve is open.
2. There is a leak in the fittings.
ro
du
ct
io
There is low
pressure, not
enough air, or the
compressor does
not stop.
n
3. There is a prolonged or excessive use
of air.
4. The compressor is not large enough.
5. There is a hole in the air hose.
6. The tank leaks.
7. The seals are blown.
8. The valve leaks.
9. There is a leaking or worn piston.
rR
ep
Air leaks from the
1. The internal parts of the
regulator or the
regulator does not regulator are dirty or
damaged.
regulate air
pressure.
1. This is normal.
2. The compressor is not
large enough.
ot
fo
The regulated
pressure gauge
reading drops
when the air
accessory is
being used.
N
The pressure
relief valve
opens.
12
1. Close the ball valve.
2. Check fittings with soapy water. Tighten
or reseal leaking fittings. DO NOT
OVERTINGHTRN.
3. Decrease the amount of air used.
4. Check the air requirement of the
accessory. If it is higher than the CFM and
the pressure supplied by the compressor,
you need a larger compressor. Most
accessories are rated at 25% of the actual
CFM while running continuously.
5. Check and replace if necessary.
WARNING
6. Immediately replace the
tank. DO NOT attempt to repair.
7. Replace the compressor assembly.
8. Replace the compressor assembly.
9. Replace the compressor assembly.
1. The tank pressure exceeds the normal
rating pressure.
2. The pressure switch is stuck.
1. Replace the regulator or
internal parts.
1. If the pressure drops too low, adjust the
regulartor while the accessory is used.
2. Check the air requirement of the
accessory. If it is higher than the CFM and
the pressure supplied by the compressure
supplied by the compressor, you need a
larger compressor. Most accessories are
rated at 25% of the actual CFM while
running continuously.
1. Replace the pressure switch.
2. Replace the pressure switch.
BRIGGSandSTRATTON.COM
Troubleshooting
CORRECTIVE ACTION
POSSIBLE CAUSE
1. The motor will start automatically when
the tank pressure drops below the tank
cut-in pressure.
2. Replace the blown fuse or reset the
circuit breaker. Do not use a fuse or circuit
breaker with a higher rating than specified
for your branch circuit. Check for proper
fuse; type T fuse is acceptable. Check for
low voltage and proper extension cord size.
Disconnect other applications from the
circuit. Operate the compressor on a
dedicated circuit.
3. Remove and clean or replace.
4. Check for proper gauge and extension
cord length.
5. Contact an authorized service center.
6. Turn the air compressor off, unplug the
power cord and wait until the motor has
cooled down. Plug in the power cord only
after the motor has cooled down, waiting at
least five minutes to make sure the thermal
overload protector has recovered.
7. Have the compressor serviced by a
qualified technician.
N
ot
fo
rR
ep
ro
du
ct
io
1. Tank pressure exceeds the preset
pressure switch limit.
2. The fuse is blown or the circuit breaker
tripped.
3. The check valve is stuck in the open
position.
4. The wire gauge in the cord is wrong or
the extension cord length is excessive.
5. There are loose electrical connections.
6. The motor’s thermal overload protection
The motor will not has tripped.
run.
7. The motor, capacitor or safety valve is
defective.
n
PROBLEM
13
Briggs & Stratton Air Compressor Warranty Policy
TM
October, 2015
LIMITED WARRANTY
TM
ro
du
ct
io
n
BRIGGS & STRATTON is a trademark of BRIGGS & STRATTON CORPORATION and is used under license to Alton Industry
Co. Ltd®. Alton Industry Co. Ltd warrants this Briggs & Stratton brand product for a period of one year from the date of
original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described
below, if Alton Industry Co. Ltd determines this product is covered under this warranty, it will be replaced with the same
model or one of equal value or specification, at Alton Industry Co. Ltd’s option. Alton Industry Co. Ltd will bear the cost of
replacement. The purchaser must contact Alton Industry Co. Ltd® for all warranty authorizations.
There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular
purpose, are limited to one year, or to the extent permitted by law. Liability for incidental or consequential damages are
excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an
implied warrant lasts, and some states of countries do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state or country to country.
Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is
requested, the manufacturing date of the product will be used to determine the warranty period. Product registration is not
required to obtain warranty service on Briggs & Stratton products.
rR
ep
These are our standard warranty terms, but occasionally there may be additional warranty coverage that was not determined at
time of publication. For a listing of current warranty terms for your air compressor, go to BRIGGSandSTRATTON.COM
This Limited warranty does not include the following:
N
ot
fo
A. Parts that are worn or broken or which have become inoperative due to abuse, misuse, accidental damage, neglect or lack of
proper installation, operation or maintenance (as outlined in the applicable owner’s manual or operating instructions) or product
that has been used for industrial, professional, commercial or rental purposes;
B. Normal wear and tear or expendable parts or accessories that may be supplied with the product which are expected to become
inoperative or unusable after a reasonable period of use;
C. Routine maintenance and consumable items such as, but not limited to fuel, lubricants, valves, belts, knobs, nuts, fluids,
tune-ups, or adjustments;
D. Damage caused by repairs made or attempted by persons not authorized by the manufacturer;
E. Product that was sold to the original purchaser as reconditioned or refurbished product (unless otherwise specified in writing);
F. Product or parts thereof if any part from another manufacturer has been installed or any repairs or alterations have been made
or attempted by unauthorized persons;
G. Normal deterioration of the exterior finish such as, but not limited to, scratches, dents, paint chips, nor any corrosion or
discoloring by heat, abrasive and chemical cleaners;
H. Component parts sold by and identified as the product of another company, which shall be covered under the other product
manufacturer’s warranty, if any.
14
For questions about our warranty on this product, contact us at:
Alton Industry LTD. Group
1031 North Raddant Road
Batavia Illinois 60510
888-899-0146
[email protected]
www.altonindustries.com
BRIGGSandSTRATTON.COM
Product Specifications
Model No.
Pump
Motor
Voltage/Amps/HZ
Air Tank Capacity
Cut-in Pressure
Cut-out Pressure
CFM @ 40 PSI
CFM @ 90 PSI
Power Cord
ro
du
ct
io
n
074025-00 / 0300841
Oil free, Direct drive, Single stage
1.5 HP
120/12/60
8 Gallon
120 PSI
150 PSI
4.8*
3.7*
SJT 16 AWG / 72 in. Length
NOTE: Avoid use of extension cords. If use of an extension cord cannot be avoided, the cord should be a minimum
wire size of 12 AWG and no longer than 30 feet. Use only a 3-wire extension cord that has a 3-blade grounding plug
and a 3-slot receptacle that will accept the plug on the product.
N
ot
fo
rR
ep
*CFM: Cubic Feet per Minute.
This compressor is rated in accordance with ISO 1217, displacement compressors acceptance
tests.
15
N
ot
fo
rR
ep
ro
du
ct
io
n
Exploded View
16
BRIGGSandSTRATTON.COM
Parts List
DESCRIPTION
QTY
PART
DESCRIPTION
QTY
1
Rubber foot
2
20
Air filter
1
2
Bolt M10 X 20
2
21
Back shroud
1
3
Anchor nut
1
22
Self-tapping screw ST3.9 X16F
4
4
Power cord
1
23
Bolt M5 X 12
4
5
Thumbscrew
2
24
Bolt M8 X 25
6
Check valve
1
7
Quick coupler
1
8
Regulator
1
9
Relief valve
1
10
Handle
1
11
Pressure gauge
2
12
Front shroud
1
13
Switch retainer
1
14
On/Off switch
15
ro
du
ct
io
n
PART
4
Tranfer tube
1
26
Washer Ø8
4
27
Cushion pad
4
28
Pressure switch
1
29
Bolt M5×10
2
30
Lock washer
2
31
Wheel
2
32
Shoulder bolt
2
1
33
Washer Ø10
4
Run capacitor,50 μf
1
34
Spring washer Ø10
2
16
Start capacitor,200 μf
1
35
Nut M10
4
17
Eblow
1
36
Air tank
1
18
Pump/Motor assembly
1
37
Ball valve
1
19
Fan
1
N
ot
fo
rR
ep
25
17
n
ro
du
ct
io
rR
ep
fo
ot
N
Producto # 074025-00
Manual # 80018805
TM
N
ot
fo
rR
ep
ro
du
ct
io
n
Donde estamos
2
BRIGGSandSTRATTON.COM
CONGRATULATIONS ON VOUR
NEW PRODUCT PURCHASE!
Gracias por elegir un producto de la familia de marcas Briggs & Stratton usted. Nos sentimos honrados de que
nos haya elegido como su proveedor de equipos de energía.
NOS ESFORZAMOS POR CREAR PRODUCTOS CONFIABLES, ÚTILES QUE USTED PUEDE CONFIAR EN
LOS AÑOS VENIDEROS, MIENTRAS COUNTIIMG EN EEUU PARA APOYAR A TRAVÉS LA VIDA DE SU
PRODUCTO.
ro
du
ct
io
n
El registro de su producto es el primer paso para recibir la mejor experiencia post-venta. Para empezar, vaya a
onlineproductregistration.com o escanear el código de abajo desde su dispositivo móvil.
•
La confirmación de la garantía de la elegibilidad de cobertura •
Consejos de mantenimiento y uso votos
•
Partes más eficientes y apoyo de servicio
Descuentos y ofertas en productos futuros
•
Actualizaciones de Producto
•
Después de registrarse, usted recibirá un correo electrónico de confirmación que incluye una invitación a
calificar y comentar sobre su nuevo producto en línea.
Si a pesar de todo el amor de su nuevo producto o tiene alguna sugerencia para mejorarla, nos encantaría saber
de usted y valoramos sus comentarios.
rR
ep
A su servicio,
fo
David Cluka, Director de Experiencia del Cliente
Briggs & Stratton Corporación
N
ot
LEA ESTE CÓDIGO para iniciar el proceso de registro en el dispositivo móvil. Se aplican tarifas
de datos.
80018805
Índice
..........................................................................
n
................................................................................................
ro
du
ct
io
ClAVE DIAGRAMA DE PIEZAS ...............................................................................................
DESCRIPCIÓN DE LAS PARTES ............................................................................................ 8
.........................................................................................
...................................................................................
..............................................................................................
..................................................................................................
rR
ep
........................................................................................................................... 14
....................................................................................... 15
............................................................................................................... 16
N
ot
fo
................................................................................................................ 17
GUARDE ESTAS INSTRUCCIONES
Este manual contiene instrucciones operativas y seguridad importante.
Lea todas las instrucciones y seguirlas con el uso de este producto.
4
BRIGGSandSTRATTON.COM
Directrices de seguridad
Información importante de seguridad
Símbolos de seguridad y significados
fo
Fuego
Choque eléctrico
rR
ep
Vapores toxicos
ro
du
ct
io
n
El fabricante no puede anticipar todas las posibles circunstancias que puedan implicar un riesgo. Las advertencias
de este manual y las etiquetas y calcomanías adheridas a la unidad, por lo tanto, no todos los servicios incluidos.
Si utiliza un procedimiento, método de trabajo o técnica de operación que el fabricante no recomienda específicamente,
debe satisfacer a ti mismo de que es seguro para usted y los demás. También debe asegurarse de que el procedimiento,
método de trabajo o técnica de operación que elija no haga al compresor inseguro.
El vuelo se opone
Advertencia
Manual del operador
Muy lleno
Superficie caliente
Audición
N
ot
El símbolo de alerta de seguridad indica un riesgo potencial de lesiones personales. Una palabra (PELIGRO,
ADVERTENCIA o PRECAUCIÓN) se utiliza con el símbolo de alerta para designar un grado o nivel de gravedad del
riesgo. Un símbolo de seguridad puede ser usado para representar el tipo de peligro. La palabra de señalización
AVISO \ s utilizado para prácticas de dirección no relacionados con lesiones personales.
PELIGRO indica un peligro que, si no se evita, provocará la muerte o lesiones graves.
ADVERTENCIA indica un peligro que, si no se evita, vaca / t / resultado en la muerte o lesiones graves.
PRECAUCIÓN indica un peligro que, si no se evita, podría causar lesiones leves o moderadas.
aviso
prácticas de dirección no relacionados con lesiones personales.
5
Información de seguridad
No opere esta unidad hasta que haya leído y entendido este MANUAL DE
INSTRUCCIONES PARA LAS INSTRUCCIONES DE SEGURIDAD, operación y
mantenimiento.
ADVERTENCIA
ro
du
ct
io
n
Riesgo de incendio causado por chispas del motor y el interruptor de presión podría ocasionar la muerte o
lesiones graves. No haga funcionar el compresor cerca de gas o vapor inflamable. Nunca almacene líquidos
o gases inflamables en * proximidades de compresor.
De aire de alta presión podría causar la muerte o lesiones graves. Nunca opere por encima de la presión
máxima de funcionamiento de la pistola o herramienta. Drene el agua del tanque después de cada uso.
No soldar o tanque reparación.
No opere con interruptor de presión o válvula de seguridad establecido por encima de la presión máxima
de trabajo permitida.
Superficies compresores calientes podrían causar lesiones graves. Permita que el compresor se enfríe
antes de tocarlo.
Peligro de inhalación. El uso del compresor para suministrar aire respirable puede causar la muerte o lesiones
graves. No hay compresor de uso para suministrar aire respirable.
rR
ep
Riesgo de incendio podría causar la muerte o lesiones graves.
No rocíe materiales inflamables en las proximidades de nada con fuego o de ignición, incluyendo el compresor.
No restrinja los orificios de ventilación del compresor o colocar objetos en contra o en la parte superior del
compresor. Opere el compresor sólo en un área limpia, seca y bien ventilada.
No ponga en funcionamiento sin vigilancia. Siempre apague y desenchufe la unidad cuando no esté en uso.
Riesgo de lesiones oculares graves. Siempre use ANSI Z87.1 gafas de protección cuando se utiliza el compresor
de aire. No rocíe cualquier parte del cuerpo.
fo
Siempre use protección para los oídos cuando se utiliza un compresor de aire. El no hacerlo puede resultar en
la pérdida de la audición.
N
ot
Riesgo de choque podría causar la muerte o lesiones graves. Sólo conecte el compresor a un receptáculo
de tierra. MANTENGA A LOS NIÑOS LEJOS DEL COMPRESOR DE AIRE EN TODO MOMENTO.
6
BRIGGSandSTRATTON.COM
A.
Motor eléctrico y bomba compresor de aire
H.
Válvula de bola de presión
Tanque de aire
I.
Interruptor de ENCENDIDO/APAGADO
ot
B.
fo
rR
ep
ro
du
ct
io
n
Clave Diagrama De Piezas
Indicador de presión del tanque
J.
Cable de alimentación
D.
Regulador de presión de aire
K.
Manija
E.
Indicador de presión regulado
L.
Rueda
F.
Salida de la línea de aire
M.
Filtro de aire
G.
Válvula de bolaABRIR del tanque de aire
N
C.
7
ro
du
ct
io
n
Descripción De Las Partes
La salida se utiliza para conectar la manguera de aire con el conector
N
ot
fo
rR
ep
rápido.
8
BRIGGSandSTRATTON.COM
ro
du
ct
io
n
Instrucciones De Ensamblaje
1
AA
AA
K1
fo
rR
ep
K
BB
M
N
ot
3
9
ro
du
ct
io
n
Instruccions De Funcionamiento
EN
APAGADO
N
ot
fo
rR
ep
H
10
ABIERTO
CERCA
BRIGGSandSTRATTON.COM
n
ro
du
ct
io
D
G
N
ot
fo
rR
ep
H
10
BRIGGSandSTRATTON.COM
N
ot
fo
rR
ep
ro
du
ct
io
n
Cuidado Y Mantenimiento
N
ot
fo
rR
ep
ro
du
ct
io
n
Solución De Problemas
12
BRIGGSandSTRATTON.COM
N
ot
fo
rR
ep
ro
du
ct
io
n
Solución De Problemas
13
Briggs & Stratton Política de garantía del compresor de aire
TM
ro
du
ct
io
n
Octubre, 2015
N
ot
fo
rR
ep
Estos son nuestros términos de garantía estándar, pero en ocasiones puede haber cobertura de la garantía adicional que no fue
determinado en el momento de su publicación. Para obtener una lista de los términos de garantía actuales para su compresor
de aire, vaya a BRIGGSandSTRATTON.COM
Para preguntas acerca de nuestra garantía sobre este producto, póngase en contacto con nosotros en:
Alton Industria LTD. Grupo 1031 Norte Raddant Road
Batavia Illinois 60510
888-899-0146
[email protected]
www.altonindustries.com
14
BRIGGSandSTRATTON.COM
Especificaciones Del Producto
ro
du
ct
io
n
074025-00 / 0300841
Transmisión directa sin aceite,De una fase
1,5 HP
120/12/60
30,28 Iitros
120 PSI
150 PSI
0,14
0,1
SJT 16 AWG /1,83 m de largo
N
ot
fo
rR
ep
Este compresor tiene una clasificación de acuerdo con la norma IOS 1217,desplazamiento Compresores
pruebas de aceptación .
15
N
ot
fo
rR
ep
ro
du
ct
io
n
Vista Detallada
16
BRIGGSandSTRATTON.COM
ot
N
n
ro
du
ct
io
rR
ep
fo
Lista Da Piezas
17

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
