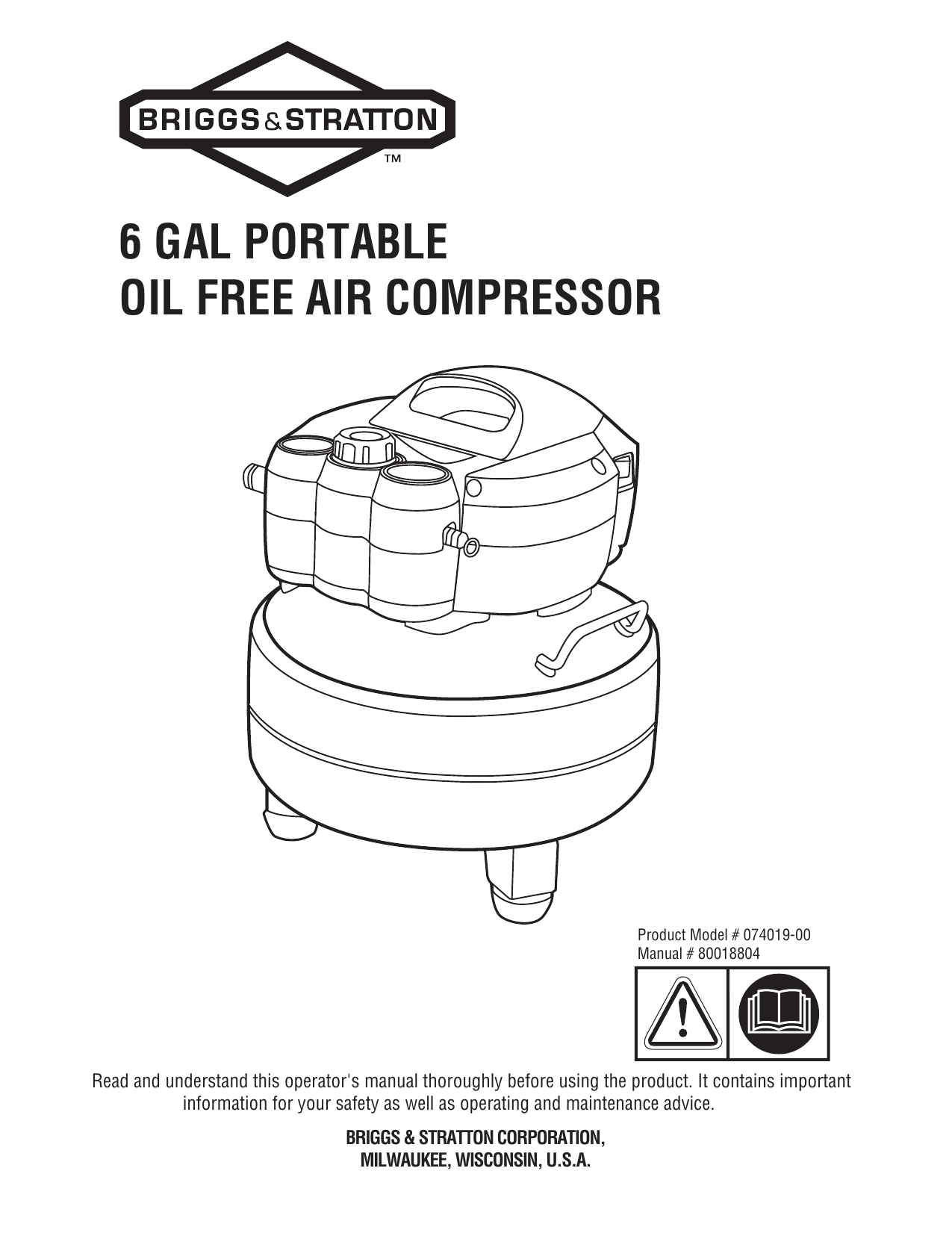

6 GAL PORTABLE
OIL FREE AIR COMPRESSOR
Product Model # 074019-00
Manual # 80018804
Read and understand this operator's manual thoroughly before using the product. It contains important
information for your safety as well as operating and maintenance advice.
BRIGGS & STRATTON CORPORATION,
MILWAUKEE, WISCONSIN, U.S.A.
Thank you for purchasing this quality-built Briggs & Stratton ™ air compressor. We are pleased that
Briggs & Stratton brand. When operated and maintained
according to the instructions in this manual, your Briggs &Stratton air compressor will provide many
years of dependable service.
You can contact Briggs & Stratton Customer Service by phone at (800) 743-4115, or on the
Internet at BRIGGSandSTRATTON.COM.
Date Purchased
80018804
Product Registration Form
Safety Guidelines
Safety Information
Key Parts Diagram
Parts Description
Operation Instructions
Care And Maintenance
Troubleshooting
Warranty
Product Specifications
Exploded view
Parts List
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.
8
Safety Guidelines
Important Safety Information
The manufacturer cannot possibly anticipate every possible circumstance that might involve a hazard. The warnings
work method, or operating technique that the manufacturer does not specifically recommend, you must satisfy
yourself that it is safe for you and others. You must also make sure that the procedure, work method, or operating
technique that you choose does not render the compressor unsafe.
Safety Symbols and Meanings
Toxic Fumes
Fire
Flying Objects
Electrical Shock
Warning
Operator's Manual
Bursting
Hot Surface
Hearing
The safety alert symbol indicates a potential hazard to personal injury. A signal word (DANGER, WARNING, or
CAUTION) is used with the alert symbol to designate a degree or level of hazard seriousness. A safety symbol may
be used to represent the type of hazard. The signal word NOTICE is used to address practices not related to personal
injury.
DANGER indicates a hazard which, if not avoided, will result in death or serious injury.
WARNING indicates a hazard which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided, could result in minor or moderate injury.
Notice
address practices not related to personal injury.
Safety Information
DO NOT OPERATE THIS UNIT UNTIL YOU READ AND UNDERSTAND THIS
INSTRUCTION MANUAL FOR SAFETY, OPERATION, AND MAINTENANCE
INSTRUCTIONS.
WARNING
compressor.
High pressure air could result in death or serious injury. Never operate above maximum operating pressure
of the spray gun or tool. Drain water from tank after each use.
Do not weld or repair tank.
Do not operate with pressure switch or safety valve set above maximum allowable working pressure.
Hot compressor surfaces could result in serious injury. Allow compressor to cool before touching.
Inhalation hazard. Using compressor to supply breathing air could result in death or serious injury. Do not
use compressor to supply breathing air.
Risk of fire could result in death or serious injury.
Do not spray flammable materials in vicinity of any flame or ignition sources including the compressor unit.
Do not restrict compressor ventilation openings or place objects against or on top of compressor. Operate
compressor only in a clean, dry, well ventilated area.
Do not operate unattended. Always turn off and unplug unit when not in use.
Risk of serious eye injury. Always wear ANSI Z87.1 approved safety glasses when using air compressor. Do
not spray any part of the body.
Always wear hearing protection when using an air compressor. Failure to do so may result in hearing loss.
Shock risk could result in death or serious injury. Only connect compressor to a properly grounded
receptacle. KEEP CHILDREN AWAY FROM THE AIR COMPRESSOR AT ALL TIMES.
Key Parts Diagram
ELECTRIC MOTOR AIR COMPRESSOR PUMP
B
POWER SWITCH
SAFETY VALVE
AIR PRESSURE REGULATOR
TANK PRESSURE GAUGE
REGULATED PRESSURE GAUGE
AIR LINE OUTLET
POWER CORD
AIR TANK
AIR TANK BALL VALVE
Parts Description
A. ELECTRIC MOTOR: The motor is used to power the pump. It is equipped with at thermal overtoad
pfotector.If the motor overheats for any reason, the thermal overload protector will shut it down in
order to prevt the motor from being damaged.
A IR COMPRESSOR PUMP: The pump compresses the air and discharges it into the tank via the
piston that moves up and down in the cylinder.
B. POWER SWITCH: The switch turns the compressor on and off. It is operated manually and when it is
in the I (on) position, it allows the motor to start if the pressure in the air tank is below the factory
set cut-in pressure, and allows the motor to stop if the pressure in the air tank reaches the factory set
cut-out pressure. Be sure to set this switch to the O (off) position when the compressor is not being
used and before unplugging the compressor.
C
D
WARNING: Never exceed the maximum working pressure of the tool.
E
F REGULATED
G
LINE
The outlet is connected to the air hose with quick connector.
WARNING
Never attempt to open the drain valve when the tank pressure is more than 10 PSI.
H. POWER CORD: This compressor should be used on a nominal 120 V grounded circuit Use a power
cord that is equipped with a grounding plug. Verify that the compressor is plugged into an outlet that
has the same configuration as the plug. Do not use an adapter with this compressor.
I. AIR TANK: The tank is where the compressed air is stored.
J. AIR TANK BALL VALVE: The ball valve is used to
remove moisture from the air tank after the compressor
is shut off.
Plug
Grounded
Check with a licensed electrician if the grounding
outlets
instructions are not understood or there is doubt as to
whether the product is properly grounded. Do not modify
the plug provided. If it will not fit the outlet, have the
proper outlet installed by a licensed electrician.
Grounding pin
DANGER
Improper installation of the grounding plug will result in a risk of electric shock. If repair or
replacement of the cord or plug is necessary, do not connect the grounding wire to either flat
blade terminal. The grounding wire is in the green outer surface.
Operation Instructions
Breaking-in the pump
1. Set the power switch (B) to the 0 (off) position.
2. Open the tank drain valve (J) by turning it counter-counter clockwise to permit the air to escape and
prevent air pressure build up in the air tank during the break-in period.
3. Turn the air pressure regulator knob counter-clockwise until it stops.
4. Plug in the power cord (H).
5. Set the power switch (B) to the I (on) position. The compressor will start. Run the compressor
for 30 minutes. If it fails, turn it off immediately and call the toll-free helpline at (800) 743-4115.
6. After 30 mintes, set the power switch (B) to the 0 (off) position.
7. Close the tank drain valve (J) by turning it clockwise.
8. Set the power switch (B) to the I (on) position. The air tank will fill to “cut-out’’ pressure and then
the compressor's motor will stop. The compressor is now ready for use.
NOTES: During the initial break-in cycle, a slight smell from the motor brushes seat might be
present. This is normal for universal motors and should stop after a short moment.
Operating Instructions
Before each start-up
1. Set the power switch (B) to the 0 (off) position.
2. Turn the air pressure regulator knob (D) counter-clockwise until it stops.
3. Attach air hose/accessories or air tools.
Risk of bursting. Too much air pressure causes a hazardous risk of bursting. Check the
WARNING!
manufacturer's maximum pressure rating for air tools and accessories. The regulator outlet pressure must
never exceed the maximum pressure rating.
How to start
1. Close the tank drain valve (J).
2. Plug in the power cord (H).
3. Set the power switch (B) to the I (on) position and allow tank pressure to build. Motor will stop
when tank pressure reaches "cut-out" pressure.
4. Turn the air pressure regulator knob (D) clockwise until desired pressure is reached.
5. The compressor is ready for use.
WARNING
If the pump has been transported or turned upside down (even partially), allow
the pump to sit in a normal, upright position for approximately 10 minutes before starting.
High temperatures are generated by the electiic motor and the pump.
To prevent bums or other injuries, DO NOT touch the air compressor while it is running.
Allow it to cool before handling or servicing. Keep children away from the air compressor at all times.
How to shut down
1. Set the power switch (B) to the 0 (off) position.
2. Unplug the power cord (H).
3. Reduce the pressure in the tank through the outlet hose.
Pulling the safety valve ring (C) and keeping
it open will also reduce the pressure in the tank.
CAUTION!
Escaping air and moisture can propel debris that may cause eye injury. Wear safety
goggles when opening the drain valve.
WARNING!
To avoid personal injuny, always shut off and unplug the unit, and relieve all air
relieve all air pressure from the system before performing any service on the air compressor.
Risk of unsafe operation. Unit cycles automatically when power is on. When
performing maintenance, you may be exposed to voltage sources, compressed air or moving
parts. Personal injuries can occur. Before performing any maintenance or repair, disconnect
power source from the compressor and bleed off all air pressure.
performing.
OPEN
CLOSE
Troubleshooting
PROBLEM
POSSIBLE CAUSE
1. The tank ball valve is open.
2. There is a leak in the fittings.
3. There is a prolonged or excessive use
of air.
4. The compressor is not large enough.
There is low
pressure, not
enough air, or the
compressor does
not stop.
5. There is a hole in the air hose.
6. The tank leaks.
7. The seals are blown.
8. The valve leaks.
9. There is a leaking or worn piston.
Air leaks from the
1. The internal parts of the
regulator or the
regulator does not regulator are dirty or
damaged.
regulate air
pressure.
1. This is normal.
The regulated
pressure gauge
reading drops
when the air
accessory is
being used.
The pressure
relief valve
opens.
2. The compressor is not
large enough.
1. The tank pressure exceeds the normal
rating pressure.
2. The pressure switch is stuck.
CORRECTIVE ACTION
1. Close the ball valve.
2. Check fittings with soapy water. Tighten
or reseal leaking fittings. DO NOT
OVERTINGHTRN.
3. Decrease the amount of air used.
4. Check the air requirement of the
accessory. If it is higher than the CFM and
the pressure supplied by the compressor,
you need a larger compressor. Most
accessories are rated at 25% of the actual
CFM while running continuously.
5. Check and replace if necessary.
WARNING
6. Immediately replace the
tank. DO NOT attempt to repair.
7. Replace the compressor assembly.
8. Replace the compressor assembly.
9. Replace the compressor assembly.
1. Replace the regulator or
internal parts.
1. If the pressure drops too low, adjust the
regulartor while the accessory is used.
2. Check the air requirement of the
accessory. If it is higher than the CFM and
the pressure supplied by the compressure
supplied by the compressor, you need a
larger compressor. Most accessories are
rated at 25% of the actual CFM while
running continuously.
1. Replace the pressure switch.
2. Replace the pressure switch.
Briggs & Stratton Air Compressor Warranty Policy
TM
October, 2015
LIMITED WARRANTY
TM
BRIGGS & STRATTON is a trademark of BRIGGS & STRATTON CORPORATION and is used under license to Alton Industry
Co. Ltd®. Alton Industry Co. Ltd warrants this Briggs & Stratton brand product for a period of one year from the date of
original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described
below, if Alton Industry Co. Ltd determines this product is covered under this warranty, it will be replaced with the same
model or one of equal value or specification, at Alton Industry Co. Ltd’s option. Alton Industry Co. Ltd will bear the cost of
replacement. The purchaser must contact Alton Industry Co. Ltd® for all warranty authorizations.
There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular
purpose, are limited to one year, or to the extent permitted by law. Liability for incidental or consequential damages are
excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an
implied warrant lasts, and some states of countries do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state or country to country.
Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is
requested, the manufacturing date of the product will be used to determine the warranty period. Product registration is not
required to obtain warranty service on Briggs & Stratton products.
These are our standard warranty terms, but occasionally there may be additional warranty coverage that was not determined at
time of publication. For a listing of current warranty terms for your air compressor, go to BRIGGSandSTRATTON.COM
This Limited warranty does not include the following:
A. Parts that are worn or broken or which have become inoperative due to abuse, misuse, accidental damage, neglect or lack of
proper installation, operation or maintenance (as outlined in the applicable owner’s manual or operating instructions) or product
that has been used for industrial, professional, commercial or rental purposes;
B. Normal wear and tear or expendable parts or accessories that may be supplied with the product which are expected to become
inoperative or unusable after a reasonable period of use;
C. Routine maintenance and consumable items such as, but not limited to fuel, lubricants, valves, belts, knobs, nuts, fluids,
tune-ups, or adjustments;
D. Damage caused by repairs made or attempted by persons not authorized by the manufacturer;
E. Product that was sold to the original purchaser as reconditioned or refurbished product (unless otherwise specified in writing);
F. Product or parts thereof if any part from another manufacturer has been installed or any repairs or alterations have been made
or attempted by unauthorized persons;
G. Normal deterioration of the exterior finish such as, but not limited to, scratches, dents, paint chips, nor any corrosion or
discoloring by heat, abrasive and chemical cleaners;
H. Component parts sold by and identified as the product of another company, which shall be covered under the other product
manufacturer’s warranty, if any.
For questions about our warranty on this product, contact us at:
Alton Industry LTD. Group
1031 North Raddant Road
Batavia Illinois 60510
888-899-0146
inf[email protected]
www.altonindustries.com
074019-00 / 0210641
Oil-less
1.5 HP, universal
120/12/60
6 Gallon
105 PSI
135 PSI
4.0*
2.8*
NOTE: Avoid use of extension cords. If use of an extension cord cannot be avoided, the cord should be a minimum
wire size of 12 AWG and no longer than 30 feet. Use only a 3-wire extension cord that has a 3-blade grounding plug
and a 3-slot receptacle that will accept the plug on the product.
*CFM: Cubic Feet per Minute.
This compressor is rated in accordance with ISO 1217, displacement compressors acceptance tests.
Drain Valve
Washer
3
Hex Nut
3
Hex Bolt
3
Washer
3
Tapping Screw
4
Foot Rubber
3
Baffle Plate
1
Hex Bolt
3
Top Shroud
1
Bottom Shroud
Tapping Screw
11
Check Valve
On/off Switch
1
Flexible Tube
Pump & Motor Assembly
1
Right Elbow
Lead Wire
Transfer Tube
Bolt
3
Right Elbow
Lock Washer
3
Safety Valve
Sponge
Regulator
1
Pressure Switch
Quick Coupler
1
Anchor Nut
1
Pressure Gauge
2
Power Cord
1
Regulator Knob
1
Tank
1
Cushion Pad
3

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
