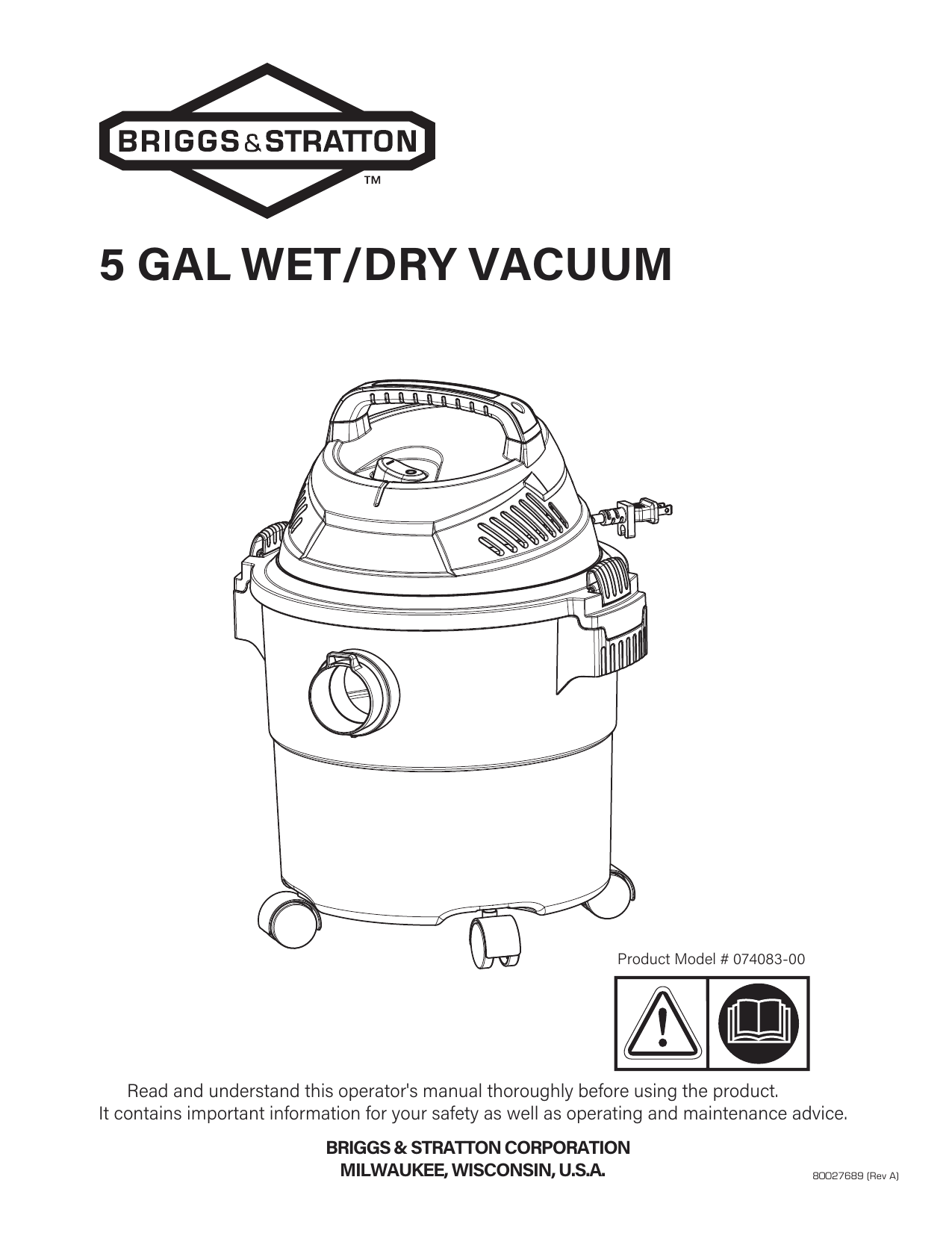

Simplicity 074083-00 Operator's Manual

5 GAL WET/DRY VACUUM
Product Model # 074083-00
Read and understand this operator's manual thoroughly before using the product.
It contains important information for your safety as well as operating and maintenance advice.
BRIGGS & STRATTON CORPORATION
MILWAUKEE, WISCONSIN, U.S.A.
80027689 (Rev A)
Thank you for pur chasing this quality-built Briggs & Stratton™ Wet/Dry Vacuum. We are
pleased that you’ve placed your confidence in the Briggs & Stratton brand. When operated and
maintained according to the instructions in this manual, your Briggs &Stratton Wet/Dry Vacuum
will provide many years of dependable service.
Where to find us
You can contact Customer Service by phone at (888) 899-0146, or on the Internet at
BRIGGSandSTRATTON.COM.
Date Purchased
CONGRATULATIONS ON YOUR
NEW PRODUCT PURCHASE!
Thank you for choosing a product manufactured or supported by Briggs & Stratton. We are honored that you
chose us as your power equipment provider.
WE STRIVE TO CREATE HELPFUL, DEPENDABLE PRODUCTS THAT YOU CAN RELY ON FOR YEARS TO
COME, WHILE COUNTING ON US TO SUPPORT YOU THROUGH THE LIFE OF YOUR PRODUCT.
Registering your product is the first step towards receiving the best post-sale experience. To begin, go to
onlineproductregistration.com, text ‘register’ to 33988 or scan the code below from your mobile device.
Benefits include:
•
Confirmation of warranty coverage eligibility
•
Helpful maintenance and usage tips
•
More efficient parts and service support
•
Discounts and offers on future products
•
Product updates
After registering you will receive a confirmation email that includes an invitation to rate and review your new
product online.
Whether you absolutely love your new product or have a suggestion to enhance it, we’d love to hear from you
and value your feedback.
TO BEGIN:
GO TO ONLINEPRODUCTREGISTRATION.COM
OR TO START THE REGISTRATION PROCESS ON YOUR MOBILE DEVICE:
TEXT ‘REGISTER’ TO 33988
OR SCAN THIS CODE:
Data rates may apply
80027689 (Rev A)
TABLE OF CONTENTS
Specifications------------------------------------------------------------------------------------------------4
Package Contents-------------------------------------------------------------------------------------------- --5
Safety Information---------------------------------------------------------------------------------------------6
Operating Instructions-------------------------------------------------------------------------------------8
Car e and Maintenance --------------------------------------------------------------------------------------11
Warranty-------------------------------------------------------------------------------------------------------12
--------------------------------------13
Exploded View and Parts List ------------------------------------------
PRODUCT SPECIFICATIONS
Model
Power
Motor
Tank Capacity*
Hose
Power cord
074083-00 / 8200548
120 V / 60 Hz / 8 A
By-Pass, Single Stage
5 Gallon
1-1/4 in. x 5 ft.
SJTW18AWG / 10 ft. Length
* Tank capacity refers to actual tank volume, and does not reflect capacity available during operation.
WARNING:
Use only extension cords that are rated for outdoor use. E xtensio n cords in poor condition or that
are too small in wire size can pose fire and shock hazards.
To reduce the risk of these hazards when using an extension cord, be sure it is in good condition
and that the connection does not come into contact with liquid. T o keep power loss to a minimum,
use the following table to choose the minimum wire size extension cord.
Extension Cord Length
Gauge A.W.G.
0 - 50 ft.
14
50 - 100 ft.
12
PACKAG E CONTENTS
A
E
B
F
C
G
D
H
1
2
3
4
5
6
Cleaner Description
Item
Description
1
Handle
2
Power Switch
3
Two Lid Latches
4
Vacuum Port
5
Dust Tank
6
Caster
Part
Description
Part No.
Qty
A
1-1/4” Air Hose
13-3301
1
B
Extension Wand
25-1205A
3
C
Foam Filter
19-1600
1
D
Disposable Filter Bag
19-3100N
1
E
Gulper Nozzle
13-1588
1
F
Reusable Filter (Dry) and
Clamp Ring
19-1500N
1
G
Crevice Nozzle
13-1508
1
H
Floor Nozzle
13-1570
1
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should be always followed, including the
following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
ATTENTION!
Read all safety rules carefully before attempting to operate. Retain for future reference.
DANGER!
Never operate this unit when flammable materials or vapors are present because electrical devices
produce arcs or sparks that can cause a fire or explosion.
NEVER LEAVE OPERATING VACUUM UNATTENDED!
WARNING!
To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
Connect to a properly grounded outlet only.
2. Do not expose to rain. Store indoors.
3. Always disconnect the plug from the wall outlet before removing the tank cover.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,
damaged, left outdoors or dropped into water, contact service center for assistance.
6. Do not: pull or carry by cord, use cord as a handle, close a door on cord or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint,
hair and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
11. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
12. Do not use without dust bag and/or filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
16. Do not use your cleaner as a sprayer of flammable liquids such as oil-based paint, lacquers, etc.
17. Do not vacuum toxic, carcinogenic, combustible or other hazardous materials such as asbestos,
arsenic, barium, beryllium, lead, pesticides or other health endangering materials.
18. Do not pick up soot, cement, plaster or drywall dust without filter and dust bag in place. These are
very fine particles that may affect the performance of the motor or be exhausted back into the air.
Additional dust bags are available.
19. Do not leave the cord lying on the floor once you have finished the cleaning job. It can become a
tripping hazard.
20. Use special care when emptying heavily loaded tanks.
21. To avoid spontaneous combustion, empty tank after each use.
22. The operation of a utility vac can result in foreign objects being blown into eyes, which can result
in eye damage. Always wear safety eyewear when operating vacuum.
6
SAFETY INFORMATION
23. STAY ALERT . Watch what you are doing and use common sense. Do not use vacuum cleaner
when you are tired, distracted or under the influence of drugs, alcohol or medication causing
diminished control.
NOTE: Use only as described in this manual. Use only manufacturer's recommended attachments.
24. This appliance is provided with double insulation. Use only identical replacement parts. See
instructions for servicing double insulated appliances.
25. Unplug before connecting the hose, nozzle and the like.
WARNING!
SERVICING OF DOUBLE-INSULATED WET/DRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided instead of grounding. No
grounding means is provided on a double-insulated appliance, nor should a means for grounding be
added. Servicing a double-insulated Wet/Dry Vac requires extreme care and knowledge of the system
and should be done only by qualified service personnel. Replacement parts for a double-insulated
Wet/Dry Vac must be identical to the parts they replace. Your double-insulated Wet/Dry Vac is marked
(square within a square) may also be
with the words "DOUBLE INSULATED" and the symbol
s damaged,
it
must
be
replaced
by
the
manufacturer
or
its
service
agent
or a
marked on the appliance.
person in order to avoid a hazard.
To reduce the risk of injury from electrical shock, unplug power cord before servicing the electrical parts
rom the socket
performing
maintenance. Before using the machine make
of the before
Wet/Dry
Vac.
ency and voltage shown on the rating plate correspond with the mains voltage.
details are
subject to change without prior notice. The accessories shown in the
IMPORTANT!
from model
to model.
If the
supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
EGUARDS
similarly qualified person in order to avoid a hazard.
e product IMPORTANT!
or packaging indicates that the product must not be treated as domestic
hould be Remove
handed in
a collection
forbefore
the recycling
of electrical
and electronic
thetoplug
from thepoint
socket
performing
maintenance.
Before using the machine make
nsuring the
product
is
treated
in
the
correct
manner,
you
will
help
prevent
any
sure that the frequency and voltage shown on the rating plate correspond with the mains voltage.
n the environment
and health
that might
arise were
the product
be discarded
asaccessories shown in the
Specifications
and details
are subject
to change
withouttoprior
notice. The
or further information
you
pictures mayabout
vary recycling,
from model
to should
model. contact your local authorities,
ervice or the
sales
outlet
where
you
bought
IMPORTANT SAFEGUARDS the goods.
The symbol on the product or packaging indicates that the product must not be treated as domestic
refuse. Instead, it should be handed in to a collection point for the recycling of electrical and electronic
components. By ensuring the product is treated in the correct manner, you will help prevent any
negative impact on the environment and health that might arise were the product to be discarded as
ordinary refuse. For further information about recycling, you should contact your local authorities,
refuse collection service or the sales outlet where you bought the goods.
WARNING!
This product or its power cord may contain chemicals, including lead, known to the state of California
to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
7
OPERATING INSTRUCTIONS
UNPACKING & SET -UP SUMMARY
1 .Pull lid latches in an outward motion, remove power head and some accessories that may have
been shipped in the tank.
2.Attach the casters according to the instruction in this manual.
3.Before replacing power head, refer to this manual to ensure you have the proper filters installed
for your cleaning operation.
4.Replace power head, and apply pressure with thumb to each latch until it snaps tightly in place.
Make sure all lid latches are clamped securely.
5.Insert the flexible hose end into inlet of tank.
6.Attach the extension wands to the accessory end of the hose. Apply slight pressure until fitting
is tight.
7.Attach one of the cleaning acces sories (depending on your cleaning requirements）on the
extension wands. Twist slightly to tighten the connection.
8.Plug the cord into the wall outlet. Your cleaniner is ready for use.
INSTALLING CASTERS
Use provided casters and insert into the bottom of caster base as shown in Figure (A). Strong pressure
required and listen for the click to ensure locked in place.
Fig. A
WARNING:
To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases,
vapors or explosive dust in the air. Flammable gases or vapors include but are not limited to:
lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol or aerosol sprays. Explosive
dusts include but are not limited to: coal, magnesium, aluminum, and grain or gun powder. Do not
vacuum explosive dust, flammable or combustible liquids or hot ashes. Do not use this vac as a
sprayer for any flammable or combustible liquid. To reduce the risk of health hazards from vapors
or dusts, do not vacuum toxic materials.
WARNING:
The operation of any utility vac can result in foreign objects being blown into the eyes, which can
result in severe eye damage. Always wear safety eyewear complying with ANSI Z87.1 or in
Canada , CSA Z 94.3 before starting operation.
8
OPERATING INSTRUCTIONS
CAUTION:
To reduce risk of hearing damage, wear ear protectors when using the vac for extended hours or
when using it in a noisy area.
This 5-gallon wet/dry vacuum is assembled at the factory and is ready for dry vacuuming or blowing.
Please refer to the Unpacking & Set-Up Summary section of the manual for additional instructions on
preparing the vacuum for use. After you plug the power cord into the wall receptacle, turn the unit “ON”
by pushing the switch from position “O” to position “I”. The “O” is the “OFF” position and the “I” is
the “ON” position.
O = OFF I = ON
DRY PICK-UP
1 . The filter must always be in correct position to reduce the risk of leaks and possible damage to vac.
Make sure that the filter is completely covering the filter cage and that the clamp ring is as close to
the lid as possible . Make sure there are no gaps between the filter and the lid. (See illustration). It is
very important to assemble the filter to the cage without allowing any possible leaks or tears. Any
leaks will allow the picked up debris to be blown out of the blowing port and back into the
surrounding environmen t.
2. When using your vac to pick up very fine dust, it will be necessary to empty the dust tank and clean
or replace the filter at more frequent intervals to maintain peak vac performance.
NOTE:
A dry filter is neces sary to pick up dry material. If you use your vac to pick up dust when the filter is wet,
the filter will clog quickly and be very difficult to clean. If t he filter gets wet, replace it before continuing to
do dry pickups.
INSTALLING DISPOSABLE FILTER BAG
1 . Slide the cardboard collar opening firmly onto the vacuum port deflector until it stops against the
deflector wall.
2. Position the bag so that it is distributed around the inside of the tank.
3. Replace and secure the power head onto the tank.
Reusable filter
Clamp ring
Disposable
filter bag
WET PICK-UP
1. Remove reusable filter and clamp ring when you do wet pickups.
2. This wet/dry vac is equipped with a float mechanism which will rise automatically to cut off the
airflow when the liquid in the tank reaches a predetermined level. When this happens, turn off vac,
unplug the power cord, and empty the dust tank. You will know that the float has shut the airflow off
9
OPERATING INSTRUCTIONS
because the suction ceases and the motor noise becomes higher in pitch due to increased motor
speed. The liquid capacity may vary with the rate of pickup.
IMPORTANT: To reduce the risk of damage to the vac, do not run motor with float in raised position.
Foam filter
Float in raised position
EMPTY THE TANK
WARNING:
To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank.
1 . Remove the power head assembly of the wet/dry vac by pulling outward on the lid clips located
on each side of the vac. Lift off the power head assembly.
2. Dump the tank contents into the proper waste disposal container.
BLOWING OPERATION
WARNING: Always wear safety eyewear complying with ANSI Z 87.1 or in Canada CSA Z 94.3
when using as a blower.
WARNING: To avoid injury to bystanders, k eep them clear of blowing debris.
CAUTION: Wear a dust mask if blowing creates dust which might be inhaled.
CAUTION: To reduce the risk of hearing damage , wear ear protectors when using the vac/blower for
extended hours or when using it in a noisy area .
Your vac contains a blowing feature. It has the capability to blow sawdust and other debris. It can be
used to blow dust and debris out of garages or off patios and driveways. Follow the steps below to
use your vac as a blower.
1. Locate blowing port on your vac.
2. Insert one end of the 1-1/4 in. x 5 ft. hose into the blowing port.
3. Turn vac “ON”.
FILTER REPLACEMENT
WARNING: To reduce the risk of injury from accidental starting, unplug power cord before changing
or cleaning filter.
Your filter should be cleaned often to maintain peak vac performance.
10
CARE AND MAINTENANCE
IMPORTANT: To avoid damage to the blower wheel and motor, always reinstall the reusable filter
before using the vac for dry pickups and always reinstall the foam filter before using the vac for wet
pickups.
IMPORTANT: After cleaning, check the filter for tears or small holes. Do not use a filter with holes or
tears in it. Even a small hole can cause a lot of dust to come out of your vac. Replace it immediately.
NOTE: Before installing the filter on the vac, clean the area of the lid so that the clamp ring will seal
the bag against the lid and stop small particles from bypassing the filter bag.
If the filter is clean and not damaged, replace it on the filter cage. If it cannot be reused, place a new
filter over the filter cage.
NOTE:
Clean the filter in an open area. Cleaning should be done outdoors and not in living quarters.
WARNING: Do not remove filter cage and float. The float prevents water from entering the impeller
and damaging the motor. The cage prevents fingers from touching the moving impeller.
CLEANING
To keep your wet/dry vac looking its best, clean the outside with a cloth dampened with warm water
and mild soap.
To clean the tank:
1. Dump out debris.
2. Wash tank thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.
STORAGE
Before storing your vac, the dust tank should be emptied and cleaned. The cord should be wrapped
and hung on the unit and the accessories should be kept in the accessory holder so they can be
readily available. The vac should be stored indoors.
TROUBLESHOOTING
WARNING!
TO REDUCE THE RISK OF INJURY FROM MOVING PARTS AND/OR ELECTRICAL SHOCK,
TURN POWER SWITCH OFF AND DISCONNECT GROUNDED PLUG FROM ELECTRICAL
OUTLET BEFORE PERFORMING TROUBLESHOOTING CHECKS.
Minor problems often can be fixed without calling customer service.
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
Vacuum will not run
No electricity
Make sure electrical outlet has voltage
(A qualified electrician may need to be contacted)
1. Full tank
1. Drain and clean tank
2. Clogged hose
2. Remove hose and clean debris
3. Clogged filter
3. Clean or replace filter
1. Full tank
1. Drain and clean tank
2. Clogged hose
2. Remove hose and clean debris
3. Clogged filter
3. Clean or replace filter
Loss of suction,
wet pick-up
Loss of suction, dry
pick-up
11
WARRANTY
Briggs & Stratton WET/DRY VACUUM
TM
October, 2017
LIMITED WARRANTY
TM
BRIGGS & STRATTON is a trademark of BRIGGS & STRATTON CORPORATION and is used under license to Alton
Industry Co. Ltd. Alton Industry Co. Ltd warrants this Briggs & Stratton brand product for a period of one year from
the date of original retail purchase against defects in materials and workmanship. Subject to the conditions and
limitations described below, if Alton Industry Co. Ltd determines this product is covered under this warranty, it will
be replaced with the same model or one of equal value or specification, at Alton Industry Co. Ltd’s option. Alton
industry Co.Ltd will bear the cost of replacement. The purchaser must contact Alton Industry Co. Ltd for all warranty
authorizations.
There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular
purpose, are limited to one year, or to the extent permitted by law. Liability for incidental or consequential damages
are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how
long an implied warrant lasts, and some states of countries do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state or country to country.
Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty
service is requested, the manufacturing date of the product will be used to determine the warranty period. Product
registration is not required to obtain warranty service on Briggs & Stratton products.
These are our standard warranty terms, but occasionally there may be additional warranty coverage that was not
determined at time of publication. For a listing of current warranty terms, go to BRIGGSandSTRATTON.COM.
This Limited warranty does not include the following:
A. Parts that are worn or broken or which have become inoperative due to abuse, misuse, accidental damage, neglect
or lack of proper installation, operation or maintenance (as outlined in the applicable owner’s manual or operating
instructions) or product that has been used for industrial, professional, commercial or rental purposes;
B. Normal wear and tear or expendable parts or accessories that may be supplied with the product which are expected
to become inoperative or unusable after a reasonable period of use;
C. Routine maintenance and consumable items such as, but not limited to fuel, lubricants, valves, belts, knobs, nuts,
fluids, tune-ups, or adjustments;
D. Damage caused by repairs made or attempted by persons not authorized by the manufacturer;
E. Product that was sold to the original purchaser as reconditioned or refurbished product (unless otherwise specified
in writing);
F. Product or parts thereof if any part from another manufacturer has been installed or any repairs or alterations have
been made or attempted by unauthorized persons;
G. Normal deterioration of the exterior finish such as, but not limited to, scratches, dents, paint chips, nor any corrosion
or discoloring by heat, abrasive and chemical cleaners;
H. Component parts sold by and identified as the product of another company, which shall be covered under the other
product manufacturer’s warranty, if any.
For questions about our warranty on this product, contact us at:
Alton Industry LTD. Group
1031 North Raddant Road
Batavia Illinois 60510
888-899-0146
[email protected]
www.altonindustries.com
12
EXPLODED VIEW / PARTS LIST
PART
DESCRIPTION
QTY
PART
DESCRIPTION
QTY
1
Handle
1
10
Sealing Ring
1
2
ON/OFF Switch
1
11
Motor Bottom Support
1
3
Top Cover
1
12
Float
1
4
Baffle
1
13
Filter Cage
1
5
Lid Latch
2
14
Power Cord
1
6
Middle Frame
1
15
Dust Tank
1
7
Bottom Sealing Ring
1
16
Vacuum Port
1
8
Motor
1
17
Caster
4
9
Silencer Sponge
1
13

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
