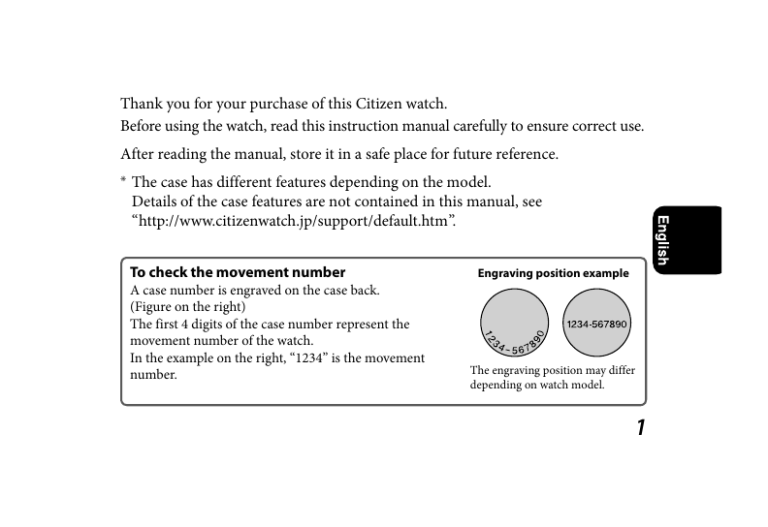

Thank you for your purchase of this Citizen watch.

Before using the watch, read this instruction manual carefully to ensure correct use.

After reading the manual, store it in a safe place for future reference.

✳ The case has different features depending on the model.

Details of the case features are not contained in this manual, see “ http://www.citizenwatch.jp/support/default.htm ”.

To check the movement number

A case number is engraved on the case back. (Figure on the right) The first 4 digits of the case number represent the movement number of the watch. In the example on the right, “1234” is the movement number.

Engraving position example

The engraving position may differ depending on watch model.

1

Safety precautions

This manual contains the following instructions that should be strictly followed at all times to prevent injury to yourself and other persons as well as damage to property.

■ Injuries and damage that might be caused by using the watch improperly or neglecting any of the instructions or precautions contained in this manual are classified with the following symbols.

DANGER

Highly likely to cause death or serious injury

WARNING

Can cause serious injury or death

CAUTION

Can or will cause minor or moderate injury or damage

2

■ Important instructions that should be followed are classified with the following symbols.

Warning (caution) symbol followed by instructions that should be followed or precautions that should be observed.

Warning (caution) symbol followed by prohibited matters.

Prior to the watch being shipped from the manufacturing plant, its glass, case, metal band, and metal parts of the clasp are covered with stickers to protect them from getting fingerprints or scratches during transit from the plant to the store.

If the watch is worn without first removing these stickers, perspiration or moisture may enter the gaps between the protective stickers and the parts, which may result in a skin rash and/or corrosion of the metal parts.

For this reason, please be sure to peel off the stickers before wearing the watch.

3

Features

“Radio controlled watch”

Receiving a time signal from the five signal stations located in four regions and automatically adjusts the time.

“Eco-Drive”

Friendly to the environment.

“Perfex”

Supports the accuracy of the radio controlled watch more.

“Perpetual calendar”

No need for date correction at the end of each month.

* “Eco-Drive” and “Perfex” are Citizen original technologies.

4

“City setting”

Easy to see the time and calendar of cities all over the world.

Before using the watch

The following must be done before using the watch: ●

Checking the power reserve Page

10

Check the charge level of the watch.

Setting the city Page

12

Select the city for which you want to indicate the time and date.

Checking the time signal reception Page

11

Check the result of the time signal reception.

Expose the dial to light regularly to charge the watch.

For details of charging, see page

32

.

5

Table of contents

Before using the watch ...................

5

Component identification...............

8

Checking the power reserve ..........

10

Checking the time signal reception ..................................

11

Setting the city ............................

12

Notes on the time signal reception ..................................

16

Receiving the time signal manually ...................................

24

Switching Summer Time and standard time ...........................

26

Recharging your watch .................

32

Adjusting the time/calender manually ...................................

36

Checking and correcting the current reference position .....................

40 6

Troubleshooting ...........................

44

Solar-powered watch handling precautions ...............................

50

Water resistance ..........................

52

Precautionary items and usage limitations.......................

54

Warranty and service....................

60

Information .................................

62

Specifications...............................

64

Customer support center ..............

66 7

Component identification

Hour hand Signal reception indication (OK/RX/NO) Second hand City indication Minute hand Upper right button ( B ) Date indicator Crown Lower right button ( A ) Summer Time indication (ON/OFF)

8

The illustrations in this instruction manual may differ from the actual appearance of your watch.

Component identification

How to use the screw down crown and screw down push button

Some models feature a screw down crown and/or screw down push button.

Locking the crown and/or button prevents accidental operation. These must be unlocked prior to using certain features of your watch such as setting the time or date.

Unlock Screw down crown

Rotate the crown counterclockwise until it releases from the case.

Lock

Push the crown in to the case. With gentle pressure towards the case, rotate the crown clockwise to secure it to the case. Be sure to tighten firmly.

Screw down push button

Rotate the locking screw counterclockwise, and loosen until it stops.

Rotate the locking screw clockwise, and tighten firmly.

Some models feature a recessed button.

Press the button with a narrow-tipped object such as a wooden toothpick.

9

Checking the power reserve

Crown position

1.

Ensure that the crown is in position .

2.

Press the lower right button

A

briefly.

• When the charge of the watch is low, the second hand rotates a quarter counterclockwise.

You need to charge the watch. See page

32

.

3.

Press the lower right button

A

briefly to finish the procedure.

The current time is indicated.

• The current time will be indicated automatically after 10 seconds even without pressing the button.

The second hand indicates “OK” or “NO” at the end of this procedure to show the reception result of the time signal.

10

Checking the time signal reception

1.

Ensure that the crown is in position .

2.

Press the lower right button

A

briefly.

The second hand moves and indicates the reception result.

Crown position

OK NO

Reception has succeeded.

Reception has failed.

When reception has failed, see page

24

.

When reception has succeeded

3.

Press the lower right button

A

briefly to finish the procedure.

The current time is indicated.

• The current time will be indicated automatically after 10 seconds even without pressing the button.

11

Setting the city

Crown position Select the city for which you want to indicate the time and date.

1.

Pull the crown out to position .

The second hand moves and indicates the city currently selected.

2.

Rotate the crown to select the city for which you want to indicate the time and date.

• For details of the selection of cities, see pages

13

to

15

.

• Each time you select a city, the time and date of the city you have selected will be indicated.

3.

Push the crown in to position to finish the procedure.

The current time is indicated.

When “New York” (49 seconds position) is selected After setting the city, check the displayed time—Summer Time or standard time. (See pages

26

to

31

.)

12

Setting the city

Table of selectable cities

• The indications in the table below are written differently on some models. • The signal station is changed depending on the selected city. Some cities cannot receive the signal though the signal station is assigned in the list.

• When you use the watch in a place which is not shown in the table below, select the city in the same time zone as the city you want to indicate. • The time difference in the table below is based on UTC.

• For cities indicated by / , the watch shows Summer Time/standard time in common.

Indication LONDON PARIS ATHENS ATH MOSCOW MOW DUBAI LON PAR DXB Second hand position 0 2 4 7 9 City name

London Paris Athens Moscow Dubai

Time difference

0 +1 +2 +3 +4

Signal from...

Germany Continued on the next page

13

Setting the city Indication KARACHI DELHI DHAKA BANGKOK BEIJING TOKYO ADELAIDE SYDNEY NOUMEA AUCKLAND KHI DEL DAC BKK BJS TYO ADL SYD NOU AKL Second hand position 11 14 16 18 21 23 25 28 30 32 City name

Karachi Delhi Dhaka Bangkok Beijing Tokyo Adelaide Sydney Noumea Auckland

Time difference

+5 +5.5

+6 +7 +8 +9 +9.5

+10 +11 +12

Signal from...

China Japan

14

Indication MIDWAY L.ANGELES

MDY HONOLULU HNL ANCHORAGE ANC LAX DENVER CHICAGO NEW YORK SANTIAGO R.JANEIRO

F.NORONHA

AZORES DEN CHI NYC SCL RIO FEN PDL Second hand position 35 37 39 42 44 46 49 51 53 56 58 City name

Midway Island Honolulu Anchorage Los Angeles Denver Chicago New York Santiago Rio de Janeiro Fernando de Noronha Azores For details of each signal station, see pages

18

to

21

.

Time difference

-11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1

Setting the city Signal from...

USA Germany

15

Notes on the time signal reception Receiving the time signal

There are three ways to receive the time signal:

Methods Automatic reception On demand reception Recovery automatic reception Explanations

Receives the signal at 2:00 a.m. every day. If reception is unsuccessful, the watch tries to receive at 3:00 a.m. and 4:00 a.m.

Receives the signal when you want to adjust the time and date. See page

24

.

Receives the signal automatically after charging when the watch stops due to insufficient charge.

* These reception methods are possible only when the crown is in position .

The second hand indicates the reception result (OK/NO). (See page

11

.)

16

Notes on the time signal reception

• The time signal reception function cannot be deactivated.

• Even when this watch receives a time signal successfully, the accuracy of the displayed time will be dependent on the reception environment and internal processing.

• If the watch is not able to receive the signal, it will operate normally within an accuracy range of ±15 seconds per month.

When receiving the time signal

Remove the watch and place it on a stable surface where it can receive the signal better, such as next to a window.

• The reception antenna is located at the 9:00 position of the watch. Place the watch with the 9:00 position facing toward the station.

• Do not move the watch during time signal reception.

• The watch will not receive a time signal when in a low charge state as indicated by the second hand moving in two second increments (the insufficient charge warning). Charge the watch before reception.

17

Notes on the time signal reception

Note on the time signal

This watch receives the time signal from the five signal stations located in four regions and automatically adjusts the time and date. The receivable signal stations are listed as follows:

Signal stations

Fukushima station, Japan Kyushu station, Japan

Kind of the time signal JJY

Fort Collins station, Denver, Colorado, USA Mainflingen station, Southeast Frankfurt, Germany

WWVB DCF77

Shangqiu station, Henan, China

BPC

Refer to the maps on pages

19

to

21

to see the locations of the signal stations and their receivable area roughly.

18

Notes on the time signal reception

Approximate receivable area

The distance of receivable range is only used as an approximate value. It is often affected by the receiving environment and weather.

JJY

(Japan): Approx. 1000 km Kyushu station

JJY

(Japan): Approx. 1000 km Fukushima station Continued on the next page

19

Notes on the time signal reception

The distance of receivable range is only used as an approximate value. It is often affected by the receiving environment and weather.

20

WWVB

(USA): Approx. 2000 km Fort Collins station

Notes on the time signal reception

The distance of receivable range is only used as an approximate value. It is often affected by the receiving environment and weather.

BPC

(China): Approx. 1400 km Shangqiu station

DCF77

(Germany): Approx. 1000 km Mainflingen station

21

Notes on the time signal reception

Poor reception areas

It may be difficult to receive the time signal properly under certain environmental conditions or in areas susceptible to radio noise.

• Extremely hot or cold locations • Near high-tension electrical lines, railway overhead wires or communication facilities • Inside vehicles • Inside reinforced concrete buildings, between tall buildings, mountains, or underground • Near electrical equipment or office appliances • Near mobile phones that are in use

22

Notes on the time signal reception

When signal reception is poor

High-tension electrical lines or other structures near your house may block the path to the signal location. This may cause a poor environment for receiving the time signal. With reference to pages

19

to

21

, search for a better place for reception. Then, attempt to receive the time signal following the procedure on pages

24

and

25

.

If the signal reception is still poor, consult the Citizen Consumer Help Desk (TEL: 0120–78–4807).

We will provide a map showing the locations of the signal stations.

23

Receiving the time signal manually

You can adjust the watch by receiving the time signal any time when the time and date are not correct or the reception result is “NO.” • The watch will not start to receive if the second hand is moving once every two seconds (this is the insufficient charge warning). Charge the watch beforehand.

• When you want to receive the signal, you must be in an area where you can receive the signal. Confirm the city is selected correctly. See pages

12

to

15

.

Crown position

24

Receiving the time signal manually

1.

Ensure that the crown is in position .

2.

Press and hold the lower right button

A

for two or more seconds.

The second hand moves to “RX” and the watch starts receiving.

After receiving the time signal, the second hand will move normally.

• It takes from two to fifteen minutes to complete the time signal reception.

While receiving the signal Successful signal reception The time will be updated and the watch will resume normal operation.

Failed signal reception Normal operation resumes with previously set time.

To cancel the reception Press and hold the lower right button

A

for two or more seconds.

Cancel the reception and the current time will be indicated.

25

Switching Summer Time and standard time

Summer Time is a system adopted in some countries/areas to gain an extra hour of daylight during summer by advancing clocks by one hour.

• The summer time rules may change depending on the country or area.

While the summer time is in effect, some time signals include the summer time check signal.

By receiving the time signal, the watch automatically switches between Summer Time and standard time in accordance with the summer time check signal (automatic switching function). • Before and after the summer time season, confirm the watch shows Summer Time or standard time correctly.

26

Switching Summer Time and standard time

Checking the time currently shown

Check whether the watch shows Summer Time or standard time.

1.

Pull the crown out to position .

The second hand moves and indicates which time is currently shown.

ON OFF

Summer Time is shown The standard time is shown

2.

Push the crown in to position to finish the procedure.

When Summer Time is shown Crown position To change the time to show, see page

28

.

27

Switching Summer Time and standard time

Changing the time to show

1.

Pull the crown out to position .

2.

Rotate the crown to change the time to show.

To show Summer Time:

Rotate the crown to the right to select “ON.”

To show the standard time:

Rotate the crown to the left to select “OFF.” • If you show the standard time manually, the watch will not show Summer Time when receiving the time signal. See page

30

.

3.

Push the crown in to position to finish the procedure.

Crown position

28

Switching Summer Time and standard time

The watch shows and memorizes Summer Time/standard time in common for the following cities in each area so you do not need to change them for each city.

• If you show the standard time manually for a city, the watch always shows the standard time for that city regardless of the time shown for other cities in the same area.

Areas receiving the signal from USA Areas receiving the signal from Germany Anchorage (ANCHORAGE/ANC), Los Angeles (L.ANGELES/LAX), Denver (DENVER/DEN), Chicago (CHICAGO/CHI), New York (NEW YORK/NYC) London (LONDON/LON), Paris (PARIS/PAR), Athens (ATHENS/ATH), Moscow (MOSCOW/MOW), Azores (AZORES/PDL) For cities other than those listed above, the time shown last is memorized for each city.

29

Switching Summer Time and standard time

To cancel the automatic switching function

If you manually show the standard time in step 2 on page Time, deactivate the automatic switching function.

28

, the automatic switching function is deactivated and the watch will not show Summer Time by signal reception.

If you are in an area that receives the summer time check signal but does not adopt Summer

30

Switching Summer Time and standard time To activate the automatic switching function again

Select “ON” in step 2 on page

28

to show Summer Time.

• This operation also activates the automatic switching function.

• If you activate the automatic switching function when Summer Time season is not in effect, receive the time signal to show the standard time.

31

Recharging your watch

This watch has a rechargeable cell which is charged by exposing the dial to light such as direct sunlight or fluorescent lamps.

For optimal performance:

• Expose the watch with the dial facing towards direct sunlight for five to six hours at least once a month.

• After taking off the watch, put it in a position where the dial is exposed to bright light, such as by a window.

• Before storing the watch in a dark place for an extended period of time, be sure to charge it fully.

When the watch is regularly covered with long sleeves, it may not be charged sufficiently. Try to keep the watch exposed to light sufficient for charging.

Do not charge the watch at a high temperature (about 60˚C or higher).

32

Recharging your watch

When the watch reaches a low charge state—insufficient charge warning function

When the power reserve becomes low, the second hand moves once every two seconds—This is the insufficient charge warning function. Charge the watch by exposing the dial to light.

• After the watch is charged, the second hand will move normally.

• If you have not charged the watch for three days or more since the insufficient charge warning movement began, the watch will run out of power and stop.

Caution

• Even when the second hand moves once every two seconds, the current time and date are indicated. However, no operations are available.

• When you check the power reserve (page However, the watch needs to be charged.

10

) or the time signal reception (page

11

) and the second hand rotates a quarter counterclockwise, you can operate the watch as usual.

33

Recharging your watch

Charging time by environment

Below are the approximate times needed for charging when exposing the watch dial to light continuously. Please use this table as a reference only.

Environment Illuminance (Lx) Charging time to work for one day Charging time to start working normally when the rechargeable cell is empty Under direct sunlight or cloudy weather 10000 to 100000 4 to 12 minutes 40 minutes to 1 hour 20 cm (7-7/8 inches) away from a fluorescent lamp (30 W) Interior lighting 3000 40 minutes 2.5 hours 500 4 hours 14 hours Your watch will run for approximately six months from a full charge or up to two years with the power save feature engaged.

After the second hand starts moving once every two seconds, it will last for approximately three   days.

34

Recharging your watch

Power save feature

When the watch is not exposed to light for more than seven days such as when you store it in the dark, the minute hand and second hand automatically stop to save power. However, the watch still keeps the time.

• When the crown position is or , the power save feature will not activate.

• The power save feature can not be activated manually.

To cancel the power save feature

When the watch is exposed to light sufficient for charging, the power save feature is automatically disengaged and normal time indication will resume.

After the power save feature is disengaged, you should receive the time signal manually. See pages

24

and

25

.

35

Adjusting the time/calendar manually

Crown position

1.

Pull the crown out to position .

2.

Press the lower right button

A

briefly.

The second hand moves to the 0 second position.

3.

Rotate the crown to adjust the minute.

• The second hand rotates around once and the minute hand moves one minute.

• When it passes “0:00:00,” the date advances by one day.

Be aware of the AM/PM status when you adjust the time.

4.

Press the lower right button

A

briefly.

The hour hand moves slightly.

5.

Rotate the crown to adjust the hour.

• When it passes “0:00:00,” the date advances by one day.

Be aware of the AM/PM status when you adjust the time.

36

Adjusting the time/calendar manually

6.

Press the lower right button

A

briefly.

The date indicator moves slightly.

7.

Rotate the crown to adjust the date.

8.

Press the lower right button

A

briefly.

The second hand indicates the current setting of the month and year.

9.

Rotate the crown to adjust the month and year.

• See pages

38

and

39

for how to read the year and month.

10

. Push the crown in to position to finish the procedure.

The current time is indicated.

When adjusting the minute/hour/date, you can move the hands or date indicator continuously by spinning the crown quickly a few times. To stop them, rotate the crown in either direction.

Continued on the next page

37

Adjusting the time/calendar manually

Month and year indications

The year and month are indicated by the second hand when you adjust the time and calendar manually.

Nov.

Dec.

Oct.

Jan.

Sept.

Aug.

Feb.

Mar.

Leap year 1st year since leap year 2nd year since leap year 3rd year since leap year e.g.

When it is March in the second year since the leap year.

Jul.

Apr.

Jun.

May The position of the second hand shows the month.

38

Each minute mark denotes the number of years since a leap year.

The figure shows April in the 3rd year since the recent leap year (e.g. 2011).

Adjusting the time/calendar manually

The figure shows August in the 2nd year since the recent leap year (e.g. 2014).

Quick reference chart for number of years passed since leap year

Indication of the second hand

Hour marker 1st min. marker 2nd min. marker 3rd min. marker

Passed year

Leap year 1st year 2nd year 3rd year

Year

2012, 2016, 2020 2013, 2017, 2021 2014, 2018, 2022 2011, 2015, 2019

39

Checking and correcting the current reference position

If the time or date is not shown correctly even after proper reception of the time signal, check whether the reference position is correct or not.

What is the reference position?

The base position for all the hands to indicate the time and date.

• For the time indication: “0:00:00” • For the date indication: “1”

If the time and date indications are off from the correct reference position, the watch will not indicate the time and date correctly.

Correct reference position

40

Crown position

Checking and correcting the current reference position

1.

Pull the crown out to position .

2.

Press and hold the upper right button

B

for five or more seconds.

All hands and the date indicator move to indicate the current reference position.

• No operations are available while the hands and date indicator are moving.

Reference position

Correct Incorrect

Next operation

Push the crown in to position to finish the procedure.

(You do not need to correct the reference position.) Correct the reference position.

(Proceed to step 3 on page

42

.) Continued on the next page

41

Checking and correcting the current reference position

3.

Pull the crown out to position .

4.

Press the lower right button

A

briefly.

The hour hand moves slightly.

5.

Rotate the crown to adjust the hour hand to the “0:00:00” position.

• If you spin the crown quickly a few times, the hand will move continuously. To stop it, rotate the crown in either direction.

6.

Press the lower right button

A

briefly.

The minute hand and second hand move slightly.

Crown position

42

Checking and correcting the current reference position

7.

Rotate the crown to adjust the minute hand and second hand to the “0:00:00” position.

• If you spin the crown quickly a few times, the hands will move continuously. To stop them, rotate the crown in either direction.

8.

Press the lower right button

A

briefly.

The date indicator moves slightly.

9.

Rotate the crown to adjust the date to the “1” position.

• If you spin the crown quickly a few times, the date indicator will move continuously. To stop it, rotate the crown in either direction.

10

. Push the crown in to position to finish the procedure.

Correction of the current reference position is finished and the time is indicated.

43

Troubleshooting

If you have a problem with your watch, check the table below.

Symptoms

Problems with time signal reception.

Remedies

Push the crown in to position .

Page

Reception is unsuccessful in a receivable area.

Check the city setting.

Avoid things likely to interfere with the time signal and place the watch with the 9:00 position facing toward the station.

Do not move the watch until the reception is finished.

When the second hand moves once every two seconds, the watch cannot receive the time signal. Charge the watch.

Contact the Citizen Consumer Help Desk.

12

− to

17 34 67 15 17

and

22

Symptoms Remedies Troubleshooting Page

The correct time and date are not indicated after successful reception.

Check the city setting.

Check and correct the current reference position.

12

to

15 40

to

43

The hands do not work properly.

The second hand rotates a quarter counterclockwise when you check the reception result.

The second hand moves once every two seconds.

Charge the watch.

Charge the watch.

All hands stop moving.

Push the crown in to position .

Charge the watch by exposing it to direct sunlight for five to six hours.

32 33

34

Continued on the next page

Troubleshooting Symptoms

The hands do not work properly.

The hands start turning rapidly as you take the watch out of the case.

Remedies

The watch is canceling the power save feature. Wait until the rapid movement stops.

Page

35

The time and/or date is not correct.

Check the city setting.

Check and correct the current reference position.

The time and/or date is wrong.

Receive the time signal manually to adjust the time and date.

Set the time and date manually.

Summer Time is not shown.

Select “ON” manually or receive the time signal.

12

to

15 40

to

43 24

and

25 36

to

39 26

to

31

Symptoms Remedies Troubleshooting Page

The time is wrong even though the city setting is correct and the signal reception was successful.

Check the displayed time—Summer Time or the standard time—and change it if necessary.

Check and correct the current reference position.

The date changes at around 12:00 p.m.

Receive the time signal manually to adjust the time and date.

Adjust the time by 12 hours manually.

Others The hands do not move even if the watch is charged.

Charge the watch by exposing it to direct sunlight for five to six hours.

If the trouble is not solved after charging, contact the Customer Support Center or the store where you purchased your watch.

26

to

31 40

to

43 24

and

25 36

to

39 34

and

66

Troubleshooting

Resetting the watch

Crown position The watch may not work properly if it is affected by static electricity or shock. In this case, you must reset the watch.

Caution

• Be sure to charge the watch fully before resetting it. (Page the watch.

34

) • You must correct the current reference position after resetting After resetting the watch, the settings are changed as follows: • Calender: • City: • Summer time: 1 January (leap year) London “OFF” for all cities (automatic switching)

1.

Pull the crown out to position .

2.

Press the upper and lower right buttons

A

and

B

, then release them.

The second hand moves to the “0” second position, the hour hand and date indicator move slightly, and the watch is now reset.

After resetting the watch

You must set the watch again following the procedure below.

1.

Correct the current reference position.

See from step 4 on page

42

.

2.

Select a city.

See pages

12

to

15

.

3.

Adjust the time/calendar.

• When adjusting by receiving the time signal manually: See pages

24

and

25

.

• When adjusting manually: See pages

36

to

39

.

Troubleshooting

49

Solar-powered watch handling precautions

• Please note that if you wear long sleeves, the watch may stop as a result of being covered by your sleeve and blocked from the light.

• When you take off the watch, try to place it in as bright a location as possible. This will ensure that it will continue to run properly.

CAUTION Recharging Precautions

• Do not charge the watch at a high temperature (about 60°C or higher) as doing so may cause the movement to malfunction.

Examples:

• Charging the watch too close to a light source which generates a large amount of heat such as an incandescent lamp or halogen lamp.

* When charging under an incandescent lamp, be sure to leave 50 cm or more between the lamp and the watch to avoid exposing the watch to excessive heat.

• Charging the watch in a location where the temperature may become extremely high such as on the dashboard of a vehicle.

50

Solar-powered watch handling precautions

• Because the watch uses a rechargeable cell, you do not need periodical cell replacement. However, power consumption may increase after using for an extended period of time due to deterioration, and the power may run out earlier than expected. To avoid this, we recommend that you have your watch inspected (Charge basis) periodically.

WARNING Handling of Rechargeable Cell

• The rechargeable cell should never be removed from the watch. If for any reason it becomes necessary to remove the rechargeable cell from the watch, keep out of the reach of children to prevent accidental swallowing. If the rechargeable cell is accidentally swallowed, consult a doctor immediately.

• Do not dispose of the rechargeable cell with ordinary garbage. Please follow the instructions of your municipality regarding collection of batteries to prevent the risk of fire or environmental contamination.

WARNING Use Only the Specified Battery

• Never use a battery other than the rechargeable cell specified for use in this watch. Although the watch structure is designed so that it will not operate when another type of battery is installed, if a silver battery or other type of battery is installed in the watch and the watch is recharged, there is the risk of overcharging which may cause the battery to rupture. This can cause damage to the watch and injury to the wearer. When replacing the rechargeable cell, always make sure to use the designated rechargeable cell.

51

Water resistance

WARNING Water Resistance

• Non-water resistant watches cannot be used underwater or in environments in contact with water.

• Water-resistance for daily use (to 3 atmospheres) means that the watch may be worn while washing your face or in the rain, but is not to be immersed in water.

• Upgraded water-resistance for daily use (to 5 atmospheres) means that the watch may be worn while swimming, but is not to worn while skin diving.

• Upgraded water-resistance for daily use (to 10/20 atmospheres) means that the watch may be worn while skin diving, but not while scuba or saturated diving using helium gas.

Indication Name Watch dial and Case back Specification

Non-water-resistant watch Everyday-use water-resistant watch Upgraded everyday-use water-resistant watch Upgraded everyday-use water-resistant watch

52

WATER RESIST(ANT) WATER RESIST(ANT) 5 bar WATER RESIST(ANT) 10/20 bar Non-water-resistant Water-resistant to 3 atmospheres Water-resistant to 5 atmospheres Water-resistant to 10 or 20 atmospheres

Water resistance

• Refer to the watch dial and the case back for the indication of the water resistance of your watch. The following chart provides examples of use for reference to ensure that your watch is used properly. (The unit “1bar” is roughly equal to 1 atmosphere.) • WATER RESIST(ANT) ××bar may also be indicated as W.R.××bar.

Water-related use

Minor exposure to water (washing face, rain, etc.)

NO OK OK

Moderate exposure to water (washing, kitchen work, swimming, etc.)

NO NO OK

Skin diving, marine sports

NO NO NO

Scuba diving using an air tank

NO NO NO

Pulling out the crown when the watch is wet

NO NO NO OK OK OK NO NO

53

Precautionary items and usage limitations

CAUTION To Avoid Injury

• Be particularly careful when wearing your watch while holding a small child, to avoid injury.

• Be particularly careful when engaged in strenuous exercise or work, to avoid injury to yourself and others.

• Do NOT wear your watch while in a sauna or other location where your watch may become excessively hot, since there is the risk of burns.

• Be careful when putting on and taking off your watch, since there is a risk of damaging your fingernails, depending on the manner in which the band is fastened.

54

Precautionary items and usage limitations CAUTION Precautions

• Always use the watch with the crown pushed in (normal position). If the crown is of the screw lock-type, make sure it is securely locked.

• Do NOT operate the crown when the watch is wet. Water may penetrate into the watch, causing deterioration of water resistance.

• If water enters the watch or the watch fogs up and does not clear up even after a long time, consult your dealer or Customer Support Center for inspection and/or repair.

• If a watch of upgraded water resistance for daily use is immersed in sea water or subjected to excessive perspiration, thoroughly rinse with fresh water and wipe completely dry with a soft cloth.

• If seawater enters the watch, place the watch in a box or plastic bag and immediately take it in for repair. Otherwise, pressure inside the watch will increase, and parts (crystal, crown, push button, etc.) may come off.

55

Precautionary items and usage limitations CAUTION When Wearing Your Watch

• The durability of a leather band may be affected when wet (fading, peeling of adhesive), owing to the properties of the material. Moreover, wet leather may cause a rash.

• It is recommended to take off the watch if it gets wet, even if the watch itself is water-resistant.

• Do Not wear the band too tightly. Try to leave enough space between the band and your skin to allow adequate ventilation.

• The rubber (urethane) band may be stained by dyes or soil present in or on clothing or other accessories. Since these stains may not be removable, caution is required when wearing your watch with items that tend to easily transfer color (articles of clothing, purses, etc.). In addition, the band may be deteriorated by solvents or moisture in the air. Replace with a new one when it has lost elasticity or become cracked.

• The watch may stop or the function of the watch may be impaired in extremely high or low temperature. Do not use the watch in places where the temperature is outside the operating temperature range as stated in the specifications.

• The integrated circuits (IC) used in quartz watches are sensitive to static electricity. Please note that the watch may not indicate the correct time if exposed to intense static electricity.

56

Precautionary items and usage limitations

• Analog quartz watches are powered by a step motor that uses a magnet. Subjecting the watch to strong magnetism from the outside can cause the motor to operate improperly and prevent the watch from indicating the correct time. Do not allow the watch to come into close proximity to magnetic health devices (magnetic necklaces, magnetic elastic bands, etc.) or the magnets used in the latches of refrigerator doors, clasps used in handbags, the speaker of a cell phone, electromagnetic cooking devices and so on.

• Avoid dropping the watch or subjecting it to other strong impact. It may cause malfunctions and/or performance deterioration as well as damage to the case and bracelet.

• If paint thinner, benzene or other solvents or products containing these solvents (including gasoline, nail polish remover, cresol, bathroom cleaners and adhesives, water repellent, etc.) are allowed to come into contact with the watch, they may discolor, dissolve or crack the materials. Be careful when handling these chemicals. Contact with mercury such as that used in thermometers may also cause discoloration of the band and case.

57

Precautionary items and usage limitations CAUTION Always Keep Your Watch Clean

• Rotate the crown while it is pressed in fully and press the buttons periodically so they do not become stuck due to accumulations of foreign matter.

• The case and band of the watch come into direct contact with the skin in the same manner as undergarments. Corrosion of the metal or unnoticed soiling such as that caused by perspiration and dirt can soil sleeves and other portions of clothing. Keep your watch clean at all times.

• The case and band of the watch come into direct contact with the skin. Rust, dirt or perspiration present on the watch’s body or band may cause itching or a rash on your skin. Such problems may also occur if you have an allergy to certain metals or leather. If you think there is something wrong, discontinue wearing the watch immediately and consult your physician.

• Leather bands may become discolored by perspiration or dirt. Always keep your leather band clean by wiping with a dry cloth.

58

Precautionary items and usage limitations CAUTION Caring for Your Watch

• Wipe any dirt or moisture such as perspiration from the case and crystal with a soft cloth.

• For a metallic, plastic or rubber watchband, wash any dirt off with water. Remove the small amounts of dirt trapped between the crevices of the metallic band with a soft brush.

• If you will not be using your watch for an extended period of time, carefully wipe off any perspiration, dirt or moisture and store in a proper location, avoiding locations subject to excessively high or low temperatures and high humidity.

The paint on the dial and hands helps you with reading the time in a dark place. The luminous paint stores light (daylight or artificial light) and glows in a dark place. It is free from any radioactive substance or any other material harmful to a human body or environment.

• The light emission gradually becomes weaker as time passes.

• The duration of the light (“glow”) will vary depending on the brightness, types of and distance from a light source, exposure time, and the amount of the paint.

• The paint may not glow and/or may dissipate quickly if exposure to light was not sufficient.

59

Warranty and service

In the case a malfunction has occurred during the course of normal use while the watch is till under warranty, the watch will be repaired free of charge in accordance with the conditions of the warranty included with this manual.

Our standard period for stocking repair parts for each model is generally seven years. When an exterior part such as the watch case, glass, dial, hand, crown or band is damaged, a spare part with different appearance may sometimes be used.

Repairs can be performed on your watch within the repair parts stock period even after the free guarantee has expired. However, you will be charged for these repairs. Please take the watch to the shop where you purchased it and ask whether it can be repaired because the repair period varies according to the conditions of use, environment and so forth. Moreover, there are cases in which it is difficult to restore the watch to its original accuracy when decreased accuracy has resulted from long-term use.

In the event that you have moved or have received your watch as a gift, and are not able to bring your watch to the shop where it was purchased for serving, please consult Customer Support Center.

60

Warranty and service

You should have your watch inspected every 2-3 years to extend its life and ensure safety (charge basis). When replacing parts, always make sure to request genuine parts. When it becomes necessary to replace packings and springs, it may sometimes also be necessary to inspect other parts or to make repairs in addition to replacing the parts. Please ask for more detailed information on repair or replacement expenses at the shop where you purchased your watch or Customer Support Center.

All parts of this watch, except for the band, are to be repaired only at CITIZEN. This is because special technologies and equipment are required to perform repairs, inspections and adjustments. Please make requests for repairs to Customer Support Center when having your watch repaired.

If you have any questions regarding the way warranty, repairs or other matters, please inquire at the shop where you purchased your watch or Customer Support Center.

61

Information The time signal

The time signal is broadcast almost continuously 24-hours a day, but may occasionally be interrupted due to maintenance. The broadcasting conditions of the time signal for Japan can be checked on the English web site of Japan Standard Time Project (http://jjy.nict.go.jp/index-e.html).

The time signal has no effect on the human body or medical equipment.

62

Information

To avoid hand misalignment by impacts or magnetism—Perfex

JIS Type-1 antimagnetic performance:

This watch maintains its time functionality as close as 5 cm away from devices that generate a magnetic field during normal use.

Impact detection function:

This function prevents unwanted movement of the hour, minute and second hands when the watch receives an impact.

Automatic hand correction function (hand reference position auto-correction function):

The reference position of the hands is checked at regular intervals, and if there is any misalignment, the hour, minute and second hands are rapidly corrected to maintain the correct time.

63

Specifications

Model Timekeeping accuracy (without the time signal reception)

H149

Type

Analog solar-powered watch Within ±15 seconds per month when worn at normal operation temperatures (between +5˚C and +35˚C)

Operating temperature range

−10˚C to +60˚C

Display functions

• Time: Hours, minutes, seconds • Calendar: Date • City

Maximum run time from full charge

• Fully charged to fully discharged: Approximately two years (with power save feature) Approximately six months (without power save feature) • Power reserve upon insufficient charge warning function: Approximately three days

Battery

Rechargeable cell (lithium button cell), 1pc.

64

Additional functions Specifications

• Solar power function • Power reserve indication • Overcharging prevention function • Insufficient charge warning function (two-second interval movement) • Energy saving function (power save feature) • Receiving time signal (automatic, on demand, automatic recovery) • Confirming reception status (RX) • Automatic selection of time signal stations (JJY only) • Indicating the result of the last reception (OK/NO) • Summer Time (ON/OFF) • City setting (26 cities) • Perpetual calendar (until February 28th, 2100) • Perfex (JIS Type-1 antimagnetic performance/Impact detection function/ Automatic hand correction function) Specifications are subject to change without prior notice.

65

Customer support center

Repair service

Citizen Customer Service

TEL:

0120–977–867

Business hours: 9:30–12:00/13:00–17:00 (Monday thru Friday excluding holidays) 1–14–1 Higashi ayase, Adachi-ku, Tokyo ( 〒 120–0004)

66

Customer support center Citizen Consumer Help Desk

TEL:

0120–78–4807

Business hours: 9:30–17:30 (Monday thru Friday excluding holidays) TOKYO SUPPORT SERVICE TEL: 03–6327–3894 2F Citizen Nakano Bldg., 5–68–10, Nakano, Nakano-ku, Tokyo ( 〒 164–8726) OSAKA SUPPORT SERVICE TEL: 06–6252–1432 3–8–9 Minami-Senba, Chuo-ku, Osaka ( 〒 542–0081)

67

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
