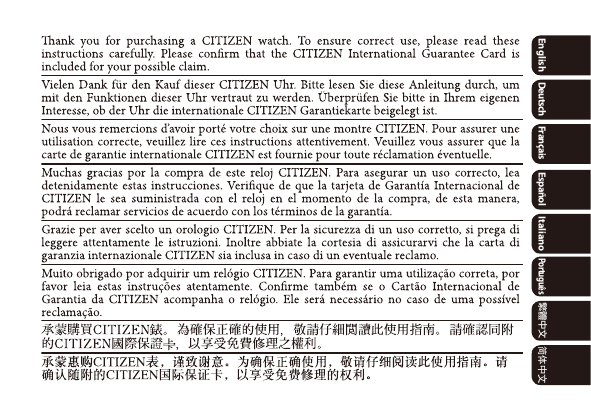

English Deutsch Français
Español Italiano Português 繁體中文 简体中文
<Engraving position example>
1234-567890
12
Your watch features a case number engraved on
the case back (refer to figure to the right).
On the case back, a number composed of four +
six alphanumeric characters (or more) is engraved.
In the example on the right, “1234” is the
movement number.
3
4-
90
To determine the movement number
English
Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure
correct use.
After reading, be sure to store this manual in a safe place should it be
needed for future reference.
✳
The case has different features depending on the model.
Details of model specific features may not be outlined in this manual. See
“ http://www.citizenwatch.jp/support/default.htm ”.
567
8
The engraving position may differ
depending on watch model.
3
This manual may contain certain safety advisories. Your watch should be used
in accordance with these advisories at all times to ensure optimal enjoyment of
your watch and to prevent injury to yourself, other persons and/or damage to
property.
■ Safety advisories are categorized and depicted in this manual as follows:
4
DANGER
Highly likely to cause death or serious injury
WARNING
May cause serious injury or death
CAUTION
May or will cause minor or moderate injury or damage
Safety Precautions
English
Safety Precautions
■ Important instructions are categorized and depicted in this manual as follows:
Warning (caution) symbol followed by instructions that should be
followed and/or precautions that should be observed.
Warning (caution) symbol followed by prohibited use and/or
operation advisory.
5
Features…………………………………………………………………… 7
Guide to Charging Time… ……………………………………………… 8
Notes Before Use… …………………………………………………… 10
Component identification… ………………………………………… 13
Setting the Time… …………………………………………………… 14
Setting the Calendar (For models with Date/Day indication)…………… 16
Eco-Drive (solar powered) Watch Handling Precautions…………… 18
Water resistance… …………………………………………………… 22
Precautions and usage limitations…………………………………… 25
Maintenance…………………………………………………………… 30
Information… ………………………………………………………… 31
Specifications… ……………………………………………………… 32
6
Features
English
Table of contents
◆ Eco-Drive (solar powered) watch
The watch operates by converting sunlight and other light into electrical energy. Once the
rechargeable cell is fully charged, the watch will function for approximately 8 months.
◆ Insufficient charge warning
If the power becomes very low, the second hand advances
at 2-second intervals, indicating that charging is necessary.
When the second hand starts to advance at 2-second
intervals, expose the watch to light until it is fully charged.
If the watch is not exposed to light within approximately 5 days after the insufficient
charge warning starts, the watch will stop.
◆ Quick start function
When the stopped watch is exposed to light, it starts operating again.
After quick start, expose the watch to light until it is fully charged. Set the correct time
before using the watch.
7
Guide to Charging Time
Below are the approximate times needed for charging when exposing the watch
dial to light continuously. Please use this table as a reference only.
Charging time (approximate)
Charging time to
Charging time to start
Illuminance Environment
the fully charged
Charging
working normally
(Lx)
state when the
time to work (second hand moves in
for one day 1-second steps) when the rechargeable cell
is empty
rechargeable cell is empty
Outdoors
7 to 25
10000 to
4
to
15
hours
30
to
120 hours
(sunny
sky,
minutes
100000
cloudy sky)
3000
500
8
20 cm under a
fluorescent lamp 50 minutes
(30 W)
Interior lighting
4 hours
30 hours
240 hours
200 hours
—
English
Guide to Charging Time
* To charge the rechargeable cell fully, it is recommended to expose the dial to direct
sunlight. A fluorescent lamp or interior lighting does not have sufficient illumination to
charge the rechargeable cell fully.
This watch will run for approximately 8 months from a full charge without further exposure
to light.
9
◆ Notes before use - Protective stickers
Prior to the watch being shipped from the manufacturing plant, its glass, case,
metal band, and metal parts of the clasp are covered with stickers to protect
them from getting fingerprints or scratches during transit from the plant to the
store. If the watch is worn without first removing these stickers, perspiration
or moisture may enter the gaps between the protective stickers and the parts,
which may result in a skin rash and/or corrosion of the metal parts.
For this reason, please be sure to peel off the stickers before wearing the watch.
Notes Before Use
◆ Notes on charging your watch
This watch has a rechargeable cell which is charged by exposing the dial to
light, such as direct sunlight or fluorescent lamps. After taking off the watch,
put it in a location where the dial is exposed to bright light, such as by a
window.
For optimal performance, perform the following:
• Expose the watch with the dial facing towards direct
sunlight for five to six hours at least once a month.
• Do not store the watch in a dark place with no light
for a prolonged period of time.
•W
hen the watch is regularly covered with long sleeves, it may not be charged
sufficiently. Try to keep the watch exposed to light sufficient for charging.
•D
o not charge the watch at a high temperature (about 60ºC/140˚F or higher).
10
11
English
Notes Before Use
English
Component identification
Notes Before Use
◆ About the crown
Some models use screw down system for the crown.
Accidental operations can be prevented when the watch is not being operated
by locking the crown. To operate the watch, release the lock.
• If your watch does not have a screw down crown, operations can be
performed without locking or unlocking the crown.
Before operation
After operation
Unlock the crown
Lock the crown
Rotate the crown to the
left (counterclockwise).
When the screw lock
is released, the crown
extends to the normal
position.
Press the crown and
rotate it to the right
(clockwise) to tighten
the screw lock.
Minute hand
Hour hand
Crown
Date/Day indicator
(if equipped)
Second hand
* The illustrations in this instruction manual may differ from the actual appearance of your watch.
12
13
1
Pull the crown out to
position 2.
Pull out the crown just as the
second hand is at the 0 second
position in order to accurately
align to the second.
14
Setting the Time
2
Rotate the crown to
set the time.
For more accurate adjustment, first
set the minute hand forward by five
minutes and then return it to the
correct time.
3
Press the crown back into
its normal position.
Refer the time signal and push the
crown to set the time.
Be sure to secure if the watch has a
screw down crown.
Water may enter your watch.
15
English
Setting the Time
Setting the Calendar (For models with Date/Day indication)
(For models with Date/Day indication)
Avoid adjusting the calendar when the hands
indicate the following times.
The calendar may not be changed correctly.
1
Pull the crown
out to position 1.
2
Rotate the crown
counterclockwise to set the date.
Date indication model:
Approximately from 9 p.m. to 1:00 a.m.
3
Press the crown
back into its
normal position.
Date/Day indication model:
Approximately from 9 p.m. to 4:30 a.m.
For models with Day indication:
Rotate the crown clockwise to set the day.
Be sure to secure
if the watch has a
screw down crown.
Water may enter
your watch.
* Some models are designed to show the day indication
in languages other than Japanese and English.
16
17
English
Setting the Calendar
<Always be Sure to Expose Your Watch to Light Regularly>
• Your watch enjoys regular exposure to light. Wearing in situations that prevent light exposure such
as long shirt or coat sleeves will prevent your watch from receiving light sufficient for charging. In
these instances, supplemental charging may be needed.
• When you take your watch off, try and place it in a bright location. This will ensure your watch
receives light for charging and will continue to operate properly. Storing your watch in dark places
for extended periods of time may cause the stored energy to become depleted and your watch to
stop.
18
Eco-Drive (solar powered) Watch Handling Precautions
CAUTION
Recharging Precautions
• Do not charge your watch at high temperatures (60°C/140°F) as
this may cause damage to sensitive components and the watch to
malfunction.
Examples:
• Charging the watch too close to a light source which generates
a large amount of heat such as an incandescent lamp or
halogen lamp.
* When charging your watch under an incandescent lamp,
be sure to leave 50 cm (19-11/16 inches) distance between
the lamp and the watch to avoid excessive heat. Never use a
halogen lamp for recharging as these generate excessive heat.
• Charging the watch in a location where the temperature may become extremely high such as on
the dashboard of a vehicle.
19
English
Eco-Drive (solar powered) Watch Handling Precautions
<Replacement of Rechargeable Cell>
• Your watch features a cell that does not need regular replacement.
However, after an extended period of time, power consumption may increase due to deterioration
of lubrication in the movement. This may result in shorter than expected run time. Be sure to have
your watch regularly inspected by an Authorized Service Center.
Note: Regular maintenance is not covered under the terms of the warranty.
WARNING
Handling of Rechargeable Cell
• The rechargeable cell should never be removed from the watch.
If for any reason it becomes necessary to remove the rechargeable cell from the watch, keep out of
the reach of children to prevent accidental swallowing.
If the rechargeable cell is accidentally swallowed, consult a doctor immediately.
• Do not dispose of the rechargeable cell with ordinary garbage. Please follow the instructions of
your municipality regarding collection of batteries to prevent the risk of fire or environmental
contamination.
20
Eco-Drive (solar powered) Watch Handling Precautions
WARNING
Use Only the Specified Rechargeable Cell
• Never install a conventional battery in your watch. Only use the specified rechargeable cell.
Your watch is designed to operate only with the original type of rechargeable cell. It is not designed
to run or be used with a conventional type of battery. Installing such a battery may result in
overcharging which may cause the battery to burst. This can cause damage to the watch and injury
to the wearer.
If for any reason the rechargeable cell needs replacement, be sure to use only the original type
rechargeable cell. We recommend contacting your nearest Authorized Service Center for this
service.
21
English
Eco-Drive (solar powered) Watch Handling Precautions
WARNING
Water resistance
Water Resistance
• Refer to the watch dial and the case back for the indication of the water resistance of your watch.
The following chart provides examples of use for reference to ensure that your watch is used
properly.
(The unit “1bar” is roughly equal to 1 atmosphere.)
• WATER RESIST(ANT) ××bar may also be indicated as W.R.××bar.
Name
Indication
Dial or Case back
Non-water resistant
22
Everyday-use
water resistant watch
WATER RESIST(ANT)
Upgraded everyday use
water-resistant watch
WATER RESIST(ANT)
5 bar
WATER RESIST(ANT)
10/20 bar
Specification
Water-related use
Operate the crown
Minor exposure
or button when the
to water (washing
Swimming and
Skin diving,
Scuba diving
watch is wet
face, rain, etc.)
general washing work marine sports using an air tank
Non-water resistant
NO
NO
NO
NO
NO
Water-resistant to
3 atmospheres
Water-resistant to
5 atmospheres
Water-resistant to
10 or 20 atmospheres
OK
NO
NO
NO
NO
OK
OK
NO
NO
NO
OK
OK
OK
NO
NO
23
English
Water resistance
• Non-water resistant watches cannot be used underwater or in environments in contact with water.
• Water-resistance for daily use (to 3 atmospheres) means that the watch may be worn while washing
your face or in the rain, but is not to be immersed in water.
• Upgraded water-resistance for daily use (to 5 atmospheres) means that the watch may be worn
while swimming, but is not to worn while skin diving.
• Upgraded water-resistance for daily use (to 10/20 atmospheres) means that the watch may be worn
while skin diving, but not while scuba or saturated diving using helium gas.
• For a metallic, plastic or rubber watchband, wash any dirt off with water. Remove the small
amounts of dirt trapped between the crevices of the metallic band with a soft brush. If your watch
is not water resistant, be sure not to get the case of the watch wet.
24
Precautions and usage limitations
CAUTION
English
Water resistance
To Avoid Injury
• Be particularly careful when wearing your watch while holding a small child, to avoid injury.
• Be particularly careful when engaged in strenuous exercise or work, to avoid injury to yourself and
others.
• DO NOT wear your watch while in a sauna, jacuzzi or other location where it may become
excessively hot. This may result in burns to the wearer and/or malfunction of your watch.
• Be careful when putting on or taking off your watch since there is a risk of pinching your skin or
damaging your fingernails depending on the manner in which the band is fastened.
25
CAUTION
Precautions
• Always wear your watch with the crown pushed in to the normal position. If your crown is a screw
down type, be sure it is properly screwed down (locked) to the case.
• Do not operate the crown or any buttons when the watch is wet. This may allow the entrance of
moisture and cause damage to sensitive components.
• If water enters the watch or the watch fogs up and does not clear up even after a long time, consult
Authorized Service Center for inspection and/or repair.
• If a watch of upgraded water resistance for daily use is immersed in sea water or subjected to
excessive perspiration, thoroughly rinse with fresh water and wipe completely dry with a soft cloth.
• If seawater enters the watch, place the watch in a box or plastic bag and immediately take it in for repair.
Otherwise, pressure inside the watch will increase, and parts (crystal, crown, buttons, etc.) may come off.
CAUTION
<Band>
When Wearing Your Watch
• The durability of a leather, cloth, or natural skin strap may be affected by moisture and
perspiration. Moreover, wet leather may cause a rash. Be sure to keep your strap dry and clean.
• It is recommended to take off the watch if it gets wet, even if the watch itself is water-resistant.
• Do not wear your watch too tightly. Try to leave enough space between the watch and your skin to
allow adequate ventilation.
26
Precautions and usage limitations
• A rubber type strap may become stained by dyes or soils found in clothing and other accessories.
Since these stains may become permanent, take caution when wearing your watch with items that
may transfer color (articles of clothing, purses, dyed bracelets, etc.).
• Solvents, moisture and perspiration may cause the strap to deteriorate. Be sure to replace a strap
that has become dried, brittle, or cracked to prevent loss due to strap failure.
<Temperature>
• The watch may stop or the function of the watch may be impaired in extremely high or low
temperature. Do not use the watch in places where the temperature is outside the operating
temperature range as stated in the specifications.
<Static Electricity>
• The integrated circuits (IC) used in quartz watches are sensitive to static electricity. Please note that
the watch may malfunction if exposed to intense static electricity.
<Magnetism>
• Analog type quartz watches are powered by a motor that utilizes a small magnet. The operation
of this motor can be disturbed if the watch is subjected to magnetic items resulting in the
malfunction of the watch. Do not allow the watch to come into close proximity to magnetic items
such as “health” bracelets or necklaces, coin trays, latches found in cabinets and refrigerators,
certain clasps of handbags and cell phone pouches, cell phone speakers, certain sporting
accessories, MRI equipment, etc.
27
English
Precautions and usage limitations
<Strong Shock>
• Avoid dropping the watch or subjecting it to other strong impact. It may cause malfunctions and/
or performance deterioration as well as damage to the case and bracelet.
<Chemicals, Corrosive Gasses and Mercury>
• If paint thinner, benzene or other solvents or products containing these solvents (including
gasoline, nail-polish remover, cresol, bathroom cleaners and adhesives, water repellent, etc.)
are allowed to come in contact with the watch, they may cause discoloration, deterioration and
damage materials of the watch. Be careful when handling these chemicals. Contact with mercury
such as that used in thermometers may also cause discoloration of the band and case.
CAUTION
• The case and band of the watch come in to direct contact with the skin. This may result in
unnoticed accumulations of dirt and foreign matter caused by normal wear. Accumulated matter
may cause rust, discoloration, and premature wear. Be sure to regularly clean your watch with
a soft cloth. If severe accumulations occur, you may need to have your case and/or bracelet
professionally cleaned.
• In some instances, accumulations of dirt and foreign matter may cause skin reactions. This may
also occur due to certain allergies beyond our control. If this occurs, immediately discontinue use
of your watch and consult your physician.
• Leather, cloth, and other natural skin straps may become discolored or brittle from moisture,
perspiration and/or accumulated dirt. To maximize the life of your strap, be sure to keep your
leather band clean and dry by wiping it with a soft cloth each day.
Always Keep Your Watch Clean
• Rotate the crown while it is pressed in fully and press the buttons periodically so they do not
become stuck due to accumulations of foreign matter.
Note: Do not operate the crown or any buttons when the watch is wet.
• The case and band of the watch come into direct contact with the skin in the same manner as
undergarments. Corrosion of the metal or unnoticed soiling such as that caused by perspiration
and dirt can soil sleeves and other portions of clothing. Keep your watch clean at all times.
28
Precautions and usage limitations
CAUTION
Caring for Your Watch
• Wipe any dirt or moisture such as perspiration from the case and crystal with a soft cloth.
• If you will not be using your watch for an extended period of time, carefully wipe off any
perspiration, dirt or moisture and store in a proper location, avoiding locations subject to
excessively high or low temperatures and high humidity.
29
English
Precautions and usage limitations
Daily maintenance
• Rotate the crown while it is pressed in fully and press the buttons periodically so they do not
become stuck due to accumulations of foreign matter.
• Wipe off dirt, perspiration, and water from the case and glass with a clean soft cloth occasionally.
• To clean a metal, plastic, or rubber watchband, wash away dirt with water. Use a soft brush to
remove dust and dirt stuck in the gaps in a metal band.
• Do not use a polishing type of cloth as this may damage the surface and certain treatments.
• Do not use solvents (thinner, benzine, etc.), as they may damage the finish.
Periodical inspections
Your watch needs an inspection once every two or three years for safety and longer usage. To keep
your watch water-resistant, the gaskets and other components need to be replaced regularly. Other
parts need to be inspected and replaced if necessary.
Always ask for genuine Citizen parts upon replacement.
30
Information
English
Maintenance
About the Watch with Luminous Paint
Your watch may feature luminous treatment to the dial and hands to aid you in reading the watch
in dimly lit environments. This luminous treatment stores light from both natural and artificial
sources. It is free from any radioactive substance or any other material that may be harmful to the
environment or human body.
• The light emission of the luminous material gradually decreases as time passes.
• The duration and amount of light emitted will vary depending on the brightness, type of and
distance from the light source, exposure time and amount/size of luminous treatment.
• When not exposed to a light source, light emission from the luminous treatment will start off
bright and gradually diminish over a period of hours. The duration of visible light emission will
vary with type of and duration of light exposure as well as size of luminous features of your watch.
31
Specifications
32
Model
J7*/J8* Type
Timekeeping
accuracy
Within ±15 seconds per month when worn at normal operation
temperatures (between +5˚C/41˚F and +35˚C/95˚F)
Analog solar-powered watch
Operating
temperature
range
−10˚C/14˚F to +60˚C/140˚F
Display
functions
• Time: Hour, minute, second
•C
alendar: date, day of the week (only for the models with date/
day indication)
Continuous
operation
times
• Fully charged to fully discharged:
Approx. 8 months (Normal use condition)
• From insufficient charge warning display until stop: Approx. 5 days
Battery
Rechargeable cell (lithium button cell), 1pc.
Additional
functions
• Solar power function
• Overcharging prevention function
• I nsufficient charge warning function (2-second interval movement)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
