Silicon Labs Si5350 Timing ToolStick Quick start guide

Silicon Labs Si5350 Timing ToolStick  Quick start guide

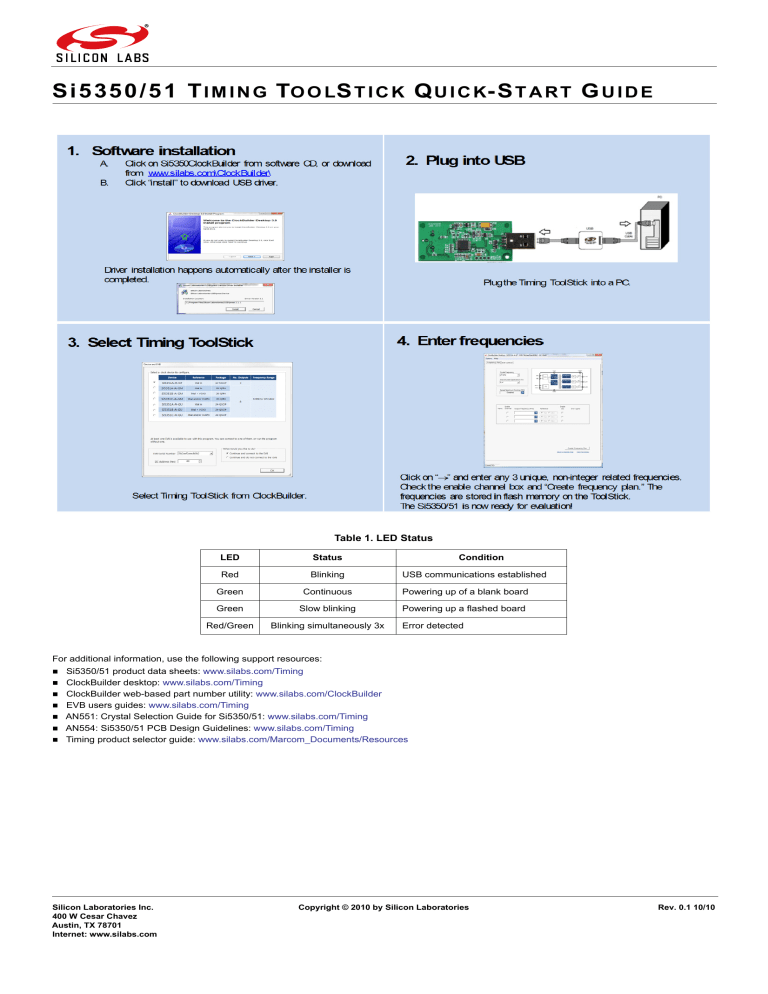

S i 5 3 5 0 / 5 1 T I M I N G TO O L S T I C K Q U I C K- S T A R T G U I D E
Table 1. LED Status
LED
Status
Condition
Red
Blinking
Green
Continuous
Powering up of a blank board
Green
Slow blinking
Powering up a flashed board
Red/Green
Blinking simultaneously 3x
USB communications established
Error detected
For additional information, use the following support resources:
 Si5350/51 product data sheets: www.silabs.com/Timing
 ClockBuilder desktop: www.silabs.com/Timing
 ClockBuilder web-based part number utility: www.silabs.com/ClockBuilder
 EVB users guides: www.silabs.com/Timing
 AN551: Crystal Selection Guide for Si5350/51: www.silabs.com/Timing
 AN554: Si5350/51 PCB Design Guidelines: www.silabs.com/Timing
 Timing product selector guide: www.silabs.com/Marcom_Documents/Resources
Silicon Laboratories Inc.
400 W Cesar Chavez
Austin, TX 78701
Internet: www.silabs.com
Copyright © 2010 by Silicon Laboratories
Rev. 0.1 10/10
