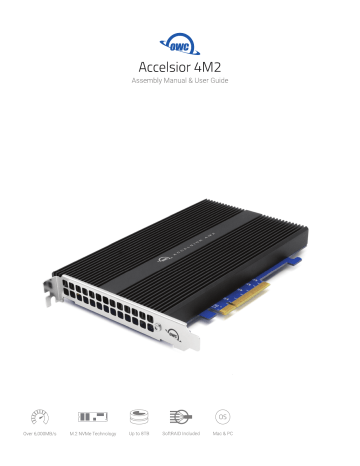

Accelsior 4M2
Assembly Manual & User Guide
7 =
Over 6,000MB/s M.2 NVMe Technology Up to 8TB SoftRAID Included Mac & PC
CONTENTS I
Introduction
1.1 Minimum System Requirements.............................ec00cccreeee 1
- Mac Requirements
- PC Requirements
1.2 Package Contents.................e..e.eeeeerrrrerrreree e ee ee e eee. 1
1.3 About This Manual.............................0eererrecce eee. 1
1.4 Side View OS 2
Installation
2.1 Installing M.2 Drives (0GB cards only) …………….………………………………… 3
2.2 Installing the Card in a Host Computer or PCle Enclosure..... 6
Support Resources
3.1 Troubleshooting
3.2 Contacting Technical Support... 7
Accelsior 4M2
Contents
INTRODUCTION IM
1.1 System Requirements
Operating System
- Mac: macOS 10.13.6 or later
- PC: Windows 10 or later
Hardware
- Mac or PC with compatible PCle slot
- PCle 3.0 or greater strongly recommended
- Lanes: x8 or greater strongly recommended
- Physical: x8 or greater required
Drivers
- No driver is required for the Accelsior 4M2 itself but some M.2 drives may require one.
Please review the drive manufacturer's requirements before installing.
Supported Drives
- Any PCle based M.2 SSD with an M-key connector
- 2280 form factor required
1.2 Package Contents
Quick Start Guide
OWC Accelsior 4M2 Quick Start Guide
1.3 About This Manual
The images and descriptions may vary slightly between this manual and the unit shipped. Functions
and features may change depending on the firmware version. The latest product details and warranty
information can be found on the product web page. OWC's Limited Warranty is not transferable and
subject to limitations.
Accelsior 4M2 Introduction
Safety Precautions
- Use proper anti-static precautions while installing this PCle card into the desktop computer. Failure to do so
can cause damage to the drives and/or the computer.
- Do not attempt to disassemble or modify the device. To avoid any risk of electrical shock, fire, short-
circuiting or dangerous emissions, never insert any metallic object into the device. If it appears to be
malfunctioning, please contact technical support.
- Never expose your device to rain, or use it near water or in damp or wet conditions. Doing so increases the
risk of electrical shock, short-circuiting, fire or personal injury.
1.4 Side View
1. PCle connector — align this part of the device with a
compatible PCle slot on the host computer or enclosure.
Power On Disk Activity
LED
Solid Green" Flashing Green
1. Solid green may only apply to OWC SSDs
Accelsior 4M2 Introduction
INSTALLATION
2.1 Installation Steps (0GB cards only)
If you purchased the OWC Accelsior 4M2 card without M.2 drives, the steps below show how to install one
or more of these drives. For maximum performance the recommended configuration is four identical SSDs
installed, arrayed as a RAID 0 using SoftRAID (license included, click here to download).
1. Remove the device from its packaging and set it on a flat work
surface with the bracket facing you. Remove the highlighted
screw using a Torx T8 driver (not included).
2. Carefully flip the device over and remove the four highlighted T8
screws to loosen the connection to the heat sink, then set the
screws aside.
3. Carefully separate the PCle card from the black heat sink. If you initially get more resistance than expected, don't apply extra force
to separate them. Instead you can try to carefully separate the pieces by opening them like a book (below right).
Accelsior 4M2 Installation
INSTALLATION
4. Flip the card over so it is resting on the work surface with the M.2
connectors facing up. Remove the four highlighted screws with a
Phillips 00 driver (not included) and set them aside.
5. Carefully align the first M.2 drive to its connector (below left) and slide it forward until it snaps into place. Only a modest amount
of force is required; do not force the drive if it does not snap into place. Re-align it and try again. Once the drive is seated use one
of the screws from Step 4 to secure the drive (center); you may need to hold the drive down initially until you thread the screw onto
the post. Repeat this process for each M.2 drive you intend to install. The image at right shows all four drives installed.
|
| part 1
ai Lue). oe ario
= Fines E
a Warranty -
Piz 1.0TB
CwoaIDET 13
1
ME
ny "
=, di
Hi AR
CITT Ta CIT Army
6. Set the heat sink in front of you, then rotate the PCle card so that the drives will align with the thermal pad (below left). Next
carefully set the PCle card down on the heat sink so that the four screw holes on the PCle card are over the corresponding holes
on the heat sink. You may need to apply light downward pressure to the PCBA to ensure the pieces fit flush.
Installation
Accelsior 4M2
INSTALLATION
7. Re-affix the four T8 screws that you removed in Step 2. If one or
more of the screws does not fasten or does so at a slight angle,
dont apply extra force; the two components may not be fully
aligned. Remove the screw(s) then re-check the applicable screw
hole(s) on the PCBA to make sure you can see through to the
. . . TINA VA
corresponding holes on the heat sink then try again. .
TTL
8. Turn the card over with the PCle bracket facing you and re-affix
the T8 screw that was removed in Step 1. Once complete the
card is ready to install into the host computer (see Section 2.2)
Accelsior 4M2 Installation
INSTALLATION
2.2 Installing the Card in a Host Computer or PCle Enclosure
Please follow the steps below to install the Accelsior 4M2 PCle SSD into a host computer or enclosure with a
compatible PCle slot. Note: this card is susceptible to invisible damage if not protected during installation. For
proper grounding, we recommend using a grounding strap. Work in a clean, static-free area, and avoid wearing
clothing that retains static charges. Please visit this URL for more information: www.owcdigital.com/anti-static
1. Disconnect all power and powered devices from your
desktop computer, then open the case so that the
compatible PCle slot is visible and accessible.
2. Align the PCle connector on the Accelsior 4M2 SSD with the
compatible slot then carefully seat the card into the slot as
shown at right. If there is resistance, do not force the card
into the slot. Remove it, re-align the card's connector and try
again.
3. Once the card is fully seated affix the included screw to the
bracket as shown. Notes: no special power connectors or
other attachments are required to run this SSD.
Accelsior 4M2
x16 | /
x: Y
XL EEE X
x1 Du
> —
Installation
support Resources M
3.1 Troubleshooting
Many problems can be traced back to an improperly seated M.2 drive (0GB models only) or PCle card, or host
compatibility issues (e.g. installing the card in a slower PCle 2.0 slot or a PCle 3.x slot with too few data lanes
to support the desired performance, or installed in a computer running an older version of Windows or macOS).
Make sure that the M.2 drives (0GB only) and/or the PCle card is seated properly and that the computer is
configured to meet the system requirements. If everything is installed normally and youre still having trouble,
please contact technical support.
Depending on date of purchase, certain GPU-related limitations may apply when installing the
Accelsior 4M2 into the 2010-2012 Mac Pro. Please review this article for more information.
3.2 Contacting Technical Support
Phone: M-F, Bam-8pm CT
1.866.692.7100 (N. America)
+1.815.338.4751 (Int'l)
Chat: M—F, 8am—-8pm, Sat. 9am-5pm CT
www.owcdigital.com/support
Email: Answered within 48 hours
www.owcdigital.com/support
Accelsior 4M? Support Resources
Changes:
The material in this document is for information purposes only and subject to change without notice. While
reasonable efforts have been made in the preparation of this document to assure its accuracy, OWC, its parent,
partners, affiliates, officers, employees, and agents assume no liability resulting from errors or omissions in this
document, or from the use of the information contained herein. OWC reserves the right to make changes or
revisions in the product design or the product manual without reservation and without obligation to notify any
person of such revisions and changes.
FCC Statement:
Warning! Modifications not authorized by the manufacturer may void the user's authority to operate this
device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference with radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
Warranty:
The Accelsior 4M2 has a 5 Year OWC Limited Warranty if it was bundled with drives. Accelsior 4M2’s that do
not ship with drives have a 3 Year OWC Limited Warranty. For up-to-date product and warranty information,
please visit the product web page.
Copyrights and Trademarks:
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of OWC.
© 2020 Other World Computing, Inc. All rights reserved. OWC and the OWC logo are trademarks of New Concepts Development Corporation,
registered in the U.S. and/or other countries. Accelsior is a trademark of New Concepts Development Corporation. Mac and macOS are trademarks
of Apple Inc., registered in the U.S. and other countries. Other marks may be the trademark or registered trademark property of their owners.
OWCMANACC4M2 — 03/06/2020
