English

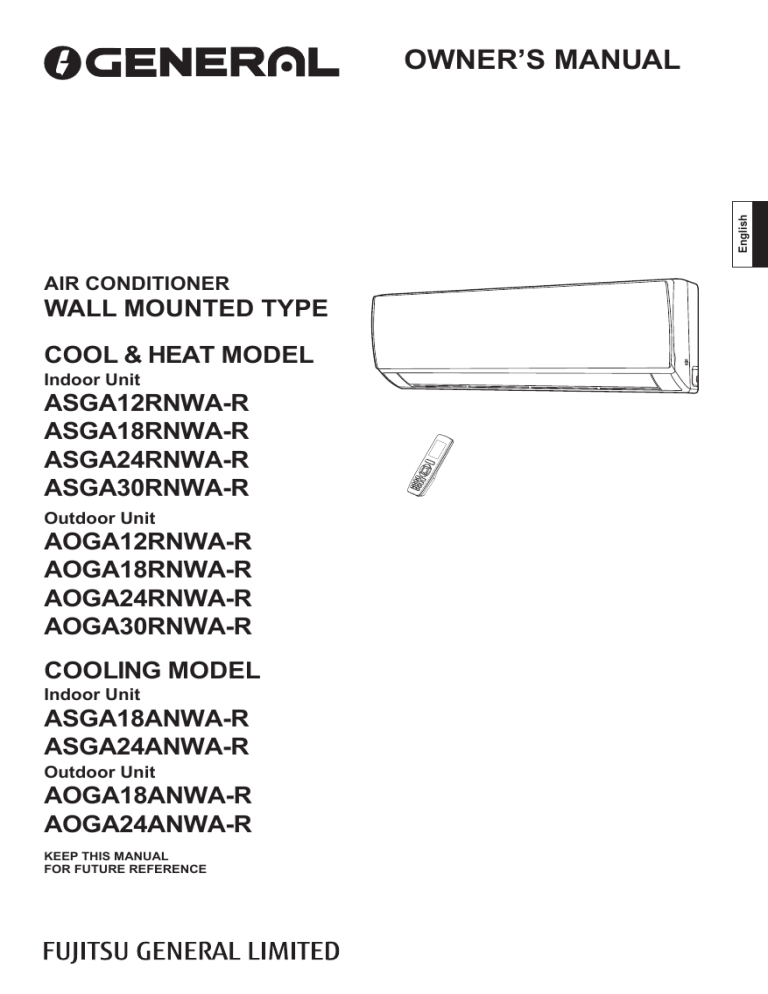

OWNER’S MANUAL
AIR CONDITIONER
WALL MOUNTED TYPE
COOL & HEAT MODEL
Indoor Unit
ASGA12RNWA-R
ASGA18RNWA-R
ASGA24RNWA-R
ASGA30RNWA-R
Outdoor Unit
AOGA12RNWA-R
AOGA18RNWA-R
AOGA24RNWA-R
AOGA30RNWA-R
COOLING MODEL
Indoor Unit
ASGA18ANWA-R
ASGA24ANWA-R
Outdoor Unit
AOGA18ANWA-R
AOGA24ANWA-R
KEEP THIS MANUAL
FOR FUTURE REFERENCE
SPECIFICATIONS
MODEL
INDOOR UNIT
ASGA12RNWA-R
ASGA18RNWA-R
ASGA24RNWA-R
ASGA30RNWA-R
ASGA18ANWA-R
ASGA24ANWA-R
OUTDOOR UNIT
AOGA12RNWA-R
AOGA18RNWA-R
AOGA24RNWA-R
AOGA30RNWA-R
AOGA18ANWA-R
AOGA24ANWA-R
TYPE
WALL MOUNTED (HEAT & COOL MODEL)
WALL MOUNTED (COOLING MODEL)
220 - 240V ~ 50Hz
POWER SOURCE
COOLING (T1) at 230V
CAPACITY
[BTU/h]
11250
17000
21500
27300
17500
CAPACITY
[kW]
3.297
4.982
6.300
8.000
5.130
6.447
POWER INPUT
[kW]
1.160
1.845
2.100
2.900
1.880
2.300
[A]
5.0
8.2
9.3
13.5
8.3
10.0
19000
CURRENT
22000
COOLING (T3) at 230V
CAPACITY
[BTU/h]
9359
14700
18800
22500
15180
CAPACITY
[kW]
2.743
4.308
5.510
6.600
4.449
5.568
POWER INPUT
[kW]
1.338
2.154
2.500
3.440
2.200
2.675
CURRENT
ENERGY EFFICIENCY RATIO
[A]
6.0
9.4
11.1
16.0
9.8
11.0
[BTU/hW]
7.00
6.82
7.52
6.54
6.89
7.10
HEATING at 230V
CAPACITY
[BTU/h]
12500
17742
21500
29002
-
-
CAPACITY
[kW]
3.664
5.200
6.300
8.500
-
-
POWER INPUT
[kW]
1.145
1.635
1.800
2.800
-
-
[A]
5.0
7.3
11.0
13.0
-
-
[kWh]
2775
4302
4860
6900
3384
4140
CURRENT
ANNUAL ENERGY CONSUMPTION
MAX. PRESSURE
SUCTION
[MPa]
DISCHARGE
[MPa]
1.5
3.0
MAX. CURRENT
[A]
8.5
13.0
18.0
20.0
12.1
18.0
REFRIGERANT (R22)
[kg]
0.72
1.0
1.45
2.2
1.0
1.3
DIMENSIONS & WEIGHT (NET)
INDOOR UNIT
HEIGHT
[mm]
200
300
325
325
300
325
W IDTH
[mm]
790
970
1078
1078
970
1078
DEPTH
[mm]
275
224
246
246
224
246
[kg]
9
13.5
16.5
17
13.5
16.5
680
W EIGHT
OUTDOOR UNIT
HEIGHT
[mm]
540
680
680
840
596
W IDTH
[mm]
848
913
913
1018
899
913
DEPTH
[mm]
320
378
378
412
378
378
[kg]
32.5
48
52
69
43
48
COOLING/DRY
[°C]
21 to 54
18 to 54
21 to 54
21 to 52
21 to 52
18 to 54
HEATING
[°C]
- 7 t o 24
- 7 t o 24
- 7 t o 24
-7 to 24
-
-
[°C]
16 to 30
16 to 30
16 to 30
16 to 30
16 to 30
16 to 30
Net W eight
TEMPERATURE RANGE
OUTDOOR TEMPERATURE
SET TEMPERATURE RANGE
Acoustic Noise Information : The maximum sound pressure level is less than 70 dB (A) for both indoor unit and outdoor
unit. According to IEC 704-1 and ISO 3744.
CONDITION (T1)
COOLING : INDOOR 27/19°C (DB/WB)
OUTDOOR 35/24°C (DB/WB)
CONDITION (T3)
COOLING : INDOOR 29/19°C (DB/WB)
OUTDOOR 46/24°C (DB/WB)
If the air conditioner is operated under higher temperature conditions than those listed, the built-in protection circuit may
operate to prevent internal circuit damage. Also, during Cooling and Dry modes, if the unit is used under conditions of
lower temperatures than those listed above, the heat-exchanger may freeze, leading to water leakage and other damage.
Do not use this unit for any purposes other than the Cooling, Dehumidifying, and air-circulation of rooms in ordinary
dwellings.
If the unit is used for long periods under high-humidity conditions, condensation may form on the surface of the indoor
XQLWDQGGULSRQWRWKHÀ oor or other objects underneath.
Operation Notices
Content
Precautions............................................................................................................1
Parts name ............................................................................................................6
Screen Operation Guide
User’s Manual of Remote Controller .................................................................. 8
Emergency operation ..........................................................................................15
Maintenance
Clean and maintenance.......................................................................................15
Malfunction
Malfunction analysis ............................................................................................18
Installation Notice
Installation dimension diagram ............................................................................22
Tools for installation .............................................................................................23
Selection of installation location ..........................................................................23
Requirements for electric connection ..................................................................24
Installation
Installation of indoor unit......................................................................................25
Installation of outdoor unit ...................................................................................30
Vacuum pumping .................................................................................................33
Leakage detection ...............................................................................................33
Check after installation ........................................................................................34
Test and operation
Test operation ......................................................................................................34
Attachment
Configuration of connection pipe .........................................................................35
Pipe expanding method .......................................................................................37
Precautions
WARNING
Operation and Maintenance
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Do not connect air conditioner to multi-purpose socket.
Otherwise, it may cause fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not wash the air conditioner with water to avoid
electric shock.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
1
Precautions
WARNING
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
Do not repair air conditioner by yourself. It may cause
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not extend fingers or objects into air inlet or air
outlet. It may cause personal injury or damage.
Do not block air outlet or air inlet. It may cause
malfunction.
Do not spill water on the remote controller, otherwise the
remote controller may be broken.
When below phenomenon occurs, please turn off air
conditioner and disconnect power immediately,and then
contact the dealer or qualified professionals for service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
If the air conditioner operates under abnormal conditions,
it may cause malfunction,electric shock or fire hazard.
When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
Do not step on top panel of outdoor unit, or put heavy
objects. It may cause damage or personal injury.
2
Precautions
WARNING
Attachment
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Must follow the electric safety regulations when installing
the unit.
According to the local safety regulations, use qualified
power supply circuit and circuit break.
Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation
of at least 3mm in all poles should be connected in fixed
wiring.
Including an circuit break with suitable capacity, please
note the following table.Air switch should be included
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
Don't use unqualified power cord.
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
Properly connect the live wire, neutral wire and
grounding wire of power socket.
Be sure to cut off the power supply before proceeding
any work related to electricity and safety.
3
Precautions
WARNING
Do not put through the power before finishing installation.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The temperature of refrigerant circuit will be high, please
keep the interconnection cable away from the copper
tube.
The appliance shall be installed in accordance with
national wiring regulations.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel
only.
The air conditioner is the first class electric appliance. It
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The appliance must be positioned so that the plug is
accessible.
All wires of indoor unit and outdoor unit should be
connected by a professional.
If the length of power connection wire is insufficient,please
contact the supplier for a new one. Avoid extending the
wire by yourself.
4
Precautions
WARNING
For the air conditioner with plug ,the plug should be
reachable after finishing installation.
For the air conditioner without plug, an circuit break
must be installed in the line.
If you need to relocate the air conditioner to another
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
Select a location which is out of reach for children and
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
The indoor unit should be installed close to the wall
5
Parts name
Indoor Unit
air inlet
panel
filter
aux.button
horizontal louver
air outlet
(Display content or position may be different from above
graphics, please refer to actual products)
Outdoor Unit
remote controller
air inlet
handle
air outlet
NOTICE:
Actual product may be different from above graphics, please refer to actual
products.
6
Parts Name
Display
display
temp.
indicator
receiver
window
Power LED color indicator:
Green-status-ON.
Red-status-OFF.
Mode LED color indicator:
White-Cool Mode
Red-Heat Mode (only for heating model)
Orange-Dry Mode
Display content or position may be different from above graphics, please refer to actual
products.
7
User’s Manual of Remote Controller
1 Remote Controller YAP1F
1.1 Button name and function introduction
1
16
15
2
3
14
13
12
4
5
6
7
11
8
10
9
8
User’s Manual of Remote Controller
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
POWERFUL
Set POWERFUL function
3
MODE
Set operation mode
4
Set up&down swing status
5
SENSOR
6
TEMP
Set SENSOR function
Switch temperature displaying type on the unit’s display
7
Set health function and air function
8
LIGHT
Set light function
9
AUTO CLEAN
Set AUTO CLEAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
16
Set fan speed
/
Set temperature and time
1.2 Preparation before operation
When using the remote controller for the first time or after replacing the batteries,
please set the time of the system according to current time in the following steps:
(1).
Pressing CLOCK button,
(2).
Pressing
(3).
Press CLOCK button again to confirm the time and return to display current
or
is blinking.
button, the clock time will increase or decrease rapidly.
time.
1.3 Introduction of operation function
(1).
Selecting operation mode
In unit on status, press MODE button to select operation mode in following
sequence:
9
User’s Manual of Remote Controller
(2).
Setting temperature
In unit on status, press
button to increase setting temperature and press
button to decrease setting temperature. The range of temperature is from 16℃ to 30℃.
Note: Under auto mode, manual adjustment of temperature is not needed.
(3).
Adjusting fan speed
In unit on status, press FAN button to adjust fan speed in following sequence:
Notes:
①.
When operation mode changes, fan speed is memoried;
②.
Under dry mode, fan speed is low and can not be adjusted.
(4).
Setting swing function
 Setting left&right swing
1). Under simple swing status, press
button to adjust left&right swing
status;
2). Under fixed-angle swing status, press
button to adjust left&right swing
angle circularly as below:
Note: operate continuously left&right swing in 2 seconds,
swing states will change
according to above-mentioned order, or switch closed state and
state.
 Setting up&down swing
1). Under simple swing status, press
button to adjust up&down swing
status;
2). Under fixed-angle swing status, press
button to adjust up&down swing
angle circularly as below:
Note: operate continuously left&right swing in 2 seconds, swing states will change
according to above-mentioned order, or switch closed state and
state;
10
User’s Manual of Remote Controller
(5).
Setting POWERFUL function
Under cool or heat mode, press POWERFUL button to set turbo function.
When
is displayed, POWERFUL function is on.
When
is not displayed, POWERFUL function is off.
When POWERFUL function is on, the unit operates in super high speed to achieve quick
cooling or heating. When POWERFUL function is off, the unit operates in setting fan speed.
(6).
Setting light function
The light on the receiver light board will display present operation status. If you
want to turn off the light, please press LIGHT button. Press this button again to turn on
the light.
(7).
Viewing ambient temperature
In unit on status, receiver light board or wired controller is defaulted to display
setting temperature. Press TEMP button to view indoor or outdoor ambient
temperature.
When
is displayed, it means the displayed temperature is setting temperature.
When
is displayed, it means the displayed temperature is indoor ambient
temperature.
When
is displayed, it means the displayed temperature is outdoor ambient
temperature.
Note: setting temperature is always displayed in Remote Controller.
(8).
Setting AUTO CLEAN function
In cool or dry mode, press AUTO CLEAN button to set AUTO CLEAN function.
When
is displayed, AUTO CLEAN function is on.
When
is not displayed, AUTO CLEAN function is off.
When AUTO CLEAN function is on, the water on the evaporator will be blown away
until turning off the unit to avoid mildew.
(9).
Setting health function
In unit on status, press
button to set health function.
When
is displayed, health function is on.
When
is not displayed, health function is off.
Health function is available when the unit is equipped with anion generator. When
health function is on, the anion generator will start operation, adsorbing the dusts and
11
SENSOR
SENSOR
SENSOR
SENSOR
SENSOR
SENSOR
User’s Manual of Remote Controller
④.
Press TOFF button again to cancel timer and OFF is not displayed.
2). Setting timer on
①.
Pressing TON button, “ON” is blinking and time displaying zone displays the
timer time of last setting.
②.
Press
or
button to adjust the timer time.
③.
Press TON button again to confirm setting. ON is displayed and time
displaying zone resumes to display current time.
④.
Press TON button again to cancel timer and ON is not displayed.
(1).
Setting child lock
1.4 Introduction of special functions
Press
and
button simultaneously to lock the buttons on remote controller
and
is displayed.
Press
and
button simultaneously again to unlock the buttons on remote
controller and is not displayed.
If the buttons are locked,
blinks 3 times when pressing the button and any
operation on the button is invalid.
(2).
Switching temperature scale
In unit off status, press MODE button and
temperature scale between ℃ and ℉.
(3).
button simultaneously to switch
Setting energy-saving function
In unit on status and under cool mode, press CLOCK and TEMP button
simultaneously to enter energy-saving mode.
 When
is displayed, energy-saving function is on.
 When
is not displayed, energy-saving function is off.
If you want to turn off the energy-saving function, press CLOCK and TEMP button
and
is not displayed.
Note: energy-saving function is only available in cooling mode and it will be exited
when switching mode or setting sleep function.
(4).
Absence function
In unit on status and under heat mode, press CLOCK and TEMP button
simultaneously to enter absence function. Temperature displaying zone displays 8 and
is displayed.
Press CLOCK and TEMP button simultaneously again to exit absence function.
Temperature displaying zone resumes previous display and is not displayed.
13
User’s Manual of Remote Controller
In winter, absence function can keep the indoor ambient temperature above 0℃ to
avoid freezing.
Note: Absence function is only available in heating mode and it will be exited when
switching mode or setting sleep function.
1.5 Replacing batteries in remote controller and notes
(1).
Lift the cover along the direction of arrow (as shown in Fig 1①).
(2).
Take out the original batteries (as shown in Fig 1②).
(3).
Place two 7# (AAA 1.5V) dry batteries, and make sure the position of “+” polar
and “-” polar is correct (as shown in Fig 2③).
(4).
Reinstall the cover (as shown in Fig 2④).
Fig.1
Fig.2
Notes:
①.
The remote controller should be placed 1m away from the TV set or stereo
②.
The operation of remote controller should be performed within its receiving
③.
If you need to control the main unit, please point the remote controller at the
sound sets.
range.
signal receiving window of the main unit to improve the receiving sensibility of
main unit.
④.
When the remote controller is sending signal, “
” icon will be blinking for 1
second. When the main unit receives valid remote control signal, it will give
out a sound.
⑤.
If the remote controller does not operate normally, please take the batteries
out and reinsert them after 30 seconds. If it still can't operate properly, replace
the batteries.
⑥.
When replacing the batteries, do not use old or different types of batteries,
otherwise, it may cause malfunction.
⑦.
When you won’t use the remote controller for a long time, please take out the
batteries.
14
Emergency operation
If remote controller is lost or damaged, please use auxiliary button to turn
on or turn off the air conditioner. The operation in details are as below:
air conditioner. When the air conditioner is turned on, it will operate under
auto mode.
panel
aux. button
Warning: Use insulated
object to press the auto
button.
Clean and maintenance
WARNING
■ Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.
NOTICE:
● Do not remove the panel when cleaning it.
15
Clean and maintenance
1
Open panel
3
Pull out the panel to a certain
● Use dust catcher or water to
the water (below 45℃ ) to clean
it, and then put it in a shady
and cool place to dry.
2
4
panel cover tightly.
NOTICE
operation environment, clean frequency can be increased.
16
Clean and Maintenance
NOTICE: Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
4. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.
5. Check whether drainage pipe is damaged.
NOTICE: Checking after use-season
1. Disconnect power supply.
3. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.
Notice for recovery
1. Many packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or
consultant service center for the correct disposal method.
17
Malfunction analysis
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still
Phenomenon
Check items
Solution
● Whether it's interfered severely ● Pull out the plug. Reinsert
(such as static electricity, stable the plug after about 3min, and
voltage)?
then turn on the unit again.
Indoor unit
can’t receive
remote
controller’s
signal or
remote
controller
has no
action.
● Whether remote controller is
within the signal receiving
range?
● Signal receiving range is 8m.
● Whether there are obstacles?
● Remove obstacles.
● Whether remote controller is
● Select proper angle and point
pointing at the receiving
the remote controller at the rewindow?
ceiving window on indoor unit.
● Is sensitivity of remote contro- ● Check the batteries. If the
power of batteries is too low,
ller low; fuzzy display and no
please replace them.
display?
● Check whether remote cont● No display when operating
roller appears to be damaged.
remote controller?
If yes, replace it.
● Fluorescent lamp in room?
● Take the remote controller
close to indoor unit.
and then try it again.
No air
emitted
from
indoor
unit
● Air inlet or air outlet of indoor
unit is blocked?
● Eliminate obstacles.
● Under heating mode, indoor
temperature is reached to set
temperature?
● After reaching to set temperature, indoor unit will stop blowing out air.
● In order to prevent blowing
out cold air, indoor unit will be
● Heating mode is turned on just
started after delaying for sevnow?
eral minutes, which is a normal phenomenon.
18
Malfunction analysis
Phenomenon
Air conditioner can’t
operate
Mist is emitted from
indoor unit’s
air outlet
Set temperature can’t
be adjusted
Cooling
(heating)
effect is
not good.
Check items
Solution
● Power failure?
● Wait until power recovery.
● Is plug loose?
● Reinsert the plug.
● Air switch trips off or fuse is
burnt out?
● Ask professional to replace
air switch or fuse.
● Wiring has malfunction?
● Ask professional to replace it.
● Unit has restarted immediately
● Wait for 3min, and then turn
after stopping operation?
on the unit again.
● Whether the function setting
for remote controller is
correct?
● Reset the function.
● Indoor temperature and humidity is high?
● Because indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.
● Unit is operating under auto
mode?
● Temperature can’t be adjusted under auto mode.
Please switch the operation
mode if you need to adjust
temperature.
● Your required temperature
exceeds the set temperature
range?
● Set temperature range:
16℃ ~30℃ .
● Voltage is too low?
● Wait until the voltage
resumes normal.
● Filter is dirty?
● Set temperature is in proper
range?
● Adjust temperature to proper
range.
● Door and window are open?
● Close door and window.
19
Malfunction analysis
Phenomenon
Odours are
emitted
Check items
Solution
● Whether there’s odour source, ● Eliminate the odour source.
such as furniture and cigarette,
etc.
Air conditioner ● Whether there’s interference,
such as thunder, wireless
operates abnormally suddenly devices, etc.
Outdoor
unit has
vapor
“Water
noise
Cracking
noise
● Heating mode is turned on?
● Air conditioner is turned on or
turned off just now?
● Air conditioner is turned on or
turned off just now?
20
● Disconnect power, put back
power, and then turn on the
unit again.
● During defrosting under heating mode, it may generate
vapor, which is a normal
phenomenon.
● The noise is the sound of
the unit, which is a normal
phenomenon.
● This is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.
Malfunction analysis
Error Code
● When air conditioner status is abnormal, temperature indicator on indoor unit will
ation of error code.
Error code
E5
E6
E8
U8
H6
Troubleshooting
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
C5
F1
F2
Note: If there're other error codes, please contact qualified professionals for
service.
WARNING
■ When below phenomenon occurs, please turn off air conditioner and disconfor service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Air switch trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
■ If the air conditioner operates under abnormal conditions, it may cause
21
At least 15cm
Space to the ceiling
Installation dimension diagram
Space to the wall
At least 15cm
At least 15cm
Space to the wall
n
tio
uc
tr
bs
o
Space to the obstruction
ac
Sp
the
At least 250cm
o
et
lea
the
to n
e
ac ctio
Sp stru
st
ob
lea
t
A cm
30
At least 50cm
At
cm
00
3
st
At least 30cm
Space to th
e wall
tru
bs
o
et
ac
Sp
o
the
At
At least 50cm
n
o
cti
Space to the
obstruction
00
t2
s
lea
cm
Drainage pipe
22
Tools for installation
1 Level meter
2 Screw driver
3 Impact drill
4 Drill head
5 Pipe expander
6 Torque wrench
7 Open-end wrench
8 Pipe cutter
9 Leakage detector
10 Vacuum pump
11 Pressure meter
12 Universal meter
13 Inner hexagon spanner
Note:
14 Measuring tape
● Please contact the local agent for installation.
● Don't use unqualified power cord.
Selection of installation location
Basic requirement
Installing the unit in the following places maycause malfunction. If it is unavoidable, please consult the local
dealer:
1.The place with strong heat sources,
vapors, flammable or explosive gas,
or volatile objects spread in the air.
2.The place with high-frequency
devices (such as welding machine,
medical equipment).
3.The place near coast area.
4.The place with oil or fumes in the air.
5.The place with sulfureted gas.
6.Other places with special circumstances.
7.The appliance shall not be installed
in the laundry.
Outdoor unit
Indoor unit
1. There should be no obstruction near air
inlet and air outlet.
2. Select a location where the condensation water can be dispersed easily and
won't affect other people.
3. Select a location which is convenient to
connect the outdoor unit and near the
power socket.
4. Select a location which is out of reach
for children.
5. The location should be able to withstand
the weight of indoor unit and won't increase noise and vibration.
6. The appliance must be installed 2.5m
above floor.
7. Don't install the indoor unit right above
the electric appliance.
8. Please try your best to keep way from
fluorescent lamp.
1. Select a location where the noise and outflow air emitted by the outdoor unit
will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit
won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation
dimension diagram.
5. Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.
23
Requirements for electric connection
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
air switch.
3. Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install proper
power supply cables before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to
electricity and safety.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its
8. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
Grounding requirement
grounding with specialized grounding device by a professional. Please make
sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used
for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in
For models with a power plug, make
sure the plug is within reach after installation;
6. Including an air switch with suitable capacity, please note the following table. Air
switch should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only
for protect the circuit)
Air-conditioner Air switch capacity
12K
16A
18、24K
25A
30K
32A
24
Installation of indoor unit
Step one: choosing installation location
rm it with the client.
Step two: install wall-mounting frame
1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the
plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and
.
Step three: open piping hole
1. Choose the position of piping hole according to the direction of outlet pipe. The
position of piping hole should be a little lower than the wall-mounted frame,
shown as below.
12K:
12K:
Wall
Space
to the
wall
above
150mm
Mark in the middle of it
Left
Φ55
Rear piping hole
Level meter
Wall
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Right
Φ55
Rear piping hole
Left
Φ55
Rear piping hole
18K:
Wall
Space
to the
wall
above
150mm
Mark in the middle of it
Level meter
Wall
Space
to the
wall
above
150mm
Right
Φ55
Rear piping hole
24、30K
Mark in the middle of it
Left
Φ55
Rear piping hole
Level meter
Wall
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Right
Φ55
Rear piping hole
Mark in the middle of it
Left
Φ70mm
Rear piping hole
Level meter
Wall
Space
to the
wall
above
150mm
Right
Φ70mm
Rear piping hole
2. Open a piping hole with the diameter of Φ55 or Φ70 on the selected outlet pipe
position. In order to drain smoothly, slant the piping hole on the wall slightly
downward to the outdoor side with the gradient of 5-10°.
25
Installation of indoor unit
Indoor
outdoor
Note:
● Pay attention to dust prevention and
take relevant safety measures when
opening the hole.
● The plastic expansion particles are
not provided and should be bought
locally.
Φ55/
Φ70
5-10
Step four: outlet pipe
2. When select leading out the pipe
from left or right, please cut off the
corresponding hole on the bottom
case.
1. The pipe can be led out in the
direction of right, rear right, left or
rear left.
left
right
left
rear right
rear left
right
cut off
the hole
1. Aim the pipe joint at the corresponding
bellmouth.
pipe joint
union nut
pipe
2. Pretightening the union nut with hand.
3. Adjust the torque force by referring to the following sheet. Place the open-end
wrench on the pipe joint and place the torque wrench on the union nut. Tighten
the union nut with torque wrench.
26
Installation of indoor unit
open-end
wrench
union nut
torque wrench
pipe
Hex nut diameter Tightening torque (N.m)
Φ6
15~20
Φ 9.52
30~40
Φ 12
45~55
Φ 16
60~65
Φ 19
70~75
indoor pipe
4. Wrap the indoor pipe and joint of connection pipe with insulating pipe, and
then wrap it with tape.
insulating pipe
Step six: install drain hose
1. Connect the drain hose to the outlet pipe of
indoor unit.
drain hose
outlet pipe
2. Bind the joint with tape.
outlet
pipe
tape
drain hose
drain hose
Note:
● Add insulating pipe in the indoor
drain hose in order to prevent
condensation.
● The plastic expansion particles are
not provided.
insulating pipe
Step seven: connect wire of indoor unit
panel
screw
1. Open the panel, remove the screw
on the wiring cover and then take
down the cover.
wiring cover
27
Installation of indoor unit
2. Make the power connection wire go
through the cable-cross hole at the back
of indoor unit and then pull it out from
the front side.
cable-cross
hole
power connection
wire
3. Remove the wire clip; connect the power
connection wire to the wiring terminal
according to the color; tighten the screw
with wire clip.
12K Cool only type:
N(1)
18、24K Cool only type:
N(1)
2
blue black
2
Outdoor unit connection
N(1) 2
yellowgreen
Outdoor unit connection
18、24K Heat pump type:
N(1) 2
3
blue black brown yellowgreen
yellowgreen
12K Heat pump type:
3 4 5
yellow- blue black brown violet orange
green
Outdoor unit connection
4 5
blue black violet orange
Outdoor unit connection
30K Heat pump type:
N(1)
2
3
blue black brown yellowgreen
Outdoor unit connection
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
for a new one. Avoid extending the wire by yourself.
installation.
● For the air conditioner without plug, an air switch must be installed in the line.
The air switch should be all-pole parting and the contact parting distance should
be more than 3mm.
28
Installation of indoor unit
Step eight: bind up pipe
1. Bind up the connection pipe, power
cord and drain hose with the band.
indoor unit
gas
pipe
connection pipe
drain hose
band
indoor and
outdoor power cord
indoor power cord
liquid pipe
band
3. Bind them evenly.
4. The liquid pipe and gas pipe should
be bound separately at the end.
drain hose
2. Reserve a certain length of drain
hose and power cord for installation
when binding them. When binding to
a certain degree, separate the indoor
power and then separate the drain
hose.
Note:
● The power cord and control wire
can't be crossed or winding.
● The drain hose should be bound
at the bottom.
Step nine: hang the indoor unit
1. Put the bound pipes in the wall pipe and then make them pass through the wall
hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
indoor
wall pipe
upper hook
outdoor
sealing gum
lower hook of
wall-mounting frame
Note:
● Do not bend the drain hose too excessively in order to prevent blocking.
29
Installation of outdoor unit
(select it according to the actual installation situation)
1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.
Note:
installing the outdoor unit.
● Make sure the support can withstand at least
four times of the unit weight.
● The outdoor unit should be installed at least
joint.
● For the unit with cooling capacity of 2300W
~5000W, 6 expansion screws are needed;
for the unit with cooling capacity of 6000W
~8000W, 8 expansion screws are needed;
for the unit with cooling capacity of 10000W
~16000W, 10 expansion screws are needed.
Step two: install drain joint
(Only for cooling and heating
unit)
1. Place the outdoor unit on the
support.
2. Fix the foot holes of outdoor unit
with bolts.
1. Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.
2. Connect the drain hose into the drain
vent.
drain vent
Drain hose
at least 3cm above the floor
foot holes
foot holes
chassis
outdoor drain joint
30
Installation of outdoor unit
Step four: connect indoor and outdoor pipes
1. Remove the screw on the right handle of outdoor unit and then remove
the handle.
3. Pretightening the union nut with
hand.
pipe joint
screw
handle
union nut
2. Remove the screw cap of valve and
aim the pipe joint at the bellmouth of
pipe.
4. Tighten the union nut with torque
wrench by referring to the sheet
below.
torque
Hex nut diameter Tightening
(N.m)
Φ6
15~20
Φ 9.52
30~40
Φ 12
45~55
Φ 16
60~65
Φ 19
70~75
liquid pipe
gas pipe
liquid
valve
gas valve
1. Remove the wire clip; connect the power connection wire and signal control
wire (only for cooling and heating unit) to the wiring terminal according to the
12K Cool only type:
18、24K Cool only type:
(for some model)
N(1)
blue
N(1)
2
black
brown
2
blue
yellowgreen
Indoor unit connection
black
N(1) 2 3 4
yellowgreen
5
yellow- blue black brown violet orange
green
yellowgreen
2
3
L
N
blue black brown brown blue
(black)
4
5
blue black violet orange
Indoor unit connection
30K Heat pump type:
N(1)
handle
N(1) 2
brown
Indoor unit connection
18、24K Heat pump type:
12K Heat pump type:
3
yellowgreen
N
L
POWER
12K Cool only type:
(for some model)
N(1)
blue
2
black
yellowgreen
yellowgreen
Indoor unit connection
31
Indoor unit connection
Indoor unit connection
Installation of outdoor unit
2. Fix the power connection wire and signal control wire with wire clip (only for
cooling and heating unit).
Note:
● Never cut the power connection wire to prolong or shorten the distance.
Step six: neaten the pipes
1. The pipes should be placed along the wall,
bent reasonably and hidden possibly. Min.
semidiameter of bending the pipe is 10cm.
2. If the outdoor unit is higher than the wall
hole, you must set a U-shaped curve in the
pipe before pipe goes into the room, in
order to prevent rain from getting into the
room.
wall
U-shaped curve
drain hose
Note:
● The through-wal height of drain hose
shouldn't be higher than the outlet
pipe hole of indoor unit.
● Slant the drain hose slightly downwards. The drain hose can't be
the drain hose
can't raise
upwards.
The drain hose can't be fluctuant
● The water outlet can't be placed
in water in order to drain smoothly.
The drain hose
can't be fluctuant
The water outlet
can't be placed
in water
32
The water
outlet can't be
fluctuant
Vacuum pumping
Use vacuum pump
1. Remove the valve caps on
liquid valve
the liquid valve and gas
piezometer
Lo
Hi
valve and the nut of refrigas valve
gerant charging vent.
valve cap
2. Connect the charging hose refrigerant charging
of piezometer to the refri- vent
gerant charging vent of gas nut of refrigerant
valve and then connect the charging vent
other charging hose to the
vacuum pump
vacuum pump.
3. Open the piezometer cominner hexagon
pletely and operate for
spanner
10-15min to check if the
pressure of piezometer remains in -0.1MPa.
close
4. Close the vacuum pump
open
and maintain this status for
1-2min to check if the pressure of piezometer remains
in -0.1MPa. If the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve and gas valve
completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging vent.
7. Reinstall the handle.
Leakage detection
1. With leakage detector:
Check if there is leakage with leakage detector.
2. With soap water:
If leakage detector is not available, please use soap water for leakage detection.
Apply soap water at the suspected position and keep the soap water for more
than 3min. If there are air bubbles coming out of this position, there's a leakage.
33
Check after installation
● Check according to the following requirement after finishing installation.
Items to be checked
Possible malfunction
Has the unit been installed firmly?
The unit may drop, shake or emit noise.
Have you done the refrigerant leakage
test?
It may cause insufficient cooling
(heating) capacity.
Is heat insulation of pipeline sufficient?
It may cause condensation and water
dripping.
Is water drained well?
It may cause condensation and water
dripping.
Is the voltage of power supply according to the voltage marked on the
nameplate?
It may cause malfunction or damaging
the parts.
Is electric wiring and pipeline installed
correctly?
It may cause malfunction or damaging
the parts.
Is the unit grounded securely?
It may cause electric leakage.
Does the power cord follow the specification?
It may cause malfunction or damaging
the parts.
Is there any obstruction in the air inlet
and outlet?
It may cause insufficient cooling
(heating) capacity.
The dust and sundries caused during
installation are removed?
It may cause malfunction or damaging
the parts.
The gas valve and liquid valve of
connection pipe are open completely?
It may cause insufficient cooling
(heating) capacity.
Test operation
1. Preparation of test operation
● The client approves the air conditioner.
● Specify the important notes for air conditioner to the client.
2. Method of test operation
● Put through the power, press ON/OFF button on the remote controller to start
operation.
● Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check
whether the operation is normal or not.
● If the ambient temperature is lower than 16℃ , the air conditioner can’t
start cooling.
34
Configuration of connection pipe
1. Standard length of connection pipe
● 5m, 7.5m, 8m.
2.Min. length of connection pipe is 3m.
3.Max. length of connection pipe and max. high difference.
Cooling
capacity
Max length
Max height
of connecdifference
tion pipe
Cooling
capacity
Max length
Max height
of connecdifference
tion pipe
5000Btu/h
(1465W)
15
5
24000Btu/h
(7032W)
25
10
7000Btu/h
(2051W)
15
5
28000Btu/h
(8204W)
30
10
9000Btu/h
(2637W)
15
5
36000Btu/h
(10548W)
30
20
12000Btu/h
(3516W)
20
10
42000Btu/h
(12306W)
30
20
18000Btu/h
(5274W)
25
10
48000Btu/h
(14064W)
30
20
4. The additional refrigerant oil and refrigerant charging required after prolonging
connection pipe
● After the length of connection pipe is prolonged for 10m at the basis of
standard length, you should add 5ml of refrigerant oil for each additional 5m
of connection pipe.
● The calculation method of additional refrigerant charging amount (on the basis
of liquid pipe):
Additional refrigerant charging amount = prolonged length of liquid pipe ×
additional refrigerant charging amount per meter
● Basing on the length of standard pipe, add refrigerant according to the
requirement as shown in the table. The additional refrigerant charging amount
per meter is different according to the diameter of liquid pipe. See the
following sheet.
35
Additional refrigerant charging amount for R22, R407C, R410A and R134a
Diameter of connection pipe
Outdoor unit throttle
Liquid pipe(mm)
Gas pipe(mm)
Φ6
Φ9.52 or Φ12
15
20
Φ6 or Φ9.52
Φ16 or Φ19
15
50
Φ12
Φ19 or Φ22.2
30
120
Φ16
Φ25.4 or Φ31.8
60
120
Φ19
_
250
250
Φ22.2
_
350
350
Cooling only(g/m) Cooling and heating(g/m)
36
Pipe expanding method
Note:
Improper pipe expanding is the main cause of refrigerant leakage. Please expand
the pipe according to the following steps:
A: Cut the pipe
E: Expand the port
● Expand the port with expander.
the distance of indoor unit and
outdoor unit.
● Cut the required pipe with pipe cutter.
hard
mold
expander
pipe
pipe
pipe cutter
leaning
uneven
Note:
● "A" is different according to the
diameter, please refer to the sheet
below:
burr
B: Remove the burrs
● Remove the burrs with shaper and
prevent the burrs from getting into
the pipe.
pipe
shaper
downwards
A(mm)
Outer diameter
(mm)
Max
Min
Φ6-6.35(1/4")
1.3
0.7
Φ9.52(3/8")
1.6
1.0
Φ12-12.7(1/2")
1.8
1.0
Φ15.8-16(5/8")
2.4
2.2
F: Inspection
● Check the quality of expanding port.
If there is any blemish, expand the
port again according to the steps
above.
C: Put on suitable insulating pipe
D: Put on the union nut
● Remove the union nut on the indoor
connection pipe and outdoor valve;
install the union nut on the pipe.
smooth surface
improper expanding
union pipe
leaning
pipe
the length is equal
37
damaged
surface
crack
uneven
thickness
