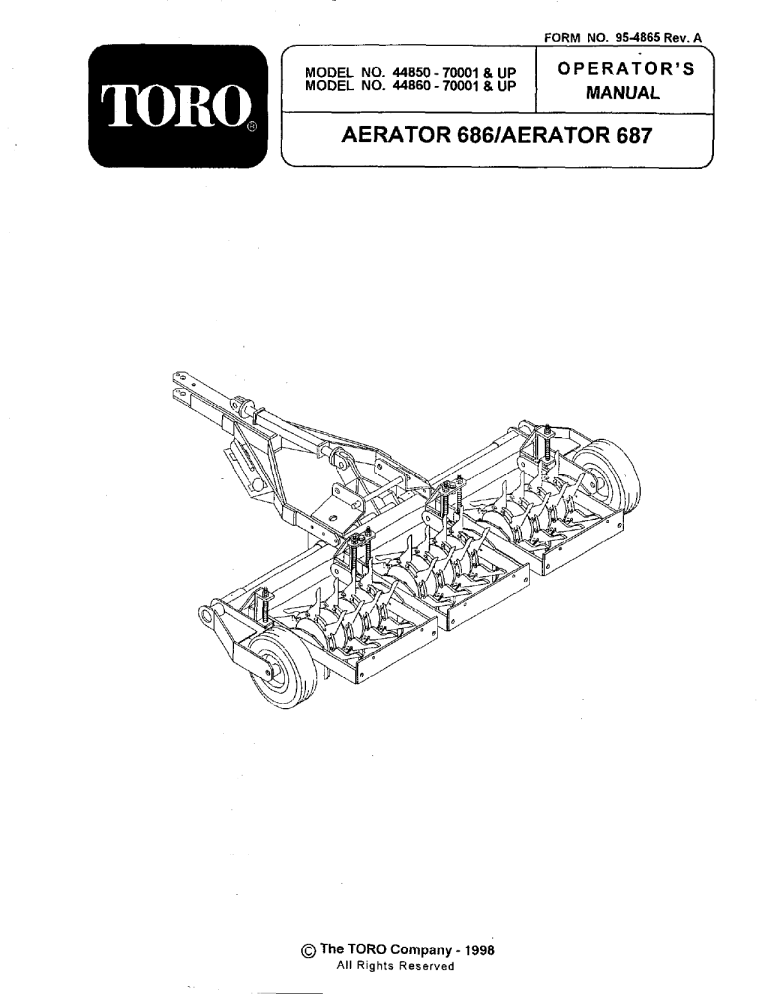

FORM NO. 95-4865 Rev. A
N
J
7
ac vb
O N
E < E
<< = | ©
Xx < Y
= =
© <
0”
La LL)
55 |<
ой ой o
33 |
A 1d
Eo
OS o
33 <
OO
22 LL]
О <
ao
00
==
\_ 3
: Y Xd 4 ee зу
Pf
AL
a
=
7 /
a“
. ПОРАХ Y
X
TE
i y
И
ай
© The TORO Company - 1998
All Rights Reserved
FOREWORD
Thank you for buying a high quality Toro turf care product. To get the best performance from this machine,
operate and maintain it according to the instructions in this manual.
Toro also wants to stress the importance of safety. You and anyone else using or maintaining this machine
are strongly urged to read this manual, especially all the safety instructions.
DANGER, WARNING and CAUTION, used with the triangular safety alert symbol, highlight safety
messages. Always read and understand these messages because they relate to personal injury and your
safety. |
If you ever need help or have questions about your new Toro turf care product, contact your local Authorized
Toro Distributor. The Toro Distributor has a complete supply of replacement parts, a full line of accessories
and a professional service staff to support you. Keep your Toro all Toro. Buy genuine Toro parts and
accessories.
TABLE OF CONTENTS
Page Page
SAFETY INSTRUCTIONS ................ 3-4 LUBRICATION... .......... ci. 8
SAFETY AND INSTRUCTION DECALS........ 4 MAINTENANCE . ....................... 9-10
SPECIFICATIONS............ ee 5 STORAGE KR 11
BEFOREOPERATING ..................... 6 IDENTIFICATION AND ORDERING .......... 11
OPERATING INSTRUCTIONS ....... nenas 7 WARRÄANTY. comme... Back Cover
SAFETY INSTRUCTIONS
The safety alert symbol means
CAUTION, WARNING or DANGER -
"personal safety instruction". Read
and understand the instruction
because it has to do with safety. Failure to
comply with the instruction may result in
persona! injury.
BEFORE OPERATING
1. Read and understand the contents of this
manual and the traction unit or tow tractor to be
used with this attachment before starting and
operating the machine. Become familiar with all
controls and know how to stop quickly. A free
replacement manual is available by sending
complete Model and Serial Number to: |
The TORO Company
8111 Lyndale Avenue South
Minneapolis, MN 55420
2. Do not allow children to operate the machine.
Do not allow adults to operate the machine without
proper instruction.
3. Never operate the machine while under the
influence of drugs or alcohol.
4. Keep all shields and safety devices in place. If
a shield, safety device or decal becomes damaged,
malfunctioning or iliegible, repair or replace it
before operation is commenced. Also tighten
loose nuts, bolts to ensure machine is in safe
operating condition. This includes all shields on
the PTO.
5. Before each use, be sure all bolts and nuts are
tight. Check the general condition of the tines.
6. Donotalter this equipmentin any manner which
may cause hazardous conditions.
WHILE OPERATING
7. Using the machine demands attention, and to
prevent loss of control:
A. Operate only in daylight or when there is
good artificial light.
B. Drive slowly.
C. Watch for holes or other hazards.
D. Look behind machine before backing up.
E. Do not drive close to a sand trap, ditch,
creek or other hazard.
F. Reduce speed when making sharp tums
and when tuming on a hillside.
G. Avoid sudden stops and starts.
H. This product is not designed for or intended
to be operated on roadways.
8. Operator must be skilled and trained in how to
drive on hillsides. Failure to use caution on slopes
or hills may cause loss of control possibly resulting
in personal injury or death.
9. If tractor or towing vehicle engine stalls or
machine loses headway and cannot make it to the
top of a slope, do not tum machine around. Always
back slowly straight down the slope.
SAFETY INSTRUCTIONS (Continued)
10. Do not carry passengers on the machine or MAINTENANCE
tractor and keep everyone away from the areas of
operation. 13. Remove the key from the tractors ignition
switch to prevent accidental starting of the engine
11. Before getting off the tractor or towing vehicle when servicing, adjusting or storing the machine.
seat:
14. If major repairs are ever needed or assistance
A. Place the tractor or towing vehicle in neutral] desired,contact an Authorized TORO Distributor.
position and put the engine in idle position.
| 15. Make sure machine is in safe operating
B. Set the parking brake and disengage condition by keeping nuts, bolts and screws tight.
the PTO.
a 16. Keep body and hands away from pin hole leaks.
C. Shut the engine off and remove key from or nozzles that eject hydraulic fluid under high
ignition switch. Wait for all movement to stop pressure. Use paper or cardboard, not hands, to
before getting off seat. search for leaks. Hydraulic fluid escaping under
pressure can have sufficient force to penetrate skin
12. ALWAYS follow all safety precautions in the and do serious damage. If fluid is injected into the
tractor's or towing vehicles operator manual skin it must be surgically removed within a few
pertaining to attachments. hours by a doctor familiar with this form of injury or
gangrene may result.
SAFETY AND INSTRUCTION DECALS
The following safety and instruction decals are installed on the unit. Replace any decals that becomes
damaged or illegible. Part numbers for decals are listed below and in your Parts Catalog. Order
replacements from your Authorized Toro Distributor.
A DANGER
ROTATING BLADES, DISCS OR TINES
CAN CAUSE SERIOUS INJURY |
» pA AND FEET OUT OF BLADES,
OR TINES WHILE ENGINE
INDERS QUT OF AREA OF
E BEFORE SERVICING NEAR BEARINGS, | WHEELS
и ama (Part No. 58-6520)
ON R.H. TRANSPORT LOCK PLATE (686)
ON R.H. LIFT ARM (687)
(Part No. 01-506-0340)
SPECIFICATIONS AERATOR 686
FRAME: Welded tubular steel: divided into 3
sections, each section moves horizontally and di-
agonally to follow contour, spring
loaded (Pat. Pend.)
AERATING WHEELS: (12) 70 Ib. castings
(4 per section) with permanent roll pin every
other hole. |
SHAFT: 1-1/4", machined to 1"
TINES: (96), 8 per wheel, secured with 1 bolt,
roll pin in wheel secures second hole in tine; 1/2
or 3/4" open or closed, 4" slicing blades are avail-
able. (One set standard)
BEARINGS: Self sealed, self aligned
TRANSPORT TIRES: 4.80 x 8-2 ply
HITCH: Drop pin.
LIFT MECHANISM: Hand hydraulic pump to (1)
10" stroke cylinder.
SPRINGS: (6) to assist down pressure on tires.
AERATING SWATH: 78"
PATTERN: 6" on center
OPERATING SPEED: 1- 10 MPH, depending
on conditions
OVERALL WIDTH: 90"
WEIGHT: Approx. 1350 Ibs. w/o weights
OPTIONS: 40 Ib. weights, 3 per set/2 sets max.,
Tongue Jack (Mar. 1998)
SPECIFICATIONS AERATOR 687
FRAME: Welded tubular steel; divided into 3
sections, each section moves horizontally and di-
agonally to follow contour, spring loaded (Pat.
Pend.)
AERATING WHEELS: (12) 70 Ib. castings
(4 per section) with permanent roll pin every
other hole.
SHAFT: 1-1/4", machined to 1"
TINES: (96), 8 per wheel, secured with 1 Бо},
roll pin in wheel secures second hole in tine; 1/2"
or 3/4" open or closed, 4" slicing blades are avail-
able. (One set standard)
BEARINGS: Self sealed, self aligned
HITCH: 3 Point - Category 1 Tractor Type.
SPRINGS: (6) to assist down pressure on tires.
AERATING SWATH: 78"
PATTERN: 6" on center
OPERATING SPEED: 1-10 MPH, depending
on conditions
OVERALL WIDTH: 82°
WEIGHT: Approx. 1120 Ibs. w/o weights
OPTIONS: 40 |b. weights, 3 per set/2 sets max.
BEFORE OPERATING
CHECK TIRE PRESSURE - AERATOR 686
1. Check tire pressure before each use. Maintain
tire pressure at 60 PSI.
BEFORE ATTACHING AERATOR
1. Before getting off the tractor or towing vehicie
seat:
A. Place the tractor or towing vehicle in neutral
position and put the engine in idle position.
B. Set the parking brake and disengage
the PTO.
C. Shut the engine off and remove key from
ignition switch. Wait for all movement to stop
before getting off seat.
2. Dismount from the tractor or tow vehicle.
ATTACH AERATOR 686 TO TOWING
VEHICLE
1. Attach the hitch of the aerator to the tongue of
the towing vehicle using the towing vehicle's
hardware.
2. Do Not Lift Tongue By Hand. Use the tongue
jack or powered lift to align the hitch to the tow
tractor.
Roll Pin
Hitch ~
ATTACH AERATOR 687 TO TRACTOR
1. Lower the three point hitch arms of the tractor.
2. Position the aerator so that the three point hitch
arms of the tractor line up with the lift arms of the
aerator.
3. Attach the arms of the tractor to the hitch pins
on the aerator lift arms.
4. Attach the tractors stabilizer bar to the 3/4" x 4"
bolt on the top of the lift arms.
INSTALLING TINES (Fig. 1)
IMPORTANT: AFTER attaching the aerator to
the tractor or towing vehicle the tines may be
installed.
1. Follow the instructions referring to attaching the
aerator to the tractor or towing vehicle.
2. Start at the outside casting and install the tines
as shown. Install all 8 tines on the casting making
sure the roll pin is in the front position (Fig. 1). Use
1/2" x 1-3/4" bolts for the second hole and secure
tightly.
3. Repeat on the second casting and continue until
all 96 tines are installed.
Figure 1
OPERATING INSTRUCTIONS
AERATING PROCEDURE FOR 686 TOW
HITCH AERATOR
1. Move the lock pin to the rear (aerating)
position. See Fig. 2.
2. Open the hydraulic hand pump bleed valve on
base of pump to release pressure and lower the
aerator to the ground.
3. Return to the operator's seat and follow the
vehicle instructions and procedures for towing an
implement.
4. At the end of desired aerating region, stop the
tractor and set the parking brake, turn off engine,
before getting out of operators seat.
5. Close the hydraulic hand pump bleed valve
and stroke pump handle to raise the aerator to
the transport position.
6. When transporting the Aerator 686, place the
lock pin in the front hole. This prevents the aerator
from dropping in case of accidental release of oil in
the lift cylinder. See Fig. 2.
AERATING PROCEDURE FOR 687 3 POINT
HITCH AERATOR
Become familiar with the controls for 3 Point or
Remote Hydraulics operation of the Tow Tractor or
vehicle before operating Aerator 687.
1. Start tractor engine and run at a low RPM.
2. With 3 Point or Remote Hydraulics Control of
tractor, slowly lower the aerator while the tractor or
towing vehicie is moving slowly forward.
3. As aerating begins increase speed of the tractor
or towing vehicle.
4. Raise the aerator at the end of the pass before
turning.
®
Transport Position (Front)
» > Aerating Position (Rear)
=
NS
LUBRICATION
BEARINGS (Fig. 3)
The aerator has six self sealing bearings that must
be lubricated with a No. 2 Lithium based grease.
IMPORTANT: Lubricate the bearings as often
as necessary to maintain a slight leakage on
the seals. Too much grease can cause
overheating.
GREASE FITTINGS AND WHEEL BEARINGS-
AERATOR 686 (Fig. 3)
Grease fittings weekly or every 40 operating hours.
Use a No. 2 Lithium based grease.
GREASE FITTINGS- AERATOR 687
(Not Shown)
1. Grease the grease fittings weekly or every 40
operating hours. Use a No. 2 Lithium based
grease.
Figure 3
MAINTENANCE
MAIN ARMS (Fig. 4)
The 6 main arms pivot freely horizontally and
vertically to allow the unit to follow the contour of
the ground. À bronze bushing is pressed inside the
pivot holes between the main arm and mainframe.
The bronze bushing is 1/8" longer than the
thickness of both plates combined. The 5/8 x 2"
bolt should be tightened against the bushings, not
the arms, to allow it to pivot freely. The bronze
bushings should be checked every 100 hours of
operation for signs of wear. Replace any worn
bushings.
SPRINGS (Fig. 4)
The purpose of the springs is to distribute the
weight evenly and reduce the shock load on the
pivot points. The springs are adjusted evenly
across to level the unit. Use the nuts on top of the
spring rod (Item A) to adjust the springs.
IMPORTANT: NEVER adjust the spring so the
coils are completely compressed. Aflow at
least 1/16" between coils.
5/8" x 2" Bolt
Bronze Bushing
Main Arm
Figure 4
MAINTENANCE (Continued)
TINE WEAR (Fig. 5)
To obtain maximum aerating performance always
check the tines for wear before every use.
Severely worn tines are easy to bend or break and
will leave the cores in the ground. See Fig. 5 for
examples of tine wear.
Always clean cores out of tines before storage.
Cores left in tines for extended periods can cause
pitting on the inside of the tine. The pits in the tine
keep the core from ejecting.
— der
O O O
O
+ A a A.
a——l
Needs To Be Replaced.
New Bay Tor out Tip Gone, Will Leave
lll Usable Cores In Ground
Figure 5
10
STORAGE
1. Thoroughly clean the aerator.
2. Inflate tires to 60 PSI.
3. Check all fasteners. Tighten as necessary.
4. Check the condition of the tines. Replace any
broken or worn tines. Tighten all fasteners
attaching the tines to the castings.
5. Grease or oil all grease fittings and bearings.
Wipe off excess lubricant.
IDENTIFICATION AND ORDERING
MODEL AND SERIAL NUMBER
The AERATOR 686 and AERATOR 687 has two
identification numbers: a model and serial number.
The two numbers are stamped on a plate which is
riveted to the main arm. In any correspondence
concerning the AERATORS, supply model and
serial numbers to be sure that the correct
information and replacement parts are obtained.
To order replacement parts from an authorized
TORO Distributor, supply the following information.
1. Model and serial numbers of the machine.
2. Part number, description and quantity of parts
desired.
Note: Do not order by reference number if a parts
catalog is being used; use the part number.
11
+
E.
Anl bar == 1 = 10
= a a"
Er ATEN
rr MT TE ae a
a a AN a
EA
ATL art
1 ema ; Co daa a
aa BA AR E aa pu LI AA
Deer ETA EAU
"ai.
ja aa
The Toro Commercial Products Two Year Limited Warranty
The Toro Company warrants your 1996 or newer Toro Hydroject® 3000, Hydroject®4000, Greens, or
Fairway Aerator ("Product") purchased after January 1, 1997, to be free from defects in materials or
workmanship for the period of time listed below*. Where a warrantable condition exists, Toro will repair
the product at no cost to you including diagnosis, labor, parts, and transportation. This warranty begins
on the date the product is delivered to the original retail purchaser.
Warranty Duration: Two years or 500 operational hours*, whichever occurs first.
**Contract usage and shared ownership limited to 120 days. *Product equipped with hour meter.
Owner Responsibilities:
As the Product owner, you are responsible for required
maintenance and adjustments stated in your Owner's Manual,
Failure to perform required maintenance and adjustments can
be grounds for disallowing a warranty claim.
Instructions For Obtaining Warranty Service:
You are responsible for notifying the Commercial Products
Distributor or Authorized Commercial Products Dealer from
whom you purchased the Product as soon as you believe a
warrantable condition exists. -
If you need help locating a Commercial Products Distributor
or Authorized Dealer, or if you have questions regarding your
warranty rights or responsibilities, you may contact us at:
Toro Commercial Products Service Department
8111 Lyndale Avenue South
Minneapolis, MN, 55420-1196
Telephone: (612) 888-8801
Facsimile; (612) 887-8258
E-Mail: Commercial. [email protected]
Maintenance Parts:
Parts scheduled for replacement as required maintenance
("Maintenance Parts”), are warranted for the period of time up
to the scheduled replacement time for that part.
items/Conditions Not Covered:
Not all product failures or malfunctions that occur during the
warranty period are defects in matenals or workmanship. Tha
items / conditions listed below are not covered by this warranty:
# Product failures which result from the use of non-Toro
replacement parts, or from installation and use of add-on,
modified, or unapproved accessories are not covered.
® Product failures which result from failure to perform required
maintenance and/or adjustments are not covered.
® Product failures which result from operating the Product in an
abusive, negligent or reckless manner are nat covered.
14
ar
KI
a
1
Га"
E .
. ET .
TA TF NM ATT ="
PORT TH jeu Вне 221 in ==
e Thiswarranty does not apply to parts subject to consumption
through use unless found to be defective. Examples of parts
which are consumed, or used up, dunng normal Product
operation include, but are not limited to, blades, reeis, bedknives,
tines, spark plugs, castor wheels, tires, filters, belts, etc.
e This warranty does not apply to failures caused by outside
influence, Items considered to be outside influence include, but
are not limitedto, weather, storage practices, contamination, use
of unapproved coolants, lubricants, additives, or chemicals, ete.
e This warranty does notapply to normal “wear and tear” items.
Normal “Wear and Tear” includes, but is not limited to, damage
to seats due to wear or abrasion, worn painted surfaces,
scratched decals or windows, etc.
Other Legal Disclaimers:
The above remedy of product defects through repair by an
authorized distributor or dealer is the purchaser's sole remedy
for any defect This warranty gives you specific iegal nghts, and
you may also have other rights which vary from state to state.
Exceptforthe Emissions warrantyreferenced below,
if applicable, there is no other express warranty. All
implied warranties of merchantability and fithess for
use are limited to the duration of the express warranty.
Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
The ToroCompanyis notliable for indirect, incidenta!
orconseguentiatdamages in connection with the use
of the Product, including any cost or expense of
providing substitute Product or service during
periods of matfunction or non- use.
Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion may not
apply to you.
Note to California residents: The Emissions Control
System on your Product may be covered by a separate warranty
meeting requirements established by the U.S. Environmental
Protection Agency (EPA), or the California Air Resources Board
{CARB}. The hour limitations set forth above do not apply to
the Emissions Control System Warranty. Refer to the California
Emission Control Warranty Statement printed in your Owner's
Manual or contained in the engine manufacturer's
documentation for details.
Г
у
ВЫ
=
me
+
yl
у
ui
E
Fh
+
Powis el E [руле
Tei A 7 "he
qi
rep
¡BE
A Llar Сэт
TEL
SR DN EA
HE
1
de
a E
т wml. = dian
Ea ATI
et
4
Чл
i
sa
ME
du
174
at
i a .
п aa
AT
Ay
-
T
:
ERTL
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
