Toro 36" Tiller User manual

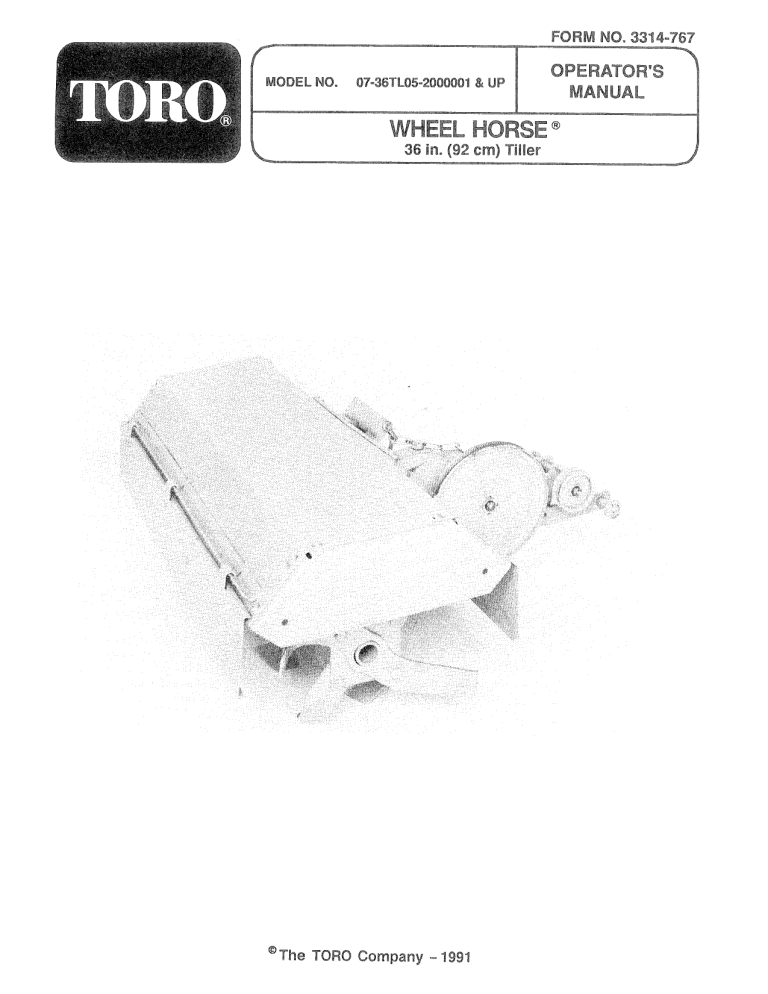

MODEL NO. 07-36TL05-2000001 8 UP . 3314-767 36 in. (92 ci The TORO Company - 1991 VEHICLE IDENTIFICAT N) NUMBER A Vehicle Identification Number identifies your Wheel Horse attachment. This number should always be referred to when consulting with your dealer or the factory concerning service, replacement paris, or questions you may have. If the VIN plate is removed during repair operations it should always be replaced. For your reference, record below the number from the YIN plate on your attachment. FIG, 2. Mount Drive Pulley MOUNT REAR SHIELD (Fig. 3) Attach the rear shield to the tine shield and secure DESCRIPTI: with the three % x 1 cotter pins (Fig. 3). The 36 in. (92 cm) tiller is designed for use with 1978 and later C and GT-Series tractors, excepi the C-195. To mount the tiller on a 1976 or 1977 B or C-Series tractor, obtain Service Assembly #105162. To mount the tiller on 1975 and prior tractors, obtain S/A #105105. For more complete information regarding mounting of this tiller on prior model tractors, consult the dealer interchangeabiliy lists. ATTACH HITCH (Fig. 1) Support the tiller so it sets in an upright position (Fig. 1). Remove the 3-16 x 5% and %-16 x 4% bolts; discard the 12-13 nuts (used as spacers for shipping). Install the hitch and hitch bracket as shown in Fig. 1. Tighten both bolts securely. FiG, 3. Install Rear Shield INSTALLATI REMOVE DRAWBAR HITCH (Fig. 4) Remove the drawbar hitch pin and hitch with spac- ers. Retain for future use. If o slot or clevis hitch is installed, remove it also. OL CHECK - SEE MAINTENANCE SECTION FOR PROCEDURE „SPRING BRACKET Note: The “Mounting Ears” may be a fight fit on the tiller case. - ooo e oe EA . Ve | MOUNT DRIVE PULLEY (Fig. 2) Install the square key in the input shaft groove. Slip the pulley onto the shaft (hub toward the gear- case) and align it with the flat idler pulley. Secure with the two square head set screws (Fig. 2). FIG. 4. Remove Drowbar Hitch 7 REMOVE SEAT AND FENDER Hemove seal and fender from tractor. If tractor has a 25 amp ATO/ATC fuse clipped to inside of console, remove the fuse. INSTALL TUBE AND CL. Remove two bolis and lock washers holding fuel tank bracket to top of transmission. Mount tube to top of fuel tank bracket and transmission with bracket and two existing fasteners (Fig. 5). NOTE: Tube with sxteme bend Is for hydro units and straight tube Is for mechanical transmissions (Fig. 5). FiG. 5 Cable Tube and Clamp INSTALL LIFT LEVER Assemble lift lever parts as shown in Fig. 6. Install one E- ring between welded arm and bushing on short end of rod. Do not install other E-ring yet. INSTALL E-RING LIFT LEVER BUSHING FIG. 6 Lift Lever Components Make sure bushings will fit into mounting holes in fender support and on shaft of lift lever. Remove excess paint if required. Next, slip a bushing onto long end of lever shalt and insert long end into hole in right side fender support (Fig. 7). Slip remaining bushing into hole in left side fender support and slide short end of lift lever shaft into bushing (Fig. 8). install remaining E-ring into groove on right end of shall Fig. 8). Install fender with existing fasteners. Check lift lever for excessive (more than .015) side to side end play. Use .015 and .020 thick shim washers to eliminate excessive end play. Install seat with existing fasteners. NOTE: Install 25 amp main fuse if you removed one previously. FIG. 8. Secure LIN Lever with E-ring TALL LIFT CABLE Insert ball-end of cable into tube from rear of tractor, until it protrudes out front of tube. Select correct length clevis as follows: 2" Long Clevis - For 8-speed models and Automatic models with right side transmission oil filter (Sundstrand). 3 1/8"Clevis - For Automatic models with transmission oli filter facing rear (Eaton). Lower tractors attachment lift. Slip end of lift cable into slot on clevis (Fig 8A). Then attach clevis to lowest hole intractor lift arm with clevis pin and 1/16 x 1/2 cotter pin (Fig. ВА). TRACTOR LIFT ARM INSERT THIS END OF CABLE THROUGH TUBE FROM REAR OF TRACTOR. REAR EU SELECT CLEVIS Sy ACCORDING TO "NOTE" FIG. 84 Attach Lift Cable = = ASSEMBLE REAR "QUICK HITCH" (Fig. 9 & 10) Locate the hitch mounting bracket, two latching plates, two metal links, twa %-16 x 1 hex bolis, two % washers, six %-16 Eslok nuts, two angle spacers, and four %-16 x 3% carriage bolis. Attach the two latching plates to the hitch mount- ing bracket using the %-16 x 1 carriage bolis, % washers and %-16 Eslok nuts (Fig. 9). Tighten bolis so the latching plates will move with a small amount of force. FIG. 9. Attach Latching Plates 10 Mounting Bracket install Metal Links FIG. 10. install the metal links to the hitch mounting brack- et using two %-16 x 3% carriage bolis and two 3-16 Eslok nuts. Install the “right angle” on the left side of the hitch so the end with two holes will face rear- ward. Install the bolts in the holes farthest from the latching plates (Fig. 10). Finger tighten nuts only. ATTACH REAR QUICIK-HITCH TO AXLE (Fig. 11 & 12) From the rear of the tractor, install the rear hitch assembly to the tractor’s rear axle housings. This is done by placing the hiich assembly under the tractor’s transmission so the latch plate ends face rearward. Turn the metal links toward the front of the tractor (Fig. 11). FIG, 11. Altach Rear Hitch Raise the rear hitch so the hitch touches the bottom of the axle housing. Turn the metal links rearward so they hold the hitch in place. Install the two remaining %-16 x 3% carriage bolts in the rear mount holes and secure with two 3-16 Eslok nuts. SANGLE SPACER FIG. 12. Secure Rear Hitch (8-Speed 2 Sundstrand Auto.) 1/4 FIG, 13. Secure Rear Hitch (Eaton Auto) Note: On some model tractors, it may be neces- sary to use the angle spacers fo take out undue slack between the hitch and the rear axle. If necessary, install the angle spocers between the metal links and the tractor axle housings. Center the rear hitch between the rear wheels. Tighten the 3%-16 nuts evenly to insure maximum strength. _— 8 INSTALL TRUNNION (Fig, 14) Close both hitch latches by pushing down on the handle. Secure the latches with clevis pins and hair- pin cotiers, then tighten the laich bolts, Install the trunnion onto the threaded stud of the litt cable (Fig. 9), leaving it near the end. ATTACH LIFT CHAIN (Fig, 17) Connect the lift chain as shown in Fig, 17, using the clevis, clevis pin, and hairpin cotter at the tiller end. The chain has a special long link, used at the litt lever attaching point. Secure the trunnion to the ПН arm with a % SAE washer and hairpin cotter, Alternate choin and trunnion adjustments are covered in the “Operation and Adjustment” sec: tion in this manual, FIG, 14, Install MOUNT TILLER (Fig. 15 & 16) SUGGESTED SETTING = BOTTOM NOTCH Open the left hitch latch and temporarily leave the right latch in its closed position. Maneuver the tiller so the mounting rod at the front of the hich assembly lies just below the rear quick-hitch. AT THIS POINT ALIGNMENT (SIDE TO SIDE) 15 CRITICAL (Fig. 15). FIG. 17. Attach Lift Chain & Trunnion A INSTALL SPRING ASSIST .. MANUAL LFT (Fig. 18) Support the filler on blocks in The raised posi- tion — DO NOT work around Hiller when the tiller is unsupported. EIG, 15, Position Tiller Under Quick Hitch Raise the mounting rod of the hitch assembly into Lift the tiller to i's maximum height using the the quick-hitch. As the mounting frame is raised, tractors attachment litt. Slip one end of the heavy open the right hitch latch so the tiller mounting frame spring info the left metal link at the top of the quick. can enter the quick-hitch. hitch. Slip the other end of the spring into the large o |. отек eye bolt. Install the eye bolt through the spring bracket, attached to the bottom of the tiller, and secure The eye bolt with ea %-16 E.S. nut. The spring should be adjusted so there is a slight amount of tension while the tiller is fully raised, TH TILLER FIG. 16. Raise Tiller inte Quick Hitch FIG, 18. Install Assist Spring MOUNT MID MOUNT IDLERS (Fig. 19.21) Open the mid Tach-a-maiic hitch. Slip the mid mount idlers into the hich and close the latch (Fig. 19). ERENT E RO E FIG. 19. Install Mid Mount ldiers Locate the idler arm in the correct mounting hole, as indicated in Fig, 20. C & CT SERIES 7 TWIN CYLINDE C, ET, 300 4 400 SERIES | R ENGINES Ш SINGLE CYLINDER ENGINES & 400 SERIES 3 TWIN CYLINDER ENGINES FIG, 20. idler Arm Leca?ton Slide one end of the idler spring onto the %-16 x 114 bolt as tar as it will go. Install a %-16 Eslok nui on the bolt until it contacts the coils of the spring. Install the bolt with spring as shown in Fig. 21, and secure with another %-16 Eslok nut. Connect the spring to the idler arm, FIG. 21, Install Idier Spring INSTALL BELT ON PTO PULLEY (Fig. 22) Remove the hairpin cotter thot retains the adjust ment trunnion to the PTO engagement plate. Remove the clevis pin that securas the yoke assembly to the clutch shafi. Remove the large hairpin cotter at the bottom of yoke assembly, permitting it to drop out of the iri- angular top plate. On earlier model tractors, it will also be necessary to remove the boli, spacer and nut holding the triangular plate to the engine bracket, as well as a small spring. Slip the belt between the yoke assembly and PTO pulley and onto the pulley (Fig. 22). Mote: Correctly installed, The yoke will be pasi- Honed between the twa sides of the bell (see Fig, 23). Reassemble the PTO. Install Belt en PTO FIG. 22, INSTALL DRIVE BELT AND BELT GUARD (Fig. 23-25) Guide the belt past the mid mount idlers as shown in Fig. 23. Note that the back side of the belt rides on the smaller pulley. Route the belt onto the two pulleys on the tiller as shown in Fig. 24. Note: It is not necessary fo remove rear tire te install belt, Check the belt to be sure i has no twists, and thot all pulleys and idlers are aligned with each other. IN INSHIE REAR WHEEL REMOVED FOR CLARITY FIG. 24. Beli Routing-Rear Attach the idler guard to its support bracket with two 14-20 x % self-tapping bolts (Fig. 25). FIG. 25. Install Idler Guard REMOVAL The tiller can be removed from the tractor by the following procedure: 1. Remove the drive bel}. 2. Remove the mid-mount idlers. 3. Remove the tiller from the tractor by disconnect- ing the lift chain, the spring assist and opening the rear quick-hitch. For more detailed removal instructions consult the “Installation Instructions” in the areas mentioned above, AND ADJUSTMENT For maximum traction and steering control, both front and rear wheel weights, as well as cleat tires or tire chains are recommended when using the tiller. PORTANT Each time the tiller is installed, check for prop- er operation of the PTO clutch and brake, Adjust- ment of the PTO is covered in the tractor Owner's Manual. In extreme applications, such as tilling sod er hard packed ground, the PTO should be tightened by turning the adjustment trunnion 1 to 2 full turns farther onto the PTO rod. Do not operate the tiller until you are com- pletely fomilior with the tiller and the tractor controls and insure that other operators do the same. Observe all safety precautions. Check all connections, fasteners, and for ob- structions in the tines before each operation. Clear the area of all foreign materials before filling. The method of tilling on area depends upon the type of soil, vegetation, compaction, moisture con- tent, quantity of rocks or “trash”, and whether it has — 6 — been tilled before. Always start with the slowest ground speed and carefully observe how the tiller is working. If using an 8-Speed tractor, operate it in 1st gear, Low Range, to start. Use 2nd or 3rd gear, Low Range, as long at the tiller does not ride up on top of the soil and begin to push the tractor. If using an Automatic tractor, use the motion control lever to regulate ground speed to 0.5 mph (.8 kmh) initially, increasing speed if conditions permit. The engine of the tractor must always be run at full throttle. Engage and disengage PTO with the tiller in the RAISED position. NEVER ATTEMPT TO ENGAGE THE TILLER WHILE THE TINES ARE MAKING CONTACT WITH GROUND. To begin, position the tractor with the tiller in the raised position, above the starting point. Adjust the throttle control for full engine speed and engage the PTO. With the foot brake solidly applied, slowly lower the tiller and allow it to till to depth. Engage 1st gear or slowly move the motion control lever forward to place the tractor into motion. Increase ground speed as conditions permit. Maximum recommended speed is 1.5 mph (2.4 kmh). Because of internal valving, automatic transmission tractors will have a tendency to speed up if the tiller encounters a variable load. Surging will be most noticeable in previously untilled areas, or if attempt- ing to till too deep at one time. This will require ad- justing the motion control lever to maintain the desir- ed speed, and is a normal condition. Care should be exercised when tilling sod, gumbo, virgin ground, or very dry and packed soil, as the tiller will have a tendency to push the tractor. This condition can be corrected by disengaging the PTO and raising the tiller so it penetrates only the very top of the soil. The tiller can be lowered to the desired depth on succeeding passes. A CAUTION A If the tiller starts to push the tractor, disen- gage the PTO clutch immediately. WHILE THE TILLER IS IN THE GROUND. DAMAGE TO THE EQUIPMENT MAY RESULT. At the end of each pass stop the tractor. Raise the tiller out of the ground and disengage the PTO. Then, it is usually easiest to turn the tractor around and make the next pass in the opposite direction. As with most tillers, a very small center area will not be tilled as the tines must clear the gear box. This can be corrected by making a second pass overlapping the first pass. Avoid over-tilling the soil. Soil tilled too fine will not readily absorb moisture. Over-tilling will cause puddling and water run-off. The soil will also com- pact easily. Tilling width can be varied in 3 in. (8 em) incre- ments between 30 and 36 in. (76 and 91 cm) by removing the outside tine assemblies. A CAUTION A Do not use tiller without side covers. Keep all persons a safe distance away when operating the tiller. Always disengage the PTO, lower the attachment and remove the ignition key before making any adjustment or repair. The shape, size, obstructions, etc. of the area to be tilled will determine the tilling pattern. Normally, tilling is done in long straight passes. Gradual curves can be followed while tilling. DO NOT MAKE TURNS MAINTENANCE AND STORAGE The oil level should be checked before using the tiller and periodically thereafter. Oil changes are not required. Check the oil level by removing the pipe plug (Fig. 1 & 16) in the bottom of the right gear case, with the tiller in operating position. If gear lube runs from the case when the plug is removed, the lube in the case is sufficient. Oil may be added as necessary. GEAR BOX LUBRICANT: SAE 90-140 API Service GL-4 or GL-5 oil; refill capacity 1 qt. (.94 liter). The tiller should be washed with a garden hose after each use. A mild automotive type detergent may be used to remove stubborn dirt. Touch up painted surfaces with a fresh coat of “Wheel Horse Red”, available from your authorized dealer in aerosol cans. The tines should be painted, or a thin coating of grease should be applied after each use to prevent rust. Store the tiller in a clean, dry place or protect it with a waterproof cover when stored outdoors. TILLING DEPTH/GROUND CLEARANCE/LIFT EFFORT The following table shows the relative effects of chain length and lift cable trunnion position on tilling depth, transport ground clearance, and lift effort, for guidance in making lift system adjustments. Tilling depth can also be limited using the tractor’s hydraulic lift or Dial-a-Hite control, if so equipped. NOTE The lift bellcrank used on 1977 and prior tractors (Supplied with Service Assemblies mentioned under “Description”) does not have slots to permit changing the chain end link location as described below. Short- en the chain at the tiller end and change the lift cable trunnion location to alter tilling depth and transport ground clearance. | Bellcrank Slot (Chain End Link Location) Tilling Depth* Top Shallow Middle Deeper Bottom Deepest *Threading trunnion farther onto lift cable decreases tilling depth, increases ground clearance. Transport Ground Lift Effort Clearance* (Manual Lift) Low Very Low Higher Low Highest Moderate MAXIMUM TILLING DEPTH ® Chain in bottom bellcrank slot; use full length. ® Trunnion threaded completely onto lift cable. ® Transport ground clearance: approximately 2 in./5 em. MAXIMUM TRANSPORT GROUND CLEARANCE ¢ Chain in bottom bellcrank slot, shortened one link at clevis end. ® Trunnion threaded completely onto lift cable. ® Tilling depth: approximately 4 in./10 cm. RECOMMENDED “ALL-AROUND” SETTING Chain in bottom bellcrank slot, shortened one link at clevis end. Trunnion at end of lift cable. Tiling depth and transport ground clearance: approximately 5 in./13 cm. For reduced lift effort (manual lift), put chain in middle bellcrank slot. Depth and clearance dimensions are reduced by approximately 1 in./2.5 cm. Consumer Products THE TORO TOTAL COVERAGE GUARANTEE A Full Two-Year Warranty (Limited Warranty for Commercial Use) What Is Covered By This Express Warranty? The Toro Company promises to repair any TORO Prod- uct used for residential purposes if defective in materi- als or workmanship for a period of two years from the date of purchase. The cost of parts and labor are in- cluded, but the customer pays the transportation costs. Transportation within a 15 mile radius of the servicing dealer is covered under this warranty for two-stage snowthrowers, walk behind debris equipment and all TORO Wheel Horse riding products. Walk power mow- ers, single stage snowthrowers, and other products not specifically covered, are excluded from the transporta- tion coverage provided by this warranty. What Products Are Covered By This Warranty? This warranty applies to all gasoline powered Consum- er Products (including TORO Wheel Horse riding prod- ucts). Wide area walk behind mowers, ProLine 118, and 21” Commercial mowers without blade stop con- trols are covered by separate warranty statements. How About Commercial Use? TORO Consumer Products used for commercial, insti- tutional or rental use are covered by a limited warranty for the following time periods from the date of pur- chase: Products Warranty Period e 300 through 700 Series Tractors (except 612-2) and 1600 HMR Chassis ..... 1 year limited warranty Engine ...... 2 year limited warranty e 21” Commercial Duty Walk Mower with blade stop controls .. 1 year limited warranty e 200 Series Tractors, Rear Engine Riders, 612-Z, 1200 HMR 3.0 and 3.5 HP Edgers Straight Shaft Trimmers, and Backpack Blowers . .. 90 day limited warranty o AllOthers .............. 45 day limited warranty How Do You Get Warranty Service? Should you feel your TORO product contains a defect in material or workmanship, contact the dealer who sold you the product or any Authorized TORO Service Dealer or TORO Master Service Dealer. The Yellow Pages of your telephone directory is a good reference source. The dealer will either arrange service at his/her dealership or recommend another Authorized Service Dealer who may be more convenient. You may need proof of purchase (copy of registration card, sales re- ceipt, etc.) for warranty validation. PRINTER PROJECT NO. 5486 If for any reason you are dissatisfied with the Service Dealers analysis of the defect in materials or workman- ship or if you need a referral to a TORO Service Dealer, please feel free to contact us at the following address: Toro Customer Service Department 8111 Lyndale Avenue South Minneapolis, MN 55420 612-888-8801 What Must You Do To Keep The Warranty In Effect? You must maintain your TORO Product by following the maintenance procedures described in the operator's manual. Such routine maintenance, whether performed by a dealer or by you, is at your expense. . What Does This Warranty Not Cover? and How Does Your State Law Relate To This Warranty? There is no other express warranty except the TORO Starting Guarantee on GTS Engines. This express war- ranty does not cover: e Cost of regular maintenance service or parts, such as filters, fuel, lubricants, tune-up parts, blade sharpening, brake and clutch adjustments. e Any product or part which has been altered or mis- used or required replacement or repair due to normal wear, accidents, or lack of proper maintenance. e Repairs necessary due to improper fuel, contami- nants in the fuel system, or failure to properly prepare the fuel system prior to any period of non-use over three months. e Pickup and delivery charges for distances beyond a 15 mile radius from an Authorized TORO Service Dealer (covered products only). All repairs covered by this warranty must be performed by an Authorized TORO Service Dealer using Toro ap- proved replacement parts. Repair by an Authorized TORO Service Dealer is your sole remedy under this warranty. The Toro Company is not liable for indirect, inciden- tal or consequential damages in connection with the use of the TORO Products covered by this warranty, including any cost or expense of providing substitute equipment or service during reasonable periods of malfunction or non-use pending completion of re- pairs under this warranty. Some states do not allow exclusions of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. PRINTED IN U.S.A.
