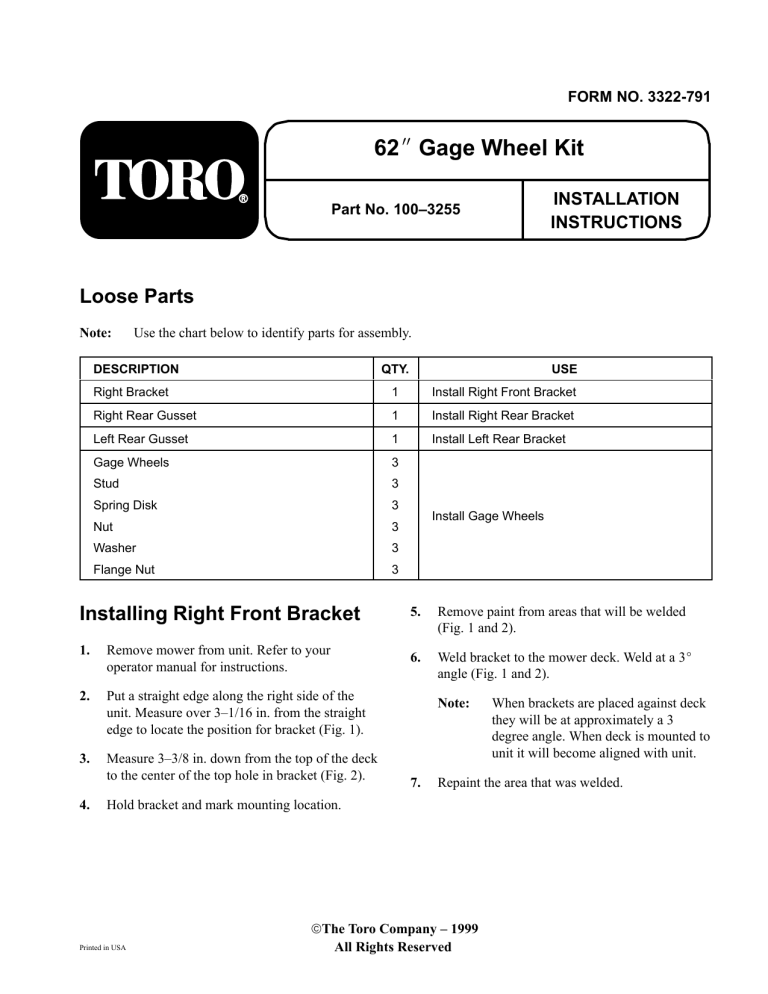

FORM NO. 3322-791
62 Gage Wheel Kit
INSTALLATION
INSTRUCTIONS
Part No. 100–3255
Loose Parts
Note:
Use the chart below to identify parts for assembly.
DESCRIPTION
QTY.
Right Bracket
1
Install Right Front Bracket
Right Rear Gusset
1
Install Right Rear Bracket
Left Rear Gusset
1
Install Left Rear Bracket
Gage Wheels
3
Stud
3
Spring Disk
3
Nut
3
Washer
3
Flange Nut
3
Installing Right Front Bracket
1.
Remove mower from unit. Refer to your
operator manual for instructions.
2.
Put a straight edge along the right side of the
unit. Measure over 3–1/16 in. from the straight
edge to locate the position for bracket (Fig. 1).
3.
Measure 3–3/8 in. down from the top of the deck
to the center of the top hole in bracket (Fig. 2).
4.
USE
Install Gage Wheels
5.
Remove paint from areas that will be welded
(Fig. 1 and 2).
6.
Weld bracket to the mower deck. Weld at a 3
angle (Fig. 1 and 2).
Note:
7.
Repaint the area that was welded.
Hold bracket and mark mounting location.
Printed in USA
When brackets are placed against deck
they will be at approximately a 3
degree angle. When deck is mounted to
unit it will become aligned with unit.
The Toro Company – 1999
All Rights Reserved
Installation Instructions
2
Installing Right Rear Gusset
4
3
1.
Using the straight edge along the right side of
the unit, measure over 2–13/32 in. from the
straight edge to locate the position for bracket
(Fig. 3).
2.
Measure 1–5/16 in. down from the top of the
deck to the center of the top hole in gusset
(Fig. 4).
3.
Hold wheel bracket and mark mounting location
(Fig. 4).
4.
Remove paint from areas that will be welded
(Fig. 3 and 4).
5.
Weld bracket to the mower deck. Weld at a 3
angle (Fig. 3 and 4).
6.
Repaint the area that was welded.
5
1
Figure 1
1. Rightside of Deck
2. Right Front Bracket
3. 3–1/16 in. (Straight edge
to deck)
4. 3 Angle
5. Straight Edge
5
1
3
3
1
3
2
Figure 2
1. Rightside of Deck
2. Right Front Bracket
3. 3–3/8 in. (Top of deck to
center of top hole in
bracket)
2
2
4
4. Weld Here X
Figure 3
1. Rightside of Deck
2. Right Rear Gusset
3. 2–13/32 in. (Straight edge
to deck)
4. 3 Angle
5. Straight Edge
Installation Instructions
4
4
1
3
2
3
1
2
M-4480
Figure 4
1. Rightside of Deck
2. Right Rear Bracket
3. 1–5/16 in. (Top of deck to
center of top hole in
gusset)
4. Weld Here X
M-4475
Figure 5
4. Weld Here X
1. Left Side of Deck
2. Left Rear Gusset
3. 1–5/16 in. (Top of deck to
center of top hole in
gusset)
Installing Left Rear Gusset
1.
Put a straight edge along the left side of the unit
for a reference. Measure over 3 in. from the
straight edge to locate the position for bracket
(Fig. 6).
5
1
2.
Measure 1–5/16 in. down from the top of the
deck to the center of top hole in gusset (Fig. 5).
3.
Hold wheel bracket and mark mounting location.
4.
Remove paint from areas that will be welded
(Fig. 5 and 6).
5.
6.
3
2
Weld bracket to the mower deck. Weld at a 3
angle (Fig. 5 and 6).
4
M-4477
Figure 6
Repaint the area that was welded.
1. Leftside of Deck
2. Left Rear Bracket
3. 3 in. (Straight Edge to
Deck)
4. 3 Angle
5. Straight Edge
3
Installation Instructions
Installing Gage Wheels
1.
Install stud into gage wheel. Install washer and
nut and tighten (Fig. 7).
2.
Select hole so gage wheel is positioned to the
nearest corresponding height-of-cut desired
(Fig. 7).
3.
4.
1
Install flange nut and spring disk while holding
stud with wrench (Fig. 7).
6
7
4
3
2
Repeat installation on other gage wheels.
Figure 7
Adjusting Gage Wheels
Whenever you change the height-of-cut it is
recommended to adjust the height of the anti-scalp
rollers.
1.
Disengage the power take off (PTO) and turn the
ignition key to “OFF” to stop the engine. Move
controllers to neutral locked position and apply
parking brake. Remove the key.
2.
Remove flange nut and spring disk while
holding stud with wrench (Fig. 7).
Note:
Do not remove the wheel nut and
washer (Fig. 7).
3.
Select hole so gage wheel is positioned to the
nearest corresponding height-of-cut desired
(Fig. NO TAG).
4.
Reinstall the flange nut and spring disk (Fig. 7).
5.
Repeat adjustment on other gage wheels.
4
1.
2.
3.
4.
Gage Wheel
Stud
Spring Disk
Flange Nut
5. Wheel nut and washer.
Do Not Remove.
6. Washer
7. Nut
