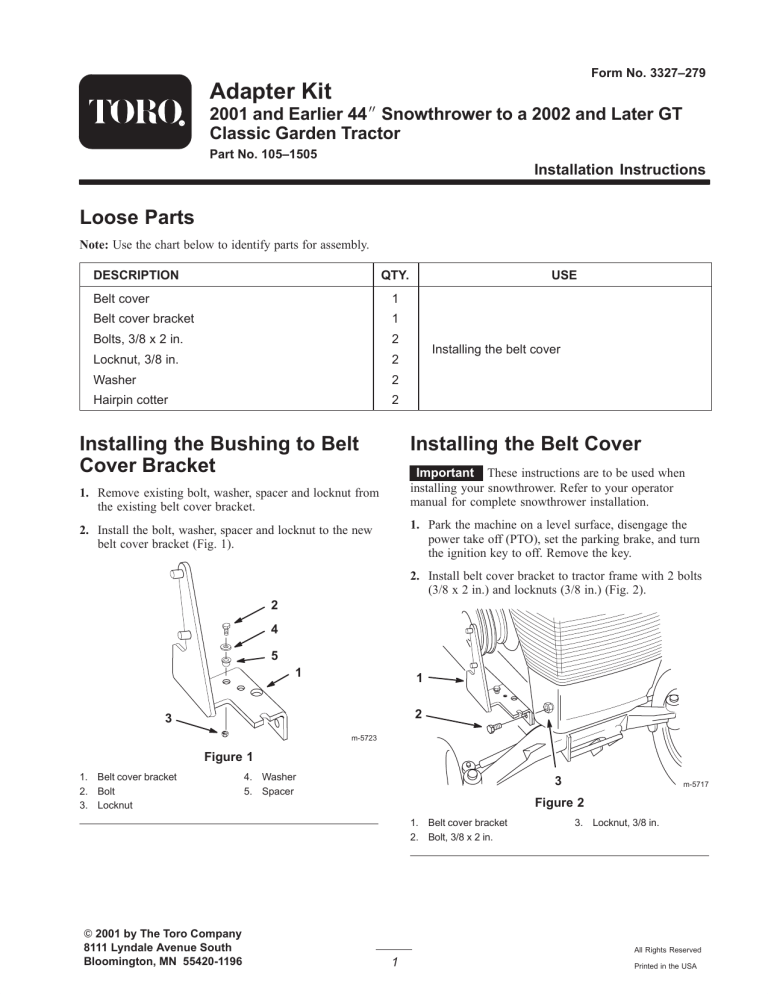

Toro Adapter Kit, 2001 and Earlier 44" Snowthrowers to 2002 and Later GT Classic Garden Tractors Installation guide

Toro Adapter Kit, 2001 and Earlier 44
Form No. 3327–279
Adapter Kit
2001 and Earlier 44 Snowthrower to a 2002 and Later GT
Classic Garden Tractor
Part No. 105–1505
Installation Instructions
Loose Parts
Note: Use the chart below to identify parts for assembly.
DESCRIPTION
QTY.
Belt cover
1
Belt cover bracket
1
Bolts, 3/8 x 2 in.
2
Locknut, 3/8 in.
2
Washer
2
Hairpin cotter
2
Installing the Bushing to Belt
Cover Bracket
USE
Installing the belt cover
Installing the Belt Cover
Important These instructions are to be used when
installing your snowthrower. Refer to your operator
manual for complete snowthrower installation.
1. Remove existing bolt, washer, spacer and locknut from
the existing belt cover bracket.
1. Park the machine on a level surface, disengage the
power take off (PTO), set the parking brake, and turn
the ignition key to off. Remove the key.
2. Install the bolt, washer, spacer and locknut to the new
belt cover bracket (Fig. 1).
2. Install belt cover bracket to tractor frame with 2 bolts
(3/8 x 2 in.) and locknuts (3/8 in.) (Fig. 2).
2
4
5
1
1
2
3
m-5723
Figure 1
1. Belt cover bracket
2. Bolt
3. Locknut
4. Washer
5. Spacer
3
Figure 2
1. Belt cover bracket
2. Bolt, 3/8 x 2 in.
2001 by The Toro Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
m-5717
3. Locknut, 3/8 in.
All Rights Reserved
1
Printed in the USA
3. Install belt cover to belt cover bracket and secure with
washers and hairpin cotters (Fig. 3).
Note: Install the belt cover after the belt has been
installed.
1
2
3
4
m–5720
Figure 3
1. Belt cover
2. Belt cover bracket
3. Washer
4. Hairpin cotter
2
