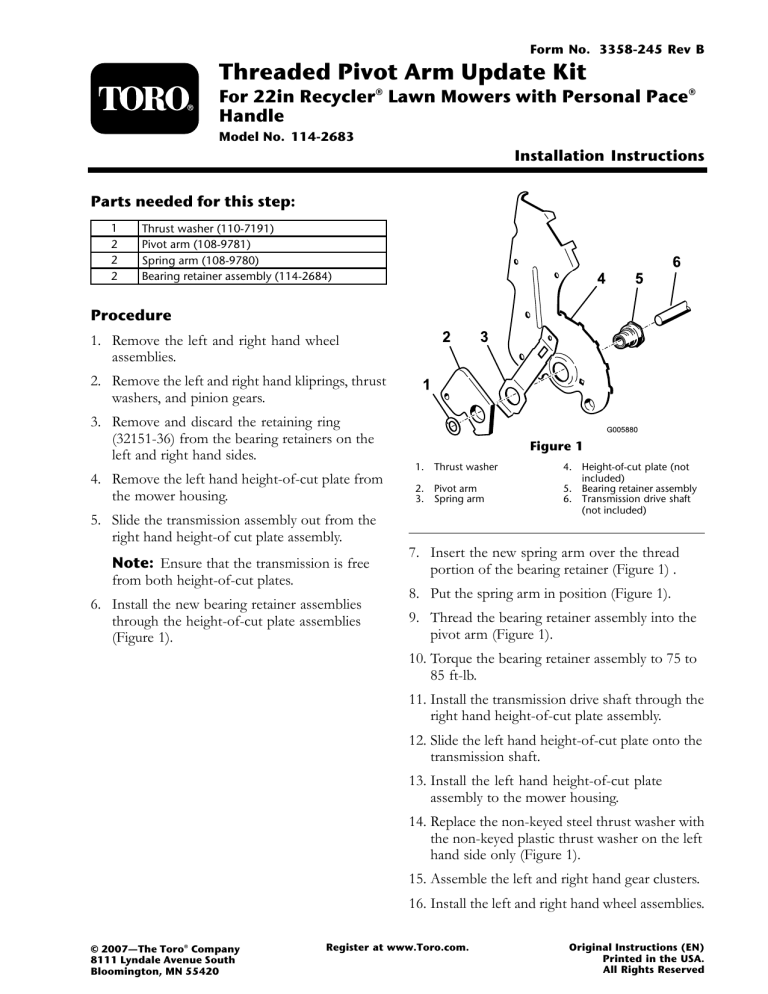

Form No. 3358-245 Rev B
Threaded Pivot Arm Update Kit
For 22in Recycler® Lawn Mowers with Personal Pace®
Handle
Model No. 114-2683
Installation Instructions
Parts needed for this step:
1
2
2
2
Thrust washer (110-7191)
Pivot arm (108-9781)
Spring arm (108-9780)
Bearing retainer assembly (114-2684)
Procedure
1. Remove the left and right hand wheel
assemblies.
2. Remove the left and right hand kliprings, thrust
washers, and pinion gears.
3. Remove and discard the retaining ring
(32151-36) from the bearing retainers on the
left and right hand sides.
4. Remove the left hand height-of-cut plate from
the mower housing.
Figure 1
1.
Thrust washer
4.
2.
3.
Pivot arm
Spring arm
5.
6.
5. Slide the transmission assembly out from the
right hand height-of cut plate assembly.
Note: Ensure that the transmission is free
from both height-of-cut plates.
6. Install the new bearing retainer assemblies
through the height-of-cut plate assemblies
(Figure 1).
Height-of-cut plate (not
included)
Bearing retainer assembly
Transmission drive shaft
(not included)
7. Insert the new spring arm over the thread
portion of the bearing retainer (Figure 1) .
8. Put the spring arm in position (Figure 1).
9. Thread the bearing retainer assembly into the
pivot arm (Figure 1).
10. Torque the bearing retainer assembly to 75 to
85 ft-lb.
11. Install the transmission drive shaft through the
right hand height-of-cut plate assembly.
12. Slide the left hand height-of-cut plate onto the
transmission shaft.
13. Install the left hand height-of-cut plate
assembly to the mower housing.
14. Replace the non-keyed steel thrust washer with
the non-keyed plastic thrust washer on the left
hand side only (Figure 1).
15. Assemble the left and right hand gear clusters.
16. Install the left and right hand wheel assemblies.
© 2007—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in the USA.
All Rights Reserved
