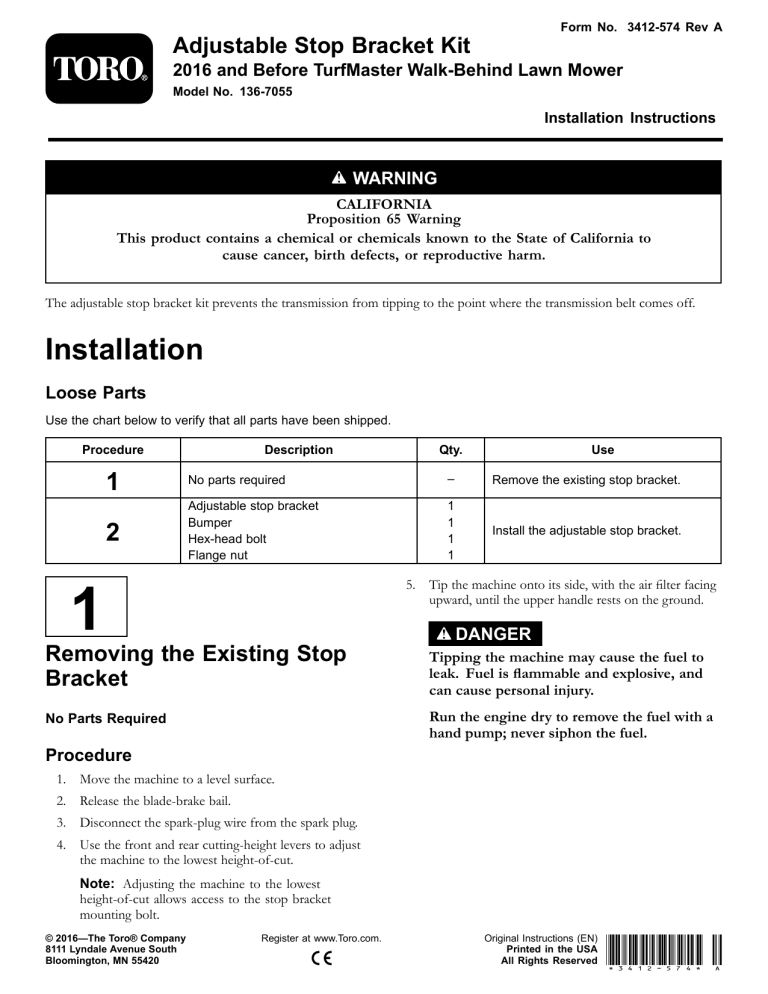

Form No. 3412-574 Rev A
Adjustable Stop Bracket Kit
2016 and Before TurfMaster Walk-Behind Lawn Mower
Model No. 136-7055
Installation Instructions
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals known to the State of California to
cause cancer, birth defects, or reproductive harm.
The adjustable stop bracket kit prevents the transmission from tipping to the point where the transmission belt comes off.
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
Description
Use
Qty.
1
No parts required
–
Remove the existing stop bracket.
2
Adjustable stop bracket
Bumper
Hex-head bolt
Flange nut
1
1
1
1
Install the adjustable stop bracket.
5. Tip the machine onto its side, with the air filter facing
upward, until the upper handle rests on the ground.
1
DANGER
Removing the Existing Stop
Bracket
Tipping the machine may cause the fuel to
leak. Fuel is flammable and explosive, and
can cause personal injury.
Run the engine dry to remove the fuel with a
hand pump; never siphon the fuel.
No Parts Required
Procedure
1. Move the machine to a level surface.
2. Release the blade-brake bail.
3. Disconnect the spark-plug wire from the spark plug.
4. Use the front and rear cutting-height levers to adjust
the machine to the lowest height-of-cut.
Note: Adjusting the machine to the lowest
height-of-cut allows access to the stop bracket
mounting bolt.
© 2016—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3412-574* A
6. Use a block of wood to hold each blade steady (Figure
1).
2
Installing the Adjustable Stop
Bracket
Parts needed for this procedure:
1
Adjustable stop bracket
1
Bumper
1
Hex-head bolt
1
Flange nut
Procedure
1. Attach the bumper to the adjustable stop bracket
(Figure 3).
g197426
Figure 1
7. Remove the existing stop bracket from the machine by
removing the bolt and the nut that secures the bracket
to the machine (Figure 2).
g196914
Figure 3
1. Adjustable stop bracket
2. Bumper
2. Use the hex-head bolt and the flange nut to install the
bracket onto the machine (Figure 4).
g197398
Figure 2
1. Bolt
2. Existing stop bracket
3. Nut
g197411
Figure 4
2
1. Hex-head bolt
3. Flange nut
2. Bracket
4. Transmission
3. Adjust the bracket so that the bumper contacts, but
does not press on, the transmission (Figure 5).
g199058
Figure 5
1. Bumper
2. Transmission
4. Torque the bolt to 16 to 20 N∙m (145 to 175 in-lb).
5. Torque the nut to 17 to 19 N∙m (150 to 170 in-lb).
6. Remove the block of wood from the blades, connect
the spark-plug wire to the spark plug, and add fuel to
the fuel tank.
3
