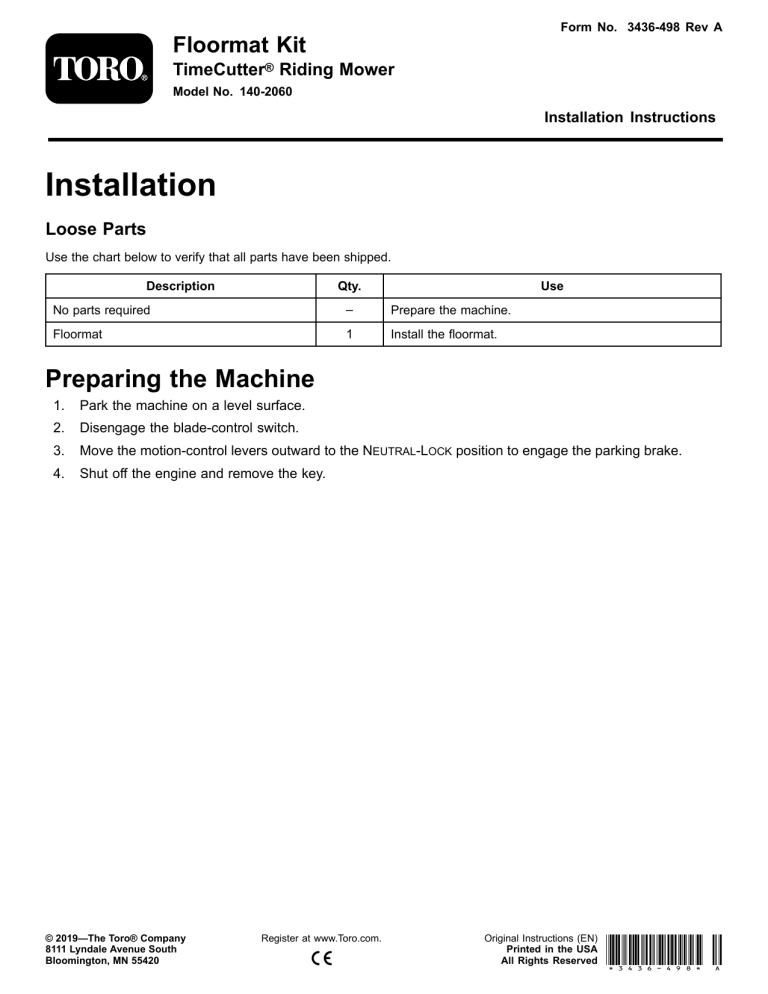

Form No. 3436-498 Rev A
Floormat Kit
TimeCutter® Riding Mower
Model No. 140-2060
Installation Instructions
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Use
Qty.
No parts required
–
Prepare the machine.
Floormat
1
Install the floormat.
Preparing the Machine
1.
Park the machine on a level surface.
2.
Disengage the blade-control switch.
3.
Move the motion-control levers outward to the NEUTRAL-LOCK position to engage the parking brake.
4.
Shut off the engine and remove the key.
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3436-498* A
Installing the Floormat
Place the floormat onto the platform (Figure 1).
g308899
Figure 1
2
