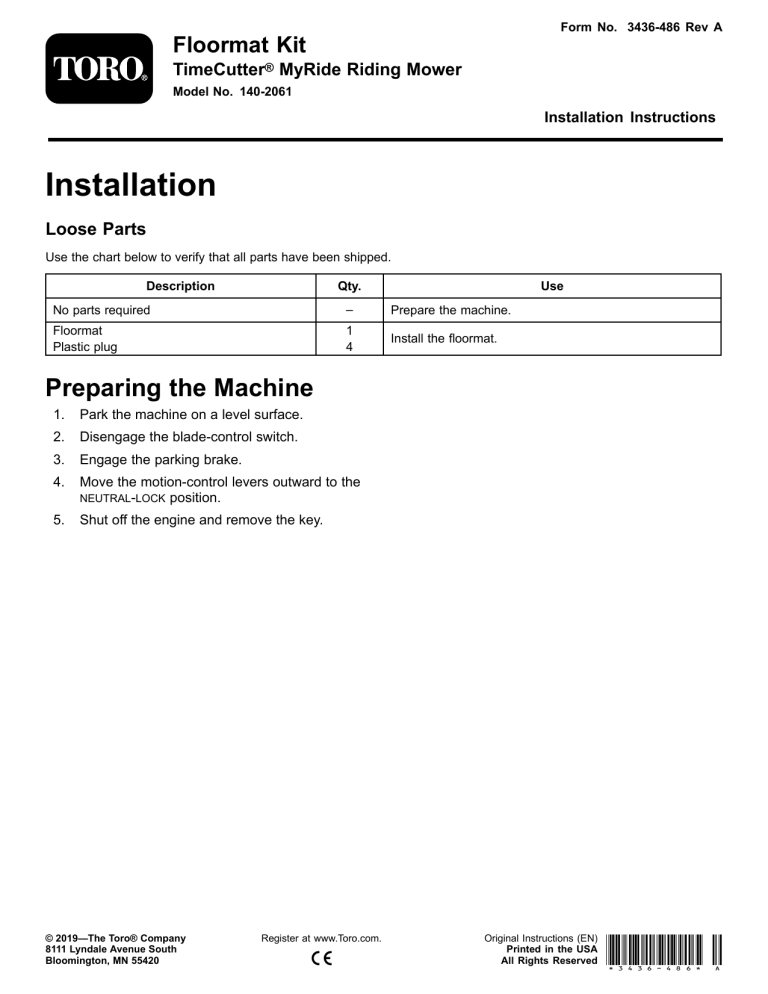

Form No. 3436-486 Rev A
Floormat Kit
TimeCutter® MyRide Riding Mower
Model No. 140-2061
Installation Instructions
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Use
Qty.
No parts required
–
Prepare the machine.
Floormat
Plastic plug
1
4
Install the floormat.
Preparing the Machine
1.
Park the machine on a level surface.
2.
Disengage the blade-control switch.
3.
Engage the parking brake.
4.
Move the motion-control levers outward to the
position.
NEUTRAL-LOCK
5.
Shut off the engine and remove the key.
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3436-486* A
Installing the Floormat
Secure the floormat to the platform using the 4 plastic plugs (Figure 1).
g307746
Figure 1
1. Plastic plug
2. Floormat
2
